Week 11 - Simulation of Flow through a pipe in OpenFoam

Objective: Simulation of flow through pipe. You need to calculate the length of the pipe Calculate length of the pipe using the entry length formula for laminar flow through a pipe Show that entry length is sufficient to produce a fully developed flow. You will have to compare velocity profiles at different positions along…

    • PHANI CHANDRA S

      updated on 05 Nov 2020

    Objective: Simulation of flow through pipe. You need to calculate the length of the pipe
    Calculate length of the pipe using the entry length formula for laminar flow through a pipe Show that entry length is sufficient to produce a fully developed flow. You will have to compare velocity profiles at different positions along the length of the pipe.

    Given:

    1. Working fluid: Water.

    2. Reynolds number based on pipe diameter and inlet velocity = 2100

    3. wedge angle should be less than 5 degrees

    Theory:

    Hagen poiseuille's Law: In non ideal fluid dynamics, Hagen-poiseuille equation is a physical law that gives pressure drop in an incompressible and newtonian fluid in a laminar flow through a long cylinder pipe of constant cross section.

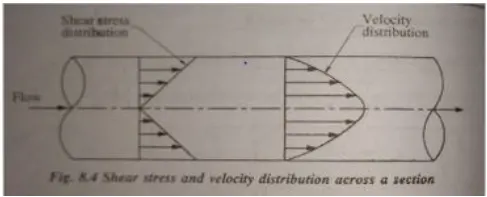

    Shear stress distribution(ττ):

    τ=−∂p∂x.r2τ=-∂p∂x.r2

    Velocity distribution:

    maximum velocity occurs at axis and is given by

    Umax=(14μ)−∂p∂x(R2−r2)Umax=(14μ)-∂p∂x(R2-r2)

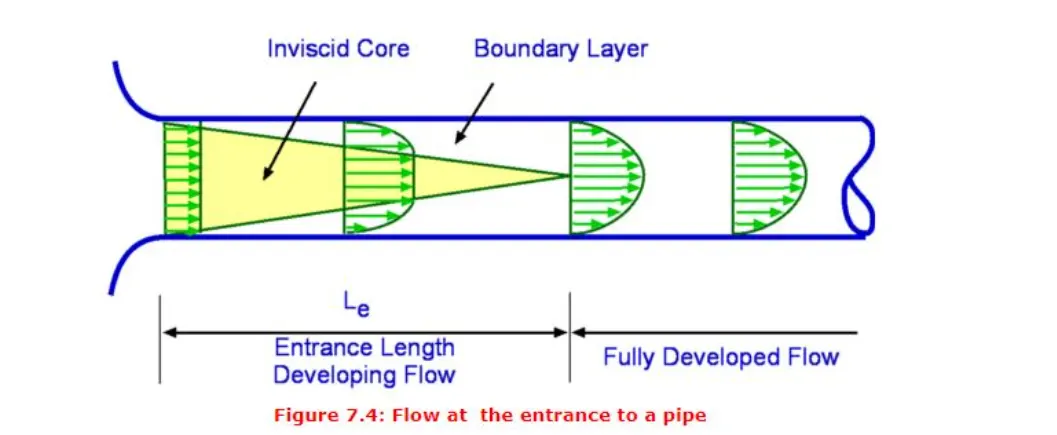

    Consider a flow entering a pipe. Let us think of the entering flow being uniform, so inviscid. As soon as the flow 'hits' the pipe many changes take place. The most important of these is that viscosity imposes itself on the flow and the No Slip" condition at the wall of the pipe comes into effect. Consequently the velocity components are each zero on the wall, ie., u = v = 0. The flow adjacent to the wall decelerates continuously. We have a layer close to the body where the velocity builds up slowly from zero at wall to a uniform velocity towards the center of the pipe. This layer is what is called the Boundary Layer. Viscous effects are dominant within the boundary layer. Outside of this layer is the inviscid core where viscous effects are negligible or absent.
    The boundary layer is not a static phenomenon; it is dynamic. it grows meaning that its thickness increases as we move downstream. From Fig. it is seen that the boundary layer from the walls grows to such an extent that they all merge on the centreline of the pipe. Once this takes place, inviscid core terminates and the flow is all viscous. The flow is now called a Fully Developed Flow. The velocity profile becomes parabolic. Once the flow is fully developed the velocity profile does not vary in the flow direction. In fact in this region the pressure gradient and the shear stress in the flow are in balance. The length of the pipe between the start and the point where the fully developed flow begins is called the Entrance Length. Denoted by Le, the entrance length is a function of the Reynolds Number of the flow. In general,
    LeD≈0.06.ReLeD≈0.06.Re for laminar flow

    LeD≈4.4.(Re)16LeD≈4.4.(Re)16 for turbulent flow

    At critical condition, i.e., Re =2300, the Le/d for a laminar flow is 138. Under turbulent conditions it ranges from 18(at Re = 4000) to 95 (at Re=10^8)
    Application decides whether a long enough entrance length is required or a shorter one is required. Take wind tunnel for instance. Here the aim is to have a uniform flow over the model in the test section. So one desires to have a longer entrance length.

    MATLAB code to create blockmeshdict file

    Here the wedge angle considered is 4 degrees.

    clear all
close all
clc

%input parameters

Re= 2100; % Reynold's Number
D= 0.02; % Diameter of pipe in meters
R=D/2; % Radius of pipe
theta = input('Enter value for Wedge angle ='); % Wedge angle
mu=1.002e-3; %Dynamic viscocity of water @ 20 degree Celsius in SI units
rho=998.21; %Density of pure water highest @ 20 degree Celsius in SI units
nu= mu/rho; %Kinematic viscocity of water @ 20 degree Celsius in SI units

% Analytical calculation of Velocity,pressure and entrance length
L_e= 0.06*Re*D; % Entrance length from inlet of pipe
L_t= L_e + 0.25*L_e; % Assumed Total length of pipe
v_avg= (Re*nu)/D; % Average velocity of water throughtout characteristic length
v_max= 2*v_avg; % Average velocity of water at center of pipe characteristic length
Delta_P= (32*mu*v_avg*L_t/D^2); % Pressure Drop
kin_P= Delta_P/rho; % Kinematic Pressure

% Finding vertices
v0= [0 0 0];
v1= [0 R*cosd(theta/2) -R*sind(theta/2)];
v2= [0 R*cosd(theta/2) R*sind(theta/2)];
v3= [L_t 0 0];
v4= [L_t R*cosd(theta/2) -R*sind(theta/2)];
v5= [L_t R*cosd(theta/2) R*sind(theta/2)];

%% Script to form blockMeshDict file.


f1 = fopen('blockMeshDict.txt','w'); %to create and write blockmesh file

fprintf(f1,'%s','/*---------------------*-C++ -*----------------------*');
fprintf(f1,'\n========             |\n');
fprintf(f1,'\\      / F ield        | OpenFOAM: The Open Source CFD Toolbox\n');
fprintf(f1,' \\    /  O peration    | Website: https://openfoam.org\n');
fprintf(f1,'  \\  /   A nd          | Version: 7\n');
fprintf(f1,'   \\/    M anipulation | \n');
fprintf(f1,'%s','*-----------------------------------------------------*/');
fprintf(f1,'\nFoamFile\n');

b1=blanks(5);
b2=blanks(6);
b3=blanks(7);
b4=blanks(4);

fprintf(f1,'{\n');
fprintf(f1,'%s','     version',b1,'2.0;');
fprintf(f1,'\n');
fprintf(f1,'%s','     format',b2,'ascii;');
fprintf(f1,'\n');
fprintf(f1,'%s','     class',b3,'dictionary;');
fprintf(f1,'\n');
fprintf(f1,'%s','     object',b2,'blockMeshDict;');
fprintf(f1,'\n');
fprintf(f1,'}\n');
fprintf(f1,'%s','// * * * * * * * * * * * * * * * * * * * * * * * * * * * //');

fprintf(f1,'\n\nconvertToMeters 1;\n\n');

% To form vertices

fprintf(f1,'vertices\n');

fprintf(f1,'(\n');
fprintf(f1,b4,'%s','(');
v_0= fprintf(f1,'(%f %f %f)\n',v0(1),v0(2),v0(3));
fprintf(f1,b4,'%s','(');
v_1= fprintf(f1,'(%f %f %f)\n',v1(1),v1(2),v1(3));
fprintf(f1,b4,'%s','(');
v_2= fprintf(f1,'(%f %f %f)\n',v2(1),v2(2),v2(3));
fprintf(f1,b4,'%s','(');
v_3= fprintf(f1,'(%f %f %f)\n',v3(1),v3(2),v3(3));
fprintf(f1,b4,'%s','(');
v_4= fprintf(f1,'(%f %f %f)\n',v4(1),v4(2),v4(3));
fprintf(f1,b4,'%s','(');
v_5= fprintf(f1,'(%f %f %f)\n',v5(1),v5(2),v5(3));
fprintf(f1,'\n);\n');

% To create blocks

fprintf(f1,'\nblocks\n');

fprintf(f1,'(\n');
fprintf(f1,b4,'%s','(');
fprintf(f1,'%s','hex (0 1 2 0 3 4 5 3)');

% to create mesh
m1= input('Enter no. of mesh element along X-axis:');
m2= input('Enter no. of mesh element along Y-axis:');
m3= input('Enter no. of mesh element along Z-axis:');

fprintf(f1,blanks(1),'%s','(');
fprintf(f1,'(%3.0f %1.0f %3.0f)',m1,m2,m3);
fprintf(f1,'%s',' simpleGrading (1 1 1)');
fprintf(f1,'\n);');

% To create edges

fprintf(f1,'\nedges\n');
fprintf(f1,'(\n');
fprintf(f1,'%s arc 1 2 (0 %f 0)',blanks(1),R);
fprintf(f1,'\n%s arc 4 5 (%f %f 0)',blanks(1),L_t,R);
fprintf(f1,'\n);\n\n');

% To apply boundary conditions

% For axis
fprintf(f1,'boundary\n(\n');
fprintf(f1,'%s','  axis');
fprintf(f1,'\n  {\n');
fprintf(f1,'%s',blanks(10),'type empty;');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(10),'faces');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(10),'(');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(13),'(0 3 3 0)');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(10),');');
fprintf(f1,'\n }\n');

% For fixedwalls
fprintf(f1,'%s','  fixedWalls');
fprintf(f1,'\n  {\n');
fprintf(f1,'%s',blanks(10),'type wall;');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(10),'faces');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(10),'(');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(13),'(2 5 4 1)');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(10),');');
fprintf(f1,'\n }\n');

% For front
fprintf(f1,'%s','  front');
fprintf(f1,'\n  {\n');
fprintf(f1,'%s',blanks(10),'type wedge;');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(10),'faces');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(10),'(');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(13),'(0 3 5 2)');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(10),');');
fprintf(f1,'\n  }\n');

% For back
fprintf(f1,'%s','  back');
fprintf(f1,'\n  {\n');
fprintf(f1,'%s',blanks(10),'type wedge;');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(10),'faces');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(10),'(');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(13),'(0 1 4 3)');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(10),');');
fprintf(f1,'\n }\n');

%For inlet
fprintf(f1,'%s',' inlet');
fprintf(f1,'\n  {\n');
fprintf(f1,'%s',blanks(10),'type patch;');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(10),'faces');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(10),'(');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(13),'(0 0 2 1)');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(10),');');
fprintf(f1,'\n }\n\n');

% For outlet
fprintf(f1,'%s','  outlet');
fprintf(f1,'\n  {\n');
fprintf(f1,'%s',blanks(10),'type patch;');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(10),'faces');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(10),'(');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(13),'(3 4 5 3)');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(10),');');
fprintf(f1,'\n  }\n\n');

fprintf(f1,'\n);\n');

fprintf(f1,'\nmergePatchPairs');
fprintf(f1,'\n(\n);\n\n');

fprintf(f1,'%s','// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //');


fclose(f1);



    blockMeshDict file:

    /*---------------------*-C++ -*----------------------*
========             |
\      / F ield        | OpenFOAM: The Open Source CFD Toolbox
 \    /  O peration    | Website: https://openfoam.org
  \  /   A nd          | Version: 7
   \/    M anipulation |
*-----------------------------------------------------*/
FoamFile
{
     version     2.0;
     format      ascii;
     class       dictionary;
     object      blockMeshDict;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * //

convertToMeters 1;

vertices
(
    (0.000000 0.000000 0.000000)
    (0.000000 0.009994 -0.000349)
    (0.000000 0.009994 0.000349)
    (3.150000 0.000000 0.000000)
    (3.150000 0.009994 -0.000349)
    (3.150000 0.009994 0.000349)

);

blocks
(
    hex (0 1 2 0 3 4 5 3) ( 50 1 100) simpleGrading (1 1 1)
);
edges
(
  arc 1 2 (0 0.010000 0)
  arc 4 5 (3.150000 0.010000 0)
);

boundary
(
  axis
  {
          type empty;
          faces
          (
             (0 3 3 0)
          );
 }
  fixedWalls
  {
          type wall;
          faces
          (
             (2 5 4 1)
          );
 }
  front
  {
          type wedge;
          faces
          (
             (0 3 5 2)
          );
  }
  back
  {
          type wedge;
          faces
          (
             (0 1 4 3)
          );
 }
 inlet
  {
          type patch;
          faces
          (
             (0 0 2 1)
          );
 }

  outlet
  {
          type patch;
          faces
          (
             (3 4 5 3)
          );
  }


);

mergePatchPairs
(
);

// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //



    Pressure:

    /*--------------------------------*- C++ -*----------------------------------*\
  =========                 |
  \\      /  F ield         | OpenFOAM: The Open Source CFD Toolbox
   \\    /   O peration     | Website:  https://openfoam.org
    \\  /    A nd           | Version:  7
     \\/     M anipulation  |
\*---------------------------------------------------------------------------*/
FoamFile
{
    version     2.0;
    format      ascii;
    class       volScalarField;
    object      p;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //

dimensions      [0 2 -2 0 0 0 0];

internalField   uniform 0;

boundaryField
{
    axis
    {
        type            empty;
    }

    fixedWalls
    {
        type            zeroGradient;
    }

    front
    {
        type            wedge;
    }

    back
    {
        type            wedge;
    }

    inlet
    {
        type            zeroGradient;
    }

    outlet
    {
        type             fixedValue;
        value            uniform 0.026661;
    }
}

// ************************************************************************* //



    velocity:

    /*--------------------------------*- C++ -*----------------------------------*\
  =========                 |
  \\      /  F ield         | OpenFOAM: The Open Source CFD Toolbox
   \\    /   O peration     | Website:  https://openfoam.org
    \\  /    A nd           | Version:  7
     \\/     M anipulation  |
\*---------------------------------------------------------------------------*/
FoamFile
{
    version     2.0;
    format      ascii;
    class       volVectorField;
    object      U;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //

dimensions      [0 1 -1 0 0 0 0];

internalField   uniform (0 0 0);

boundaryField
{
    axis
    {
        type            empty;
    }

    fixedWalls
    {
        type            noSlip;
    }

    front
    {
        type            wedge;
    }

    back
    {
        type            wedge;
    }

    inlet
    {
        type            fixedValue;
        value           uniform (0.1054 0 0);
    }

    outlet
    {
         type           zeroGradient;
    }
}

// ************************************************************************* //



    Transport properties:

    based on the diameter and velocity, Kinematic viscosity changes.

    nu is given by

    Re = D.Vavg/nu



    /*--------------------------------*- C++ -*----------------------------------*\
  =========                 |
  \\      /  F ield         | OpenFOAM: The Open Source CFD Toolbox
   \\    /   O peration     | Website:  https://openfoam.org
    \\  /    A nd           | Version:  7
     \\/     M anipulation  |
\*---------------------------------------------------------------------------*/
FoamFile
{
    version     2.0;
    format      ascii;
    class       dictionary;
    location    "constant";
    object      transportProperties;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //

nu              [0 2 -1 0 0 0 0] 1e-6;


// ************************************************************************* //



    Results:

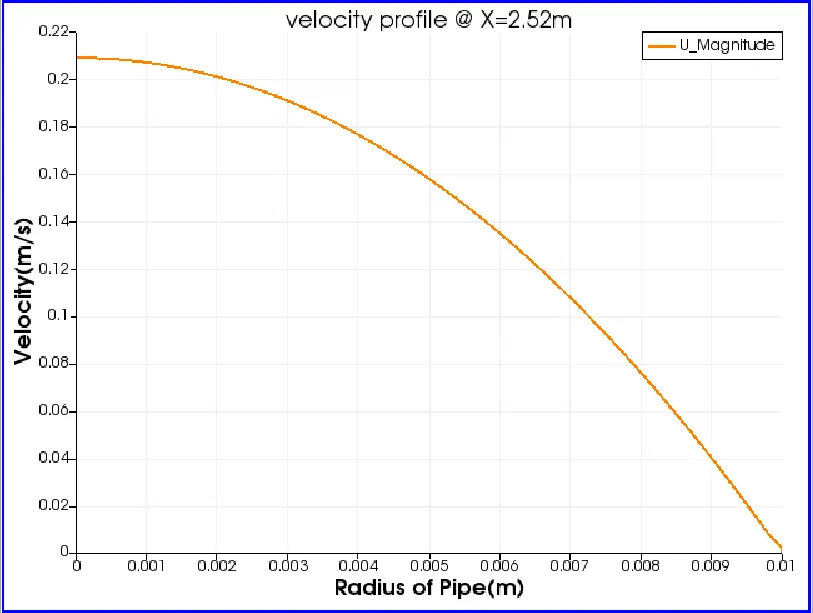

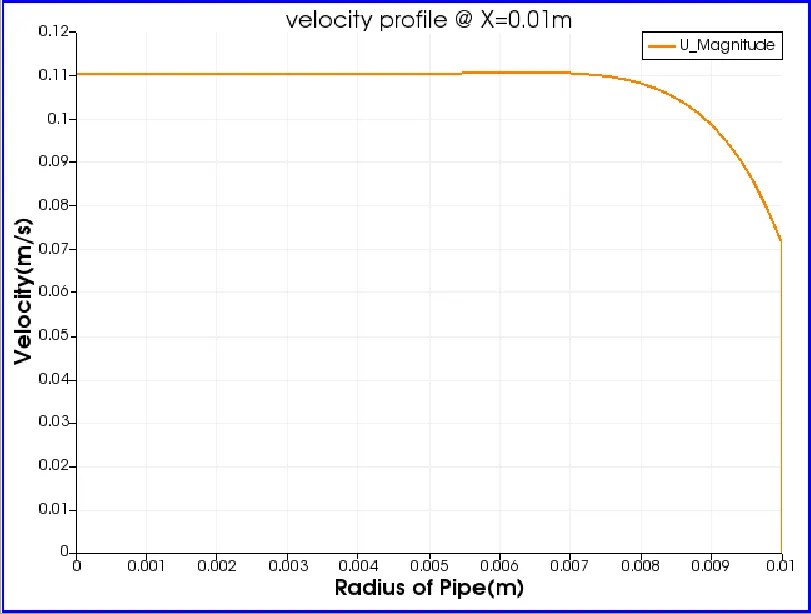

    As we can see from the above figures that, velocity profile near entrance of pipe i.e. at X=0.01 m is not completly developed due no slip condition imposed on the walls, on other hand @ X=2.5m flow is fully developed.

    Leave a comment

    Thanks for choosing to leave a comment. Please keep in mind that all the comments are moderated as per our comment policy, and your email will not be published for privacy reasons. Please leave a personal & meaningful conversation.

    Please  login to add a comment

    Other comments...

    No comments yet!
    Be the first to add a comment

    Read more Projects by PHANI CHANDRA S (40)

    Week 11: Project 2 - Emission characterization on a CAT3410 engine

    Objective:

    Objective :1. The CAT3140 engine f or open-W and omega piston models generates a sector geometry of t he combustion chambers.2. To simulate t he t wo-sector profiles with t he same parameters.3. To analyze and compare t he different operative conditions of both configurations and compare t heir performanceparameters.4.…

    calendar

    22 Sep 2021 10:07 AM IST

      Read more

      Week 10: Project 1 - FULL HYDRO case set up (PFI)

      Objective:

      Objective● To simulate t he Port f uel i njection engine using Converge t o determine i ts performance &emissionsPort Fuel I njection:P ort f uel-injection systems l ong ago replaced carburettors i n cars becauseof t heir efficiency and l ower maintenance requirements. With port f uel-injection, gasoline i ssprayed…

      calendar

      22 Sep 2021 09:57 AM IST

        Read more

        Week 8: Literature review - RANS derivation and analysis

        Objective:

        Aim: To derive the Reynolds Averaged Navir Stokes(RANS) Equations. Objective: To find the expressions for reynolds stress by applying Reynolds decomposition to the Navier-Stokes equations. Also understanding the difference between the turbulent viscosity and molecular velocity. Literature Review: The fluid flow is bascially…

        calendar

        22 Sep 2021 09:52 AM IST

          Read more

          Week 7: Shock tube simulation project

          Objective:

          AIM: To perform shock tube simulation. PROCEDURE:  The model is imported to the converge studio software and the boundary flagging is done.                                                      The case setup consists of the following things,and all the fields are setup for the simulation                     Setup: Material…

          calendar

          22 Sep 2021 09:50 AM IST

            Read more

            Schedule a counselling session

            Please enter your name
            Please enter a valid email
            Please enter a valid number

            Related Courses

            coursecard

            Design loads considered on bridges

            Recently launched

            10 Hours of Content

            coursecard

            Design of Steel Superstructure in Bridges

            Recently launched

            16 Hours of Content

            coursecard

            Design for Manufacturability (DFM)

            Recently launched

            11 Hours of Content

            coursecard

            CATIA for Medical Product Design

            Recently launched

            5 Hours of Content

            coursecardcoursetype

            Accelerated Career Program in Embedded Systems (On-Campus) Courseware Partner: IT-ITes SSC nasscom

            Recently launched

            0 Hours of Content

            Schedule a counselling session

            Please enter your name
            Please enter a valid email
            Please enter a valid number

            logo

            Skill-Lync offers industry relevant advanced engineering courses for engineering students by partnering with industry experts.

            https://d27yxarlh48w6q.cloudfront.net/web/v1/images/facebook.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/insta.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/twitter.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/youtube.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/linkedin.svg

            Our Company

            News & EventsBlogCareersGrievance RedressalSkill-Lync ReviewsTermsPrivacy PolicyBecome an Affiliate
            map
            EpowerX Learning Technologies Pvt Ltd.
            4th Floor, BLOCK-B, Velachery - Tambaram Main Rd, Ram Nagar South, Madipakkam, Chennai, Tamil Nadu 600042.
            mail
            info@skill-lync.com
            mail
            ITgrievance@skill-lync.com

            Top Individual Courses

            Computational Combustion Using Python and CanteraIntroduction to Physical Modeling using SimscapeIntroduction to Structural Analysis using ANSYS WorkbenchIntroduction to Structural Analysis using ANSYS Workbench

            Top PG Programs

            Post Graduate Program in Hybrid Electric Vehicle Design and AnalysisPost Graduate Program in Computational Fluid DynamicsPost Graduate Program in CADPost Graduate Program in Electric Vehicle Design & Development

            Skill-Lync Plus

            Executive Program in Electric Vehicle Embedded SoftwareExecutive Program in Electric Vehicle DesignExecutive Program in Cybersecurity

            Trending Blogs

            Heat Transfer Principles in Energy-Efficient Refrigerators and Air Conditioners Advanced Modeling and Result Visualization in Simscape Exploring Simulink and Library Browser in Simscape Advanced Simulink Tools and Libraries in SimscapeExploring Simulink Basics in Simscape

            © 2025 Skill-Lync Inc. All Rights Reserved.

                        Do You Want To Showcase Your Technical Skills?
                        Sign-Up for our projects.
