Week 7: Shock tube simulation project

AIM: To perform shock tube simulation.

PROCEDURE:

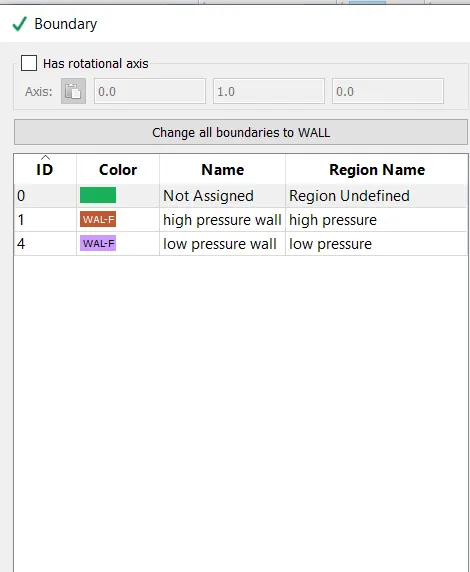

• The model is imported to the converge studio software and the boundary flagging is done.

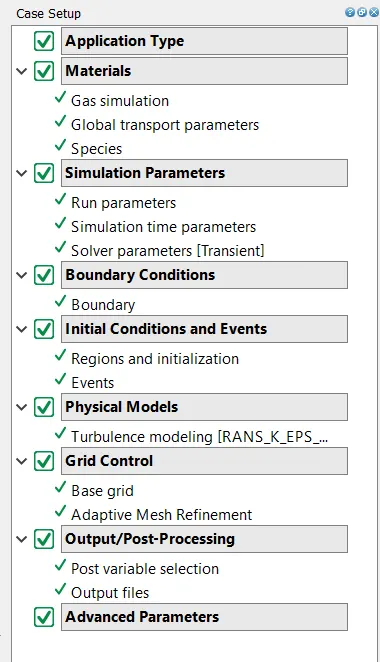

• The case setup consists of the following things,and all the fields are setup for the simulation



Setup:

• Material - Air
• Species = N2 & O2
• Run parameters - Transient state solver,compressible and full hydrodynamic

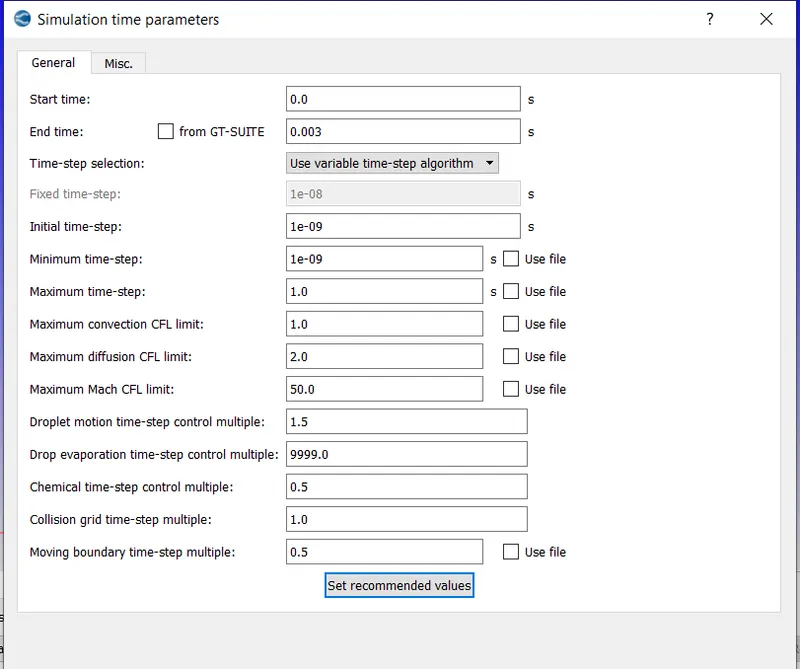

• Simulation time parameters

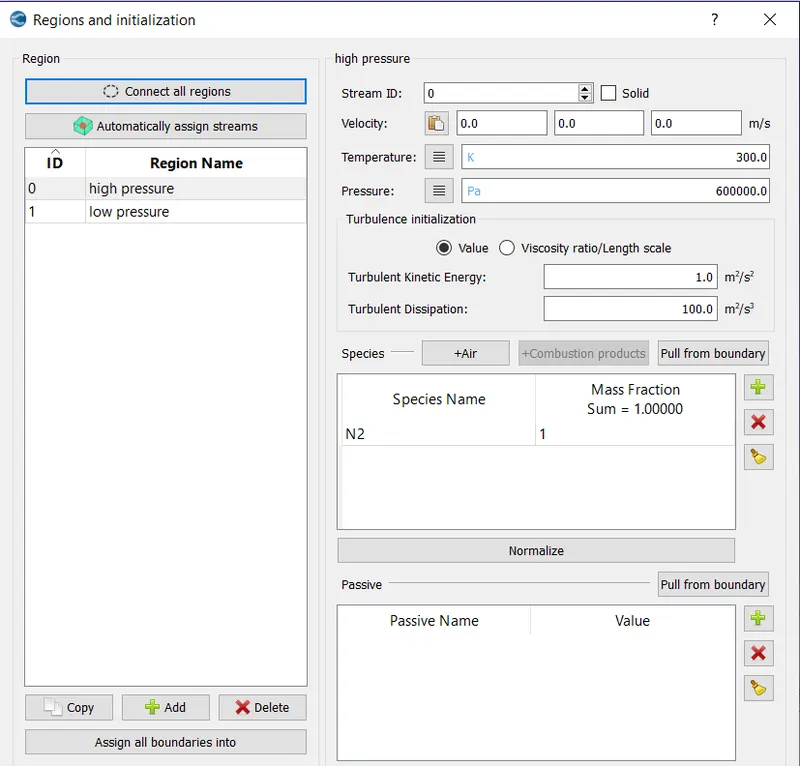

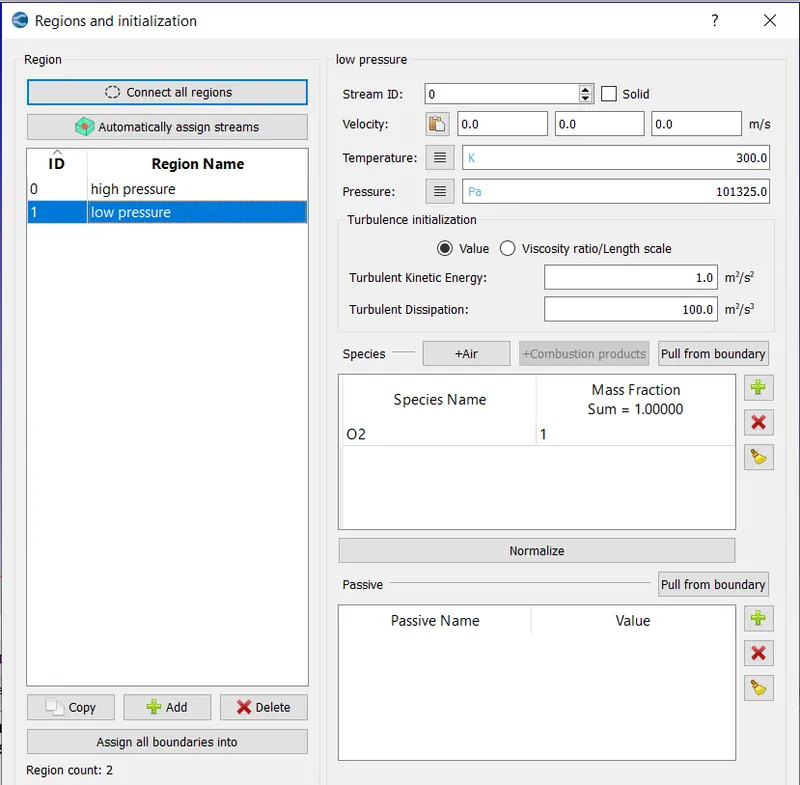

• Regions and initialisation

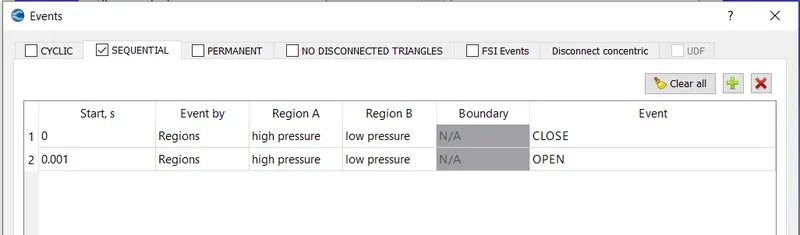

• Events

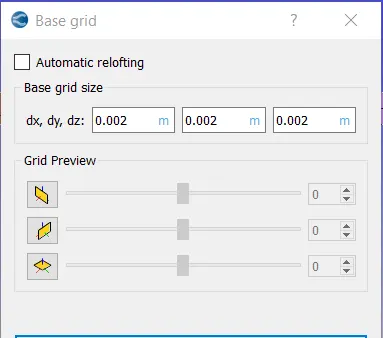

• base grid

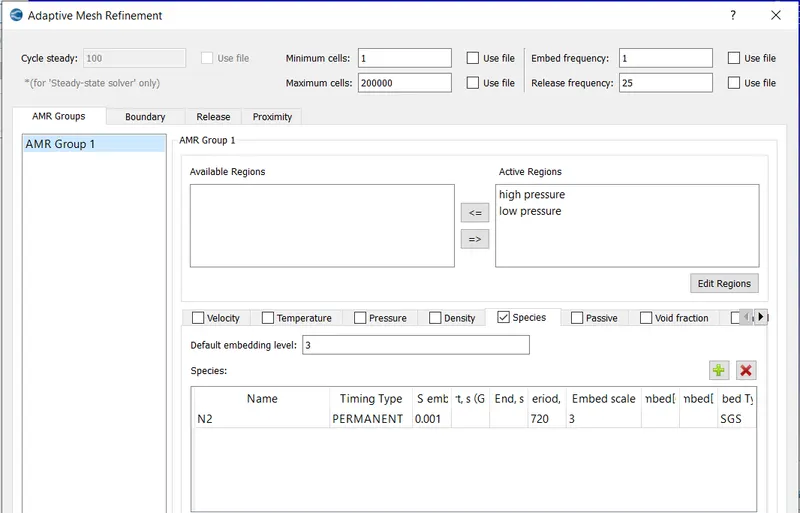

• adaptive mesh refinement

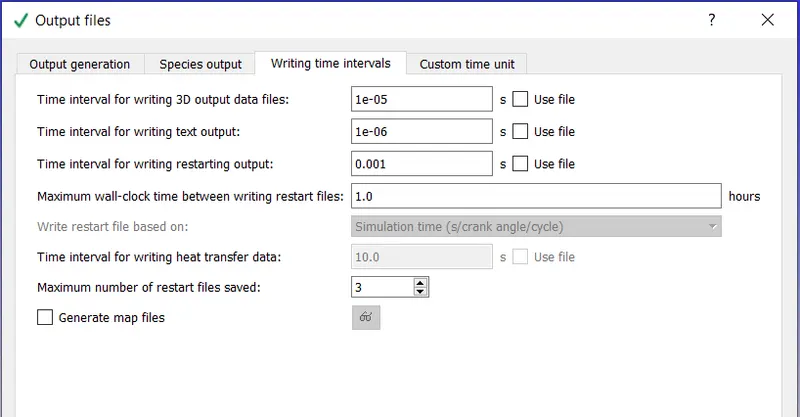

• output
