Introduction to Battery Technology for Electric Vehicles using MATLAB & Simulink Week 10 Thermal Management Q.Prepare a report summarizing…
prasad khindkar
updated on 23 Oct 2020
Introduction to Battery Technology for Electric Vehicles using MATLAB & Simulink
Q.Prepare a report summarizing thermal management techniques for electric car battery pack.
Ans=>
Thermal management has become a hot topic for automakers and suppliers. That's because optimal battery performance depends on keeping the battery pack from getting too warm — or too cold.
"Batteries are happy at basically human temperatures".
Batteries heat up during driving, when the electricity is flowing out, and during charging, especially fast-charging, when power is flowing in. Ambient conditions around the pack can also heat the battery.
If the cells heat up too much, they can initiate the same reaction in adjacent cells, causing a domino effect, or "propagation" reaction. That's thermal runaway.
Operating or charging a battery in cold conditions results in reduced capacity, accelerated cell degradation and reduced efficiency, whilst increased temperatures also result in reduced capacity. It also has serious implications for safety, with thermal runaway being a major concern. If a cell becomes too hot a thermal runaway may be triggered whereby after the initial event, neighbouring cells are also ignited resulting in chain reaction which can lead to fire and potentially an explosion.
Whilst thermal management is a key consideration for any electric vehicle, there is no consensus on the best design.
Thus, there is requirement of Thermal Management System & importance of a cooling system.So which cooling method is best in Electric Vehicles, Depends on the automaker and the vehicle architecture.
Options include
= Air cooling,
= Direct or Indirect liquid cooling,
= refrigerants or even "Phase Change Materials," which absorb and release heat by melting and resolidifying.

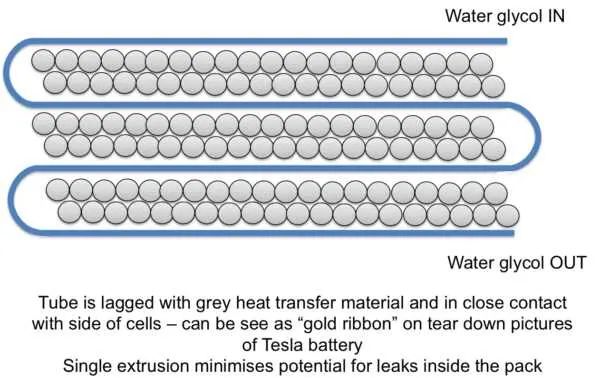

=>Companies like Tesla use many cylindrical cells in their packs with an interweaved water-glycol coolant circuit, BMW use prismatic cells with a large refrigerant cooled plate beneath and players like Nissan and Toyota are dedicated to the continued use of air cooling.
ELECTRIC VEHICLE THERMAL MANAGEMENT SYSTEM
While advancements have been made in electric vehicle batteries that allow them to deliver more power and require less frequent charges, one of the biggest challenges that remains for battery safety is the ability to design an effective cooling system.
In electric cars, discharging the battery generates heat; the more rapidly you discharge a battery, the more heat it generates.
Batteries work based on the principle of a voltage differential, and at high temperatures, the electrons inside become excited which decreases the difference in voltage between the two sides of the battery. Because batteries are only manufactured to work between certain temperature extremes, they will stop working if there is no cooling system to keep it in a working range. Cooling systems need to be able to keep the battery pack in the temperature range of about 20-40 degrees Celsius, as well as keep the temperature difference within the battery pack to a minimum (no more than 5 degrees Celsius).
If there is a large internal temperature difference, it can lead to different charge and discharge rates for each cell and deteriorate the battery pack performance.
Potential thermal stability issues, such as capacity degradation, thermal runaway, and fire explosion, could occur if the battery overheats or if there is non-uniform temperature distribution in the battery pack. In the face of life-threatening safety issues, innovation is continually happening in the electric vehicle industry to improve battery cooling system.
ELECTRIC VEHICLE COOLING SYSTEMS
Which cooling system works best in Electric Vehicles?
Battery thermal management systems are still a highly researched topic, and what we know about them is going to change and develop over the coming years as engineers continue to rethink how our car engines work.
There are a few options to cool an electric car battery—with phase change material, fins, air, or a liquid coolant.

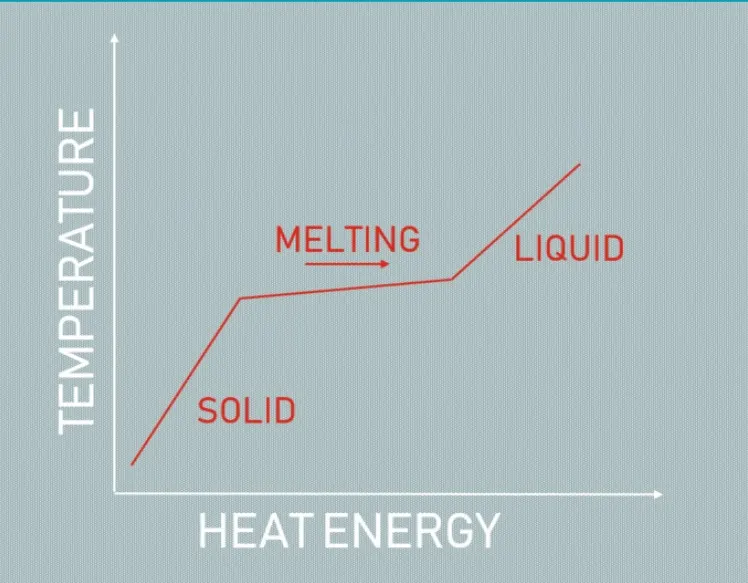

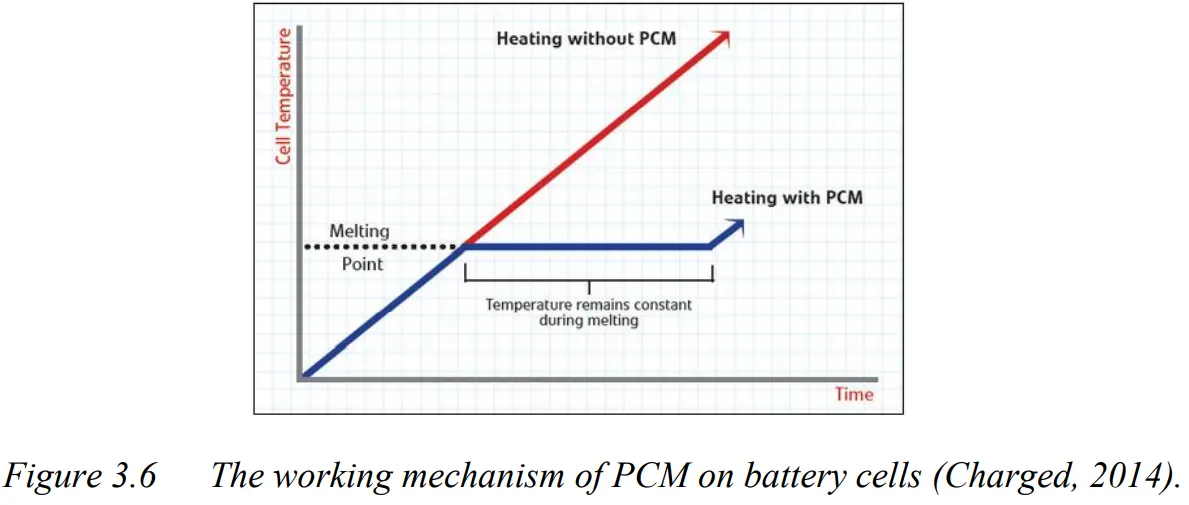

1. Phase change material absorbs heat energy by changing state from solid to liquid. While changing phase, the material can absorb large amounts of heat with little change in temperature. Phase change material cooling systems can meet the cooling requirements of the battery pack, however the volume change that occurs during a phase change restricts its application. Also, phase change material can only absorb heat generated, not transfer it away, which means that it won’t be able to reduce overall temperature as well as other systems.
Although not favorable for use in vehicles, phase change materials can be useful for improving thermal performance in buildings by reducing internal temperature fluctuations and reducing peak cooling loads.

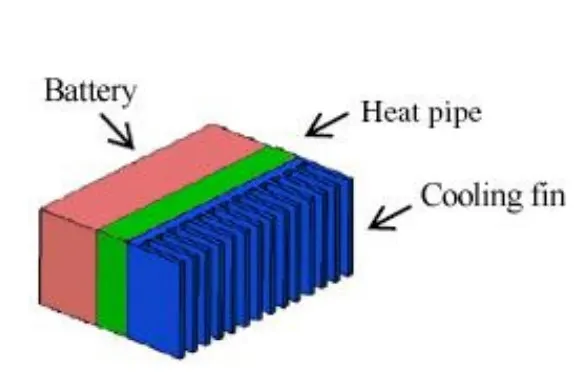

2. Cooling fins increase surface area to increase the rate of heat transfer. Heat is transferred from the battery pack to the fin through conduction, and from the fin to the air through convection. Fins have a high thermal conductivity and can achieve cooling goals, but they add a lot of additional weight to the pack. The use of fins has found a lot of success in electronics, and traditionally they have been used as an additional cooling system on internal combustion engine vehicles. Using fins to cool the electric car battery has fallen out of favor, since the additional weight of the fins outweighs the cooling benefits.

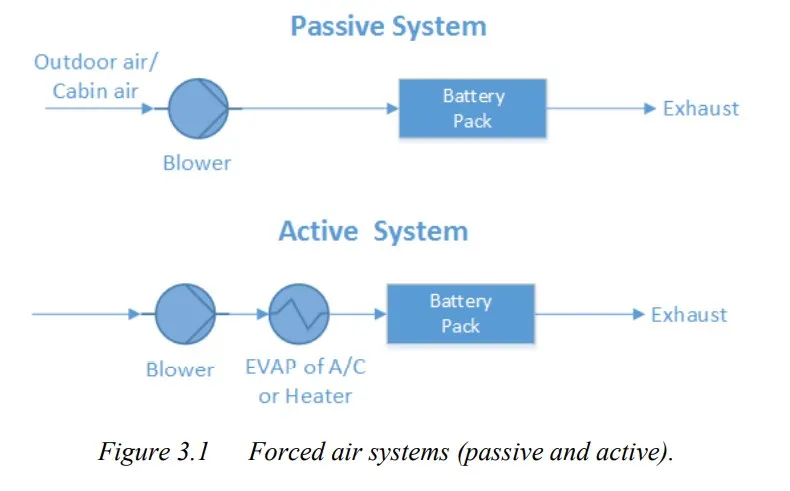

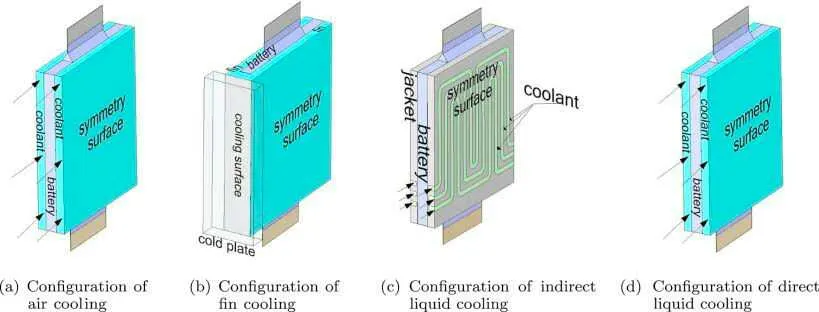

3. Air cooling uses the principle of convection to transfer heat away from the battery pack. As air runs over the surface, it will carry away the heat emitted by the pack. Air cooling is simple and easy, but not very efficient and relatively crude compared to liquid cooling. Air cooling is used in earlier versions of electric cars, such as the Nissan Leaf. As electric cars are now being used more commonly, safety issues have arisen with purely air-cooled battery packs, particularly in hot climates. Other car manufacturers, such as Tesla, insist that liquid cooling is the safest method.

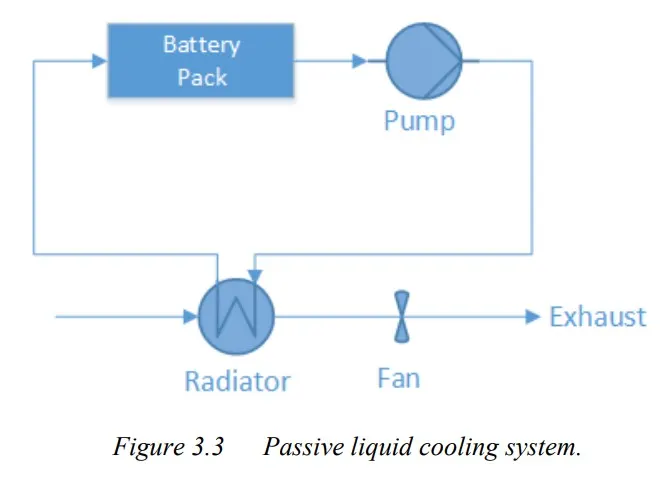

4. Liquid coolants have higher heat conductivity and heat capacity (ability to store heat in the form of energy in its bonds) than air, and therefore performs very effectively and owns advantages like compact structure and ease of arrangement. Out of these options, liquid coolants will deliver the best performance for maintaining a battery pack in the correct temperature range and uniformity. Liquid cooling systems have their own share of safety issues related to leaking and disposal, as glycol can be dangerous for the environment if handled improperly. These systems are currently used by Tesla, Jaguar, and BMW, to name a few.

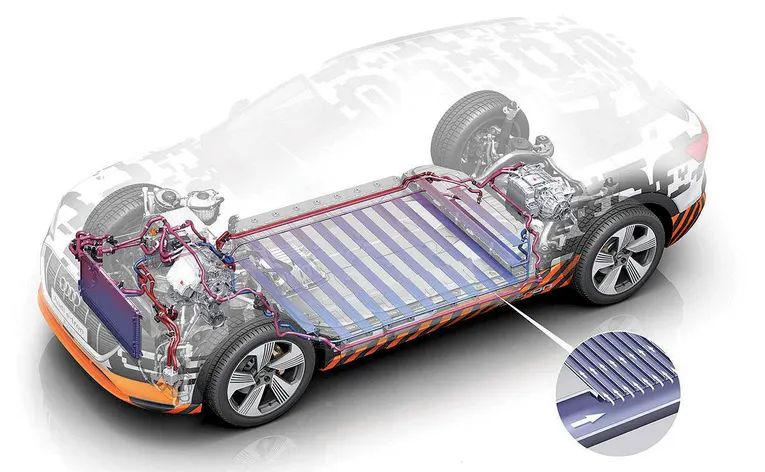

The Audi e-tron uses a liquid cooling system.

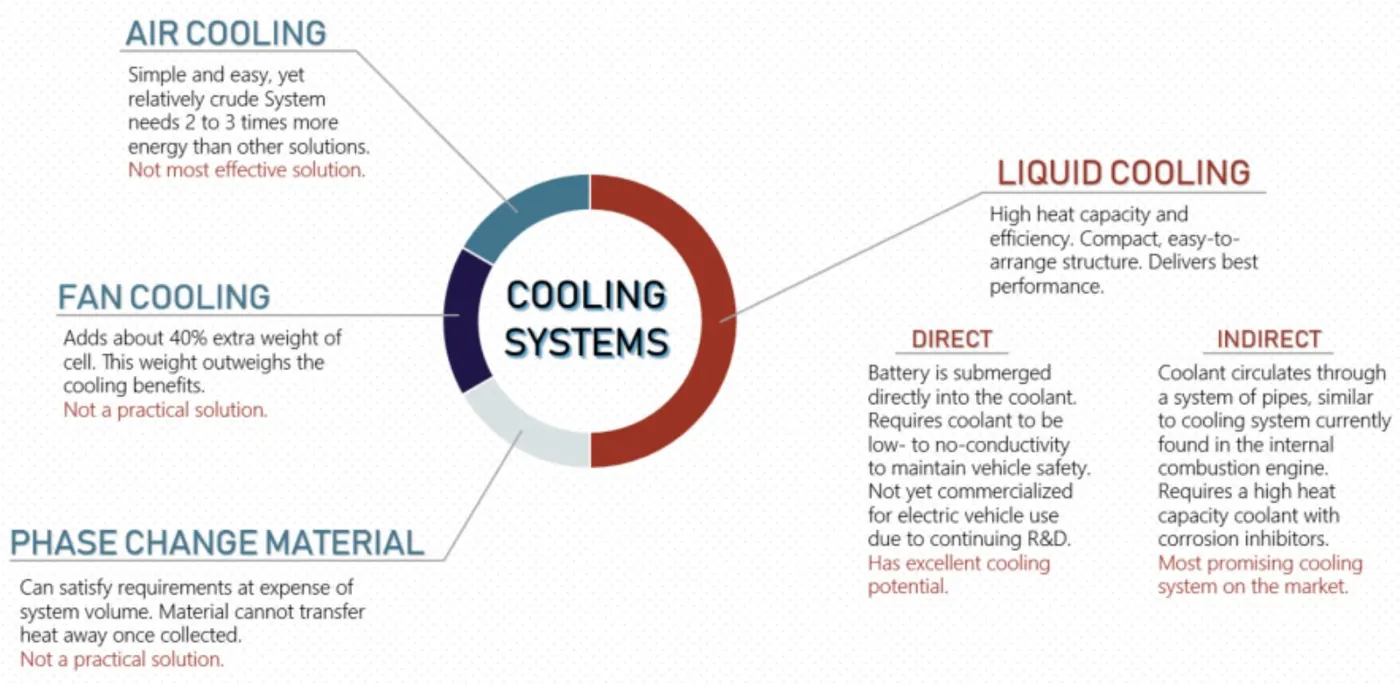

The determining features of an electric vehicle battery cooling system are temperature range and uniformity, energy efficiency, size, weight, and ease of usage (i.e. implementation, maintenance).
Each of these proposed systems can be designed to achieve the correct temperature range and uniformity. Energy efficiency is more difficult to achieve, as the cooling effects need to be greater than the heat generated when powering the cooling system. Also, a system with too much additional weight will drain energy from the car as it outputs power.
Phase change material, fan cooling, and air cooling all fail at the energy efficiency and size and weight requirements, though they may be just as easy to implement and maintain as liquid cooling. Liquid cooling is the only remaining option that does not consume too much parasitic power, delivers cooling requirements, and fits compactly and easily into the battery pack. Tesla, BMW i-3 and i-8, Chevy Volt, Ford Focus, Jaguar i-Pace, and LG Chem’s lithium-ion batteries all use some form of liquid cooling system. Since electric vehicles are still a relatively new technology, there have been problems maintaining temperature range and uniformity in extreme temperatures even when using a liquid cooling system. These are likely due to manufacturing problems, and as companies gain experience developing these systems, the thermal management issues should be resolved.

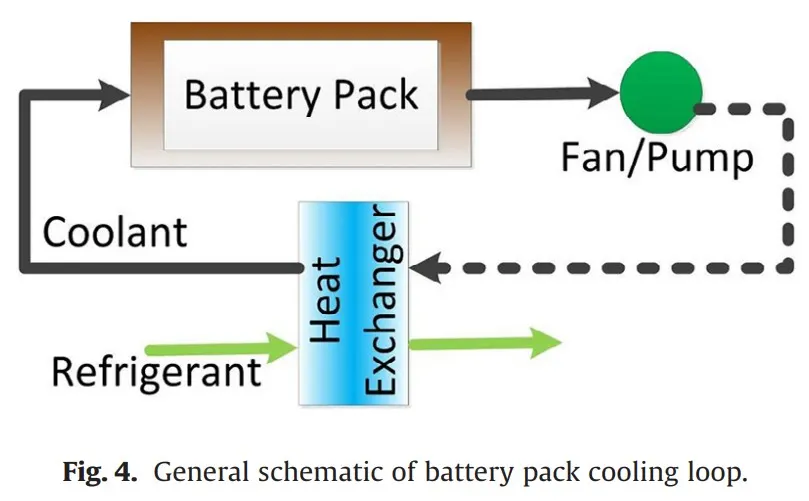

Within liquid cooling systems, there is another division between direct and indirect cooling—whether the cells are submerged in the liquid or if the liquid is pumped through pipes.

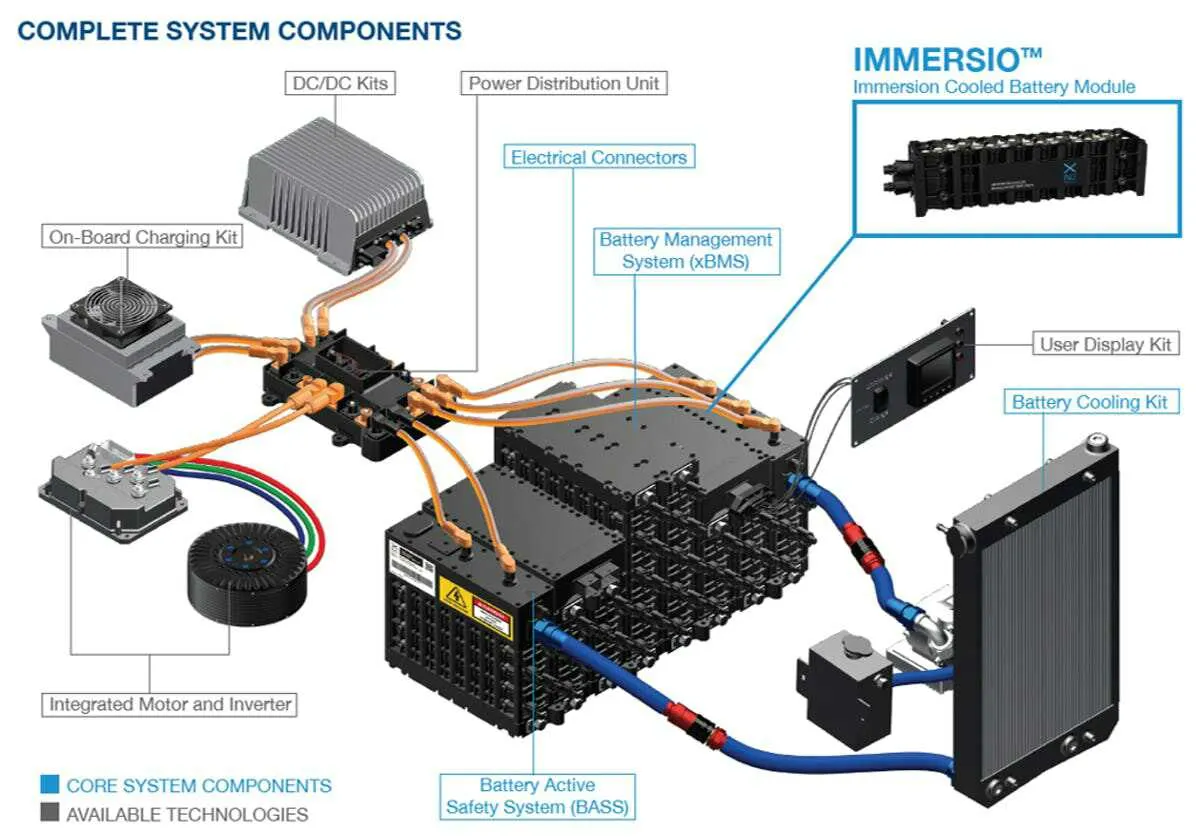

1. Direct cooling systems place the battery cells in direct contact with the coolant liquid. These thermal management schemes are currently in the research and development stage, with no cars on the market using this system. Direct cooling is more difficult to achieve, due to the fact that a new type of coolant is required. Because the battery is in contact with the liquid, the coolant needs to have low to no conductivity.

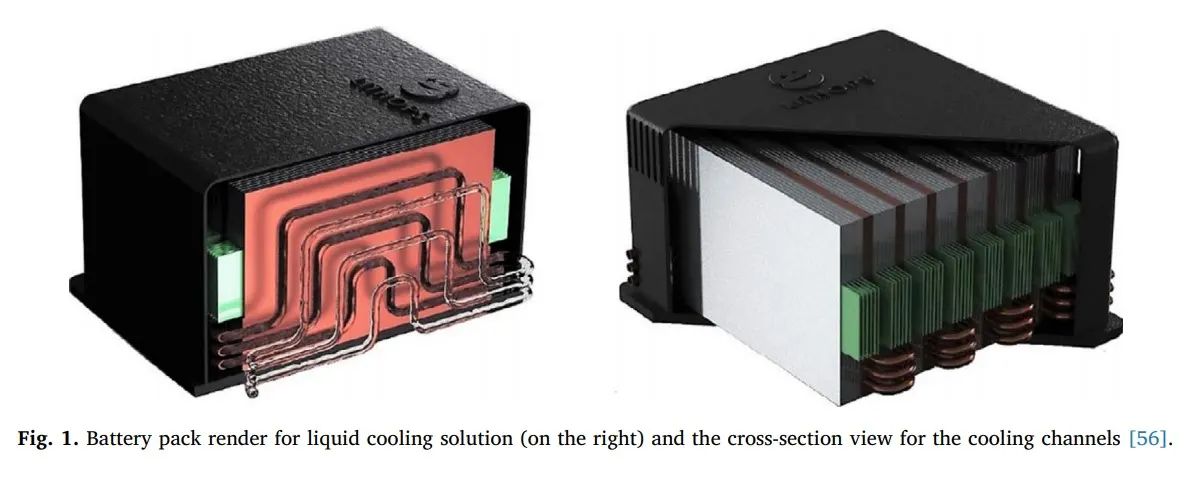

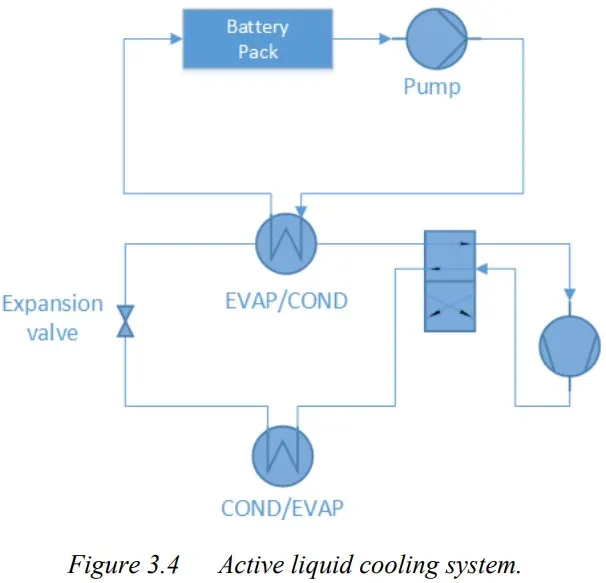

2. Indirect cooling systems are similar to ICE cooling systems in that both circulate liquid coolant through a series of metal pipes. However, the construction of the cooling system will look much different in electric vehicles. The structure of the cooling system that achieves maximum temperature uniformity is dependent on the shape of the battery pack and will look different for each car manufacturer.
REQUIREMENTS FOR LIQUID COOLANTS
Making coolants safe and effective
Given that liquid cooling is the most efficient and practical method of cooling battery packs, and currently the most widely used, attention needs to be given to the type of coolant used in these systems.
The indirect liquid cooling systems for electric vehicles and the conventional internal combustion engine (ICE) cooling system are very similar: both circulate coolant throughout a series of metal pipes to transfer heat away from the battery pack or engine. Therefore, coolant requirements for indirect liquid cooling systems will be very similar to traditional ICE coolants. 99% of the coolant is a commodity such as glycol or polyglycol, but the 1% additive package is what separates good from great engine protection and performance.
When circulating a liquid coolant throughout metal piping, it is important to protect against corrosion to protect vehicle safety and performance.
Metal is very unstable, so it naturally wants to react with other elements by losing electrons to move to a more stable state. Corrosion happens because impurities in the coolant liquid have a positive charge on them, so they interact with the metal pipes and strip away some of the surface. Additive packages can be blended with antifreeze to form a coolant that protects against rust, scale, and corrosion. The additive packages used in ICE vehicles contain corrosion inhibitors to protect the many types of metals found in cooling systems, such as the pipes, gaskets, connections, radiator, etc. The American Society for Testing and Materials maintains standards that coolants must meet for protection against the corrosion of different metal types. What is currently known about corrosion prevention in internal combustion engine cooling systems can be easily applied to the indirect liquid cooling system in electric vehicles.
There are different coolant requirements for direct liquid cooling systems. In systems where the battery will be directly exposed to the coolant, such as with Fuel Cell Vehicles or direct liquid cooling, the coolant needs to be a low to no conductivity fluid. This is going to be very different from conventional ICE coolants that have a high conductivity. The reason for needing low/no conductivity is due to safety: electrons are flowing throughout the battery, and if they are exposed to a high conductivity fluid, this will lead to failure and explosion. Some examples of ways to keep coolant conductivity low are using deionized water as a medium for the fluid, or to having a non-salt-based fluid medium. These low- and noconductivity coolants are in the early stages of research and development.
Since electric vehicles have become so widely used, there is a high demand for longer battery life and higher power output. To achieve this, the battery thermal management systems will need to be able to transfer heat away from the battery pack as they are charged and discharged at higher rates. The heat generated as the battery is used can pose safety threats to the passengers. Due to the high stress and temperatures generated by the batteries, there is an even higher importance on having the correct coolant and additive package. While companies such as Tesla, BMW, and LG Chem can use a traditional liquid coolant for their indirect cooling systems, continued research and development will need to be done on battery packs and coolants to advance electric vehicle safety.
