Week 1 Understanding Different Battery Chemistry

Q1)Prepare a table which includes materials & chemical reactions occurring at the anode and cathode of LCO, LMO, NCA, NMC, LFP and LTO type of lithium ion cells.Give your detailed explanation on it

Lithium-ion batteries are the most popular type of rechargeable battery in use today. They are used in a wide variety of devices, from portable electronics such as smartphones and laptops to electric vehicles and grid storage.

Lithium-ion batteries work by moving lithium ions between a positive electrode (cathode) and a negative electrode (anode) through an electrolyte.When the battery is discharging, lithium ions flow from the anode to the cathode, generating an electric current.When the battery is charging, the process is reversed, and lithium ions flow from the cathode to the anode.

Lithium-ion batteries have several advantages over other types of rechargeable batteries, such as:

• High energy density: Lithium-ion batteries can store more energy per unit weight and volume than other types of rechargeable batteries.This makes them ideal for use in portable devices.
• Long lifespan: Lithium-ion batteries can typically be recharged hundreds or even thousands of times before they need to be replaced.
• Low self-discharge: Lithium-ion batteries lose very little charge when they are not in use.
• No memory effect: Unlike some other types of rechargeable batteries, lithium-ion batteries do not suffer from a memory effect, which means that they can be partially charged and discharged without harming their capacity.

However, lithium-ion batteries also have some disadvantages, such as:

• Cost: Lithium-ion batteries are more expensive than some other types of rechargeable batteries.
• Safety: Lithium-ion batteries can be dangerous if they are damaged or overheated. They can catch fire or explode.
• Environmental impact: The mining and processing of the materials used in lithium-ion batteries can have a negative impact on the environment.

Despite these disadvantages, lithium-ion batteries are the most popular type of rechargeable battery in use today. They are a major factor in the growth of portable electronics and electric vehicles.

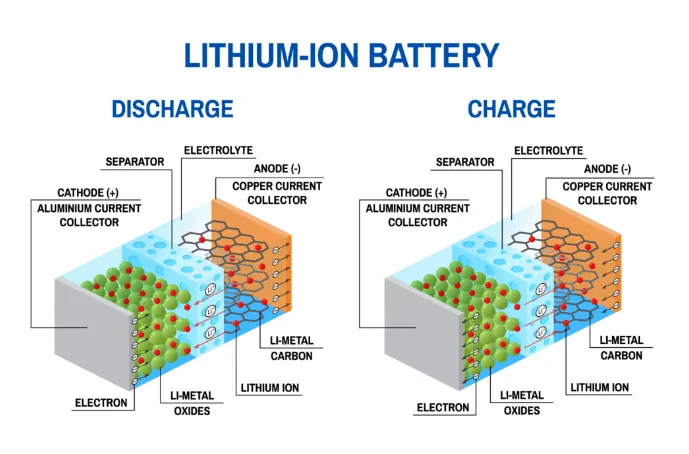

1. Current Collector: (Typically aluminum or copper foil) This thin metal sheet on both the anode and cathode sides helps collect and distribute current evenly throughout the electrodes.
2. Anode: (Usually graphite or lithium-ion alloys) This negative electrode stores lithium ions by absorbing them into its structure during charging. Common materials include graphite (LiC6), silicon (Li4Si), and tin (Li4Sn).
3. Separator: (A thin, microporous polymer film) This porous membrane physically separates the anode and cathode but allows lithium ions to pass through it while preventing electrical contact between the electrodes.
4. Electrolyte: (A lithium salt dissolved in a solvent) This conductive solution allows lithium ions to move freely between the anode and cathode. Common electrolytes include lithium hexafluorophosphate (LiPF6) dissolved in organic solvents like carbonate esters.
5. Cathode: (Usually Lithium cobalt oxide (LiCoO2) or Lithium iron phosphate (LiFePO4)) This positive electrode accepts lithium ions from the anode during charging and releases them during discharging. Common materials include lithium cobalt oxide (LiCoO2), lithium iron phosphate (LiFePO4), and lithium nickel manganese cobalt oxide (NMC).
6. Current Collector: (Similar to the anode side) This metal sheet collects and distributes current on the cathode side.
7. Cell Casing: (Typically aluminum or steel) This sturdy container houses all the internal components and protects the battery from external damage.

Explanation:

1. LCO (Lithium Cobalt Oxide):

   • Anode Material (Graphite): Graphite serves as the anode material in LCO cells. During discharge, lithium ions (Li+) are extracted from the graphite anode, releasing electrons. This process is represented by the equation: LiC6 ⟶ Li+ + e- + C6.
   • Cathode Material (LiCoO2): The cathode material, Lithium Cobalt Oxide (LiCoO2), undergoes intercalation of lithium ions during discharge: LiCoO2 + Li+ + e- ⟶ Li1-xCoO2. This process is reversible during charging.

2. LMO (Lithium Manganese Oxide):

   • Anode Material (Graphite): Similar to LCO cells, graphite is used as the anode material in LMO cells, facilitating the release of lithium ions during discharge.
   • Cathode Material (LiMn2O4): Lithium ions intercalate into the cathode material, Lithium Manganese Oxide (LiMn2O4), during discharge: LiMn2O4 + Li+ + e- ⟶ Li1-xMn2O4.

3. NCA (Nickel Cobalt Aluminum Oxide):

   • Anode Material (Graphite): Graphite serves as the anode material in NCA cells, releasing lithium ions during discharge.
   • Cathode Material (LiNiCoAlO2): The cathode material, Lithium Nickel Cobalt Aluminum Oxide (LiNiCoAlO2), undergoes lithium intercalation during discharge: LiNiCoAlO2 + Li+ + e- ⟶ Li1-xNiCoAlO2.

4. NMC (Nickel Manganese Cobalt Oxide):

   • Anode Material (Graphite): Graphite is also used as the anode material in NMC cells, facilitating lithium ion release during discharge.
   • Cathode Material (LiNiMnCoO2): Lithium Nickel Manganese Cobalt Oxide (LiNiMnCoO2) cathode undergoes intercalation of lithium ions during discharge: LiNiMnCoO2 + Li+ + e- ⟶ Li1-xNiMnCoO2.

5. LFP (Lithium Iron Phosphate):

   • Anode Material (Graphite): Like the other types, graphite is used as the anode material in LFP cells.
   • Cathode Material (LiFePO4): Lithium Iron Phosphate (LiFePO4) cathode undergoes lithium ion intercalation during discharge: LiFePO4 + Li+ + e- ⟶ Li1-xFePO4.

6. LTO (Lithium Titanate):

   • Anode and Cathode Material (Lithium Titanate): Lithium Titanate (Li4Ti5O12) serves as both anode and cathode in LTO cells. During discharge, lithium ions intercalate into the Li4Ti5O12 anode: Li4Ti5O12 + 4Li+ + 4e- ⟶ 4Li2Ti5O12. As for the cathode, there's no distinct cathode reaction because Li4Ti5O12 serves both roles.

Q2)Compare the differences between each type of Li+ion batteries based on their characteristics

• Energy Density: Indicates the amount of energy stored per unit volume or mass. Higher values mean more energy storage capacity. LCO and NCA have higher energy densities, while LTO has the lowest.
• Power Density: Reflects the rate at which energy can be delivered. Higher values mean faster charging/discharging capabilities. LTO has the highest power density, while LMO has moderate power density.
• Cycle Life: Refers to the number of charge/discharge cycles a battery can undergo before its capacity degrades significantly. LFP and LTO offer excellent cycle life.
• Cost: Represents the relative expense of manufacturing the battery. LFP tends to be the most cost-effective, while LTO is usually more expensive due to its materials.

Now,let's compare the different types of lithium-ion batteries based on their characteristics:

1. Energy Density:

   • LCO (Lithium Cobalt Oxide): Generally has a high energy density, making it suitable for applications where energy storage capacity is critical, such as in consumer electronics.
   • LMO (Lithium Manganese Oxide): Has a lower energy density compared to LCO, but offers improved safety and stability, making it suitable for applications where safety is a primary concern.
   • NCA (Nickel Cobalt Aluminum Oxide): Offers a relatively high energy density, making it suitable for high-performance applications such as electric vehicles (EVs) and grid energy storage.
   • NMC (Nickel Manganese Cobalt Oxide): Offers a balance between energy density, power density, and cost, making it one of the most commonly used cathode materials in lithium-ion batteries for various applications.
   • LFP (Lithium Iron Phosphate): Has a lower energy density compared to other cathode materials but offers excellent safety, long cycle life, and thermal stability, making it suitable for applications where safety and longevity are paramount, such as power tools and electric buses.
   • LTO (Lithium Titanate): Has a lower energy density compared to other lithium-ion chemistries but offers extremely fast charge/discharge rates, long cycle life, and excellent safety, making it ideal for high-power applications such as electric vehicles and grid energy storage.

2. Power Density:

   • LCO: Typically offers high power density, making it suitable for applications where high power output is required, such as in smartphones and laptops.
   • LMO: Offers moderate power density, suitable for a wide range of applications including power tools and small electronic devices.
   • NCA: Offers high power density, making it suitable for applications requiring high power output and fast charging, such as electric vehicles.
   • NMC: Offers good power density, balancing energy density with power output, suitable for various applications including EVs, power tools, and grid energy storage.
   • LFP: Offers moderate power density, suitable for applications where safety and long cycle life are more critical than high power output.
   • LTO: Offers extremely high power density, enabling rapid charge/discharge rates, making it suitable for applications requiring high power output and fast charging, such as electric vehicles and grid energy storage systems.

3. Cycle Life:

   • LCO: Typically offers moderate cycle life, suitable for consumer electronics where the battery may be replaced after a few years of use.
   • LMO: Offers good cycle life, suitable for applications where longevity is important, such as in power tools and medical devices.
   • NCA: Offers good cycle life, suitable for applications requiring long-term durability, such as electric vehicles.
   • NMC: Offers good to excellent cycle life, depending on the specific composition, making it suitable for various applications including EVs, power tools, and grid energy storage.
   • LFP: Offers excellent cycle life, with thousands of charge/discharge cycles possible, making it suitable for applications where longevity is critical.
   • LTO: Offers exceptional cycle life, with tens of thousands of cycles possible, making it ideal for applications where long-term durability is paramount.

4. Cost:

   • LCO: Generally higher cost due to the cobalt content, making it more expensive compared to other lithium-ion chemistries.
   • LMO: Moderate cost, with lower cobalt content compared to LCO, making it more affordable.
   • NCA: Moderate to high cost, depending on the specific composition, with nickel and cobalt contributing to the overall cost.
   • NMC: Moderate cost, with a balanced composition of nickel, manganese, and cobalt, making it cost-effective for various applications.
   • LFP: Relatively low cost compared to other cathode materials, making it an attractive option for applications where cost is a primary consideration.
   • LTO: Generally higher cost due to the use of titanium, but cost-effective considering the long cycle life and durability.
