Week 1 Understanding Different Battery Chemistry

1.Prepare a table which includes materials & chemical reactions occurring at the anode and cathode of LCO, LMO, NCA, NMC, LFP and LTO type of lithium ion cells.Give your detailed explanation on it?

            Lithium-ion batteries are used in most aspects of our everyday lives. Most devices such as smartphones, laptops cannot be operate without the batteries. Lithium-ion batteries have also become much important in the field of electromobility as it is now the battery of choice in the most electric vehicles. Its high specific energy gives it an advantage from over other batteries

Li-ion Battery:

                      A battery is made up of an anode, cathode, separator, electrolyte, and two current collectors (positive and negative). The anode and cathode store the lithium. The electrolyte carries positively charged lithium ions from the anode to the cathode and the electrolyte carries negative charged lithium ions from the cathode to the anode through the separator. The movement of the lithium ions creates free electrons in the anode which creates a charge at the positive current collector.  The electrical current then flows from the current collector through a device being powered (cell phone, computer, etc.) to the negative current collector. The separator blocks the flow of electrons inside the battery.

CHARGE/DISCHARGE:

                      While the battery is discharging and providing an electric current, the anode releases lithium ions to the cathode, generating a flow of electrons from one side to the other. When plugging in the device, the opposite happens: Lithium ions are released by the cathode and received by the anode.

Types of Lithium ion cathode (positive) materials with layer transition are

Metal oxide:

      Highest capacity but cost and safety are concerns

• Lithium Cobalt Oxide -LCO
• Lithium Nickel Manganese Cobalt Oxide-NMC
• Lithium Nickel Cobalt Aluminum Oxide-NCA

Spinels:

      Highest power density but poor electronic conductivity and Structural stability

• Lithium Manganese Oxide-LMO
• Lithium Titanate-LTO

Olivines:

     Better Safety and long lifr but low capacitive Voltage

• Lithium Iron Phosphate-LFP

Let we discuss the type of different Li-ion cells including material and chemical reaction occuring at Anode and cathode

1. Lithium Cobalt Oxide -LCO (LiCoO2):

           Its high specific energy makes Li-cobalt the popular choice for mobile phones, laptops and digital cameras. The battery consists of a cobalt oxide cathode and a graphite carbon anode. The cathode has a layered structure and during discharge, lithium ions move from the anode to the cathode. The flow reverses on charge. The drawback of Li-cobalt is a relatively short life span, low thermal stability and limited load capabilities (specific power).

           The drawback of Li-cobalt is a relatively short life span, low thermal stability and limited load capabilities (specific power). Like other cobalt-blended Li-ion, Li-cobalt has a graphite anode that limits the cycle life by a changing  Solid Electrolyte Inteface, thickening on the anode and lithium plating while fast charging and charging at low temperature. Newer systems include nickel, manganese and/or aluminum to improve longevity, loading capabilities and cost.Li-cobalt should not be charged and discharged at a current higher than its C-rating. This means that an 18650 cell with 2,400mAh can only be charged and discharged at 2,400mA. Forcing a fast charge or applying a load higher than 2,400mA causes overheating and undue stress.

     2. Lithium Nickel Manganese Cobalt Oxide-NMC(LiNiMnCoO2)

                One of the most successful Li-ion systems is a cathode combination of nickel-manganese-cobalt (NMC). Similar to Li-manganese, these systems can be tailored to serve as Energy cells. For example, NMC in an 18650 cell for moderate load condition has a capacity of about 2,800mAh and can deliver 4A to 5A; NMC in the same cell optimized for specific power has a capacity of only about 2,000mAh but delivers a continuous discharge current of 20A. A silicon-based anode will go to 4,000mAh and higher but at reduced loading capability and shorter cycle life. Silicon added to graphite has the drawback that the anode grows and shrinks with charge and discharge, making the cell mechanically unstable.

             NMC is the battery of choice for power tools, e-bikes and other electric powertrains. The cathode combination is typically one-third nickel, one-third manganese and one-third cobalt, also known as 1-1-1. This offers a unique blend that also lowers the raw material cost due to reduced cobalt content. Another successful combination is NCM with 5 parts nickel, 3 parts cobalt and 2 parts manganese (5-3-2). Other combinations using various amounts of cathode materials are possible.Battery manufacturers move away from cobalt systems toward nickel cathodes because of the high cost of cobalt. Nickel-based systems have higher energy density, lower cost, and longer cycle life than the cobalt-based cells but they have a slightly lower voltage.

    3. Lithium Nickel Cobalt Aluminum Oxide-NCA(LiNiCoAlO₂)

                Lithium nickel cobalt aluminum oxide battery, or NCA, has been around since 1999 for special applications. It shares similarities with NMC by offering high specific energy, reasonably good specific power and a long life span. Less flattering are safety and cost. NCA is a further development of lithium nickel oxide; adding aluminum gives the chemistry greater stability

     4. Lithium Manganese Oxide-LMO(LiMn₂O₄)

               Li-ion with manganese spinel was first published in the Materials Research Bulletin in 1983. In 1996, Moli Energy commercialized a Li-ion cell with lithium manganese oxide as cathode material. The architecture forms a three-dimensional spinel structure that improves ion flow on the electrode, which results in lower internal resistance and improved current handling. A further advantage of spinel is high thermal stability and enhanced safety, but the cycle and calendar life are limited.Low internal cell resistance enables fast charging and high-current discharging. In an 18650 package, Li-manganese can be discharged at currents of 20–30A with moderate heat buildup. It is also possible to apply one-second load pulses of up to 50A. A continuous high load at this current would cause heat buildup and the cell temperature cannot exceed 80°C (176°F). Li-manganese is used for power tools, medical instruments, as well as hybrid and electric vehicles.

                Li-manganese has a capacity that is roughly one-third lower than Li-cobalt. Design flexibility allows engineers to maximize the battery for either optimal longevity (life span), maximum load current (specific power) or high capacity (specific energy). For example, the long-life version in the 18650 cell has a moderate capacity of only 1,100mAh; the high-capacity version is 1,500mAh.

     5. Lithium Titanate-LTO (Li2TiO3)

                Batteries with lithium titanate anodes have been known since the 1980s. Li-titanate replaces the graphite in the anode of a typical lithium-ion battery and the material forms into a spinel structure. The cathode can be lithium manganese oxide or NMC. Li-titanate has a nominal cell voltage of 2.40V, can be fast charged and delivers a high discharge current of 10C, or 10 times the rated capacity. The cycle count is said to be higher than that of a regular Li-ion. Li-titanate is safe, has excellent low-temperature discharge characteristics and obtains a capacity of 80 percent at –30°C (–22°F).

                LTO (commonly Li4Ti₅O₁₂) has advantages over the conventional cobalt-blended Li-ion with graphite anode by attaining zero-strain property, no SEI film formation and no lithium plating when fast charging and charging at low temperature. Thermal stability under high temperature is also better than other Li-ion systems; however, the battery is expensive. At only 65Wh/kg, the specific energy is low, rivalling that of NiCd. Li-titanate charges to 2.80V/cell, and the end of discharge is 1.80V/cell.Typical uses are electric powertrains, UPS and solar-powered street lighting.

    6. Lithium Iron Phosphate-LFP(LiFePO₄)

                 In 1996, the University of Texas (and other contributors) discovered phosphate as cathode material for rechargeable lithium batteries. Li-phosphate offers good electrochemical performance with low resistance. This is made possible with nano-scale phosphate cathode material. The key benefits are high current rating and long cycle life, besides good thermal stability, enhanced safety and tolerance if abused.

                 Li-phosphate is more tolerant to full charge conditions and is less stressed than other lithium-ion systems if kept at high voltage for a prolonged time. . As a trade-off, its lower nominal voltage of 3.2V/cell reduces the specific energy below that of cobalt-blended lithium-ion. With most batteries, cold temperature reduces performance and elevated storage temperature shortens the service life, and Li-phosphate is no exception. Li-phosphate has a higher self-discharge than other Li-ion batteries, which can cause balancing issues with aging. This can be mitigated by buying high quality cells and/or using sophisticated control electronics, both of which increase the cost of the pack. Cleanliness in manufacturing is of importance for longevity. There is no tolerance for moisture, lest the battery will only deliver 50 cycles.

                 With four Li-phosphate cells in series, each cell tops at 3.60V, which is the correct full-charge voltage. At this point, the charge should be disconnected but the topping charge continues while driving. Li-phosphate is tolerant to some overcharge; however, keeping the voltage at 14.40V for a prolonged time, as most vehicles do on a long road trip, could stress Li-phosphate. Time will tell how durable Li-Phosphate will be as a lead acid replacement with a regular vehicle charging system. Cold temperature also reduces performance of Li-ion and this could affect the cranking ability in extreme cases.

       The materials & chemical reactions occurring at the anode and cathode of LCO, LMO, NCA, NMC, LFP and LTO type of lithium ion cells are

NAME	ANODE	CATHODE	SEPERATOR	ELECTROLYTE	ANODE REACTION	CATHODE REACTION	OVERALL REACTION
Lithium Cobalt Oxide -LCO	Graphite	Lithium Cobalt Oxide	polyolefin	Ethylene Carbonate	LiC6C6 + Li+ +  e-	CoO2 + Li+ + e-     LiCoO2	C6 + LiCoO2  LiC6  +CoO2
Lithium Manganese Oxide-LMO	Graphite	Lithium Manganese Oxide	polyolefin	Lithium Halide	LiC6C6 + Li+ +  e-	MnO2 + Li+ + e-     LiMnO2	C6 + LiMn2O2 LiC6  +Mn2O4
Lithium Nickel Cobalt Aluminum Oxide-NCA	Graphite	Nickel Cobalt Aluminum Oxide	polyolefin	Ethylene Carbonate	LiC6C6 + Li+ +  e-	FePO4 + Li+ + e-    LiFePO4	C6 + LiNiCoAlO2 LiC6 +NiCoAlO2
Lithium Nickel Manganese Cobalt Oxide-NMC	Graphite	Nickel Manganese Cobalt Oxide	polyolefin	Lithium Salt	LiC6C6 + Li+ +  e-	NiMnCoO2+Li++e-   LiNiMnCoO2	C6 + LiNiMnCoO2  LiC6 +NiMnCoO2
Lithium Titanate-LTO	Graphite	Lithium Titanate	polyolefin	Ethylene Carbonate	LiC6C6 + Li+ +  e-	NiCoAlO2+Li++e-    LiNiCoAlO2	C6 + LiFePO4  LiC6 +FePO4
Lithium Iron Phosphate-LFP	Graphite	Lithium Iron Phosphate	polyolefin	Lithium Salt	Li4Ti5O12 Ti5O12 +4Li++4e-	MnO2+Li++e-    LiMnO2	4Mn2O4+Li4Ti5O12 4LiMn2O4+Ti5O12

2 . Compare the differences between each type of Li+ion batteries based on their characteristics

         There are different types of lithium-ion batteries and the main difference between them lies in their cathode materials. Different kinds of lithium-ion batteries offer different features, with trade-offs between specific power, specific energy, safety, lifespan, cost, and performance

Types of Lithium ion cathode (positive) materials with layer transition are

Metal oxide:

      Highest capacity but cost and safety are concerns

• Lithium Cobalt Oxide -LCO
• Lithium Nickel Manganese Cobalt Oxide-NMC
• Lithium Nickel Cobalt Aluminum Oxide-NCA

Spinels:

      Highest power density but poor electronic conductivity and Structural stability

• Lithium Manganese Oxide-LMO
• Lithium Titanate-LTO

Olivines:

     Better Safety and long lifr but low capacitive Voltage

• Lithium Iron Phosphate-LFP

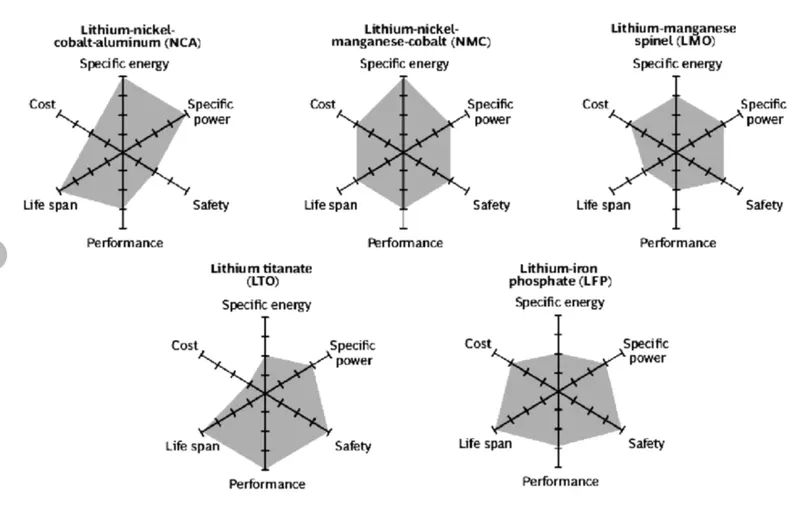

Specific energy: This defines the battery capacity in weight (Wh/kg). The capacity relates to the runtime. Products requiring long runtimes at moderate load are optimized for high specific energy.

Specific power: It's the ability to deliver a high current and indicates loading capability. Batteries for power tools are made for high specific power and come with a reduced specific energy.

Performance: This measures how well the battery works over a wide range of temperatures. Most batteries are sensitive to heat and cold and require climate control. Heat reduces life, and cold lowers performance temporarily.

Lifespan: This reflects cycle life and longevity and is related to factors such as temperature, depth of discharge, and load. Hot climates accelerate capacity loss. Cobalt blended lithium-ion batteries also usually have a graphite anode that limits the cycle life.

Safety: This relates to factors such as the thermal stability of the materials used in the batteries. The materials should have the ability to sustain high temperatures before becoming unstable. Instability can lead to thermal runaway in which flaming gases are vented. Fully charging the battery and keeping it beyond the designated age reduces safety.

Cost: Demand for electric vehicles has generally been lower than anticipated and this is mainly due to the cost of lithium-ion batteries. Hence cost is a huge factor when selecting the type of lithium-ion battery.

Lithium Cobalt Oxide has high specific energy as compared to the other batteries which make it the preferred choice for laptops and mobile phones. It also has a low cost and a moderate performance. However, it is highly unfavorable in all the other aspects when compared to the other lithium-ion batteries. It has low specific power, low safety, and a low lifespan.

Lithium Manganese Oxide has moderate specific power, moderate specific energy, and a moderate level of safety when compared to the other types of lithium-ion batteries. It has the added advantage of a low cost. The downsides are its low performance and low lifespan. It is usually used in medical devices and power tools.

Lithium Nickel Manganese Cobalt Oxide has two major advantages as compared to the other batteries. The first one is its high specific energy which makes it desirable in electric powertrains, electric vehicles, and electric bikes. The other is its low cost. It is moderate in terms of specific power, safety, lifespan, and performance when compared to the other lithium-ion batteries. It can be optimized to either have high specific power or high specific energy.

Lithium Iron Phosphate only has one major disadvantage when compared to other types of lithium-ion batteries and that is its low specific energy. Other than that, it has moderate to high ratings in all the other characteristics. It has high specific power, offers a high level of safety, has a high lifespan, and comes at a low cost. The performance of this battery is also moderate. It is often employed in electric motorcycles and other applications that require a long lifespan and a high level of safety.

Lithium Nickel Cobalt Aluminum Oxide offers one strong advantage as compared to the five other batteries and that is high specific energy. It is pretty moderate in the rest of the characteristics like performance, cost, specific power, and lifespan. The only downside to this battery type is its low level of safety. Its high specific energy and moderate lifespan make it a good candidate for electric powertrains.

Lithium Titanate offers high safety, high performance, and a high lifespan which are very important features every battery should have. Its specific energy is low compared to the five other lithium-ion batteries but it compensates for this with moderate specific power. The only major disadvantage of lithium titanate as compared to the other lithium-ion batteries is its extremely high cost. Another important feature of this battery worthy of mention is its remarkably fast recharge time. It can be used for storing solar energy and creating smart grids.
