Understanding the concepts on Degrees of Freedom

Aim:- To compute the values of seismic parameters based on the given structural data

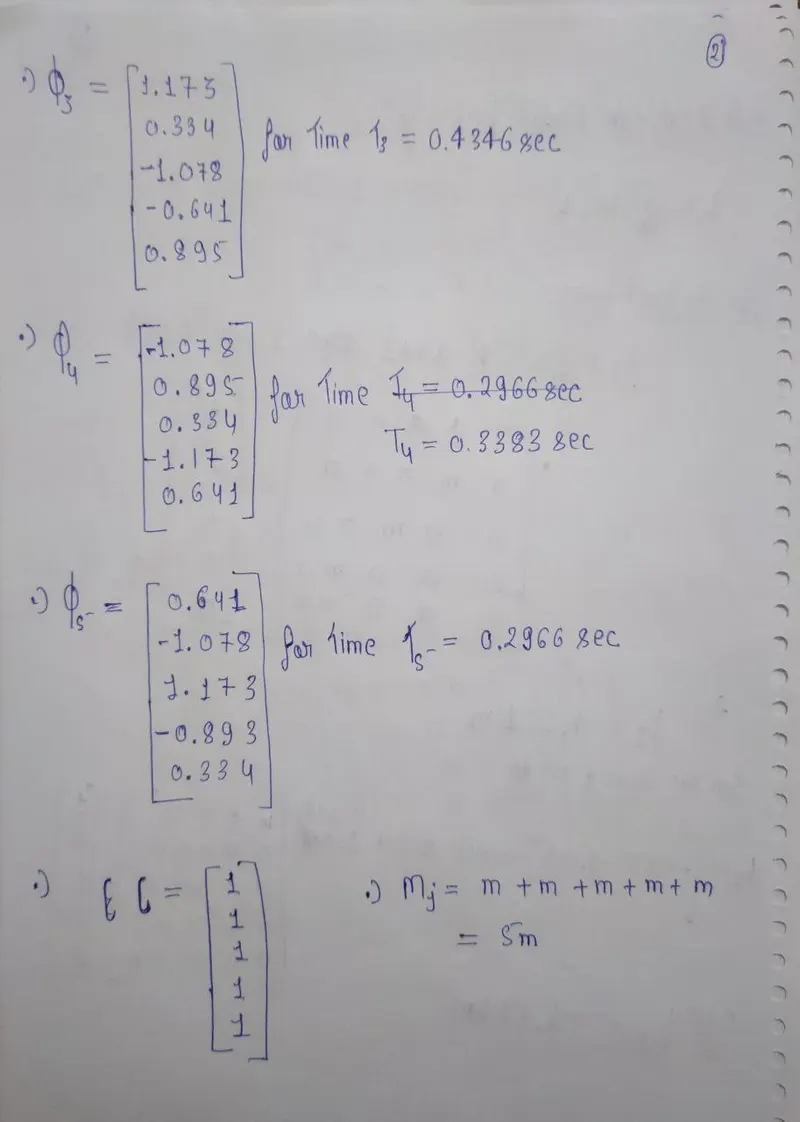

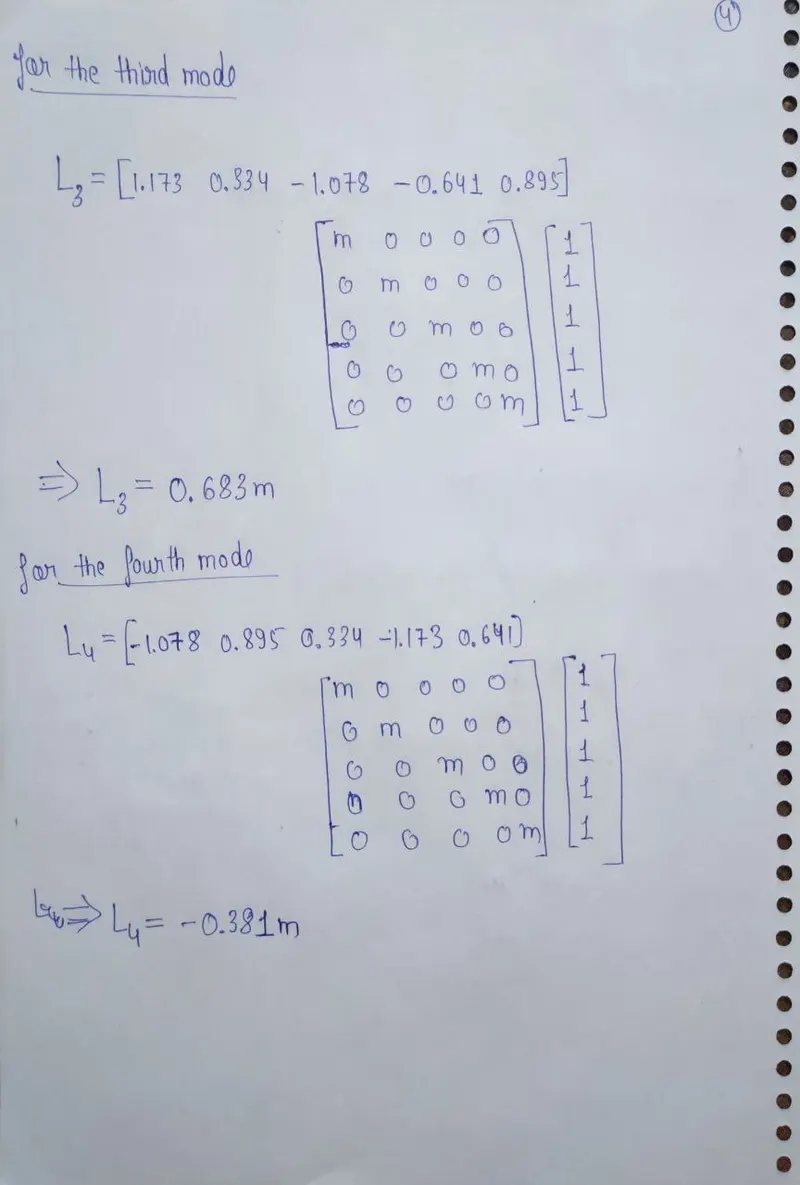

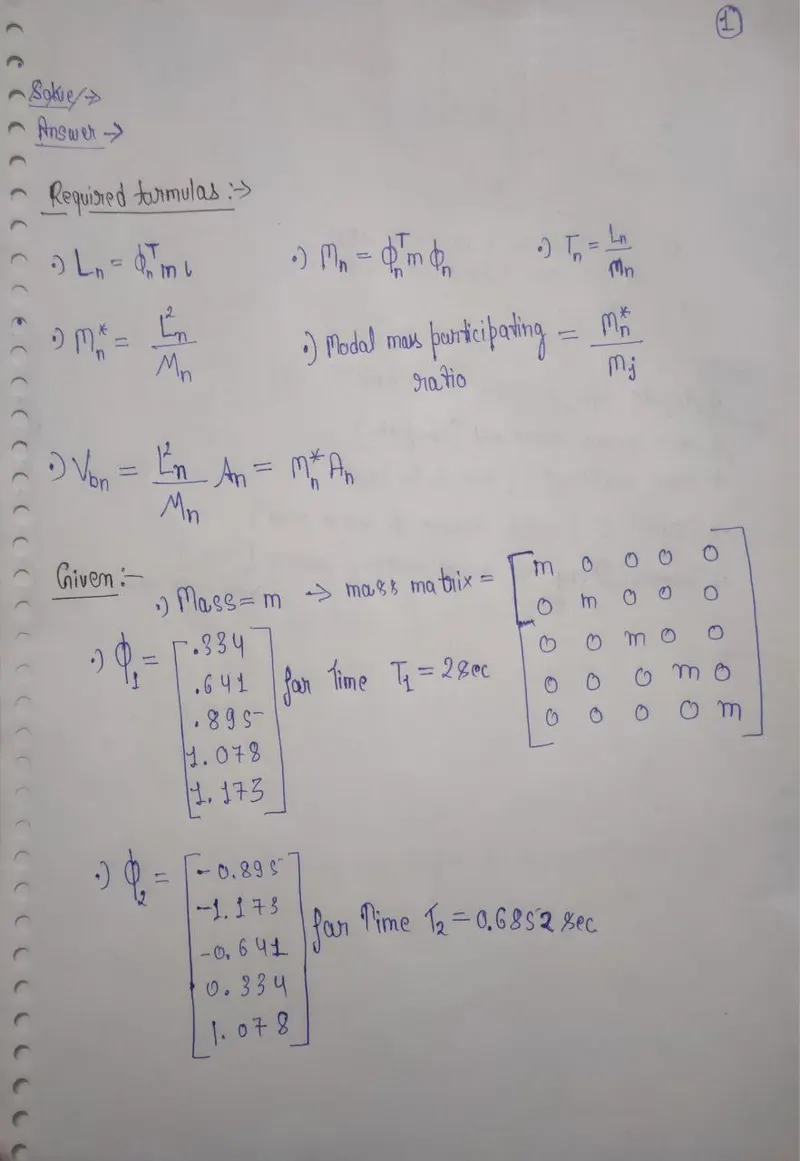

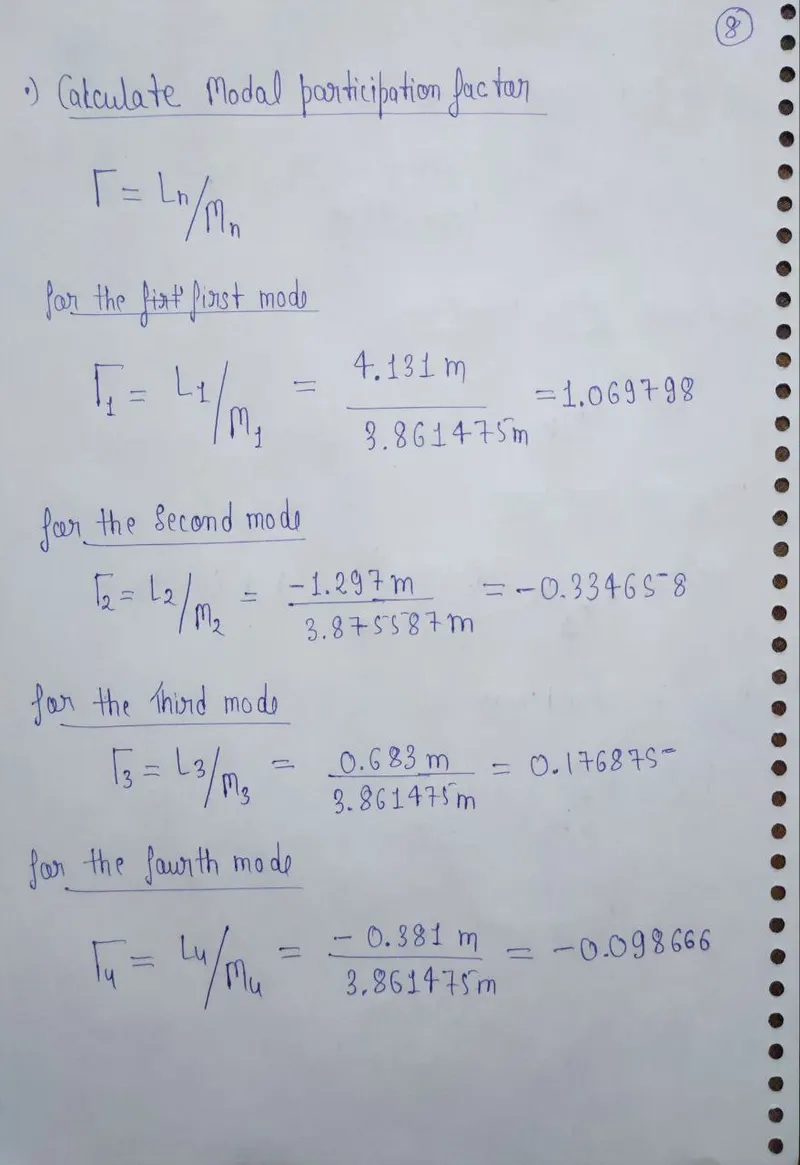

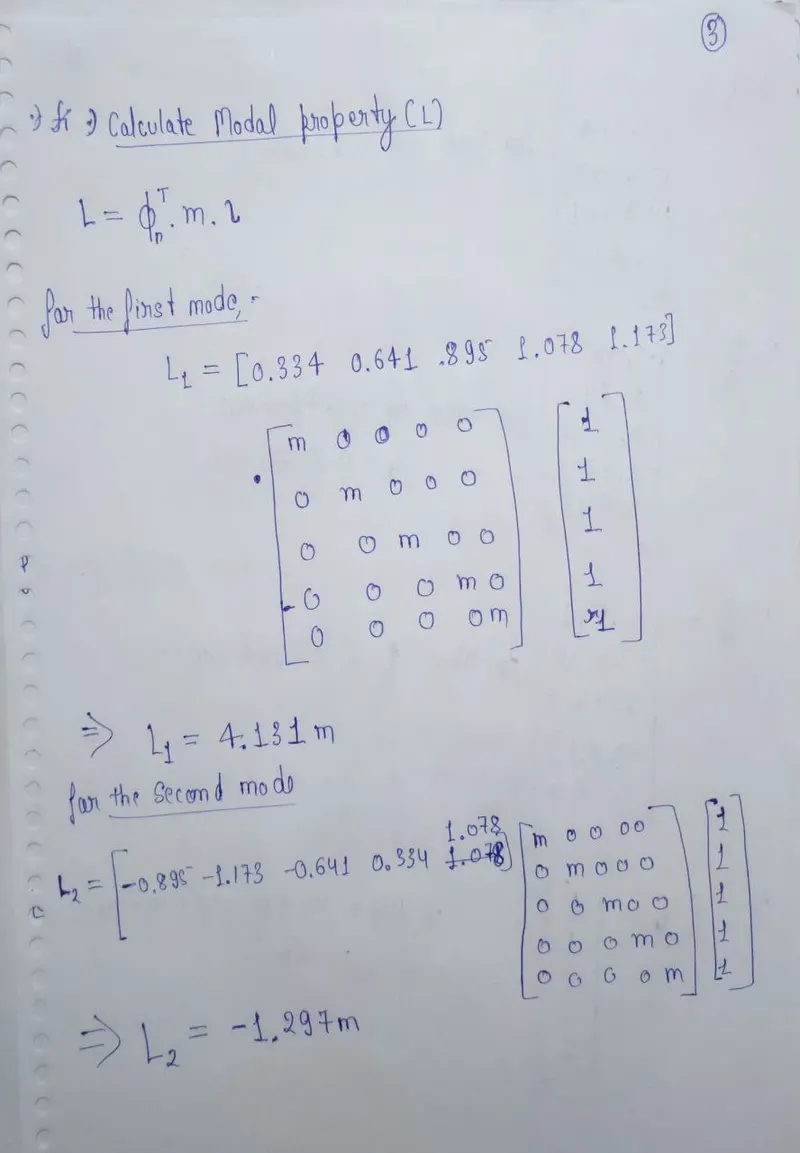

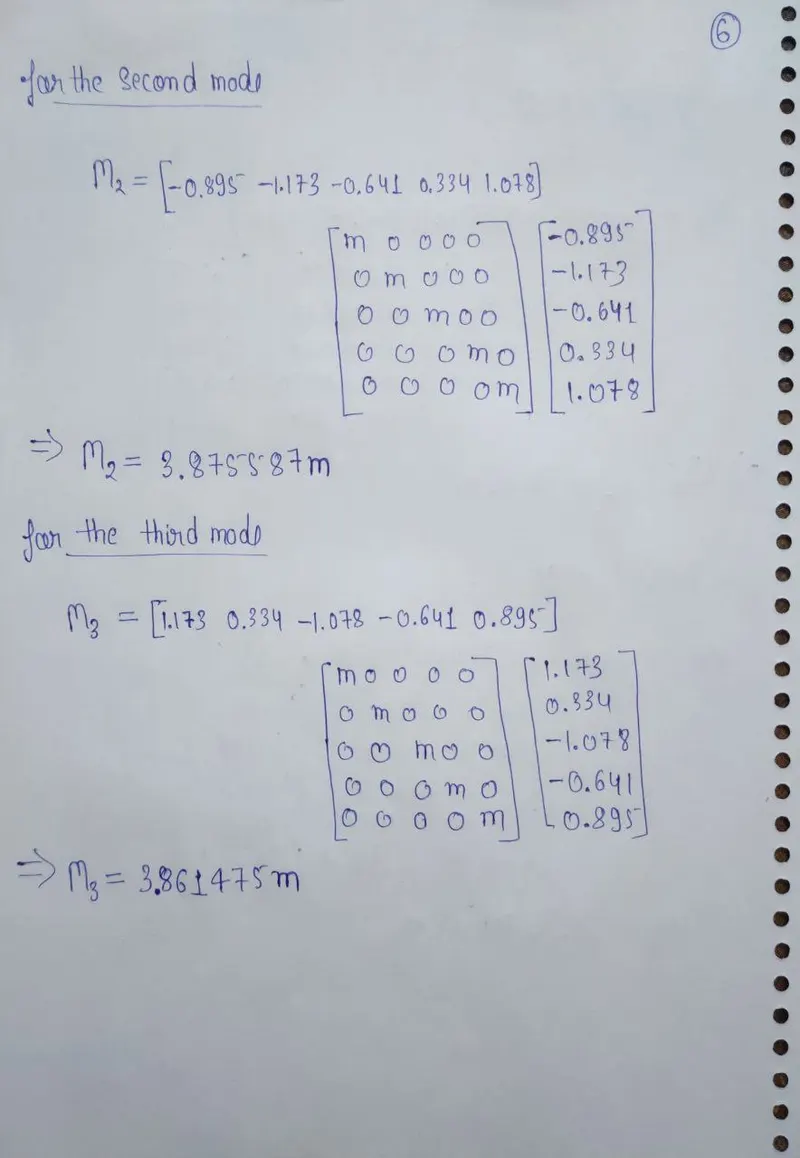

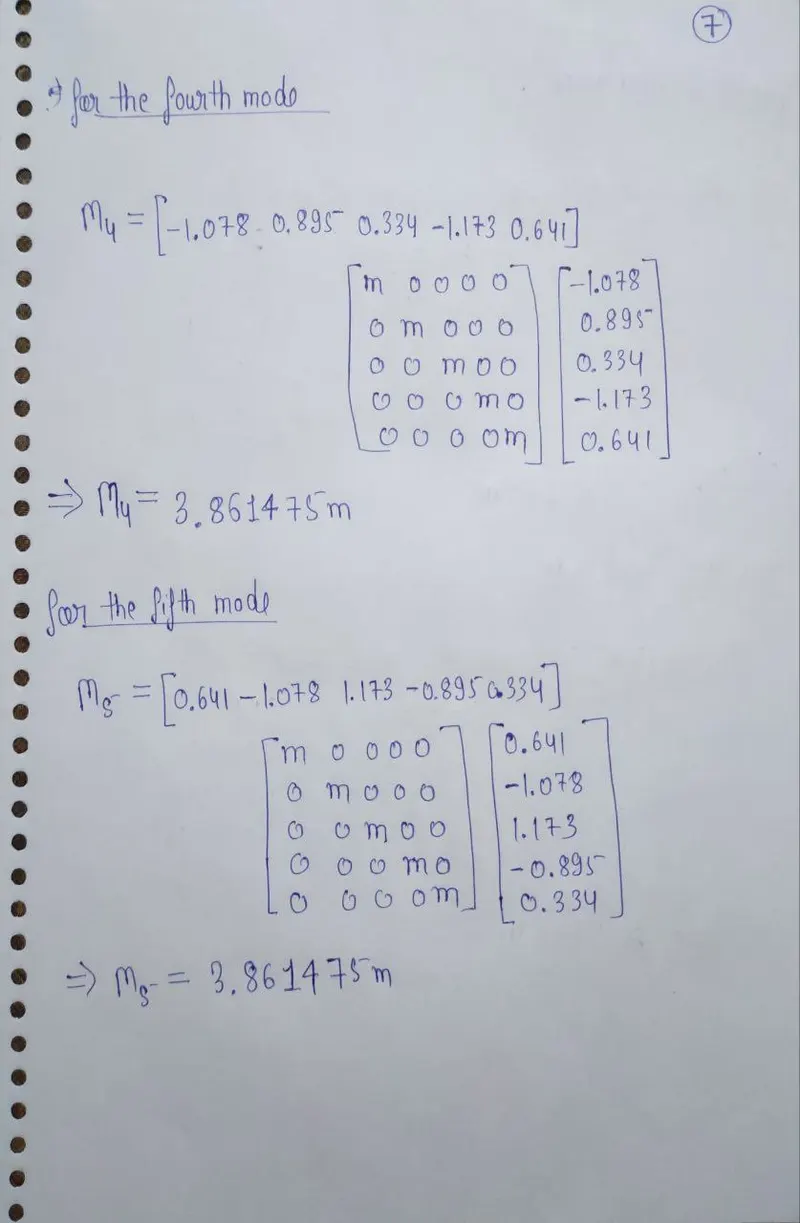

• To compute L_n, M_n, and Γ_n for each of the five modes from the given Question.

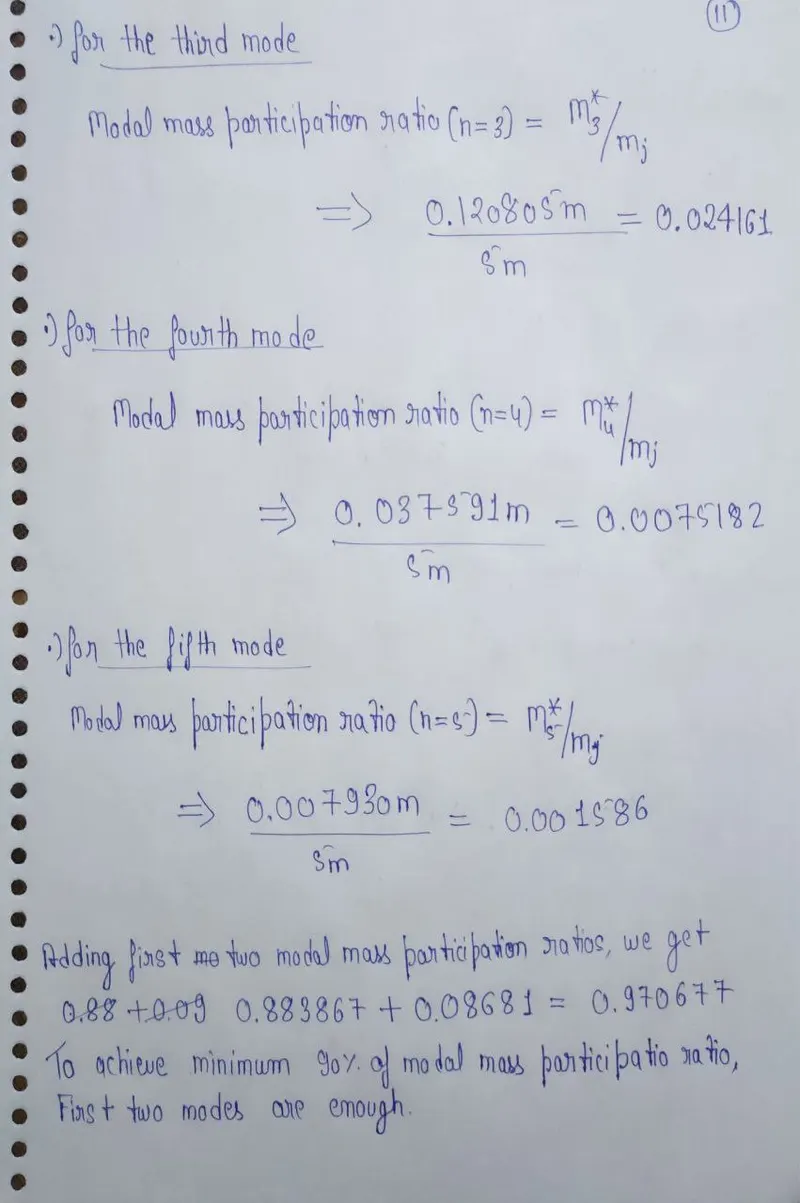

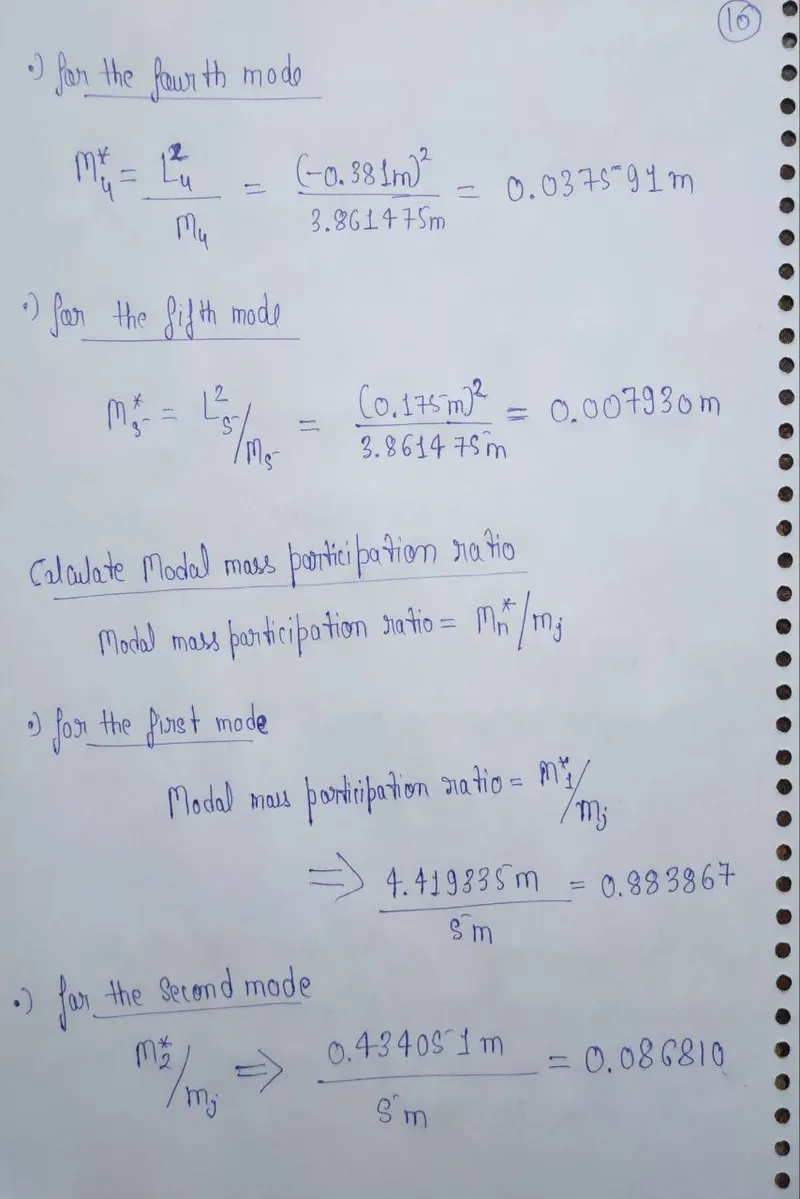

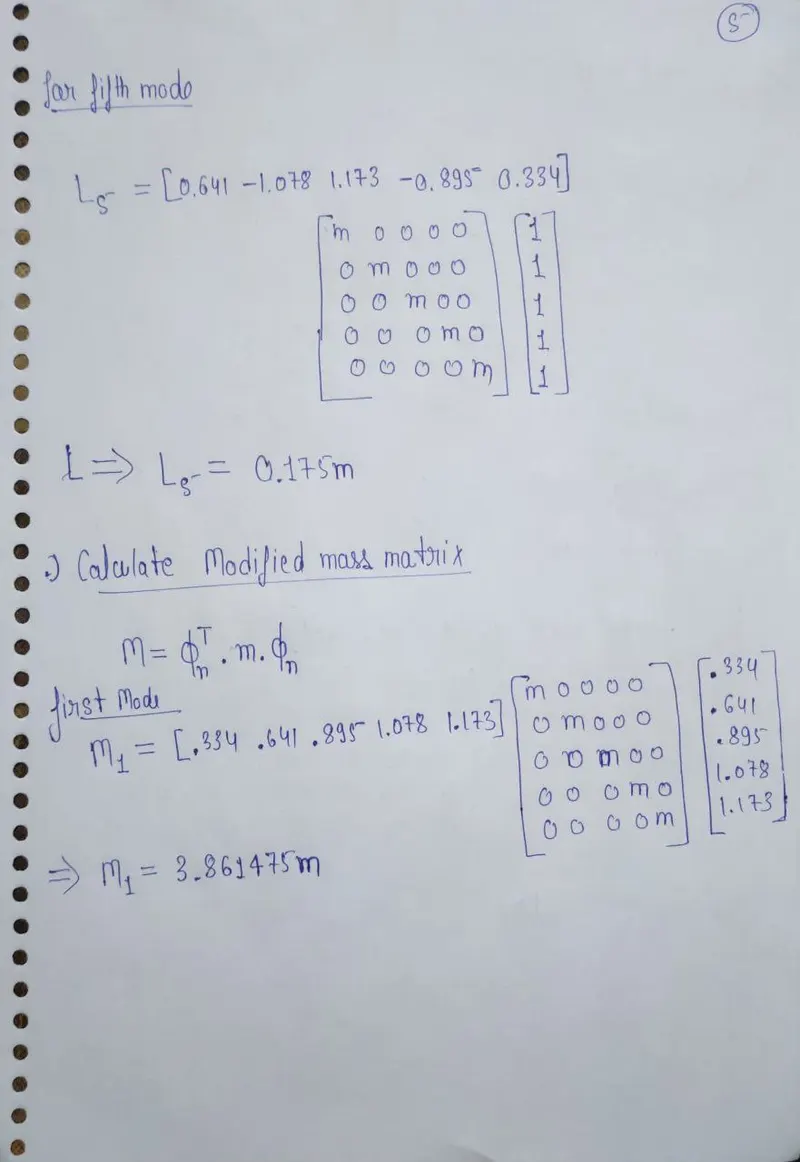

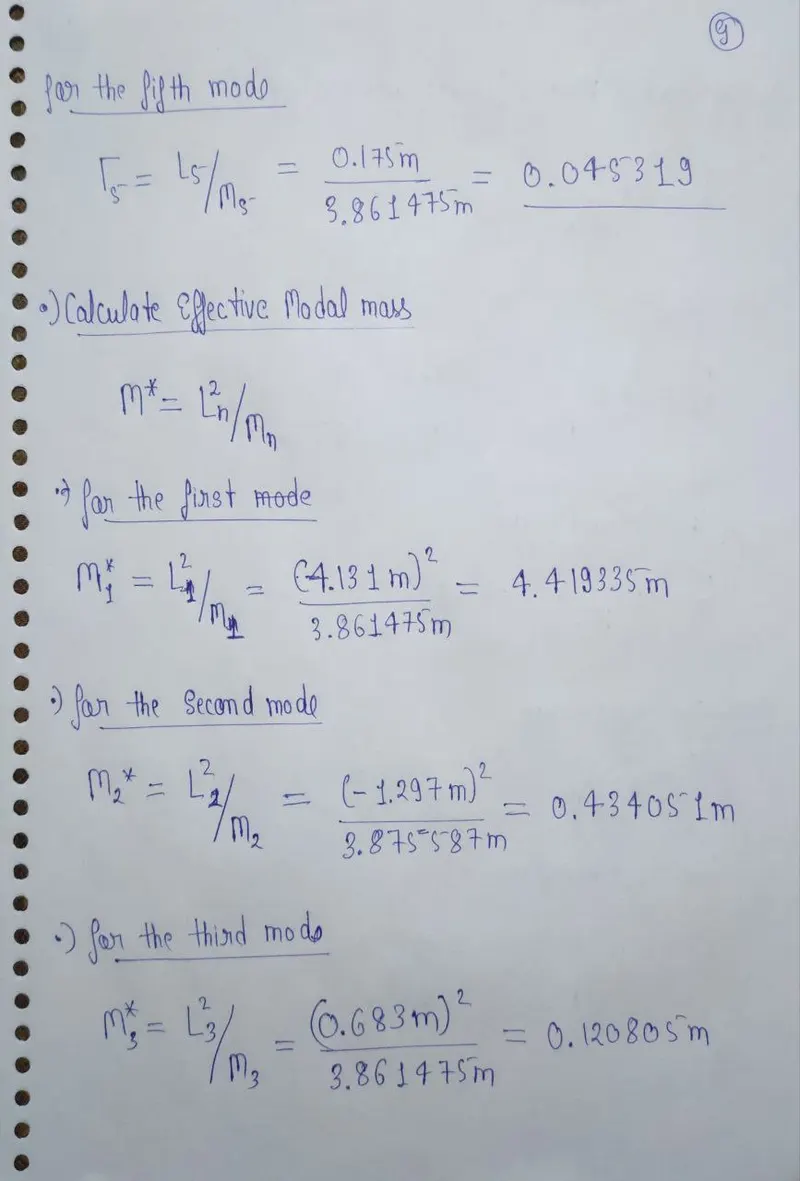

• To calculate the effective modal mass M_n* and the modal mass participating ratio for the 5 modes.

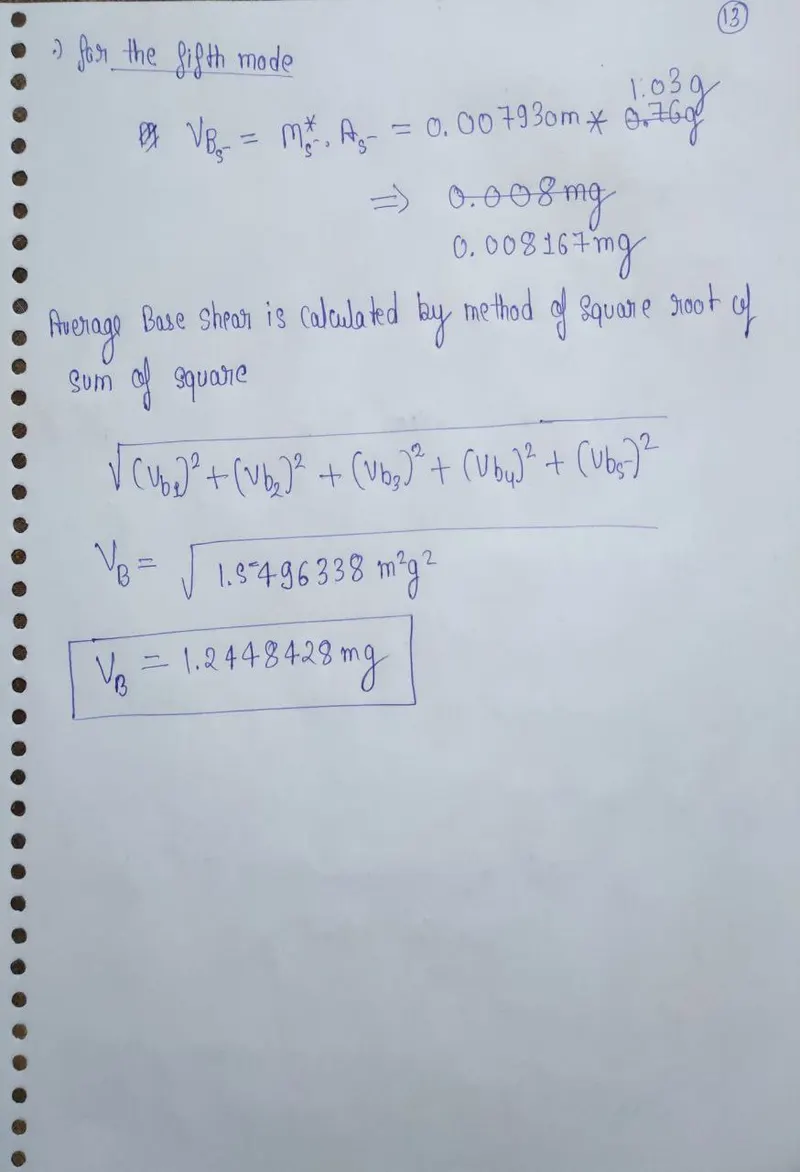

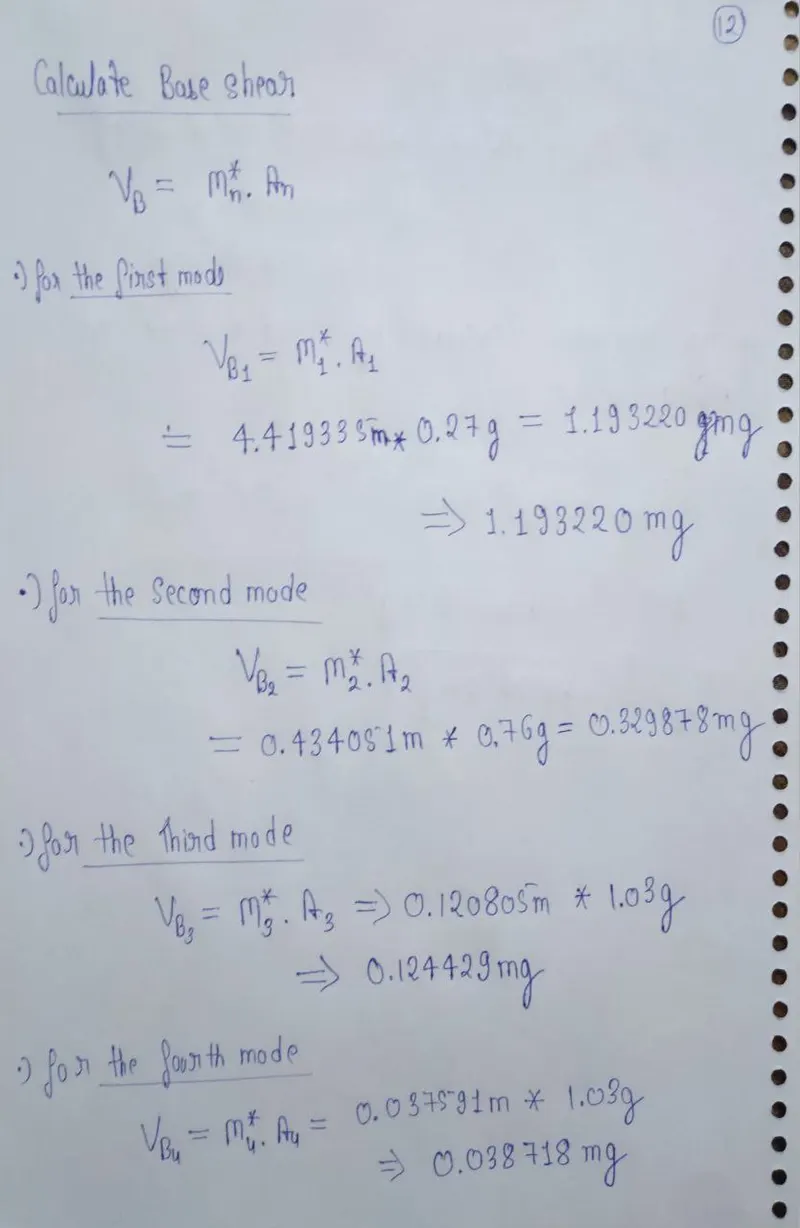

• To obtain the base shear for each of the 5 modes of vibration and the combined base shear as per the SRSS rule.

Procedure:-

1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.

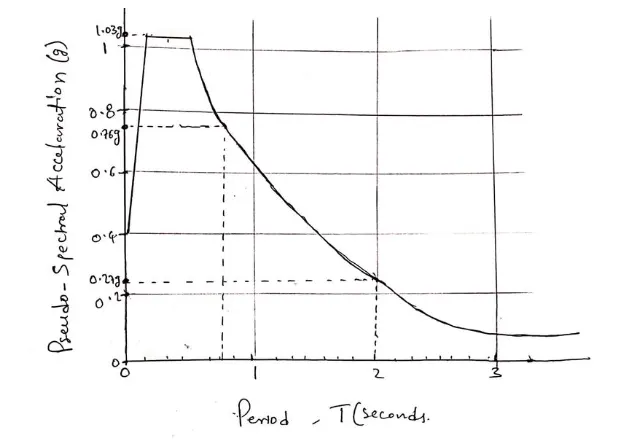

12. For this Graph, we get Values as per the given time
13.
14.

Result:-

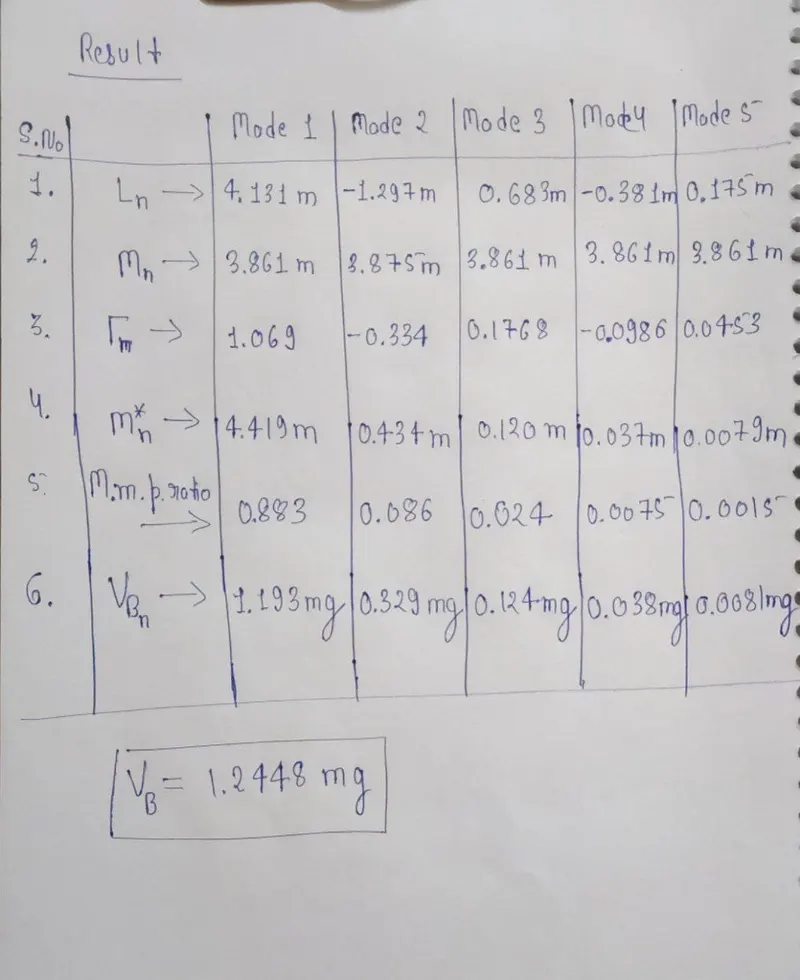

• We computed L_n, M_n, and Γ_n for each of the five modes from the given Question.
• we calculated the effective modal mass M_n* and the modal mass participating ratio for the 5 modes.
• Obtained the base shear for each of the 5 modes of vibration and the combined base shear as per SRSS rule.
