To model beams and bracings for industrial steel structures using TSD

1. Design a Warehouse Building located in Chennai using STAAD Pro Connect Edition. The specification must be as follows: Width 30m Length50m Eave Height 9m Bay spacing 6m Soil type Medium Safe Bearing Capacity 200 kN/m2 Roof slope 1 in 12 Assume suitable sections for structural elements. Follow IS800:2007, IS1893 and IS…

1. Design a multi-storey Residential Building located in Bangalore using STAAD Pro Connect Edition. The specification must be as follows:      Building floors G + 6 + R Plan dimension B = 25m ,  L = 16m Storey Height h = 3.5m Soil  Hard soil Use Residential Purpose Safe Bearing Capacity 180…

1. 1. State the primary load cases to be considered for design. ANSWER: . Dead Load (IS-875: PART1) . Live Load (IS-875: PART2) . Wind Load (IS-875: PART3) . Snow Load (IS-875: PART4) . Seismic Load (IS 1893: 2016) 2. What is a One – Way slab? ANSWER: One way slab is the slab in which the ratio of its longer…

1. How will you assign Circular section to column? AIM:To assign Circular section to column INTRODUCTION: Columns are defined as vertical load-bearing members supporting axial compressive loads chiefly. This structural member is used to transmit the load of the structure to the foundation. In reinforced concrete buildings…

Aim: To analyse and to design the composite high rise building using ETABS. And to design the composite deck profile using Comflor software. Flow chart for composite high rise building analysis and design: 1. Architectural plan study & Column shear wall position marking 2. Steel beam alignment marking (considering approximate…

1. a)AIM : Write the steps involved to upload a .std file through web mail? Introduction :  . STAAD pro ( Structural Analysis and Deign program is the abbrivation for the STAAD it is the connected version new version used to analize the RCC structure and steel structure by using this software ) . It Include…

AIM : A 30 - 40hr project on modelling, analysis & design of a state-of-the-art tall composite building using ETABS software. The composite members to be designed using Comflor software. Key Highlights: a. Modelling . The structural model prepared for the project 1to be used for the project 2. . Prepare two distinct structural…

QUESTION :  Develop general arrangement for the RC office building. Analyze and design the building as per IS standard code in TEKLA STRUCTURAL DESIGNER. Refer the attached plan and elevation. The building to be designed for dead, live, wind and seismic loading. Report of each member to be generated and extract drawings…

1. Generate report for the steel building design from challenges 1 – 6 along with the loading summary AIM:- To generate report for the steel building design from challenges 1 – 6 along with the loading summary INTRODUCTION:-  Report generation helps us to get detailed report for each members…

1.Design the slab and foundation of the model. Outline the thought process for designing of the elements (column, beam, slab and foundations) Aim - To design the slab and foundation of the model. Tools Used - 1st Order analysis, Analysis all ( static ), Status , check panel ,Properties window etc. Procedure -Open the file…

Q1Aim:- to run the analysis of the structure and design reinforced concrete beam and column procedure:- open the tekla model and run the analysis .  now select any of the column member and right click on it . then select the interactive design from the given option . check whether the member is passing through all…

Aim: To generate report for the steel building design. Procedure: Open the saved Tekla model . Now go to the report option from the Ribbon and select model report . Now select the load cases and combinations summary to obtain report. . Click on the show report to obtain the report . We can change the project name, address…

1. Setup model for RC building design and based on following parameters for cover MEMBERS                                  IN CONTACT WITH                          ABOVE GROUND                                                   GROUND                                                                  Column               …

Project 1_Analyze and design a steel building to 10T CRANE as per IS standard code using TEKLA STRUCTURAL DESIGNER. Analyze and design a steel building to 10T CRANE as per IS standard code in TEKLA STRUCTURAL DESIGNER. Refer the attached plan and elevation. Provide bracings and moment connection for lateral stability. …

1. Summarize your study for the bending moment, shear force and deflection diagrams for the elements of the model AIM:- To summarize your study for the bending moment, shear force and deflection diagrams for the elements of the model INTRODUCTION:- Bending moment, shear force and deflection diagrams are analytical diagrams…

To calculate wind load for industrial steel structures and to apply it by using TSD Aim: To calculate wind load for industrial steel structures and to apply it by using TSD Introduction:nLateral Load Calculation and Application . Validation of model after the loading Application . Her first we will calculate the wind load…

AIM: To calculate dead and live load for industrial steel  structures and to apply them using TSD Introduction: Tekla Structural Designer is an integrated model-based 3D tool for analysis and design (of both concrete and steel members) in multi-material  structures. Features include interactive modeling, automated structural…

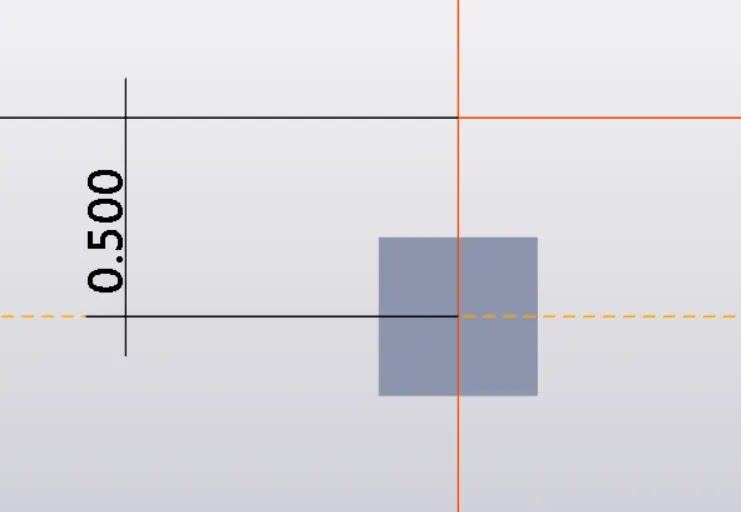

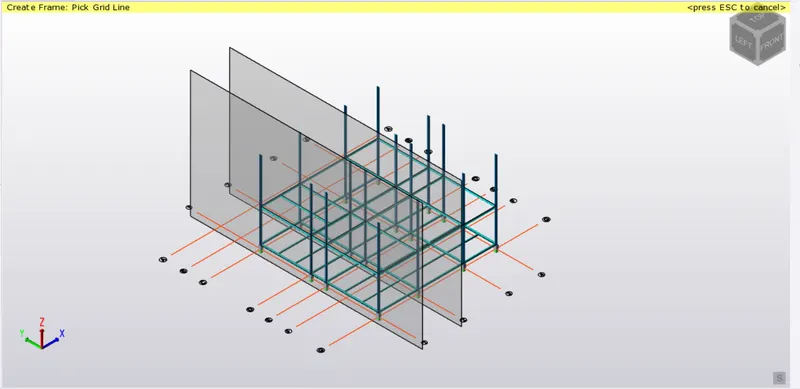

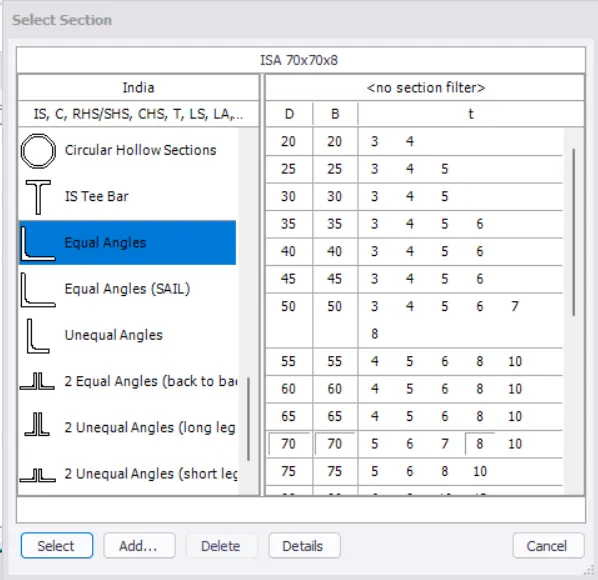

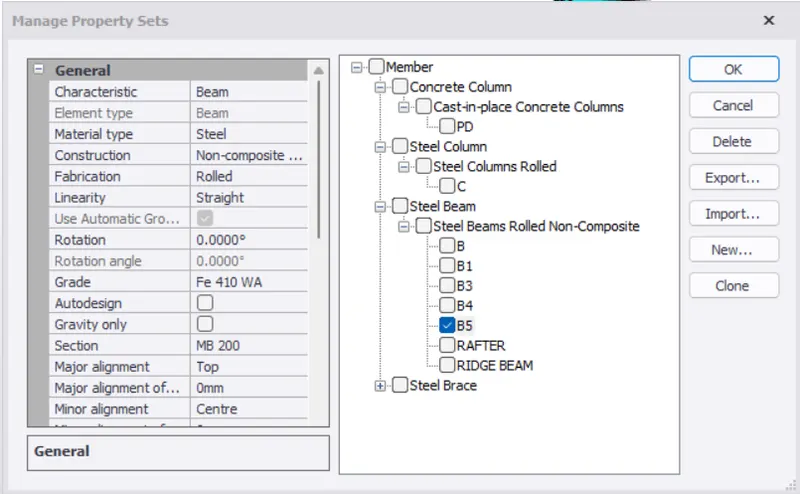

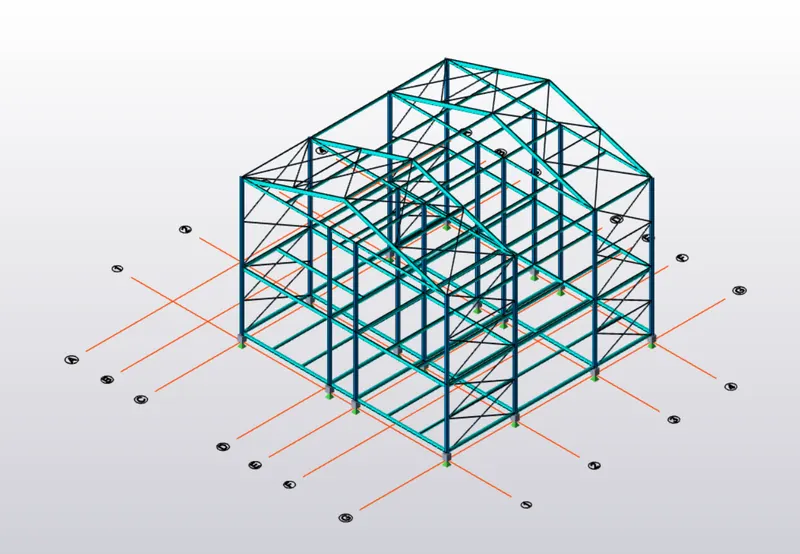

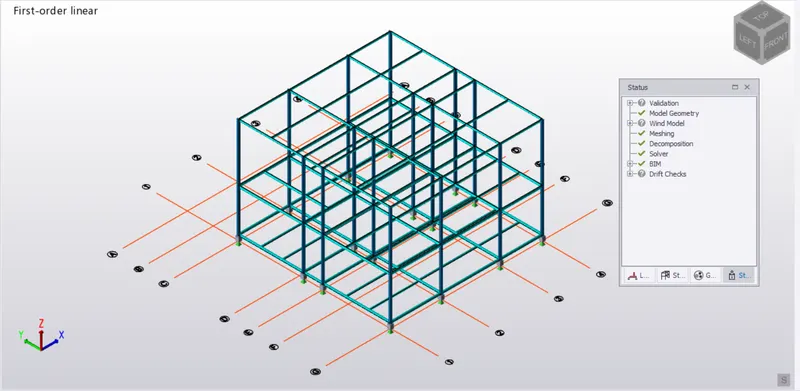

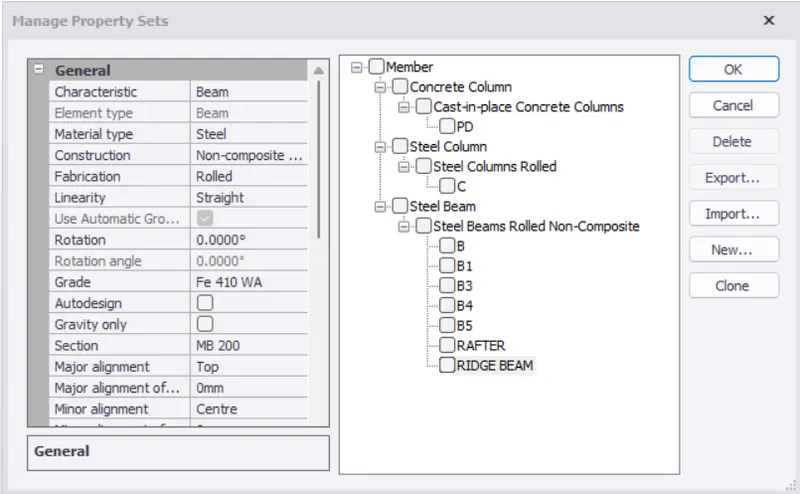

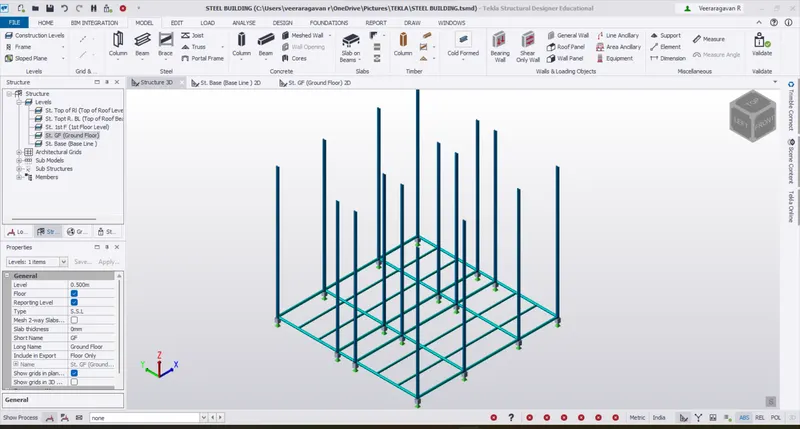

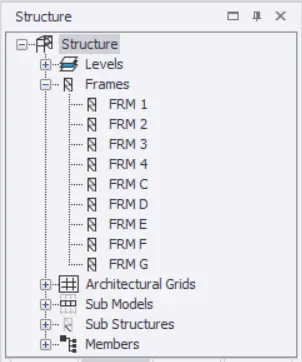

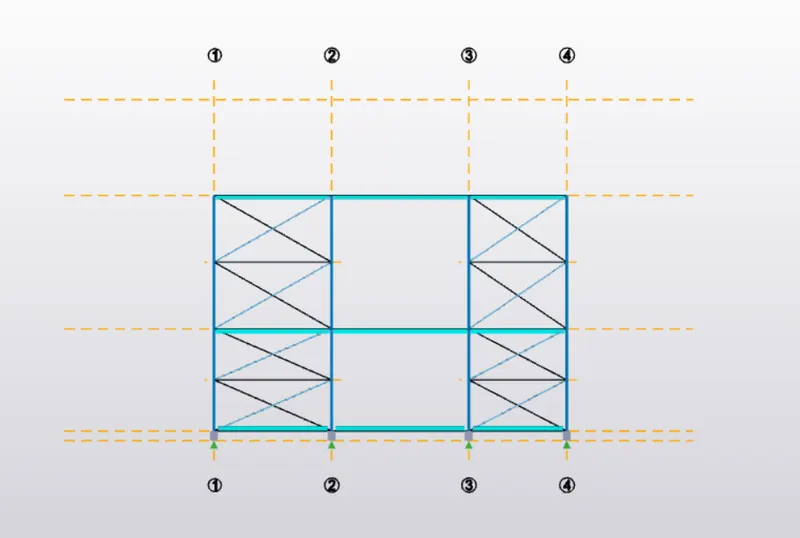

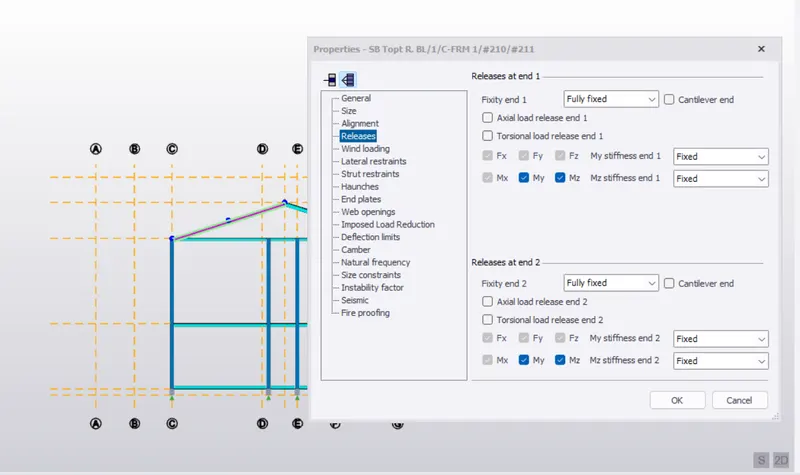

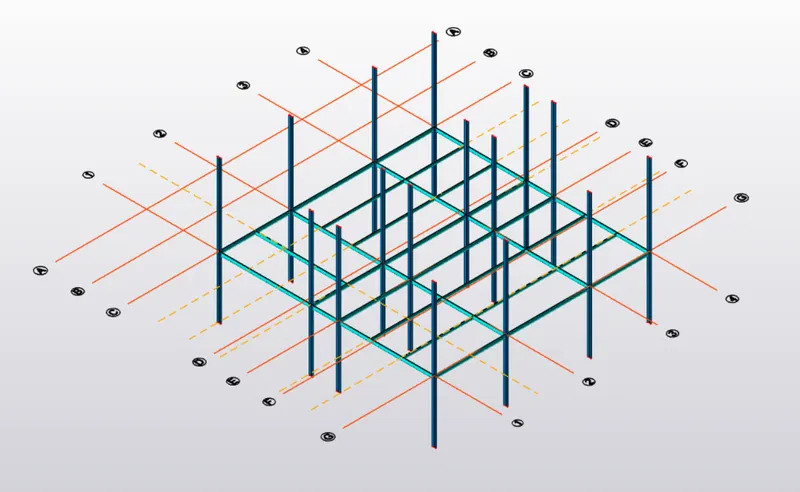

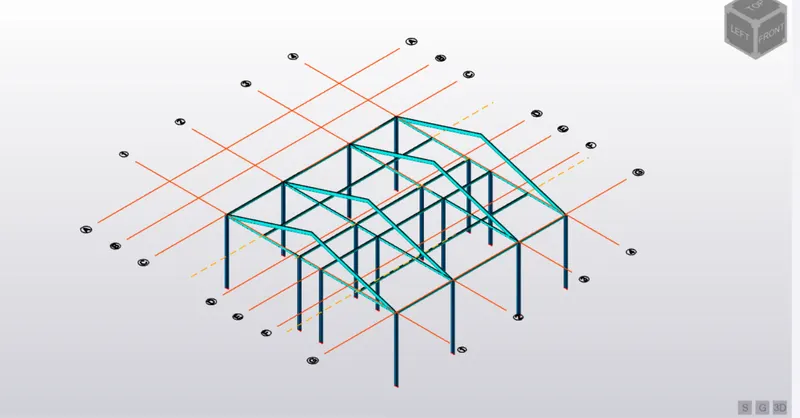

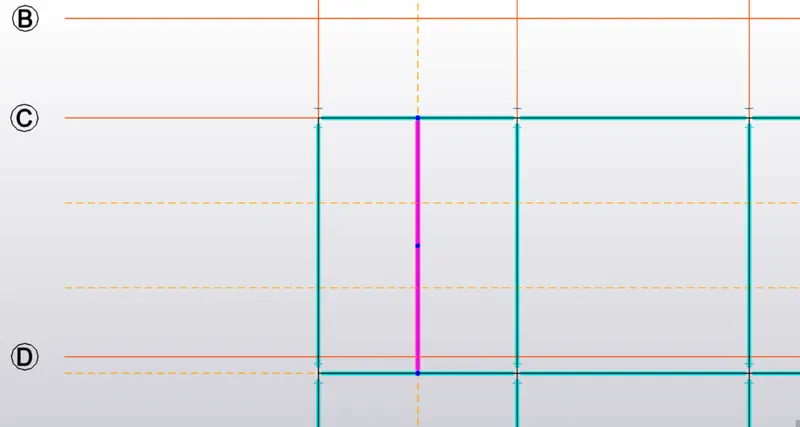

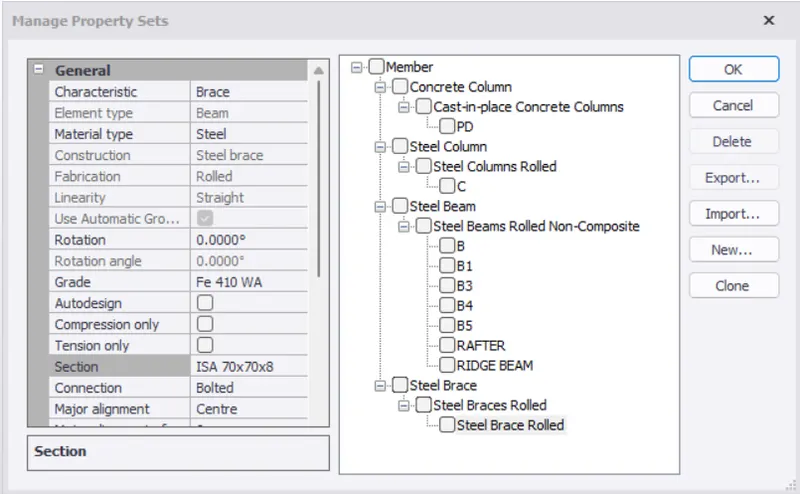

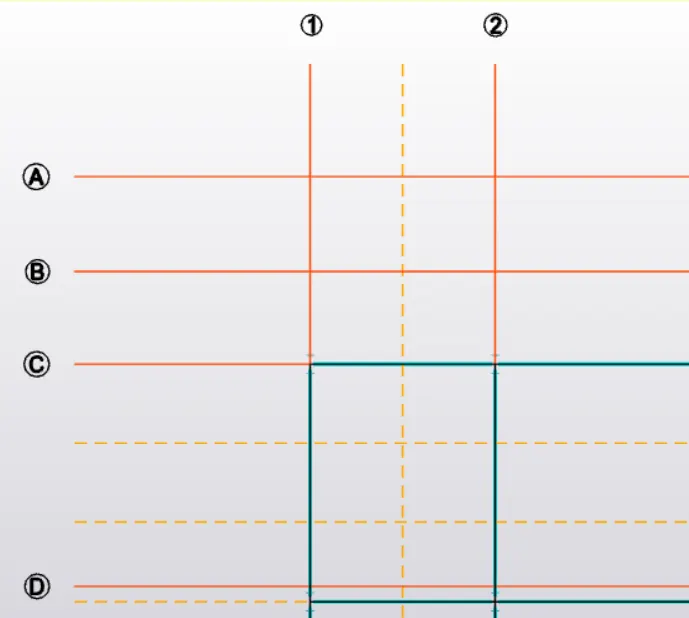

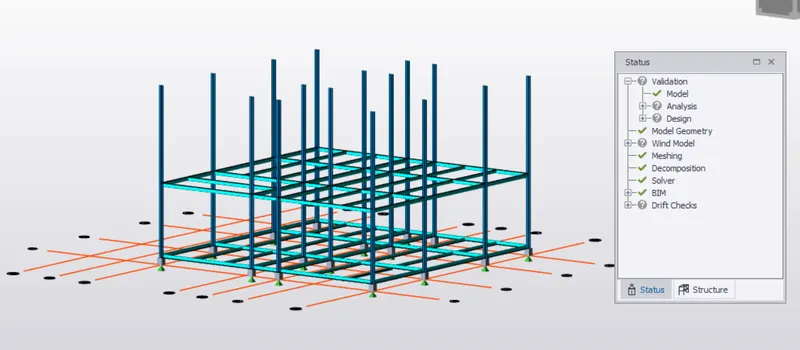

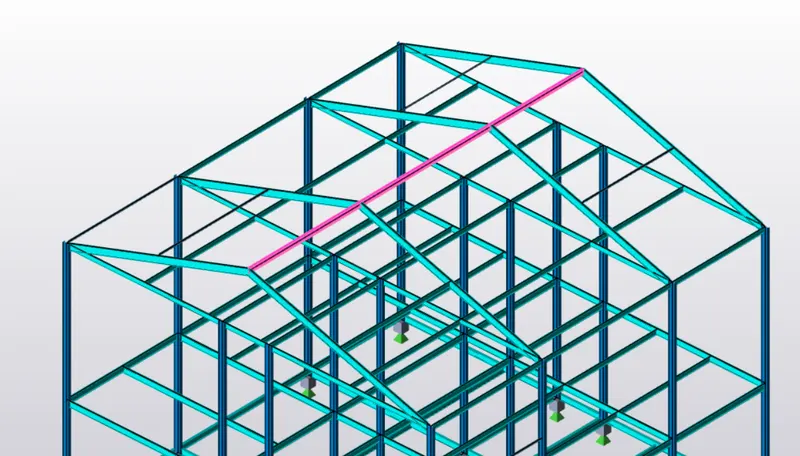

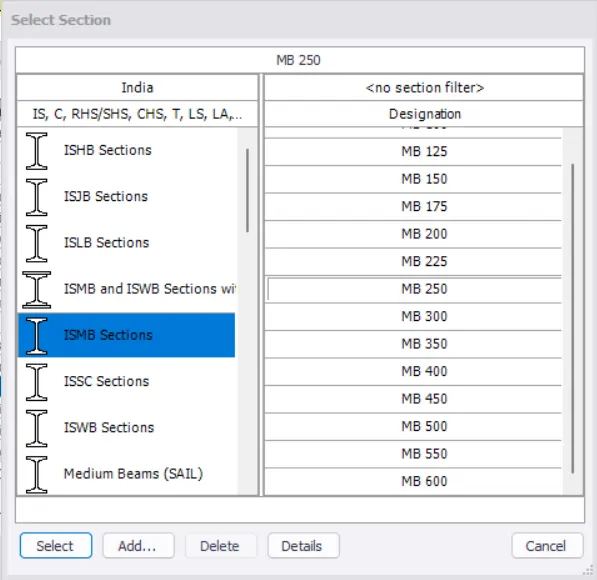

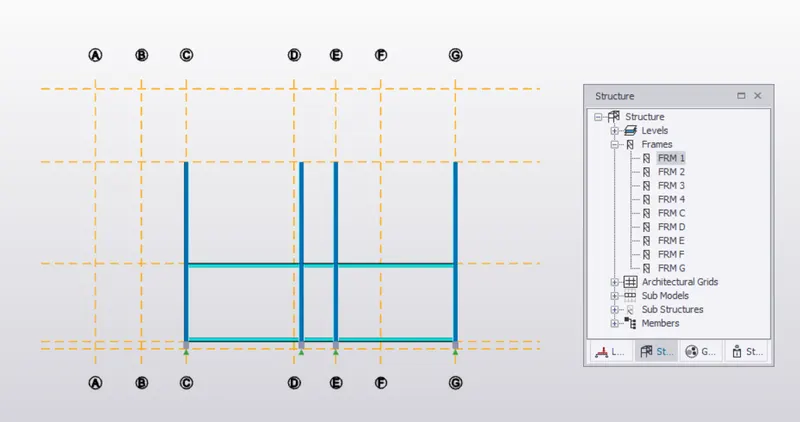

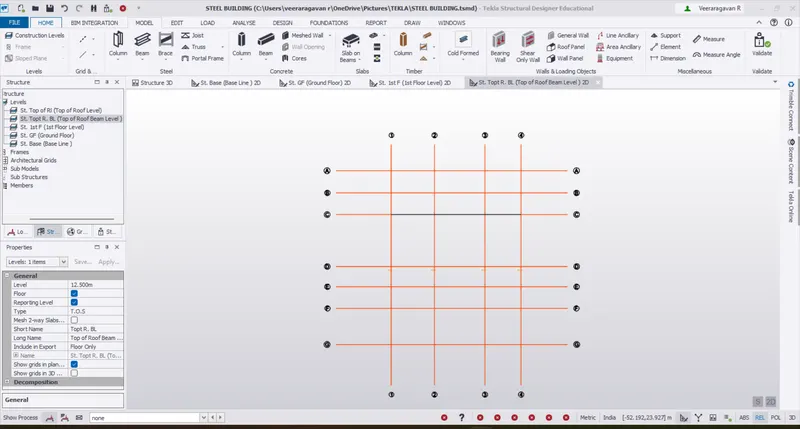

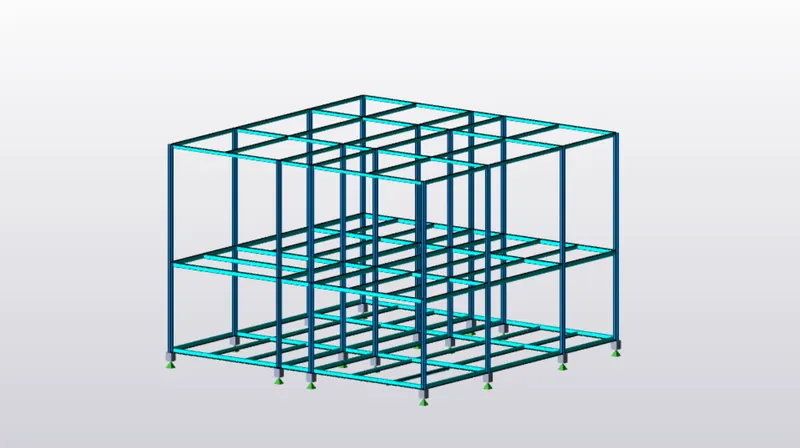

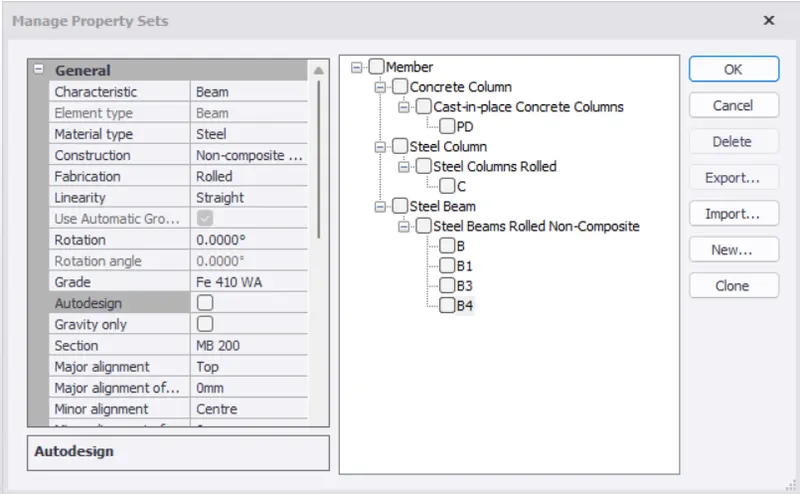

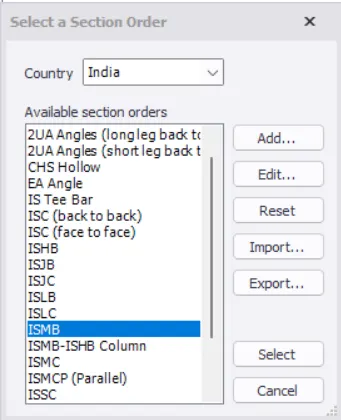

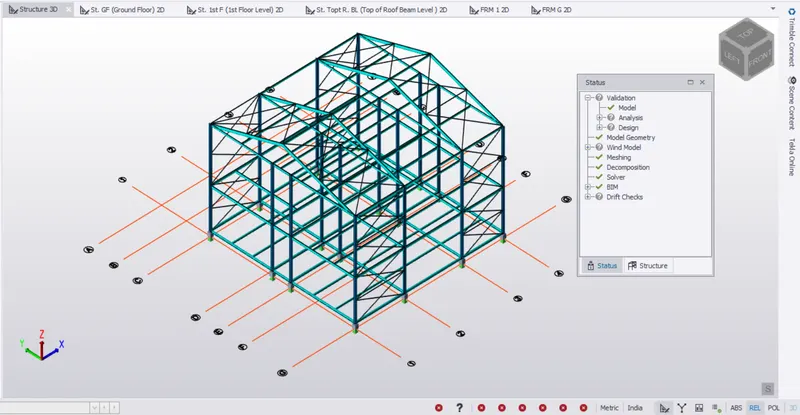

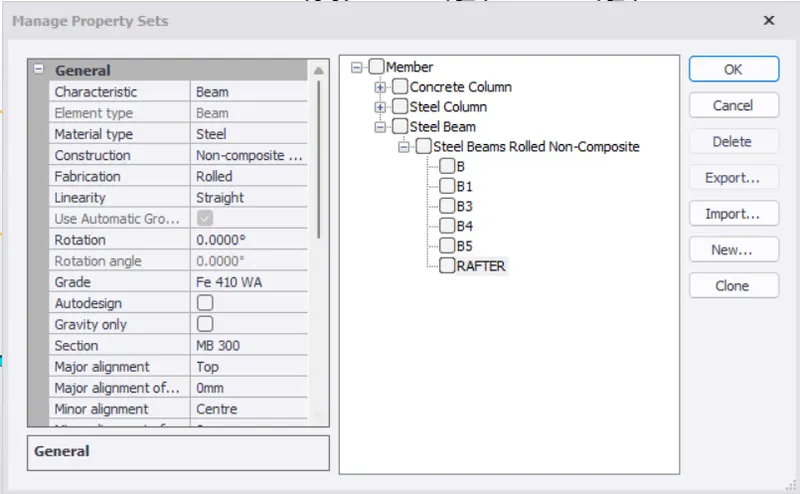

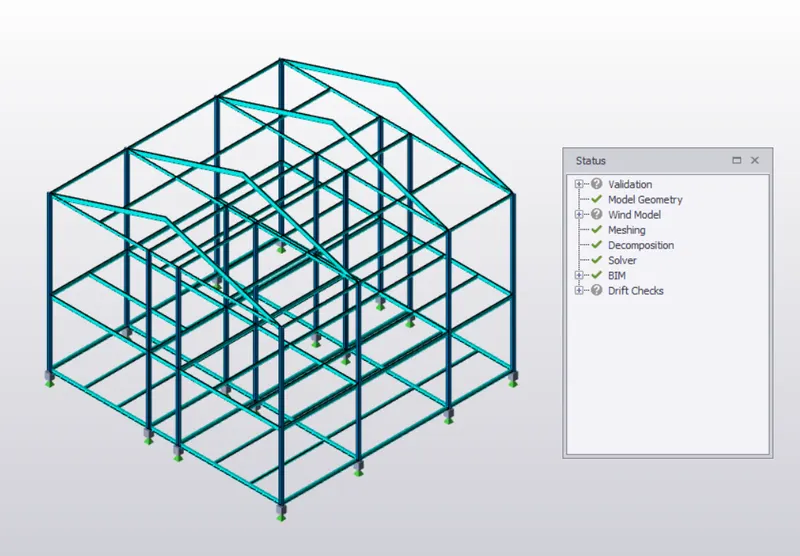

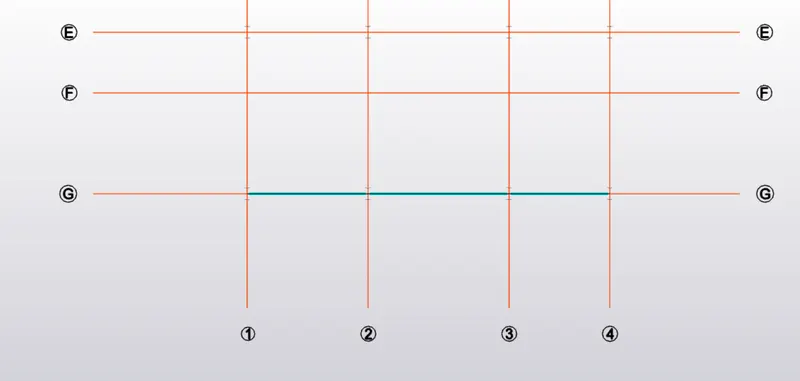

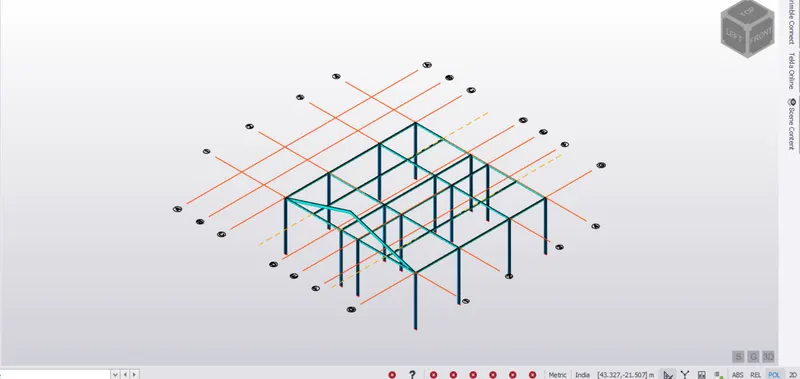

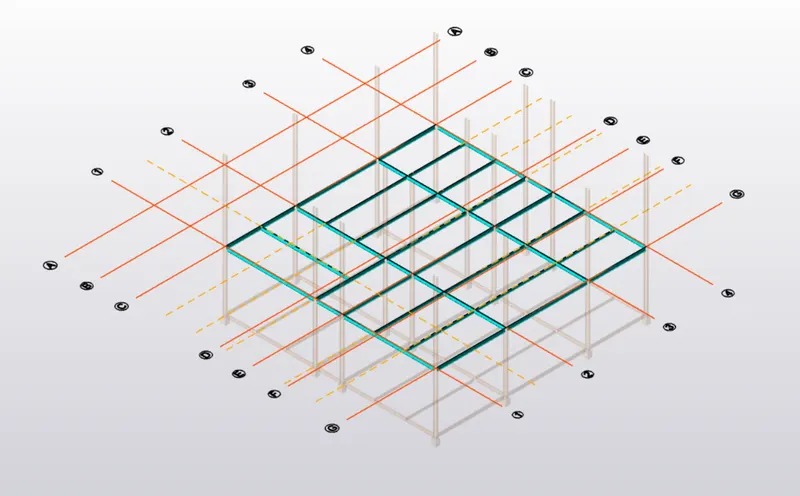

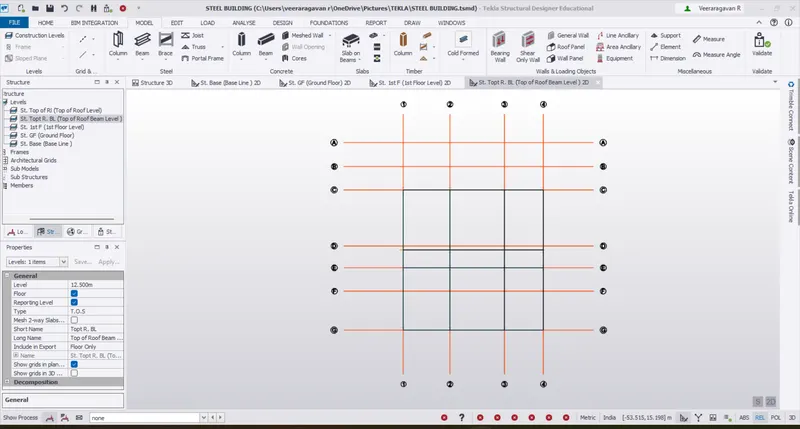

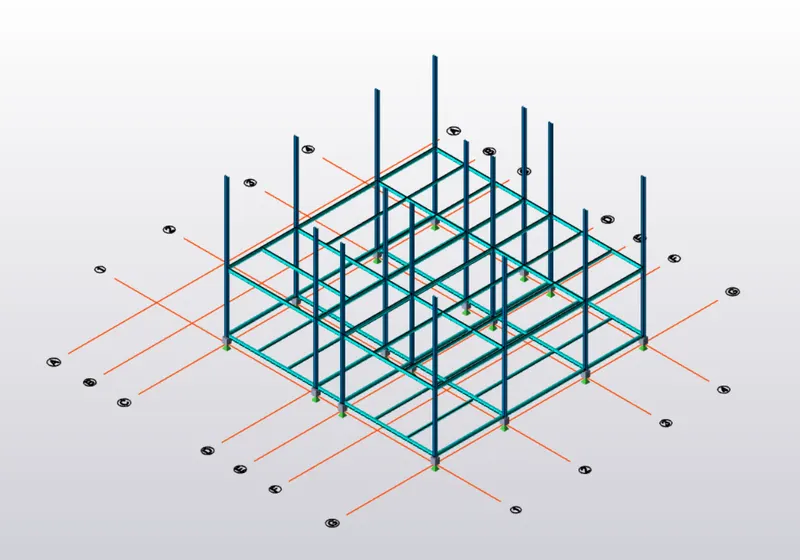

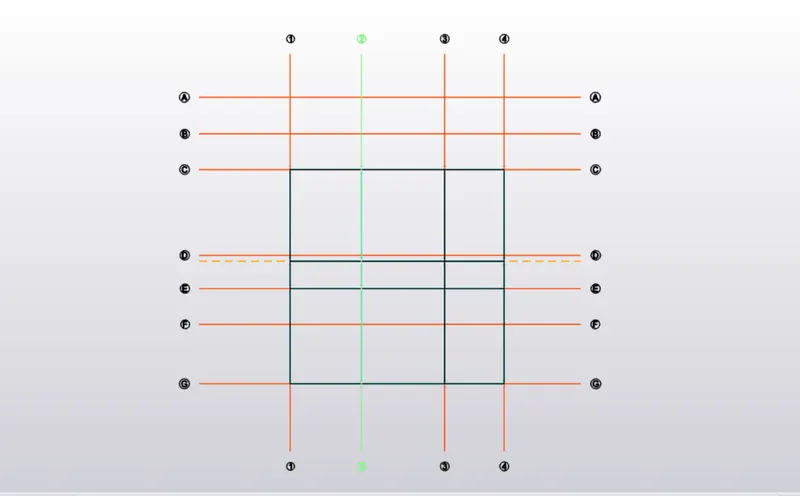

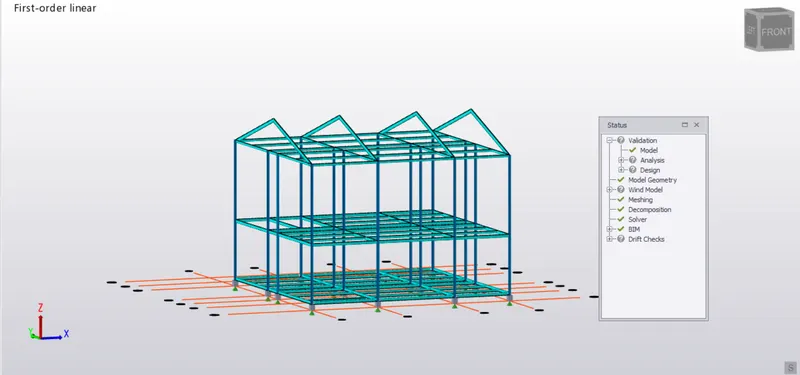

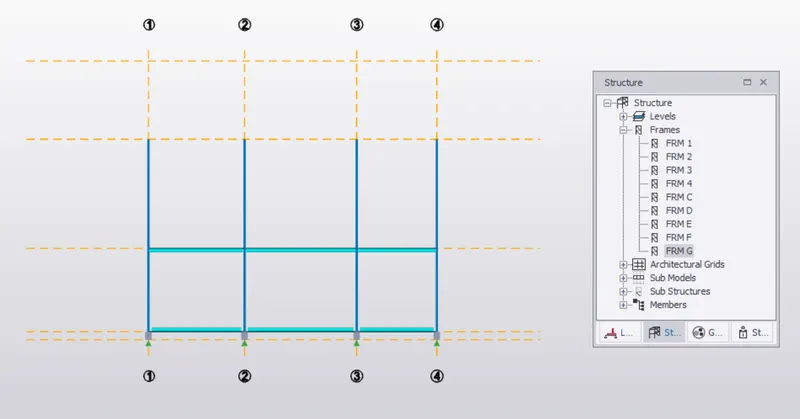

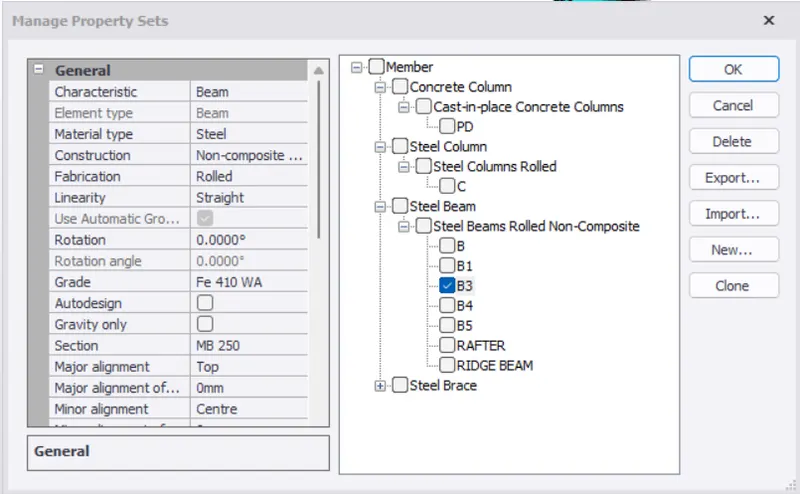

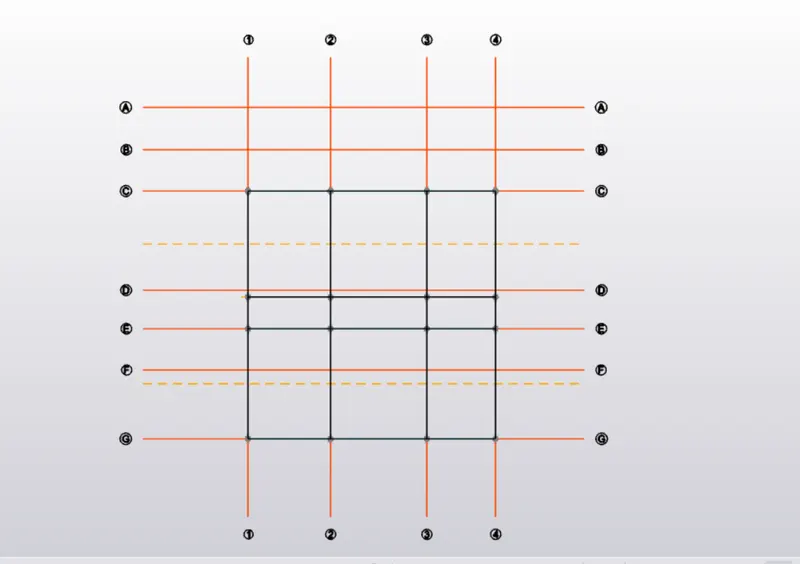

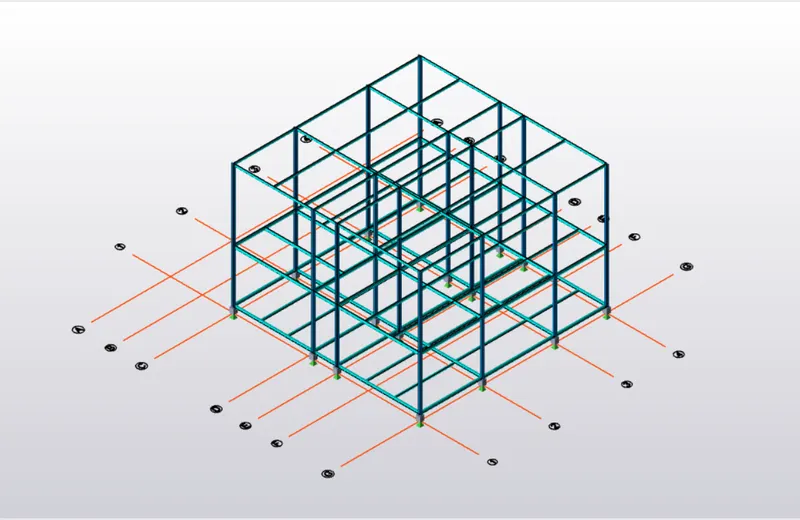

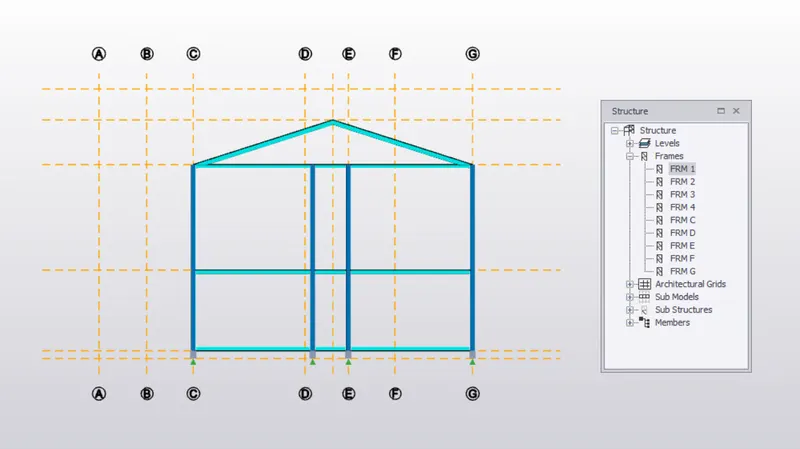

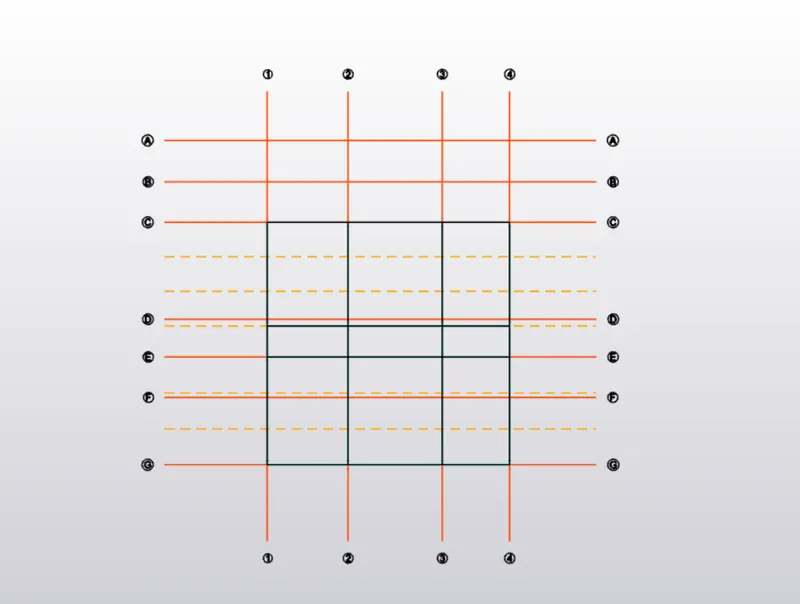

Model Beams and Bracings for Industrial Steel Structures Using TSD  Aim: To model beams and bracings for industrial steel structures using TSD Indroduction: General Arrangement:  . Planning column positions in the layout as per intput drawings considering the openings.  To provide expansion joints as per IS: 800:2007 .…

Aim:  To model columns for industrial steel structure using TSD Introduction: General Arrangement:  Planning column positions in the layout as per intput drawings considering the openings.  To provide expansion joints as per IS: 800:2007. Provide primary beams to tie columns and break the effective lenght. Provide seondary…

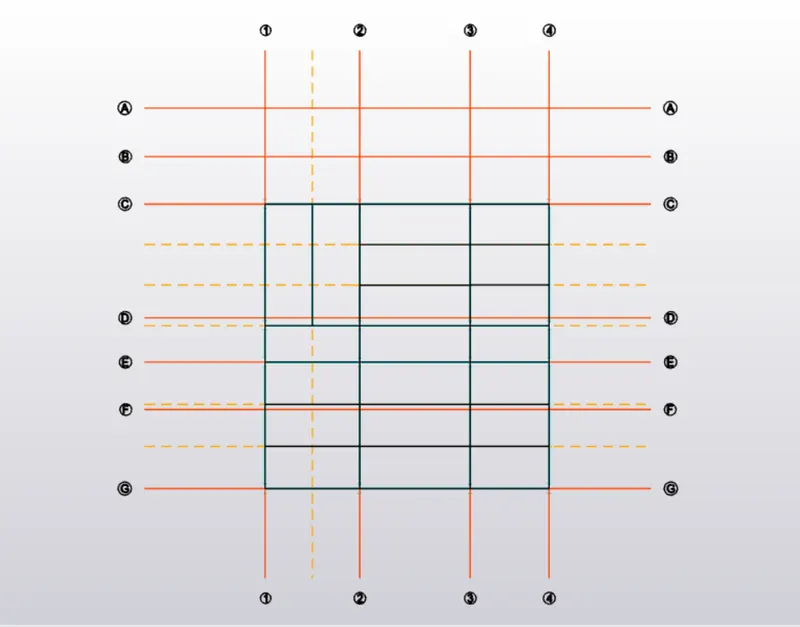

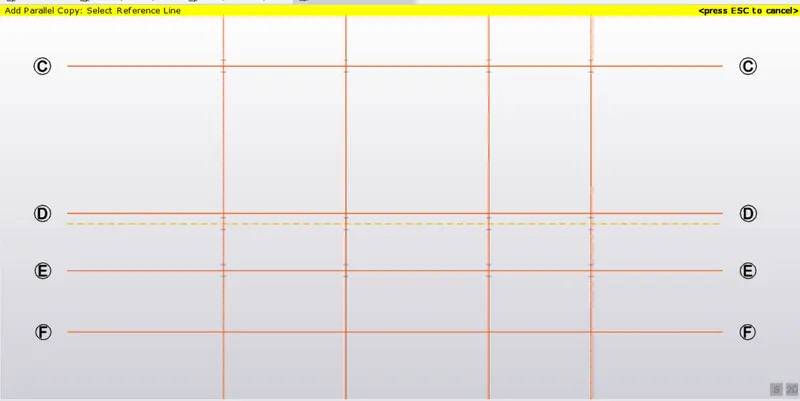

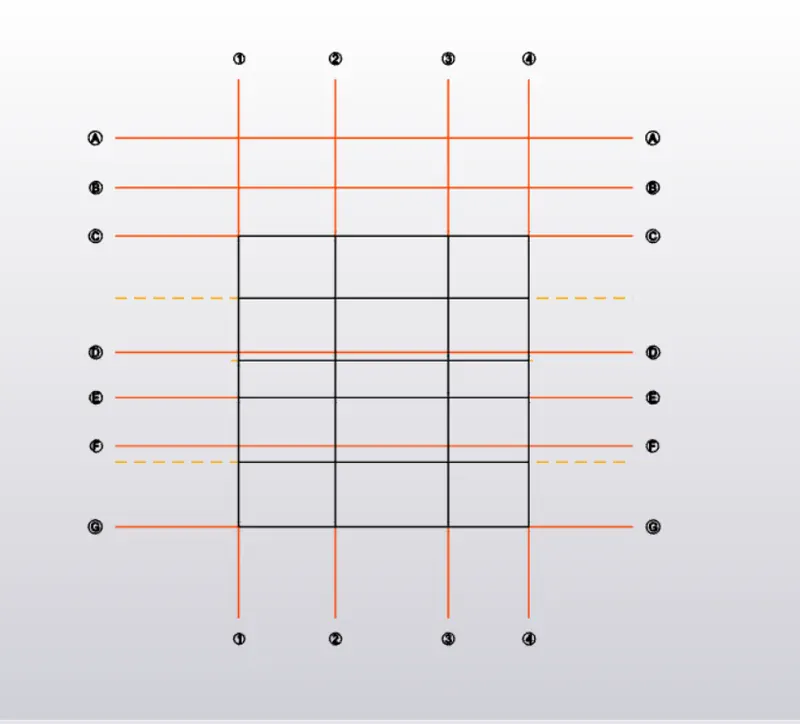

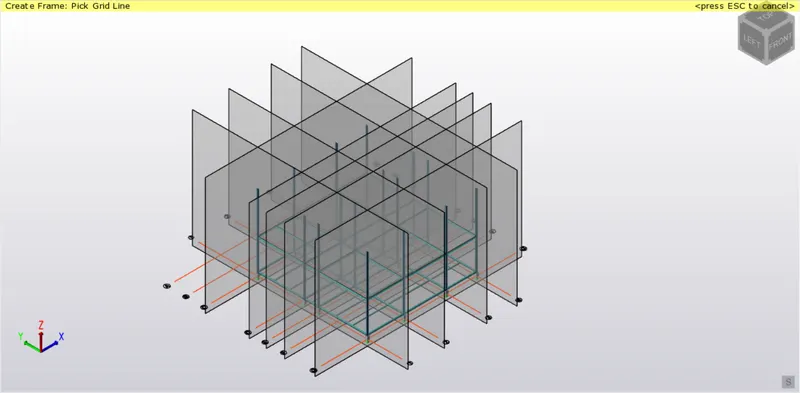

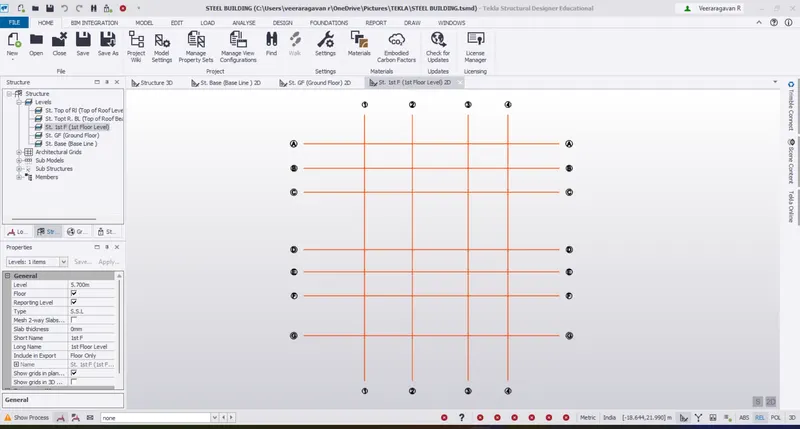

Challange-1 To plan a structural layout and to create grids using TSD 1. Summarize the user interface in TSD with the for the following items: - Project Workspace – How to access and usage: . Open the Software i.e., Tekla Structure Design and it will open as shown below. . Select file option and then go to new file. .…

QUESTION: In this project, participants will get to experience the entire design process from modelling, analysis, design and preparation of construction drawings. The architectural drawings of a G+3 RCC building is provided. The following information on the building is to be used: . Location – Guwahati, Assam . Function…

Que.1. Model the isolated footing provided in week 11 challenge on SAFE. Analyze and design it to verify the size, depth and steel provided as per calculations. Ans Aim:- To analyse and design isolated footing from week11 on SAFE . To verify the size, depth and steel provided as per the calculations Introduction:- CSI…

PROJECT:- Design of Shallow Foundation (Isolated Footings) AIM:- Design a square footing of column size 400x400mm INTRODUCTION: The spread footing behaves like an inverted cantilever with loads applied in the upward direc-tion. As a rule, a spread footing is a quite rigid element therefore, the applied soil stresses are…

                                                                  Challenge-11                                                Structural Modelling using Etabs 2018 The architectural drawings for a G+7 residential building in zone 5 has been provided. The floor plan is the same for all 7 floor levels. Possible column positions…

Dog house design for the Door Trim:Aim: Create the Dog House for the Door Trim considering the design rules and perform the draft analysis for class A and create the final close body component and perform the draft analysis.Objective:Create the Tooling axis Design the class-B and class-C surfaces and join them.Use the…

PROJECT:- Reinforcement detailing of Columns from ETABS output INTRODUCTION:- The reinforcement detailing of columns consist of carrying out the design of two columns, 3A & 3B for longitudinal and shear reinforcement. Shear reinforcement design of columns: Shear reinforcement demand on columns is larger of, . factored…

Reinforcement Detailing of Beams from ETABS output AIM - To Study The Reinforcement Detailing of Beams from ETABS output INTRODUCTION - ETABS is an engineering software product that caters to multi-story building analysis and design. Modeling tools and templates, code-based load prescriptions, analysis methods, and solution…

ANSWER:-Aim:-To compare, 1) Fundamental natural periods of buildings E & F as well as G & H. And the significant difference in the fundamental naturalperiods.2) Fundamental natural periods of buildings H, J and K. Have the buildings become more flexible or stiff due to change in mass.3) Fundamental natural periods of Buildings…

AIM: To model and analyse G+25 multistory building using ETABS 2020 and to check the model and parameters as per IS 1893(1)-2016. INTRODUCTION: Modelling and analysis of G+25 multistory building using ETABS 2020 is being explained with step-by-step procedures PROCEDURES: Open ETABS 2020 software . Open New Model Project…

Question 1: The building shown, 20 × 35 m in plan, has columns on a 5 × 5 m grid and shear walls (with dimensions shown in m, 250 mm in thickness) in three alternative arrangements, (a), (b), (c), all with the same total cross-sectional area of the shear walls. Compare the three alternatives, taking into account the restraint…

AIM:- To undersstand the  Concept on positioning of Columns INTRODUCTION:- There are some of the basic principles in determining the positions of columns. Some of them are: . Columns should be preferred to be positioned at the corners of the building and at the intersection of beams. . They should be placed in such a way…

Question 1: A five storey structure with 5 translational DOF is shown here. Each storey has mass ‘m’. The eigenvalue problem has been solved and the 5 periods of vibration Tn and their corresponding mode shapes, φn has been derived. The fundamental period of vibration (T1 = 2 seconds) and its associated mode shape: The…

Que :- 1. Differentiate Static analysis and Dynamic analysis with proper representing pictures (30 marks) Ans :-When I was doing my first civil engineering design I hardly thought about dynamics. Static analysis was “all there was” for me. And to some degree, it might have been even justified back then. Now,when I understand…

AIM: Identification of Cracks  INTRODUCTION:There are two types of failure modes in reinforced concrete beams: flexural failure and shear failure. The former occurs when the imposed load exceeds the flexural capacity of the beam's materials, whereas the latter occurs due to a lack of shear resistance between the beam's…

PROJECT:-  Usage of Navigation tool , Timeliner and Clash Detection test using Naviswork INTRODUCTION:- NAVISWORKS Used primarily in construction industries to complement 3D design packages (such as Autodesk Revit, AutoCAD, and MicroStation) Navisworks allows users to open and combine 3D models, navigate around them in…

Ans 1:-Aim:- To create  a set of sinusoidal points  and create a curve and create a surface out of the curve  Procedure:1. Open the revit software 2. Go to manage tab and select dynamo under visual  programming once that is done then go to search bar and search for range  and connect the integer…

1) I Select the type of structure  to build from one of the three below is: a. Multi-Unit Residential Apartment. 2) Assume reasonable assumptions for geographic and location details for your project modeling. Based on assumptions and type of structure selected identify the modeling requirements from NBC 3) Using the structural…

Solution.1) Aim: To provide a ceiling using options from the architecture tab above the walls at the first-floor level. Procedure:Open the project from the local computer in Revit.In the project browser panel, open the First Floor level of your project under Ceiliing plan.                                  Go to the ceiling…

AIM: Creating a 3D rendered model for a Residential Building in AutoCad PROJECT ON: 3D MODELLING AND RENDERING  INTRODUCTION:-This complete project is all about the real 3D view of the models with the realistic materials, exposure, and lightning systems Tool used:-For 2D: , line  , xline , offset…

1)Create the 3d isometric view of the building with plan & elevation given. AIM:-To create the 3d isometric view of the building with plan & elevation using Auto cad. PROCEDURE:-In the command prompt type units>engineering>0'0" , In the command prompt type limmax>100',100' , In the command prompt type limits>0',0' , Inthe…

1)Aim: The main aim of the problem is to creat the 3D furniture as given in challenge. Introduction:in this, i am gonna use the 3D&2D modelling tools such as rectangle,region,extrude,subtract,etc,. Procedure:starting with the new drawing sheet , setting up the sheet to 3D modelling , setting up the units to engineering…

CREATION OF MULTIPLE VIEWPORTS, SCALING THE DRAWING AND SETTING IN TEMPLATE IN AUTOCAD: INTRODUCTION:- Layout viewports are objects that display views of model space. You create, scale, and place them in paper space on a layout.On each layout, you can create one or more layout viewports. Each layout viewport is like a…

Aim: To create the layout of the kitchen and providing hatches to it using the autocad in detail. Introduction: kitchen layout is the most important part of designing your perfect kitchen.It’s the layout that will determine how you cook, how you eat and how you socialise.So whether you’re totally remodelling the kitchen,…

1)AIM- Create the templates as shown in Figures also create a block of this template name as Custom1_titleblock and Custom2_ PROCEDURE :- SELECT the line command ,  using line command create the template as shown in fig , select single line text from annotate and mention the text as shown , select block command using command…

Design and draft a layout of a residential building with the following details: a. Plot Size: 60’x20’ (18.3m x6m)  b. Orientation- Facing East  c. Develop the following: 1. Architectural Drawing (Floor Plan, Elevations, and Sections) 2. Structural Drawing (Column, Bean, Footing Plan) Aim: - To Design and Draft a layout…

Aim :- To draw the Plan, Elevation and Section of the building by using AutoCAD Software         Introduction :- The general commands used for drawing the building is as follows : 1.Line 2. Polygon 3.Rectangle 4. Circle 5.Erase 6.Copy 7.Trim 8.Mirror 9.Offset 10.Extend 11.Array 12.Move 13.Rotate 14.Dimension 15.Text 16.Fillet …

1. Draw the elevation and details of a wardrobe as shown in the Figure below. After sketching, you need to provide the dimensions and text with the use of layers. Use proper text styles and dimension methods to document it. Also, assume dimensions, wherever needed. Note: All dimensions are in mm. AIM:-To draw the elevation…

Aim :-Create a column schedule as shown in the figure. Introduction :-Column schedule means the table containing all the details of column required during construction process.Column schedule contains marking of column ,size of column and numbers of bars, diameter of bars used,stirrups details and location of bars etc.Column…

1. AIM:- To draw a residence plan of figure 1 with the use of AutoCAD 2022   PROCEDURE:-Click on AutoCAD application and open the application . Type a command QNEW to save the file .Type a command units. .Select architectural type,0'-0 1/2" in precision,insertion scale units in inches,decimal type and precision in 0 for…

AIM:- Drafting of various geometries using chamfer,fillet tool in autocad. INTRODUCTION:-Autocad consists of a number of drawing &modification tools.Among the modification tools are the chamfer,Fillet,Offset,Objectsnap,Rotate,Copy,Move,Mirror,Trim,Extend,& Join. CHAMFER:-A bevel or chamfer is-An angled line that…

Cross section of load bearing wall over spread footing. Aim: To draw cross section of wall over footing. Commands used: Line. Rectangle.Trim.Procedure: Step:1 - Create rectangle by typing "REC" in command box Specify the first corner point as (5,5) Specify the length of rectangle =0.9 units in command box Specify width…

ANSWER :-   1)AIM:- To create geometry in Autocad using all the coordinates system methods  Introduction of coordinates system:- There are four coordinates system:- .Absolute system .Relative coordinates system .Relative polar system .Direct distance entry .Absolute system:- .In the absolute coordinates…

Answer:- Ground floor First floor Opening is provided above the ground level for the aesthetic look All doors are inwards Here i. Main door is facing the north direction ii. Toilets are not placed near the kitchen iii. Dining area is near to kitchen far from main door iv. Bedrooms are placed in southwest and south east…

Answer (1):-      1: REQUIREMENTS OR STIPULATIONS TO BE KNOWN STRENGTH, MATERIALS TO BE USED, WORKABILITY, EXPOSURE CONDITIONS, MINIMUM AND MAXIMUM VALUES OF CEMENT AND WATER, IF SPECIFIED GRADE DESIGNATION  M50  TYPE OF CEMENT OPC 53 GRADE (IS-12269) TYPE OF MINERAL ADMIXTURE FLY ASH CONFIRMING TO IS 3812 PART-1 iv. MAXIMUM…
