Project 1
1. Design a multi-storey Residential Building located in Bangalore using STAAD Pro Connect Edition. The specification must be as follows: Building floors G + 6 + R Plan dimension B = 25m , L = 16m Storey Height h = 3.5m Soil Hard soil Use Residential Purpose Safe Bearing Capacity 180…
Sachin Kumar
updated on 16 Jan 2023
1. Design a multi-storey Residential Building located in Bangalore using STAAD Pro Connect Edition. The specification must be as follows:
|
Building floors |
G + 6 + R |
|
Plan dimension |
B = 25m , L = 16m |
|
Storey Height |
h = 3.5m |
|
Soil |
Hard soil |
|
Use |
Residential Purpose |
|
Safe Bearing Capacity |
180 kN/m2 |
|
Maximum slab thickness |
150mm |
Assume suitable sections for structural elements. Follow IS456, IS1893 and IS 875.
AIM - Design the multi story building G+6+roof design by using steed pro with using IS codes
Procedure -NODES AND DRAW THE BEAMS AT NODES POINTS ,THROUGH X AXIS AND Y AXIS ,Z AXIS GOBAL DIRCTIONS.
MAKING THE PROPERTY AND MATERIALS

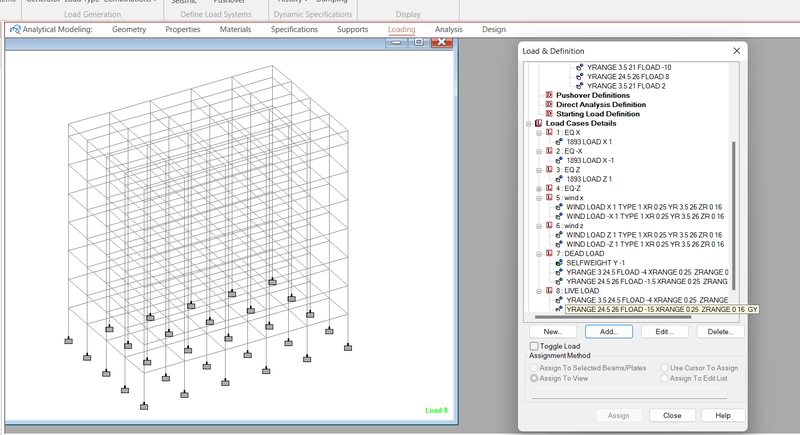

SUPPORTS AND LOADIND TO MODEL WITH REACTIONS ASLO DISPLACEMENTS AS SHOWN IN BELOW

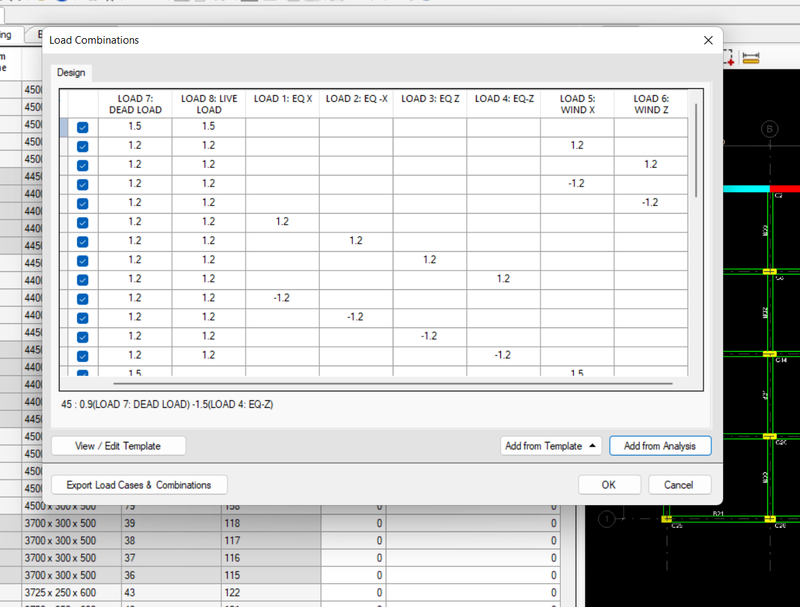

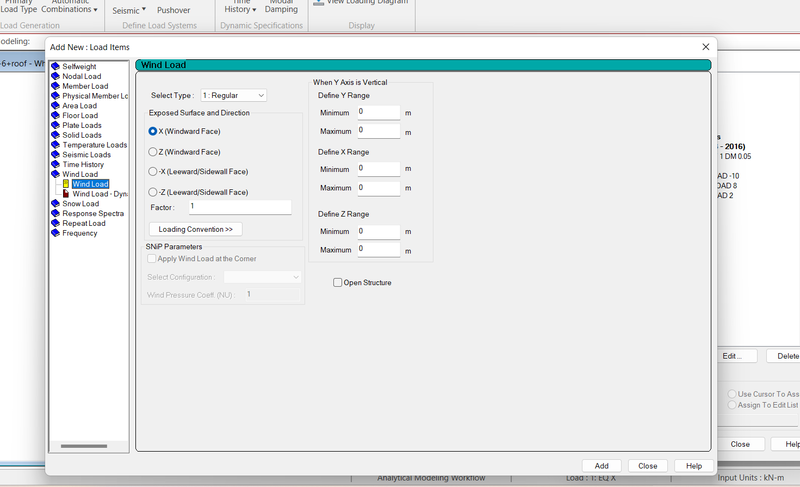

Prepare DL, LL, WL and EQL load calculations as per IS 875 standards
slab element using MS – Excel
3D RENDERING MODEL
Now the model will input in RCDC for beam and column design.
design settings in RCDC for beam design

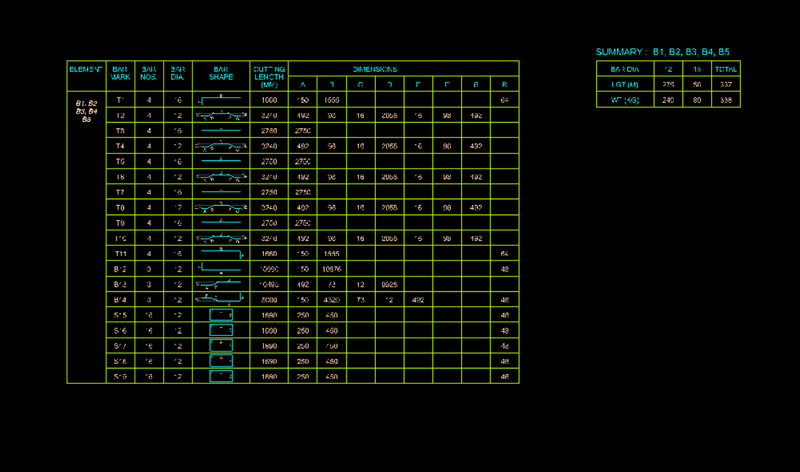

BAR BENDING SCHEDULE

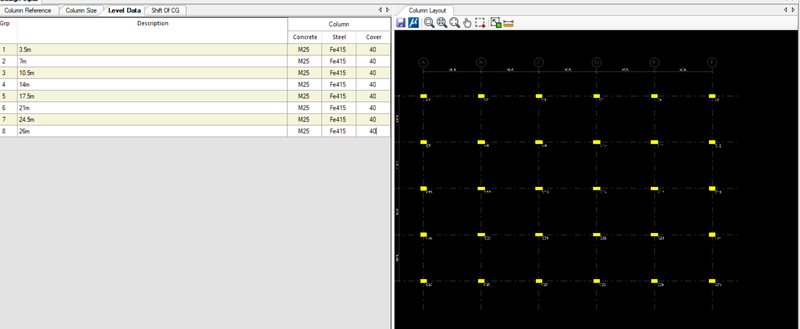

COLUMN DESIGN IN RCDC
BBS OF COLUMN
STAAD FOUNDATION - FOOTING DESIGN
