SECTION MODULUS CALCULATION & OPTIMIZATION

OBJECTIVE: To analyze the section modulus of the existing hood design and propose a modified section that exhibits an improved section modulus, thereby enhancing the structural strength and rigidity of the hood. Calculate the Section Modulus: Utilize the given formula $S = \frac{I}{Y}$ $S = I/Y$ to determine the section modulus…

Sagar Biswas
updated on 19 Aug 2023

OBJECTIVE: To analyze the section modulus of the existing hood design and propose a modified section that exhibits an improved section modulus, thereby enhancing the structural strength and rigidity of the hood.

Calculate the Section Modulus: Utilize the given formula $S = \frac{I}{Y}$ $S = I/Y$ to determine the section modulus of the existing hood design. Measure the moment of inertia (I) and the distance between the neutral axis and the extreme end of the hood (Y).
Evaluate the Existing Section Modulus: Assess the calculated section modulus to quantify the current strength and rigidity of the hood section. Identify any areas where the existing design might be lacking in terms of meeting desired strength requirements or safety standards.
Identify Critical Stress Points: Perform a stress analysis on the existing hood section to identify regions experiencing significant stress concentrations. Pinpoint areas that are prone to failure or deformation under load.
Optimize the Section Modulus: Propose design modifications to enhance the section modulus and improve the strength of the hood section. Consider altering the shape, thickness, or geometry of the section to optimize the distribution of stress and improve resistance to bending or torsion.
Calculate the Improved Section Modulus: Apply the modified design parameters to calculate the section modulus of the proposed new hood section. Ensure that the proposed modifications result in an increased section modulus compared to the existing design.
Compare and Analyze Results: Compare the section modulus values of the existing and proposed hood sections. Evaluate the improvement in structural strength achieved through the modifications. Analyze how the changes contribute to enhanced performance, increased safety, and potential weight reduction.
Documentation and Reporting: Summarize the findings in a comprehensive academic report, including detailed calculations, stress analysis results, design modifications, and the corresponding improvement in the section modulus. Present the report in a professional manner, highlighting the significance of the study and the potential benefits of the proposed modifications in terms of structural integrity, performance, and safety.

By undertaking this objective, we aim to identify potential design enhancements and optimize the section modulus of the hood section, leading to a stronger and more robust structure. The outcomes of this study will provide valuable insights for future design improvements, contributing to advancements in automotive engineering and ensuring the safety and reliability of the hood system.

INTRODUCTION:

SECTION MODULUS: The section modulus (Z) is a geometric property that quantifies how resistant a cross-sectional area is to bending. It measures the distribution of material around the neutral axis and provides information about a component's ability to withstand bending moments or flexural stresses.

Formula for Calculating Section Modulus:
The formula to calculate section modulus is $Z = \frac{I}{Y}$ $Z = I / Y$ , where:
- Z represents the section modulus
- I denotes the area moment of inertia
- Y signifies the distance from the neutral axis to the outermost fiber of the component

Area Moment of Inertia (I):
The area moment of inertia reflects how mass is distributed within an object's cross-section. For structural components like hoods, it describes how resistance against bending moments varies across different areas. A larger value for I indicates higher stiffness and greater resistance to deformation under applied loads.

Distance from Neutral Axis (Y):
The distance from neutral axis refers to how far away each fiber in a cross-section lies from its central plane or neutral axis. The fibers located farther away experience more stress during bending compared to those closer to this axis. By maximizing this distance while maintaining balance with other design considerations, engineers can optimize strength without adding excessive weight.

Importance of Calculating Section Modulus:

1. Strength Optimization: Determining and optimizing section modulus allows designers and engineers to enhance component strength by adjusting geometry parameters such as shape, thickness, or depth.

2. Structural Integrity: Achieving an appropriate section modulus ensures that components like hoods can resist external forces without undergoing excessive deflection or failure.

3. Weight Reduction: Optimizing section modulus enables lightweight designs while maintaining necessary levels of strength and rigidity.

4.Cost Efficiency: Efficient use of materials based on accurate calculations helps reduce manufacturing costs by avoiding over-design or unnecessary material usage.

In the case of our project, by increasing the depth of the inner panel of the hood, we aim to increase the overall area moment of inertia (I). This increase in I will subsequently result in a higher section modulus (Z), indicating improved resistance to bending and increased strength for the hood. It's important to strike a balance between optimizing section modulus and considering other design factors like weight, manufacturing constraints, and aesthetic considerations.

By using these calculations and principles during component design, engineers can ensure that automotive components like hoods provide optimal strength while meeting performance requirements within specified design parameters.

The formula

M = I \cdot \frac{σ}{Y}

$M = I * σ / Y$ relates to the bending moment (M) experienced by a component. Let's break down the components of this formula and understand their significance:

Bending Moment (M): The bending moment is a measure of the internal forces or moments that cause a structural component, such as the hood of a car, to bend when subjected to external loads. It represents the tendency of an applied force to induce bending or flexural stresses within the material.

Area Moment of Inertia (I): As mentioned earlier, area moment of inertia describes how mass is distributed within an object's cross-section. In terms of this formula, it quantifies how resistant a particular cross-sectional shape is to bending by measuring its ability to resist changes in curvature caused by the applied load. A larger value for I indicates higher stiffness and increased resistance against deformation due to bending.

Bending Stress (σ): Bending stress refers to the stress distribution across a material resulting from an applied bending moment. When an external load induces bending in a structure like a car hood, different fibers experience varying levels of stress based on their distance from the neutral axis. Bending stress can be calculated using

σ = M \cdot \frac{c}{I}

$σ = M * c / I$ , where c represents perpendicular distance between each fiber and neutral axis.

Distance from Neutral Axis (Y): In this context,Y represents how far away each fiber lies from its central plane or neutral axis within the cross-section being analyzed. This distance determines how much stress individual fibers will experience during bending; those farther away are subject to more significant stresses than those closer to this axis.

Relationship with Section Modulus: By rearranging

M = I \cdot \frac{σ}{Y}

$M = I * σ / Y$ equation,you can replace I/Y with Z(section modulus). Thus,the modified equation becomes: M = Z*σ.This simplified form shows that multiplying section modulus(Z) by bending stress(σ) gives us information about the magnitude or intensity of internal forces (bending moment) acting on a component.

Understanding the Formula: The formula

M = I \cdot \frac{σ}{Y}

$M = I * σ / Y$ helps engineers analyze and predict how much bending stress a particular cross-sectional shape can withstand in response to an applied bending moment. It allows for the evaluation of material selection, geometry optimization, or design modifications based on desired strength requirements.

By maximizing section modulus(Z) through proper design considerations like increasing area moment of inertia(I) or adjusting distance from neutral axis(Y), engineers can enhance a component's ability to resist bending moments and improve its structural integrity under external loads.

Overall, this formula provides valuable insights into the relationship between bending moment,section modulus,bending stress,and fiber distances.It aids in designing components that can withstand anticipated loads while ensuring optimal performance,stability,and durability.

In NX CAD, the 'Section Inertia Analysis' option provides valuable information about a section's moment of inertia and its associated parameters. Let's explore each parameter in detail:

Maximum Moment of Inertia (Ixx_max) and Minimum Moment of Inertia (Iyy_min): The maximum moment of inertia (Ixx_max) represents the highest value among all possible moments of inertia for a particular cross-sectional shape. It indicates how resistant the section is to bending around its principal axis parallel to the X-axis. Conversely, the minimum moment of inertia (Iyy_min) represents the lowest value among all possible moments of inertia for that section. It measures resistance to bending around its principal axis parallel to the Y-axis.
Section Area: The section area refers to the total enclosed area within a particular cross-section under analysis. It quantifies how much material is present within that region.
Principal Directions: Principal directions represent two mutually perpendicular axes along which moments of inertia are calculated in relation to a specific cross-sectional shape: X-principal direction and Y-principal direction.

X-Principal Direction: The X-principal direction corresponds with Ixx_max, indicating where maximum stiffness or resistance against bending occurs.
Y-Principal Direction: The Y-principal direction aligns with Iyy_min, representing where minimum stiffness or resistance against bending exists.

Understanding Parameters in Relation to Section: These parameters provide essential insights into various aspects related to sections being analyzed:

a) Stiffness Distribution: The values for maximum and minimum moments of inertia help determine how stiffness varies across different directions within a given cross-section. Higher values indicate increased resistance against bending when loads are applied along those respective axes.

b) Load-Carrying Capacity: By analyzing these parameters, engineers can assess a section's ability to carry external loads without excessive deflection or failure under anticipated loading conditions.

c) Design Optimization: Knowledge about principal directions allows designers to orient components (such as beams, columns, or structural members) in a way that aligns with the principal axes of highest and lowest stiffness. This optimization helps achieve desired performance while minimizing material usage.

d) Strength-to-Weight Ratio: Understanding the section area provides insights into the amount of material present within a given cross-section. By optimizing this parameter, engineers can strive for an optimal strength-to-weight ratio by maximizing strength while minimizing component weight.

e) Structural Integrity: Evaluating these parameters aids in ensuring that critical sections have sufficient stiffness and resistance against bending moments to maintain overall structural integrity during operation.

In summary, 'Section Inertia Analysis' in NX CAD offers valuable information about moment of inertia values along principal directions, section area, and associated parameters. It enables engineers to assess stiffness distributions,optimize designs for maximum strength-to-weight ratios,and ensure structural integrity based on anticipated loading conditions.

Strength-to-Weight Ratio Evaluation & Buckling Behavior Prediction during Loading Conditions

1. Strength-to-Weight Ratio Evaluation: The strength-to-weight ratio is a measure of the efficiency or effectiveness of a material or structure in terms of its ability to withstand applied loads while considering its weight. It helps assess how well a design can optimize both strength and weight, which is crucial for automotive applications.

A high strength-to-weight ratio indicates that the material or structure can carry significant loads relative to its own weight. This is desirable as it allows for lighter designs without compromising structural integrity or performance.

By evaluating the section's maximum moment of inertia (related to stiffness) along with material properties like density, engineers can calculate the section's mass per unit length. Comparing this value with other sections' masses per unit length enables an assessment of their respective strengths relative to their weights. Ultimately, this evaluation aids in selecting materials and optimizing component designs for lightweight yet strong automotive structures.

2. Buckling Behavior Prediction during Loading Conditions: Buckling refers to a sudden failure mode where slender structures under compression forces deform laterally instead of uniformly compressing axially. Understanding buckling behavior is essential in predicting structural stability and preventing catastrophic failures in various components such as columns, beams, or panels within an automobile.

During loading conditions involving compression or flexure situations, certain factors influence buckling behavior prediction:

Section geometry: The shape and dimensions of the cross-section significantly affect its resistance against buckling. Sections with higher moments of inertia have better resistance against lateral deflection caused by compressive forces.
Material properties: The mechanical properties like modulus of elasticity (stiffness), yield strength (limit before permanent deformation), and ultimate tensile/compressive strengths play vital roles in determining when buckling might occur under specific load scenarios.

Using NX CAD's Section Inertia Analysis data along with known material properties allows engineers to perform critical buckling analyses, such as calculating the critical load required to induce buckling or predicting potential modes of buckling. This information aids in designing structures that can withstand compressive loads without experiencing instability.

In summary, strength-to-weight ratio evaluation helps optimize designs for lightweight yet strong components, while understanding and predicting buckling behavior ensures structural stability and safety under compression or flexure loading conditions.

HOOD DESIGN FROM THE PREVIOUS CHALLENGE:

PROCEDURE TO CALCULATE THE SECTION MODULUS OF THE GIVEN HOOD USING NX CAD:

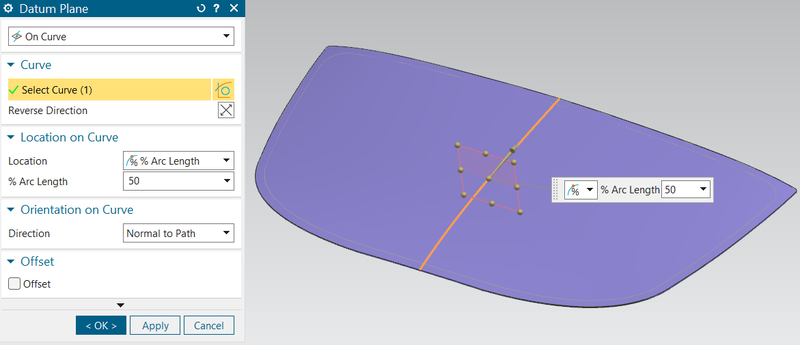

FIRST, WE WILL CREATE A DATUM PLANE USING THE 'ON CURVE' OPTION ON THE CENTRAL CURVE, WHICH REPRESENTS THE LINE OF SYMMETRY BETWEEN THE LEFT AND RIGHT SIDES OF THE HOOD, AS SHOWN IN THE IMAGE BELOW:

TO ENSURE THE DATUM PLANE IS PRECISELY POSITIONED AT THE CENTER OF THE SELECTED CURVE, WE WILL PROCEED BY SETTING THE ARC LENGTH TO 50%. THIS SETTING WILL CREATE THE DATUM PLANE EXACTLY HALFWAY ALONG THE SELECTED CURVE, ALLOWING FOR ACCURATE ALIGNMENT AND SYMMETRY, AS ILLUSTRATED BELOW:

NOW, SELECT THE "INTERSECTION CURVE" OPTION UNDER THE "CURVE SECTION" MENU. THEN, CAREFULLY CHOOSE THE FACES OF THE INNER AND OUTER PANELS FROM THE "SET ONE" OPTION. SUBSEQUENTLY, SELECT THE DATUM PLANE FROM "SET TWO" TO CREATE A PRECISE INTERSECTION BETWEEN THESE TWO PANELS, WITH UTMOST ATTENTION PAID TO THE DATUM PLANE AS ILLUSTRATED BELOW:

INTERSECTION CURVE OBTAINED AFTER THIS OPERATION:

NOW, WE'RE GOING TO MAKE THIS CURVE INTO A CLOSED CLOSED CONNECTED CURVE USING TRIM AND STUDIO SPLINE AS THE RESULTS WILL BE AS FOLLOWS:

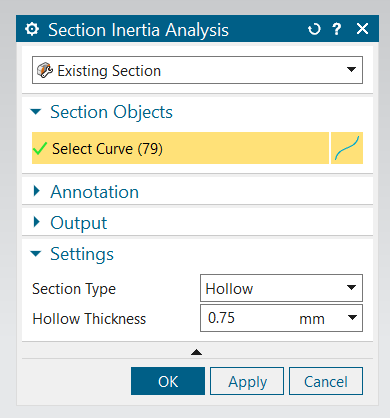

NEXT, WE'RE GOING TO USE THE SECTION INERTIA ANALYSIS COMMAND ON THIS CLOSED CURVE TO FIND OUT THE RESULTS AS SHOW BELOW:

MAXIMUM MOMENT OF INERTIA(MAX MOI): 9.040040996*10^7*mm^4

MINIMUM MOMENT OF INERTIA(MIN MOI): 2.905484523*10^5*mm^4

Y = 876.45853411/2

Y= 438.229267055

$S = \frac{I}{Y}$ $S = I/Y$

Where,

S = SECTION MODULUS

I = MOMENT OF INERTIA

Y = DISTANCE BETWEEN THE NEUTRAL AXIS & THE EXTREME END OF THE OBJECT

SECTION MODULUS FOR MINIMUM MOMENT OF INERTIA:

S = 2.905484523*10^5*mm^4/438.229267055mm

S = 663.0055867 mm^3

NOW, WE'RE GOING TO OPTIMIZE THE DESIGN OF OUR HOOD BY INCREASING THE DEPTH OF THE INNER PANEL BY 0.5MM TO INCREASE THE VALUE OF SECTION MODULUS IN ORDER TO IMPROVE THE OVERALL STRENGTH OF OUR COMMODITY:

NOW, WE'RE GOING TO USE THE SECTION INERTIA ANALYSIS ON THIS NEW CURVE THAT WE HAVE CREATED BY OFFSETING IT BY 0.5MM:

MAXIMUM MOMENT OF INERTIA(MAX MOI): 9.023171655*10^7*mm^4

MINIMUM MOMENT OF INERTIA(MIN MOI): 2.9783577*10^5*mm^4

Y = 876.45853411/2

Y= 438.229267055

$S = \frac{I}{Y}$ $S = I/Y$

Where,

S = SECTION MODULUS

I = MOMENT OF INERTIA

Y = DISTANCE BETWEEN THE NEUTRAL AXIS & THE EXTREME END OF THE OBJECT

SECTION MODULUS FOR MINIMUM MOMENT OF INERTIA:

S = 2.9783577*10^5*mm^4/438.229267055mm

S = 679.63459 mm^3

THE OBSERVED INCREASE IN SECTION MODULUS IS EVIDENT FROM THE DIFFERENCE OF 16.6290033 MM^4 BETWEEN THE INITIAL AND MODIFIED VALUES.

THE OBJECTIVE OF THE PROJECT WAS TO ENHANCE THE STRENGTH AND STRUCTURAL INTEGRITY OF A HOOD BY INCREASING ITS SECTION MODULUS. THIS INVOLVED ANALYZING THE SECTION INERTIA OF THE INITIAL INTERSECTION CURVE AND MAKING MODIFICATIONS TO OPTIMIZE THE DESIGN.

ANALYSIS AND MODIFICATION: THE SECTION INERTIA ANALYSIS OF THE FIRST INTERSECTION CURVE RESULTED IN A VALUE OF 663.0055867 MM^3. TO ACHIEVE AN INCREASED SECTION MODULUS, THE CURVE WAS OFFSETTED BY 0.5MM, CREATING A NEW CLOSED CURVE.

FOLLOW-UP ANALYSIS: ANOTHER SECTION INERTIA ANALYSIS WAS PERFORMED ON THE MODIFIED CURVE, RESULTING IN A CALCULATED VALUE OF 679.63459 MM^3 FOR THE SECOND SCENARIO. THIS REPRESENTS AN INCREASE IN SECTION MODULUS OF APPROXIMATELY 16.6290033 MM^4 COMPARED TO THE ORIGINAL DESIGN.

SIGNIFICANCE OF THE INCREASE: THE OBSERVED INCREASE IN SECTION MODULUS INDICATES THAT THE GEOMETRIC ADJUSTMENTS MADE HAVE RESULTED IN IMPROVED RESISTANCE AGAINST BENDING MOMENTS WITHIN THE HOOD STRUCTURE. A HIGHER SECTION MODULUS VALUE SIGNIFIES ENHANCED STIFFNESS AND RIGIDITY, CRUCIAL FACTORS FOR OVERALL COMPONENT STRENGTH.

CONSIDERATIONS: WHILE INCREASING SECTION MODULUS IS BENEFICIAL FOR STRENGTH, OTHER FACTORS SUCH AS WEIGHT REDUCTION, MANUFACTURING CONSTRAINTS, AND AESTHETIC CONSIDERATIONS MUST ALSO BE TAKEN INTO ACCOUNT DURING DESIGN OPTIMIZATION.

CONCLUSION: THE PROJECT SUCCESSFULLY DEMONSTRATES THE IMPACT OF OFFSETTING THE CURVE BY 0.5MM ON THE SECTION MODULUS. THIS RESULTED IN AN IMPROVEMENT IN THE HOOD'S STRENGTH AND RIGIDITY, ENHANCING ITS ABILITY TO WITHSTAND EXTERNAL FORCES AND PROVIDE STRUCTURAL INTEGRITY UNDER ANTICIPATED LOADING CONDITIONS.

NOTE: SPECIFIC DETAILS ABOUT THE PROJECT, INCLUDING THE HOOD'S DESIGN, MATERIAL SELECTION, AND LOADING CONDITIONS, SHOULD BE CONSIDERED FOR A MORE COMPREHENSIVE ANALYSIS.
