Project 2 - Modeling of 3 phase Induction Motor Drive

subsystem of driver subsystem of lead vehicle   code generated out of the model  /* * File: mbdpro1.c * * Code generated for Simulink model 'mbdpro1'. * * Model version : 1.20 * Simulink Coder version : 9.3 (R2020a) 18-Nov-2019 * C/C++ source code generated on : Fri Apr 7 13:50:54 2023 * * Target selection: ert.tlc * Embedded…

/* * File: mbdminiproject.c * * Code generated for Simulink model 'mbdminiproject'. * * Model version : 1.11 * Simulink Coder version : 9.3 (R2020a) 18-Nov-2019 * C/C++ source code generated on : Mon Apr 3 15:29:25 2023 * * Target selection: ert.tlc * Embedded hardware selection: Intel->x86-64 (Windows64) * Code generation…

Ev refresher batch5 . .  DC-DC converter buck  DC-DC converters are also known as Choppers. Here we will have a look at the Step-Down Chopper or Buck converter which reduces the input DC voltage to a specified DC output voltage The input voltage source is connected to a controllable solid state device which operates…

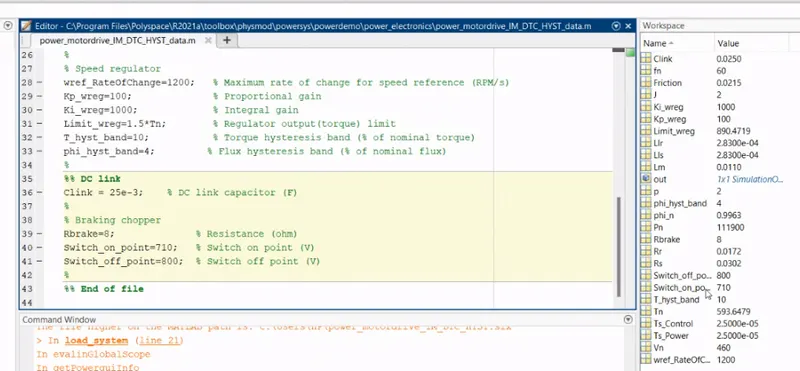

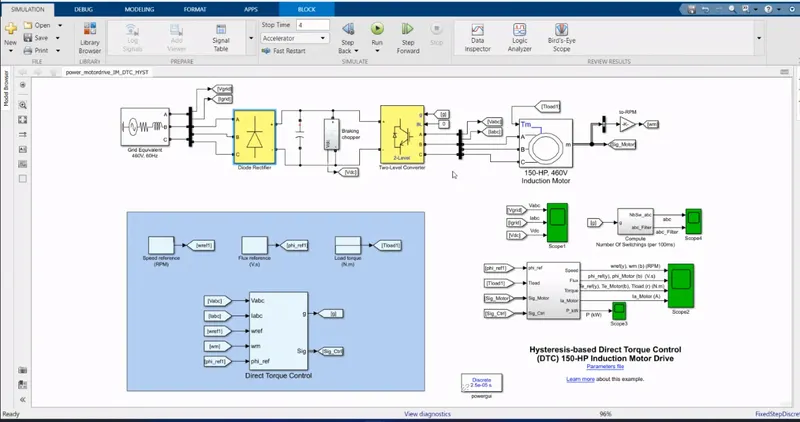

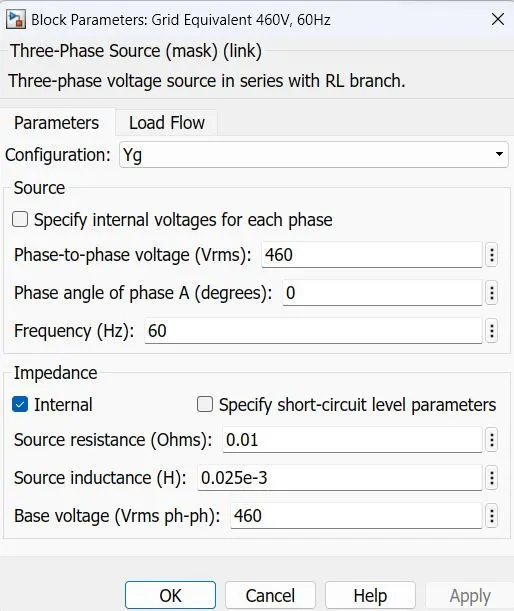

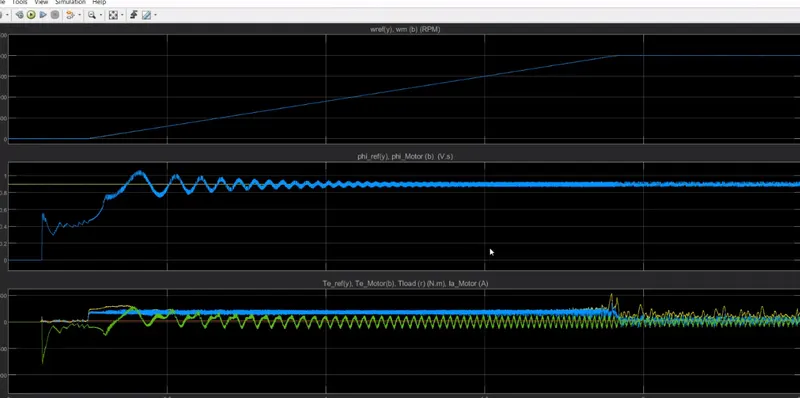

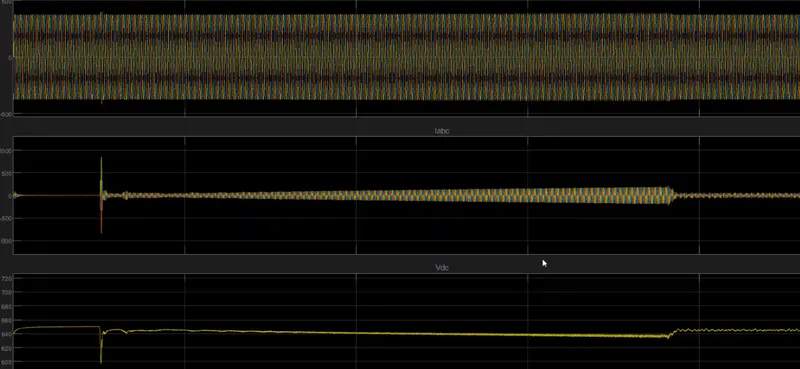

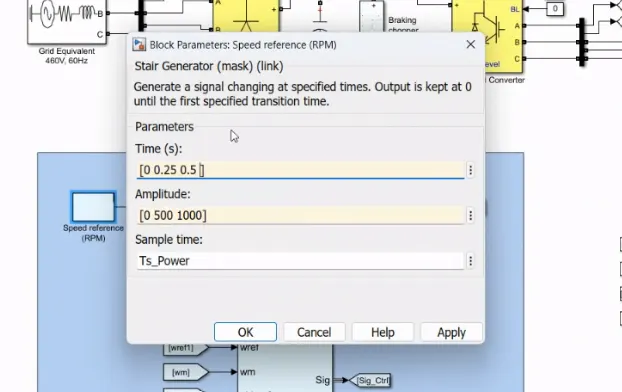

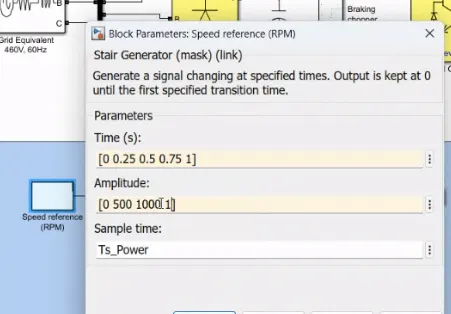

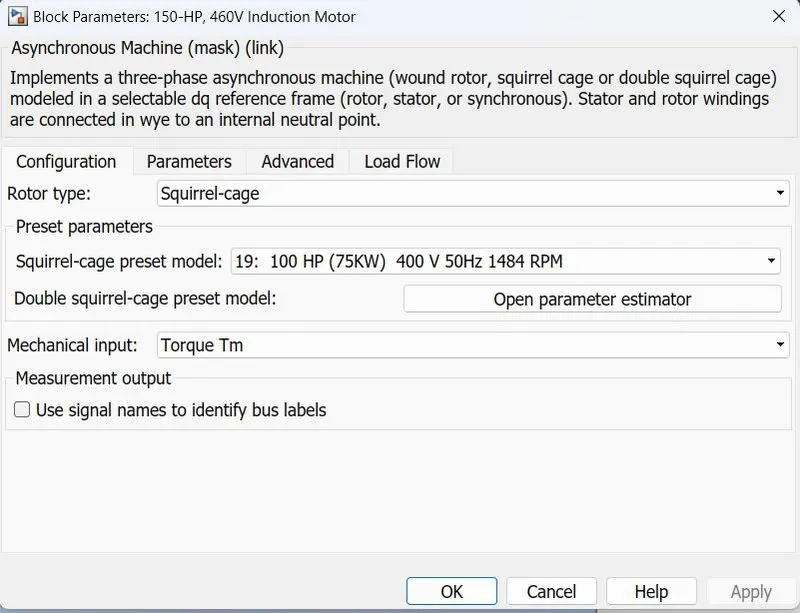

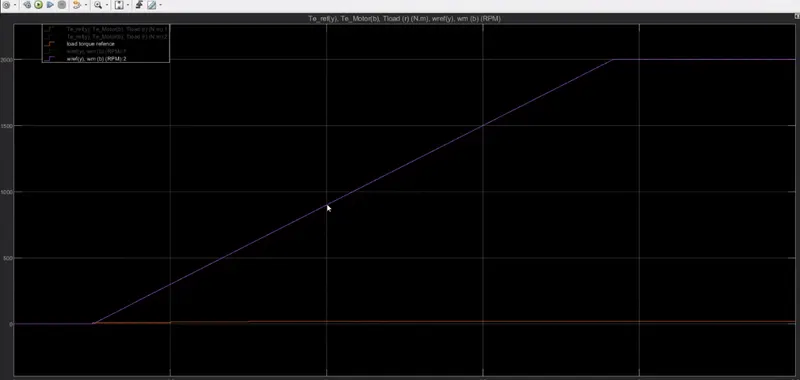

EV REFRESHER BATCH-5 . . DIRECT TORQUE CONTROL OF AN INDUCTION MOTOR The electrical energy is supplied by a three-phase AC/DC diode rectifier connected to a 460 V, 60 Hz grid equivalent. The DC bus is connected to a three-phase, two-level converter. This converter generates the variable voltage and frequency required for…

1................ AIM Our aim is to design a battery pack for a car of 150kw with a voltage of 120v using the specification provided in a question that nominal-voltage is given to be 3.6v .. To design the battery pack we need cells that are connected in series and parallel to meet the requirements.  calculation---: Let…

 AIM:-----The max heat generation of the batter ....................... 1-The max heat generation of the battery  The heat generated = Joules Heat + Entropy Heat the conversion of electrical energy into heat energy by the resistance in a circuit is known as joules heating  entropy is a measure of the heat…

AIM ---electric rickshaw design (three-wheel passenger vehicle)  In this project, we going to build the MATLAB model of the ELECTRIC RICKHAEW by using a PM brushed type DC motor and a suitable Lithium-Ion battery for the motor. Before that, we will know about what is Electric RICKHAEW, how it works, and its benefits…

Electric vehicles have low running costs as they have fewer moving parts for maintenance and are also very environmentally friendly as they use little or no fossil fuels (petrol or diesel). While some EVs used lead-acid or nickel-metal hydride batteries, the standard for modern battery electric vehicles is now considered…

1................ AIM Our aim is to design a battery pack for a car of 150kw with a voltage of 120v using the specification provided in a question that nominal-voltage is given to be 3.6v .. To design the battery pack we need cells that are connected in series and parallel to meet the requirements.  calculation---: Let…

Electric vehicles have low running costs as they have fewer moving parts for maintenance and are also very environmentally friendly as they use little or no fossil fuels (petrol or diesel). While some EVs used lead-acid or nickel-metal hydride batteries, the standard for modern battery electric vehicles is now considered…

Search and list out the total weight of various types of aircraft.  ​ MTOW-Maximum Take off weight MLW-Maximum Landing Weight Type MTOW [kg] MLW [tons] Antonov An-225 640,000 591.7 Scaled Composites Model 351 Stratolaunch 589,670   Airbus A380-800[1][2] 575,000 394 Boeing 747-8F 447,700 346.091 Boeing 747-8 443,613…

1............................ The braking performance is one of the most important concerns in vehicle safety. In urban area driving, a significant amount of energy is consumed in braking. Electrification of vehicles makes it feasible to recover some of the energy lost in braking. A hybrid braking system was developed…

  the Speed control of a DC motor using BJT H-bridge, we need to know about the components used in the circuit BJT -  Bipolar Junction Transistors (BJT) are current regulating devices that control the amount of current flowing through them from the Emitter to the Collector terminals in proportion to the…

1................ Power Electronic Converters: - In Electric and Hybrid Electric Vehicles (EV/HEV), the power electronic converters are considered as the key factors that interface their power sources to the drivetrain of the EVs.  the 3 types of converters that are widely used in an Electric Vehicle are: AC…

 Open the HEV  reference application   Mapped models are used when the behavior of a particular model is not of our interest and can be modeled with predefined values in the form of lookup tables. mapped motor:  a mapped motor and drive electronics operating in torque control mode. we have to specify…

  CASE I:  In the ADVISOR Vehicle Input GUI select Load File as 'EV_defaults_in file' from the drop down menu. Also change the Cargo mass to 500 kg in the bottom right corner of the interface. then next is select 'continue'. Here from the drop-down menu of the Drive Cycle select the 'CYC_FTP' driving…

%it have the parameters of the dc motorJ=0.01; %moment of inertia of the rootsB=0.1; %motor viscous friction constantKm=0.01; %back emf constantKt=0.01; %motor torque constantLa=0.5; %inductance of the armature circuitRa=1.0; %resistance of armature circuit   these are the parameter which is taken to help in the designing…

% program to genrate a plot to interpolate data E = xlsread('VI.xlsx') %reading or calling data from excel sheet to matlabV = E(:,1);%values of voltage from excel sheet I = E(:,2);%values of cureent from excel sheetxx = [-17.3:0.1:0.9]; % defining the range for interpolation yy = interp1(V,I,xx);plot(V,I,'*',xx,yy,'-g');xlabel('voltage(v)')%heading…
