Project 2_Creating a 3D rendered model for a Residential Building in AutoCad

Aim:- To create a 3D rendered model for a residential building

Introduction:-

Floor Plan

• Floor plan is a type of drawing that shows the layout of a home or property from above
• Planning of a building gives the idea about the building how the building will be done in future
• Planning plays an important role in the civil engineering because without this planning we can't determine structural element
• Planning may be residential, public or commercial  building

Elevation:-

• It's used to see the view of a building in a software before the construction

AutoCAD:-

It is essential to draft the geometry

The different tools required in this drafts are line  (L), fillet (F), offset (O), Hatching (H) and Hatch edit (HE), trim (TR), Extrude (EXT), 3D Move (3DM), 3D Orbit (3DO), 3D Rotate (3DROTATE), Subtract (SUB), Solid edit (SOLIDEDIT), Loft (LOFT), Rectangle (REC), Circle (C), Boundary (BO), Render (RR).

Procedure:-

• Go to start menu, click on Start drawing
• Type stratup (Enter) in command line
• Enter the new value of start up:1
• Go to application menu and select new or type new in command line

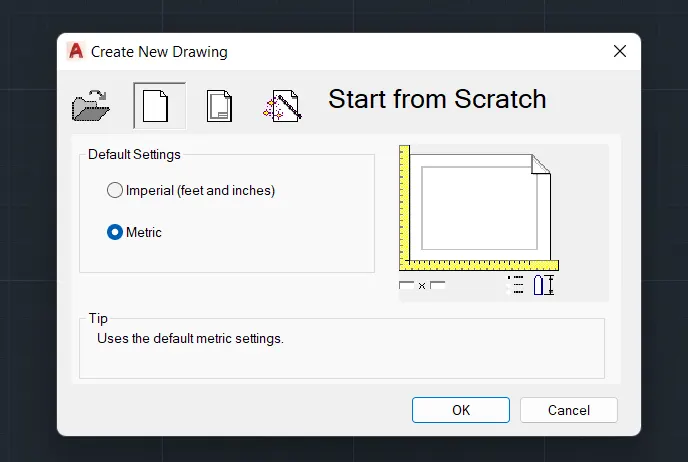

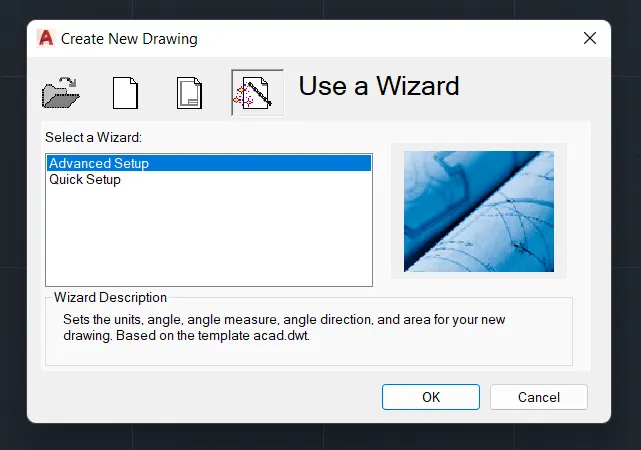

• In the "create new drawing" dialogue box contains imperial  type of systems and metric type of system
• We select the metric system in the "start from scratch" option
• After that in Advance setup option select the decimal unit system in the units

The above procedure should be followed every time when the new sheet is opened

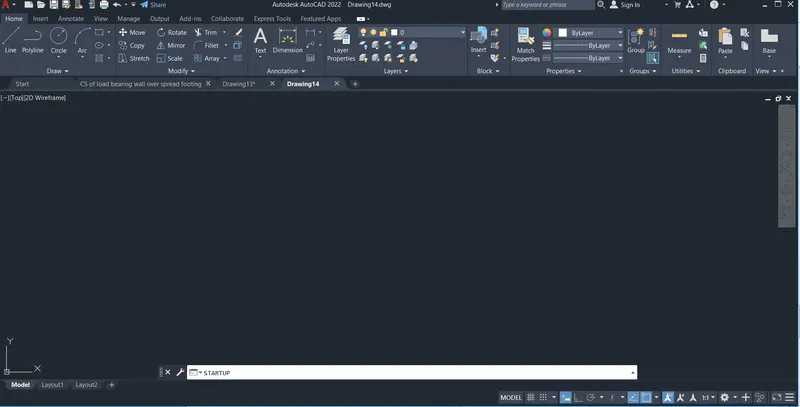

                               Entering the start up command in the command line

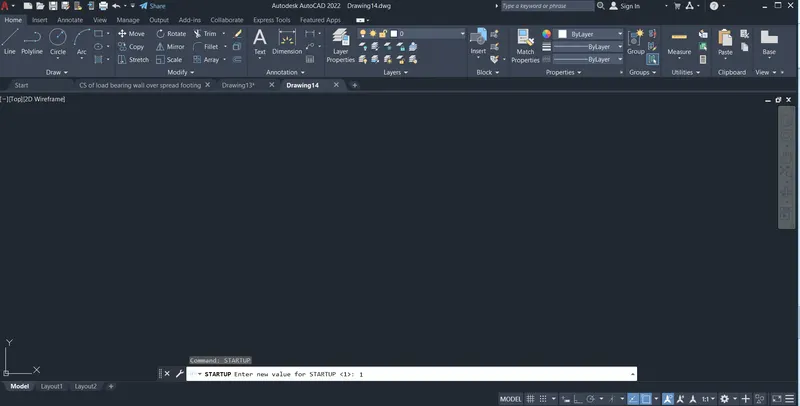

                             Entering the value 1 for the start up

                            When we go to the new file then we get this file select the metric from start from scratch

                           Then advance setup setting should be done by clicking OK

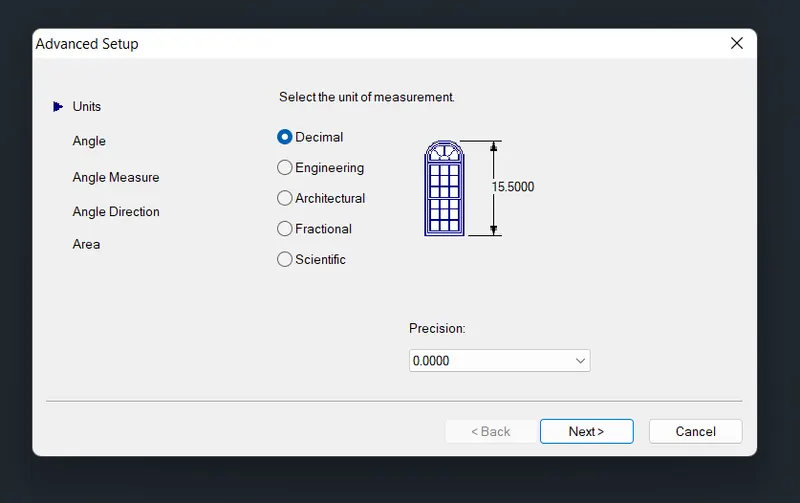

                          Keep the units in decimal and adjust precision then click next

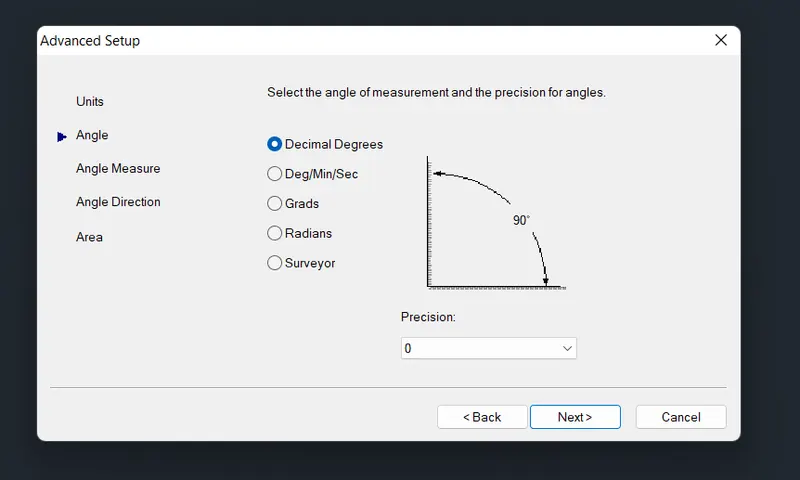

                           Keep angle in decimal degree and adjust precision then click next

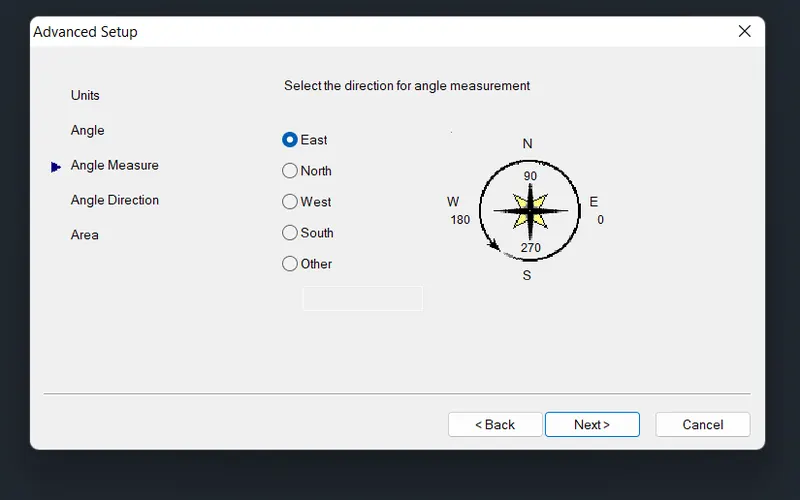

                          Select the angle measurement in east and click on next

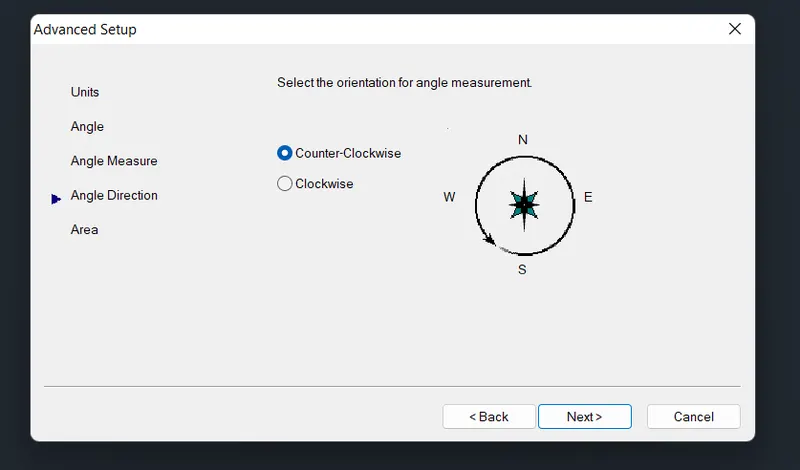

                            Select angle direction in counter clockwise and click on next

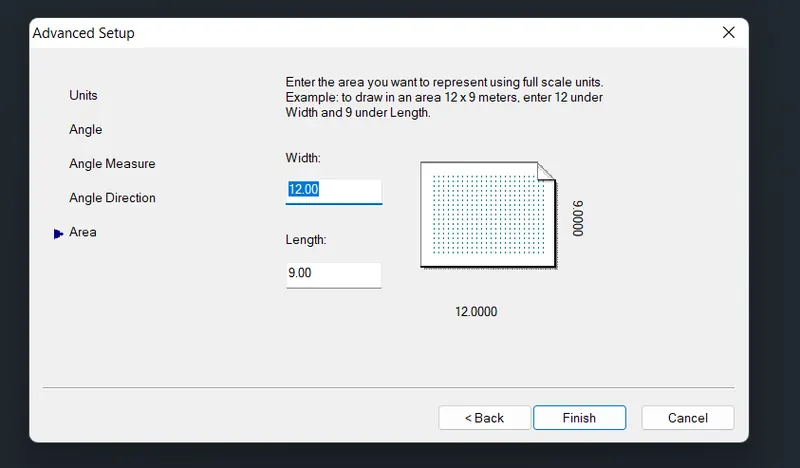

                           Keep the width as 12m and length of 9m as default and click on finish

Aim:- To draft the plan of a given building by using AutoCAD

                                                                         Plan

Procedure to Plan:-

By using direct distance entry method

• Here all the units are in Engineering (feet and inches)
• Select the construction line tool by entering XL (Enter) in the command line
• Select the vertical line and place it any where on the screen
• Next by using a same command (construction line) select horizontal line and place it on the screen
• Dimesion of the building is 20'x60'
• Take a offset of 9" for the outer wall from the vertical line
• Take a offset of 9" for the outer wall from the horizontal line

To get Master bedroom

• Take a offset of 10'-0" left side from the 9" line to get inner wall in -ve x-direction
• Take a offset of 12'-0" downwards from the 9" outer wall horizontal line -ve y-direction
• Trim off unwanted lines inside the rooms

To get dressing room, toilet and general bathroom

• Take a offset of 4.5" left side from the 10'-0" line to get inner wall in -ve x-direction
• Take a offset of 4'-1.5" left side from the 4.5" line to get inner wall in -ve x-direction
• Take a offset of 3'-7.5" downwards from the 9" outer wall horizontal line -ve y-direction to get dressing room
• Take a offset of 4.5" from the 3'-7.5" wall to get a interior wall
• Take a offset of 6'-0" downwards from the 4.5"  outer wall horizontal line -ve y-direction to get toilet room
• Take a offset of 4.5" from the 6'-0" wall to get a interior wall
• Take a offset of 8'-0" downwards from the 4.5"  outer wall horizontal line -ve y-direction to get general bathroom
• Trim off unwanted lines inside the rooms

Passage

• The remaining area is passage area which has a width of 4'-1.5"

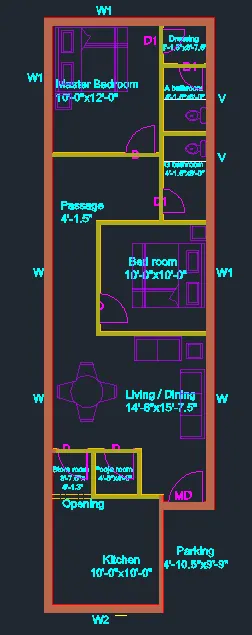

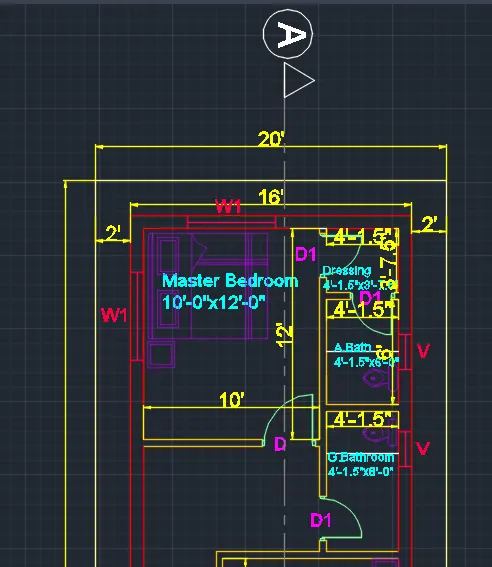

                                            Plan of Master bedroom, Dressing room, A.batroom, G.bathroom and Passage

To get bedroom

• Take a offset of 4.5" from the 4'-1.5"wall to get a interior wall
• Take a offset of 10'-0" left side from the 4'-1.5" line to get inner wall in -ve x-direction
• Take a offset of 10'-0" downwards from the 8'-0" wall  which is a general bathroom wall horizontal line -ve y-direction
• Trim off unwanted lines inside the rooms

To get Living room

• Take a offset of 14'-6" left side from the 9" line to get inner wall in -ve x-direction
• Take a offset of 4.5" from the 10'-0" wall to get a interior wall
• Take a offset of 15'-7.5" downwards from the 4.5" wall  which is a general bathroom wall horizontal line -ve y-direction
• Trim off unwanted lines inside the rooms

To get store room and pooja room

• Take a offset of 3'-7.5" left side from the 9" line to get inner wall in -ve x-direction
• Take a offset of 4.5" from the 3'-7.5" wall to get a interior wall
• Take a offset of 4'-1.3" downwards from the 4.5" wall  which is a living room wall horizontal line -ve y-direction to get store room
• Take a offset of 4.5" from the 3'-7.5" wall to get a interior wall in +ve x-direction
• Take a offset of 4'-0" left side from the 4.5" line to get inner wall in +ve x-direction
• Take a offset of 4'-0" right side from the 4.5" line to get inner wall in -ve y-directio
• Trim off unwanted lines inside the rooms

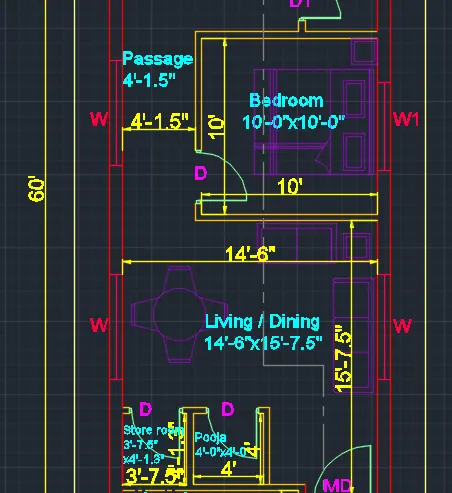

                                        Plan of Passage, Bed room, Living room, Store room, Pooja room

To get kitchen

• Take a offset of 10'-0" left side from the 9" line to get inner wall in -ve x-direction
• Take a offset of 10'-0" downwards from the 4.5" inner wall horizontal line -ve y-direction
• Trim off unwanted lines inside the rooms

To get a parking

• Take a offset of 4.5" from the kitchen in +ve x-direction
• Again take a offset of 4'-10.5" from the 4.5" kitchen wall
• Take a offset of 9" from 15'-7.5" wall which is near the living room in -ve y-direction
• Take a offset of 9'-9" from the 9" wall which is near the living room in -ve y-direction

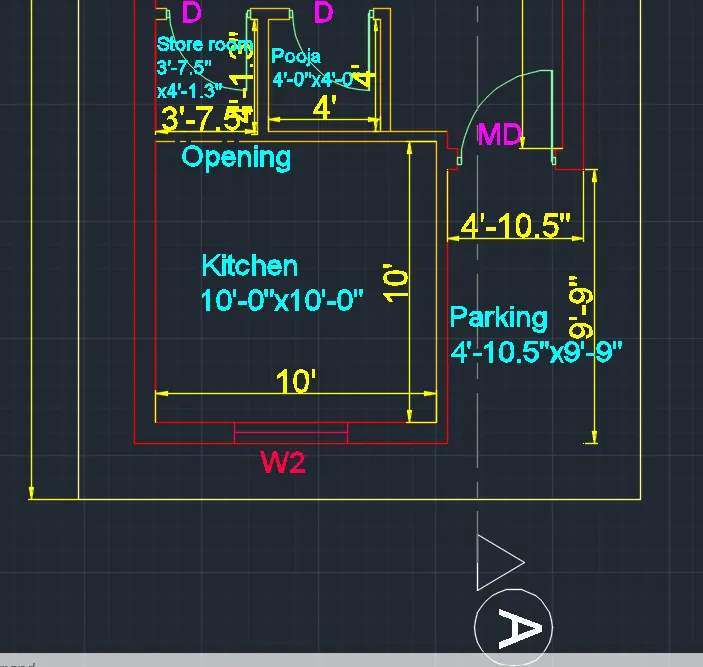

                                                       Plan of Kitchen, Parking

Result:-

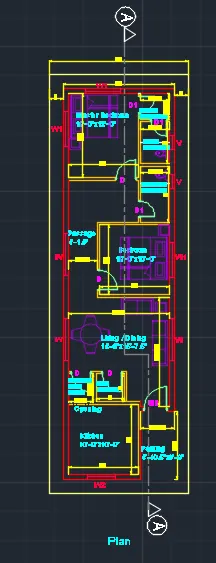

                                                                        Plan

Procedure to 3D

• Take a boundary command (BO) pick up the regions which has to be extrude
• Use a extrude command to extrude the wall upto a height of 10'-0"
• Extrude the external and internal wall up to 10'-0" with their respective layers
• Substract the door, window and ventilator portion
• Use a rotate command, to rotate the geometry
• Change the view to top/bottom/left/right/front when ever necessary

                                                                      Top view

                                                                 Left view

                                                                  Right view

                                                         Front view

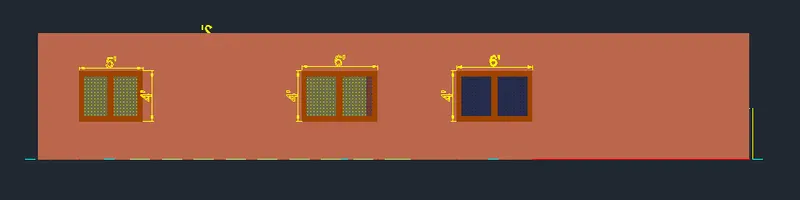

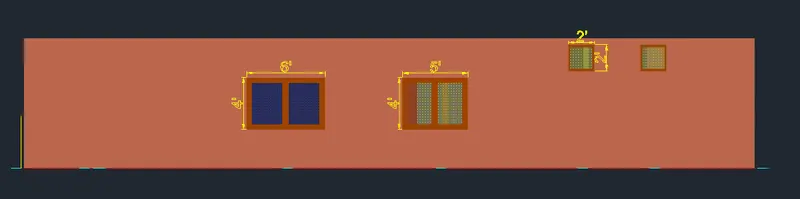

                                                                  Back view

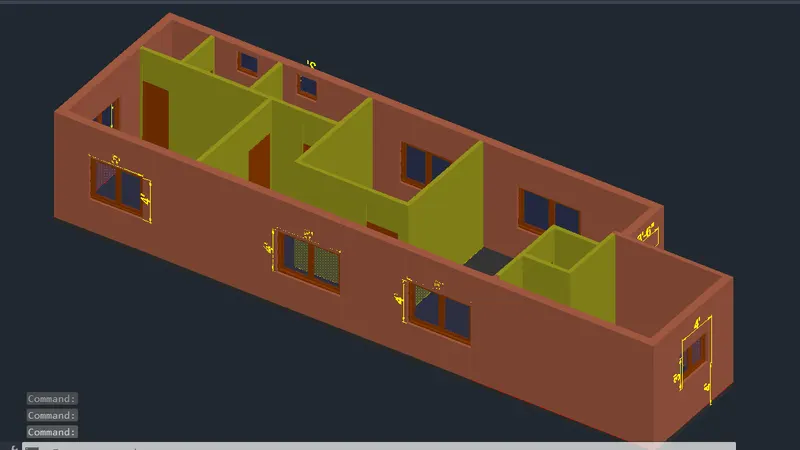

                                       Side view of a 3D model building

Doors

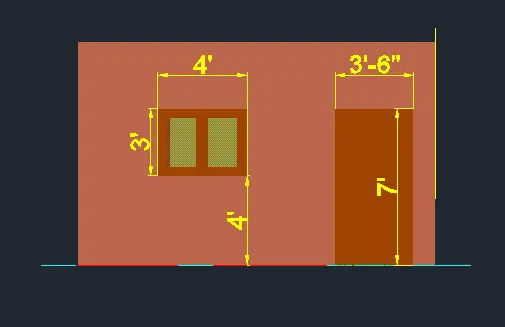

Main door MD 3'-6"x7'-0"

• Draw a rectangle having a dimension 3'-6"x7'-0" by using a rectangle command (REC)
• Take a offset of 2" inside that rectangle
• Use a 2 different layers for Outer frame and panel
• While taking a extrusion use their respective layers
• Use a extrude command to extrude the Outer frame upto a 4"
• Use a extrude command to extrude the Panel upto a 2"
• Make a 2 copy of the extrude window
• In 1st copy substract the mullion from the outer frame
• In 2nd copy delete outer frame then you will get a panel
• Place these copies properly in order outer frame and panel
• Place this door properly on the substracted wall

 Door-1 D1 3'-0"x7'-0"

• Draw a rectangle having a dimension 3'-0"x7'-0" by using a rectangle command (REC)
• Take a offset of 2" inside that rectangle
• Use a 2 different layers for Outer frame and panel
• While taking a extrusion use their respective layers
• Use a extrude command to extrude the Outer frame upto a 4"
• Use a extrude command to extrude the Panel upto a 2"
• Make a 2 copy of the extrude window
• In 1st copy substract the mullion from the outer frame
• In 2nd copy delete outer frame then you will get a panel
• Place these copies properly in order outer frame and panel
• Place this door properly on the substracted wall

 Door-2 D2  2'-6"x7'-0"

• Draw a rectangle having a dimension 2'-6"x7'-0" by using a rectangle command (REC)
• Take a offset of 2" inside that rectangle
• Use a 2 different layers for Outer frame and panel
• While taking a extrusion use their respective layers
• Use a extrude command to extrude the Outer frame upto a 4"
• Use a extrude command to extrude the Panel upto a 2"
• Make a 2 copy of the extrude window
• In 1st copy substract the mullion from the outer frame
• In 2nd copy delete outer frame then you will get a panel
• Place these copies properly in order outer frame and panel
• Place this door properly on the substracted wall

Windows

Window -W  6'-0"x4'-0"

• Draw a rectangle having a dimension 6'-0"x4'-0" by using a rectangle command (REC)
• Take a offset of 2" inside that rectangle and take offset 3" again from the offseted rectangle 2"
• Use a 3 different layers for Outer frame, mullion and glass
• While taking a extrusion use their respective layers
• Use a extrude command to extrude the Outer frame upto a 4"
• Use a extrude command to extrude the Mullion upto a 2"
• Use a extrude command to extrude the Glass upto a 2"
• Make a 3 copy of the extrude window
• In 1st copy delete the glass and substract the mullion from the outer frame
• In 2nd copy delete outer frame and substract the glass from the mullion
• In 3rd copy delete outer frame, mullion then you will get a glass
• Place these copies properly in order outer frame, mullion and glass
• Place this window properly on the substracted wall

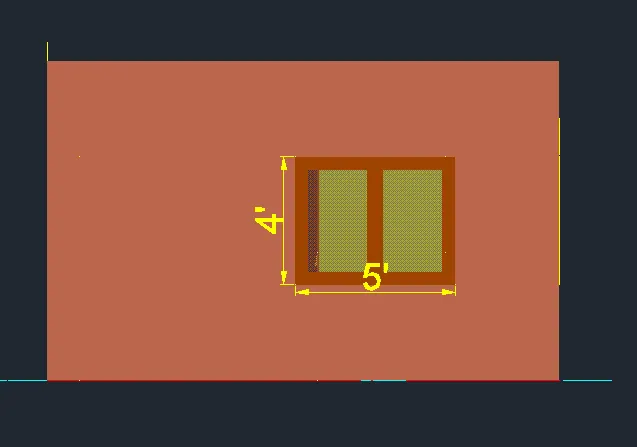

Window-1 - W-1 5'-0"x4'-0"

• Draw a rectangle having a dimension 5'-0"x4'-0" by using a rectangle command (REC)
• Take a offset of 2" inside that rectangle and take offset 3" again from the offseted rectangle 2"
• Use a 3 different layers for Outer frame, mullion and glass
• While taking a extrusion use their respective layers
• Use a extrude command to extrude the Outer frame upto a 4"
• Use a extrude command to extrude the Mullion upto a 2"
• Use a extrude command to extrude the Glass upto a 2"
• Make a 3 copy of the extrude window
• In 1st copy delete the glass and substract the mullion from the outer frame
• In 2nd copy delete outer frame and substract the glass from the mullion
• In 3rd copy delete outer frame, mullion then you will get a glass
• Place these copies properly in order outer frame, mullion and glass
• Place this window properly on the substracted wall

Window-2 - W-2 4'-0"x3'-0"

• Draw a rectangle having a dimension 4'-0"x3'-0" by using a rectangle command (REC)
• Take a offset of 2" inside that rectangle and take offset 3" again from the offseted rectangle 2"
• Use a 3 different layers for Outer frame, mullion and glass
• While taking a extrusion use their respective layers
• Use a extrude command to extrude the Outer frame upto a 4"
• Use a extrude command to extrude the Mullion upto a 2"
• Use a extrude command to extrude the Glass upto a 2"
• Make a 3 copy of the extrude window
• In 1st copy delete the glass and substract the mullion from the outer frame
• In 2nd copy delete outer frame and substract the glass from the mullion
• In 3rd copy delete outer frame, mullion then you will get a glass
• Place these copies properly in order outer frame, mullion and glass
• Place this window properly on the substracted wall

Ventilator

Ventilator 2'-0"x2'-0"

• Draw a rectangle having a dimension 2'-0"x2'-0" by using a rectangle command (REC)
• Take a offset of 2" inside that rectangle
• Use a 2 different layers for Outer frame and glass
• While taking a extrusion use their respective layers
• Use a extrude command to extrude the Outer frame upto a 4"
• Use a extrude command to extrude the Glass upto a 2"
• Make a 2 copy of the extrude window
• In 1st copy substract the glass from the outer frame
• In 2nd copy delete outer frame then you will get a glass
• Place these copies properly in order outer frame and glass
• Place this ventilator properly on the substracted wall

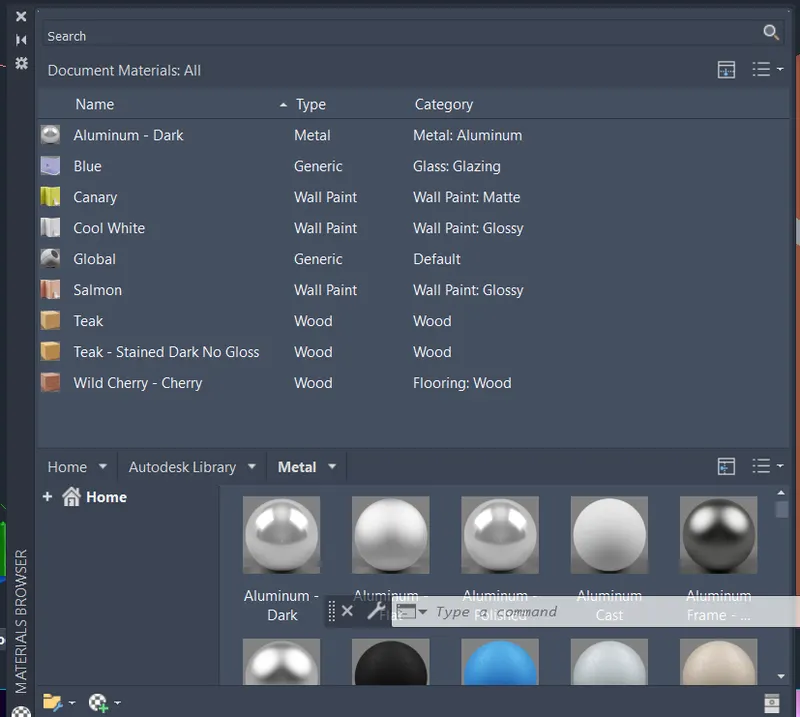

Materials used for this project are

• Main wall - Salmon
• Interior wall - Canary
• Door window and ventilator frame - Teak-stained dark no glass
• Door and window panel - Teak
• Window and Ventilator glass - Blue
• Slab and Elevation design - Cool white
• Floor - Wild cherry
• Railings - Aluminium dark

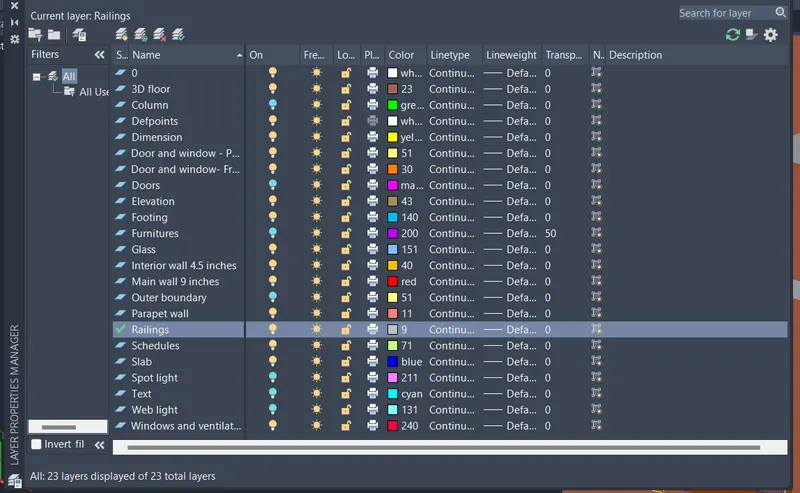

Layers are used for project are

• 3D floor - ACI 23
• Column - Green
• Dimension - Yellow
• Door and window panel - ACI 51
• Door, window and ventilator frame - ACI 30
• Doors - Magenta
• Elevation -ACI 43
• Furnitures - ACI 200
• 3D Floors - ACI 23
• Glass - ACI 151
• Interior wall 4.5" - ACI 40
• Main wall - Red
• Outer boundary - ACI 51
• Railings - ACI 9
• Schedule - ACI 71
• Slab - Blue
• Spot light - ACI 211
• Text - Cyan
• Web light - ACI 131
• Windows and ventilator - ACI 240

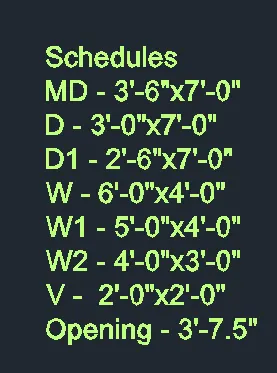

Schedules for drawings

• MD - 3'-6"x7'-0"
• D - 3'-0"x7'-0"
• D1 - 2'-6"x7'-0"
• W - 6'-0"x4'-0"
• W1 - 5'-0"x4'-0"
• W2 - 4'-0"x3'-0"
• V - 2'-0"x2'-0"
• Opening - 3'-7.5"

Result:-

                                                           Rendered view of a building at night

                                                 Rendered view of a building at day
