Project 2

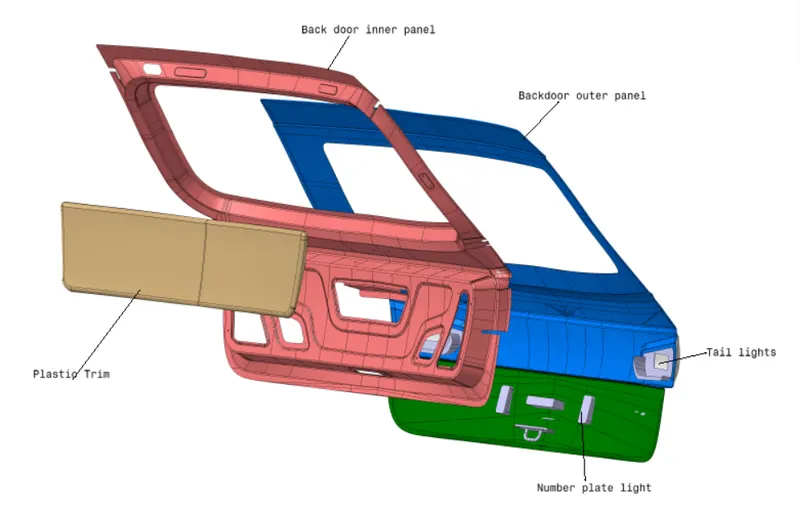

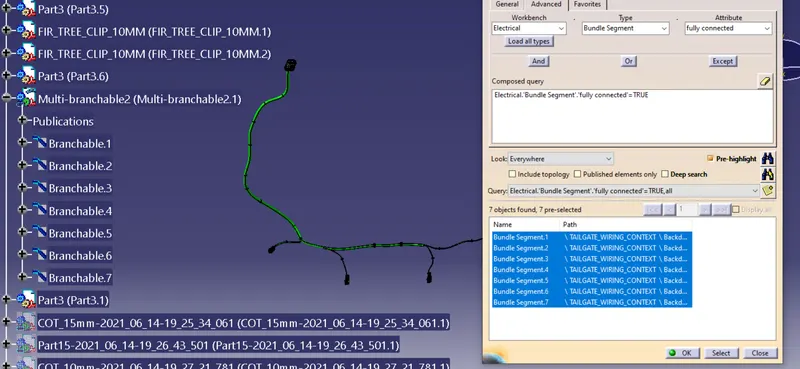

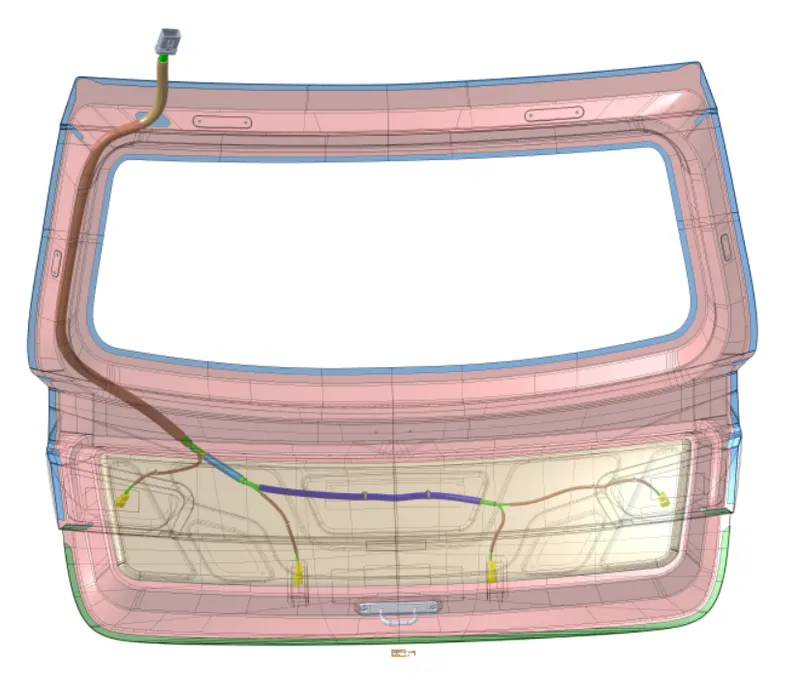

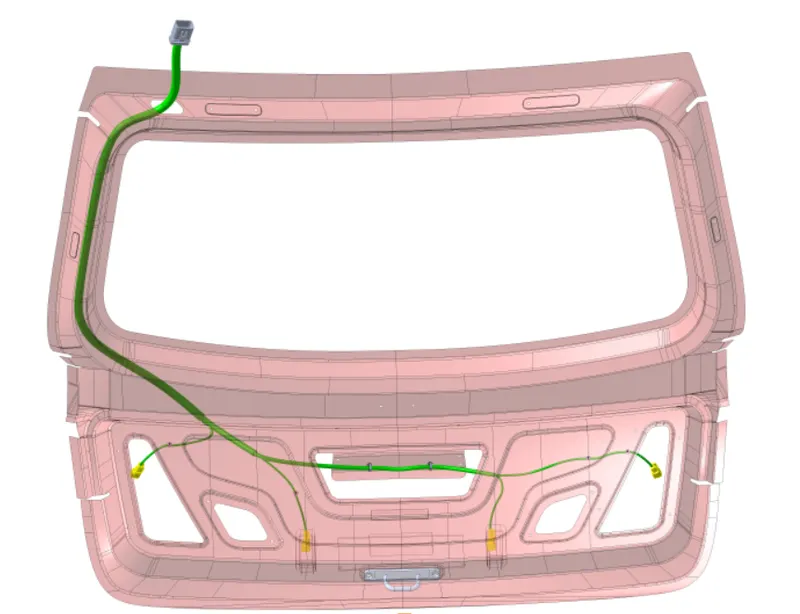

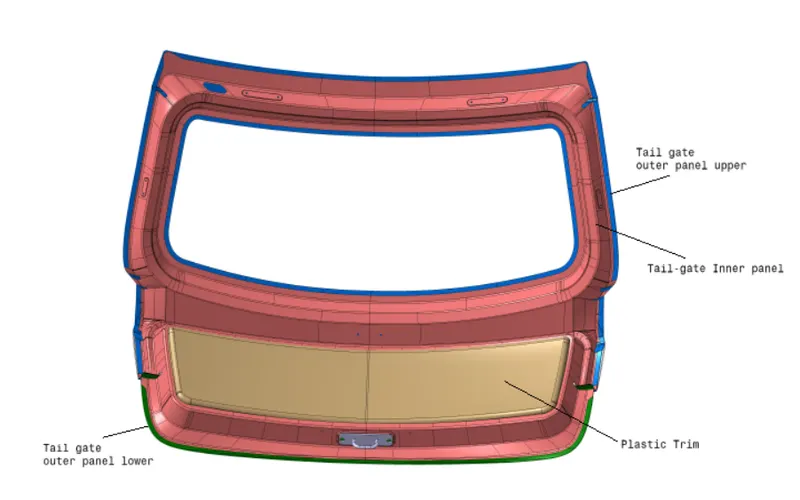

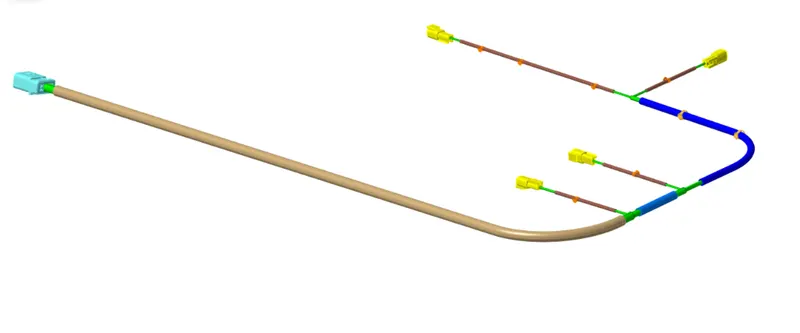

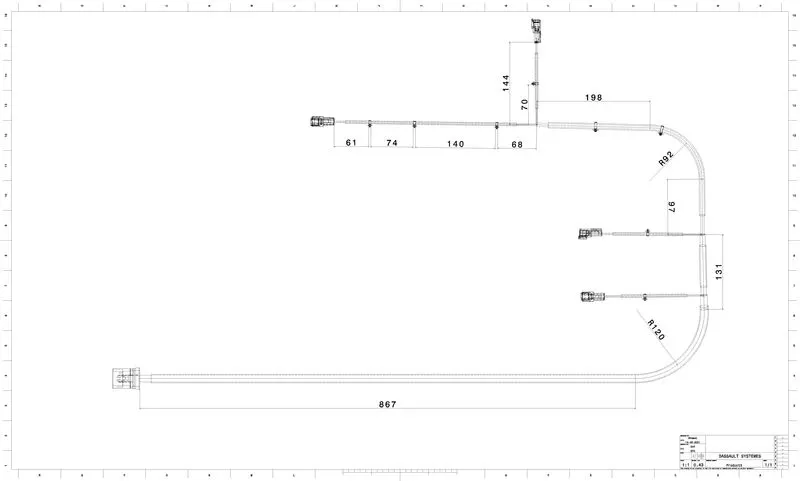

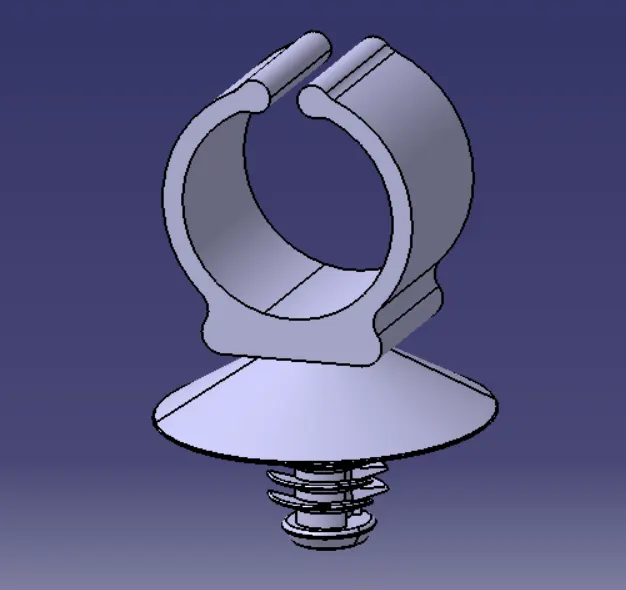

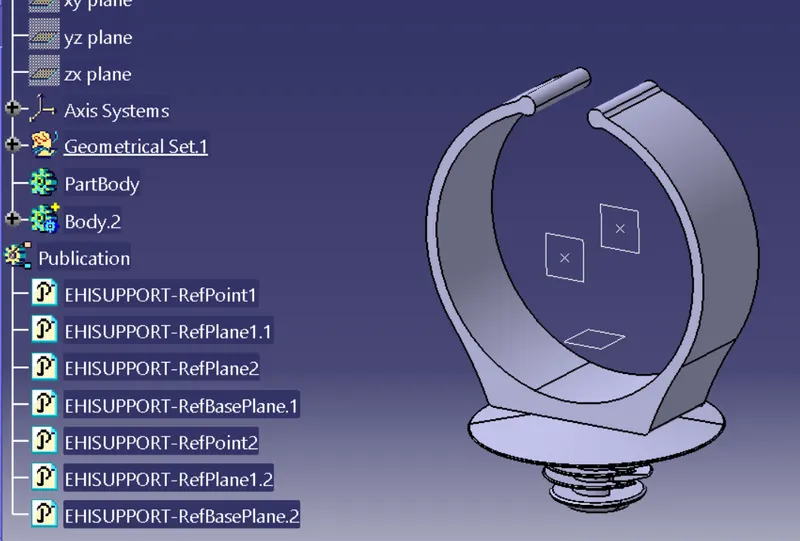

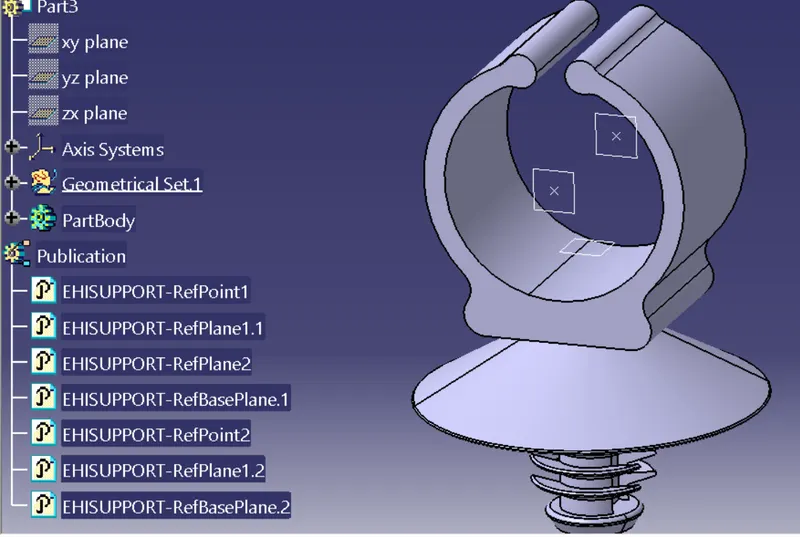

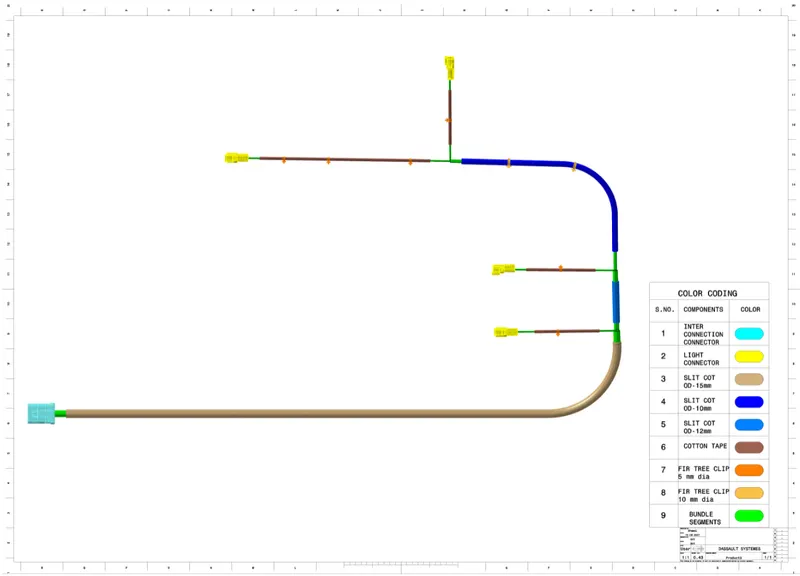

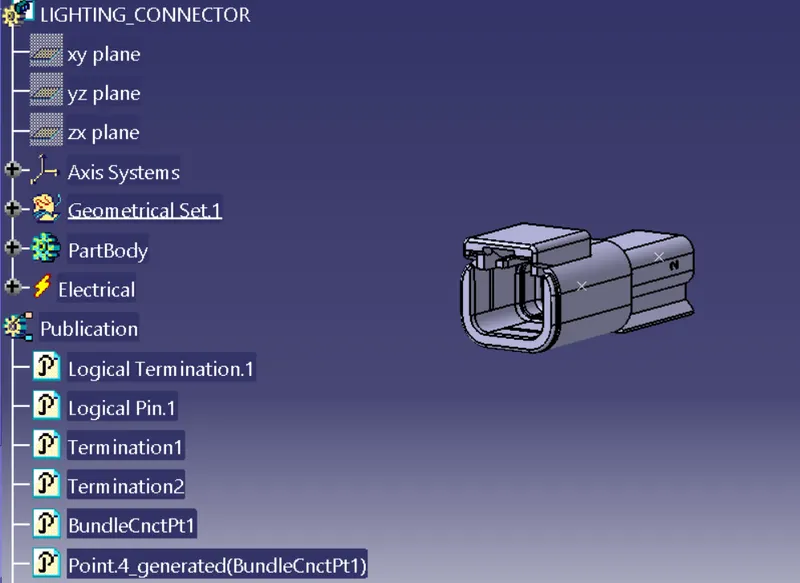

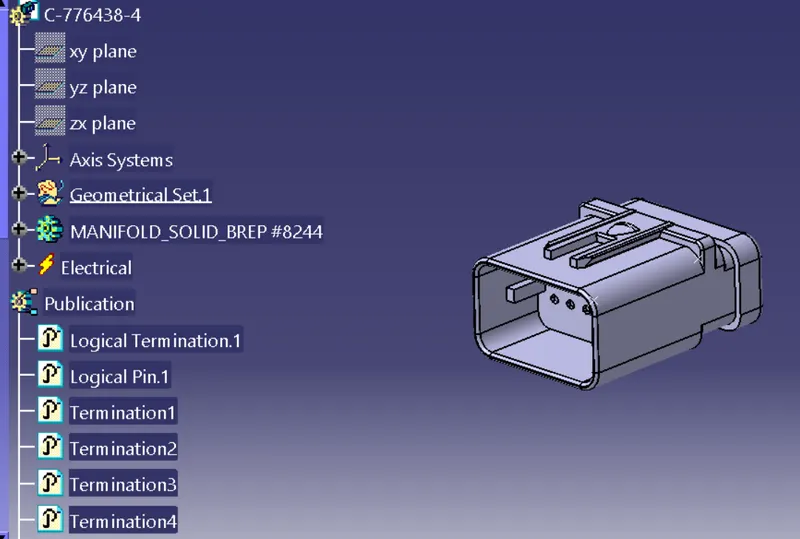

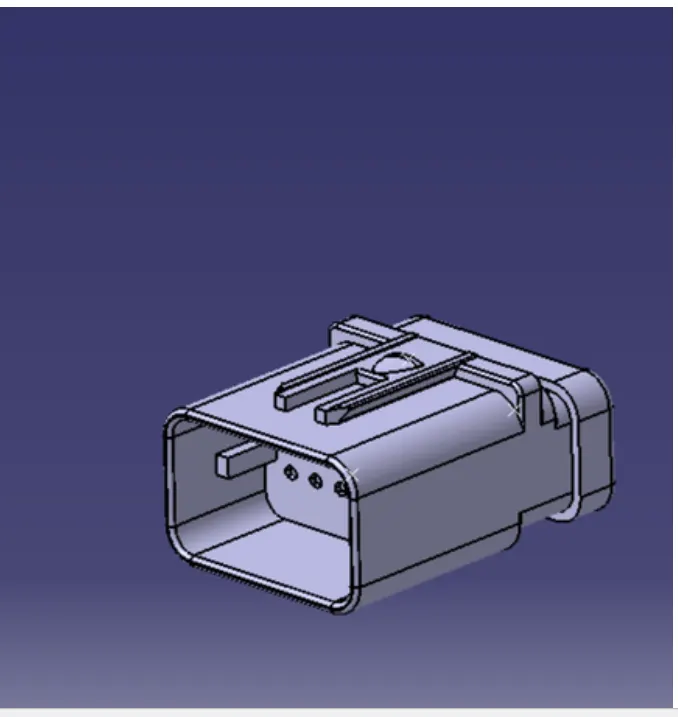

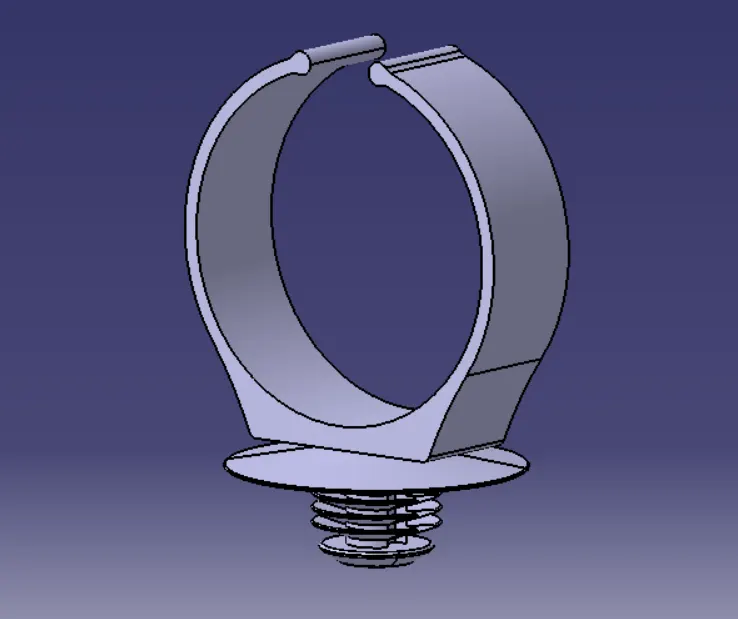

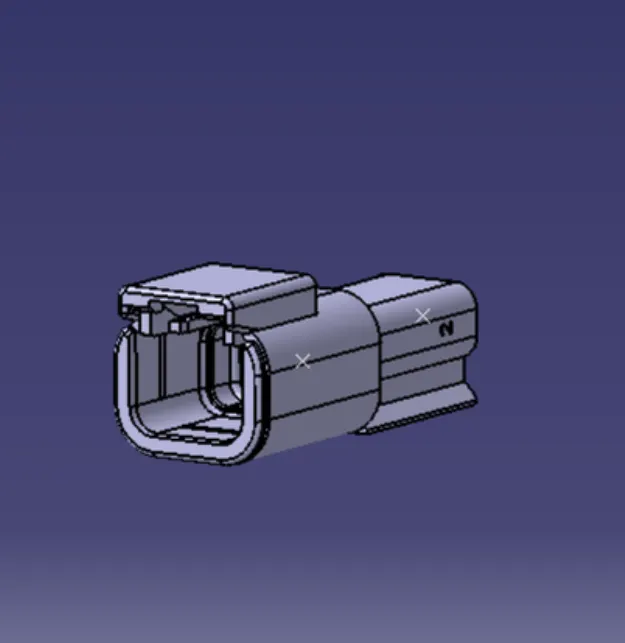

Aim: To route the wiring harness on the given tailgate assembly and prepare the flatten view drawing in CATIA V5. Given: Car Tailgate Assembly DESIGN CRITERIA…
dhawal sharma
updated on 14 Jun 2021
Project Details
Leave a comment
