Wiring harness routing & packaging Rules Week 3 Challenge

1)

• The given clip was downloaded and opened as a part file.

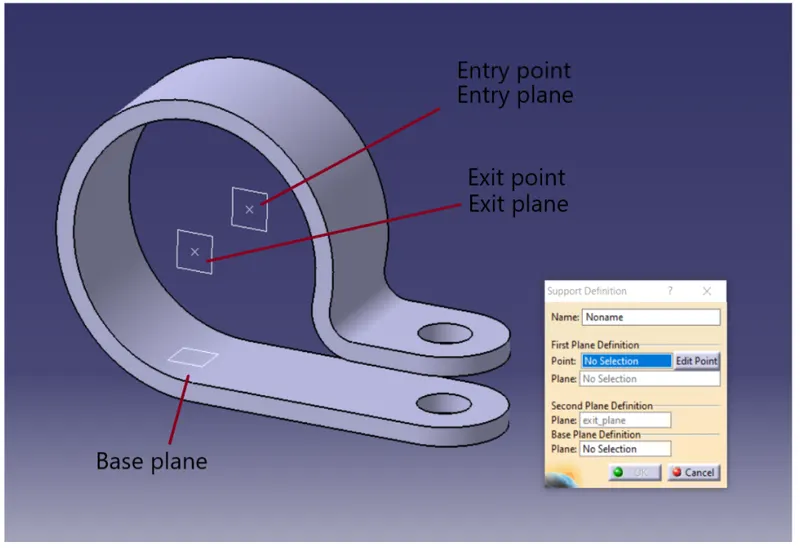

• We have to define two points which will be used as entry and exit points.
• Then a plane has to be defined at the points.
• A base plane has to be defined at a distance of 2 to 3 mm from the clip.

• again we define the exit point at the first definition as the entry point.
• hence we have two entry and two exit points.



2)

• The backshell data was downloaded from the website

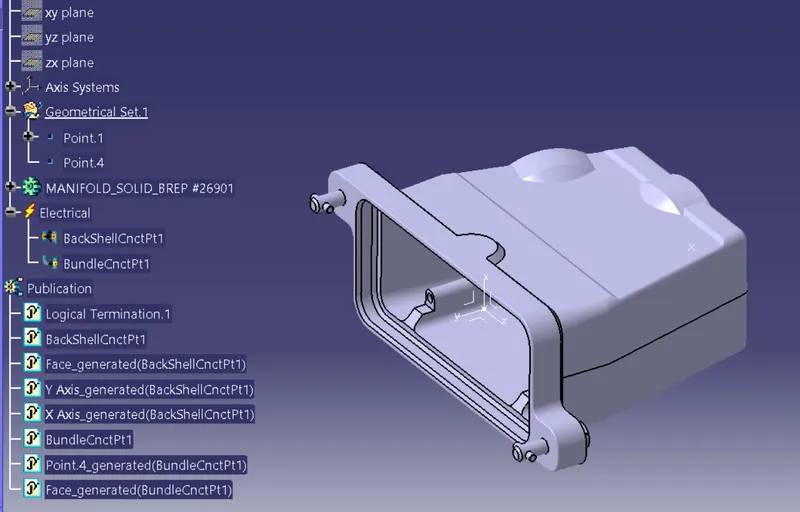

• We define the points in the part workbench.
• Axis system with the correct axis orientation is placed at the backshell connection point.
• The points have to be defined as the backshell connection and bundle connection points.

3)

• we define the cot tubes in the electrical part workbench
• the inner dia & thickness are given as the inputs

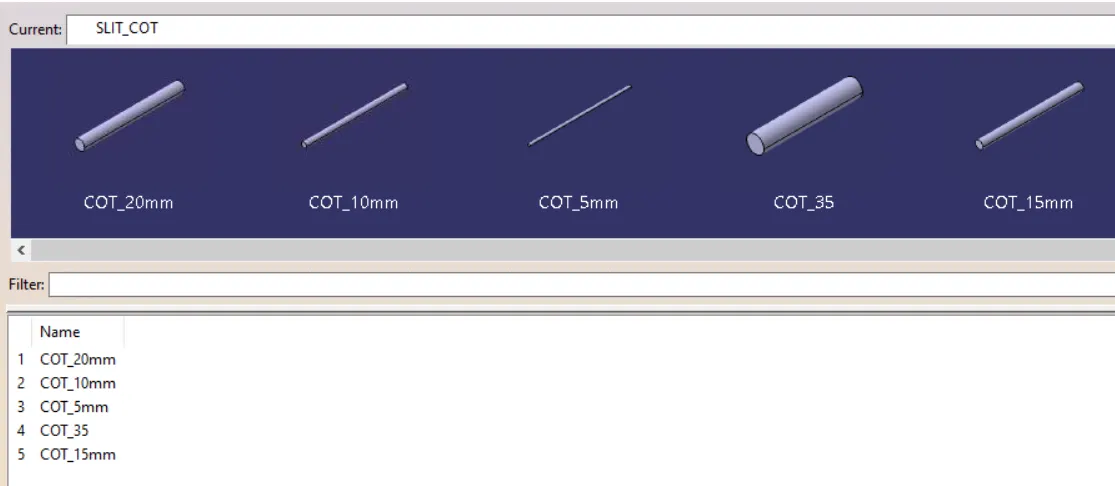

• a catalogue was created for the cot tubes
• all the cot tubes were saved in the catalogue
