  3. Wiring harness design in CATIA V5 - 3D modeling Week 7 Challenge

Wiring harness design in CATIA V5 - 3D modeling Week 7 Challenge

AIM: TO FLATTEN THE WIRING HARNESS AND DRAFT THE WIRING HARNESS ASSEMBLY.GIVEN:            HARNESS FLATTENING: WE GO TO THE HARNESS FLATTENING WORKBENCH AND DEFINE THE FLATTENING PARAMETERS WE USE THE EXTRACT COMMAND TO BRING THE HARNESS ASSEMBLY IN THE FLATTENING WORKBENCH HERE CHOOSING A…

    • dhawal sharma

      updated on 06 May 2021

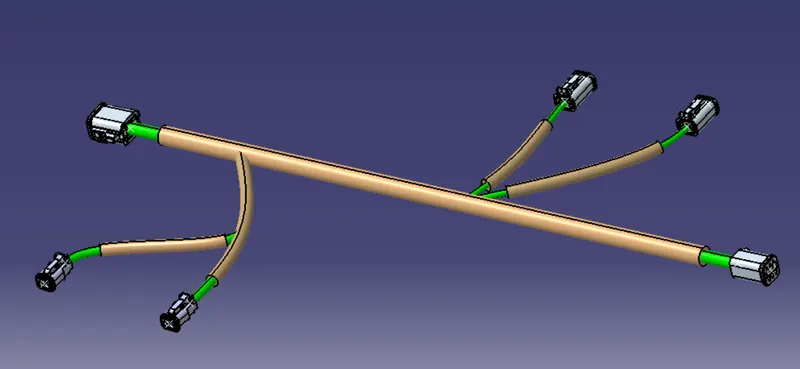

    AIM: TO FLATTEN THE WIRING HARNESS AND DRAFT THE WIRING HARNESS ASSEMBLY.

    GIVEN:



    HARNESS FLATTENING:

    • WE GO TO THE HARNESS FLATTENING WORKBENCH AND DEFINE THE FLATTENING PARAMETERS
    • WE USE THE EXTRACT COMMAND TO BRING THE HARNESS ASSEMBLY IN THE FLATTENING WORKBENCH

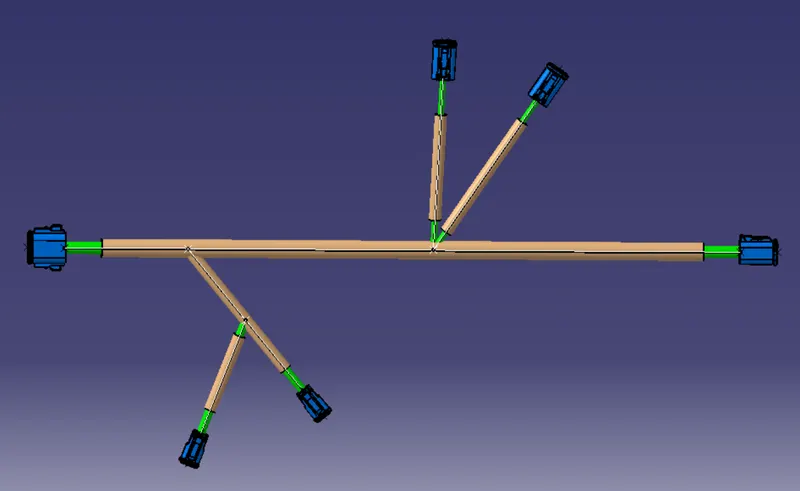

    • HERE CHOOSING A SUITABLE PLANE WE FLATTEN THE HARNESS ASSEMBLY
    • BUNDLE SEGMENTS ARE ROTATED AT THE REQUIRED ANGLES.

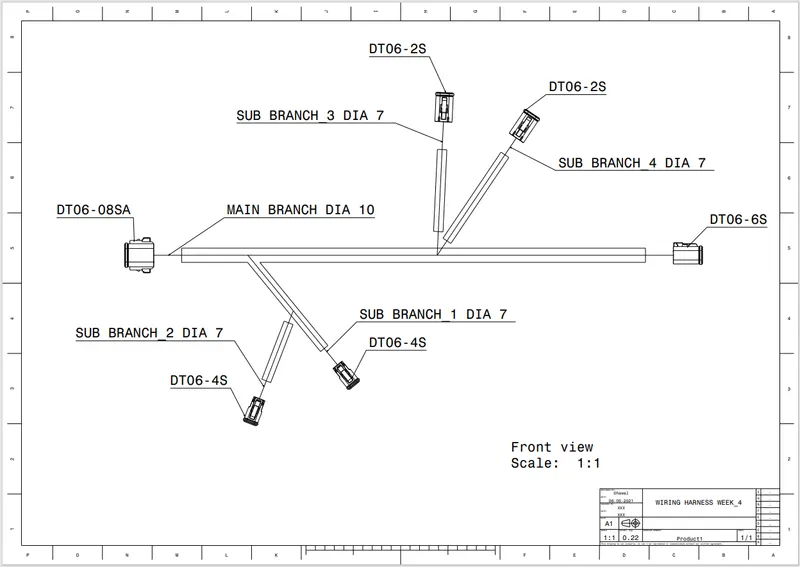

    • THE HARNESS ASSEMBLY IS THEN DRAFTED
    • FLATTENING PARAMETERS ARE DEFINED IN ORDER TO MAKE THE BUNDLE AND THE CORRUGATED TUBES VISIBLE IN THE 3D DRAWINGS
