Photo Realistic Rendering

Modeling and Rendering of American Chopper

Objective

     The objective of this project is to design and model the various parts of the American Chopper using Solidworks. To assemble the modeled components and apply decals. Adding in the camera, lights, scene and environment. Finally, rendering the assembly of the chopper in Solidworks PhotoView 360 and Solidworks Visualise.

Introduction

     This report contains all the details about the chopper, from the designing and rendering of each individual part to the final rendering of the chopper assembly.

The American chopper parts to be modeled include:

1. Transmission Belt
2. Kick Stand
3. Front Fender
4. Rear Fender
5. Front Wheel
6. Rear Wheel
7. Engine
8. Chain
9. Oil Tank
10. pedal
11. Front Fork
12. Chassis
13. Gas Tank

     Solidworks is used throughout the entire process, which is a solid modeling Computer-Aided Design (3D CAD) software.

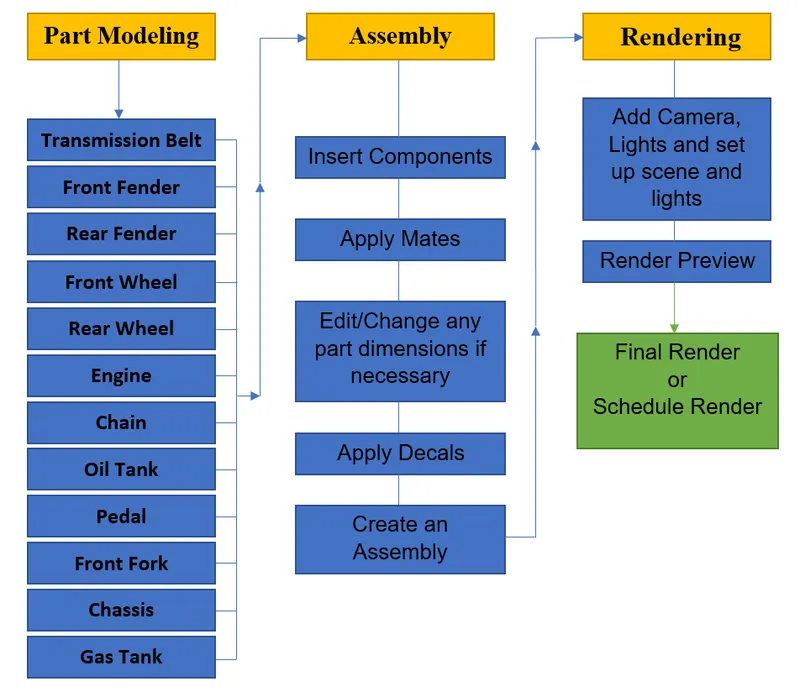

Design Methodology

Description of modeled parts

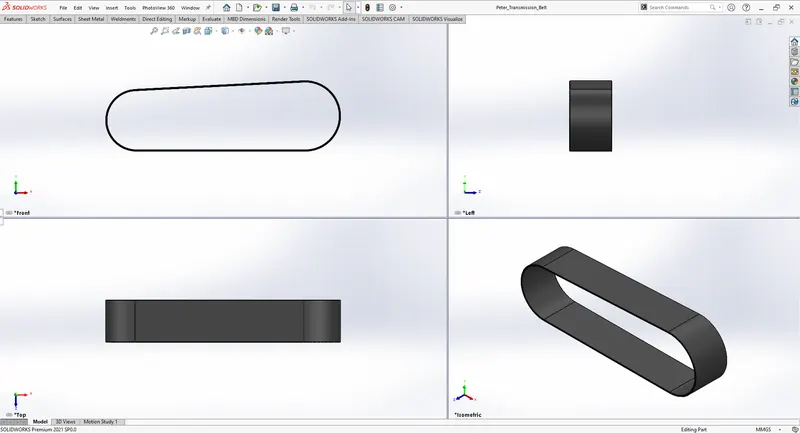

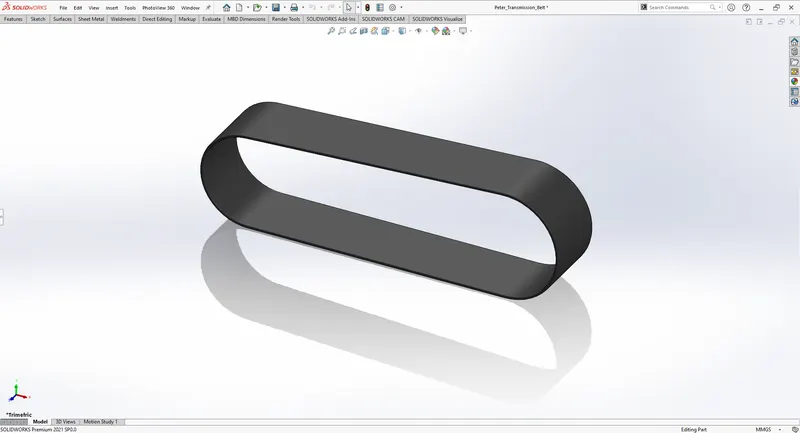

1. Transmission Belt

     Tools/Features used

• Sketch: Line, Arc and Offset Entities
• Boss-Extrude: 88.0mm from the sketch
• Fillet: Rounding the selected edges with a radius of 1.0mm
• Appearance: Matte Rubber

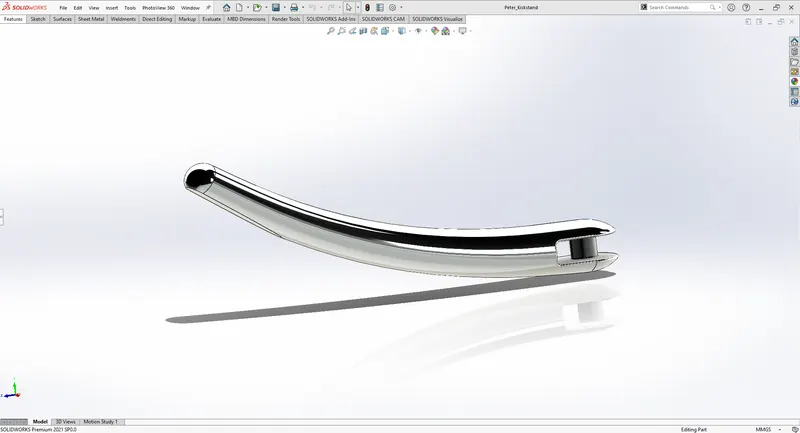

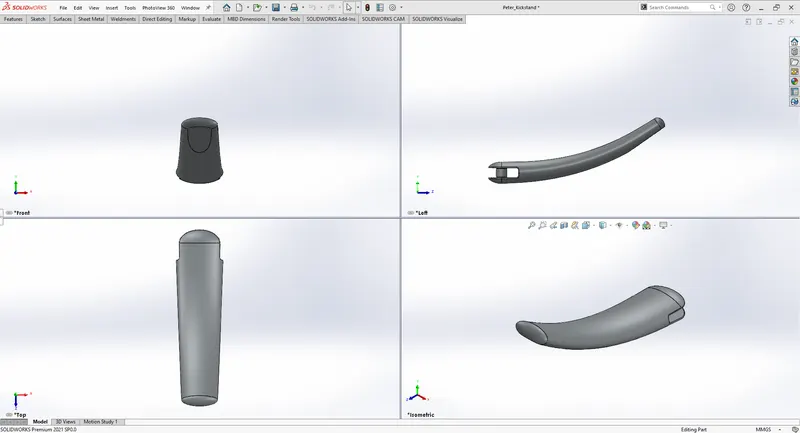

2. Kick Stand

     Tools/Features used

• Sketch: Ellipse, Spline, Centre Rectangle, Line and Circle
• Loft: Create a loft body by using the created sketch profiles.
• Dome: Applying dome on the selected faces of radius 5.0mm and 13mm
• Cut-Extrude: Through-all both from the sketch
• Split: Consume the lower part of the body
• Boss-Extrude: Up To Next
• Fillet: Rounding the selected edges with a radius of 0.50mm and 2.0mm
• Appearance: Chromium Plate

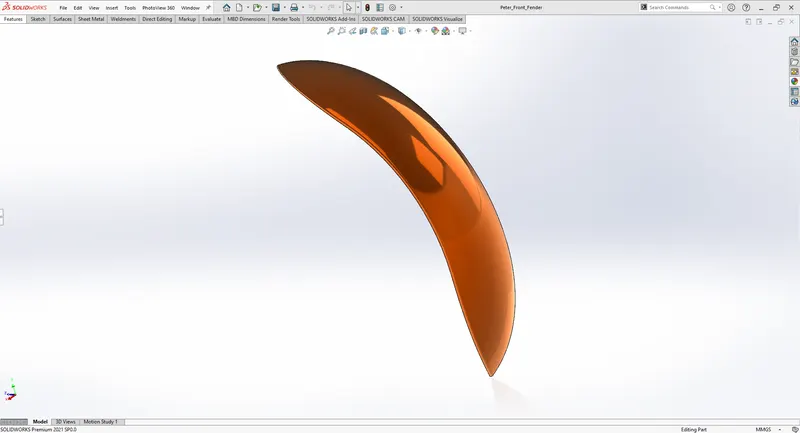

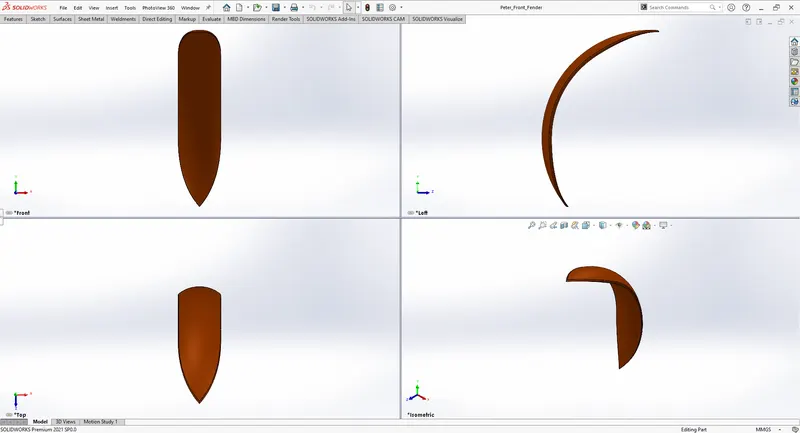

3. Front Fender

     Tools/Features used

• Sketch: Arc, Offset Entities, Line, Mirror Entities and Spline
• Revolve: Create a solid revolved body
• Split: Consume unwanted parts of the body
• Fillet: Rounding the selected edges with a radius of 6.0mm
• Appearance: Siena

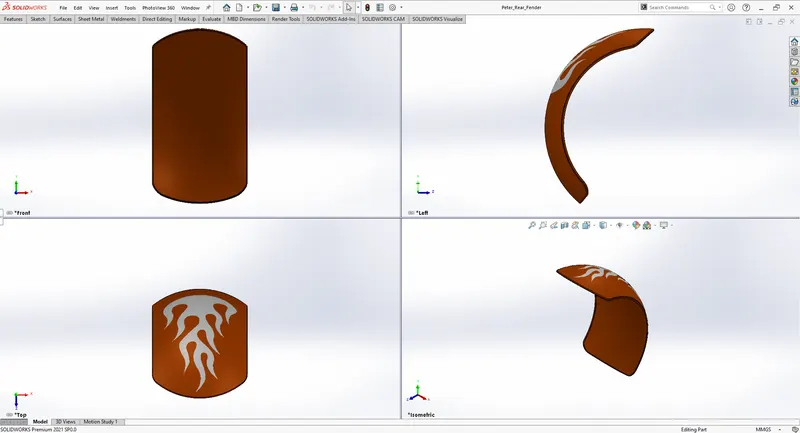

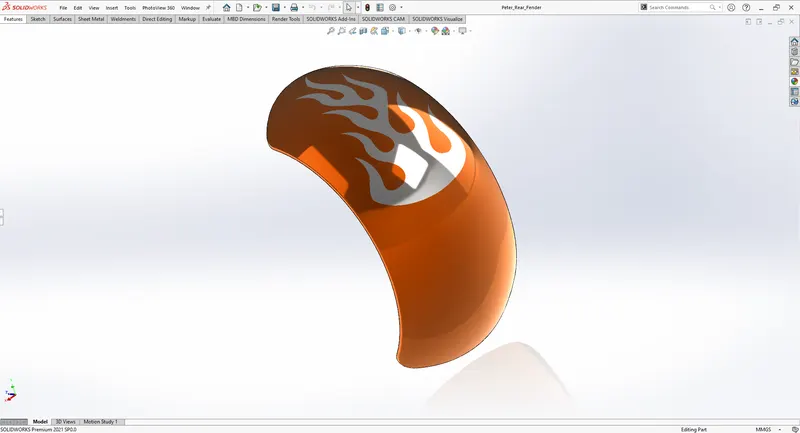

4. Rear Fender

     Tools/Features used

• Sketch: Arc, Offset Entities and Line
• Revolve: Create a solid revolved body
• Split: Consume unwanted parts of the body
• Fillet: Rounding the selected edges with a radius of 4.0mm and 45.0mm
• Shell: 4.0mm inner face of the fender
• Appearance: Siena
• Add Decays

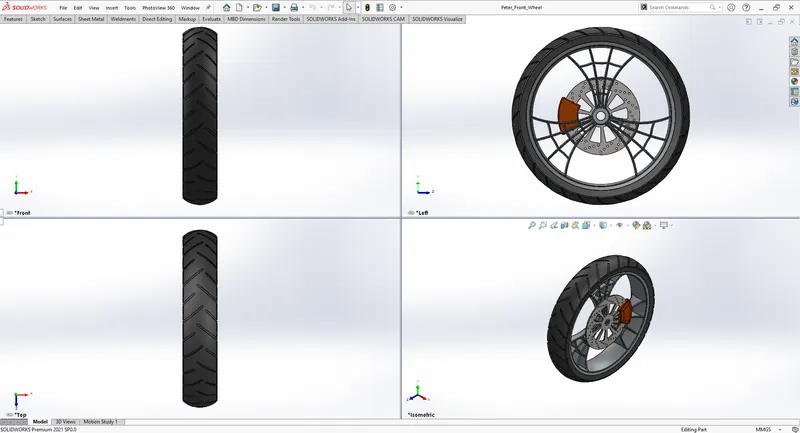

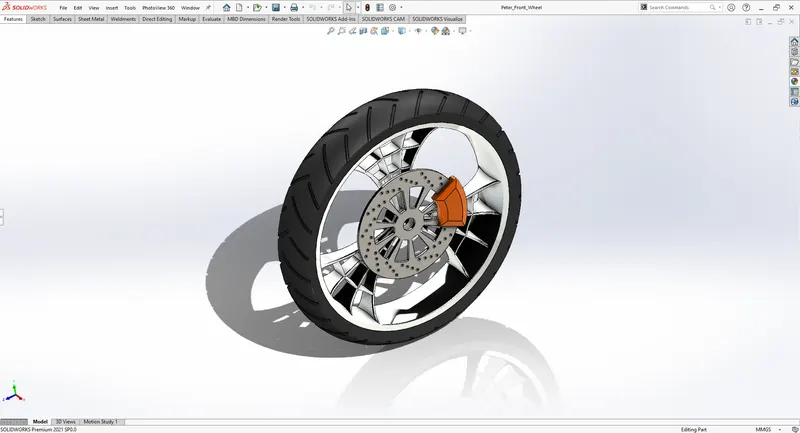

5. Front Wheel

     Tools/Features used

• Sketch: Arc, Line, Offset Entities, Mirror Entities, Circle, Spline and Sketch fillet
• Revolve: Create a solid revolved body
• Cut-Revolve: Cut the solid body in a circular direction from the axis of rotation
• Boss-Extrude: Extrude through midplane, up to vertex offset and blind from the sketches
• Cut-Extrude: Through-All Both, Through-All and Offset from the sketches
• Circular Pattern: Copy the created features in a circular direction.
• Combine: Combine different solid bodies into a single solid body
• Fillet: Rounding the selected edges with a radius of 4.0mm, 5.0mm and 8.0mm
• Appearance: Chromium Plate on the rim, Carbon Steel on the rotor, Seina on the Caliper and Matte Rubber on the tire

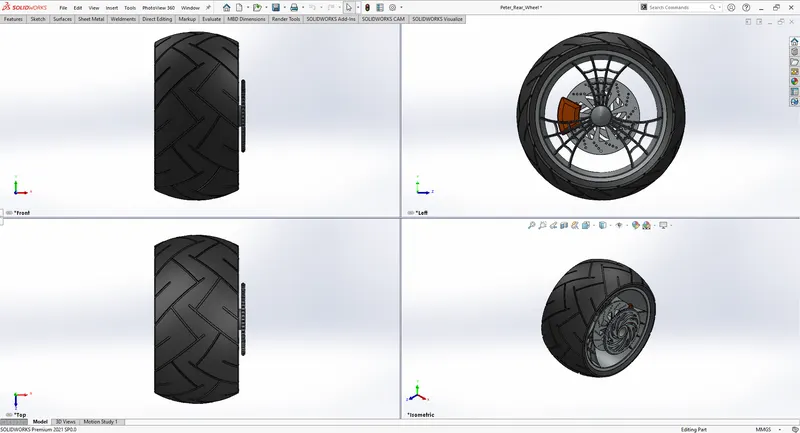

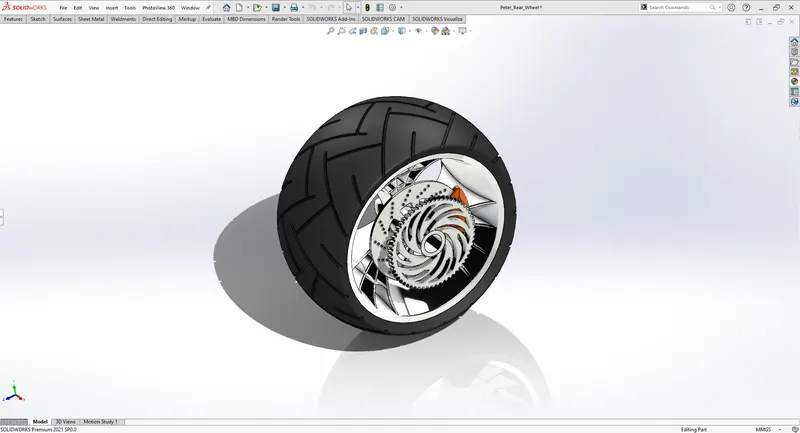

6. Rear Wheel

     Tools/Features used

• Sketch: Arc, Line, Offset Entities, Mirror Entities, Circle, Spline and Sketch fillet
• Revolve: Create a solid revolved body
• Cut-Revolve: Cut the solid body in a circular direction from the axis of rotation
• Boss-Extrude: Extrude through midplane, up to vertex, offset and blind from the sketches
• Cut-Extrude: Through-All Both, Through-All and Offset from the sketches
• Circular Pattern: Copy the created features in a circular direction.
• Combine: Combine different solid bodies into a single solid body
• Fillet: Rounding the selected edges with a radius of 1.0mm, 2.20mm, 3.0mm, 4.0mm, 5.0mm and 8.0mm
• Chamfer: Applying cut on the selected edge and creating a beveled edge
• Appearance: Chromium Plate on the rim, Carbon Steel on the rotor, Seina on the Caliper, Matte Rubber on the tire and Chromium Plate on the sprocket

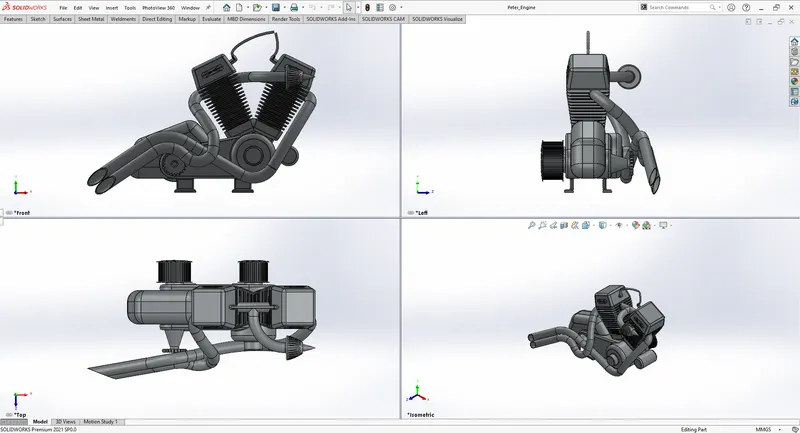

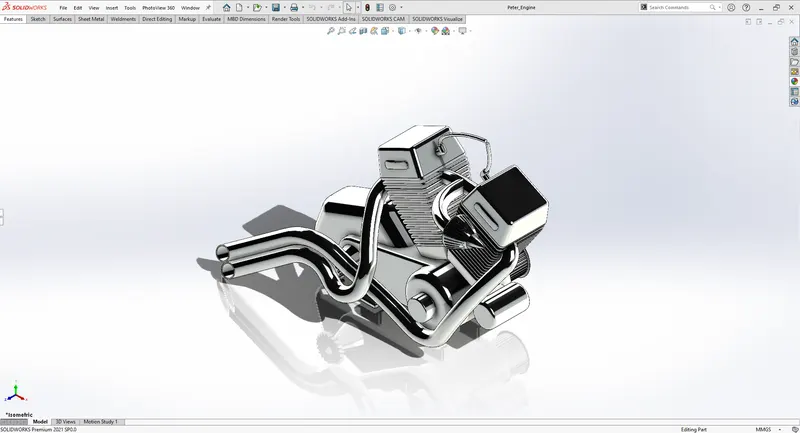

7. Engine

     Tools/Features used

• Sketch Picture: Insert reference sketch picture from Tools>Sketch tools>Sketch Picture
• Sketch: Circle, Line, Circular Sketch Pattern, Linear Sketch Pattern, Reference Plane, Centre Rectangle and Sketch Fillet
• Revolve: Create a solid revolved body
• Boss-Extrude: Extrude through midplane, up to vertex, offset and blind from the sketches
• Dome: Applying dome on the selected faces of radius 2.5mm and 10.0mm
• Cut-Extrude: Through-All Both, Through-All, Blind and Offset from the sketches
• Fillet: Rounding the selected edges with a radius of 1mm, 2mm, 2.5mm, 4mm, 5mm 8mm, 10mm, 15mm, 25mm and 50.0mm
• Chamfer: Applying cut on the selected edge and creating a beveled edge
• Circular Pattern: Copy the created features in a circular direction
• Linear Pattern: Copy the created features in a linear direction
• Mirror: Mirror a feature about a plane or any reference geometry
• Split: Split the body apart or consume unwanted parts of the body
• Sweep: Create a sweep geometry through a reference sketch
• Combine: Combine different solid bodies into a single solid body
• Project curve: Create a projected curve using two different sketches
• Composite curve: Create a single curve using two projected curves
• Appearance: Chromium Plate

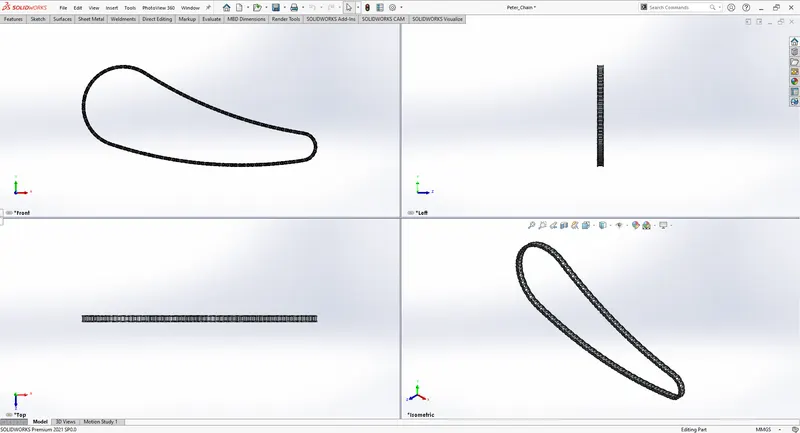

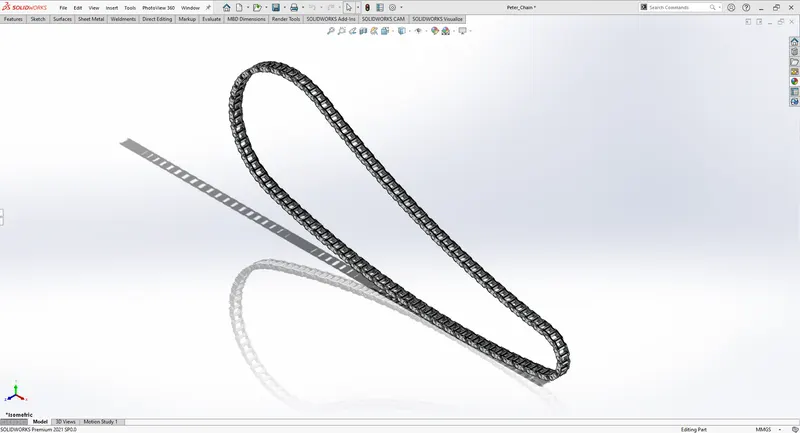

8. Chain

     Tools/ Features used

• Sketch: Circle, Arc, Line and create a block of the sketch
• Boss-Extrude: Extrude through midplane, from vertex, offset and blind from the sketches
• Fillet: Rounding the selected edges of each individual pin with a radius of 0.5mm.
• Curve Pattern: Copy the created features along a curve.
• Mirror: Mirror a feature about a plane or any reference geometry
• Appearance: Chromium Plate

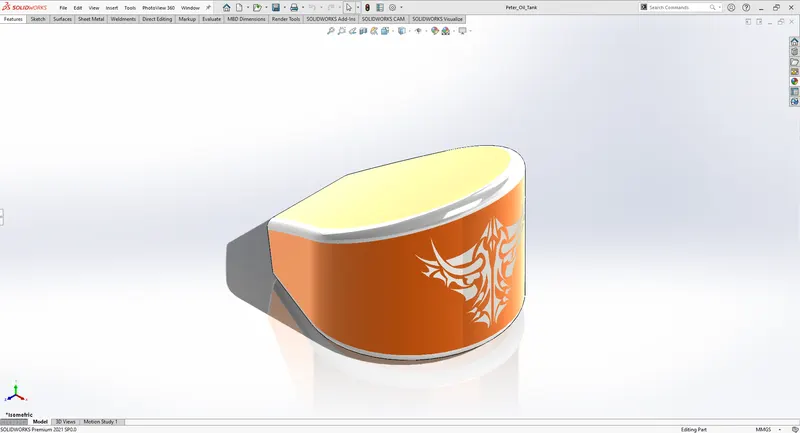

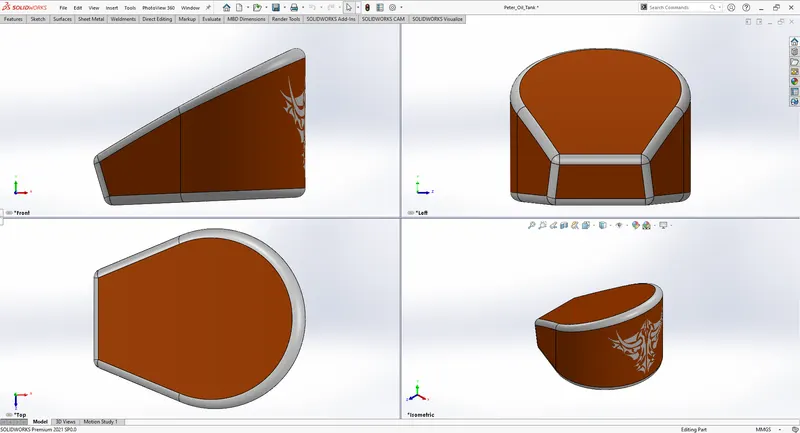

9. Oil Tank

     Tools/ Features used

• Sketch: Line, Arch and Mirror Entities
• Boss-Extrude: Blind and Thought All from the sketches
• Combine: Combine different solid bodies into a single solid body
• Fillet: Rounding the selected edges with a radius of 10.0mm
• Shell: 3.0mm as a hollow solid body
• Appearance: Siena on the body and White on fillet edges
• Add Decays

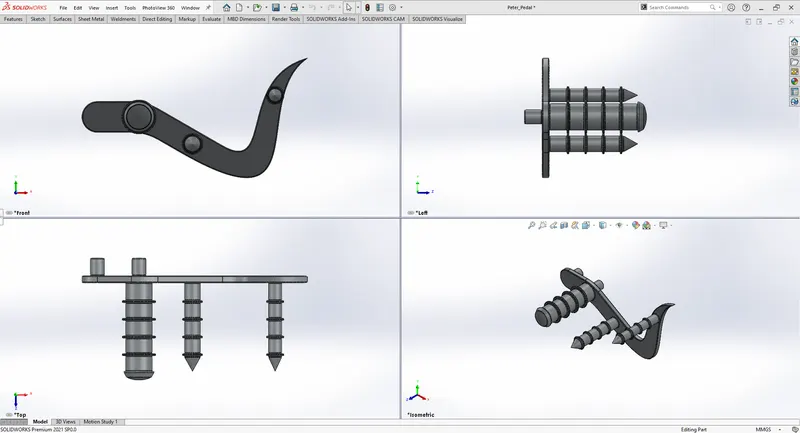

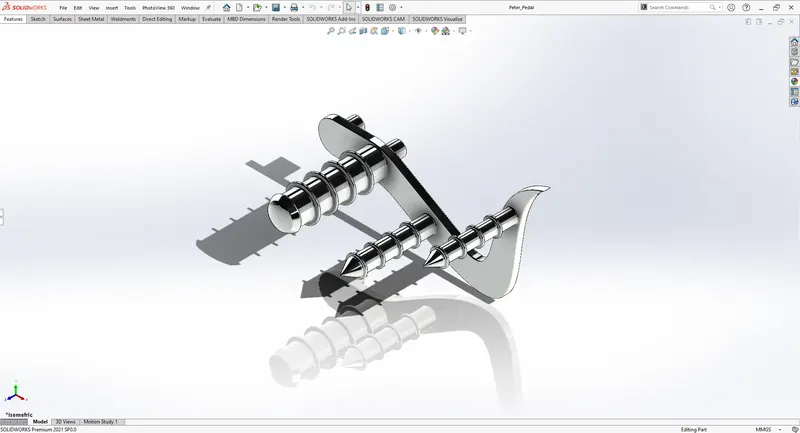

10. Pedal

     Tools/ Features used

• Sketch: Arc, Circle, Sketch Fillet and Spline
• Boss-Extrude: Extrude blind and offset from the sketches
• Fillet: Rounding the selected edges with a radius of 1mm
• Revolve: Create a solid revolved body
• Dome: Applying dome on the selected faces of radius 3mm
• Chamfer: Applying cut on the selected edge and creating a beveled edge
• Liner Pattern: Copy the created features in a linear direction
• Appearance: Chromium Plate

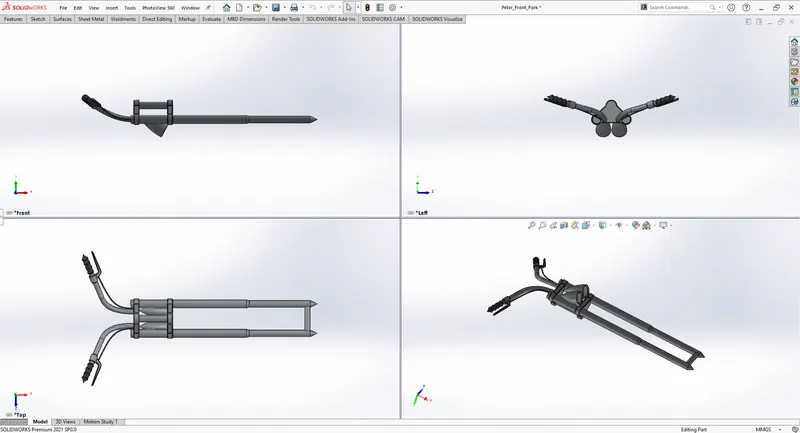

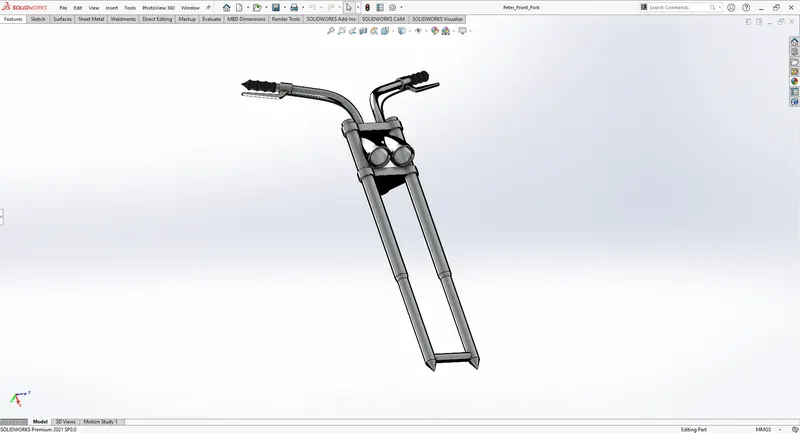

11. Front Fork

     Tools/ Features used

• Sketch: Line, Circle, Arc, Spline and Reference Plane
• Revolve: Create a solid revolved body
• Boss-Extrude: Extrude through midplane, up to surface, offset and up to next from the sketches
• Cut-Revolve: Cut the solid body in a circular direction from the axis of rotation
• Fillet: Rounding the selected edges with a radius of 1mm, 3mm, 4mm, 5mm and 25mm
• Cut-Extrude: Blind cut from the sketch
• Dome: Applying dome on the selected face of radius 7.0mm
• Body-Move/Copy: Move the created revolve to -48.0mm in the z-direction
• Project Curve: Create a projected curve using two different sketches
• Sweep: Create a sweep geometry through a reference sketch
• Mirror: Mirror a feature about a plane or any reference geometry
• Combine: Combine different solid bodies into a single solid body
• Appearance: Chromium Plate on the body, Glossy Rubber on the handles and wires, and Clear Glass on the dome surface of headlights

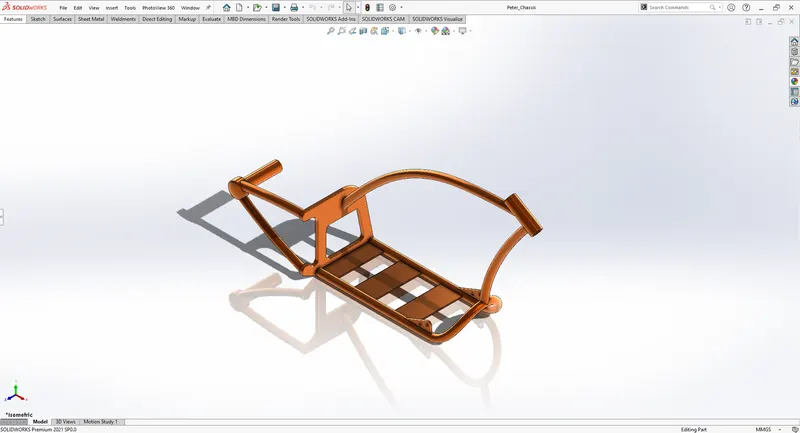

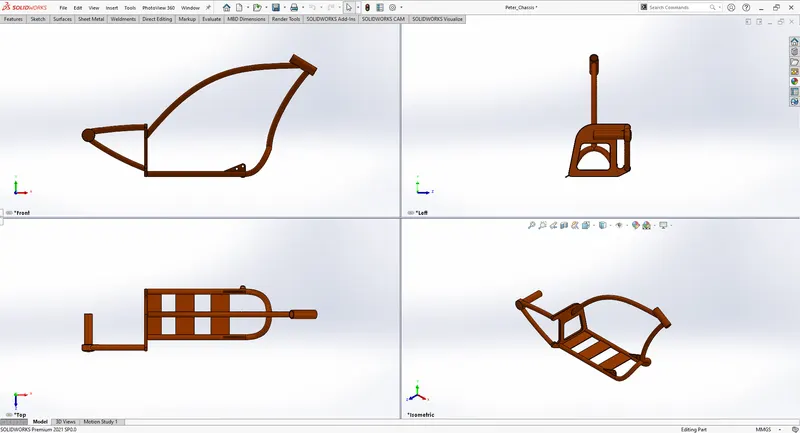

12. Chassis

     Tools/ Features used

• Sketch Picture: Insert reference sketch picture from Tools>Sketch tools>Sketch Picture
• Sketch: Line, Arc, Spline and Reference Plane
• Project Curve: Create a projected curve using two different sketches
• Sweep: Create a sweep geometry through a reference sketch
• Mirror: Mirror a feature about a plane or any reference geometry
• Boss-Extrude: Extrude through midplane, up to surface, offset and up to next from the sketches
• Cut-Extrude: Up to next cut from the sketches
• Dome: Applying dome on the selected face of radius 10.0mm
• Split: Consume unwanted parts of the body
• Combine: Combine different solid bodies into a single solid body
• Chamfer: Applying cut on the selected edge and creating a beveled edge
• Fillet: Rounding the selected edges with a radius of 1mm, 2mm, 3mm, 20mm, 25mm and 50mm
• Appearance: Siena

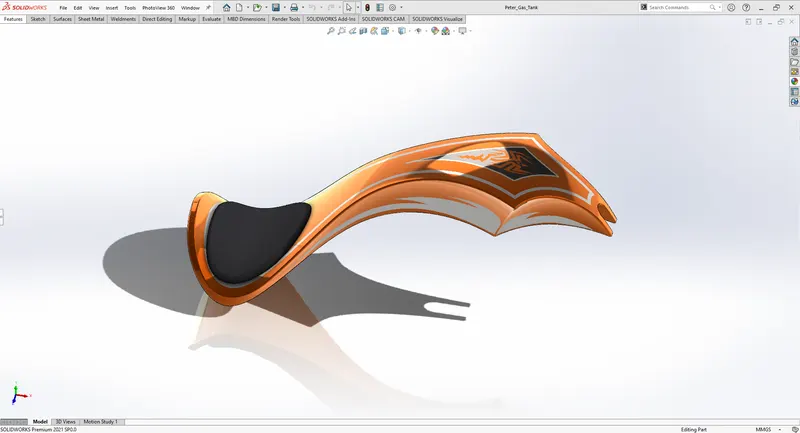

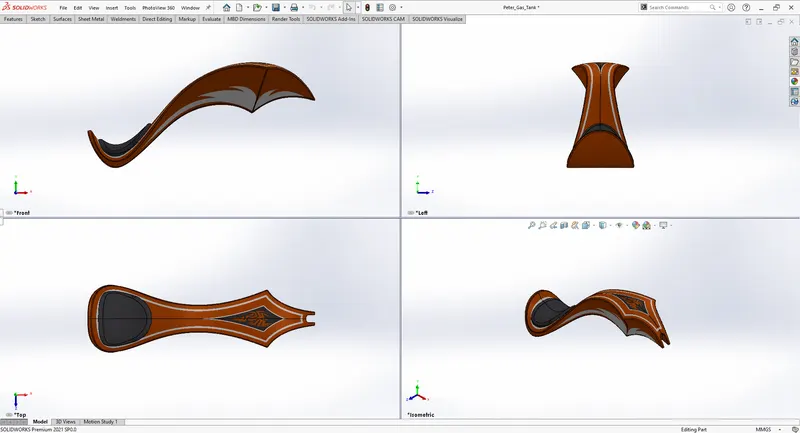

13. Gas Tank

     Tools/ Features used

• Sketch Picture: Insert reference sketch picture from Tools>Sketch tools>Sketch Picture
• Sketch: Reference Plane, Spline, Line and Arc
• Surface Sweep: Sweep a surface
• Surface-Trim: Split and remove the unwanted surface
• Project Curve: Create a projected curve using two different sketches
• Surface-Loft: Create a lofted surface between two or more profiles/sketches
• Boundary-Surface: Create a surface between the profile
• Surface-Knit: Combine different surfaces in a single surface or solid body
• Cut-Sweep: Cut a solid body by sweeping a closed profile.
• Appearance: Siena on the body and Grey Cotton on the seat
• Add Decays

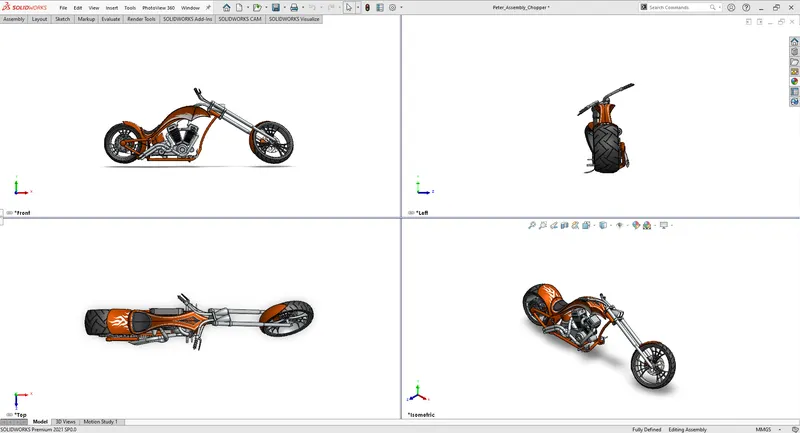

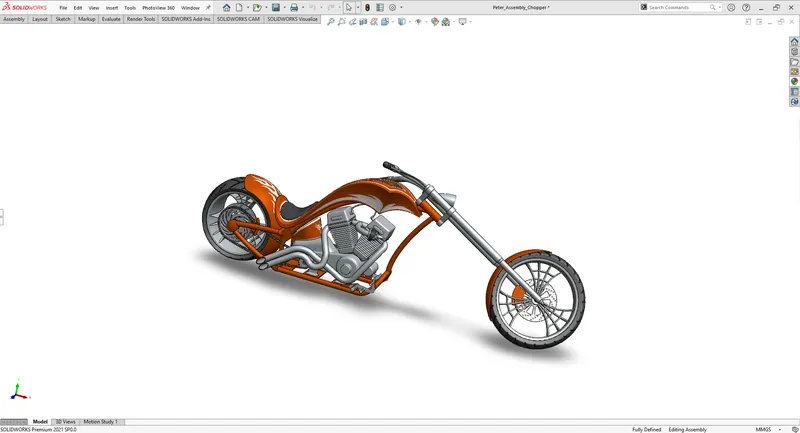

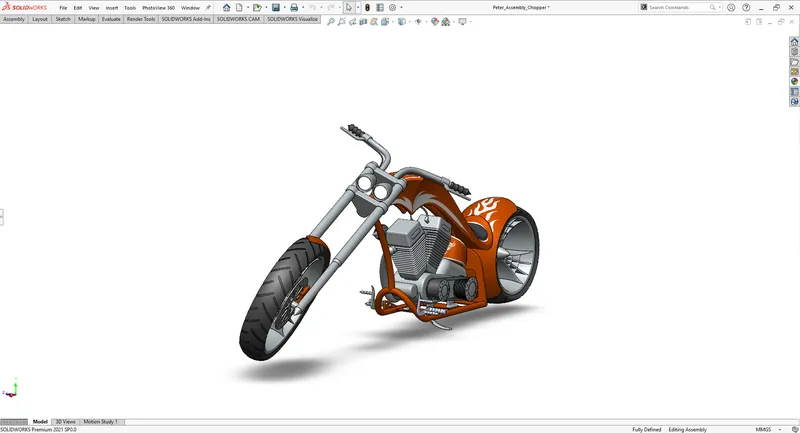

14. Assembly

     Tools/ Features used

• Insert Components: Inserting in all the parts we modeled
• Mates: To create constraints between each part and planes like coincident, parallel, concentric, width mate, etc. Also making the required part fixed

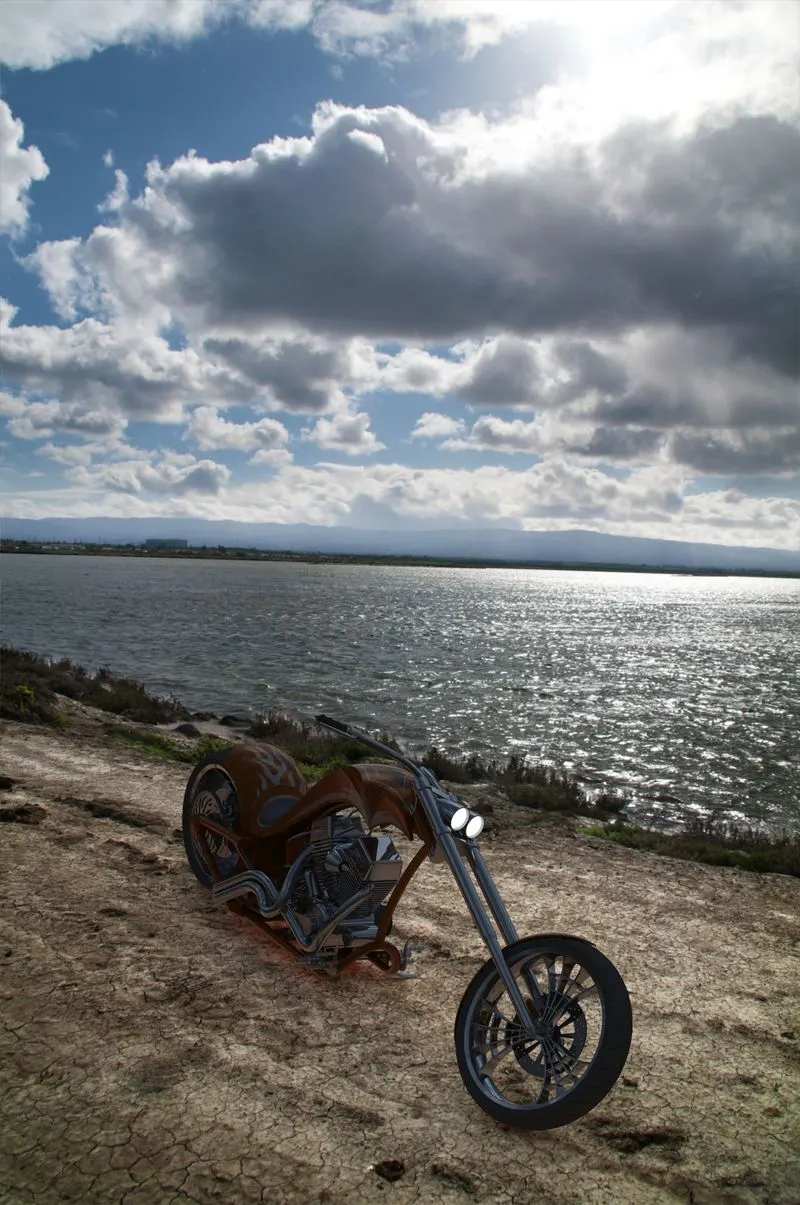

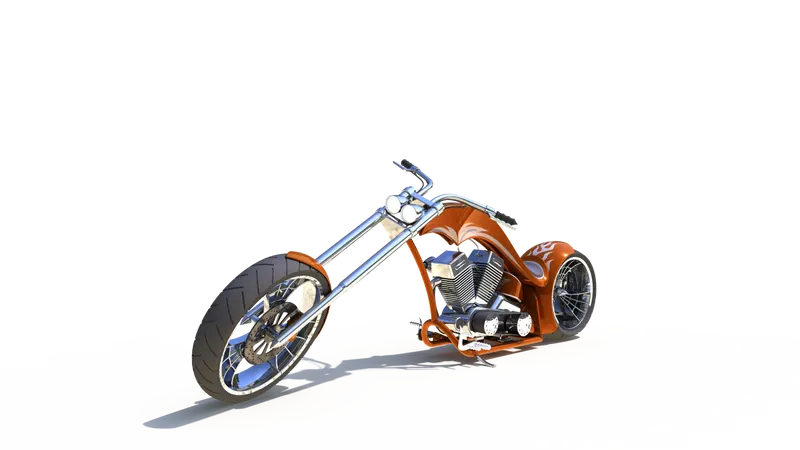

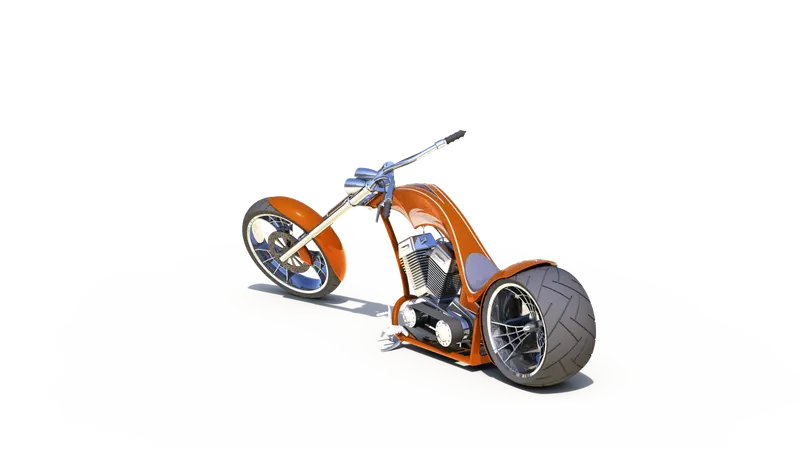

Rendering

     PhotoView 360 and SOLIDWORKS Visualize are used for rendering the assembled model.

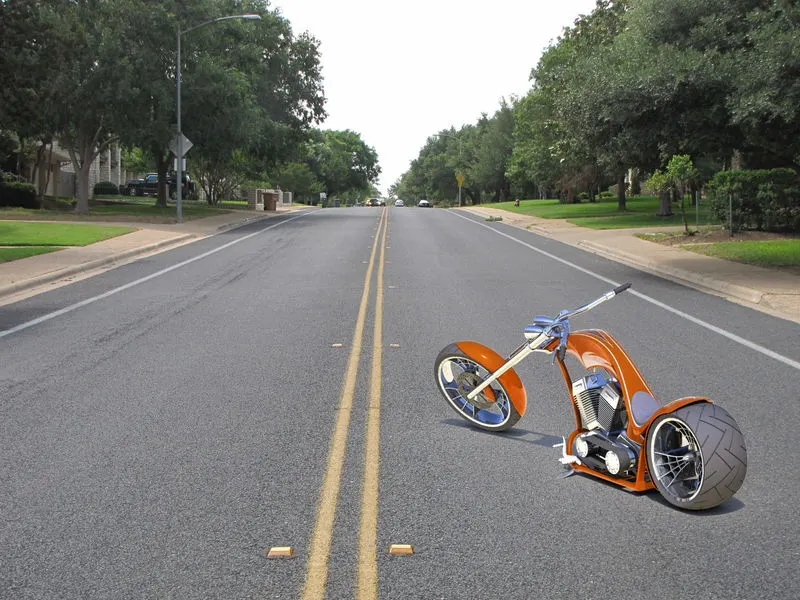

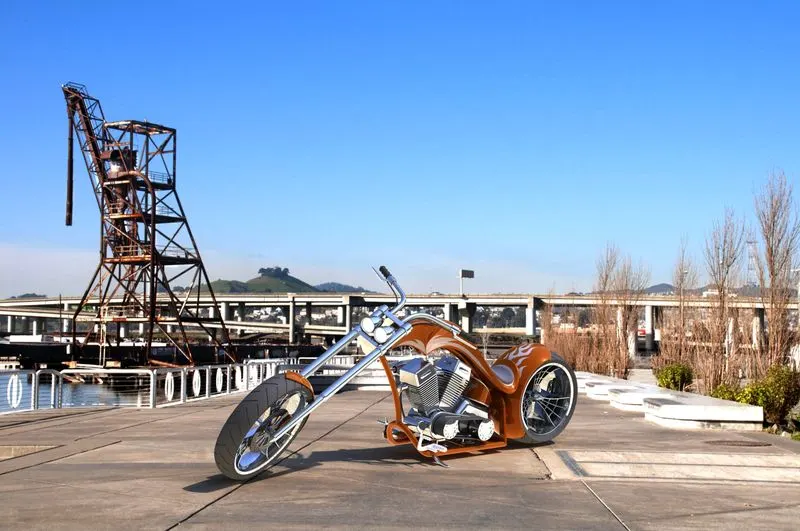

Rendering in PhotoView 360

     Rendering the assembly in Solidworks with the help of PhotoView 360. PhotoView 360 is a Solidworks add-in that is used to produce photo-realistic renderings of a created model. The rendering tools help to enhance and produce a realistic chopper model with any scene and environment.

Tools/ Features used

• Camera: Adding a camera view according to our liking
• Scene: Setting up scene and environment
• Lights: Adjusting lights if necessary
• Render Preview: To preview the render before the final render
• Schedule Render: To schedule a specific time at with the rendering of the model starts
• Final Render: To render the finalized model

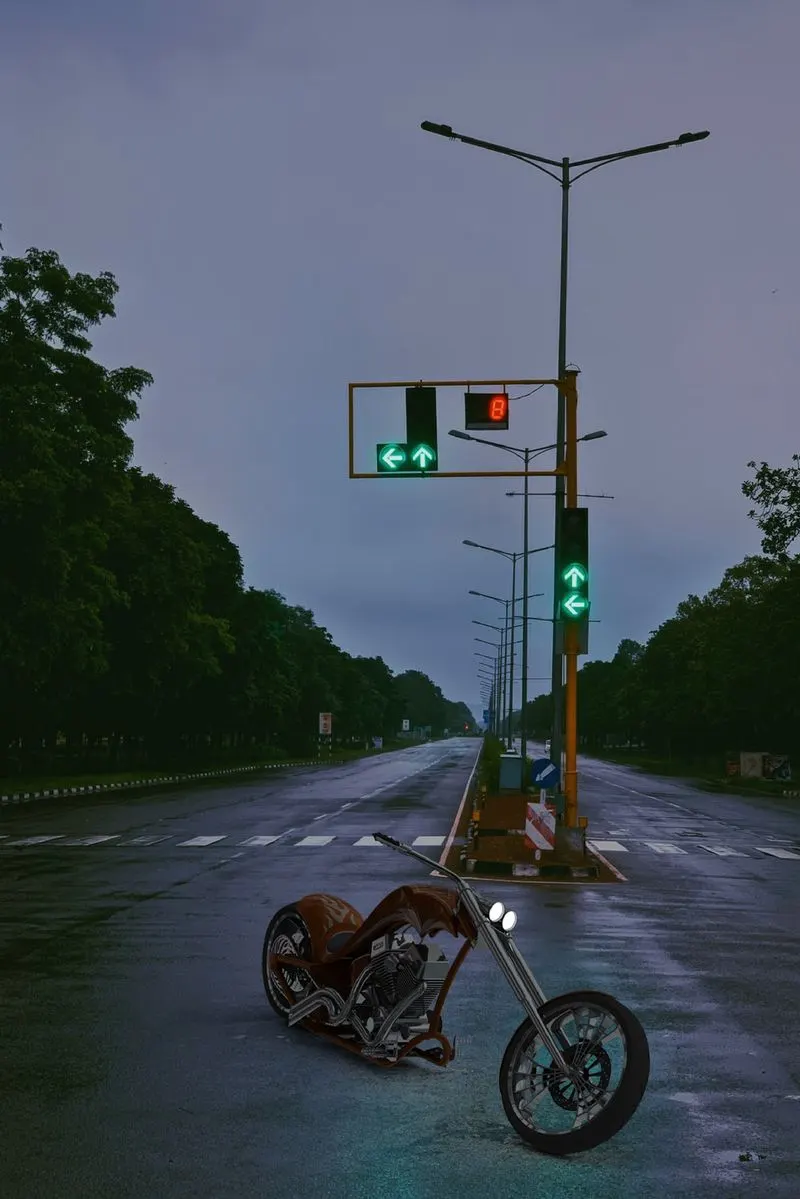

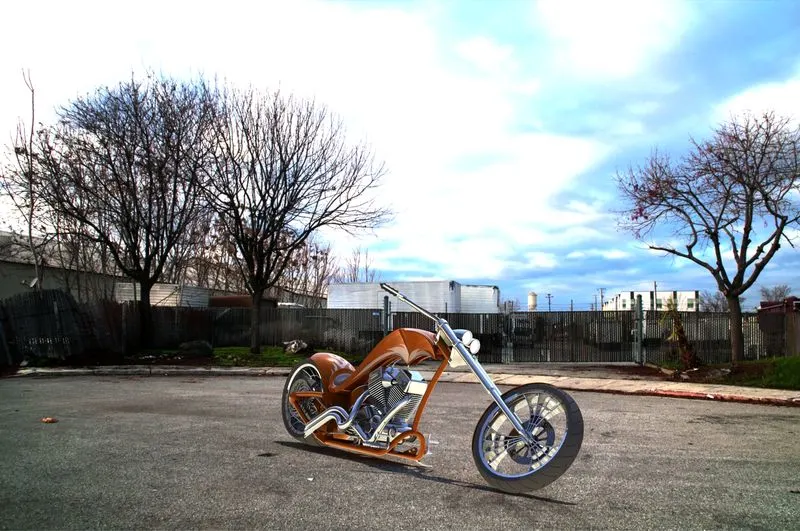

Solidworks Visualise

     Solidworks Visualize is also a rendering software used only for rendering purposes. It creates a better render than the rendering in the Solidworks PhotoView 360.

Conclusion

     The 3D model of American Chopper is ready from designing each part to assembling each part and is given a realistic look using renders.
