Drafting of various geometries using Chamfer, Fillet tool in AutoCad

Aim:- To draft the various geometry using chamfer, fillet tool in AutoCAD

Introduction:-

In AutoCAD we use different tools like circle, offset, move, chamfer, fillet, rotate, trim, mirror etc.,

Chamfer

• Chamfer command is used to create the slanted edge between the two connected line or polyline
• Here we should give 2 values for creating the chamfer in geometry these two values moves in alternative way

Fillet

• Fillet command is used to create the smooth arc tangent between two objects in 2D and it's used to create round edge between the adjacent lines in 3D
• Fillet can be created between two same objects or different objects



Procedure:-

• Go to start menu, click on Start drawing
• Type stratup (Enter) in command line
• Enter the new value of start up:1
• Go to application menu and select new or type new in command line
• In the "create new drawing" dialogue box contains imperial  type of systems and metric type of system
• We select the metric system in the "start from scratch" option
• After that in Advance setup option select the decimal unit system in the units

The above procedure should be followed every time when the new sheet is opened

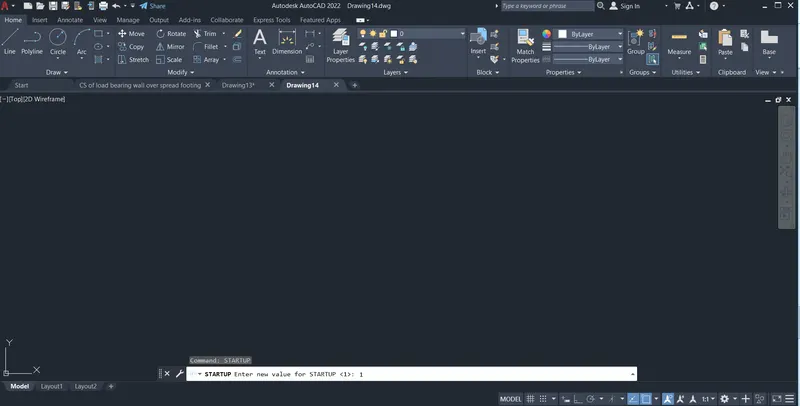

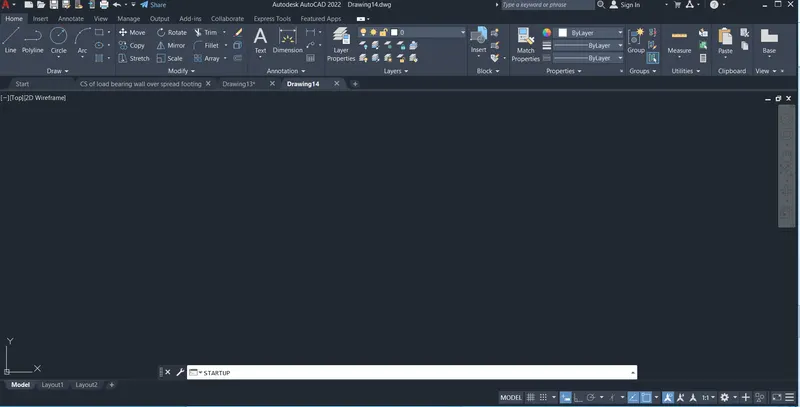

                               Entering the start up command in the command line





                             Entering the value 1 for the start up

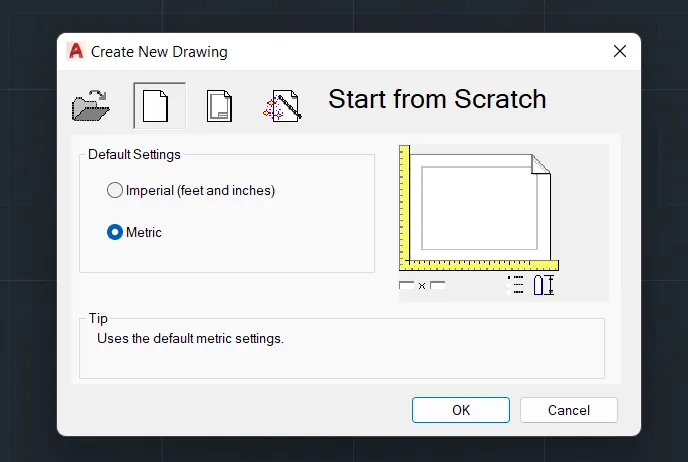

                            When we go to the new file then we get this file select the metric from start from scratch

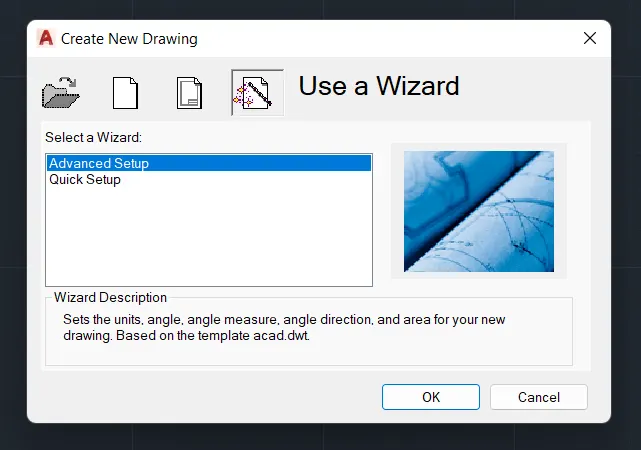

                           Then advance setup setting should be done by clicking OK

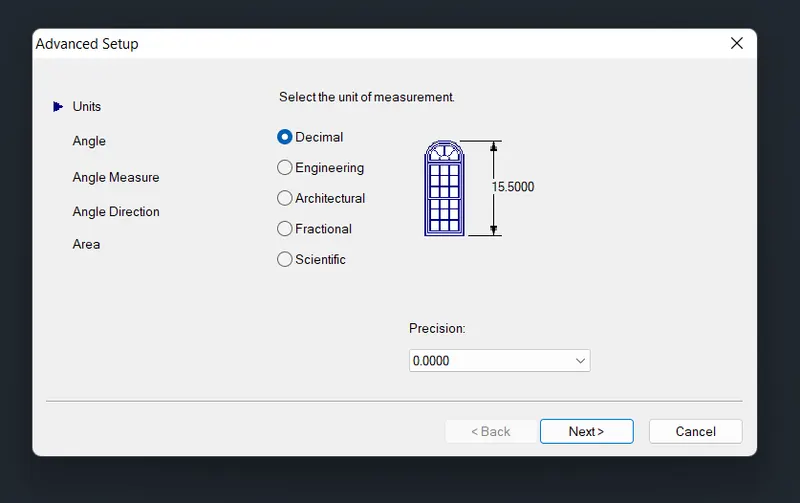

                          Keep the units in decimal and adjust precision then click next

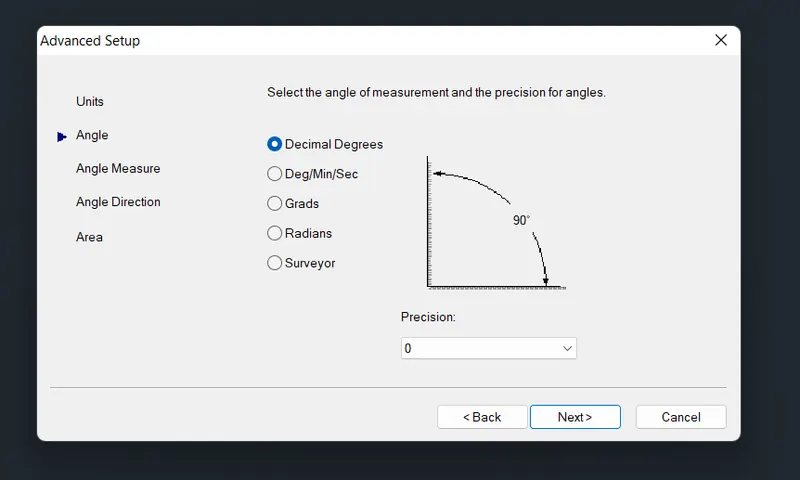

                           Keep angle in decimal degree and adjust precision then click next

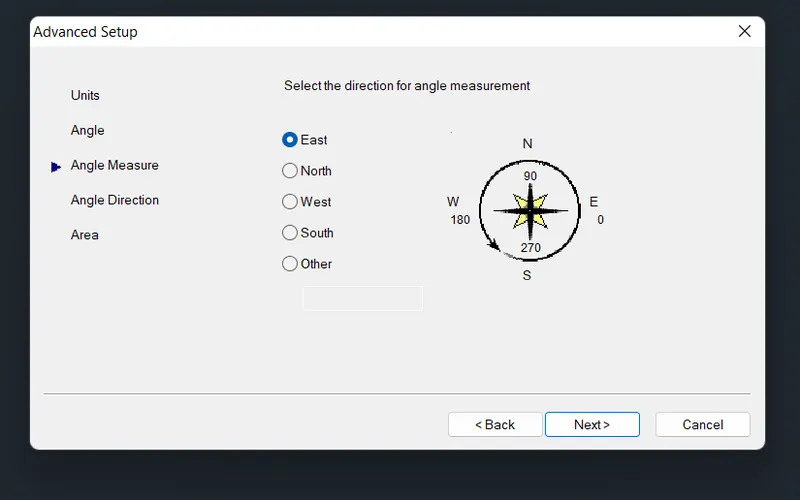

                          Select the angle measurement in east and click on next

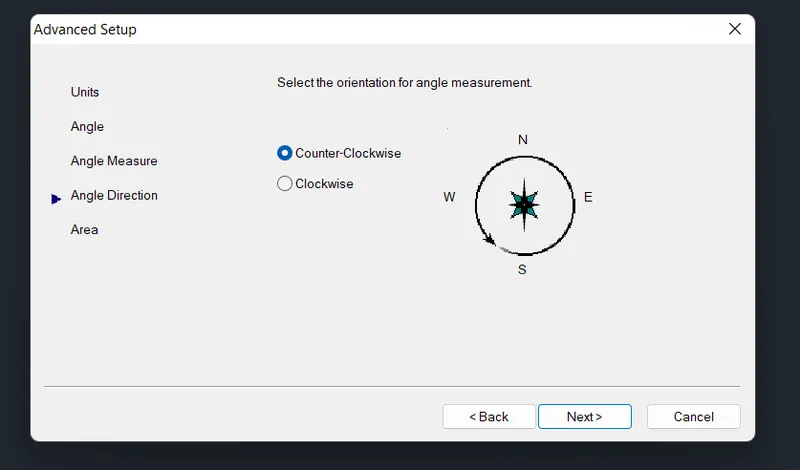

                            Select angle direction in counter clockwise and click on next

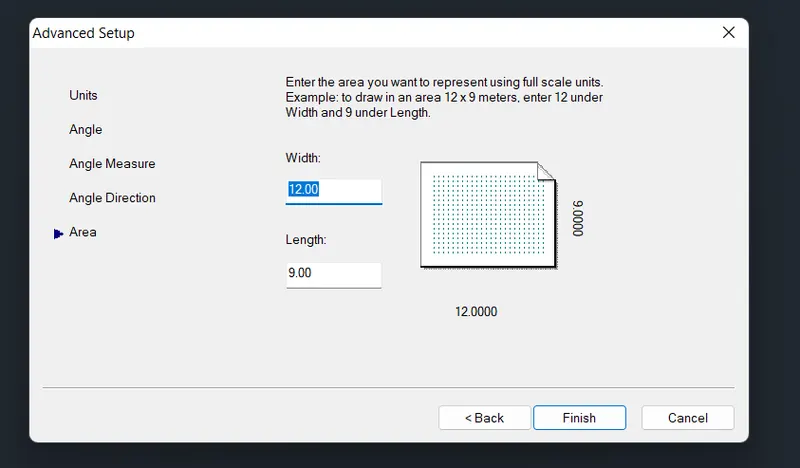

                           Keep the width as 12m and length of 9m as default and click on finish

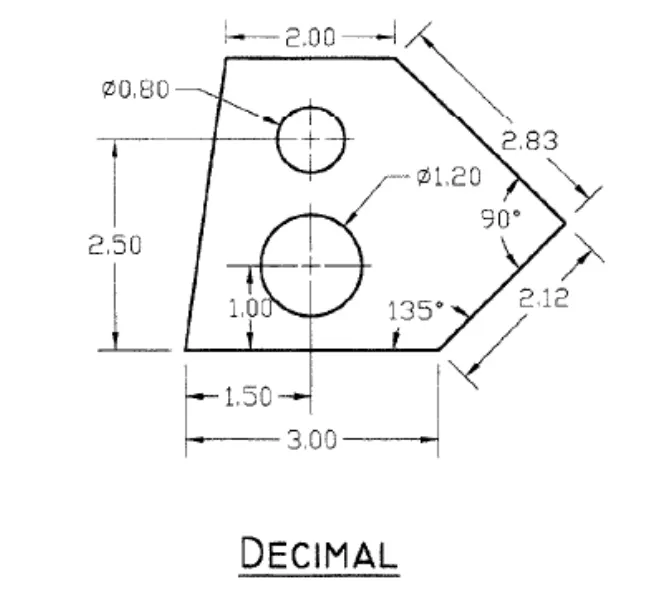

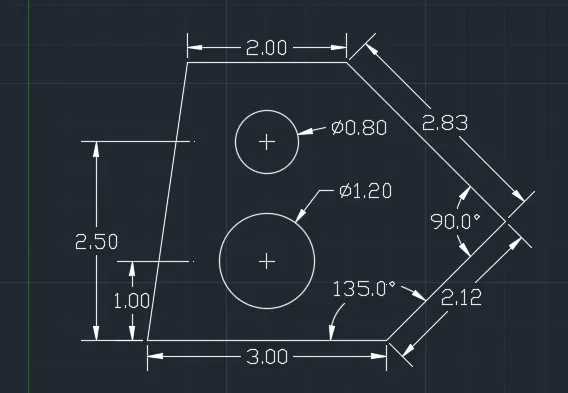

Aim:- To draft the drawing 1





By using direct distance entry method and polar coordinate

• Here all the units are in metric
• Select the line tool by entering L (Enter) in the command line
• Specify the starting point 1 any where in the screen
• Enter the length of the point 2 as 3m in command at +ve x-axis
• Enter the length of the point 3 as @ 2.21<45 in command then we get 135 degree angle
• Enter the length of the point 4 as @2.83<135 in command then we get 90 degree angle
• Enter the length of the point 5 as 2m in command at -ve x-axis
• Then click close on command line
• Draw the offset of 1m and 2.50m line from the 3m line to upside
• Draw a line from the mid of 3m line which is a 1.50m
• Draw a diameter of circle 1.20 where the line 1.50m and 1m meets consider it as a center point
• Draw a diameter of circle 0.80 where the line 1.50m and 2.50m meets consider it as a center point



Result:-

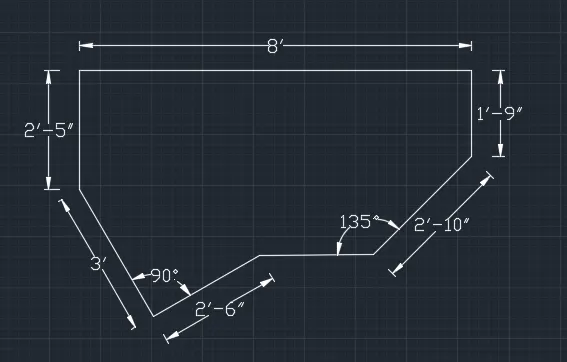

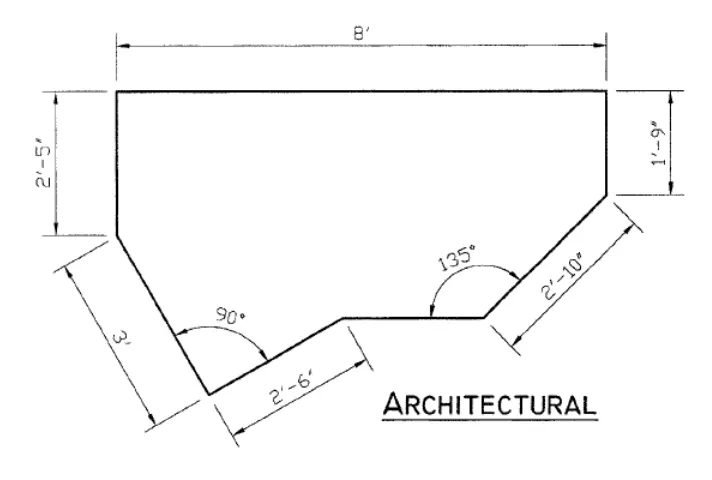

Aim:- To draft the drawing 2





 By using direct distance entry method and relative polar coordinate

• Here all the units are in Architecture (inches and feets)
• Select the line tool by entering L (Enter) in the command line
• Specify the starting point 1 any where in the screen
• Enter the length of the point 2 as 8'-0" in command at +ve x-axis
• Enter the length of the point 3 as 1'-9" in command at -ve y-axis from the right end of the 8'-0" line
• Enter the length of the point 4 as 2'-5" in command at -ve y-axis from the left end of the 8'-0" line
• Enter the length of the point 5 as @ 2'-10"<45 in command  from the 1'-9" line end
• Enter the length of the point 6 as @3'-0"<300 in command from the 2'-5" line
• Enter the length of the point 7 as @2'-6"<30 in command from the 3'-0" line
• Enter the length of the point 8 as 2m in command at -ve x-axis
• Join the 2'-6" line and 2'-10" line

Result:-

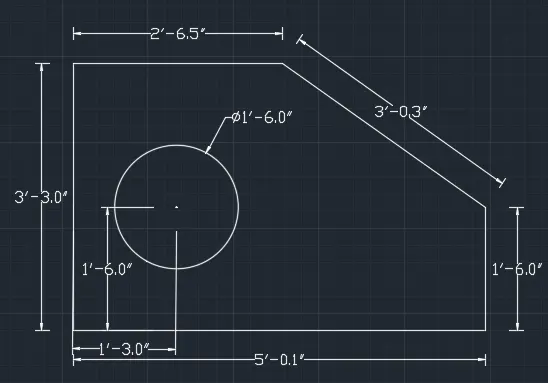

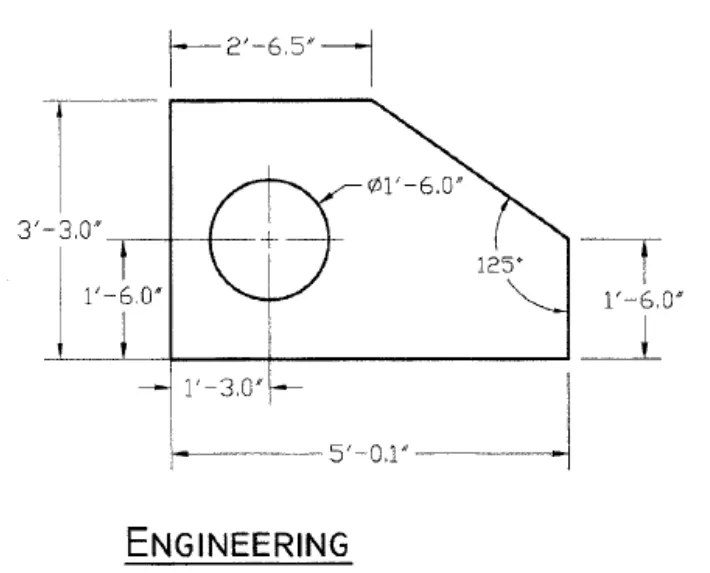

Aim:- To draft the drawing 3



By using direct distance entry method

• Here all the units are in Engineering (inches and feets)
• Select the line tool by entering L (Enter) in the command line
• Specify the starting point 1 any where in the screen
• Enter the length of the point 2 as 2'-6.5" in command at -ve x-axis
• Enter the length of the point 3 as 3'-3.0" in command at -ve y-axis
• Enter the length of the point 4 as 5'-0.1" in command at +ve x-axis
• Enter the length of the point 5 as 1'-6.0" in command at +ve y-axis
• Join the line from 1'-6.0" line to 2'-6.5" line which has a distance of 3'-0.3"
• Take the offset of 1'-3.0" from the 3'-3.0" line and 1'-6.0" line from the 5'-0.1" line to upside
• Draw a diameter of circle 1'-6.0" where the line 1'-3.0" and 1'-6.0" meets consider it as a center point



Result:-

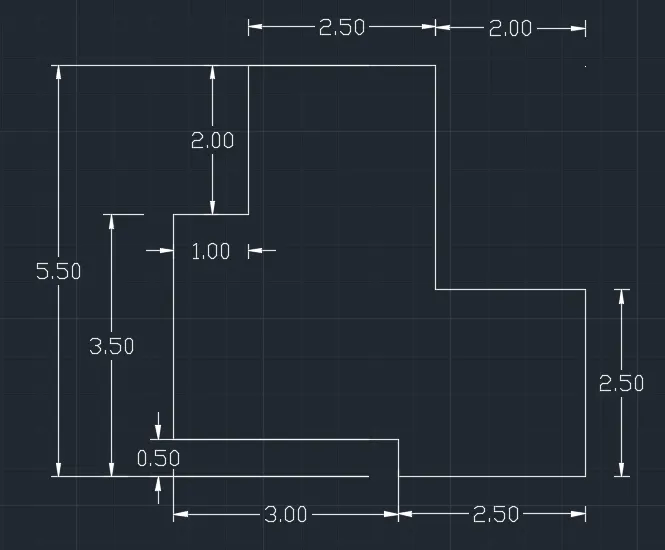

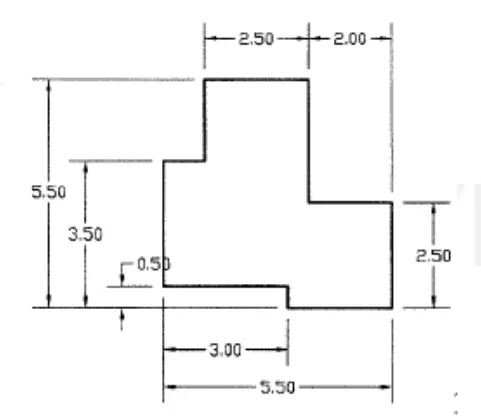

Aim:- To draft the drawing 4



By using direct distance entry method

• Here all the units are in metric
• Select the line tool by entering L (Enter) in the command line
• Specify the starting point 1 any where in the screen
• Enter the length of the point 2 as 2.50m in command at -ve x-axis
• Enter the length of the point 3 as 2m in command at -ve y-axis
• Enter the length of the point 4 as 1m in command at -ve x-axis
• Enter the length of the point 5 as 3m in command at -ve y-axis
• Enter the length of the point 6 as 3m in command at +ve x-axis
• Enter the length of the point 7 as 0.50m in command at -ve y-axis
• Enter the length of the point 8 as 2.50m in command at +ve x-axis
• Enter the length of the point 9 as 2.50m in command at +ve y-axis
• Enter the length of the point 10 as 2m in command at -ve x-axis
• Then click on close in command line

Result:-

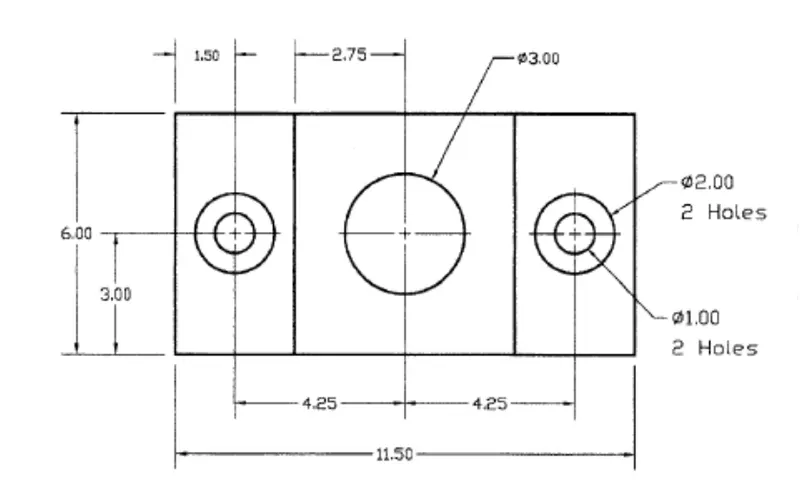

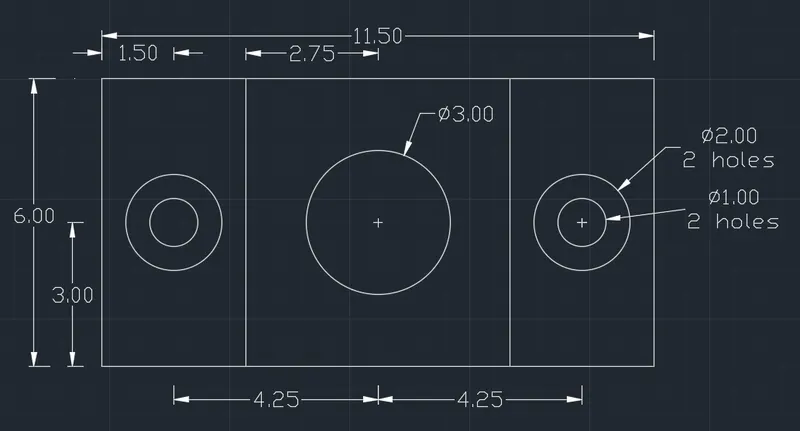

Aim:- To draft the drawing 5



By using direct distance entry method

• Here all the units are in metric
• Select the line tool by entering L (Enter) in the command line
• Specify the starting point 1 any where in the screen
• Enter the length of the point 2 as 11.50m in command at +ve x-axis
• Enter the length of the point 3 as 6m in command at -ve y-axis
• Enter the length of the point 4 as 11.50m in command at -ve x-axis
• Enter the length of the point 5 as 6m in command at +ve y-axis
• Take the offset of 3m line inside from the 6m line which is in both side (point 3 and point 5)
• Take the offset of 3m and 1.50m line from the 11.50m line to upside and 2 sides of 6m line to right side respectively
• Draw a diameter of circle 2 and diameter of circle 1 having same center point where the line 3m and 1.50m meets consider it as a center point
• Take the offset of 4.25m from the center of the circle having diameter 1 and 2
• Take a offset of 2.75 from the 3m line (which is drawn inside from 6m line both the sides)
• Draw a diameter of circle 3 where the 3m line from bottom of 11.50m and 4.25m line from the circle having diameter 1 and 2



Result:-

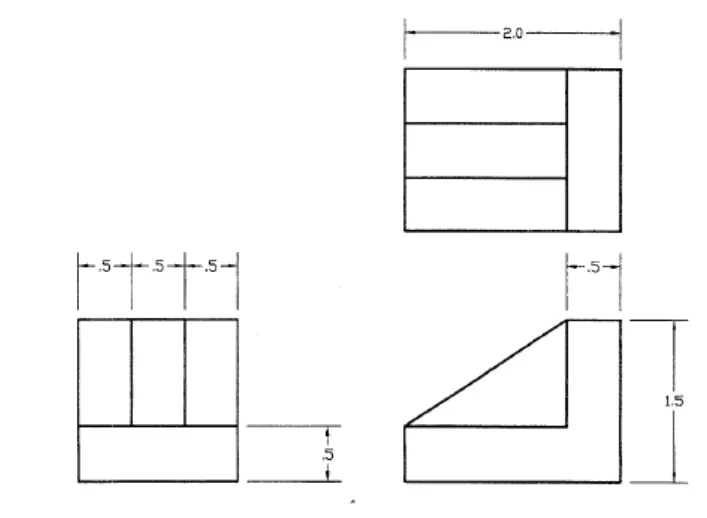

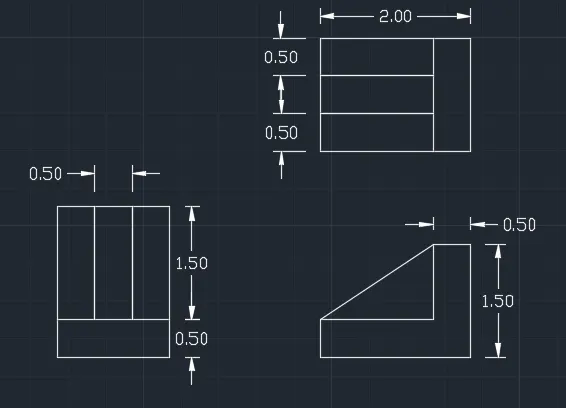

Aim:- To draft the drawing 6





By using direct distance entry method

• Here all the units are in metric
• Select the line tool by entering L (Enter) in the command line
• Specify the starting point 1 any where in the screen
• Enter the length of the point 2 as 1.50m in command at +ve x-axis
• Enter the length of the point 3 as 1.50m in command at -ve y-axis
• Take a offset of 0.5m and divide it into 3 parts
• Enter the length of the point 4 as 0.5m in command at +ve x-axis from top corner of 1.50m line
• Enter the length of the point 5 as 1.5m in command at -ve y-axis
• Enter the length of the point 6 as 0.5m in command at -ve x-axis to the bottom corner of 1.50m line
• Take a copy of this object and rotate to 270 degree
• Draw a another geometry
• Enter the length of the point 7 as 2m in command at +ve x-axis
• Enter the length of the point 8 as 1.50m in command at +ve y-axis
• Enter the length of the point 9 as 0.50m in command at -ve x-axis
• Enter the length of the point 10 as 1m in command at -ve y-axis
• Enter the length of the point 11 as 1.50m in command at -ve x-axis
• Then click on close in the command line
• Draw a inclined line from the 0.50 end to 1.50 end



Result:-

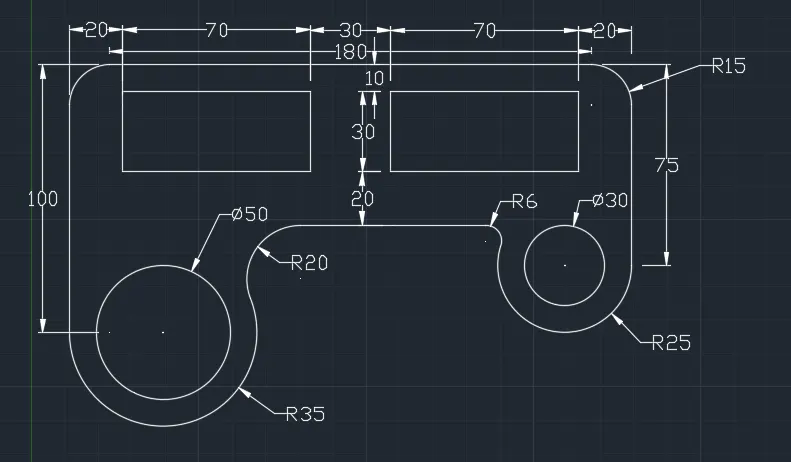

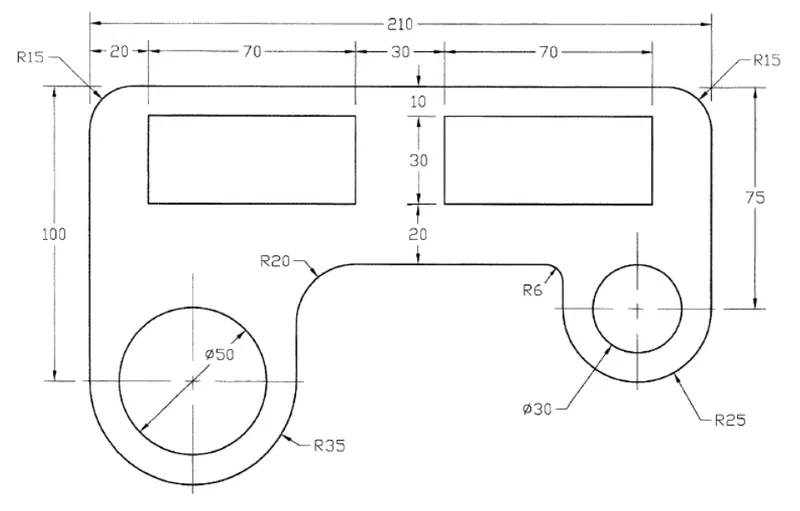

Aim:- To draft the drawing 7





By using direct distance entry method

• Here all the units are in metric
• Select the line tool by entering L (Enter) in the command line
• Specify the starting point 1 any where in the screen
• Enter the length of the point 2 as 180m in command at +ve x-axis
• Enter the length of the point 3 as 75m in command at -ve y-axis from left end of the line
• Enter the length of the point 4 as 100m in command at -ve y-axis from right end of the line
• Take a offset of 20m, 70m, 30m, 70m, and 20m from the 100m line
• Take a offset of 10m, 30m, and 20m
• By leaving 70mx30m which is a rectangle inside and trim off remaining portion
• By using arc in strat end radius method draw a curve having a radius of 35 at left side (near 100m line)
• By using same center point draw a circle having a diameter 50
• By using arc in strat end radius method draw a curve having a radius of 25 at right side (near 75m line)
• By using same center point draw a circle having a diameter 30
• Now use the fillet option to give the smooth curve
• Use a radius of 15m both the sides of the 180m line
• Use a radius of 20m near the bigger circle and radius 6m near the smaller circle



Result:-

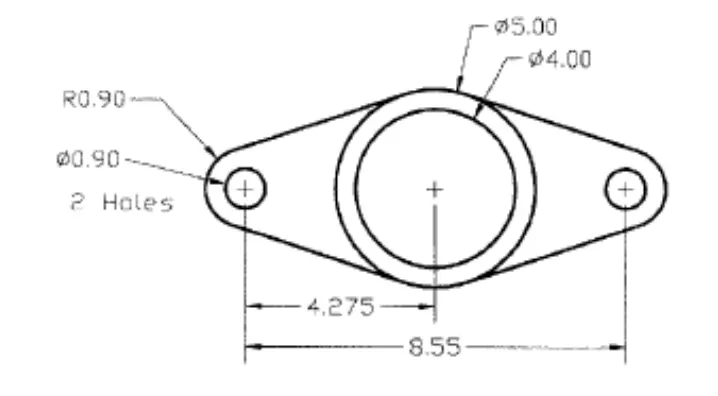

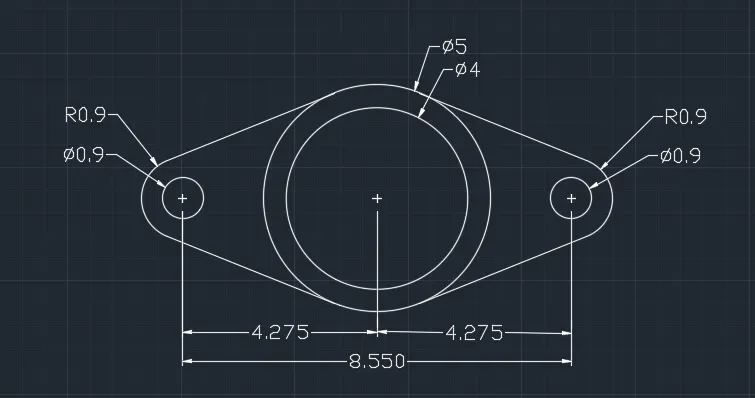

Aim:- To draft the drawing 8



By using direct distance entry method

• Here all the units are in metric
• Select the line tool by entering L (Enter) in the command line
• Specify the starting point 1 any where in the screen
• Enter the length of the point 2 as 8.550m in command at +ve x-axis
• Draw a circle having same diamter and radius of 0.9 on both end of the line
• Draw a circle having diameters 4 and 5 from the center of the 8.550m line consider it as a center of the circle
• Switch on the tangent in object snap and use start end radius method in arc
• Select the first tangent point in circle having radius 0.9 and select the second point in circle having diameter 5 (use for both the sides)
• Trim off the unwanted by line by taking trim option in command



Result:-

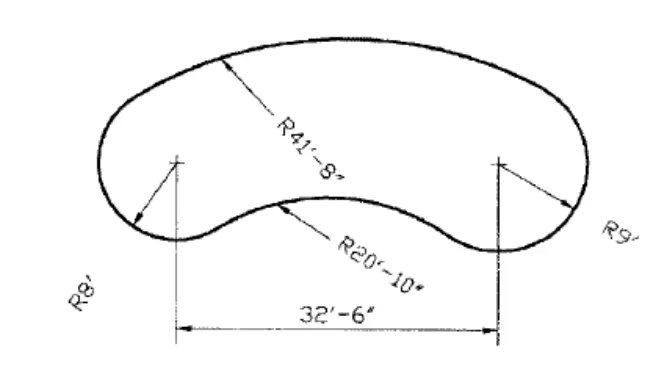

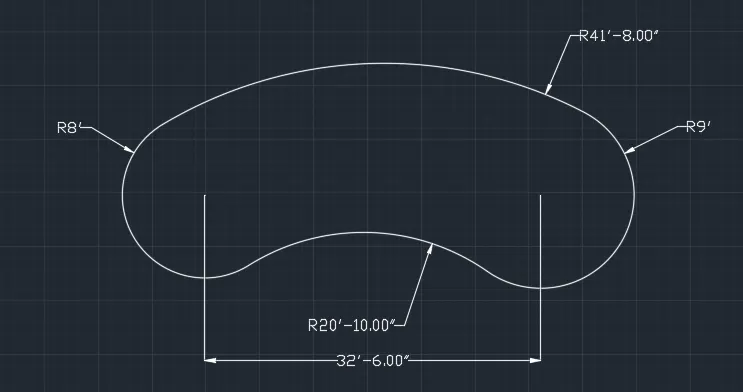

Aim:- To draft the drawing 9



By using direct distance entry method

• Here all the units are in metric
• Select the line tool by entering L (Enter) in the command line
• Specify the starting point 1 any where in the screen
• Enter the length of the point 2 as 32'-6" in command at +ve x-axis
• Draw a circle having radius of 8'-0" at the left side and radius 9'-0"at the right side of the line
• Switch on the tangent in object snap and use tan tan radius method in arc
• Select the first tangent point in circle having radius 8'-0" and select the second point in circle having radius 9'-0" at the top and give the radius as 41'-8"
• Again select the first tangent point in circle having radius 8'-0" and select the second point in circle having radius 9'-0" at the bottom and give the radius as 20'-10"

Result:-

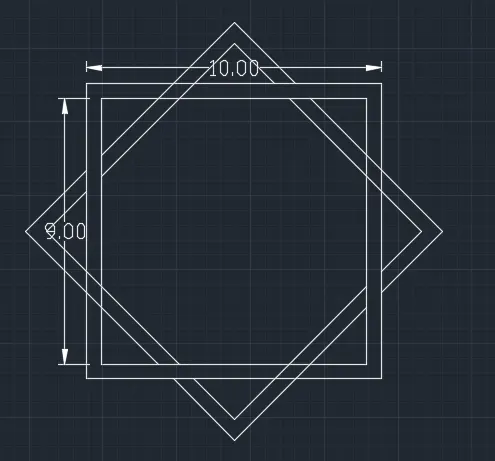

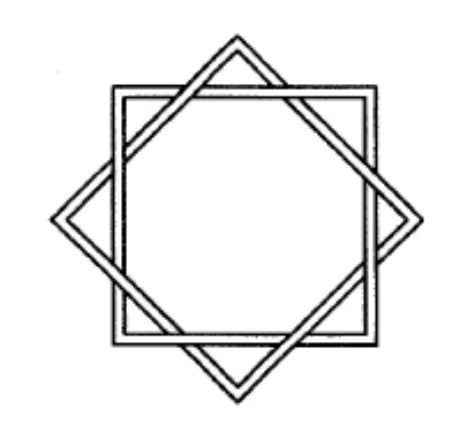

Aim:- To draft the drawing 10



By using direct distance entry method

• Here all the units are in metric
• Draw a rectangle having a dimension 10m*10m by using a rectangle command in command line
• Take a offset of 1m to inside the 10m geometry
• Use a rotate command and select the base point as a geometric center and select the copy option and give the angle as a 45 to inclined the rectangle in 45 deegree



Result:-

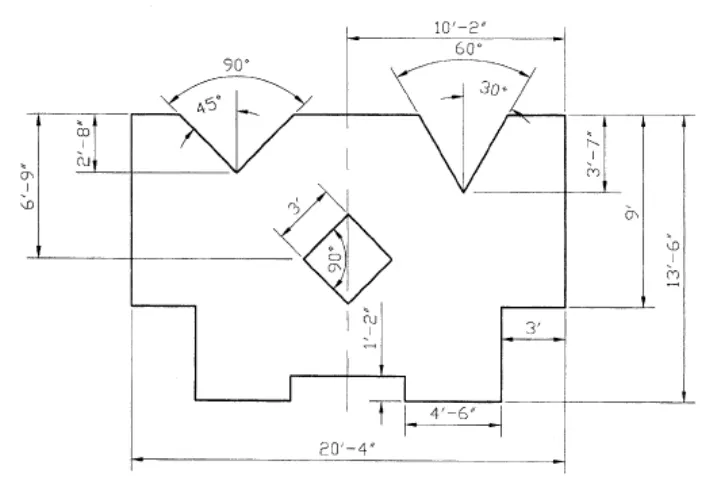

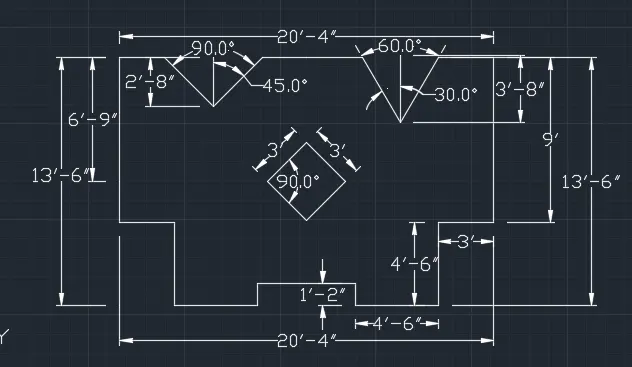

Aim:- To draft the drawing 11



By using direct distance entry method

• Here all the units are in metric
• Select the line tool by entering L (Enter) in the command line
• Specify the starting point 1 any where in the screen
• Enter the length of the point 2 as 9'-0"in command at -ve y-axis
• Enter the length of the point 3 as 3'-0" in command at -ve x-axis
• Enter the length of the point 4 as 4'-6" in command at -ve y-axis
• Enter the length of the point 5 as 4'-6" in command at -ve x-axis
• Enter the length of the point 6 as 1'-2" in command at +ve y-axis
• Enter the length of the point 7 as 5'-4" in command at -ve x-axis
• Enter the length of the point 8 as 1'-2" in command at -ve y-axis
• Enter the length of the point 9 as 4'-6" in command at -ve x-axis
• Enter the length of the point 10 as 4'-6" in command at +ve y-axis
• Enter the length of the point 11 as 3'-0" in command at -ve x-axis
• Enter the length of the point 12 as 9'-0"in command at +ve y-axis
• Enter the length of the point 13 as 20'-4"in command at +ve x-axis
• Take a offset of 6'-9" from the 20'-4" line and draw a mid line from the same
• Draw the rectangle and inclinned it 45 degree by using a rotate option and place the geometric center where 6'-9' line and mid line meets
• Draw the mid line again from the mid line of the 20'-4" line and take the offset of 2'-8" at left side and 3'-8" at right side
• Draw the 2 inclination of 45 degree to left and right where the mid of the mid line and 2'-8" offset line meets then we get 90 degree
• Draw the 2 inclination of 30 degree to left and right where the mid of the mid line and 3'-8" offset line meets then we get 60 degree



Result:-
