Creation of geometries by Coordinate system methods using AutoCad

ANSWER :-   1)AIM:- To create geometry in Autocad using all the coordinates system methods  Introduction of coordinates system:- There are four coordinates system:- .Absolute system .Relative coordinates system .Relative polar system .Direct distance entry .Absolute system:- .In the absolute coordinates…

    • Sachin Kumar

      updated on 06 Sep 2022

    ANSWER :-

    1)AIM:- To create geometry in Autocad using all the coordinates system methods

    Introduction of coordinates system:-

    There are four coordinates system:-

    .Absolute system

    .Relative coordinates system

    .Relative polar system

    .Direct distance entry

    .Absolute system:-

    .In the absolute coordinates system, all inputs points specified in the drawing are with respect to origin(0,0)

    .Relative coordinates system:-

    .In the relative coordinates system, the first point is entered with respect to origin(0,0) & all next points can be entered by specifying the next coordinates with respect to the first point.

    .The relative coordinates started with the symbol '@' .In relative rectangular coordinates, system points are entered by typing '@X, Y' & pressing enter.

    .Polar coordinates:-

    .Polar coordinates used when we need to draw the next points at a specified angle.

    .Polar coordinates system system in Autocad specifies distance length at an angle.

    .In relative polar coordinates system points are entered by typing '@distance<angle '& pressing enter.

    .Direct distance entry:-

    .It is the sampling method of drawing.

    .Direct distance entry enables to draw an object by pointing in a pointing particular direction with the cursor & entering a distance at a command box.

    .First point ids entered with entered respect to  origin(0,0) & then the cursor is move in the particular direction & distance is entered at command box.

    AIM:- To create geometry in Autocad using all the coordinates system methods.



    Procedure:-

    Step1:-On the AutoCAD software set up the units to imperial template& decimal system 0.000

    .STEP2:-Set the limits in the command by using 'LIM' before drafting.

    .STEPS OF CREATING IN AUTO CAD SOFTWARE BY ABSOLUTE COORDINATES SYSTEM:-

    .Type the command 'L' for the line & specify the coordinates for starting point 1(2,1)

    .Type the next coordinates of the point 2(8,1)  in the command box.

    .Type the next coordinates of the point 3(8,2)  in the command box.

    .Type the next coordinates of the point 4(3,2)  in the command box.

    .Type the next coordinates of the point 5(3,6)  in the command box.

    .Type the next coordinates of the point 6(8,6)  in the command box.

    .Type the next coordinates of the point 7(8,7)  in the command box.

    .Type the next coordinates of the point 8(2,7)  in the command box.

    .Click close in the command box.

    RESULT:-



    .STEPS OF CREATING IN AUTO CAD SOFTWARE BY RELATIVE RECTANGULAR COORDINATES SYSTEM:-

    .Type the command 'L' for the line & specify the coordinates for starting point 1(2,1).

    .Type the next coordinates of point 2@6'0 in the command box.

    .Type the next coordinates of point 3@0'1 in the command box.

    .Type the next coordinates of point 4@-5'0 in the command box.

    .Type the next coordinates of point 5@0'4 in the command box.

    .Type the next coordinates of point 6@5,0 in the command box.

    .Type the next coordinates of point 7@0,1 in the command box.

    .Type the next coordinates of poin 8@6,0in the command box.

    .Click close on the command box.

    RESULT:-



    .STEPS OF CREATING IN AUTO CAD SOFTWARE BY  RELATIVE POLAR COORDINATES SYSTEM:-

    .Type the command 'L' for the line & specify the coordinates for starting point 1(2,1).

    .Type the next coordinates of point 2@6<0 in the command box.

    .Type the next coordinates of point 3@1<90in the command box.

    .Type the next coordinates of point 4@5<180 in the command box.

    .Type the next coordinates of point 5@4<90in the command box.

    .Type the next coordinates of point 6@5<0 in the command box.

    .Type the next coordinates of point 7@0<90in the command box.

    .Type the next coordinates of point 8@6<180 in the command box.

    .Click close on the command box.

    RESULT:-



    .STEPS OF CREATING IN AUTO CAD SOFTWARE BY  DIRECT DISTANCE ENTRY SYSTEM:-

    .Type the command 'L' for the line & specify the coordinates for starting point 1(2,1).

    .Type the length 6 in the command box to +ve X axis for point 2.

    .Type the length 1 in the command box to +ve Y axis for point 3.

    .Type the length 5 in the command box to -ve X axis for point 4.

     .Type the length 4 in the command box to +ve Y axis for point 5.

    .Type the length 5 in the command box to +ve X axis for point 6.

    .Type the length 1 in the command box to +ve Y axis for point 7.

    .Type the length 6 in the command box to -ve X axis for point 8.

    .Click close on the command box.

    RESULT:-



    AIM:- To create geometry in Autocad using all the coordinates system methods.

      Procedure:-

    Step1:-On the AutoCAD software set up the units to imperial template& decimal system 0.000

    STEP2:-Set the limits in the command by using 'LIM' before drafting.

    .STEPS OF CREATING IN AUTO CAD SOFTWARE BY ABSOLUTE COORDINATES SYSTEM:-

    .Type the command 'L' for the line & specify the coordinates for starting point 1(2,1)

    .Type the next coordinates of point 2(5,1)  in the command box.

    .Type the next coordinates of point 3(5,5)  in the command box.

    .Type the next coordinates of point 4(6,5)  in the command box.

    .Type the next coordinates of point 5(6,1)  in the command box.

    .Type the next coordinates of point 6(9,1)  in the command box.

    .Type the next coordinates of point 7(7,8)  in the command box.

    .Type the next coordinates of point 8(4,8)  in the command box.

    .Click close in the command box.

    RESULT:-STEPS OF CREATING IN AUTO CAD SOFTWARE BY RELATIVE RECTANGULAR COORDINATES SYSTEM:-

    .Type the command 'L' for the line & specify the coordinates for starting point 1(2,1).

    .Type the next coordinates of point 2@3,0 in the command box.

    .Type the next coordinates of point 3@0,4 in the command box.

    .Type the next coordinates of point 4@1,0 in the command box.

    .Type the next coordinates of point 5@0,-4 in the command box.

    .Type the next coordinates of point 6@3,0 in the command box.

    .Type the next coordinates of point 7@-2,7 in the command box.

    .Type the next coordinates of point 8@-3,0 in the command box.

    Click close on the command box.

    RESULT:-STEPS OF CREATING IN AUTO CAD SOFTWARE BY  RELATIVE POLAR COORDINATES SYSTEM:-

    .Type the command 'L' for the line & specify the coordinates for starting point 1(2,1).

    .Type the next coordinates of point 2@3<0 in the command box.

    .Type the next coordinates of point 3@4<90 in the command box.

    .Type the next coordinates of point 4@1<0 in the command box.

    .Type the next coordinates of point 5@4<270 in the command box.

    .Type the next coordinates of point 6@3<0 in the command box.

    .Type the next coordinates of point 9@7<90 in the command box.

    .Type the next coordinates of point 7@2<180 in the command box.

    .Click close on the command box.

    Now use the command line 'L' & join point 6 & point 7 & then cancel the line command by pressing enter. & delete the line joining from point 6 to o9 & point 9 to 7.

    .Type line command 'L' specify the point 7(7,8) & type the next coordinate of point 8@3<180 in the command box & then cancel the line command box & then cancel the line command by pressing enter.

    .Now use the line command 'L' & join point 8 & point 1 & then cancel the line command by pressing enter.

    RESULT:-STEPS OF CREATING IN AUTO CAD SOFTWARE BY  DIRECT DISTANCE ENTRY SYSTEM:-

    .Type the command 'L' for the line & specify the coordinates for starting point 1(2,1).

    .Type the length 3 in the command box to +ve X axis for point 2.

    .Type the length 4 in the command box to +ve Y axis for point 3.

    .Type the length 1 in the command box to +ve X axis for point 4.

     .Type the length 4 in the command box to -ve Y axis for point 5.

    .Type the length 3 in the command box to +ve X axis for point 6.

    .Type the length 7 in the command box to +ve Y axis for point 9.

    .Type the length 2 in the command box to -ve X axis for point 7 & then cancel the line command by pressing enter.

    .Now use the command line 'L' & join point 6 & point 7 & then cancel the line command by pressing enter. & delete the line joining from point 6 to 9 & point 9 to 7.

    .Type line command 'L' specify the point 7(7,8) & type the length 3 in the command box to -ve X axis for point 8 & then cancel the line command by pressing enter.Now use the line command 'L' & join point 8 & point 1 & then cancel the line command by pressing enter.

    RESULT:-AIM:- To create geometry in Autocad using all the coordinates system methods.  Procedure:-Step1:-On the AutoCAD software set up the units to imperial template& decimal system 0.000

    STEP2:-Set the limits in the command by using 'LIM' before drafting.

     .Type the command 'L' for the line & specify the coordinates for starting point 1(2,1)

    .Type the next coordinates of point 2(3,1) in the command box.

    .Type the next coordinates of point 3(3,5) in the command box.

    .Type the next coordinates of point 4(5,3) in the command box.

    .Type the next coordinates of point 5(7,5) in the command box.

    .Type the next coordinates of point 6(7,1) in the command box.

    .Type the next coordinates of point 7(8,1) in the command box.

    .Type the next coordinates of point 8(8,8) in the command box.

    .Type the next coordinates of point 9(7,8) in the command box.

    .Type the next coordinates of point 10(5,5) in the command box.

    .Type the next coordinates of point 11(3,8) in the command box.

    .Type the next coordinates of point 12(2,8) in the command box.

    .Click close in the command box.

    RESULT:-STEPS OF CREATING IN AUTO CAD SOFTWARE BY RELATIVE RECTANGULAR COORDINATES SYSTEM:-

    .Type the command 'L' for the line & specify the coordinates for starting point 1(2,1).

    .Type the next coordinates of point 2@1,0 in the command box.

    .Type the next coordinates of point 3@0,4 in the command box.

    .Type the next coordinates of point 4@2,-2 in the command box.

    .Type the next coordinates of point 5@2,2 in the command box.

    .Type the next coordinates of point 6@0,-4 in the command box.

    .Type the next coordinates of point 7@1,0 in the command box.

    .Type the next coordinates of point 8@0,7 in the command box.

    .Type the next coordinates of point 9@-1,0 in the command box.

    .Type the next coordinates of point 10@-2,-3 in the command box.

    .Type the next coordinates of point 11@-2,3 in the command box.

    .Type the next coordinates of point 12@-1,0 in the command box.

    .Click close on the command box.

    RESULT:-STEPS OF CREATING IN AUTO CAD SOFTWARE BY RELATIVE POLAR COORDINATES SYSTEM:-

    .Type the command 'L' for the line & specify the coordinates for starting point 1(2,1).

    .Type the next coordinates of point 2@1<0 in the command box.

    .Type the next coordinates of point 3@4<90 in the command box.

    .Type the next coordinates of point 10@2<0 in the command box.

    .Type the next coordinates of point 4@2<270 in the command box.

    .Cancel the line command by pressing enter.

    .Now use the command line 'L' & join point 3 & point 4 & then cancel the line command by pressing enter. & delete the line joining from point 3 to 10 & point 10 to 4.

    .Type line command 'L' specify the point 4(5,3) & type the next coordinate of point 10@2<90 in the command box.

    .Type the next coordinates of point 5@2<0 in the command box.

    .Cancel the line by pressing enter.

    .Now use the command line 'L' & join point 4 & point 5 & then cancel the line command by pressing enter. & delete the line joining from point 4 to 10 & point 10 to 5.

    .Type line command 'L' specify point 5(7,5) & type the next coordinate of point 6@4<270 in the command box.

    .Type the next coordinates of point 7@1<0 in the command box.

    .Type the next coordinates of point 8@7<90 in the command box.

    .Type the next coordinates of point 9@1<180 in the command box.

    .Type the next coordinates of point 5@3<270 in the command box.

    .Type the next coordinates of point 10@2<180 in the command box.

    .Cancel the line by pressing enter.

    .Now use the command line 'L' & join point 9 & point 10 & then cancel the line command by pressing enter. & delete the line joining from point 9 to 5 & point 5 to 10.

    .Type line command 'L' specify point 10(5,5) & type the next coordinate of point 3@2<180 in the command box.

    .Type the next coordinates of point 11@3<90 in the command box.

    .Cancel the line by pressing enter.

    .Now use the command line 'L' & join point 10 & point 11 & then cancel the line command by pressing enter. & delete the line joining from point 10 to 3 & point 3 to 11.

    .Type line command 'L' specify the point 11(3,8) & type the next coordinate of point 12@1<180 in the command box.

    .Type the next coordinates of point 1@7<270 in the command box.

    .Cancel the line by pressing enter.

    RESULT:-STEPS OF CREATING IN AUTO CAD SOFTWARE BY DIRECT DISTANCE ENTRY SYSTEM:-

    .Type the command 'L' for the line & specify the coordinates for starting point 1(2,1).

    .Type the length 1 in the command box to +ve X axis for point 2.

    .Type the length 4 in the command box to +ve Y axis for point 3.

    .Type the length 2 in the command box to +ve X axis for point 10.

    .Type the length 2 in the command box to -ve Y axis for point 4.

    .Cancel the command by pressing enter & then type the command 'L' & join the points 3 & 4.

    .Cancel the command by pressing enter & delete the other lines joining from point 3 to 10 & point 10 to 4.

    .Type the command 'L' specify the start point 4(5,3) & type the length 2 in the command box +ve y-axis for point 10 & type the length 2 in the command box to +ve x-axis for point 5.

    .Cancel the command by pressing enter & then type the command 'L' & join points 4 & 5.

    .Cancel the line command by pressing enter & delete lines joining point 4 to 10 & point 10 to 5.

    Type the command 'L' specify the start point 5(7,5) 7 type the length 4 in command box to -ve y axis for point 6.

    .Type the length 1 in the command box to +ve X axis for point 7.

    .Type the length 7 in the command box to +ve Y axis for point 8.

    .Type the length 1 in the command box to -ve X axis for point 9.

    .Type the length 3 in the command box to -ve Y axis for point 5.

    .Type the length 2 in the command box to -ve X axis for point 10.

    .Cancel the line command by pressing enter

    .Now use the command line 'L' & join point 9 & point 10 & then cancel the line command by pressing enter. & delete the line joining from point 9 to 5 & point 5 to 10.

    .Type line command 'L' specify the point 10(5,5) & type the length 2 in the command box to -ve X axis for point 3 & type the length 3 in command box to +ve Y axis for point 11.

    .Cancel the line command by pressing enter.

    .Now use the command line 'L' & join point 10 & point 11 & then cancel the line command by pressing enter. & delete the line joining from point 10 to 3 & point 3 to 11.

    .Type line command 'L' specify the point 11(3,8) & type the length 1 in the command box to -ve X axis for point 12 & type the length 7 in command box to -ve Y axis for point 1& then cancel the line command by pressing enter. .

    .Click close on the command box

    RESULT:-AIM:- To create geometry in Autocad using all the coordinates system methods.

     Procedure:- step1:-On the AutoCAD software set up the units to imperial template& decimal system 0.000

    STEP2:-Set the limits in the command by using 'LIM' before drafting.

    STEPS OF CREATING IN AUTO CAD SOFTWARE BY ABSOLUTE COORDINATES SYSTEM:-

    .Type the command 'L' for the line & specify the coordinates for starting point 1(2,1)

    .Type the next coordinates of point 2(3,1) in the command box.

    .Type the next coordinates of point 3(3,5) in the command box.

    .Type the next coordinates of point 4(5,3) in the command box.

    .Type the next coordinates of point 5(7,5) in the command box.

    Type the next coordinates of point 6(7,1) in the command box.

    .Type the next coordinates of point 7(8,1) in the command box.

    .Type the next coordinates of point 8(8,8) in the command box.

    .Type the next coordinates of point 9(7,8) in the command box.

    .Type the next coordinates of point 10(5,5) in the command box.

    .Type the next coordinates of point 11(3,8) in the command box.

    .Type the next coordinates of point 12(2,8) in the command box.

    .Click close in the command box.

    RESULT:-STEPS OF CREATING IN AUTO CAD SOFTWARE BY RELATIVE RECTANGULAR COORDINATES SYSTEM:-

    .Type the command 'L' for the line & specify the coordinates for starting point 1(2,1).

    .Type the next coordinates of point 2@1,0 in the command box.

    .Type the next coordinates of point 3@0,4 in the command box.

    .Type the next coordinates of point 4@2,-2 in the command box.

    .Type the next coordinates of point 5@2,2 in the command box.

    .Type the next coordinates of point 6@0,-4 in the command box.

    .Type the next coordinates of point 7@1,0 in the command box.

    .Type the next coordinates of point 8@0,7 in the command box.

    .Type the next coordinates of point 9@-1,0 in the command box.

    .Type the next coordinates of point 10@-2,-3 in the command box.

    .Type the next coordinates of point 11@-2,3 in the command box.

    .Type the next coordinates of point 12@-1,0 in the command box.

    .Click close on the command box.

    RESULT:-STEPS OF CREATING IN AUTO CAD SOFTWARE BY RELATIVE POLAR COORDINATES SYSTEM:-

    .Type the command 'L' for the line & specify the coordinates for starting point 1(2,1).

    .Type the next coordinates of point 2@1<0 in the command box.

    .Type the next coordinates of point 3@4<90 in the command box.

    .Type the next coordinates of point 10@2<0 in the command box.

    .Type the next coordinates of point 4@2<270 in the command box.

    .Cancel the line command by pressing enter.

    .Now use the command line 'L' & join point 3 & point 4 & then cancel the line command by pressing enter. & delete the line joining from point 3 to 10 & point 10 to 4.

    .Type line command 'L' specify the point 4(5,3) & type the next coordinate of point 10@2<90 in the command box.

    .Type the next coordinates of point 5@2<0 in the command box.

    .Cancel the line by pressing enter.

    .Now use the command line 'L' & join point 4 & point 5 & then cancel the line command by pressing enter. & delete the line joining from point 4 to 10 & point 10 to 5.

    .Type line command 'L' specify point 5(7,5) & type the next coordinate of point 6@4<270 in the command box.

    .Type the next coordinates of point 7@1<0 in the command box.

    .Type the next coordinates of point 8@7<90 in the command box.

    .Type the next coordinates of point 9@1<180 in the command box.

    .Type the next coordinates of point 5@3<270 in the command box.

    .Type the next coordinates of point 10@2<180 in the command box.

    .Cancel the line by pressing enter.

    .Now use the command line 'L' & join point 9 & point 10 & then cancel the line command by pressing enter. & delete the line joining from point 9 to 5 & point 5 to 10.

    .Type line command 'L' specify point 10(5,5) & type the next coordinate of point 3@2<180 in the command box.

    .Type the next coordinates of point 11@3<90 in the command box.

    .Cancel the line by pressing enter.

    .Now use the command line 'L' & join point 10 & point 11 & then cancel the line command by pressing enter. & delete the line joining from point 10 to 3 & point 3 to 11.

    .Type line command 'L' specify the point 11(3,8) & type the next coordinate of point 12@1<180 in the command box.

    .Type the next coordinates of point 1@7<270 in the command box.

    .Cancel the line by pressing enter.

    RESULT:-TEPS OF CREATING IN AUTO CAD SOFTWARE BY DIRECT DISTANCE ENTRY SYSTEM:-

    .Type the command 'L' for the line & specify the coordinates for starting point 1(2,1).

    .Type the length 1 in the command box to +ve X axis for point 2.

    .Type the length 4 in the command box to +ve Y axis for point 3.

    .Type the length 2 in the command box to +ve X axis for point 10.

    .Type the length 2 in the command box to -ve Y axis for point 4.

    .Cancel the command by pressing enter & then type the command 'L' & join the points 3 & 4.

    .Cancel the command by pressing enter & delete the other lines joining from point 3 to 10 & point 10 to 4.

    .Type the command 'L' specify the start point 4(5,3) & type the length 2 in the command box +ve y-axis for point 10 & type the length 2 in the command box to +ve x-axis for point 5.

    .Cancel the command by pressing enter & then type the command 'L' & join points 4 & 5.

    .Cancel the line command by pressing enter & delete lines joining point 4 to 10 & point 10 to 5.

    .Type the command 'L' specify the start point 5(7,5) 7 type the length 4 in command box to -ve y axis for point 6.

    .Type the length 1 in the command box to +ve X axis for point 7.

    .Type the length 7 in the command box to +ve Y axis for point 8.

    .Type the length 1 in the command box to -ve X axis for point 9.

    .Type the length 3 in the command box to -ve Y axis for point 5.

    .Type the length 2 in the command box to -ve X axis for point 10.

    .Cancel the line command by pressing enter

     .Now use the command line 'L' & join point 10 & point 11 & then cancel the line command by pressing enter. & delete the line joining from point 10 to 3 & point 3 to 11.



    .Type line command 'L' specify the point 11(3,8) & type the length 1 in the command box to -ve X axis for point 12 & type the length 7 in command box to -ve Y axis for point 1& then cancel the line command by pressing enter. .



    .Click close on the command box



    RESULT:-







    AIM:- To create geometry in Autocad using all the coordinates system methods.







    Procedure:-



    Step1:-On the AutoCAD software set up the units to imperial template& decimal system 0.000



    .STEP2:-Set the limits in the command by using 'LIM' before drafting.



    .STEPS OF CREATING IN AUTO CAD SOFTWARE BY ABSOLUTE COORDINATES SYSTEM:-



    .Type the command 'L' for the line & specify the coordinates for starting point 1(2,1)



    .Type the next coordinates of the point 2(3,1) in the command box.



    .Type the next coordinates of the point 3(3,8) in the command box.



    .Type the next coordinates of the point 4(8,8) in the command box.



    .Type the next coordinates of the point 5(8,2) in the command box.



    .Type the next coordinates of the point 6(5,2) in the command box.



    .Type the next coordinates of the point 7(5,1) in the command box.



    .Type the next coordinates of the point 8(9,1) in the command box.



    .Type the next coordinates of the point 9(9,9) in the command box.



    .Type the next coordinates of the point 10(2,9) in the command box.



    .Click close in the command box.



    RESULT:-







    .STEPS OF CREATING IN AUTO CAD SOFTWARE BY RELATIVE RECTANGULAR COORDINATES SYSTEM:-



    .Type the command 'L' for the line & specify the coordinates for starting point 1(2,1).



    .Type the next coordinates of point 2@1,0 in the command box.



    .Type the next coordinates of point 3@0,7 in the command box.



    .Type the next coordinates of point 4@5,0 in the command box.



    .Type the next coordinates of point 5@0,-6 in the command box.



    .Type the next coordinates of point 6@-3,0 in the command box.



    .Type the next coordinates of point 7@0,-1 in the command box.



    .Type the next coordinates of point 8@4,0 in the command box.



    .Type the next coordinates of point 9@0,8 in the command box.



    .Type the next coordinates of point 10@-7,0 in the command box.



    .Click close on the command box.



    RESULT:-







    .STEPS OF CREATING IN AUTO CAD SOFTWARE BY RELATIVE POLAR COORDINATES SYSTEM:-

     .Type the command 'L' for the line & specify the coordinates for starting point 1(2,1).

     Type the next coordinates of point 2@1<0 in the command box.

     .Type the next coordinates of point 3@7<90 in the command box.

     .Type the next coordinates of point 4@5<0 in the command box.

     .Type the next coordinates of point 5@6<270 in the command box.

     .Type the next coordinates of point 6@3<180 in the command box.

     .Type the next coordinates of point 7@1<270 in the command box.

     .Type the next coordinates of point 8@4<0 in the command box.

     .Type the next coordinates of point 9@8<90 in the command box.

     Type the next coordinates of point 10@7<180 in the command box.

     Click close on the command box.

     RESULT:-







    .STEPS OF CREATING IN AUTO CAD SOFTWARE BY DIRECT DISTANCE ENTRY SYSTEM:-

     .Type the command 'L' for the line & specify the coordinates for starting point 1(2,1).

     .Type the length 1 in the command box to +ve X axis for point 2.

     .Type the length 7 in the command box to +ve Y axis for point 3.

     .Type the length 5 in the command box to +ve X axis for point 4.

     .Type the length 6 in the command box to -ve Y axis for point 5.

     .Type the length 3 in the command box to -ve X axis for point 6.

     .Type the length 1 in the command box to -ve Y axis for point 7.

    .Type the length 4 in the command box to +ve X axis for point 8.

     .Type the length 8 in the command box to +ve Y axis for point 9.

     .Type the length 7 in the command box to -ve X axis for point 10.

     .Click close on the command box.

     RESULT:-

    AIM:- To create geometry in Autocad using all the coordinates system methods.



    Procedure:-

    Step1:-On the AutoCAD software set up the units to imperial template& decimal system 0.000

    .STEP2:-Set the limits in the command by using 'LIM' before drafting.

    .STEPS OF CREATING IN AUTO CAD SOFTWARE BY ABSOLUTE COORDINATES SYSTEM:-

    .Type the command 'L' for the line & specify the coordinates for starting point 1(2,1)

    .Type the next coordinates of the point 2(10,1)  in the command box.

    .Type the next coordinates of the point 3(10,7)  in the command box.

    .Type the next coordinates of the point 4(2,7)  in the command box.

    .Click close on the command box.

    .Type the command 'L' for the line & specify the coordinate for point 5(3,2).

    .Type the next coordinates of the point 6(5,2)  in the command box.

    .Type the next coordinates of the point 7(5,5)  in the command box.

    .Type the next coordinates of the point 8(3,5)  in the command box.

    .Click close on the command box.

    .Type the command 'L' for the line & specify the coordinate for point 9(6,2).

    .Type the next coordinates of the point 10(8,2)  in the command box.

    .Type the next coordinates of the point 11(8,5)  in the command box.

    .Type the next coordinates of the point 12(6,5)  in the command box.

    .Click close in the command box.

    RESULT:-



    .STEPS OF CREATING IN AUTO CAD SOFTWARE BY RELATIVE RECTANGULAR COORDINATES SYSTEM:-

    .Type the command 'L' for the line & specify the coordinates for starting point 1(2,1).

    .Type the next coordinates of point 2@8,0in the command box.

    .Type the next coordinates of point 3@0,6in the command box.

    .Type the next coordinates of point 4@_8,0 in the command box.

    .Click close in the command box.

    .Type the command 'L' for the line & specify the coordinate for point 5(3,2).

    .Type the next coordinates of point 6@2,0in the command box.

    .Type the next coordinates of point 7@0,3 in the command box.

    .Type the next coordinates of point 8@_2,0in the command box.

    .Click close on the command box.

    .Type the command 'L' for the line & specify the coordinate for point 9(6,2).

    .Type the next coordinates of point 10@2,0 in the command box.

    .Type the next coordinates of point 11@0,3 in the command box.

    .Type the next coordinates of point 12@_2,0 in the command box.

    .Click close on the command box.

    RESULT:-



    .STEPS OF CREATING IN AUTO CAD SOFTWARE BY  RELATIVE POLAR COORDINATES SYSTEM:-

    .Type the command 'L' for the line & specify the coordinates for starting point 1(2,1).

    .Type the next coordinates of point 2@6<80 in the command box.

    .Type the next coordinates of point 3@6<90 in the command box.

    .Type the next coordinates of point 4@8<180 in the command box.

    .Click close in the command box.

    .Type the command 'L' for the line & specify the coordinate for point 5(3,2).

    .Type the next coordinates of point 6@2<0 in the command box.

    .Type the next coordinates of point 7@3<90 in the command box.

    .Type the next coordinates of point 7@1<170 in the command box.

    .Type the next coordinates of point 8@2<180 in the command box.

    .Click close on the command box.

    .Type the command 'L' for the line & specify the coordinate for point 9(6,2).

    .Type the next coordinates of point 10@2<0 in the command box.

    .Type the next coordinates of point 11@3<90 in the command box.

    .Type the next coordinates of point 12@2<180 in the command box.

    .Click close on the command box.

    RESULT:-



    .STEPS OF CREATING IN AUTO CAD SOFTWARE BY  DIRECT DISTANCE ENTRY SYSTEM:-

    .Type the command 'L' for the line & specify the coordinates for starting point 1(2,1).

    .Type the length 8 in the command box to +ve X axis for point 2.

    .Type the length 6 in the command box to +ve Y axis for point 3.

    .Type the length 8 in the command box to -ve X axis for point 4.

    .Click close in the command box.

    .Type the command 'L' for the line & specify the coordinate for point 5(3,2).

     .Type the length 2 in the command box to +ve Y axis for point 6.

    .Type the length 3 in the command box to +ve Y axis for point 7.

    .Type the length 2 in the command box to -ve X axis for point 8.

    .Click close on the command box.

    .Type the command 'L' for the line & specify the coordinate for point 9(6,2).

    .Type the length 2 in the command box to +ve X axis for point 10.

    .Type the length 3 in the command box to +ve Y axis for point 11.

    .Type the length 2 in the command box to -ve X axis for point 12.

    .Click close on the command box.

    RESULT:-

    AIM:- To create geometry in Autocad using all the coordinates system methods.



    Procedure:-

    Step1:-On the AutoCAD software set up the units to imperial template& decimal system 0.000

    .STEP2:-Set the limits in the command by using 'LIM' before drafting.

    .STEPS OF CREATING IN AUTO CAD SOFTWARE BY ABSOLUTE COORDINATES SYSTEM:-

    .Type the command 'L' for the line & specify the coordinates for starting point 1(1,1)

    .Type the next coordinates of the point 2(6,1)  in the command box.

    .Type the next coordinates of the point 3(6,3)  in the command box.

    .Type the next coordinates of the point 4(3,3)  in the command box.

    .Type the next coordinates of the point 5(3,2)  in the command box.

    .Type the next coordinates of the point 6(2,2)  in the command box.

    .Type the next coordinates of the point 7(2,4)  in the command box.

    .Type the next coordinates of the point 8(5,4)  in the command box.

    .Type the next coordinates of the point 9(5,6)  in the command box.

    .Type the next coordinates of the point 10(1,8)  in the command box.



    .Click close on the command box.

     RESULT:-



    .STEPS OF CREATING IN AUTO CAD SOFTWARE BY RELATIVE RECTANGULAR COORDINATES SYSTEM:-

    .Type the command 'L' for the line & specify the coordinates for starting point 1(1,1).

    .Type the next coordinates of point 2@5,0 in the command box.

    .Type the next coordinates of point 3@0,2 in the command box.

    .Type the next coordinates of point 4@-3,0 in the command box.

     .Type the next coordinates of point 5@-2,0 in the command box.

    .Type the next coordinates of point 6@-1,0 in the command box.

    .Type the next coordinates of point 7@0,2 in the command box.

     .Type the next coordinates of point 8@3,0 in the command box.

    .Type the next coordinates of point 9@0,2 in the command box.

    .Type the next coordinates of point 10@-4,2 in the command box.



    .Click close on the command box.

    RESULT:-



    .STEPS OF CREATING IN AUTO CAD SOFTWARE BY  RELATIVE POLAR COORDINATES SYSTEM:-

    .Type the command 'L' for the line & specify the coordinates for starting point 1(0,0).

    .Type the next coordinates of point 2@5<0in the command box.

    .Type the next coordinates of point 3@2<90in the command box.

    .Type the next coordinates of point 4@3<180in the command box.

     .Type the next coordinates of point 5@1<270 in the command box.

    .Type the next coordinates of point 6@1<180 in the command box.

    .Type the next coordinates of point 7@2<90in the command box.

    .Type the next coordinates of point 8@3<0 in the command box.

     .Type the next coordinates of point 9@2<90 in the command box.

    .Type the next coordinates of point 11@2<90 in the command box.

    .Type the next coordinates of point 10@4<180 in the command box.

    .Cancel the line by pressing enter.

    .Now use the command line 'L' & join point 9 & point 10 & then cancel the line command by pressing enter. & delete the line joining from point 9 to 10 & point 10 to 11.

    .Type line command 'L' specify point 10(1,8) & type the next coordinate of point 1@7<270in the command box.

    .Cancel the line by pressing enter.

     RESULT:-



    .STEPS OF CREATING IN AUTO CAD SOFTWARE BY  DIRECT DISTANCE ENTRY SYSTEM:-

    .Type the command 'L' for the line & specify the coordinates for starting point 1(1,1).

    .Type the length 5 in the command box to +ve X axis for point 2.

    .Type the length 2 in the command box to +ve Y axis for point 3.

    .Type the length 3 in the command box to -ve X axis for point 4.

    .Type the length 1 in the command box to -ve Y axis for point 5.

    .Type the length 1 in the command box to -ve X axis for point 6.

    .Type the length 3 in the command box to +ve X axis for point 7.

    .Type the length 2 in the command box to +ve X axis for point 8.

    .Type the length 2 in the command box to +ve X axis for point 9.



     create geometry in Autocad using all the coordinates system methods.



    Procedure:-

    Step1:-On the AutoCAD software set up the units to imperial template& decimal system 0.000

    .STEP2:-Set the limits in the command by using 'LIM' before drafting.

    .STEPS OF CREATING IN AUTO CAD SOFTWARE BY ABSOLUTE COORDINATES SYSTEM:-

    .Type the command 'L' for the line & specify the coordinates for starting point 1(1,1)

    .Type the next coordinates of the point 2(3,1)  in the command box.

    .Type the next coordinates of the point 3(3,4)  in the command box.

    .Type the next coordinates of point 4(6,4)  in the command box.

    .Type the next coordinates of the point 5(6,8)  in the command box.

    .Type the next coordinates of the point 6(1,8)  in the command box.

    .Click close on the command box.

    .Type the command 'L' for the line & specify the coordinate for point 7(2,5).

    .Type the next coordinates of the point 8(5,5)  in the command box.

    .Type the next coordinates of the point 9(5,7)  in the command box.

    .Type the next coordinates of the point 10(2,7)  in the command box.

    .Click close on the command box.

    RESULT:-



    .STEPS OF CREATING IN AUTO CAD SOFTWARE BY RELATIVE RECTANGULAR COORDINATES SYSTEM:-

    .Type the command 'L' for the line & specify the coordinates for starting point 1(1,1).

    .Type the next coordinates of point 2@2,0 in the command box.

    .Type the next coordinates of point 3@0,3 in the command box.

    .Type the next coordinates of point 4@3,0 in the command box.

     .Type the next coordinates of point 5@0,4 in the command box.

    .Type the next coordinates of point 6@-5,0 in the command box.

    .Click close on the command box.

    .Type the command 'L' for the line & specify the coordinate for point 7(2,5).

    .Type the next coordinates of point 8@3,0 in the command box.

     .Type the next coordinates of point 9@0,2 in the command box.

    .Type the next coordinates of point 10@-3,0 in the command box.

     .Click close on the command box.

    RESULT:-



    .STEPS OF CREATING IN AUTO CAD SOFTWARE BY  RELATIVE POLAR COORDINATES SYSTEM:-

    .Type the command 'L' for the line & specify the coordinates for starting point 1(1,1).

    .Type the next coordinates of point 2@2<0 in the command box.

    .Type the next coordinates of point 3@3<90 in the command box.

    .Type the next coordinates of point 4@3<0 in the command box.

     .Type the next coordinates of point 5@4<90 in the command box.

    .Type the next coordinates of point 6@5<180 in the command box.

    .Click close on the command box.

    .Type the command 'L' for the line & specify the coordinate for point 7(2,5).

    .Type the next coordinates of point 8@3<0 in the command box.

    .Type the next coordinates of point 9@2<90 in the command box.

    .Type the next coordinates of point 10@3<180 in the command box.

     Click close on the command box.

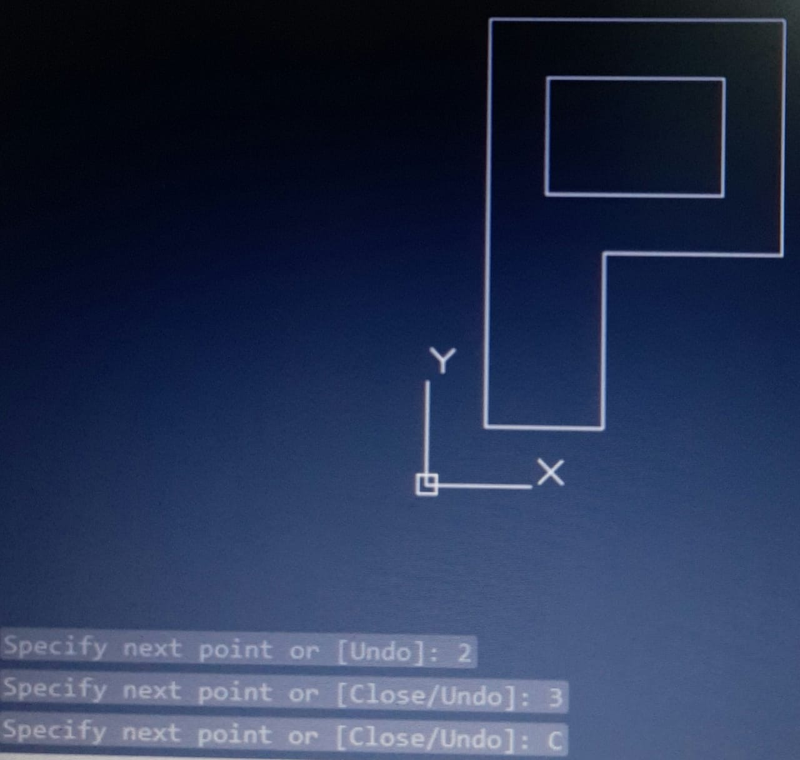

    RESULT:-



    .STEPS OF CREATING IN AUTO CAD SOFTWARE BY  DIRECT DISTANCE ENTRY SYSTEM:-

    .Type the command 'L' for the line & specify the coordinates for starting point 1(1,1).

    .Type the length 2 in the command box to +ve X axis for point 2.

    .Type the length 3 in the command box to +ve Y axis for point 3.

    .Type the length 3 in the command box to +ve X axis for point 4.

    .Type the length 4 in the command box to +ve Y axis for point 5.

    .Type the length 5 in the command box to -ve X axis for point 6.

    .Click close on the command box.

    .Type the command 'L' for the line & specify the coordinate for point 7(2,5).

    .Type the length 3 in the command box to +ve X axis for point 8.

    .Type the length 2 in the command box to +ve Y axis for point 9.

    .Type the length 3 in the command box to -ve X axis for point 10.

    .Click close on the command box.



    RESULT:-



    AIM:- To create geometry in Autocad using all the coordinates system methods.





    Procedure:-

    Step1:-On the AutoCAD software set up the units to imperial template& decimal system 0.000

    .STEP2:-Set the limits in the command by using 'LIM' before drafting.

    .STEPS OF CREATING IN AUTO CAD SOFTWARE BY ABSOLUTE COORDINATES SYSTEM:-

    .Type the command 'L' for the line & specify the coordinates for starting point 1(1,1)

    .Type the next coordinates of the point 2(10,0)  in the command box.

    .Type the next coordinates of the point 3(10,1)  in the command box.

    .Type the next coordinates of point 4(8,1)  in the command box.

    .Type the next coordinates of the point 5(8,5)  in the command box.

    .Type the next coordinates of the point 6(10,5)  in the command box.

     .Type the next coordinates of the point 7(10,6)  in the command box.

    .Type the next coordinates of the point 8(5,9)  in the command box.

    .Type the next coordinates of the point 9(0,6)  in the command box.

    .Type the next coordinates of the point 10(2,6)  in the command box.

    .Type the next coordinates of the point 11(2,1)  in the command box.

    .Type the next coordinates of the point 12(0,1)  in the command box.

    .Click close on the command box.

    .Type the command 'C' for the circle & specify the coordinate of center of circle as point 13(5,4).

    .Type the radius radious 2 in the command box & press enter.

    RESULT:-



    .STEPS OF CREATING IN AUTO CAD SOFTWARE BY RELATIVE RECTANGULAR COORDINATES SYSTEM:-

    .Type the command 'L' for the line & specify the coordinates for starting point 1(1,1).

    .Type the next coordinates of point 2@10,0 in the command box.

    .Type the next coordinates of point 3@0,3 in the command box.

    .Type the next coordinates of point 4@-2,0 in the command box.

     .Type the next coordinates of point 5@0,4 in the command box.

    .Type the next coordinates of point 6@2,0 in the

    .Type the next coordinates of point 7@0,1in the command box.

    .Type the next coordinates of point 8@-5,3 in the command box.

    .Type the next cordinates of point 10@3,0 in the command box.

     .Type the next coordinates of point 11@0,-5 in the command box.

    .Type the next cordinates of point 12@-2,0 in the command box.

    .Click close on the command box.

    .Type the command 'C' for the circle & specify the coordinate of center of circle as point 13(5,4).

    .Type the radius radious 2 in the command box & press enter.

    RESULT:-



    .STEPS OF CREATING IN AUTO CAD SOFTWARE BY  RELATIVE POLAR COORDINATES SYSTEM:-

    .Type the command 'L' for the line & specify the coordinates for starting point 1(1,1).

    .Type the next coordinates of point 2@10<0 in the command box.

    .Type the next coordinates of point 3@1<90 in the command box.

    .Type the next coordinates of point 4@2<1800 in the command box.

     .Type the next coordinates of point 5@4<900 i0n the command box.

    .Type the next coordinates of point 6@2<0 in the command box.

     .Type the next coordinates of point 7@1<90 in the command box.

    .Type the next coordinates of point 14@3<90 in the command box.

    .Type the next coordinates of point 8@5,180 in the command box.

    .Cancel the command by pressing enter.

    .Now use line command 'L' & join point 7 & point 8 & then cancel the command by pressing enter.

    .Delete lines joining from point 7 to 14 & point 14 to 8.

    .Type command 'L' & join point 8 & point 9 & then cancel the command by pressing enter.

    .Delete lines joining from point 8 to 15 & point 15 to 9.

    .Type the command 'L' specify the start point 9(0,6) & type the next coordinate point 10@2<0in the command box.

    .Type the next coordinates of point 11@5<270 in the command box.

    .Type the next coordinates of point 12@2<180 in the command box.

    .Click close on the command box.

    .Type the command 'C' for the circle & specify the coordinate of the center of circle as point 13(5,4).

    .Type the radius radious 2 in the command box & press enter.

    RESULT:-



    .STEPS OF CREATING IN AUTO CAD SOFTWARE BY  DIRECT DISTANCE ENTRY SYSTEM:-

    .Type the command 'L' for the line & specify the coordinates for starting point 1(0,0).

    .Type the length 10 in the command box to +ve X axis for point 2.

    .Type the length 1 in the command box to +ve Y axis for point 3.

    .Type the length 2 in the command box to -ve X axis for point 4.

    .Type the length 4 in the command box to +ve Y axis for point 5.

    .Type the length 2 in the command box to +ve X axis for point 6.

    .Type the length 1 in the command box to +ve Y axis for point 7.

    .Type the length 3 in the command box to +ve Y axis for point 14.



    RESULT:-

    AIM:- To create geometry in Autocad using all the coordinates system methods.



     Procedure:-

    .Step1:-On the AutoCAD software set up the units to imperial template& decimal system 0.000

    .STEP2:-Set the limits in the command by using 'LIM' before drafting.

    .STEPS OF CREATING IN AUTO CAD SOFTWARE BY ABSOLUTE COORDINATES SYSTEM:-

    .Type the command 'L' for the line & specify the coordinates for starting point 1(1,1)

    .Type the next coordinates of the point 2(7,1)  in the command box.

    .Type the next coordinates of the point 3(7,3)  in the command box.

    .Click close on the command box.

    .Cancel the line by pressing enter.

    .Type the command 'L' for the line type the next coordinate of point 4(3,1).

    .Type the next coordinates of point 6(3,1.667)  in the command box.

    .Type the next coordinates of the point 5(5,1)  in the command box.

    .Type the next coordinates of the point 7(5,2.333)  in the command box.

    .Cancel the command by pressing enter.

    .Type the command 'L' for the line & join point 7 & point 2 & press enter.



    RESULT:-



    .STEPS OF CREATING IN AUTO CAD SOFTWARE BY RELATIVE RECTANGULAR COORDINATES SYSTEM:-

    .Type the command 'L' for the line & specify the coordinates for starting point 1(1,1).

    .Type the next coordinates of point 2@6,0 in the command box.

    .Type the next coordinates of point 3@0,2 in the command box.

    .Click close on the command box & cancel by pressing enter.

    .Type the command 'L' for the line type the next coordinate of point 4(3,1) in the command box

    .Type the next coordinates of point 6@0,<667 in the command box.

    .Type the next coordinates of point 5@2<667 in the command box.

    .Type the next coordinates of point 7@0,1,1.333 in the command box.

    .Cancel the command by pressing enter.

    .Type the command 'L' for the line & join point 7 & point 2 & press enter.

    RESULT:-



    .STEPS OF CREATING IN AUTO CAD SOFTWARE BY  RELATIVE POLAR COORDINATES SYSTEM:-

    .Type the command 'L' for the line & specify the coordinates for starting point 1(1,1).

    .Type the next coordinates of point 2@6<0 in the command box.

    .Type the next coordinates of point 3@2<90 in the command box.

    .Click close on the command box & cancel by pressing enter.

    .Type the command 'L' for the line type the next coordinate of point 4(3,1) in the command box.

    .Type the next coordinates of point 6@0.1333<690 in the command box & cancel the line command by pressing enter.

    .Type the command 'L' for the line type the next coordinate of point 5(5,1) in the command box.

    .Type the next coordinates of point 7@1.333<90 in the command box & cancel the line command by pressing enter.

    .Type the command 'L' for the line & join point 6 & point 5 & press enter.

    .Type the command 'L' for the line & join point 7 & point 2 & press enter.



    RESULT:-



     .STEPS OF CREATING IN AUTO CAD SOFTWARE BY  DIRECT DISTANCE ENTRY SYSTEM:-

    .Type the command 'L' for the line & specify the coordinates for starting point 1(1,1).

    .Type the length 6 in the command box to +ve X axis for point 2.

    .Type the length 2 in the command box to +ve Y axis for point 4.

    .Type the length 4 in the command box to -ve Y axis for point 3.

    .Click close on the command box & Cancel the line by pressing enter.

    .Type the command 'L' for the line type the next coordinate of point 4(3,1).

    .Type the length 0.667 in the command box to +ve Y axis for point 6 & Cancel the command by pressing enter.

    .Type the command 'L' for the line type the next coordinate of point 5(5,1).

     .Type the length 1.333 in the command box to +ve Y axis for point 6 & cancel the line command

    Leave a comment

    Thanks for choosing to leave a comment. Please keep in mind that all the comments are moderated as per our comment policy, and your email will not be published for privacy reasons. Please leave a personal & meaningful conversation.

    Please  login to add a comment

    Other comments...

    No comments yet!
    Be the first to add a comment

    Read more Projects by Sachin Kumar (54)

    Project 2

    Objective:

    1. Design a Warehouse Building located in Chennai using STAAD Pro Connect Edition. The specification must be as follows: Width 30m Length50m Eave Height 9m Bay spacing 6m Soil type Medium Safe Bearing Capacity 200 kN/m2 Roof slope 1 in 12 Assume suitable sections for structural elements. Follow IS800:2007, IS1893 and IS…

    calendar

    24 Jan 2023 01:20 PM IST

    • DESIGN
    Read more

    Project 1

    Objective:

    1. Design a multi-storey Residential Building located in Bangalore using STAAD Pro Connect Edition. The specification must be as follows:      Building floors G + 6 + R Plan dimension B = 25m ,  L = 16m Storey Height h = 3.5m Soil  Hard soil Use Residential Purpose Safe Bearing Capacity 180…

    calendar

    16 Jan 2023 03:12 PM IST

    • DESIGN
    Read more

    Week 3 Challenge

    Objective:

    1. 1. State the primary load cases to be considered for design. ANSWER: . Dead Load (IS-875: PART1) . Live Load (IS-875: PART2) . Wind Load (IS-875: PART3) . Snow Load (IS-875: PART4) . Seismic Load (IS 1893: 2016) 2. What is a One – Way slab? ANSWER: One way slab is the slab in which the ratio of its longer…

    calendar

    09 Jan 2023 02:29 PM IST

      Read more

      Week 2 Challenge

      Objective:

      1. How will you assign Circular section to column? AIM:To assign Circular section to column INTRODUCTION: Columns are defined as vertical load-bearing members supporting axial compressive loads chiefly. This structural member is used to transmit the load of the structure to the foundation. In reinforced concrete buildings…

      calendar

      09 Jan 2023 09:15 AM IST

      • DESIGN
      • HTML
      Read more

      Schedule a counselling session

      Please enter your name
      Please enter a valid email
      Please enter a valid number

      Related Courses

      coursecard

      Design loads considered on bridges

      Recently launched

      10 Hours of Content

      coursecard

      Design of Steel Superstructure in Bridges

      Recently launched

      16 Hours of Content

      coursecard

      Design for Manufacturability (DFM)

      Recently launched

      11 Hours of Content

      coursecard

      CATIA for Medical Product Design

      Recently launched

      5 Hours of Content

      coursecardcoursetype

      Accelerated Career Program in Embedded Systems (On-Campus) Courseware Partner: IT-ITes SSC nasscom

      Recently launched

      0 Hours of Content

      Schedule a counselling session

      Please enter your name
      Please enter a valid email
      Please enter a valid number

      logo

      Skill-Lync offers industry relevant advanced engineering courses for engineering students by partnering with industry experts.

      https://d27yxarlh48w6q.cloudfront.net/web/v1/images/facebook.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/insta.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/twitter.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/youtube.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/linkedin.svg

      Our Company

      News & EventsBlogCareersGrievance RedressalSkill-Lync ReviewsTermsPrivacy PolicyBecome an Affiliate
      map
      EpowerX Learning Technologies Pvt Ltd.
      4th Floor, BLOCK-B, Velachery - Tambaram Main Rd, Ram Nagar South, Madipakkam, Chennai, Tamil Nadu 600042.
      mail
      info@skill-lync.com
      mail
      ITgrievance@skill-lync.com

      Top Individual Courses

      Computational Combustion Using Python and CanteraIntroduction to Physical Modeling using SimscapeIntroduction to Structural Analysis using ANSYS WorkbenchIntroduction to Structural Analysis using ANSYS Workbench

      Top PG Programs

      Post Graduate Program in Hybrid Electric Vehicle Design and AnalysisPost Graduate Program in Computational Fluid DynamicsPost Graduate Program in CADPost Graduate Program in Electric Vehicle Design & Development

      Skill-Lync Plus

      Executive Program in Electric Vehicle Embedded SoftwareExecutive Program in Electric Vehicle DesignExecutive Program in Cybersecurity

      Trending Blogs

      Heat Transfer Principles in Energy-Efficient Refrigerators and Air Conditioners Advanced Modeling and Result Visualization in Simscape Exploring Simulink and Library Browser in Simscape Advanced Simulink Tools and Libraries in SimscapeExploring Simulink Basics in Simscape

      © 2025 Skill-Lync Inc. All Rights Reserved.

                  Do You Want To Showcase Your Technical Skills?
                  Sign-Up for our projects.
