Creation of geometries by Coordinate system methods using AutoCad

Aim   : To draw the given geometries using different coordinate methods in Auto Cad  Procedure:    In the given geometries,line command is only used .To activate line :     a. Ribbon -Home >draw >line     b. Toolbar : Draw>Line     c. Menu bar : Draw>Line…

    • VARSHA MOHAN WAGH

      updated on 29 Apr 2022

    Aim   : To draw the given geometries using different coordinate methods in Auto Cad

     Procedure:



    In the given geometries,line command is only used .To activate line :

        a. Ribbon -Home >draw >line

        b. Toolbar : Draw>Line

        c. Menu bar : Draw>Line

        d. Tool palettes: Draw >line

         e. Command : Line or L

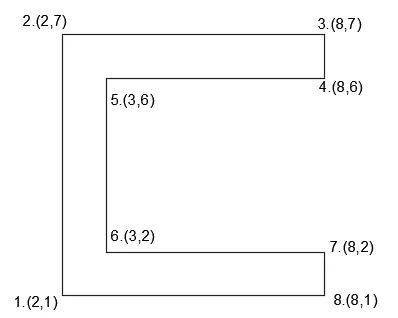

      1. P-1

      a. Absolute coordinate system - In this system ,distances are measured from orgin. The coordinates with respect to orgin are:



      Procedure:

          Step 1: Type the command "L"for line and give the coordinates for point 1 #(2,1).

          Step 2: Type the next coordinate of point 2 #(2,7) in the command box.

          Step 3 : Type next coordinates of point 3. #(8,7) in the command box.

          Step 4 : Type next coordinates of point 4. #(8,6) in the command box

          Step 5 : Type next coordinates of point 5. #(3,6) in the command box

          Step 6 : Type next coordinates of point 6. #(3,2) in the command box

          Step 7 : Type next coordinates of point 7. #(8,2) in the command box

          Step 8 : Type next coordinates of point 8. #(8,1) in the command box.

          Step 9 : Enter or click on the command "close".

    Note: # is for to draw line with respect to origin.



     Result:

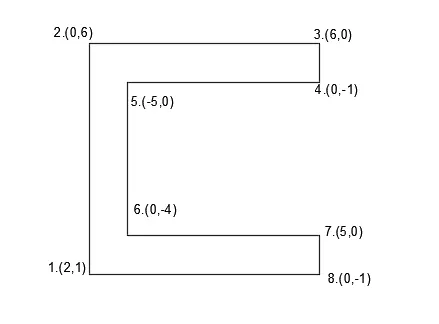

    b. Relative rectangular coordinate system - In this system, the coordinates are measured from the previous point , the coordinates are:



    Procedure:

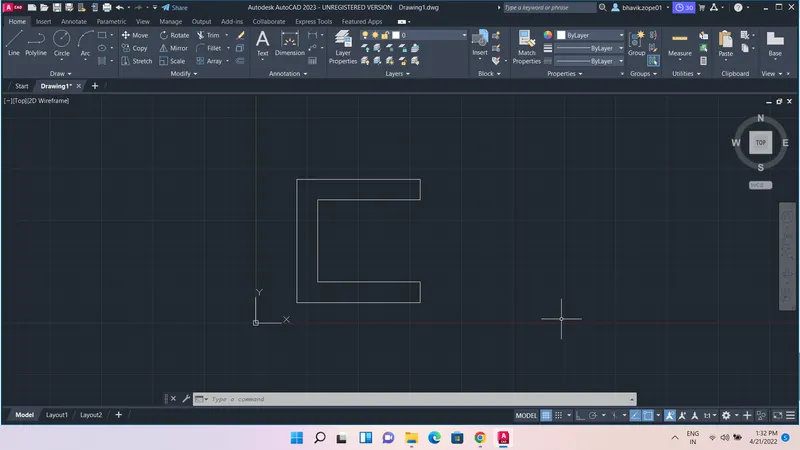

          Step 1: Type the command "L"for line and give the coordinates for point 1.(2,1).

          Step 2: Type the next coordinate of point 2 .@0,6 in the command box.

          Step 3 : Type next coordinates of point 3. @ 6,0 in the command box.

          Step 4 : Type next coordinates of point 4. @0,-1 in the command box

          Step 5 : Type next coordinates of point 5. @ -5,0 in the command box

          Step 6 : Type next coordinates of point 6. @0,-4 in the command box

          Step 7 : Type next coordinates of point 7. @5,0 in the command box

          Step 8 : Type next coordinates of point 8. @0,-1in the command box.

          Step 9 : Enter or click on the command "close".



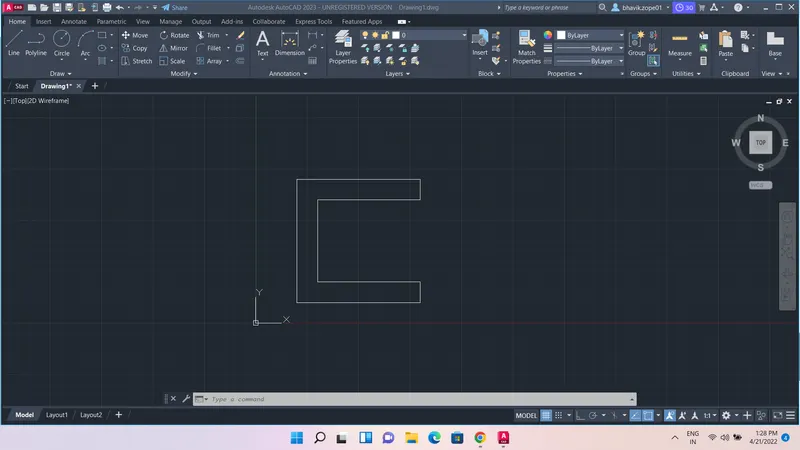

     Result:

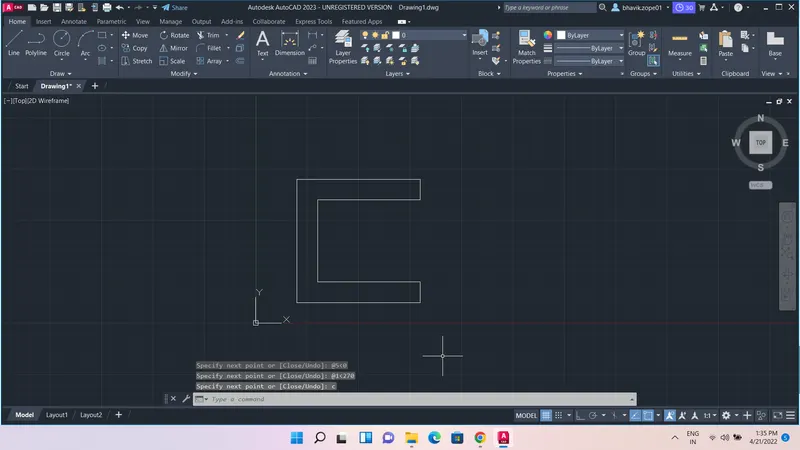

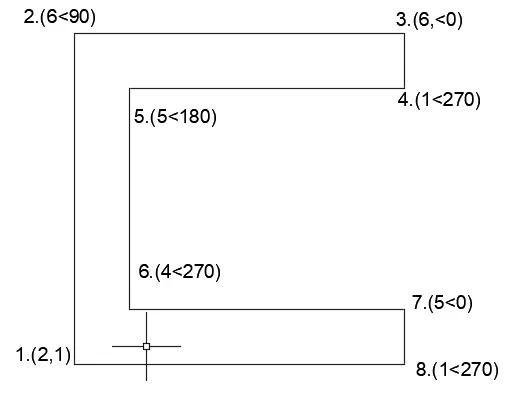

    c. Polar coordinate system - In polar coordinate system, the coordinate and the angle with respect to x axis is given.



    Procedure:

          Step 1: Type the command "L"for line and give the coordinates for point 1.(2,1).

          Step 2: Type the next coordinate of point 2 . @6<90 in the command box.

          Step 3 : Type next coordinates of point 3. @6<0 in the command box.

          Step 4 : Type next coordinates of point 4. @ 1<270 in the command box

          Step 5 : Type next coordinates of point 5. @ 5<180 in the command box

          Step 6 : Type next coordinates of point 6. @ 4<270 in the command box

          Step 7 : Type next coordinates of point 7. @5<0 in the command box

          Step 8 : Type next coordinates of point 8. @1<270in the command box.

          Step 9 : Enter or click on the command "close".

     Result:

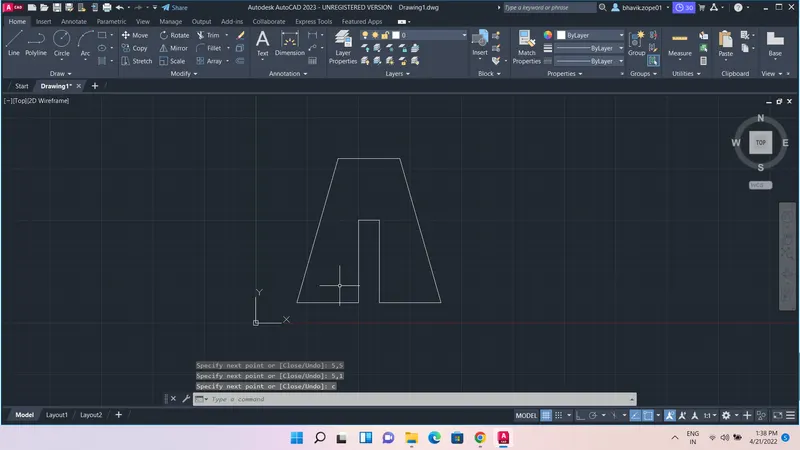

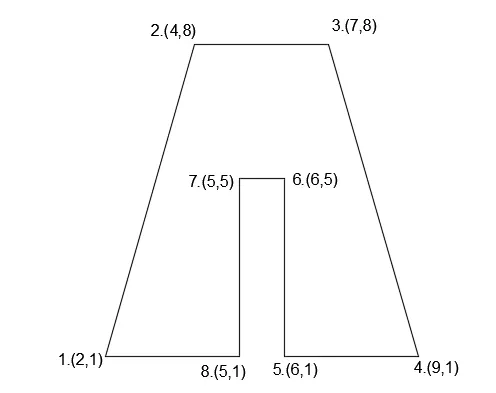

    2. P-2

     a. Absolute coordinate system:



      Procedure:

          Step 1: Type the command "L"for line and give the coordinates for point 1 #(2,1).

          Step 2: Type the next coordinate of point 2 #(4,8) in the command box.

          Step 3 : Type next coordinates of point 3. #(7,8) in the command box.

          Step 4 : Type next coordinates of point 4. #(9,1) in the command box

          Step 5 : Type next coordinates of point 5. #(6,1) in the command box

          Step 6 : Type next coordinates of point 6. #(6,5) in the command box

          Step 7 : Type next coordinates of point 7. #(5,5) in the command box

          Step 8 : Type next coordinates of point 8. #(5,1) in the command box.

          Step 9 : Enter or click on the command "close".

    Note: # is for to draw line with respect to origin.

      Result:

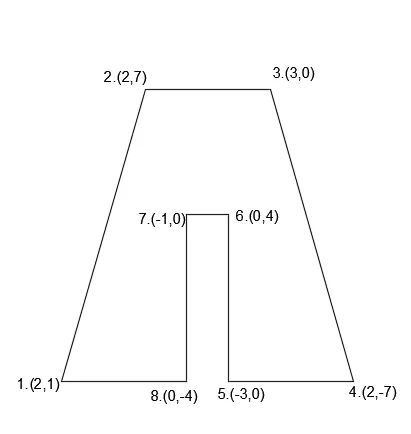

     b. Relative rectangular coordinate system:





    Procedure:

          Step 1: Type the command "L"for line and give the coordinates for point 1. (2,1).

          Step 2: Type the next coordinate of point 2 .@2,7 in the command box.

          Step 3 : Type next coordinates of point 3. @ 3,0 in the command box.

          Step 4 : Type next coordinates of point 4. @2,-7 in the command box

          Step 5 : Type next coordinates of point 5. @ -3,0 in the command box

          Step 6 : Type next coordinates of point 6. @0,4 in the command box

          Step 7 : Type next coordinates of point 7. @-1,0 in the command box

          Step 8 : Type next coordinates of point 8. @0,-4 in the command box.

          Step 9 : Enter or click on the command "close".

     Result:

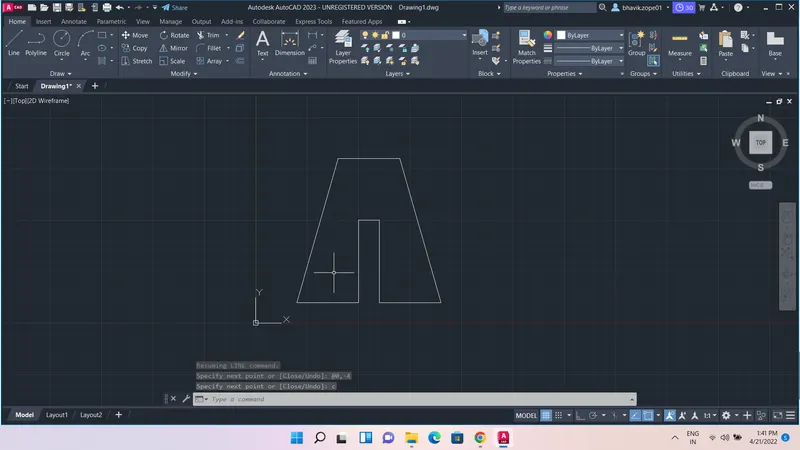

    3. P-4

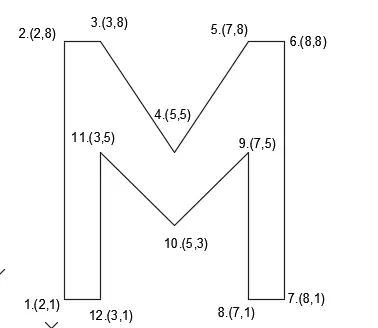

      a. Absolute coordinate system:



      Procedure:

          Step 1: Type the command "L"for line and give the coordinates for point 1 #(2,1).

          Step 2: Type the next coordinate of point 2 #(2,8) in the command box.

          Step 3 : Type next coordinates of point 3. #(3,8) in the command box.

          Step 4 : Type next coordinates of point 4. #(5,5) in the command box

          Step 5 : Type next coordinates of point 5. #(7,8) in the command box

          Step 6 : Type next coordinates of point 6. #(8,8) in the command box

          Step 7 : Type next coordinates of point 7. #(8,1) in the command box

          Step 8 : Type next coordinates of point 8. #(7,1) in the command box.

          Step 9 : Type next coordinates of point 9. #(7,5) in the command box.

          Step 10 : Type next coordinates of point 10. #(5,3) in the command box.

          Step 11 : Type next coordinates of point 11. #(3,5) in the command box.

          Step 12 : Type next coordinates of point 12. #(3,1) in the command box.

          Step 13 : Enter or click on the command "close".

    Note: # is for to draw line with respect to origin.

      Result:

    b. Relative rectangular coordinate:



    Procedure:

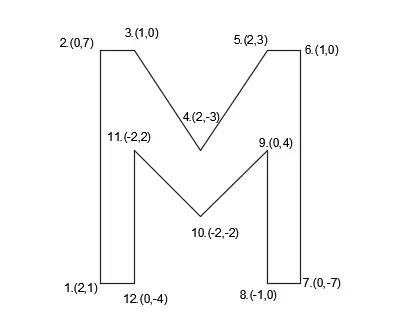

          Step 1: Type the command "L"for line and give the coordinates for point 1.(2,1).

          Step 2: Type the next coordinate of point 2 .@0,7 in the command box.

          Step 3 : Type next coordinates of point 3. @ 1,0 in the command box.

          Step 4 : Type next coordinates of point 4. @2,-3 in the command box

          Step 5 : Type next coordinates of point 5. @ 2,3 in the command box

          Step 6 : Type next coordinates of point 6. @1,0 in the command box

          Step 7 : Type next coordinates of point 7. @0,-7 in the command box

          Step 8 : Type next coordinates of point 8. @-1,0 in the command box.

          Step 9 : Type next coordinates of point 9. @0,4 in the command box.

         Step 10 : Type next coordinates of point 10. @-2,-2 in the command box.

         Step 11 : Type next coordinates of point 11. @-2,2 in the command box.

         Step 12 : Type next coordinates of point 8. @0,-4 in the command box.

          Step 13 : Enter or click on the command "close".

     Result:

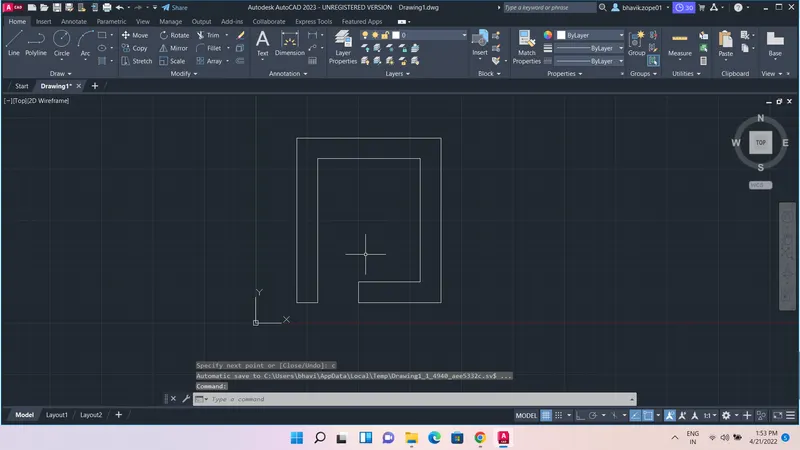

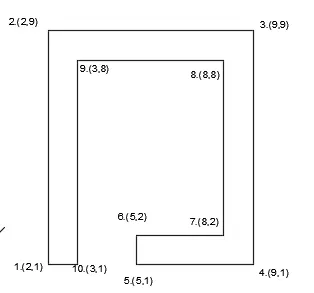

     4.  P-5

      a. Absolute coordinate system:



    Procedure:

          Step 1: Type the command "L"for line and give the coordinates for point 1 #(2,1).

          Step 2: Type the next coordinate of point 2 #(2,9) in the command box.

          Step 3 : Type next coordinates of point 3. #(9,9) in the command box.

          Step 4 : Type next coordinates of point 4. #(9,1) in the command box

          Step 5 : Type next coordinates of point 5. #(5,1) in the command box

          Step 6 : Type next coordinates of point 6. #(5,2) in the command box

          Step 7 : Type next coordinates of point 7. #(8,2) in the command box

          Step 8 : Type next coordinates of point 8. #(8,8) in the command box.

          Step 9 : Type next coordinates of point 9. #(3,8) in the command box.

          Step 10 : Type next coordinates of point 10. #(3,1) in the command box.

           Step 11 : Enter or click on the command "close".

    Note: # is for to draw line with respect to origin.

    Result:

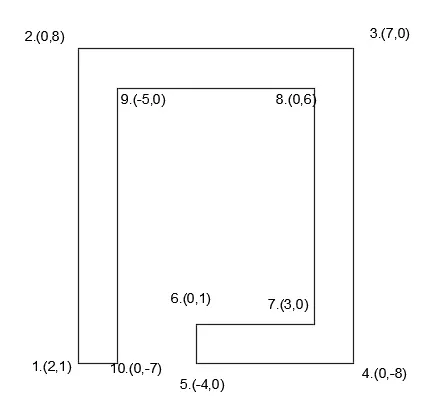

    b. Relative rectangular coordinate:



    Procedure:

          Step 1: Type the command "L"for line and give the coordinates for point 1.(2,1).

          Step 2: Type the next coordinate of point 2 .@0,8 in the command box.

          Step 3 : Type next coordinates of point 3. @ 7,0 in the command box.

          Step 4 : Type next coordinates of point 4. @0,-8 in the command box

          Step 5 : Type next coordinates of point 5. @ -4,0 in the command box

          Step 6 : Type next coordinates of point 6. @0,1 in the command box

          Step 7 : Type next coordinates of point 7. @3,0 in the command box

          Step 8 : Type next coordinates of point 8. @0,6 in the command box.

          Step 9 : Type next coordinates of point 9. @-5,0 in the command box.

         Step 10 : Type next coordinates of point 10. @0,-7 in the command box.

          Step 11 : Enter or click on the command "close".

     Result:

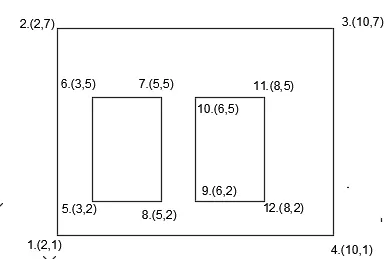

    5. P -7

      a. Absolute coordinate system:

    Procedure:

          Step 1: Type the command "L"for line and give the coordinates for point 1 #(2,1).

          Step 2: Type the next coordinate of point 2 #(2,7) in the command box.

          Step 3 : Type next coordinates of point 3. #(10,7) in the command box.

          Step 4 : Type next coordinates of point 4. #(10,1) in the command box

          Step 5 : Enter or click on the command "close".

          Step 6 : Type the command "L"for line and give the coordinates for point 5. #(3,2).

          Step 7 : Type next coordinates of point 6. #(3,5) in the command box

          Step 8 : Type next coordinates of point 7. #(5,5) in the command box.

          Step 9 : Type next coordinates of point 8. #(5,2) in the command box.

          Step 10 : Enter or click on the command "close".

          Step 11 : Type the command "L"for line and give the coordinates for point 9. #(6,2).

          Step 12 : Type next coordinates of point 10. #(6,5) in the command box.

          Step 13 : Type next coordinates of point 11. #(8,5) in the command box.

          Step 14 : Type next coordinates of point 12. #(8,2) in the command box.

          Step 15 : Enter or click on the command "close".

    Note: # is for to draw line with respect to origin.

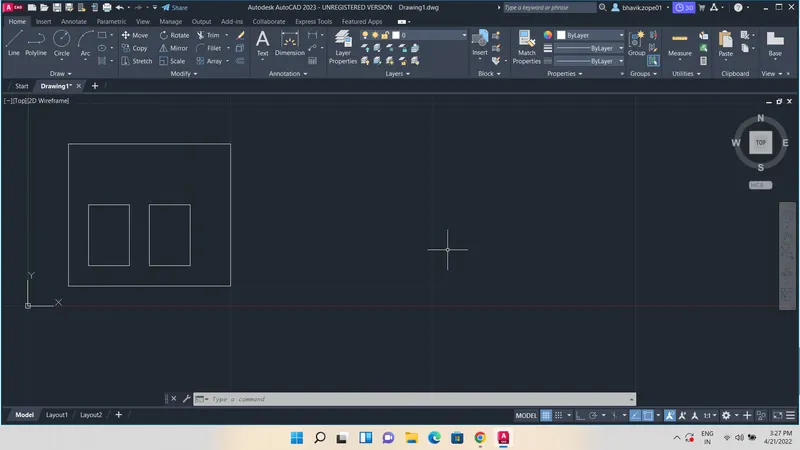

     Result:

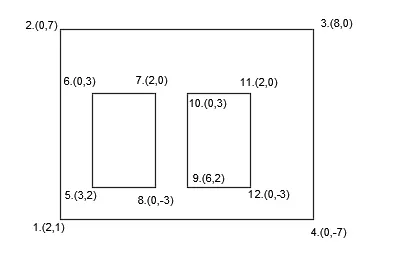

    b. Relative rectangular coordinate system:



    Procedure:

          Step 1: Type the command "L"for line and give the coordinates for point 1.(2,1).

          Step 2: Type the next coordinate of point 2 .@0,7 in the command box.

          Step 3 : Type next coordinates of point 3. @ 8,0 in the command box.

          Step 4 : Type next coordinates of point 4. @0,-7 in the command box

          Step 5 : Enter or click on the command "close".

          Step 6 : Type the command "L"for line and give the coordinates for point 5. (3,2).

          Step 7 : Type next coordinates of point 6. @0,3 in the command box

          Step 8 : Type next coordinates of point 7. @2,0 in the command box.

          Step 9 : Type next coordinates of point 8. @0,-3 in the command box.

         Step 10 : Enter or click on the command "close".

         Step 11 : Type the command "L"for line and give the coordinates for point 9.(6,2).

         Step 12 : Type next coordinates of point 10. @0,3 in the command box.

         Step 13 : Type next coordinates of point 10. @2,0 in the command box.

         Step 14 : Type next coordinates of point 10. @0,-3 in the command box.

         Step 15 : Enter or click on the command "close".

     Result:

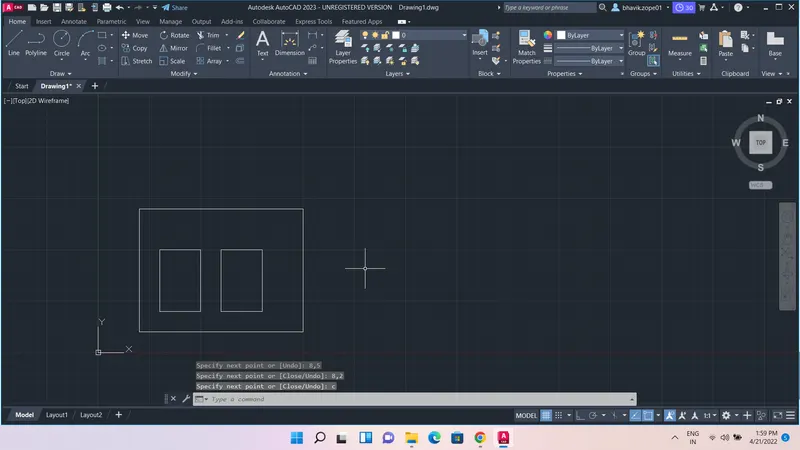

    6.P-8

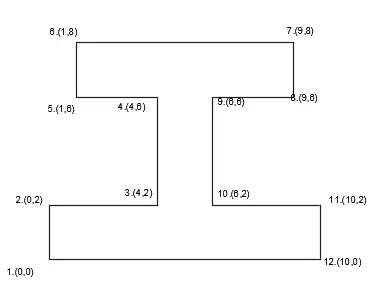

       a.  Absolute coordinate system:

    Procedure:

          Step 1: Type the command "L"for line and give the coordinates for point 1 #(0,0).

          Step 2: Type the next coordinate of point 2 #(0,2) in the command box.

          Step 3 : Type next coordinates of point 3. #(4,2) in the command box.

          Step 4 : Type next coordinates of point 4. #(4,6) in the command box

          Step 5 : Type next coordinates of point 5. #(1,6) in the command box

          Step 6 : Type next coordinates of point 6. #(1,8) in the command box

          Step 7 : Type next coordinates of point 7. #(9,8) in the command box

          Step 8 : Type next coordinates of point 8. #(9,6) in the command box.

          Step 9 : Type next coordinates of point 9. #(6,6) in the command box.

          Step 10 : Type next coordinates of point 10. #(6,2) in the command box.

          Step 11 : Type next coordinates of point 11. #(10,2) in the command box.

          Step 12 : Type next coordinates of point 10. #(10,0) in the command box.

          Step 13 : Enter or click on the command "close".

    Note: # is for to draw line with respect to origin.

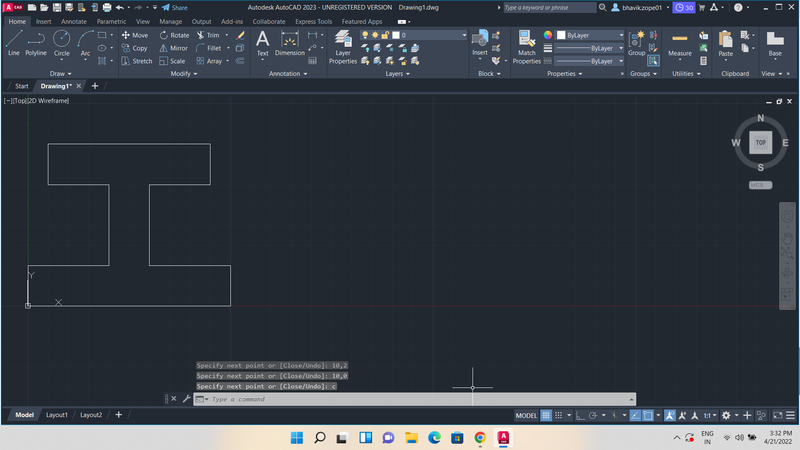

    Result:

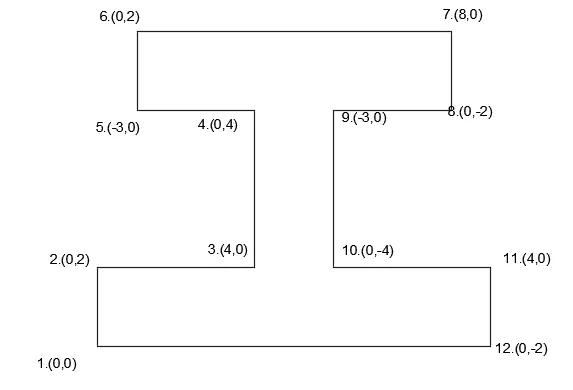

    b. Relative rectangular coordinate:

    Procedure:

          Step 1: Type the command "L"for line and give the coordinates for point 1.(0,0).

          Step 2: Type the next coordinate of point 2 .@0,2 in the command box.

          Step 3 : Type next coordinates of point 3. @ 4,0 in the command box.

          Step 4 : Type next coordinates of point 4. @0,4 in the command box

          Step 5 : Type next coordinates of point 5. @ -3,0 in the command box

          Step 6 : Type next coordinates of point 6. @0,2 in the command box

          Step 7 : Type next coordinates of point 7. @8,0 in the command box

          Step 8 : Type next coordinates of point 8. @0,-2 in the command box.

          Step 9 : Type next coordinates of point 9. @-3,0 in the command box.

         Step 10 : Type next coordinates of point 10. @0,-4 in the command box.

         Step 11 : Type next coordinates of point 10. @4,0 in the command box.

          Step 12 : Type next coordinates of point 10. @0,-2 in the command box.

          Step 13 : Enter or click on the command "close".

     Result:

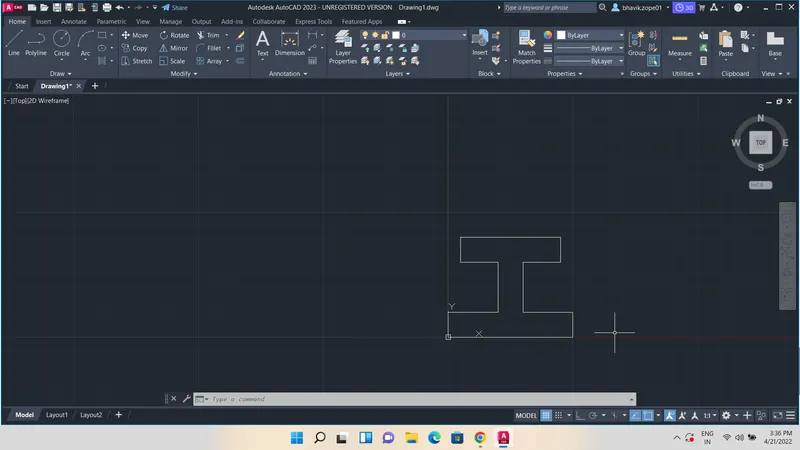

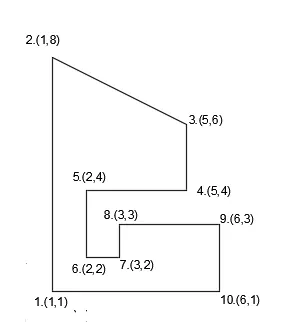

    7.  P-9

       a. Absolute coordinate system:

    Procedure:

          Step 1: Type the command "L"for line and give the coordinates for point 1 #(1,1).

          Step 2: Type the next coordinate of point 2 #(1,8) in the command box.

          Step 3 : Type next coordinates of point 3. #(5,6) in the command box.

          Step 4 : Type next coordinates of point 4. #(5,4) in the command box

          Step 5 : Type next coordinates of point 5. #(2,4) in the command box

          Step 6 : Type next coordinates of point 6. #(2,2) in the command box

          Step 7 : Type next coordinates of point 7. #(3,2) in the command box

          Step 8 : Type next coordinates of point 8. #(3,3) in the command box.

          Step 9 : Type next coordinates of point 9. #(6,3) in the command box.

          Step 10 : Type next coordinates of point 10. #(6,1) in the command box.

          Step 11 : Enter or click on the command "close".

    Note: # is for to draw line with respect to origin.

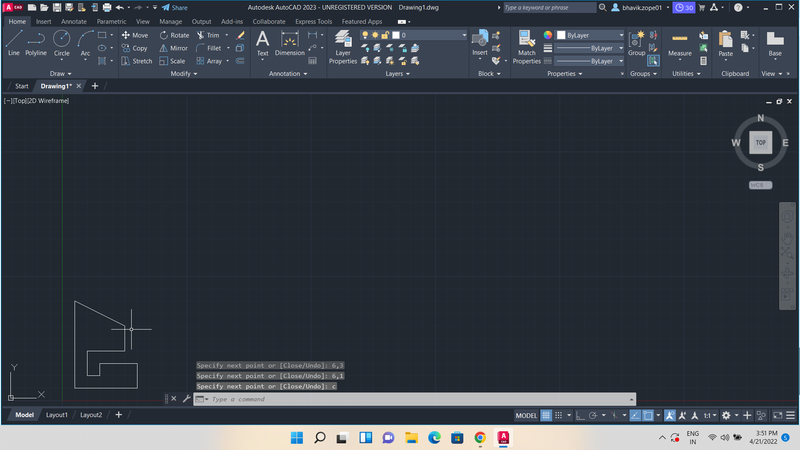

    Result:

    b. Relative rectangular coordinate:

    Procedure:

          Step 1: Type the command "L"for line and give the coordinates for point 1.(1,1).

          Step 2: Type the next coordinate of point 2 .@0,7 in the command box.

          Step 3 : Type next coordinates of point 3. @ 4,-2 in the command box.

          Step 4 : Type next coordinates of point 4. @0,-2 in the command box

          Step 5 : Type next coordinates of point 5. @ -3,0 in the command box

          Step 6 : Type next coordinates of point 6. @0,-2 in the command box

          Step 7 : Type next coordinates of point 7. @1,0 in the command box

          Step 8 : Type next coordinates of point 8. @0,1 in the command box.

          Step 9 : Type next coordinates of point 9. @3,0 in the command box.

         Step 10 : Type next coordinates of point 10. @0,-2 in the command box.

          Step 11 : Enter or click on the command "close".

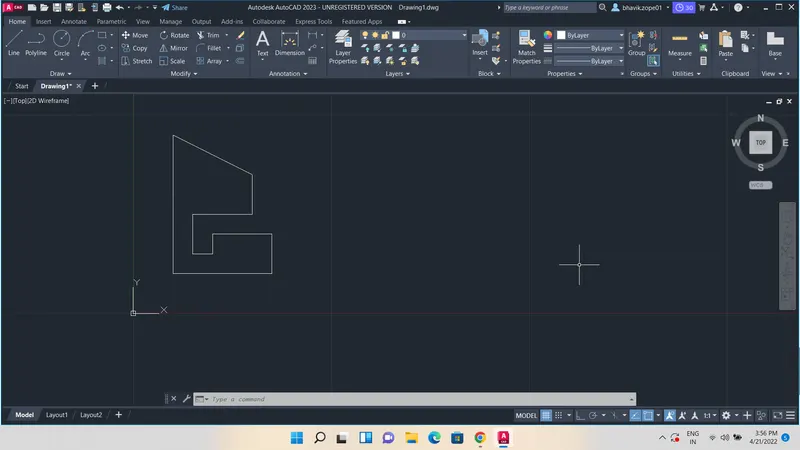

     Result:

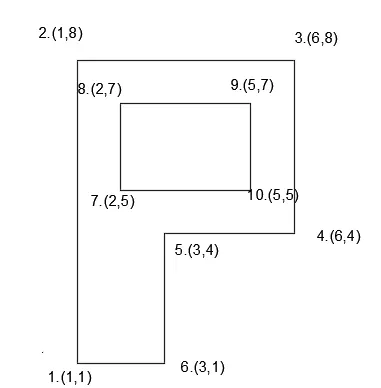

    8. P-10

      a. Absolute coordinate system:

    Procedure:

          Step 1: Type the command "L"for line and give the coordinates for point 1 #(1,1).

          Step 2: Type the next coordinate of point 2 #(1,8) in the command box.

          Step 3 : Type next coordinates of point 3. #(6,8) in the command box.

          Step 4 : Type next coordinates of point 4. #(6,4) in the command box

          Step 5 : Type next coordinates of point 5. #(3,4) in the command box

          Step 6 : Type next coordinates of point 6. #(3,1) in the command box

          Step 7 : Enter or click on the command "close".

          Step 8 : Type the command "L"for line and give the coordinates for point 7. #(2,5).

          Step 9 : Type next coordinates of point 8. #(2,7) in the command box.

          Step 10 : Type next coordinates of point 9. #(5,7) in the command box.

          Step 11 : Type next coordinates of point 10. #(5,5) in the command box.

          Step 12 : Enter or click on the command "close".

    Note: # is for to draw line with respect to origin.

    Result:

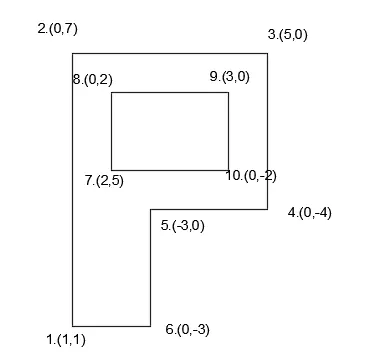

    b. Relative rectangular coordinate:

    Procedure:

          Step 1: Type the command "L"for line and give the coordinates for point 1.(1,1).

          Step 2: Type the next coordinate of point 2 .@0,7 in the command box.

          Step 3 : Type next coordinates of point 3. @ 5,0 in the command box.

          Step 4 : Type next coordinates of point 4. @0,-4 in the command box

          Step 5 : Type next coordinates of point 5. @ -3,0 in the command box

          Step 6 : Type next coordinates of point 6. @0,-3 in the command box

          Step 7 : Enter or click on the command "close".

          Step 8 : Type the command "L"for line and give the coordinates for point 7.(2,5).

          Step 9 : Type next coordinates of point 8. @0,2 in the command box.

         Step 10 : Type next coordinates of point 9. @3,0 in the command box.

         Step 11 : Type next coordinates of point 10. @0,-2 in the command box.

          Step 12 : Enter or click on the command "close".

     Result:

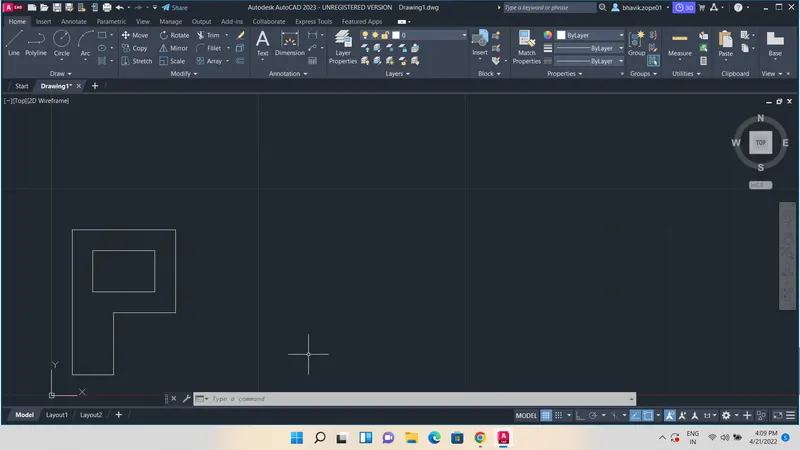

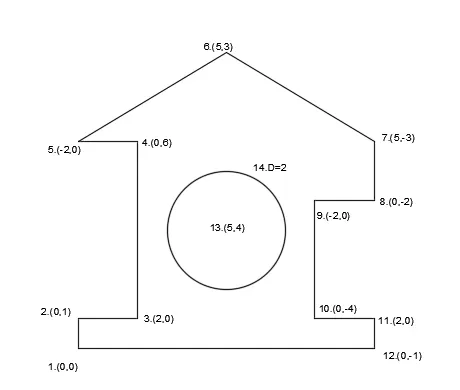

    9.  Profile- wood

      This is done by Relative rectangular coordinate system:





    Procedure:

          Step 1: Type the command "L"for line and give the coordinates for point 1.(0,0).

          Step 2: Type the next coordinate of point 2 .@0,1 in the command box.

          Step 3 : Type next coordinates of point 3. @ 2,0 in the command box.

          Step 4 : Type next coordinates of point 4. @0,6 in the command box

          Step 5 : Type next coordinates of point 5. @ -2,0 in the command box

          Step 6 : Type next coordinates of point 6. @5,3 in the command box

          Step 7 : Type next coordinates of point 7. @5,-3 in the command box

          Step 8 : Type next coordinates of point 8. @0,-2 in the command box

          Step 9 : Type next coordinates of point 9. @-2,0 in the command box.

         Step 10 : Type next coordinates of point 10. @0,-4 in the command box.

         Step 11 : Type next coordinates of point 11. @2,0 in the command box.

         Step 12: Type next coordinates of point 12. @0,-1 in the command box.

         Step 13: Enter or click on the command "close".

         Step 14: Click circle from the draw panel and select centre -radius

         Step 15: Enter the coordinates of the centre 5,4 in the command box

         Step 16: Then the command box shows " enter the diameter" and enter the value 2 ,which is the diameter of circle.

    Result:

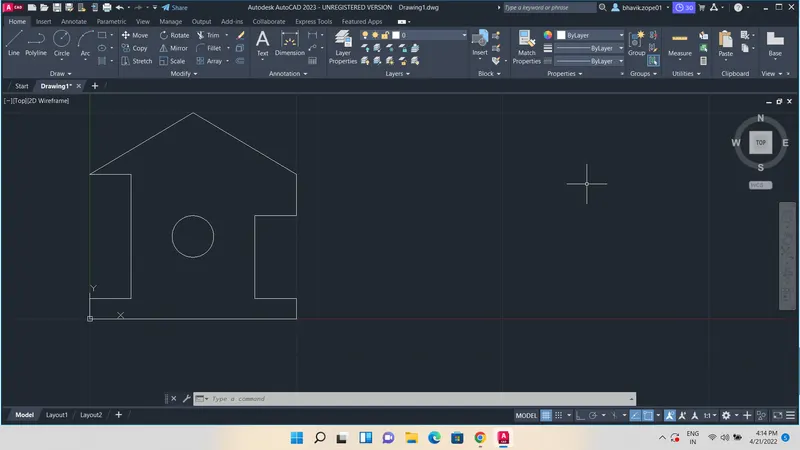

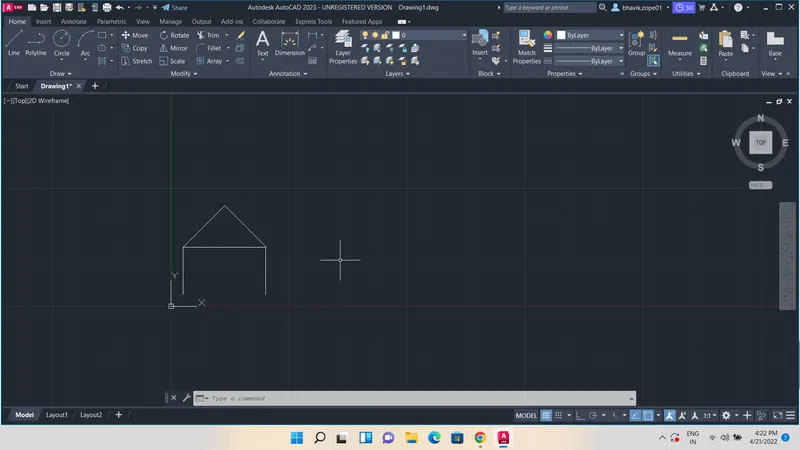

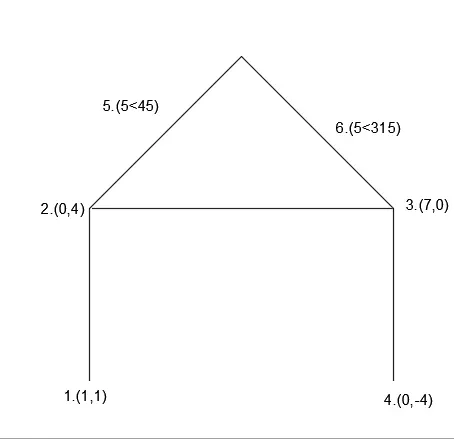

    10.  Queen post truss

       Combination of relative rectangular and polar coordinate system is used here





    Procedure:

          Step 1: Type the command "L"for line and give the coordinates for point 1.(1,1).

          Step 2: Type the next coordinate of point 2 .@0,4 in the command box.

          Step 3 : Type next coordinates of point 3. @ 7,0 in the command box.

          Step 4 : Type next coordinates of point 4. @0,-4 in the command box

          Step 5 : Press Esc to cancel the command.

          Step 6 : Type the command "L"for line and select the point 2 and then give the coordinates for point 5.@5<45.

          Step 7 :  Type the coordinates for point 6. @5<315.

         Result:

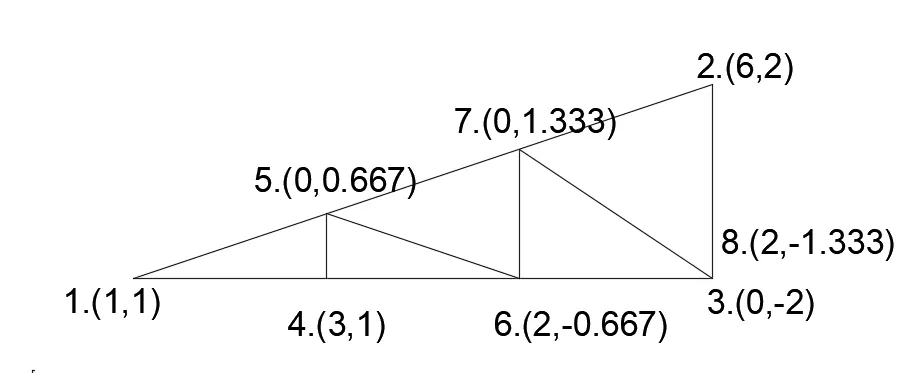

     11. Monopitch:

       Relative rectangular coordinate is used:

    Procedure:

          Step 1: Type the command "L"for line and give the coordinates for point 1.(1,1).

          Step 2: Type the next coordinate of point 2 .@6,2 in the command box.

          Step 3 : Type next coordinates of point 3. @ 0,-2 in the command box.

          Step 4 :Enter or click on the command "close".

          Step 5 : Type the command "L"for line and give the coordinates for point 4.(3,1).

          Step 6 : Type next coordinates of point 5. @0,0.667 in the command box

          Step 7 : Type next coordinates of point 6. @2,-0.667 in the command box

          Step 8 : Type next coordinates of point 7. @0,1.333 in the command box

          Step 9 : Type next coordinates of point 8. @2,-1.333 in the command box.

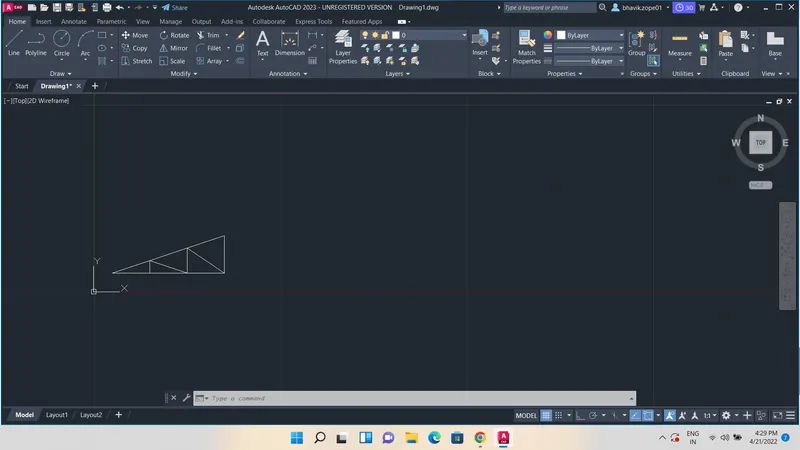

       Result:



     RESULT:

      All the geometries are drawn in respective coordinate system and using line tool and each output is shown for each geometries.



    Leave a comment

    Thanks for choosing to leave a comment. Please keep in mind that all the comments are moderated as per our comment policy, and your email will not be published for privacy reasons. Please leave a personal & meaningful conversation.

    Please  login to add a comment

    Other comments...

    No comments yet!
    Be the first to add a comment

    Read more Projects by VARSHA MOHAN WAGH (60)

    Project 2_Analyze and Design the RC office building as per IS standard code in TEKLA STRUCTURAL DESIGNER

    Objective:

    AIM:- To develop general arrangement for the RC office building. Also, to analyze and design the building as per IS standard code in TEKLA STRUCTURAL DESIGNER from the attachment. Also, to generate report of each member and extract drawings for structural plans, beam reinforcement details from the software. INTRODUCTION:- Tekla…

    calendar

    08 Nov 2022 05:25 PM IST

    • DESIGN
    • Tekla Structural Designer
    Read more

    To Generate report for Steel Industrial and RC structures using TSD

    Objective:

    Generate report for the steel building design from challenges 1 – 6 along with the loading summary AIM:- To generate report for the steel building design from challenges 1 – 6 along with the loading summary INTRODUCTION:-  Report generation helps us to get detailed report for each members and completed details of loadcases,…

    calendar

    08 Nov 2022 05:25 PM IST

    • DESIGN
    Read more

    To Design slab and foundation for an RC residential building using TSD

    Objective:

    Design the slab and foundation of the model. Outline the thought process for designing of the elements (column, beam, slab and foundations)  AIM:- To design the slabs and foundation for the model.  INTRODUCTION:- Slab design are done based on the dead load, live load and floor finishes and based on this slab thickness…

    calendar

    08 Nov 2022 05:24 PM IST

      Read more

      To Design RC column and beam for RC residential structure using TSD

      Objective:

      Based on the analysis design RC column and beam. AIM:- To design RC column and beam based on the analysis. INTRODUCTION:- Design of beam and column includes selection of member size, reinforcement required, grade of concrete etc. so as to transfer the load safely. Design is checked based on analysis preformed on strength…

      calendar

      08 Nov 2022 05:24 PM IST

        Read more

        Schedule a counselling session

        Please enter your name
        Please enter a valid email
        Please enter a valid number

        Related Courses

        coursecard

        Design loads considered on bridges

        Recently launched

        10 Hours of Content

        coursecard

        Design of Steel Superstructure in Bridges

        Recently launched

        16 Hours of Content

        coursecard

        Design for Manufacturability (DFM)

        Recently launched

        11 Hours of Content

        coursecard

        CATIA for Medical Product Design

        Recently launched

        5 Hours of Content

        coursecardcoursetype

        Accelerated Career Program in Embedded Systems (On-Campus) Courseware Partner: IT-ITes SSC nasscom

        Recently launched

        0 Hours of Content

        Schedule a counselling session

        Please enter your name
        Please enter a valid email
        Please enter a valid number

        logo

        Skill-Lync offers industry relevant advanced engineering courses for engineering students by partnering with industry experts.

        https://d27yxarlh48w6q.cloudfront.net/web/v1/images/facebook.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/insta.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/twitter.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/youtube.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/linkedin.svg

        Our Company

        News & EventsBlogCareersGrievance RedressalSkill-Lync ReviewsTermsPrivacy PolicyBecome an Affiliate
        map
        EpowerX Learning Technologies Pvt Ltd.
        4th Floor, BLOCK-B, Velachery - Tambaram Main Rd, Ram Nagar South, Madipakkam, Chennai, Tamil Nadu 600042.
        mail
        info@skill-lync.com
        mail
        ITgrievance@skill-lync.com

        Top Individual Courses

        Computational Combustion Using Python and CanteraIntroduction to Physical Modeling using SimscapeIntroduction to Structural Analysis using ANSYS WorkbenchIntroduction to Structural Analysis using ANSYS Workbench

        Top PG Programs

        Post Graduate Program in Hybrid Electric Vehicle Design and AnalysisPost Graduate Program in Computational Fluid DynamicsPost Graduate Program in CADPost Graduate Program in Electric Vehicle Design & Development

        Skill-Lync Plus

        Executive Program in Electric Vehicle Embedded SoftwareExecutive Program in Electric Vehicle DesignExecutive Program in Cybersecurity

        Trending Blogs

        Heat Transfer Principles in Energy-Efficient Refrigerators and Air Conditioners Advanced Modeling and Result Visualization in Simscape Exploring Simulink and Library Browser in Simscape Advanced Simulink Tools and Libraries in SimscapeExploring Simulink Basics in Simscape

        © 2025 Skill-Lync Inc. All Rights Reserved.

                    Do You Want To Showcase Your Technical Skills?
                    Sign-Up for our projects.
