Creation of Column Schedule and Drawing Template using AutoCad

Aim:- To create column schedule and drawiing templates using AutoCAD



Introduction:-

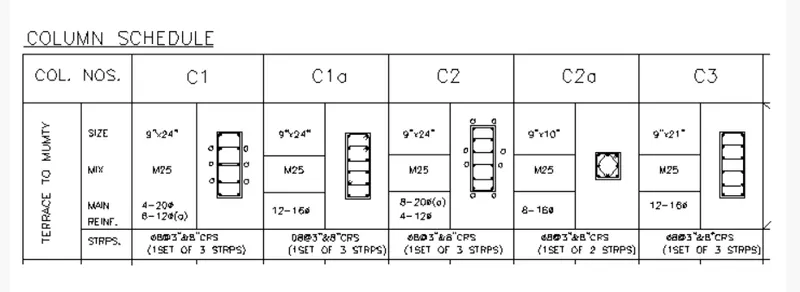

Column schedule:-

• Column schedule plays an important role in construction
• Column schedule must be checked properly before the construction
• Column schedule gives the number of main bar, distribution bars, stirrups
• It gives the dimension of the column and cover of the column

Drawing templates

• Drawing templates are the important while submitting the plan
• It involves many informations like direction of the building, designer, location, SBC of soil etc.,

AutoCAD:-

It is essential to draft the geometry

The different tools required in this drafts are construction line  (XL), text(MTEXT), donut (DO), fillet (F), offset (O), Hatching (H) and Hatch edit (HE).



Procedure:-

• Go to start menu, click on Start drawing
• Type stratup (Enter) in command line
• Enter the new value of start up:1
• Go to application menu and select new or type new in command line
• In the "create new drawing" dialogue box contains imperial  type of systems and metric type of system
• We select the metric system in the "start from scratch" option
• After that in Advance setup option select the decimal unit system in the units

The above procedure should be followed every time when the new sheet is opened

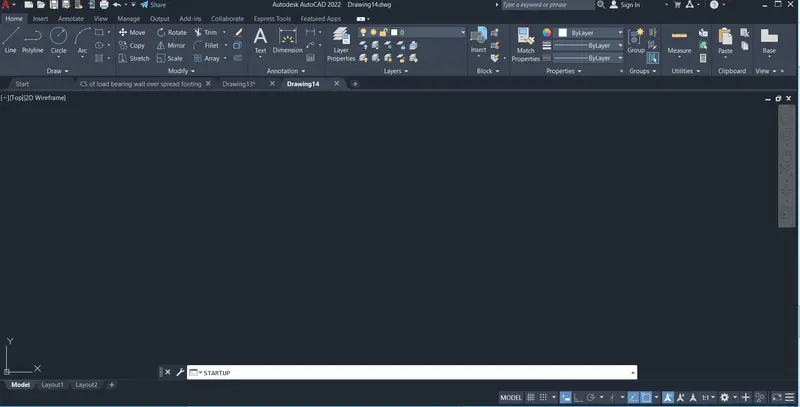

                               Entering the start up command in the command line

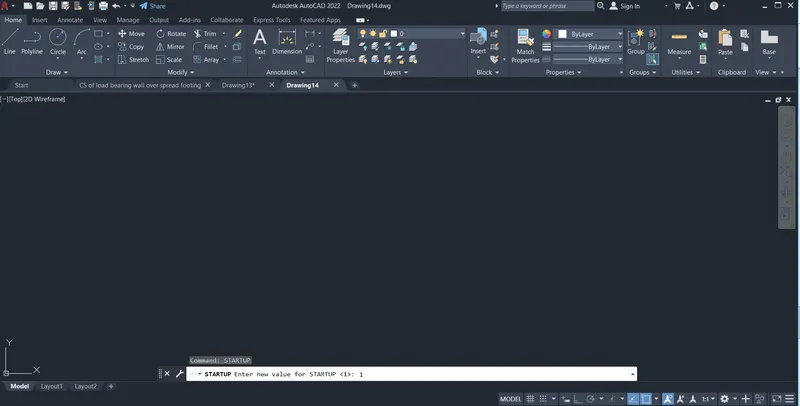

                             Entering the value 1 for the start up

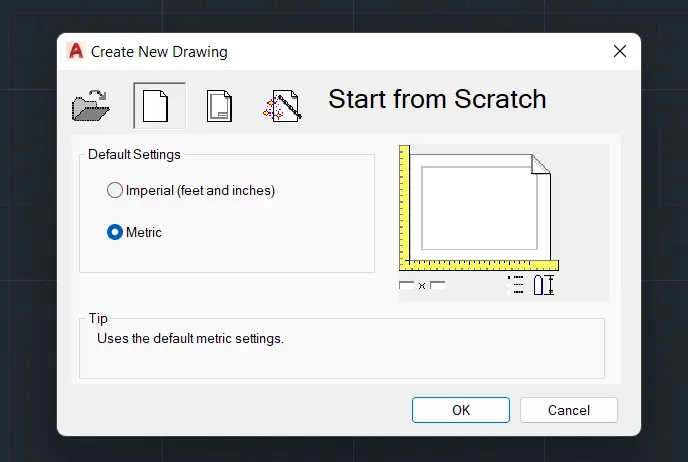

                            When we go to the new file then we get this file select the metric from start from scratch

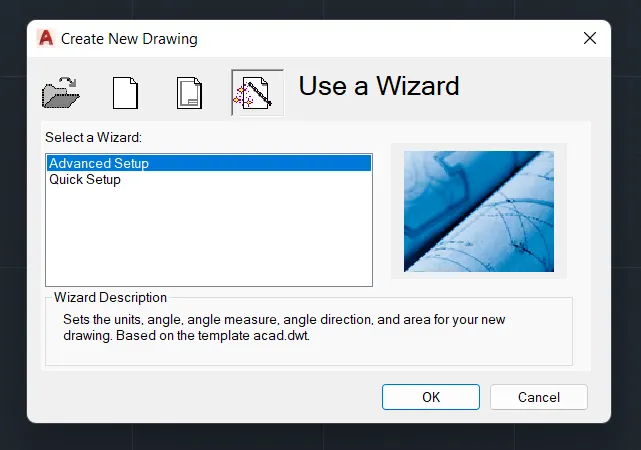

                           Then advance setup setting should be done by clicking OK

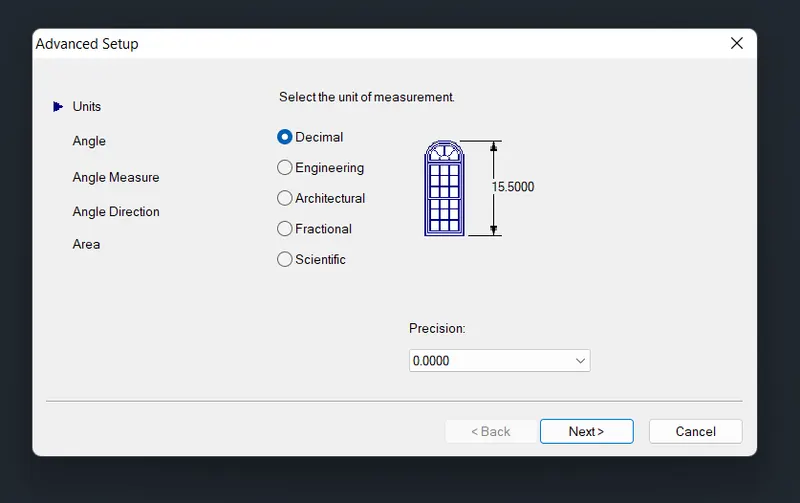

                          Keep the units in decimal and adjust precision then click next

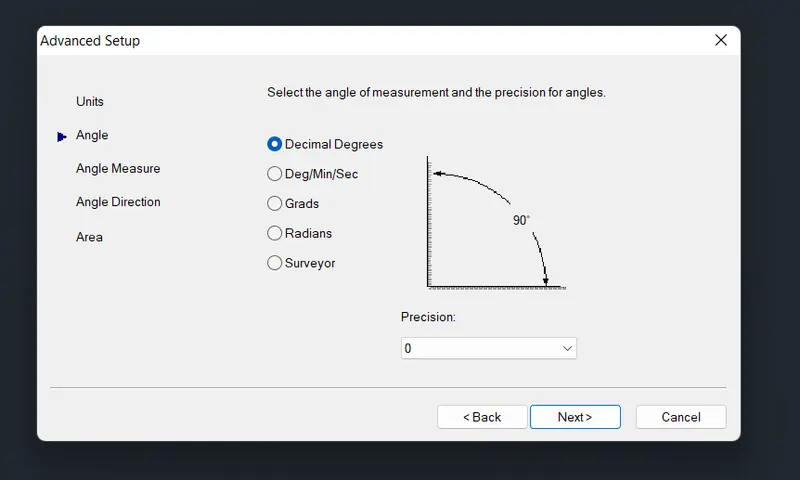

                           Keep angle in decimal degree and adjust precision then click next

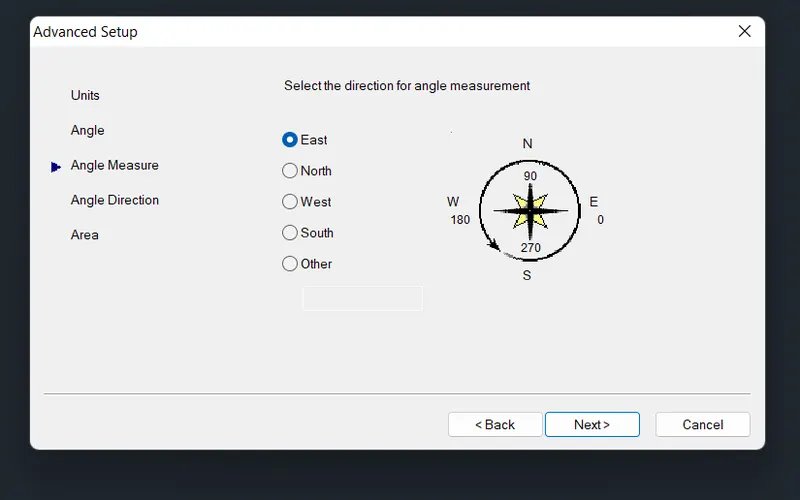

                          Select the angle measurement in east and click on next

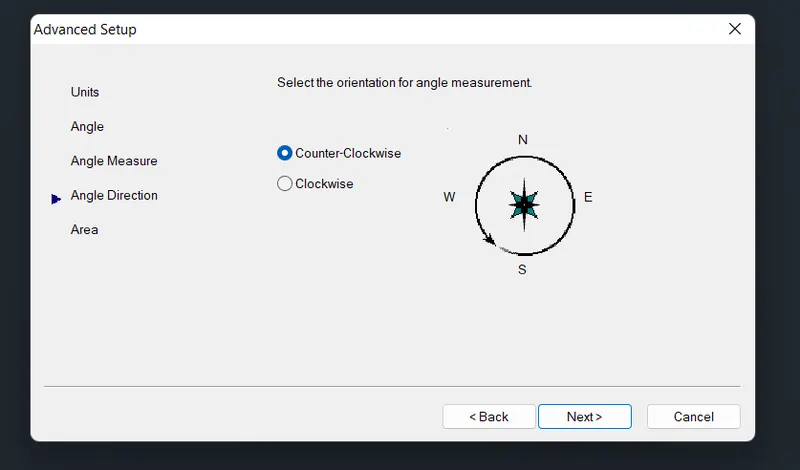

                            Select angle direction in counter clockwise and click on next

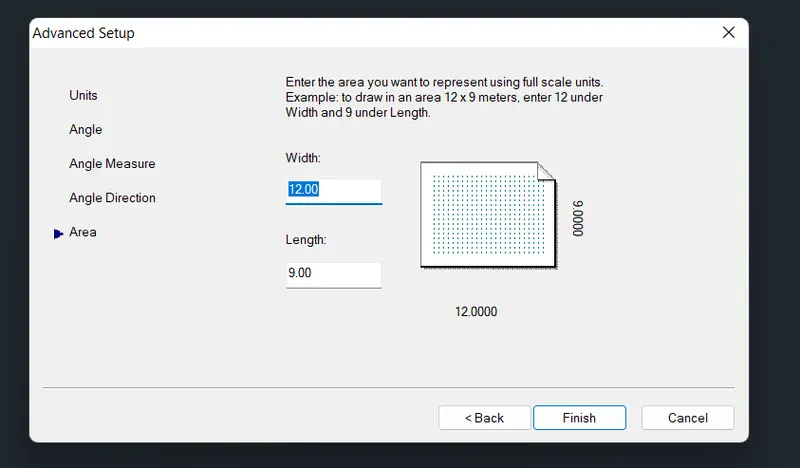

                           Keep the width as 12m and length of 9m as default and click on finish



Aim:- To draft the coulmn schedule by using AutoCAD

Procedure:-

By using direct distance entry method

• Here all the units are in Engineering (inches and feet's)
• Select the construction line tool by entering XL (Enter) in the command line
• Select the vertical line and place it any where on the screen
• Next by using a same command (construction line) select horizontal line and place it on the screen
• Use a offset command for creating a table. The shortcut command is O enter
• Use a multiline text for the text. The shortcut command is Mtext enter
• Use a donut command for creating a reinforcement.The shortcut command is DO enter
• It consists of a 12mm dia bar, 16mm dia bar and 20mm dia bar
• Use a line for creating stirrups
• Use a offset to creat a smooth curve at the edge of the stirrups.The shortcut command is O enter
• Use a trim command to trim off the unwanted lines.The shortcut command is TR enter
• Font name: romans.shx; Height: 8" , justify: left
• The out line for column schedule distance is 57'-2.88" in +ve - x direction
• The out line for column schedule distance is 7'-11.01" in -ve - y direction
• The out line for column schedule distance is 57'-2.88" in -ve - x direction
• The out line for column schedule distance is 7'-11.01" in +ve - y direction
• The distance between one to one column is 7'-2.88", 10'-0", 10'-0", 10'-0", 10'-0", 10'-0" respectively from left to right in +ve - x direction
• The distance between one to one spacing line is 1'-6", 1'-0", 1'-0", 1'-0", 1'-0", 2'-5.01" respectively from top to bottom in -ve - y direction

For column C1

• The column dimension for C1 is 9"x24" which consisits of a 4nos of 20mm dia non- a bars and 6nos of 12mm dia (a) bars
• Cover for this is 40mm (0.59")
• Take a offset of 5", 5" and 5" center to center to provide the reinforcements respectively from the top in -ve y-axis direction
• Take a offset of 5", 6", 6" and 5" to provide the stirrups respectively from the top in -ve y- aixs direction
• Stirrups are dia 8 @3" and 8" CRS (1 set of 3STRPS)

For column C1-a

• The column dimension for C1 a is 9"x24" which consisits of a 12nos of 16mm dia non- a bars
• Cover for this is 40mm (0.59")
• Take a offset of 4", 4", 4", 4" and 4" center to center to provide the reinforcements respectively from the top in -ve y-axis direction
• Take a offset of 4" 5", 4", 5" and 4" to provide the stirrups respectively from the top in -ve y- aixs direction
• Stirrups are dia 8 @3" and 8" CRS (1 set of 3STRPS)



For column C2

• The column dimension for C2 is 9"x24" which consisits of a 8nos of 20mm dia a bars and 4nos of 12mm dia non- a bars
• Cover for this is 40mm (0.59")
• Take a offset of 3", 4", 4", 4" and 4" center to center to provide the reinforcements respectively from the top in -ve y-axis direction
• Take a offset of 3" 5", 4", 5" and 4" to provide the stirrups respectively from the top in -ve y- aixs direction
• Stirrups are dia 8 @3" and 8" CRS (1 set of 3STRPS)



For column C2-a

• The column dimension for C2 a is 9"x24" which consisits of a 8nos of 16mm dia non- a bars
• Cover for this is 40mm (0.59")
• Take a offset of 3" and 3" center to center to provide the reinforcements respectively from the top in -ve y-axis direction
• Take a offset of 3" and 3" to provide the stirrups respectively from the top in -ve y- aixs direction
• Stirrups are dia 8 @3" and 8" CRS (1 set of 2STRPS)

For column C3

• The column dimension for C3  is 9"x24" which consisits of a 12nos of 16mm dia non- a bars
• Cover for this is 40mm (0.59")
• Take a offset of 3", 4", 4", 4" and 3" center to center to provide the reinforcements respectively from the top in -ve y-axis direction
• Take a offset of 3" 4", 3", 4" and 3" to provide the stirrups respectively from the top in -ve y- aixs direction
• Stirrups are dia 8 @3" and 8" CRS (1 set of 3STRPS)



 Layers used are

• Outer line - Yellow
• Text - Cyan
• Outer the main stirrup -ACI 40
• Main stirrup - Blue
• Reinforcement 12 dia - ACI 11
• Reinforcement 16dia - Magenta
• Reinforcement 20dia - Red
• Stirrup - ACI 10

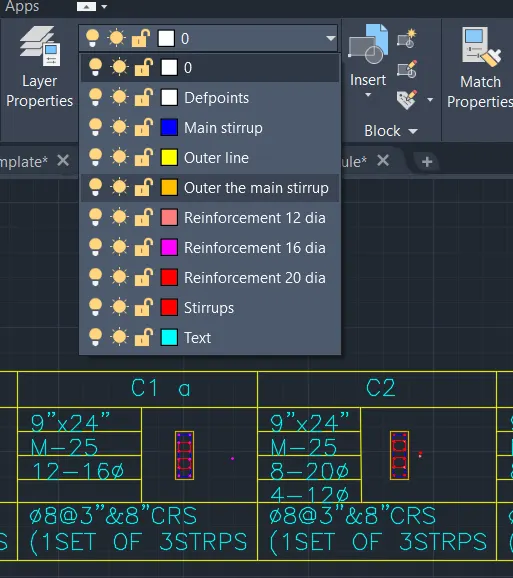

                             Layers used for column schedule

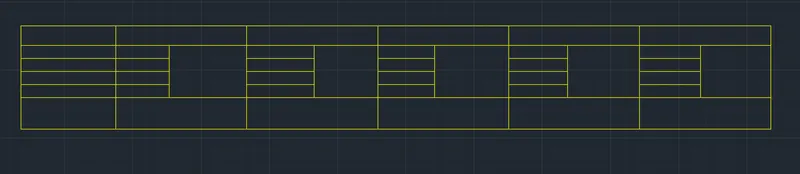

                                                 Column schedule outline



                                            Column schedule text and outline

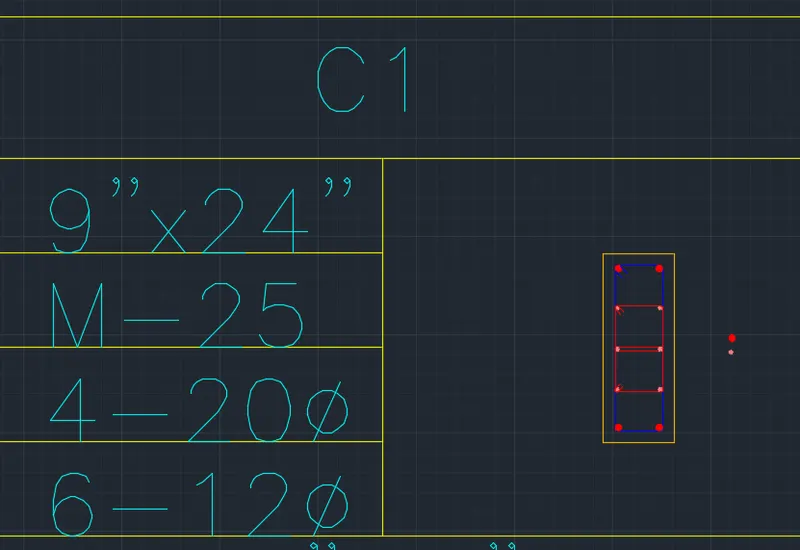

                                                    Column schedule C1

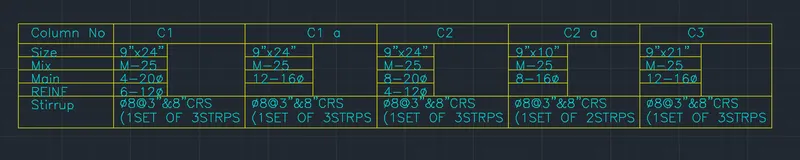

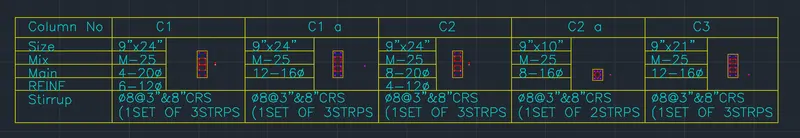

                            Column schedule for given sizes of column



Result:-

                            Column schedule for given sizes of column



Aim:- To draft the window schedule

Procedure:-

By using direct distance entry method

• Here all the units are in Engineering (inches and feet's)
• Select the construction line tool by entering XL (Enter) in the command line
• Select the vertical line and place it any where on the screen
• Next by using a same command (construction line) select horizontal line and place it on the screen
• Use a offset command for creating a table. The shortcut command is O enter
• Use a multiline text for the text. The shortcut command is Mtext enter
• Use a trim command to trim off the unwanted lines.The shortcut command is TR enter
• Font name: times new roman, Height: 8" and 3" , justify: left and center, Text: Multi line
• The out line for window schedule distance is 26'-6.8" in +ve - x direction
• The out line for window schedule distance is 6'-0" in -ve - y direction
• The out line for window schedule distance is 26'-6.8" in -ve - x direction
• The out line for window schedule distance is 6'-0" in +ve - y direction
• The distance between one to one column is 4'-0", 5'-1.3", 5'-1.3", 5'-1.3" and 7'-3"respectively from left to right in +ve - x direction
• The distance between one to one spacing line is 1'-0", 1'-0", 1'-0", 1'-0", 1'-0", 1'-0" respectively from top to bottom in -ve - y direction

 Layers used are

• Outer line - Yellow
• Text - Cyan

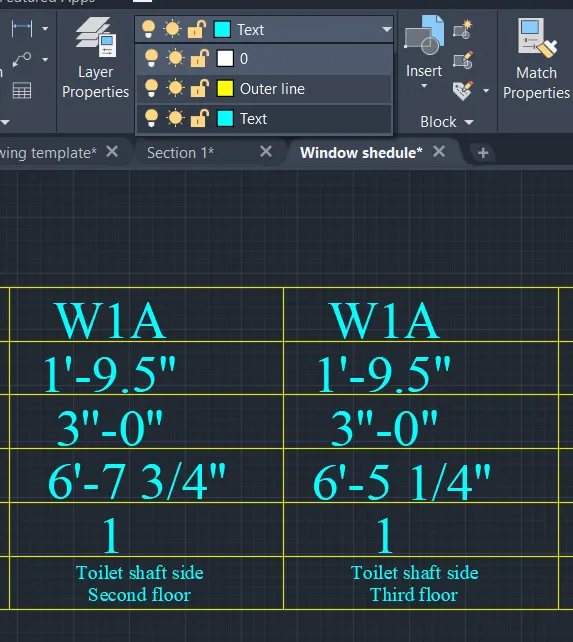

                                                    Layers used for window schedule



                                       Window schedule outline

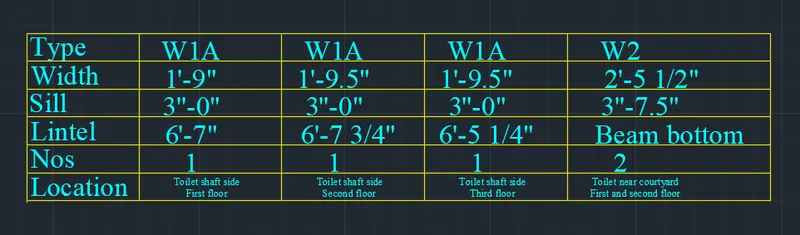

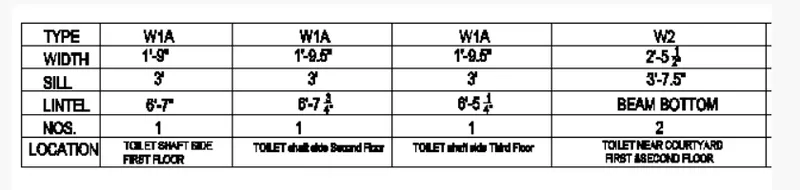

                                       Window scheule text with outline



Result:-

                                       Window scheule text with outline





Aim:- To draft the drawing templates

Procedure:-

By using direct distance entry method

• Here all the units are in Engineering (inches and feet's)
• Select the construction line tool by entering XL (Enter) in the command line
• Select the vertical line and place it any where on the screen
• Next by using a same command (construction line) select horizontal line and place it on the screen
• Use a offset command for creating a table. The shortcut command is O enter
• Use a multiline text for the text. The shortcut command is Mtext enter
• Use a trim command to trim off the unwanted lines.The shortcut command is TR enter
• Font name: times new roman, Height: 8" , justify: left, Text: Single line
• The out line for drawing templates distance is 77'-1" in +ve - x direction
• The out line for drawing templates distance is 11'-6" in -ve - y direction
• The out line for drawing templates distance is 77'-1" in -ve - x direction
• The out line for drawing templates distance is 11'-6" in +ve - y direction
• The distance between one to one column is 26'-10", 13'-10", 16'-5" and 20'-0" respectively from left to right in +ve - x direction
• The distance between one to one spacing line is 2'-6", 2'-2", 2'-6", 2'-2" and 2'-2", respectively from top to bottom in -ve - y direction



 Layers used are

• Outer line - Yellow
• Text - Cyan

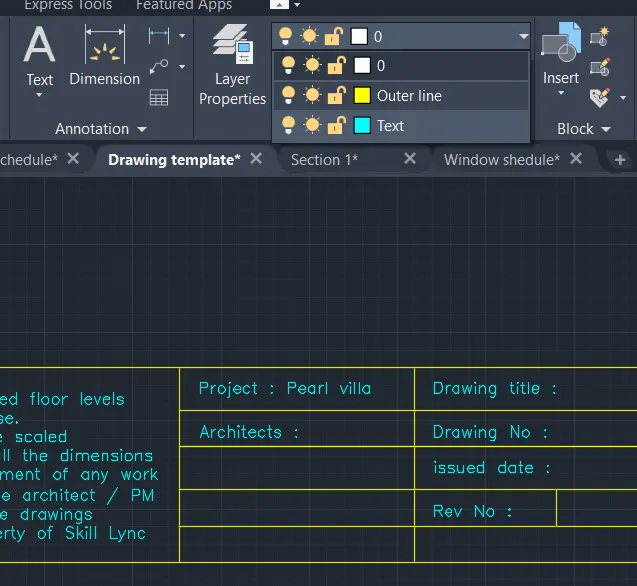

                                    Layers used for drawing templates

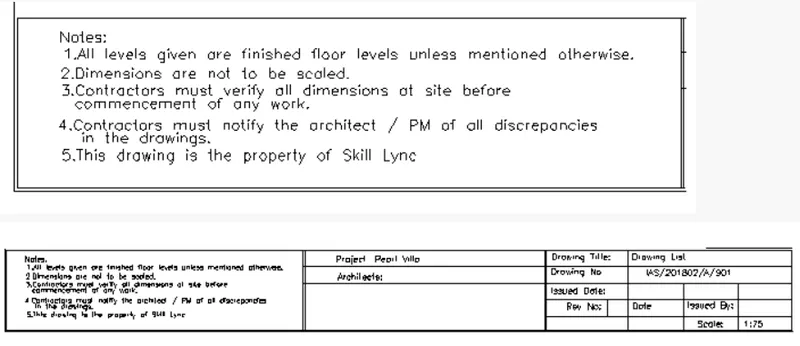

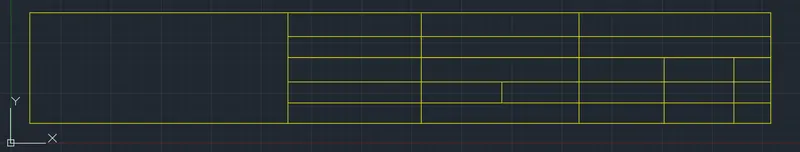

                                                      Drawing template outline

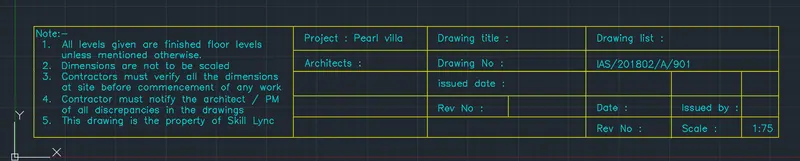

                                           Drawing template text with outline



Result:-

                                           Drawing template text with outline





Aim:- To draft the drawing schedule

Procedure:-

By using direct distance entry method

• Here all the units are in Engineering (inches and feet's)
• Select the construction line tool by entering XL (Enter) in the command line
• Select the vertical line and place it any where on the screen
• Next by using a same command (construction line) select horizontal line and place it on the screen
• Use a offset command for creating a table. The shortcut command is O enter
• Use a multiline text for the text. The shortcut command is Mtext enter
• Use a trim command to trim off the unwanted lines.The shortcut command is TR enter
• Font name: times new roman, Height: 8" , justify: left, Text: Multi line
• The out line for drawing schedule distance is 39'-0" in +ve - x direction
• The out line for drawing schedule distance is 48'-6"" in -ve - y direction
• The out line for drawing schedule distance is 39'-0" in -ve - x direction
• The out line for drawing schedule distance is 48'-6" in +ve - y direction
• The distance between one to one column is 2'-0", 15'-0" and 22'-0.18"  respectively from left to right in +ve - x direction
• The distance between one to one spacing line is 1'-6", 2'-0", 1'-6", respectively from top to bottom in -ve - y direction
• It consists of a 29 list of table each spacing is 1'-6" 29 times



 Layers used are

• Outer line - Yellow
• Text - Cyan

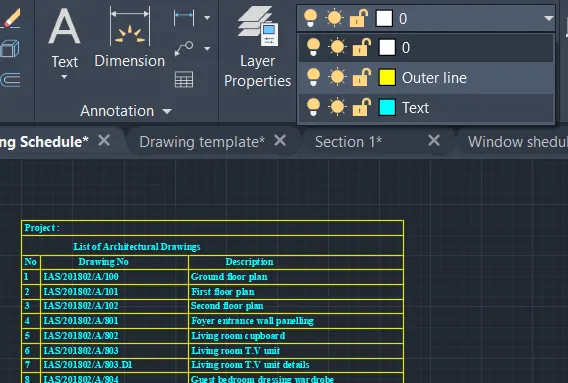

                                                      Layers used for drawing schedule

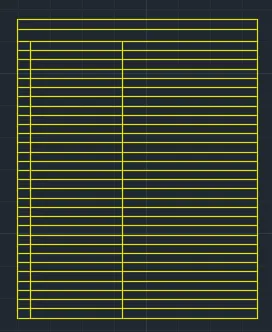

                                                       Drawing schedule outline

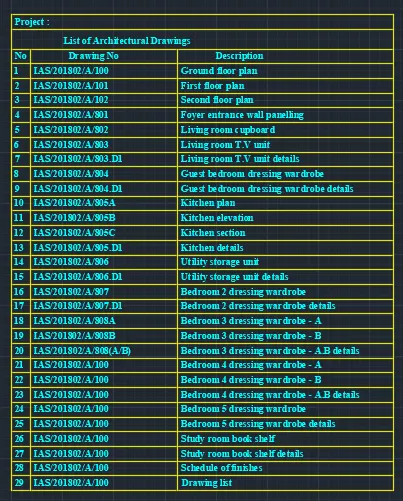

                                                   Drawing schedule text with outline



Result:-

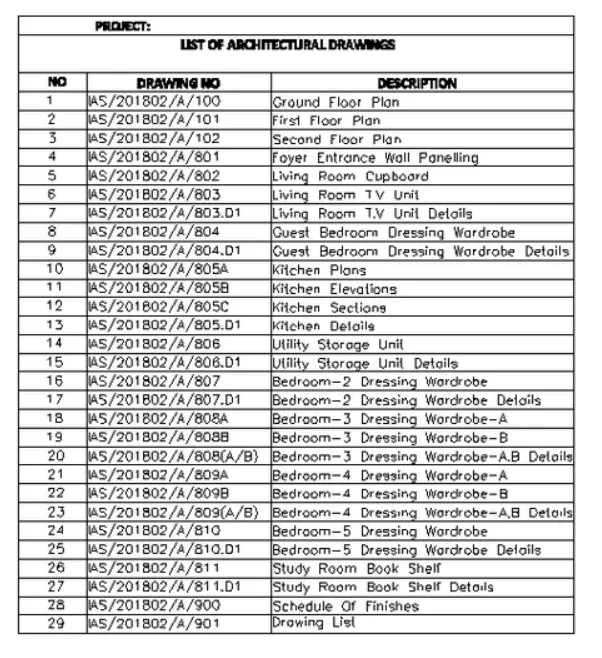

                                                   Drawing schedule text with outline





Aim:- To draft the beam deatails

Procedure:-

By using direct distance entry method

• Here all the units are in Engineering (inches and feet's)
• Select the line tool by entering L (Enter) in the command line
• Draw vertically a random distance in +ve y direction because it's a continuing
• Take a offset distance 9" from the vertical line
• Make a continuous symbol by using a line without ortho mode to show the continuity
• Randomly draw a line in between the beam and take a offset of 3" above in +ve- y direction from that line and again take a offset of 9" above in +ve- y direction from the 3" line
• Trim off the unwanted line by using trim cammnad. The shortcut command is TR enter
• Hatch the wall by using hatch command. The shortcut command is H enter
• Hatch the inside portion of concrete which has a distance 9" and 3" by using hatch command. The shortcut command is H enter
• Use  a multileader to show ground level, TOB level and Brick work
• Font used  for multileader is Times new roman

 Layers used are

• Brick work wall - ACI 30
• Concrete hatching - ACI 11
• Dimension - Yellow
• Multileader -Cyan
• Wall hatching - ACI 51



                                             Layers used for beam section

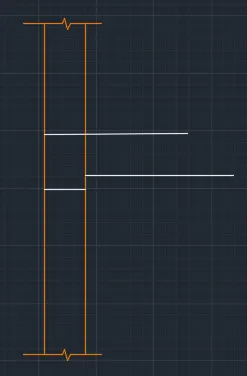

                                                      Brick work outline

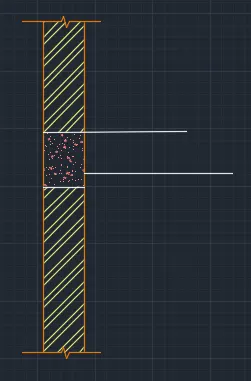

                                            Brick work with hatching

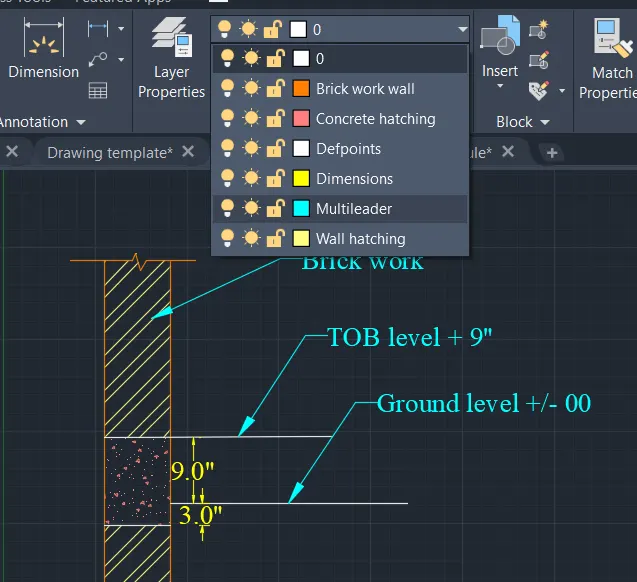

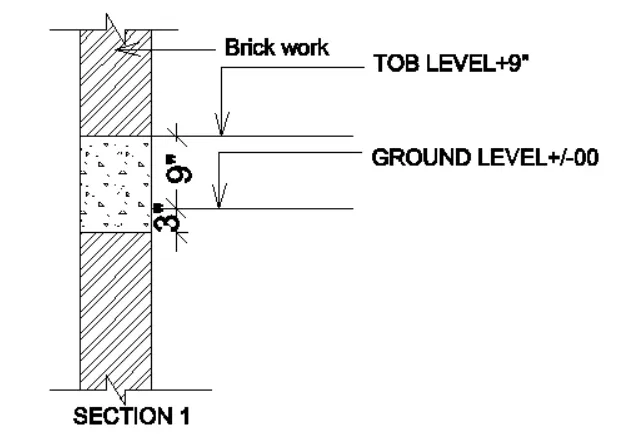

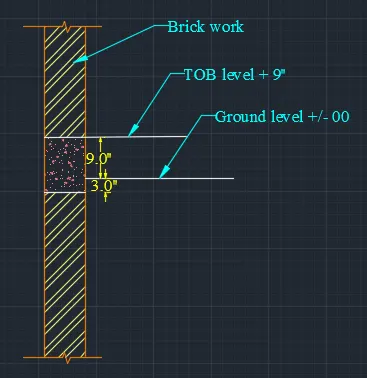

                                           Brick work with hatching, dimension and multileader



Result:-



                                           Brick work with hatching, dimension and multileader
