Creating Bar Bending schedule, Different Door types, and Creation of standard drawing templates using AutoCad

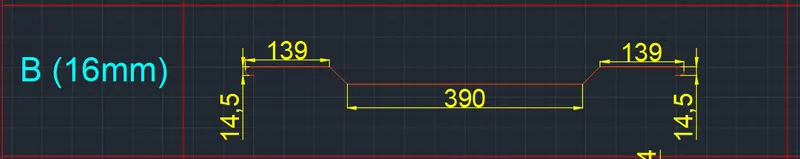

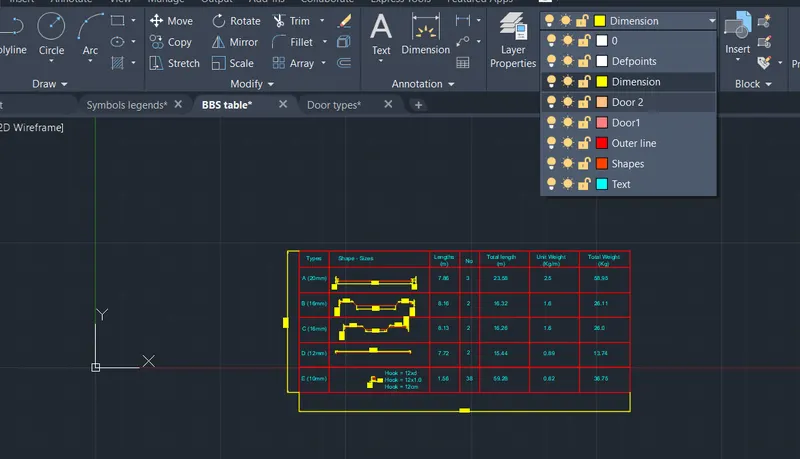

Aim:- To create bar bending schedule, different door types and creation of standard drawing template

Introduction:-

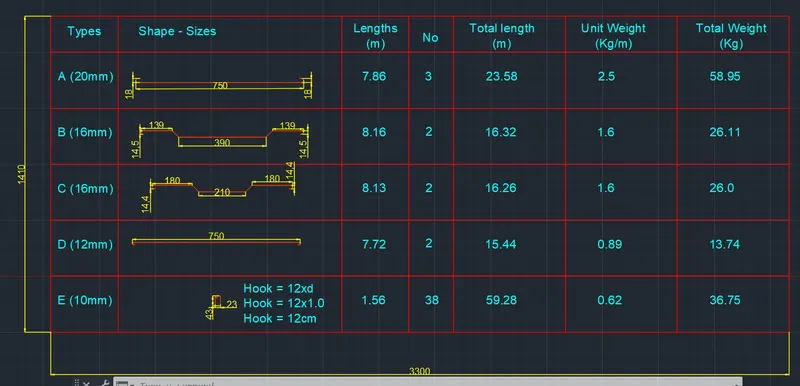

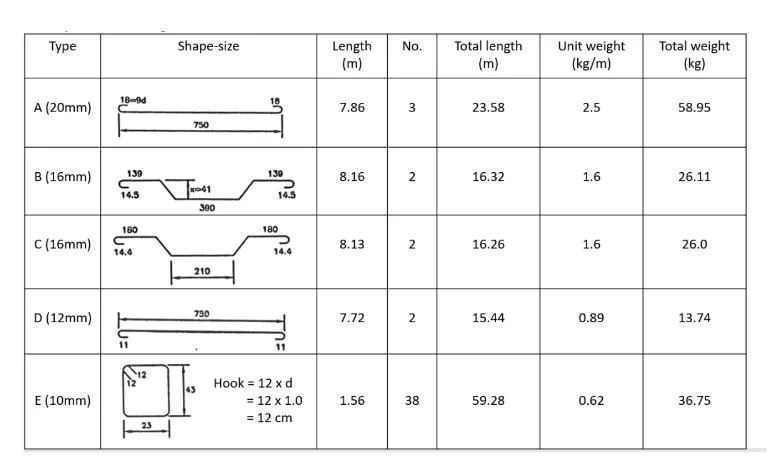

• Bar bending schedule are used to know the distance of the bar so that it sis easy to cut the reinforced bars easily at that length
• Door is one of the important material for the builiding when we draw a door along with its name (MD,D1,D2) which has a diiferent schedules its easy during the construction time
• Standard drawing templates are very essential during the construction projects
• These drawing templates involved the name of the architect, SBC of the soil, construction time, name of the client, adress, etc.,

AutoCAD:-

It is essential to draft the geometry

The different tools required in this drafts are line(L), rectangle(REC), construction line  (XL), text(MTEXT), fillet (F), offset (O), Hatching (H) Hatch edit (HE), Block(B), Extend (EX), Insert(I).

Procedure:-

• Go to start menu, click on Start drawing
• Type stratup (Enter) in command line
• Enter the new value of start up:1
• Go to application menu and select new or type new in command line

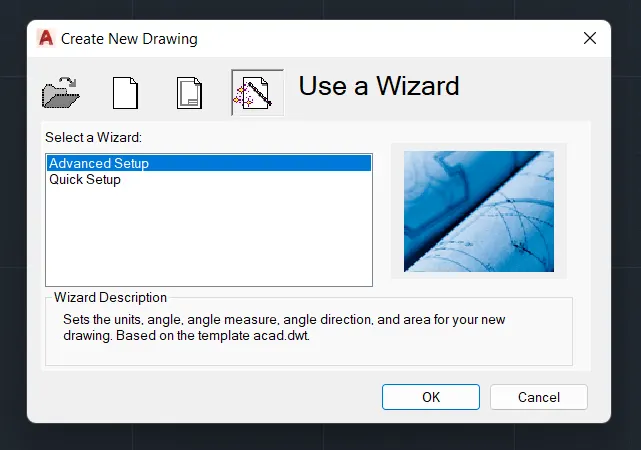

• In the "create new drawing" dialogue box contains imperial  type of systems and metric type of system
• We select the metric system in the "start from scratch" option
• After that in Advance setup option select the decimal unit system in the units

The above procedure should be followed every time when the new sheet is opened

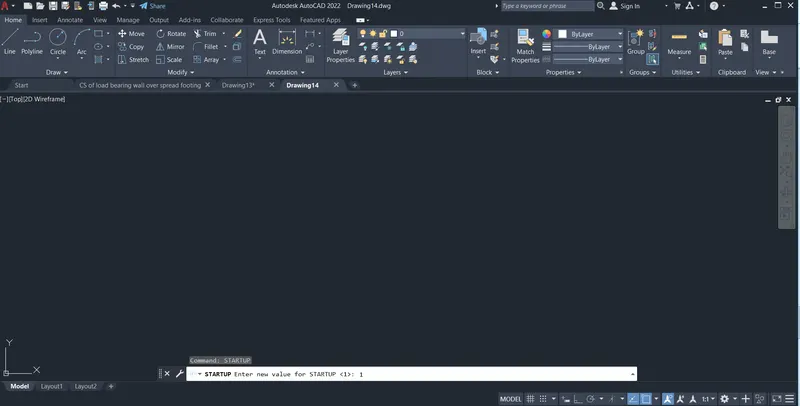

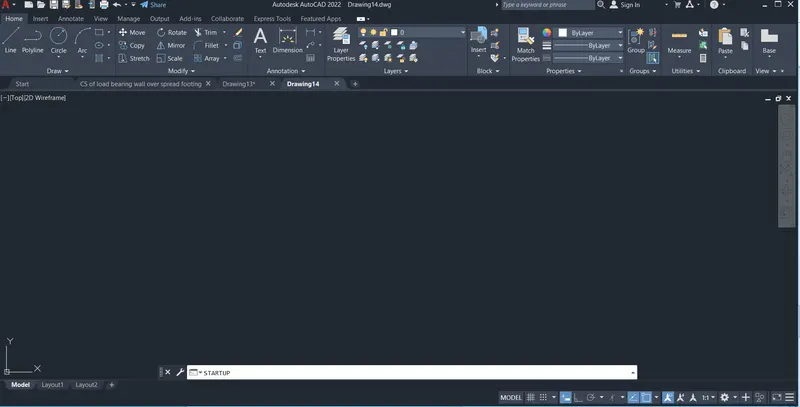

                               Entering the start up command in the command line





                             Entering the value 1 for the start up

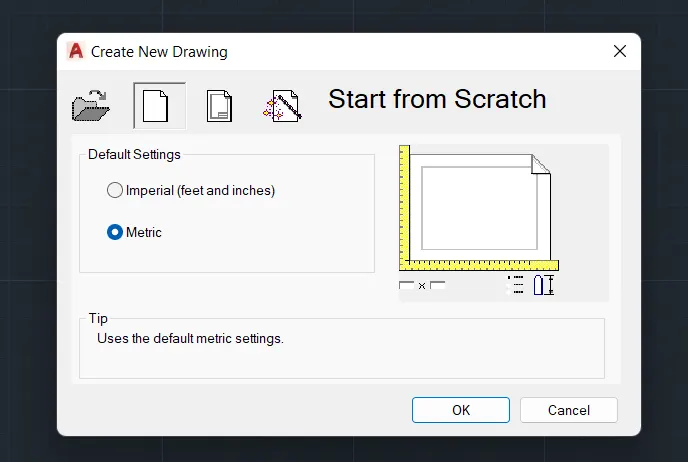

                            When we go to the new file then we get this file select the metric from start from scratch





                           Then advance setup setting should be done by clicking OK

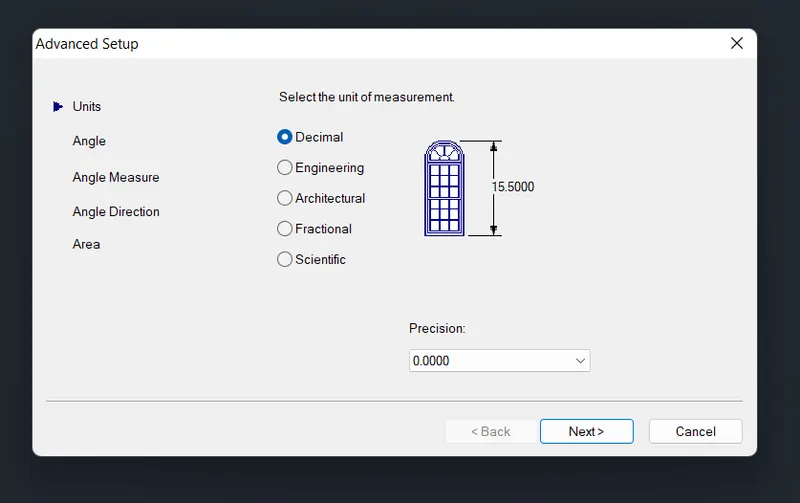

                          Keep the units in decimal and adjust precision then click next

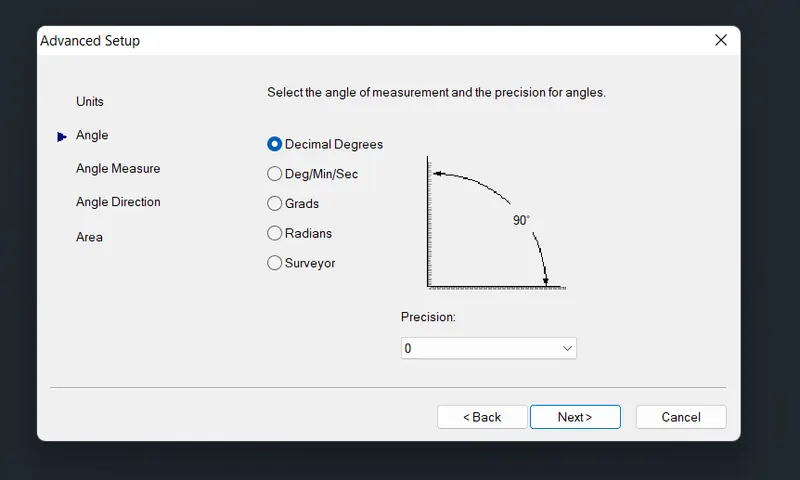

                           Keep angle in decimal degree and adjust precision then click next

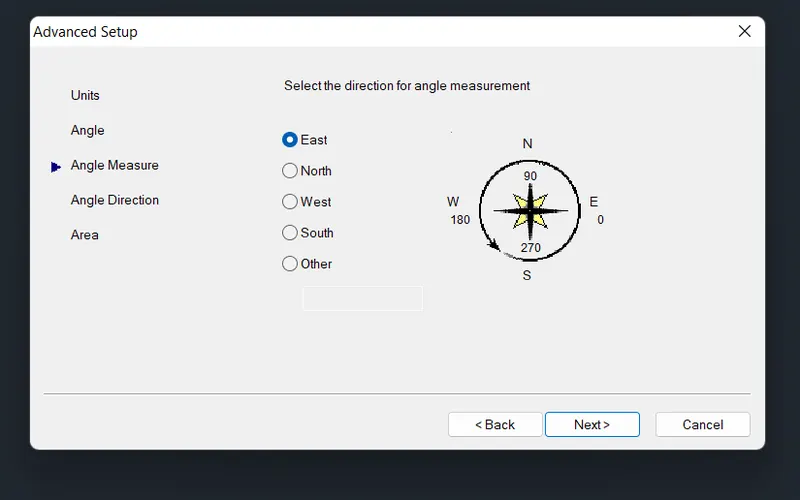

                          Select the angle measurement in east and click on next

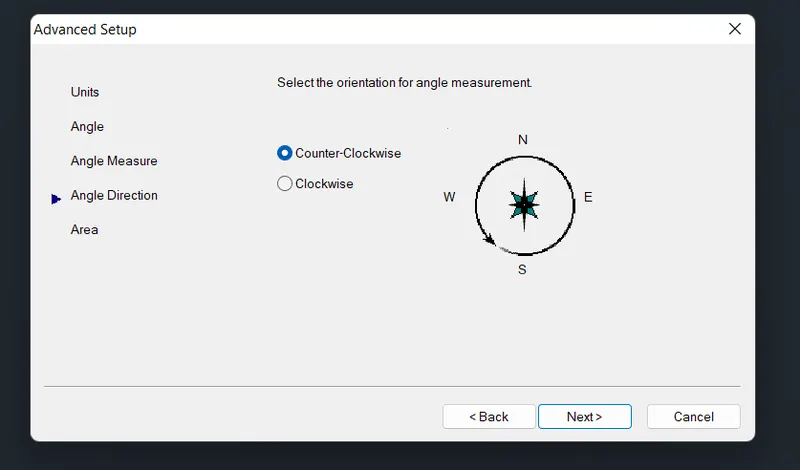

                            Select angle direction in counter clockwise and click on next

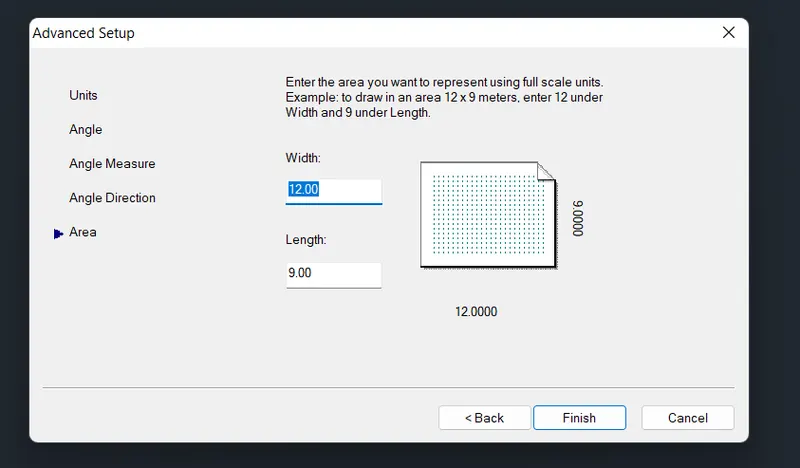

                           Keep the width as 12m and length of 9m as default and click on finish

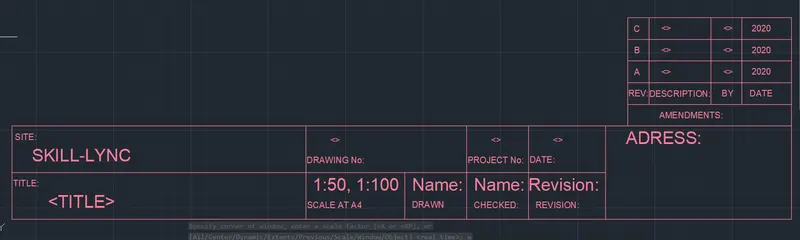

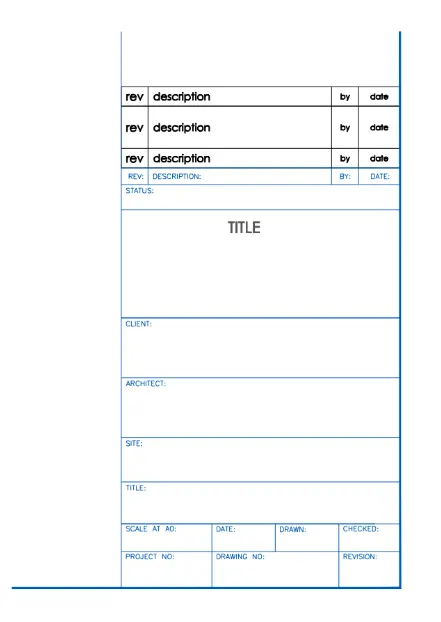

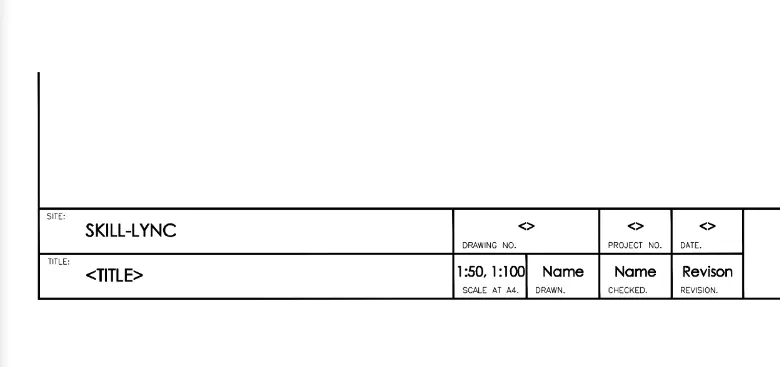

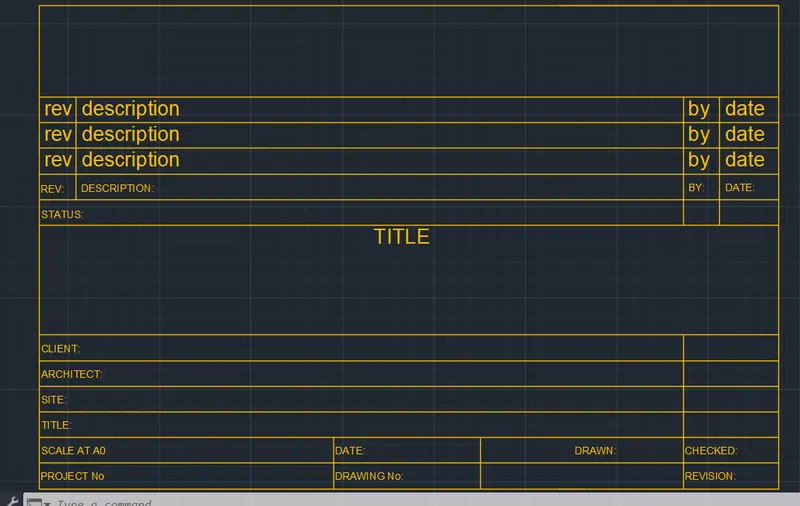

Aim:- To darft the tempalte custom1, title block



Procedure:-

By using direct distance entry method

• Here all the units are in Decimals (milimeter)
• Select the construction line tool by entering XL (Enter) in the command line
• Select the vertical line and place it any where on the screen
• Next by using a same command (construction line) select horizontal line and place it on the screen
• Take a offset of 2020mm from xl line in +ve x-direction
• Take a offset of 1320mm from the xl line in -ve y-direction
• Take a offset of 250mm, 70mm, 70mm, 70mm, 70mm, 70mm, 300mm, 70mm, 70mm, 70mm, 70mm, 70mm, 70mm from the xl line, 250mm line, 70mm line, 70mm line, 70mm line, 70mm line, 70mm line, 300mm line, 70mm line, 70mm line, 70mm line, 70mm line, 70mm line respectively in -ve y-direction
• Take a offset of 100mm, 1660mm, 100mm, 160mm in +ve-x direction for a 4 lines
• Use a trim command to trim off the unwanted lines
• Take a offset of 1760mm, 260mm from xl line in +ve x- direction
• Use a trim command to trim off the unwanted lines
• Take a offset of 805.3mm, 400mm, 554.7mm, 260mm from the xl line in +ve x- direction
• Use a trim command to trim off the unwanted lines
• Insert the text inside the lines by using a multitext (MTEXT) in the command

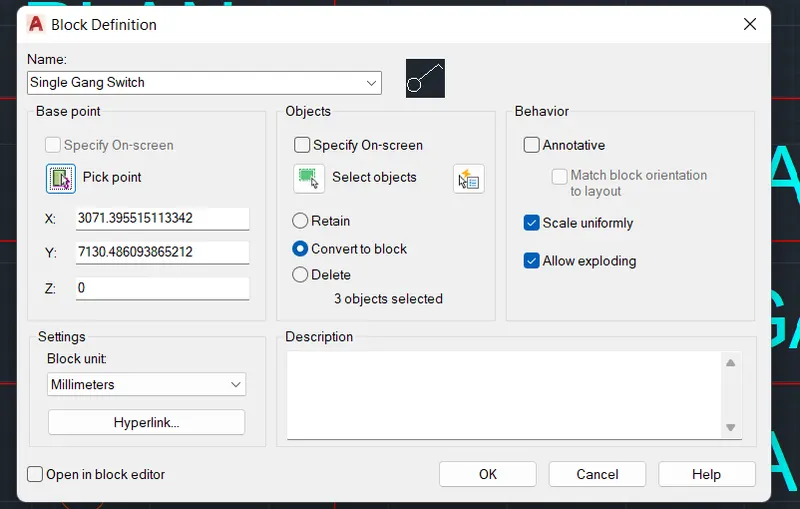

• Make it as a block by using a block command B

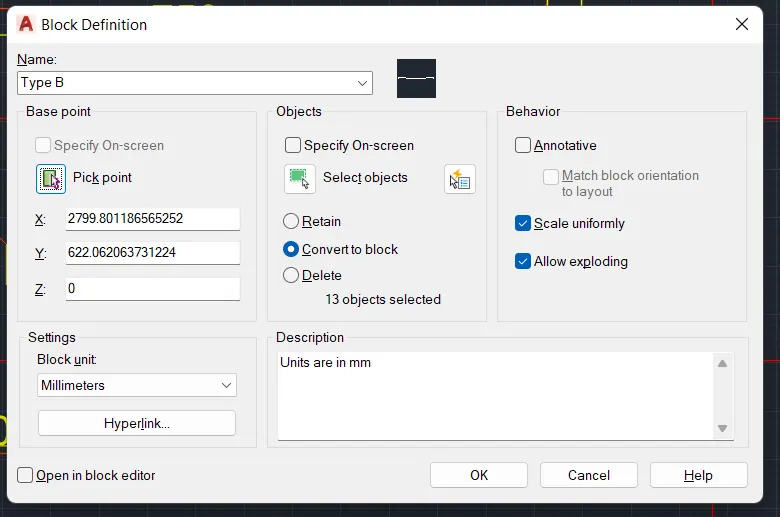

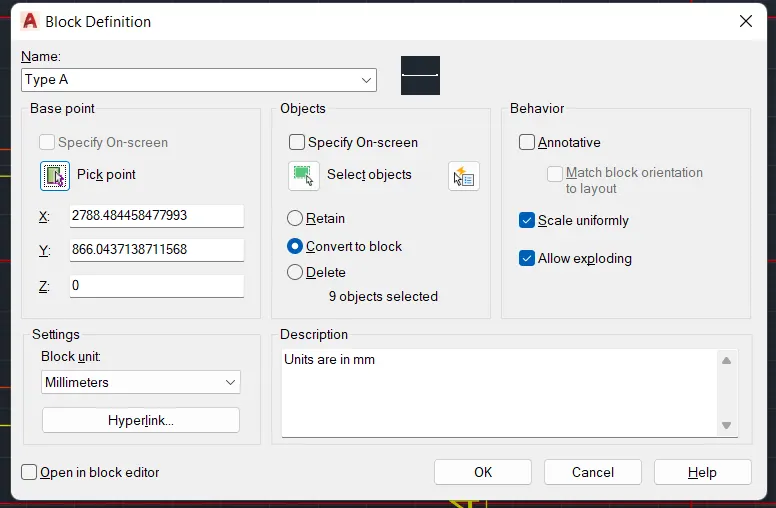

• Then give a name for this block, pick a point of this drawing, then specify the object.
• Click on the convert into block, uniform scaling, allow exploding then click on ok
• Now the drawing what you selected is converted into the block

Layers used for the templates are

• Template custom 1 - ACI 40
• Template custom 2 - ACI 241

                                   Layers used for templates



Result:-

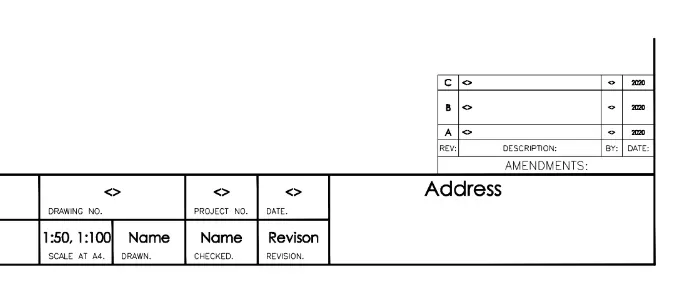

Aim:- To darft the tempalte custom2, title block

Procedure:-

By using direct distance entry method

• Here all the units are in Decimals (milimeter)
• Select the construction line tool by entering XL (Enter) in the command line
• Select the vertical line and place it any where on the screen
• Next by using a same command (construction line) select horizontal line and place it on the screen
• Take a offset of 1990mm, 70mm, 200mm, 100mm, 160mm from xl line in +ve x-direction
• Take a offset of 350mm from the xl line in -ve y-direction
• Trim off the 1990mm offset line Use a trim command to trim off the unwanted lines
• Take a offset of 1469.3mm, 200mm, 250mm, 600.7mm from the xl line in +ve x-direction
• Take a offset of 150mm from the 350mm line in -ve y-direction
• Take a offset of 1269.3mm, 200mm, 200mm, 250mm, 600.7mm from the xl line in +ve x-direction
• Take a offset of 150mm from the 350mm line in -ve y-direction
• Trim off the unwanted lines
• Make it as a block by using a block command B
• Then give a name for this block, pick a point of this drawing, then specify the object.
• Click on the convert into block, uniform scaling, allow exploding then click on ok
• Now the drawing what you selected is converted into the block

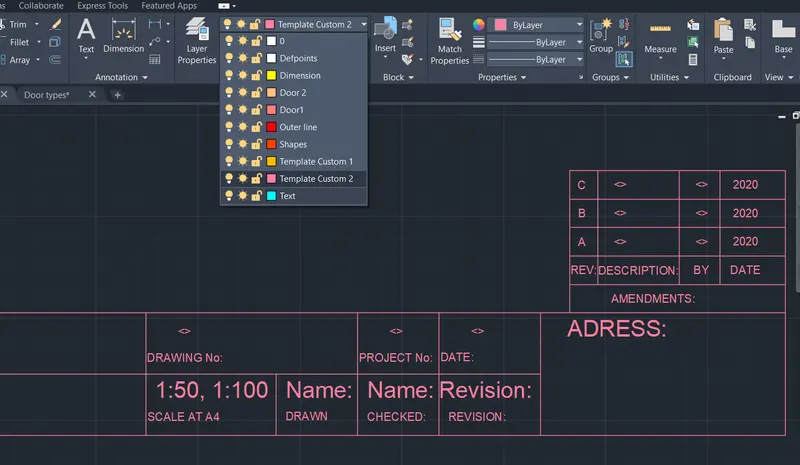

Layers used for the templates are

• Template custom 1 - ACI 40
• Template custom 2 - ACI 241

                                   Layers used for templates



Result:-

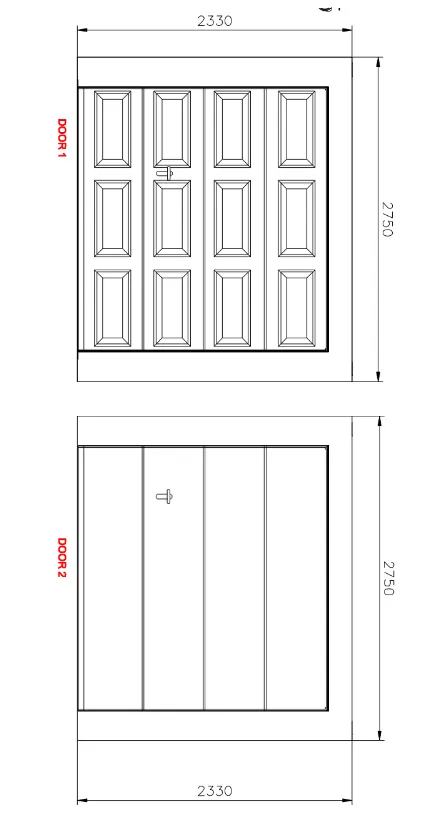

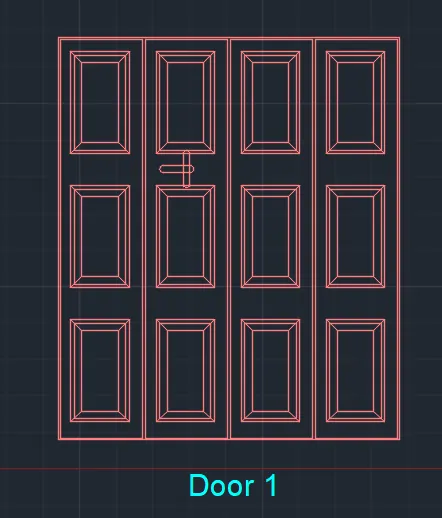

Aim :- To draft the door type door 1 by using AutoCAD



Procedure:-

By using direct distance entry method

• Here all the units are in Decimals (milimeter)
• Select the construction line tool by entering XL (Enter) in the command line
• Select the vertical line and place it any where on the screen
• Next by using a same command (construction line) select horizontal line and place it on the screen
• Take a rectangle by using a command REC having a size of 2330mmX2750mm
• Take a offset of 10mm from the created rectangle
• Use a X command to explode the lines in the rectangle
• Take a offset of 583mm from the outer rectangle which is exploded.Then offset it 4 times in +ve x-direction
• Take a offset of 10mm left and right from the every 583mm distance line
• Take a offset of 900mm from the outer rectangle from the top in -ve y-direction
• Create a door by using a rectangle REC having a dimension 400mmx700mm
• Take a offset of 25mm inwards from the 400x700mm rectangle
• Again take a offset of 50mm inwards from the 25mm rectangle
• Make it as a block by using a block command B

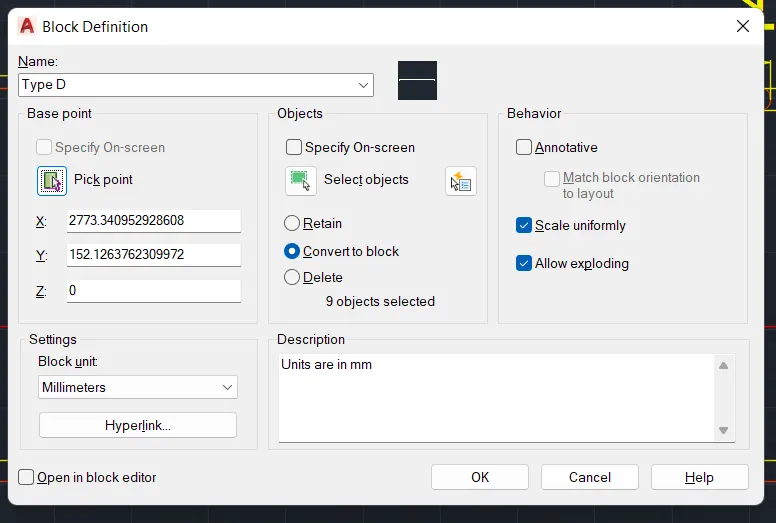

• Then give a name for this block, pick a point of this drawing, then specify the object.
• Click on the convert into block, uniform scaling, allow exploding then click on ok
• Now the drawing what you selected is converted into the block
• After making as a block use a copy command to copy the block object
• Place it as a 4x3 4 is in horizontal direction and 3 is in vertical direction

Layers used for door type drawings are

• D1 - ACI 31
• D2 - ACI 11
• Dimensions - Yellow
• Text - Cyan

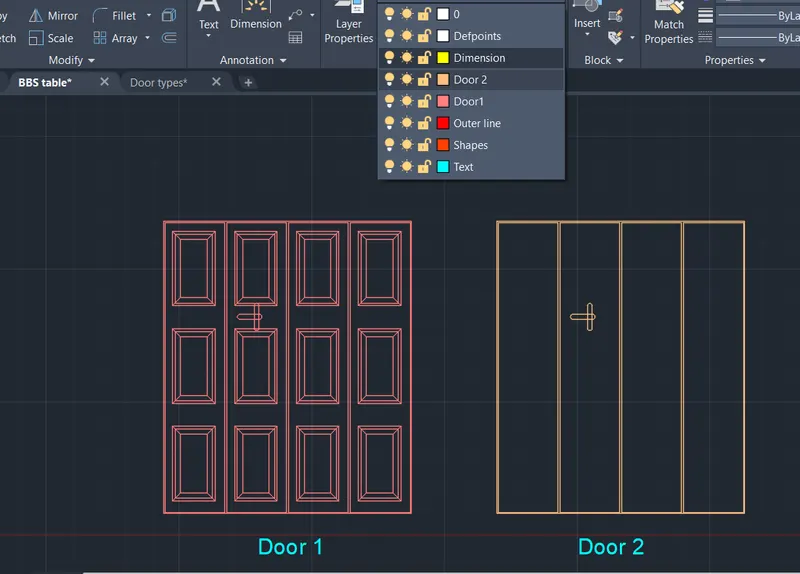

                                                         Layers for door types



Result:-

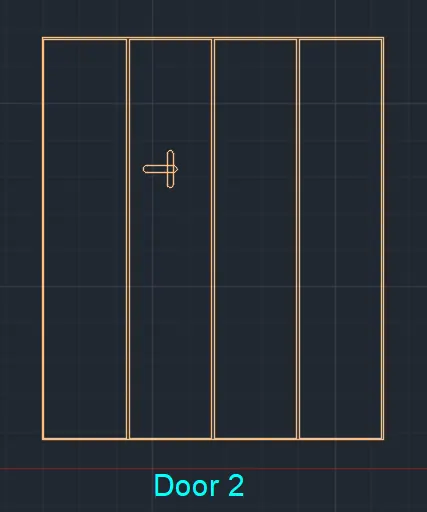

Aim :- To draft the door type door 2 by using AutoCAD



Procedure:-

By using direct distance entry method

• Here all the units are in Decimals (milimeter)
• Select the construction line tool by entering XL (Enter) in the command line
• Select the vertical line and place it any where on the screen
• Next by using a same command (construction line) select horizontal line and place it on the screen
• Take a rectangle by using a command REC having a size of 2330mmX2750mm
• Take a offset of 10mm from the created rectangle
• Use a X command to explode the lines in the rectangle
• Take a offset of 583mm from the outer rectangle which is exploded. Then offset it 4 times in +ve x-direction
• Take a offset of 10mm left and right from the every 583mm distance line
• Make it as a block by using a block command B
• Then give a name for this block, pick a point of this drawing, then specify the object.
• Click on the convert into block, uniform scaling, allow exploding then click on ok
• Now the drawing what you selected is converted into the block

Layers used for door type drawings are

• D1 - ACI 31
• D2 - ACI 11
• Dimensions - Yellow
• Text - Cyan

                                                         Layers for door types



Result:-

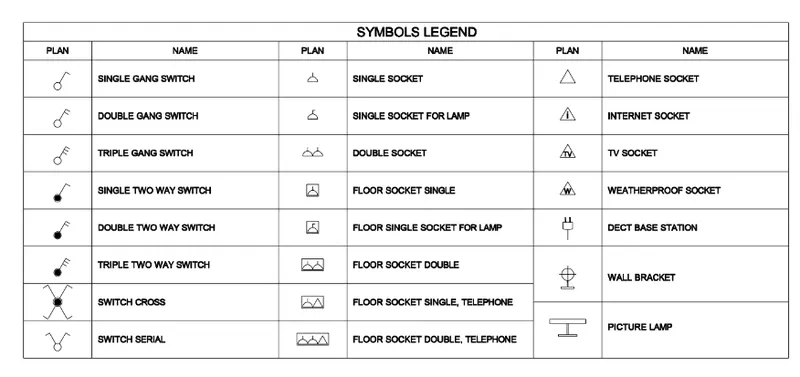

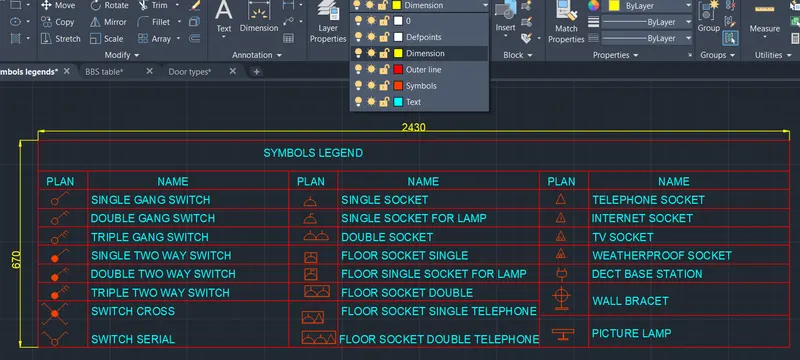

Aim:- To draft the symbols legend by using a AutoCAD

Procedure:-

By using direct distance entry method

• Here all the units are in Decimals (milimeter)
• Select the construction line tool by entering XL (Enter) in the command line
• Select the vertical line and place it any where on the screen
• Next by using a same command (construction line) select horizontal line and place it on the screen
• Take a offset of 160mm, 650mm, 160mm, 650mm, 160mm, 650mm from xl line in +ve x-direction
• Take a offset of 100mm, 60mm, 60mm, 60mm, 60mm, 60mm, 60mm, 60mm,45.7mm, 104.4mm from the xl line in -ve y-direction
• Use a trim command to trim off the unwanted lines
• Insert the text inside the lines by using a multitext (MTEXT) in the command
• Make a block of the symbols
• For example:- To draw the single gang switch use a circle command and draw the circle having the radius 10mm then draw a inclined line at 45 degree having a distance 40mm and draw the line of 10mm at the free end
• Draw the other symbols like this
• Make it as a block by using a block command B
• Then give a name for this block, pick a point of this drawing, then specify the object.
• Click on the convert into block, uniform scaling, allow exploding then click on ok
• Now the drawing what you selected is converted into the block
• Place the block symbols withrespect to their name



                                                           Block for single gang switch

Layers used for this drawings are

• Outer line - Red
• Symbols - ACI 20
• Text - Cyan
• Dimension - Yellow

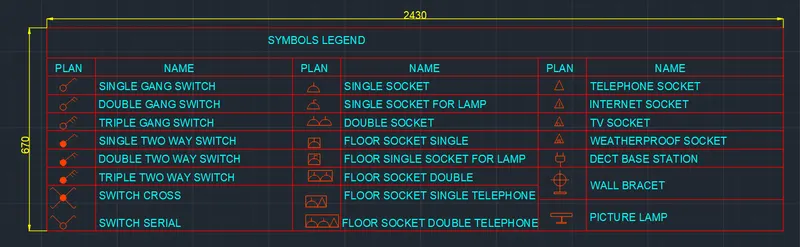

                                                              Layers for symbols legends



Result:-

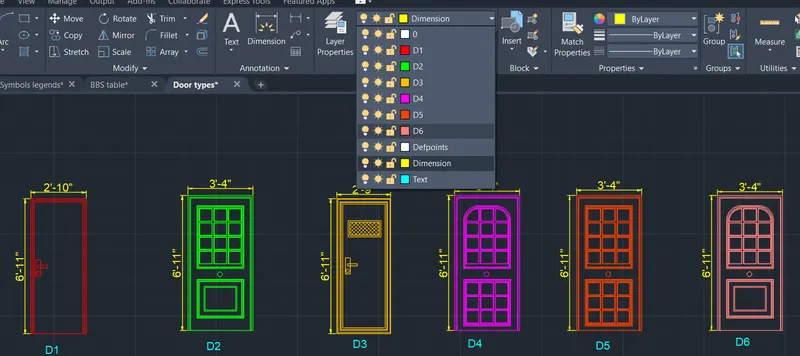

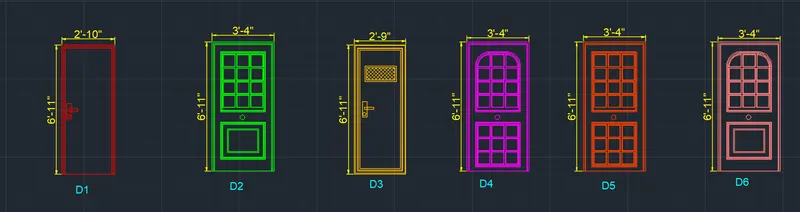

Aim:- To draft the door type for residential building

Procedure:-

By using direct distance entry method

• Here all the units are in Engineering (inches and feet's)
• Select the rectangle tool by entering REC (Enter) in the command line
• Also use the line tool by entering the L (Enter) in the command line

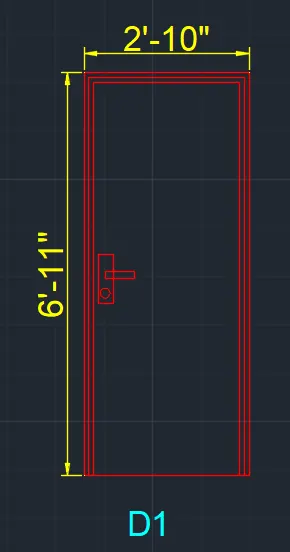

To get the D1

• Draw a rectangle by using a command REC having a size 2'-10" x 6'-11"
• Take a offset of 1" from the 2'-10" x 6'-11" rectangle
• Again take a offset of 1" from the 1" offset rectangle
• Use a explode option to explode the rectangle into line
• Trim off the bottom line by using a command TR enter
• Draw a rectangle having size 3"x10" to create the lock in the door
• In that rectangle draw a another rectangle having a size 6"x1.5" to create the handle
• Draw a circle inside the 3"x10" rectangle having a diameter 2"
• Make it as a block by using a block command B
• Then give a name for this block, pick a point of this drawing, then specify the object.
• Click on the convert into block, uniform scaling, allow exploding then click on ok
• Now the drawing what you selected is converted into the block



                                                                               Resident D1

To get the D2

• Draw a rectangle by using a command REC having a size 3'-4" x 6'-11"
• Take a offset of 1" and 0.5" from the 3'-4" x 6'-11" rectangle respectively
• Draw a rectangle having a size 2'-5"x3'-2.7" at the top
• Take a offset of 0.5" and 0.5" from the 2'-5"x3'-2.7" rectangle respectively
• Create a another rectangle inside the 2'-5"x3'-2.7" rectangle having a dimension 8"x8"
• Take a offset of 0.2" from the  8"x8" rectangle
• Place it as a 3x4  3 is in horizontal direction and 4 is in vertical direction
• Draw a rectangle having a size 2'-5"x2'-0" at the bottom
• Take a offset of 0.5", 0.5", 0.5" from the 2'-5"x2'-0" rectangle respectively
• Again take a offset of 3" and 0.5" from the last offseted 0.5" rectangle
• Use a explode option to explode the rectangle into line
• Trim off the bottom line by using a command TR enter
• Draw a circle between the top and bottom rectangle having a diameter 2"
• Make it as a block by using a block command B
• Then give a name for this block, pick a point of this drawing, then specify the object.
• Click on the convert into block, uniform scaling, allow exploding then click on ok
• Now the drawing what you selected is converted into the block

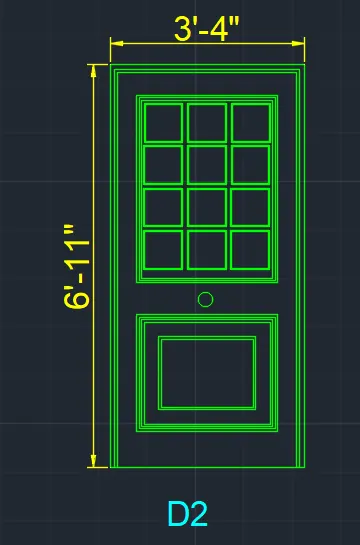

                                                                                  Resident D2

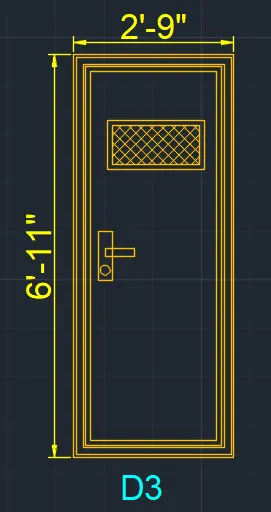

To get D3

• Draw a rectangle by using a command REC having a size 2'-9" x 6'-11"
• Take a offset of 0.5", 1.5", 0.5", and 1" respectively from the 2'-9" x 6'-11" rectangle
• Draw a rectangle inside the 2'-9" x 6'-11" rectangle having a size 1'-8"x10"
• Take a offset of 1" from the 1'-8"x10"rectangle
• Hatch the inside portion
• Use a explode option to explode the rectangle into line
• Trim off the bottom line by using a command TR enter
• Draw a rectangle having size 3"x10" to create the lock in the door
• In that rectangle draw a another rectangle having a size 6"x1.5" to create the handle
• Draw a circle inside the 3"x10" rectangle having a diameter 2"
• Make it as a block by using a block command B
• Then give a name for this block, pick a point of this drawing, then specify the object.
• Click on the convert into block, uniform scaling, allow exploding then click on ok
• Now the drawing what you selected is converted into the block

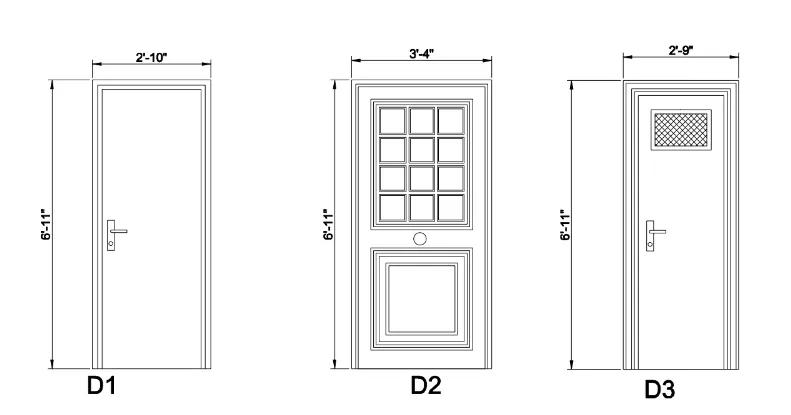

                                                                              Resident D3



To get the D4

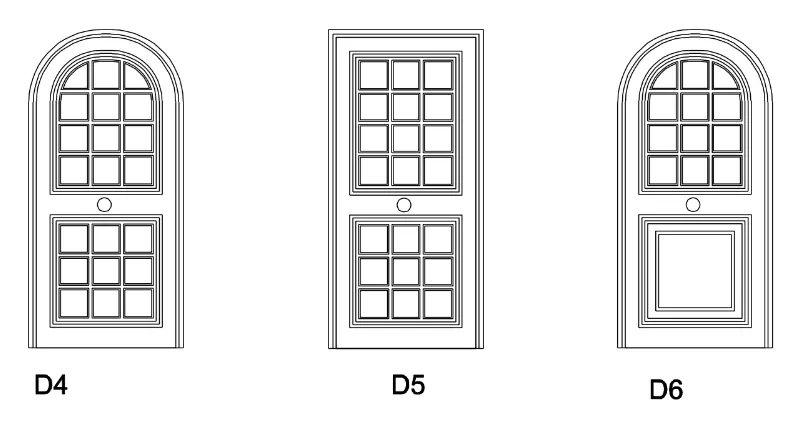

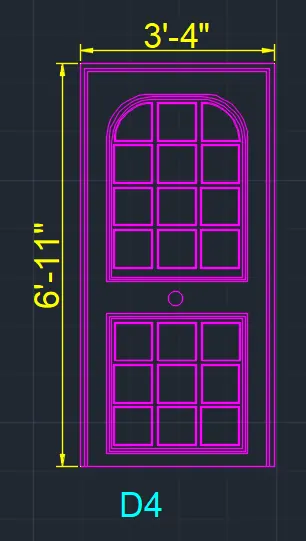

• Draw a rectangle by using a command REC having a size 3'-4" x 6'-11"
• Take a offset of 1" and 0.5" from the 3'-4" x 6'-11" rectangle respectively
• Draw a rectangle having a size 2'-5"x3'-2.7" at the top
• Take a offset of 0.5" and 0.5" from the 2'-5"x3'-2.7" rectangle respectively
• Create a another rectangle inside the 2'-5"x3'-2.7" rectangle having a dimension 8"x8"
• Take a offset of 0.2" from the  8"x8" rectangle
• Place it as a 3x4  3 is in horizontal direction and 4 is in vertical direction
• Draw a rectangle having a size 2'-5"x2'-4.8" at the bottom
• Take a offset of 0.5" and 0.5" from the 2'-5"x2'-4.8" rectangle respectively
• Create a another rectangle inside the 2'-5"x2'-4.8" rectangle having a dimension 8"x8"
• Take a offset of 0.2" from the  8"x8" rectangle
• Place it as a 3x3  3 is in horizontal direction and 3 is in vertical direction
• Use a explode option to explode the rectangle into line
• Trim off the bottom line by using a command TR enter
• Draw a circle between the top and bottom rectangle having a diameter 2"
• Make a curve at the inside portion having a radius value 7.6" at left and right sides in the panel
• Make it as a block by using a block command B
• Then give a name for this block, pick a point of this drawing, then specify the object.
• Click on the convert into block, uniform scaling, allow exploding then click on ok
• Now the drawing what you selected is converted into the block



                                                                               Resident D4

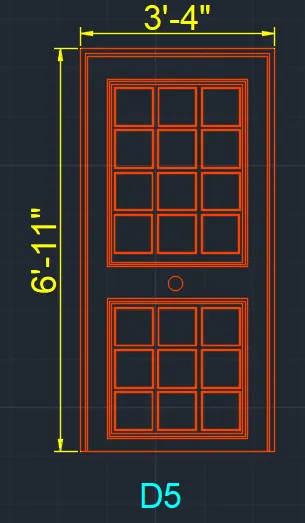

To get the D5

• Draw a rectangle by using a command REC having a size 3'-4" x 6'-11"
• Take a offset of 1" and 0.5" from the 3'-4" x 6'-11" rectangle respectively
• Draw a rectangle having a size 2'-5"x3'-2.7" at the top
• Take a offset of 0.5" and 0.5" from the 2'-5"x3'-2.7" rectangle respectively
• Create a another rectangle inside the 2'-5"x3'-2.7" rectangle having a dimension 8"x8"
• Take a offset of 0.2" from the  8"x8" rectangle
• Place it as a 3x4  3 is in horizontal direction and 4 is in vertical direction
• Draw a rectangle having a size 2'-5"x2'-4.8" at the bottom
• Take a offset of 0.5" and 0.5" from the 2'-5"x2'-4.8" rectangle respectively
• Create a another rectangle inside the 2'-5"x2'-4.8" rectangle having a dimension 8"x8"
• Take a offset of 0.2" from the  8"x8" rectangle
• Place it as a 3x3  3 is in horizontal direction and 3 is in vertical direction
• Use a explode option to explode the rectangle into line
• Trim off the bottom line by using a command TR enter
• Draw a circle between the top and bottom rectangle having a diameter 2"
• Make it as a block by using a block command B
• Then give a name for this block, pick a point of this drawing, then specify the object.
• Click on the convert into block, uniform scaling, allow exploding then click on ok
• Now the drawing what you selected is converted into the block



                                                                      Resident D5

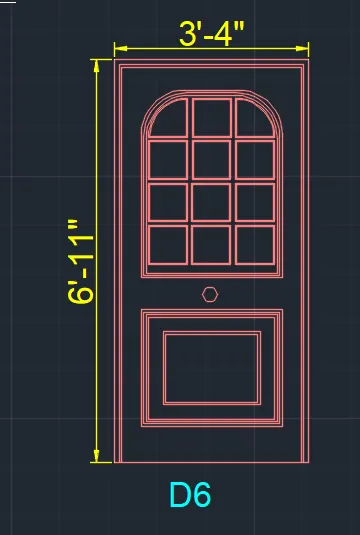

To get the D6

• Draw a rectangle by using a command REC having a size 3'-4" x 6'-11"
• Take a offset of 1" and 0.5" from the 3'-4" x 6'-11" rectangle respectively
• Draw a rectangle having a size 2'-5"x3'-2.7" at the top
• Take a offset of 0.5" and 0.5" from the 2'-5"x3'-2.7" rectangle respectively
• Create a another rectangle inside the 2'-5"x3'-2.7" rectangle having a dimension 8"x8"
• Take a offset of 0.2" from the  8"x8" rectangle
• Place it as a 3x4  3 is in horizontal direction and 4 is in vertical direction
• Make a curve at the inside portion having a radius value 7.6" at left and right sides in the panel
• Draw a rectangle having a size 2'-5"x2'-0" at the bottom
• Take a offset of 0.5", 0.5", 0.5" from the 2'-5"x2'-0" rectangle respectively
• Again take a offset of 3" and 0.5" from the last offseted 0.5" rectangle
• Use a explode option to explode the rectangle into line
• Trim off the bottom line by using a command TR enter
• Draw a circle between the top and bottom rectangle having a diameter 2"
• Make it as a block by using a block command B
• Then give a name for this block, pick a point of this drawing, then specify the object.
• Click on the convert into block, uniform scaling, allow exploding then click on ok
• Now the drawing what you selected is converted into the block



                                                                                  Resident D6



Layers used for this drawings are

• D1 - Red
• D2 - Green
• D3- ACI 40
• D4 - Magenta
• D5 - ACI 20
• D6 - ACI 11
• Dimension - Yellow
• Text - Cyan





Result:-

                                                         All doors D1,D2,D3,D4,D5,D6







Aim:- To draft the shape of the barbending schedule by using a AutoCAD

Procedure:-

By using direct distance entry method

• Here all the units are in Decimals (milimeter)
• Select the construction line tool by entering XL (Enter) in the command line
• Select the vertical line and place it any where on the screen
• Next by using a same command (construction line) select horizontal line and place it on the screen
• Take a offset of 300mm, 1000mm, 300mm, 200mm, 500mm, 500mm, 500mm from xl line in +ve x-direction
• Take a offset of 160mm, 250mm, 250mm, 250mm, 250mm, 250mm from the xl line in -ve y-direction

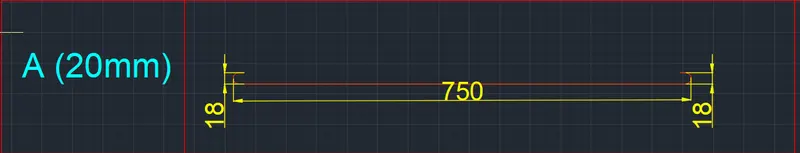

To get A type

• Draw a line by using a command L having a length 750mm and draw a 18mm upwards then left wards at each ends
• Take fillet command to provide a smooth curve at the edges the radius is 8mm
• Make it as a block by using a block command B
• Then give a name for this block, pick a point of this drawing, then specify the object.
• Click on the convert into block, uniform scaling, allow exploding then click on ok
• Now the drawing what you selected is converted into the block

                                                                         Type  A drawing



                                                                         Type A block



To get B type

• Draw a line by using a command L having a length 390mm, draw inclination length 41mm at each ends of the line then draw a line having a distance 139mm at each end At last draw a 14.5mm down wards and right side at each ends
• Take fillet command to provide a smooth curve at the edges the radius is 6mm
• Make it as a block by using a block command B
• Then give a name for this block, pick a point of this drawing, then specify the object.
• Click on the convert into block, uniform scaling, allow exploding then click on ok
• Now the drawing what you selected is converted into the block

                                                                     Type B drawing



                                                                     Type B block

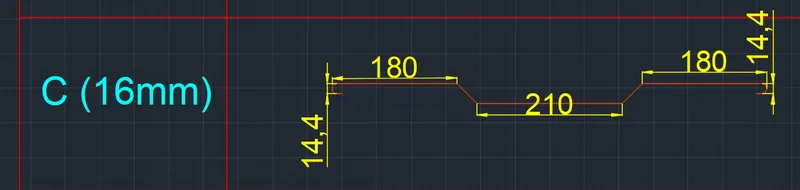

To get C type

• Draw a line by using a command L having a length 210mm, draw inclination length 41mm at each ends of the line then draw a line having a distance 180mm at each end At last draw a 14.4mm down wards and right side at each ends
• Take fillet command to provide a smooth curve at the edges the radius is 6mm
• Make it as a block by using a block command B
• Then give a name for this block, pick a point of this drawing, then specify the object.
• Click on the convert into block, uniform scaling, allow exploding then click on ok
• Now the drawing what you selected is converted into the block

                                                                       Type C drawing



                                                                        Type C block

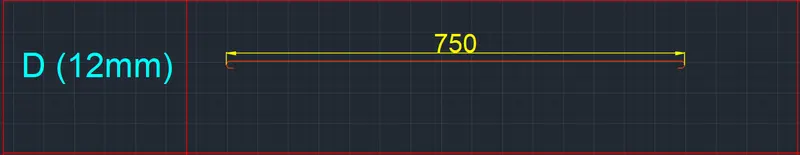

To get D type

• Draw a line by using a command L having a length 750mm and draw a 11mm downwards then rightside at each ends
• Take fillet command to provide a smooth curve at the edges the radius is 5mm
• Make it as a block by using a block command B
• Then give a name for this block, pick a point of this drawing, then specify the object.
• Click on the convert into block, uniform scaling, allow exploding then click on ok
• Now the drawing what you selected is converted into the block

                                                                            Type D drawing



                                                                          Type D block

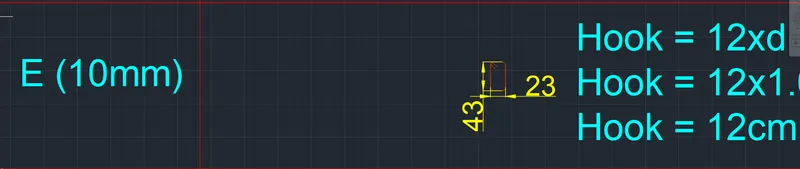

To get E type

• Draw a rectangle by using a rectangle command REC having a size 23mmx43mm
• Take fillet command to provide a smooth curve at the edges the radius is 4mm
• Make it as a block by using a block command B
• Then give a name for this block, pick a point of this drawing, then specify the object.
• Click on the convert into block, uniform scaling, allow exploding then click on ok
• Now the drawing what you selected is converted into the block

                                                                             Type E drawing



                                                                    Type E block

Layers used for this drafts are

• Outer line - Red
• Shapes - ACI 20
• Text - Cyan
• Dimension - Yellow







Result:-
