Creating a Wardrobe detailed drawing, Floor Plan, Kitchen Layout and Column Detail using AutoCad

Aim:- To draft the Elevation, Floor plan, Kitchen layout, Column schedule and Raft layout by using AutoCAD

Introduction:-

• The Elevation, Floor plan, Kitchen layout, Column schedule and Raft layout are imporatant drawings in construction
• Elevation gives a front and side elevation and also a section of that drawing
• Floor plan is a basic drawing that gives  the idea of building look like

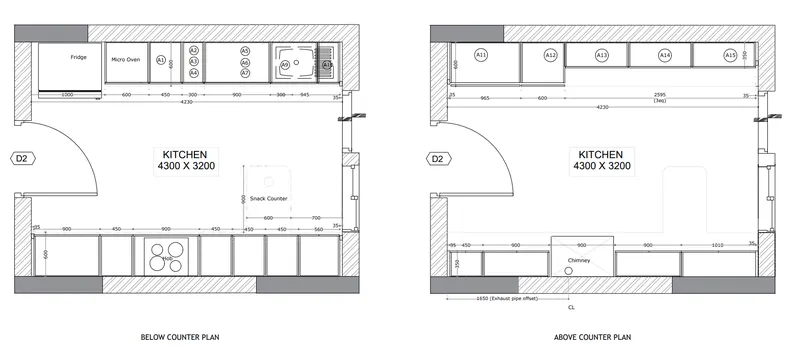

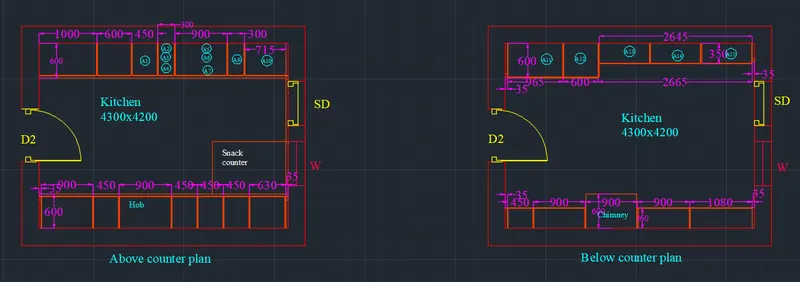

• Kitchen layout is important in the building

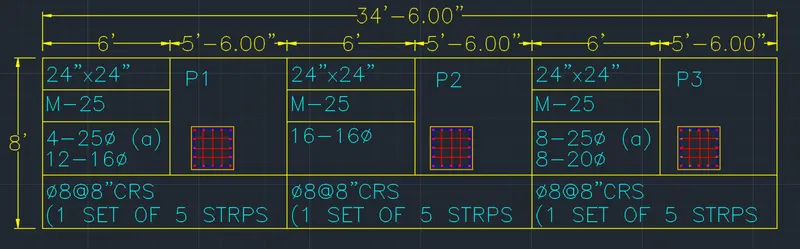

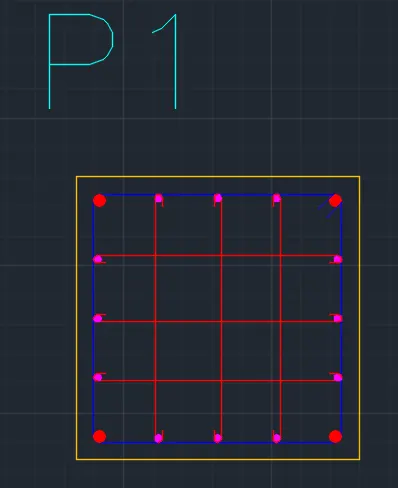

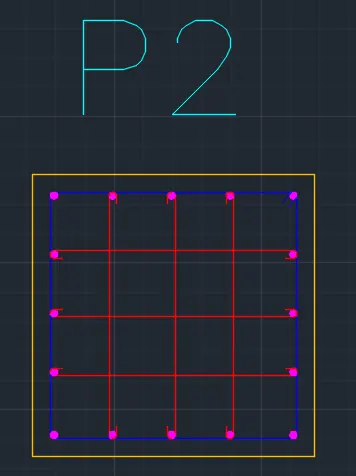

• Column schedule plays an imporatnt role in the drawing

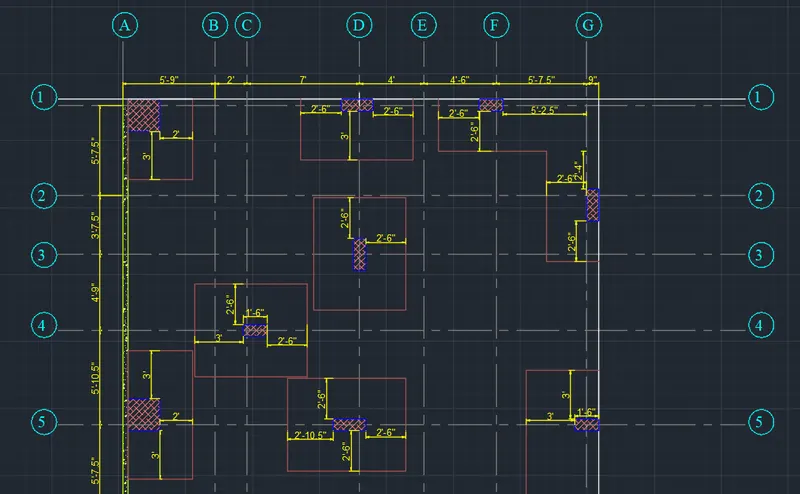

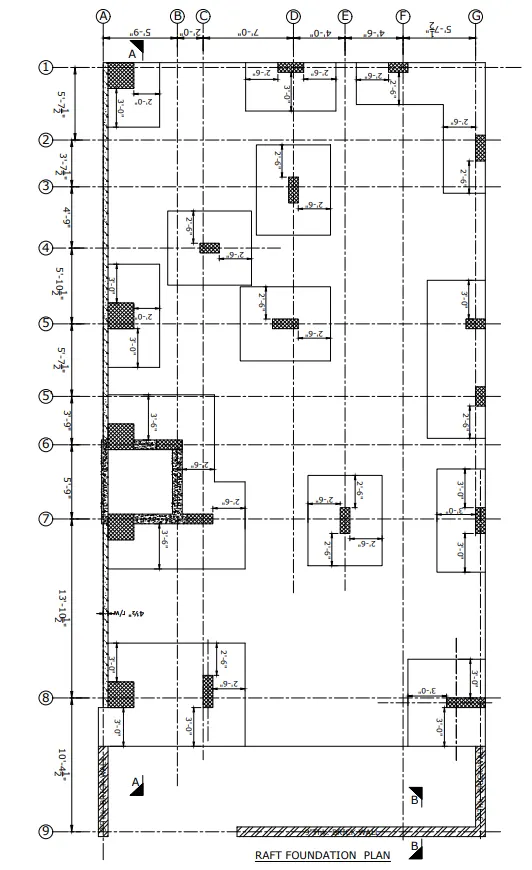

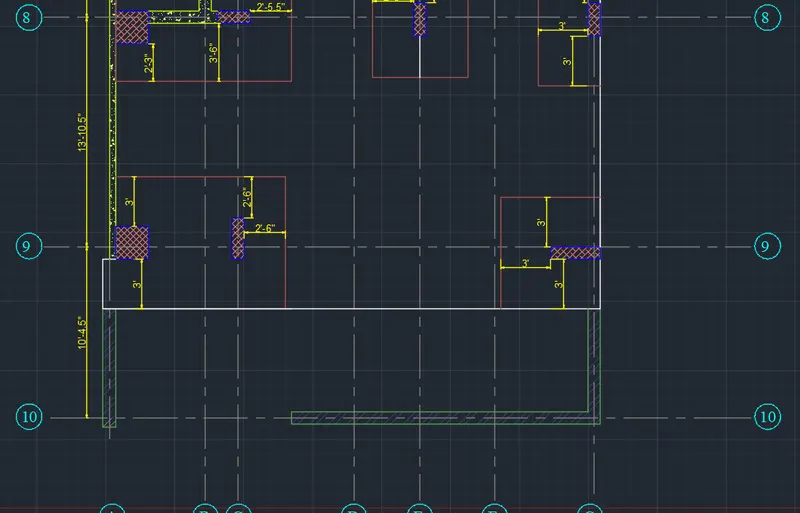

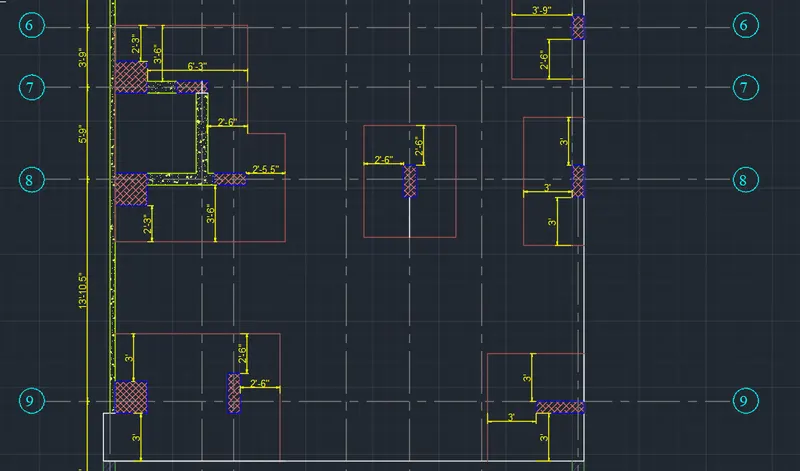

• Raft layout gives the center to center distance between the column and also it gives the dimension of the foundation

AutoCAD:-

It is essential to draft the geometry

The different tools required in this drafts are construction line  (XL), text(MTEXT), donut (DO), fillet (F), offset (O), Hatching (H) and Hatch edit (HE).



Procedure:-

• Go to start menu, click on Start drawing
• Type stratup (Enter) in command line
• Enter the new value of start up:1

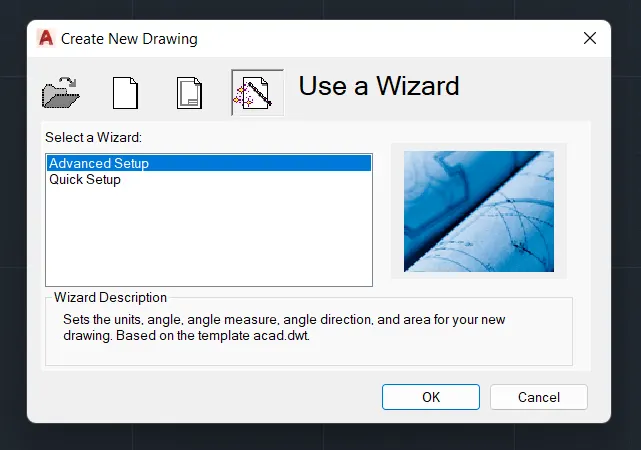

• Go to application menu and select new or type new in command line
• In the "create new drawing" dialogue box contains imperial  type of systems and metric type of system
• We select the metric system in the "start from scratch" option
• After that in Advance setup option select the decimal unit system in the units

The above procedure should be followed every time when the new sheet is opened

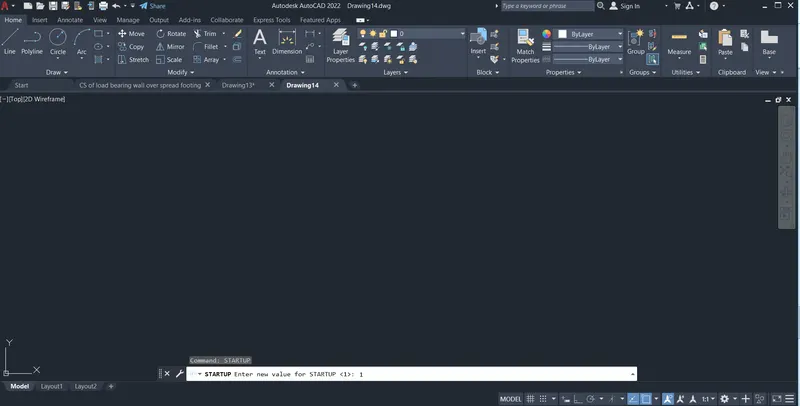

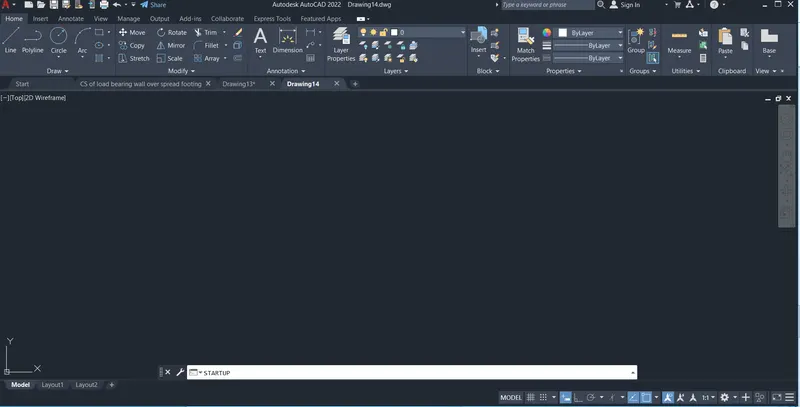

                               Entering the start up command in the command line





                             Entering the value 1 for the start up

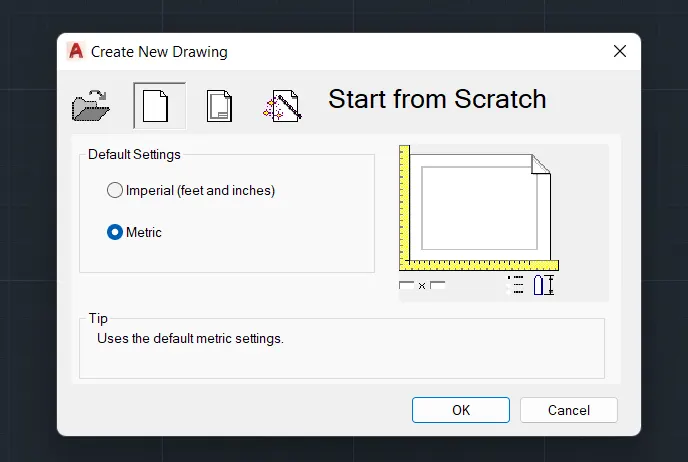

                            When we go to the new file then we get this file select the metric from start from scratch





                           Then advance setup setting should be done by clicking OK

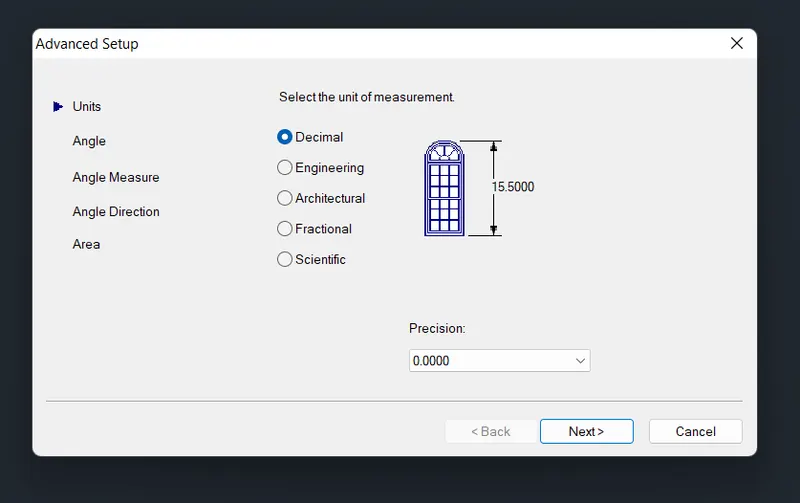

                          Keep the units in decimal and adjust precision then click next

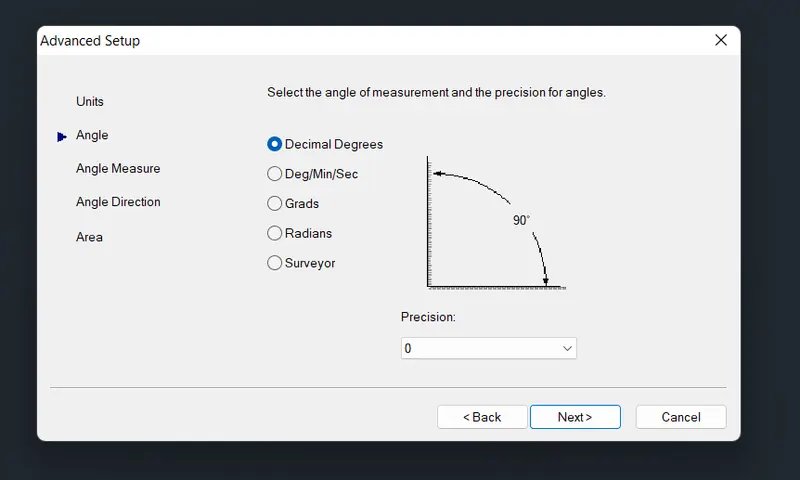

                           Keep angle in decimal degree and adjust precision then click next

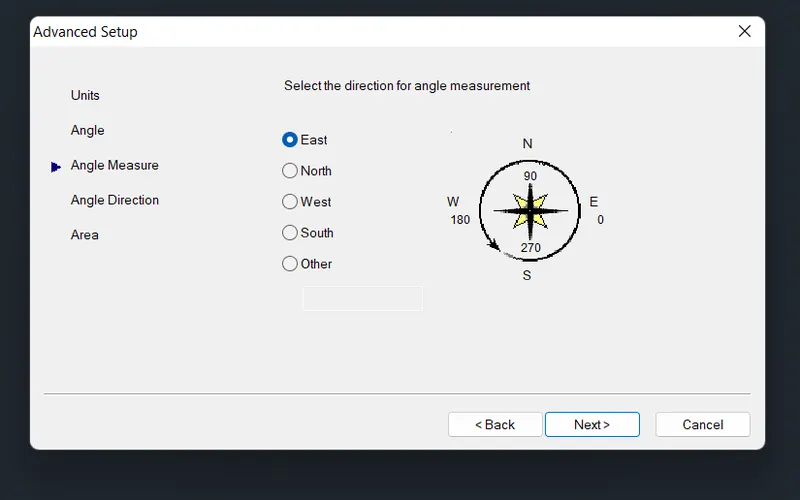

                          Select the angle measurement in east and click on next

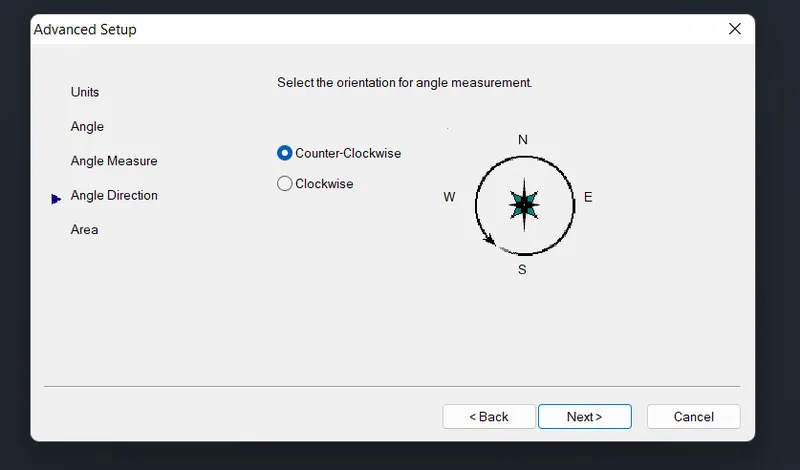

                            Select angle direction in counter clockwise and click on next

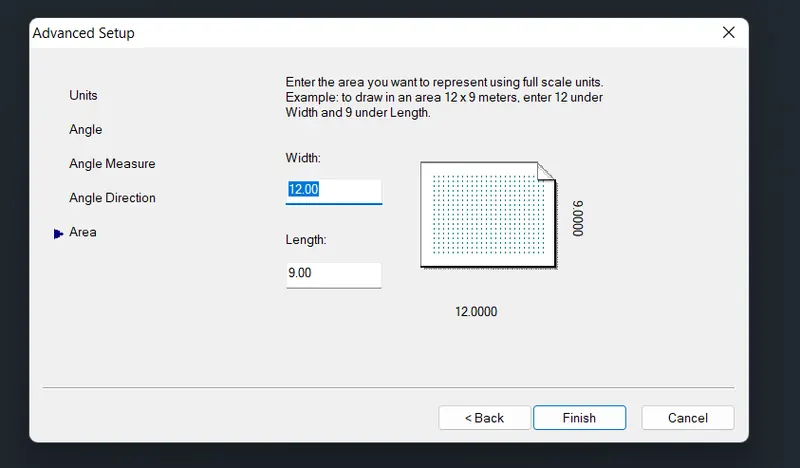

                           Keep the width as 12m and length of 9m as default and click on finish

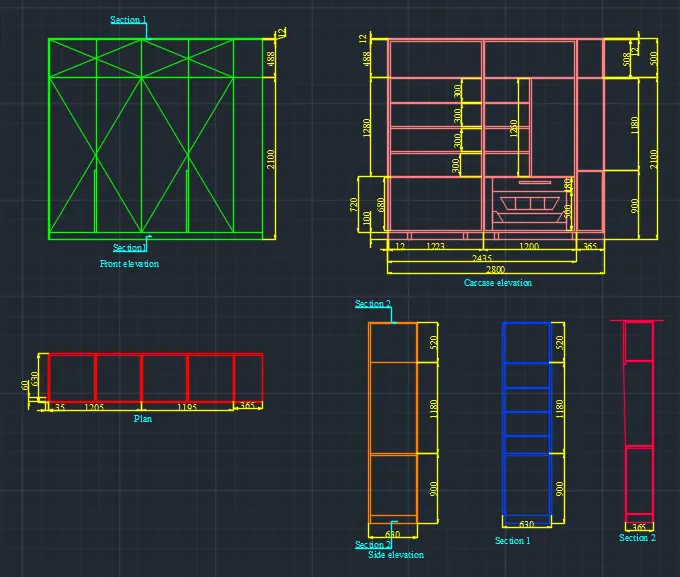

Aim:- To draft the elevation by using AutoCAD

Procedure:-

By using direct distance entry method

• Here all the units are in metric (millimetre)
• Select the construction line tool by entering XL (Enter) in the command line
• Select the vertical line and place it any where on the screen
• Next by using a same command (construction line) select horizontal line and place it on the screen

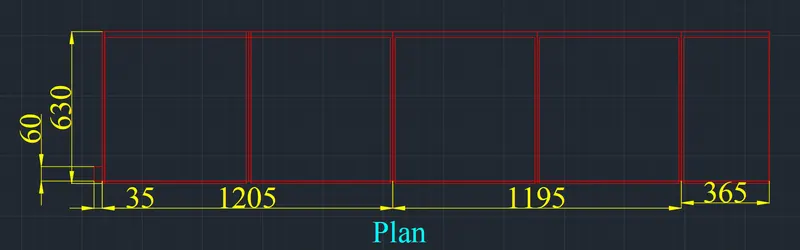

To draw the plan

• Take a offset of 630mm from the top xl line
• Take a offset of 1250mm from the left in +ve x-direction
• Take a offset of 1195mm from the 1250mm line in +ve x-direction
• Take a offset of 365mm from the 1195mm line in +ve x-direction
• Take a offset of 10mm from every offseted line in both +ve and -ve x-direction

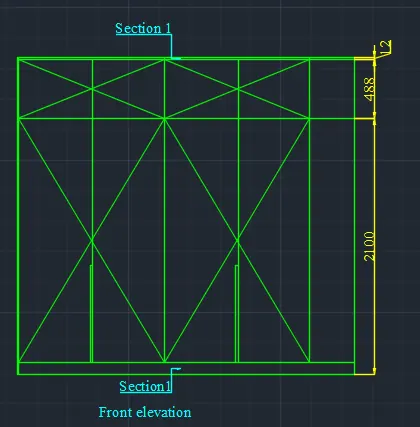

To draw the front elevation

• Project the lines by using the command XL (constrction line) from the plan
• Take a offset of 100mm from the bottom xl line in +ve y-direction
• Take a offset of 2100mm from the bottom of 100mm line in +ve y-direction
• Take a offset of 488mm from the 2100mm line in +ve y-direction
• Take a offset of 12mm from the 488mm line in +ve y-direction

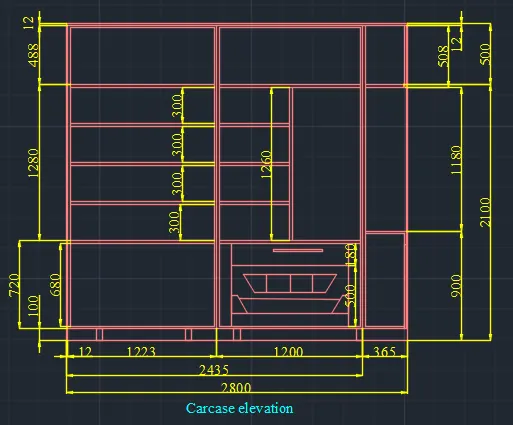

To draw the carcase elevation

• Project the lines by using the command XL (constrction line) from the plan
• Take a offset of 12mm from the left in +ve x-direction
• Take a offset of 1223mm from the 12mm line in +ve x-direction
• Take a offset of 1200mm from the 1223mm line in +ve x-direction
• Take a offset of 365mm from the 1200mm line in +ve x-direction
• Take a offset of 1195mm from the 1250mm line in +ve x-direction
• Take a offset of 365mm from the 1195mm line in +ve x-direction

In left side

• Take a offset of 100mm from the bottom xl line in +ve y-direction
• Take a offset of 720mm from the bottom of 100mm line in +ve y-direction
• Take a offset of 1280mm from the 720mm line in +ve y-direction
• Take a offset of 488mm from the 1280mm line in +ve y-direction
• Take a offset of 12mm from the  488mm in +ve x-direction

In middle side

• Take a offset of 500mm from the 120mm line in +ve y-direction
• Take a offset of 180mm from the 500mm line in +ve y-direction
• Take a offset of 300mm from the 720mm line in +ve y-direction
• Again take a offset of 300mm from the below 300mm line in +ve y-direction
• Again take a offset of 300mm from the below 300mm line in +ve y-direction
• Again take a offset of 300mm from the below 300mm line in +ve y-direction
• Again take a offset of 300mm from the below 300mm line in +ve y-direction

In right side

• Take a offset of 900mm from the base line in +ve y-direction
• All the required values are get by the left and middle side projections
• Then we get 1180mm, 500mm, and 12mm in +ve y-direction

Side elevations

• Take a offset of 900mm from the base line which has a width of 630mm in +ve y-axis
• Take a offset of 1180mm from 900mm line in +ve y-axis
• Take a offset of 520mm from 1180mm line in +ve y-axis

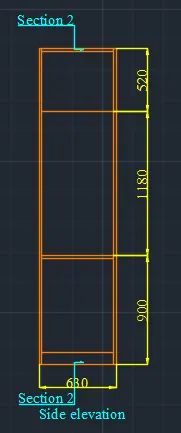

                                                                 side elevation

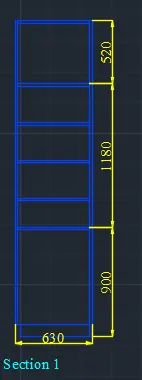

Section 1

• Take a offset of 900mm from the base line which has a width of 630mm in +ve y-axis
• Take a offset of 1180mm from 900mm line in +ve y-axis
• Take a offset of 520mm from 1180mm line in +ve y-axis



                                                             Section 1



Section 2

• Take a offset of 900mm from the base line which has a width of 365mm in +ve y-axis
• Take a offset of 1180mm from 900mm line in +ve y-axis
• Take a offset of 520mm from 1180mm line in +ve y-axis

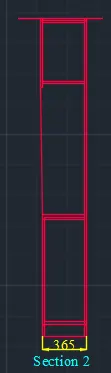

                                                             Section 2

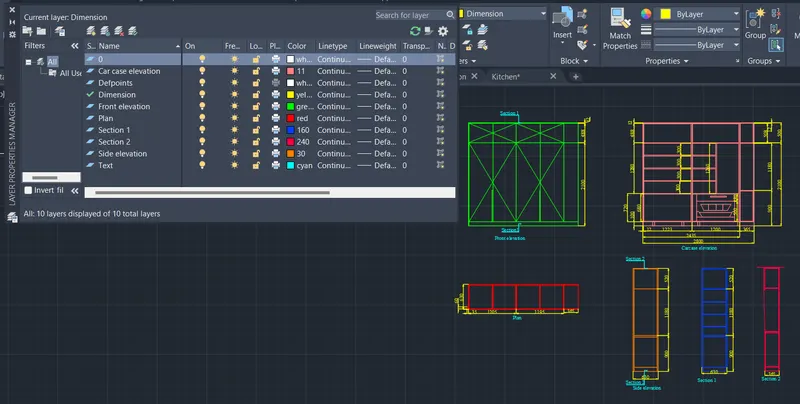

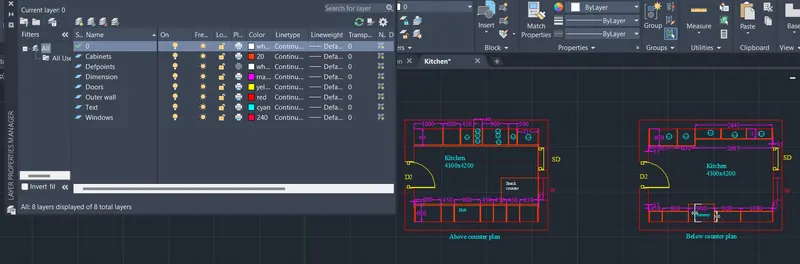

Layers used are

• Plan - Red
• Front elevation - Green
• Carcase elevation - ACI 11
• Side elevation - ACI 30
• Section 1 - ACI 160
• Section 2 - ACI 240
• Dimension -Yellow
• Text - Cyan

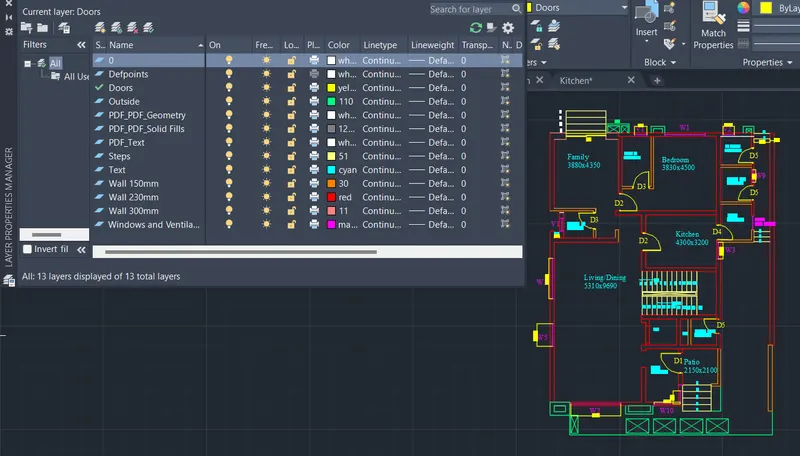

                                      Layers for Plan,Elevation and section



Result:-



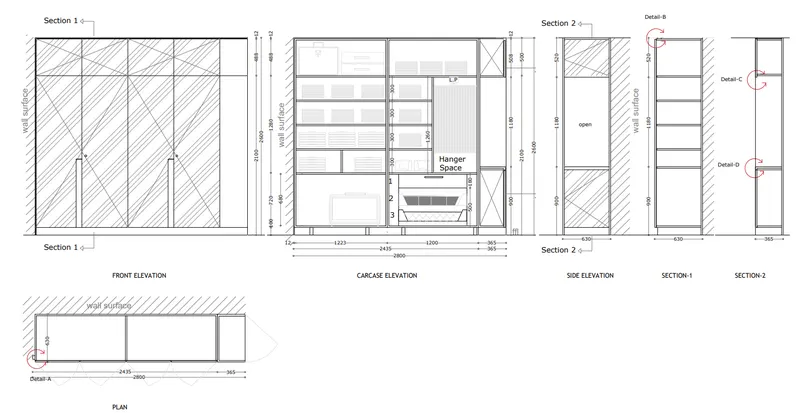

                                      Plan, Elevation and sections in AutoCAD

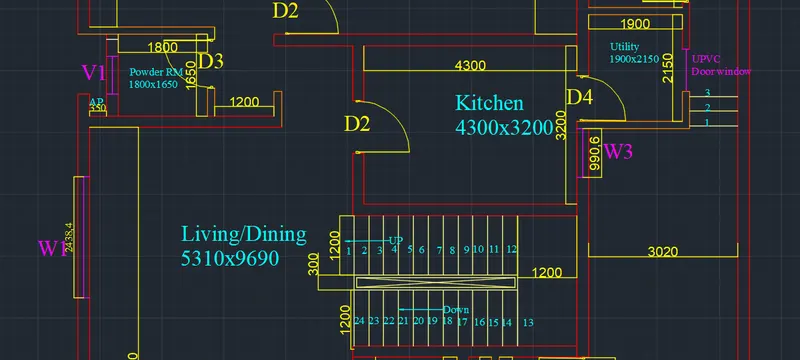

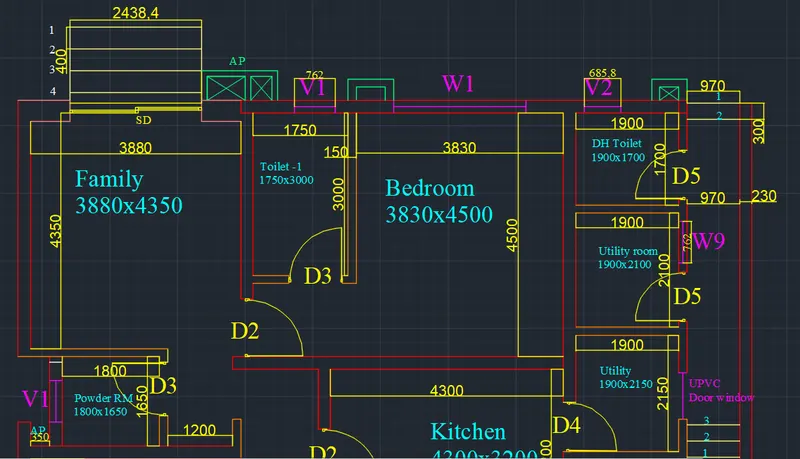

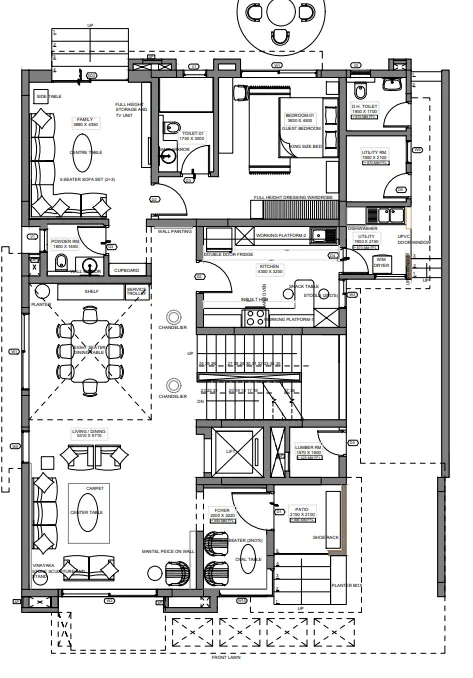

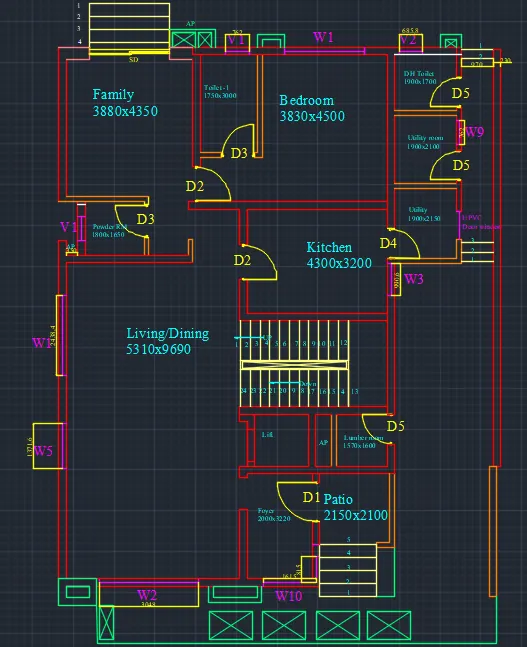

Aim :- To draft the floor plan





Procedure:-

By using direct distance entry method

• Here all the units are in Decimals (milimeter)
• Select the construction line tool by entering XL (Enter) in the command line
• Select the vertical line and place it any where on the screen
• Next by using a same command (construction line) select horizontal line and place it on the screen
• Take a offset of 230mm for the outer wall from the vertical line
• Take a offset of 230mm for the outer wall from the horizontal line

To get family room

• Take a offset of 3880 right side from the 230mm outer wall vertical line +ve x-direction
• Take a offset of 4350mm downwards from the 230mm outer wall horizontal line -ve y-direction
• Trim off unwanted lines inside the rooms

To get toilet 1

• Take a offset of 230mm right side from the 3880mm line to get inner wall +ve x-direction
• Take a offset of 1750mm right side from the 230mm line +ve x-direction
• Take a offset of 3000mm downwards from the 230mm line -ve y-direction
• Trim off unwanted lines inside toilets

To get bedroom room

• Take a offset of 150mm right side from the 1750mm line to get inner wall +ve x-direction
• Take a offset of 3830 right side from the 150mm wall vertical line +ve x-direction
• Take a offset of 4500mm downwards from the 230mm outer wall horizontal line -ve y-direction
• Trim off unwanted lines inside the rooms

To get D.H Toilet, utility rooms

• Take a offset of 230mm from the 3830mm wall +ve x-direction
• Take a offset of 1900mm from the 230mm vertical wall +ve x-direction
• Take a offset of 1700mm downwards from the 230mm wall -ve y-direction
• Take a offset of 150mm downwards from the 1700mm wall -ve y-direction
• Take a offset of 2100mm downwards from the 150mm wall -ve y-direction
• Take a offset of 150mm downwards from the 2100mm wall-ve y-direction
• Take a offset of 2150mm downwards from the 150mm wall -ve y-direction
• Take a offset of 150mm downwards from the 2150mm wall -ve y-direction
• Take a offset of 150mm vertically from the 1900mm wall +ve x-direction
• Take a offset of 970mm vertically from the 150mm wall +ve x-direction
• Take a offset of 230mm vertically from the 970mm wall +ve x-direction

To get the AP and Powder RM

• Take a offset of 350mm right side from the 230mm outer wall vertical line to make AP +ve x-direction
• Take a offset of 230mm rightside from the 350mm outer wall horizontal line +ve x-direction
• Take a offset of 1800mm right side from the 230mm wall vertically +ve x-direction
• Take a offset of 150mm rightside from the 1800mm wall vertically +ve x-direction
• Take a offset of 1200mm rightside from the 150mm wall vertically +ve x-direction
• Take a offset of 150mm rightside from the 1200mm wall vertically +ve x-direction

To get kitchen

• Take a offset of 4300mm from the 230mm wall near the utility in -ve x-direction
• Take a offset of 3200mm from the 230mm wall near the bed room in -ve y-direction
• Take a offset of 230mm from the 3200mm wall
• Trim the unwanted line from the command TR

To get stairs

• Take a offset of 1200mm from 230mm wall which is near the kitchen in -ve-y direction
• Take a offset of 300mm from the 1200mm line to create the railings in -ve-y direction
• Take a offset of 1200mm from 300mm railings in -ve-y direction
• The width of the first flight is 1200mm and width of second flight is 1200mm
• The tread size of the steps is 300mm and riser size of step is 150mm

To get the Lift,AP and Lumber room

• Take a offset of 230mm downwards from the stair wall in -ve y-direction
• Take a offset of 1600mm downwards from the 230mm wall in -ve y-direction
• Take a offset of 1570mm left side from the 230mm wall vertically -ve x-direction
• Take a offset of 150mm left side from the 1570mm wall vertically -ve x-direction
• Take a offset of 470mm, from 470mm take offset of 230mm, from 230mm take offset of 1650mm, from 1650mm take offset of 230mm in -ve x-direction

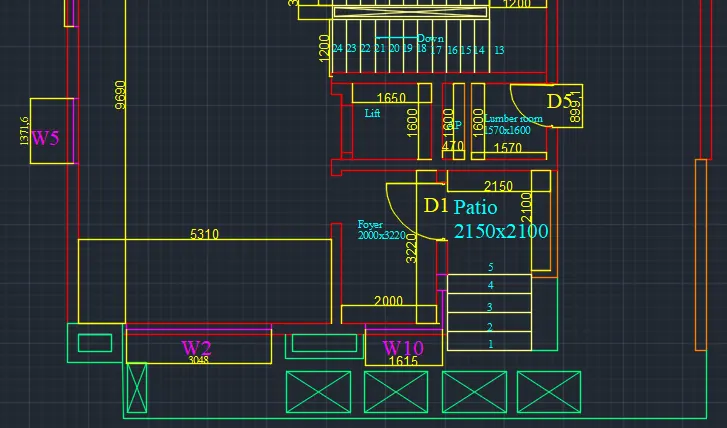

To get foyer and patio

• Take a offset of 230mm from the 1600mm line which is near the lumber room
• Again take a offset of 3220 from 230mm wall in -ve y-direction
• Again take a offset of 2100 from 230mm wall in -ve y-direction
• Take a offset of 150mm from the 230mm wall which is near the lumber room
• Take a offset of 2150mm from the 150mm wall in -ve x-direction
• Take a offset of 230mm from the 2150mm wall in -ve x-direction
• Take a offset of 2000mm from the 23mm wall in -ve x-direction

To get living or dining room

• The reamining area is the living or dining room

To draft door D1

• Draw a line of 1220 and create a frame of 150mm vertical line and 100mm horizontal line by using line
• By using a start end angle method in arc draw a curve having an angle of 90 degree



To draft door D2

• Draw a line of 1067 and create a frame of 150mm vertical line and 100mm horizontal line by using line
• By using a start end angle method in arc draw a curve having an angle of 90 degree

To draft door D3

• Draw a line of 990 and create a frame of 150mm vertical line and 100mm horizontal line by using line
• By using a start end angle method in arc draw a curve having an angle of 90 degree

To draft door D4 and D5

• Draw a line of 915 and create a frame of 150mm vertical line and 100mm horizontal line by using line
• By using a start end angle method in arc draw a curve having an angle of 90 degree

To draft Window 1

• Draw a line from the mid point of the room to the wall
• Take a offset of 1219.2mm from the mid line of room to the left and right side of that line
• Join a line to the mid of 2 lines which is attached to room wall

To draft Window 2

• Draw a line from the mid point of the room to the wall
• Take a offset of 1524mm from the mid line of  room to the left and right side of that line
• Join a line to the mid of 2 lines which is attached to room wall

To draft Window 3

• Draw a line from the mid point of the room to the wall
• Take a offset of  495.3 from the mid line of room to the left and right side of that line
• Join a line to the mid of 2 lines which is attached to room wall

To draft Window 5

• Draw a line from the mid point of the room to the wall
• Take a offset of 685.8 from the mid line of room to the left and right side of that line
• Join a line to the mid of 2 lines which is attached to room wall

To draft Window 9

• Draw a line from the mid point of the room to the wall
• Take a offset of 381 from the mid line of living room to the left and right side of that line
• Join a line to the mid of 2 lines which is attached to room wall

To draft Window 10

• Draw a line from the mid point of the room to the wall
• Take a offset of 1215 from the mid line of living room to the left and right side of that line
• Join a line to the mid of 2 lines which is attached to room wall

To draft Ventilator 1

• Draw a line from the mid point of the room to the wall
• Take a offset of 381m from the mid line of room to the left and right side of that line
• Join a line to the mid of 2 lines which is attached to room wall

To draft Ventilator 2

• Draw a line from the mid point of the room to the wall
• Take a offset of 342.9mm from the mid line of room to the left and right side of that line
• Join a line to the mid of 2 lines which is attached to room wall

                                                                Floor plan above with dimensions

                                                     Floor plan mid with dimensions

                                                  Floor plan below with dimension



Layer used are

• Wall 300mm - ACI 11
• Wall 230mm - Red
• Wall 150mm - ACI 30
• Outside line - ACI 110
• Door - Yellow
• Windows and ventilator - Magenta
• Steps - ACI 51
• Text - Cyan

                                                      Layers for floor plan

Result:-

                                     Floor plan in AutoCAD



Aim:- To draft the kitchen layout by using AutoCAD

Procedure:-

By using direct distance entry method

• Here all the units are in metric (millimetre)
• Select the construction line tool by entering XL (Enter) in the command line
• Select the vertical line and place it any where on the screen
• Next by using a same command (construction line) select horizontal line and place it on the screen
• Take a offset of 300mm for the outer wall from the vertical line
• Take a offset of 300mm  for the outer wall from the horizontal line

To get the kitchen above counter plan

• Take a offset of 1000mm, 600mm, 450mm, 300mm, 900mm, 300mm, 715mm respectively from the 300mm wall in +ve x-direction at the top
• Take a offset of 600mm from the top in -ve y-direction
• Again take a offset of 10mm from every offset distance towards left and right side in +ve and -ve x-direction
• Take a offset of 35mm, 900mm, 450mm, 900mm, 450mm, 450mm, 450mm, 630mm, 35mm respectively from the 300mm wall in +ve x-direction at the below
• Take a offset of 600mm from the below in -ve y-direction
• Again take a offset of 10mm from every offset distance towards left and right side in +ve and -ve x-direction

To get the kitchen below counter plan

• Take a offset of 35mm, 450mm, 900mm, 900mm, 900mm, 1080mm, 35mm respectively from the 300mm wall in +ve x-direction at the below
• Take a offset of 360mm from the below in +ve y-direction
• Again take a offset of 10mm from every offset distance towards left and right side in +ve and -ve x-direction
• Take a offset of 35mm, 965mm, 600mm, 2665mm (divide it as 3 lines )respectively from the 300mm wall in -ve x-direction at the top
• Take a offset of 600mm from the top in -ve y-direction
• Again take a offset of 10mm from every offset distance towards left and right side in +ve and -ve x-direction

Layers used are

• Outer wall - Red
• Cabinet - ACI 20
• Doors - Yellow
• Windows - ACI 240
• Dimension - Magenta
• Text - Cyan

                                             Layers for kitchen layout



Result:-



                                             Kitchen layout in AutoCAD



Aim:- To draft the column schedule using AutoCAD

Procedure:-

By using direct distance entry method

• Here all the units are in Engineering (inches and feet's)
• Select the construction line tool by entering XL (Enter) in the command line
• Select the vertical line and place it any where on the screen
• Next by using a same command (construction line) select horizontal line and place it on the screen
• Use a offset command for creating a table. The shortcut command is O enter
• Use a multiline text for the text. The shortcut command is Mtext enter
• Use a donut command for creating a reinforcement.The shortcut command is DO enter
• It consists of a 16mm dia bar, 20mm dia bar, 25mm dia bar
• Use a line for creating stirrups
• Use a offset to creat a smooth curve at the edge of the stirrups.The shortcut command is O enter
• Use a trim command to trim off the unwanted lines.The shortcut command is TR enter
• Font name: romans.shx; Height: 8" , justify: left
• The out line for column schedule distance is 34'-6" in +ve - x direction
• The out line for column schedule distance is 8'-0" in -ve - y direction
• The out line for column schedule distance is 34'-6" in -ve - x direction
• The out line for column schedule distance is 8'-0" in +ve - y direction
• The distance between one to one column is 6'-0", 5'-6",6'-0", 5'-6",6'-0", 5'-6"respectively from left to right in +ve - x dire'-6ction
• The distance between one to one spacing line is 1'-6", 1'-6", 2'-6", 2'-6" respectively from top to bottom in -ve - y direction

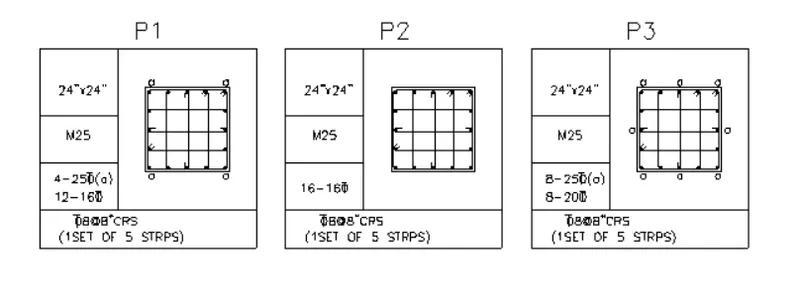

For column P1

• The column dimension for C1 is 9"x24" which consisits of a 4nos of 20mm dia non- a bars and 6nos of 12mm dia (a) bars
• Cover for this is 40mm (1.50")
• Take a offset of 5", 5" and 5" center to center to provide the reinforcements respectively from the top in -ve y-axis direction
• Take a offset of 5.19", 5.62", 5" and 5.19" to provide the stirrups respectively from the top in -ve y- aixs direction
• Stirrups are dia 8 @ 8" CRS (1 set of 3STRPS)



For column P2

• The column dimension for C1 a is 9"x24" which consisits of a 12nos of 16mm dia non- a bars
• Cover for this is 40mm (0.59")
• Take a offset of 5", 5" and 5" center to center to provide the reinforcements respectively from the top in -ve y-axis direction
• Take a offset of 5" 5.62", 5", and 5.38"  to provide the stirrups respectively from the top in -ve y- aixs direction
• Stirrups are dia 8 @ 8" CRS (1 set of 3STRPS)

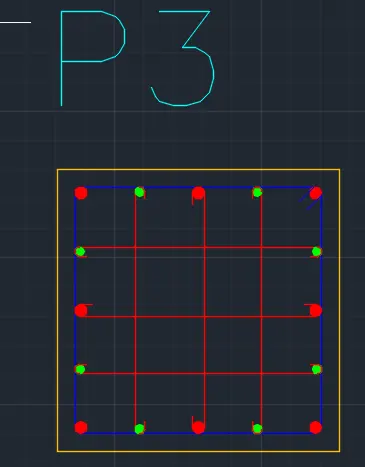

For column P3

• The column dimension for C2 is 9"x24" which consisits of a 8nos of 20mm dia a bars and 4nos of 12mm dia non- a bars
• Cover for this is 40mm (0.59")
• Take a offset of 5", 5" and 5" center to center to provide the reinforcements respectively from the top in -ve y-axis direction
• Take a offset of 5.17" 5.89", 4.89" and 5.11" to provide the stirrups respectively from the top in -ve y- aixs direction
• Stirrups are dia 8 @ 8" CRS (1 set of 3STRPS)



Layers used are

• Outer line - Yellow
• Text - Cyan
• Outer the main stirrup -ACI 40
• Main stirrup - Blue
• Reinforcement 16dia - Magenta
• Reinforcement 20 dia - Green
• Reinforcement 25 dia - Red
• Inner tirrup - ACI 10

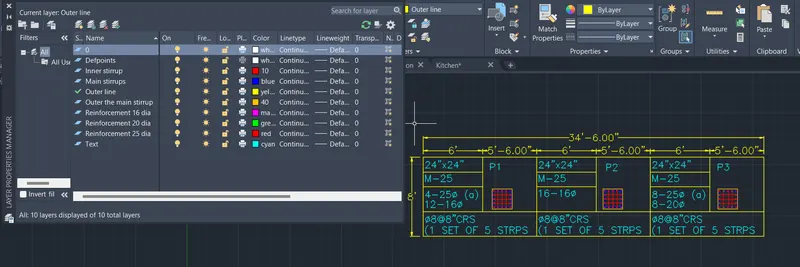

                                 Layers used for column details

Result:-



                                                  Column details in AutoCAD

Aim:- To draft raft foundation by using AutoCAD



Procedure:-

By using direct distance entry method

• Here all the units are in Engineering (inches and feet's)
• Select the construction line tool by entering XL (Enter) in the command line
• Select the vertical line and place it any where on the screen
• Next by using a same command (construction line) select horizontal line and place it on the screen
• Take a offset of 4" right side from the xl line in +ve x-direction
• Take a offset of 5'-9", 2'-0", 7'-0", 4'-0", 4'-6", 5'-7.5" make this line as a center line. The notation used for this center line is A,B,C,D,E,F,G. and take offset of 9" from the 5'-7.5" line
• Take a offset of 4.5" downwards from the xl line in -ve y-direction
• Take a offset of 5'-7.5", 3'-7.5", 4'-9", 5'-10.5", 5'-7.5", 3'-9", 5'-9", 13'-10.5", 10'-4.5" make this line as a center line. The notation used for this center line is 1,2,3,4,5,6,7,8,9,10.
• Draw a column by using rectangle having dimension 2'x2' in A to 1 line
• Draw the foundation by using a line which has a length 2'-0" from the column edge and width 3' from the column edge in A to 1 line
• Draw a column by using rectangle having dimension 2'x9" in D to 1 line
• Draw the foundation by using a line which has a length 2'-6" from the column edge both in left and right side and width 3' from the column edge in D to 1 line
• Draw a column by using rectangle having dimension 1'-6"x9" in F to 1 line
• Draw the foundation by using a line which has a length 2'-6" and 5'-2.5" from the column edge in left and right side respectively and width 2'-6" from the column edge in F to 1 line
• Draw a column by using rectangle having dimension 2'x9" in G to 2 line
• Draw the foundation by using a line which has a length 2'-6" and 2'-4" from the column edge in left and right side and width 2'-6" from the column edge in G to 2 line
• Draw a column by using rectangle having dimension 2'x9" in D to 3 line
• Draw the foundation by using a line which has a length and width 2'-6" from the column edge both in left and right side  in D to 3 line
• Draw a column by using rectangle having dimension 1'-6"x9" in C to 4 line
• Draw the foundation by using a line which has a length and width 2'-6" and 3'-0" from the column edge both in left and right side and width 2'-6" from the column edge in C to 4 line
• Draw a column by using rectangle having dimension 2'x2' in A to 5 line
• Draw the foundation by using a line which has a length 2'-0" from the column edge and width 3' from the column edge both in left and right side in A to 5 line
• Draw a column by using rectangle having dimension 2'x9" in D to 5 line
• Draw the foundation by using a line which has a length  2'-6" and 2'-10.5" from the column edge both in left and right side and width 2'-6" both in upside and down side in D to 5 line
• Draw a column by using rectangle having dimension 1'-6"x9" in G to 5 line
• Draw the foundation by using a line which has a length and width 3'-0" from the column edge both in left and right side  in G to 5 line
• Draw a column by using rectangle having dimension 1'-6"x9" in G to 6 line
• Draw the foundation by using a line which has a length and width 3'-9" and 2'-6" from the column edge both in left and right side  in G to 6 line
• Draw a column by using rectangle having dimension 2'x2' in A to 7 line
• Draw the foundation by using a line which has a length and width 2'-3" and 6'-3" from the column edge both in left and right side  in A to 7 line
• Draw a column by using rectangle having dimension 2'x9" in B to 7 line
• Draw the foundation by using a line which has a length and width 2'-6" and 3'-6" from the column edge both in left and upside in B to 7 line
• Draw a column by using rectangle having dimension 2'x9" in C to 7 line
• Draw the foundation by using a line which has a length and width 2'-5.5" and 3'-6" from the column edge both in right side  and downside in C to 7 line
• Draw a column by using rectangle having dimension 2'x2' in A to 8 line
• Draw the foundation by using a line which has a length and width 8'-7" and 8'-3" from the column edge both in right side and downside  in A to 8 line
• Draw a column by using rectangle having dimension 2'x9" in E to 8 line
• Draw the foundation by using a line which has a length and width 2'6" from the column edge both in left ,right side, upside and downside  in A to 7 line
• Draw a column by using rectangle having dimension 2'x9" in G to 8 line
• Draw the foundation by using a line which has a length and width 3'-0"  from the column edge both in left, upside and downside  in G to 8 line
• Draw a column by using rectangle having dimension 2'x2' in A to 9 line
• Draw the foundation by using a line which has a length and width 3'-0" from the column edge both in  downside and upside in A to 9 line
• Draw a column by using rectangle having dimension 2'x9" in C to 9 line
• Draw the foundation by using a line which has a length and width 2'-6" from the column edge both in right side, upside and downside  in C to 9 line
• Draw a column by using rectangle having dimension 2'x9" in G to 9 line
• Draw the foundation by using a line which has a length and width 3'-0" from the column edge both in left side, upside and downside  in G to 9 line
• In G to 10 line after the foundation take a offset of 9" in both left and right side to make a brick wall
• Hatch the brick wall, concrete region and columns

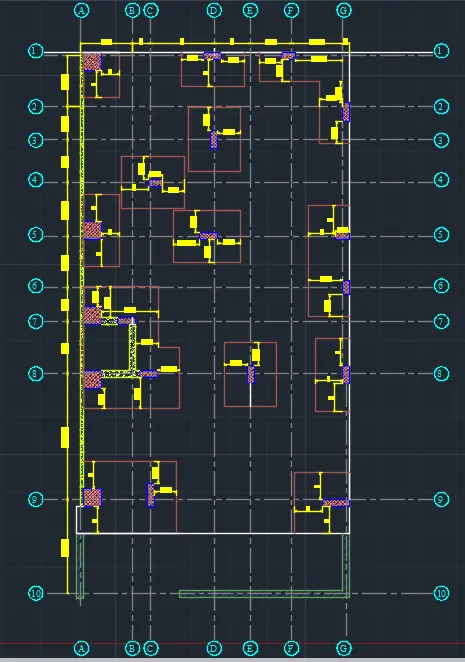

Raft foundation from Grid 1 to 5 lines



Raft foundation 6 to 9 grid lines



Raft from 8 to 10 grid lines

Layers used are

• Brick -ACI 93
• Brick hatching - ACI 175
• Centre line - ACI 8
• Column - Blue
• Column hatching - ACI 11
• Concrete hatching - ACI 51
• Concrete structure - ACI 60
• Dimension - Yellow
• Foundation - ACI 13
• Text - Cyan

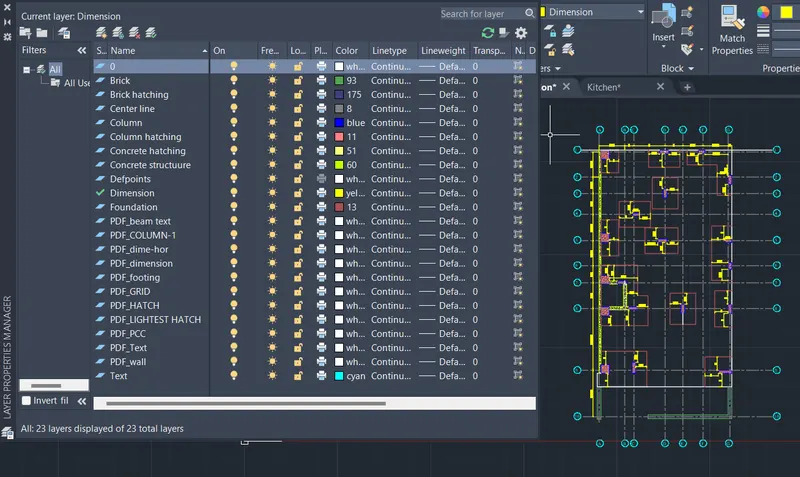

                                               Layers used for raft foundation

Result:-



                                      Raft founadation in AutoCAD
