Calculation of Stiffness in Structural elements

  Aim: To model a 25-storey building with the given structural properties using Etabs. Procedure: First, we have to open the etabs software. Next click on the file option at the left side top corner and select the new model, as shown below. After selecting the new model, the new tab opens in that tab we have to select…

AIM: To model and analyse a 10 storey building. PROCEDURE: 1) open etabs. 2) select file and seslect new model. 3) now a dialogue box of model intialization appears. select use built in settings. 4) now a dialogue box of new model quick templates appears. select the custom grid spacing and now select the edit grid data.…

Question 1: The building shown, 20 × 35 m in plan, has columns on a 5 × 5 m grid and shear walls (with dimensions shown in m, 250 mm in thickness) in three alternative arrangements, (a), (b), (c), all with the same total cross-sectional area of the shear walls. Compare the three alternatives, taking into account…

Question 1: Comment on the layout of the framing plan concerning earthquake resistance in the two horizontal directions X or Y (dots are columns, lines depict beams). Look into aspects of symmetry, redundancy and bi-directional stiffness and ductility. The given layout of the framing plan is symmetric. It is a symmetrical,…

Question 1: A five storey structure with 5 translational DOF is shown here. Each storey has mass ‘m’. The eigenvalue problem has been solved and the 5 periods of vibration Tn and their corresponding mode shapes, φn has been derived. The fundamental period of vibration (T1 = 2 seconds) and…

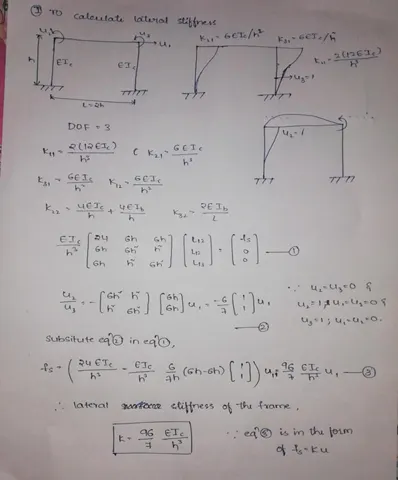

Question 1: Compute lateral stiffness of the one story frame with an intermediate realistic stiffness of the beam. The system has 3 DOFs as shown. Assume L = 2h and Elb = Elc   Answer:   Question 2: For the following structures: Determine the number of degrees-of-freedom for dynamic analysis Establish…

What is the mode of failure or damage of the beams in the figure above? Would you characterize the case as damage or as a failure? Are the damages repairable? Elaborate. 1) a) We can clearly observe that the failure is at beam-column joint. The damage is more at the beam. Beam-Column connection failure: This type of damage…

1) Use the Architecture/ Structure Project file developed by you in Week 6 to 8. Export the Revit architecture and structure model to Navisworks Cache file following the export settings discussed in class. AIM: To export the Revit architecture and structure model to Navis work cache file following the export settings.…

1) Using Dynamo create a set of sinusoidal points and create a curve and create a surface out of the curve.   AIM: To create a set of sinusoidal points and to create a curve and surface using dynamo. TOOLS/COMMANDS USED: Architectural template Manage Dynamo PROCEDURE:            …

Use the shortcut keys in Revit discussed in class to complete the following tasks and list them below           a. Using 3D model create a section box            b. To create similar doors and windows in a floor plan layout            c.…

 1) What are HVAC systems? Why are they essential in modeling of buildings? HVAC stands for heating, ventilation, and air conditioning. This system provides heating and cooling to residential and commercial buildings. You can find HVAC systems anywhere from single-family homes to submarines where they provide the…

1) Select the type of structure you want to build from one of the three below         a. Multi-Unit Residential Apartment         b. Office Buildings         c. School From the options given I choose MULTI-UNIT RESIDENTIAL APARTMENT. 2) Assume reasonable assumptions…

AIM: To create G+4 residential building as per NBC standards and make ita central file. TOOLS/COMMANDS USED: Architectural walls doors furniture windows levels elevation view roof floor sheets camera view synchronize   PROCEDURE: Step-1: Open Revit. Step-2: Open a new revit file under architectural…

1) Open an architectural template. Using the Manage tab set project base point and project shared coordinates for the project. AIM: Set the base point of the project using manage tab and project shared coordinates fro the project. TOOLS/COMMANDS USED: Architectural tab Grids Manage tab Collaborate PROCEDURE:               …

1) Use the project file created from Week 2. Use it for this assignment. Based on your layout from week 2, using floor tool under architecture tab and select the floor with appropriate material and thickness using the property browser create a layout in the Ground floor Level. Align the floor plan with grids created from…

1)Building Information Modeling (BIM) is a digital representation of physical and functional characteristics of a facility. A BIM is a shared knowledge resource for information about a facility forming a reliable basis for decisions during its lifecycle; defined as existing from earliest conception to demolition. BIM covers…

1. AIM: To create a new project and name the project from the file menu. TOOLS/COMMANDS USED: Mouse wheel Properties Palette File menu Open PROCEDURE:                Step-1: Go to home tab.            …

1) Based on the project saved from Week 3, proceed from First Floor Level. Model a Ceiling from architecture tab above the walls at first floor level. AIM: To create ceiling from architectural tab. TOOLS/COMMANDS USED: Architectural Ceiling Sketch Ceiling PROCEDURE:               …

1)Why are building codes or standards essential for the modeling/ efficiency of drawings in Revit ? As per definition, the building code is a set of local laws relating to how buildings should be designed or built,          especially keeping in mind the safe and quality aspects…
