Springs and Anti roll bar selection for a Sedan and plotting the bump oscillation profile

In this project, you will be doing calculations to select the spring and anti-roll bar based on a 4WD sedan with a Mcpherson strut in the front and Multilink in the rear.

Vehicle Dynamics

Duration :

3 month

Project Fees :

INR 30,000

Benefits of this Project

In this project, you will be doing calculations to select the spring and anti-roll bar based on a 4WD sedan with a Mcpherson strut in the front and Multilink in the rear.

What will you do in this project?

Step 1 - Understanding the Vehicle Parameters and its Significance

Step-2: Spring selection and Ride Frequency Calculation

Step 3 -Roll Gradient Calculation and Anti-Roll Bar selection

Step-4 : Anti Characteristics and Pitch Gradient Calculation

In this project you will use the given vehicle level targets to calculate suitable numbers for the selected subsystems, you will performing calculations for:

Spring Rates
Rear Ride frequency and flat ride plots
Anti-characteristics
Roll-bar diameters

Similar Projects you might be interested:

Understeer budget calculation of a light sports car

In this project, you are being assigned a task to select a suitable rollbar for a light sports vehicle and come up with an understeer budget. The rollbar diameter selection and the understeer budget should comply with vehicle level targets like roll gradient and understeer gradient.

Duration:

1 month

Domain :

MBD

Know more

Road Roughness Measurement Using PSD

In this project you will be given with the real-time experimental PSD data of the road, you will write a Matlab/ Octave code to plot the PSD profile of the road. The obtained PSD plot of the given data will be superimposed on the ISO chart to find the road quality. By doing this, you will classify the road according to International Standard Organisation(ISO) .

Duration:

3 month

Domain :

Mechanical engineering or automotive engineering

Know more

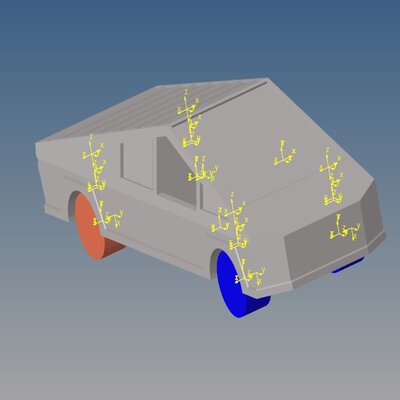

Full Vehicle Simulation on a Road Profile

This project involves i creating a model to represent an entire automobile and simulate them in a road profile with a few bumps to understand the on road characteristics of the vehicle

Duration:

1 month

Domain :

MBD

Know more

Flex body analysis on the LCA of a Suspension

This project deals with the compliant analysis of a lower control arm of a suspension and studying the impact of considering a compliant analysis over a non-compliant analysis

Duration:

1 month

Domain :

MBD

Know more

Showing 1 of 4 projects

Project Highlights

Who can take up this project?

You will be using Matlab/Octave.

Importance of Pitch Compensation and Selection of ARB and Springs

Springs and Anti roll bar plays a vital role in the performance of the vehicle , as Anti roll bar is used to resist the rolling action of the vehicle and springs are used to isolate the sprung mass from the road disturbance. These two components are selected based on the mathematical modelling of the vehicle parameters, for this you should understand all the suspension parameters and its significance. The ride frequency optimization is done to avoid the pitching effect of the vehicle, when it undergoes a bump, in this project you will plot the bump oscillation profile and tune the vehicle parameters accordingly. As a result of this project , you will get to know how to analyse the vehicle loads at various hard points and spring rate and ARB diameter will be found to get the optimized result.
