How Does Meshing Work In HyperMesh?



Meshing is a process that helps create proper elements that are computable out of irregular 3D shapes. It breaks down complex structures into shapes, such as polygons and polyhedral. Meshing is done on a CAD model using computer software.



The chordal deviation is a cross-section calculation that permits HyperMesh to consequently differ biasing along bent surface edges to portray the surface fit accurately. HyperMesh is a tool used to perform FEA analysis.

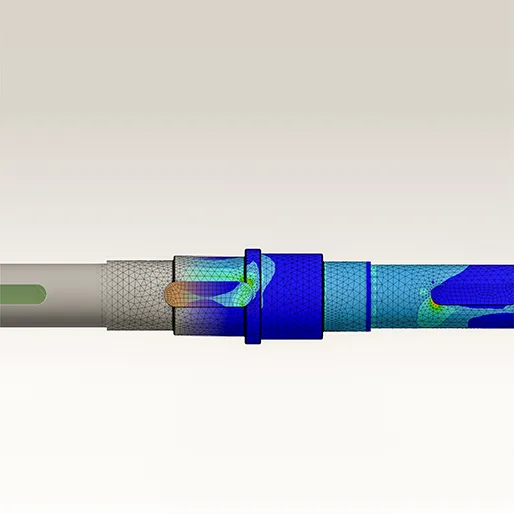

How does HyperMesh work in Meshing?



HyperMesh is a type of CAD software that lets you do meshing developed by Altair. It captures the geometrical shapes and breaks them down into small elements called mesh. For commercial purposes, it is a popular meshing software used by FEA Design Engineers.

HyperMesh permits users to import different CAD documents from configurations like SolidWorks, IGES, or STEP. Users can make lattices of CAD models with a solitary snap for 3D meshing. A portion of the CAD produced can have distortion before the lattice. HyperMesh can smoothen these mutilations and make a uniform lattice.

Users can characterise boundaries like jacobian, wrap proportion, and skewness. These boundaries will decide the nature of the after-effects of any cross-section activity utilising HyperMesh. HyperMesh saves the changelog of many cycles in a meeting as a .tcl record. Clients can normalise and mechanise this cycle by running circle programs using the .tcl document. Engineers who can compose mechanisation scripts utilising the .tcl or .tk records are popular in the business.



Types of Meshing

There are various types of meshing in HyperMesh. Some of them are as follows.



• Solid Meshing:

In solid meshing, the capacity to mesh is alluded to as mappability. Mappability is directional and can be compared to putting a surface lattice on one face of the strong, then, at that point, expanding that cross-section along a vector through the solid volume. This considers command over the cross-section thickness and style involving apparatuses.

• Hexa meshing:

How do you perform Hexa meshing in HyperMesh? Hexa meshing is a precarious issue, particularly regarding adjusted volumes.

In this way, you can draw a CAD model in solidThinking and figure out how to put a Hexa mesh with a component size of 0.5 on it utilising HyperMesh.



The calculation must be appropriately divided before utilising programmed Hexa meshes (one volume, multi solids). If there should arise an occurrence of mind-boggling shapes, it is trying to appropriately segment the strong to be mappable in at least one heading. Considerably more testing is needed to decisively arrange these mappable solids into an organised lattice. Unfortunately, there is no simple fix for Hexa coinciding as it is the most troublesome cross-section.



It creates mesh made out of distorted 3D squares. Such mesh is frequently utilised for reenacting a few physical sciences since they can work on speed and exactness. This is because they contain fewer components, the related tri-direct capability premise has cubic terms that can all the more likely catch higher request varieties, they stay away from the locking peculiarities experienced with tetrahedra, and hexahedral layers can be adjusted along mathematical limit highlights and additionally a few actual qualities.

• Plastic mesh:



How to mesh plastic components in HyperMesh?

1. We will move toward each unique thickness as a different gatherer for a muddled plastic model with changing thickness. This way, we can rapidly view, stow away and mesh the surfaces.

2. The various thicknesses are dispensed with the resilience of 0.1mm to accomplish a palatable catching of the parent body as mesh.

3. Any tightening ribs are fit by isolating the rib into sections, and the portions are isolated into authorities as per the typical thickness.



• Shell meshing:

Shell meshing in HyperMesh is considered a superior representation, confirmation, and altering of shell properties by showing the shell type, thickness, direction, and material for all shells in a solitary connection point.



• Auto mesh:

Auto mesh in HyperMesh permits CAD clients to apply a particular organisation of line components and interconnecting hubs across their plan.



To learn more about meshing, enrol in our FEA course for mechanical engineers.



Conclusion

Meshing is a top-notch technique in HyperMesh. Perfect for creating and generating various kinds of patterns and designs. You can follow a precise tutorial to follow step by step if you come across any issues. Hope this article was accurate and informative for what you were trying to search and find out.

Today you learned how Meshing works in HyperMesh and its different types, such as Hexa, Plastic, Auto, Shell, and Solid.
