Wiring harness routing & packaging Rules Week 3 Challenge

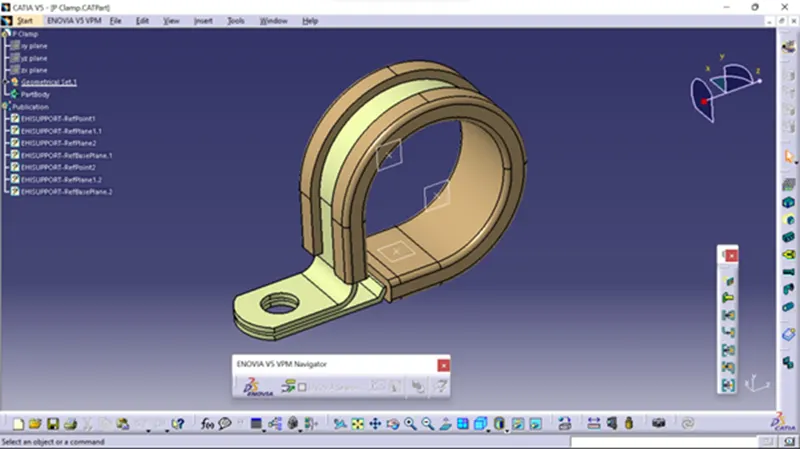

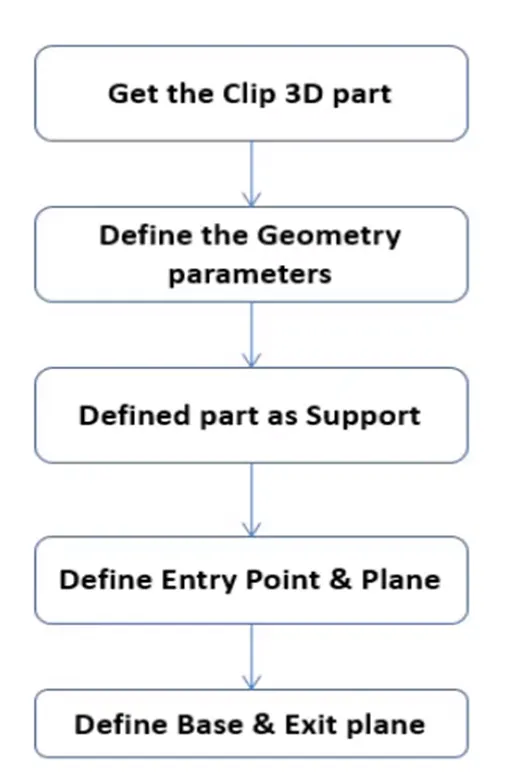

Q1. Download the following cad data & define it as Electrical support using Electrical Part design Workbench. Define all the necessary properties.

Steps.

• After downloading the required file, Open the File Using CATIA V5
• Using the Part design model, we define entry, Exit, Base points, and Planes
• After determining the points and planes open the file in Electrical Part design
• Now we need to define the part as a Support using the Define support Part
• Here we use the Required points and planes as an Entry and exit of the clamp for one side
• And use the support definition again to give an entry point on the opposite side by selecting the point opposite of the first support definition while keeping the base plane the same

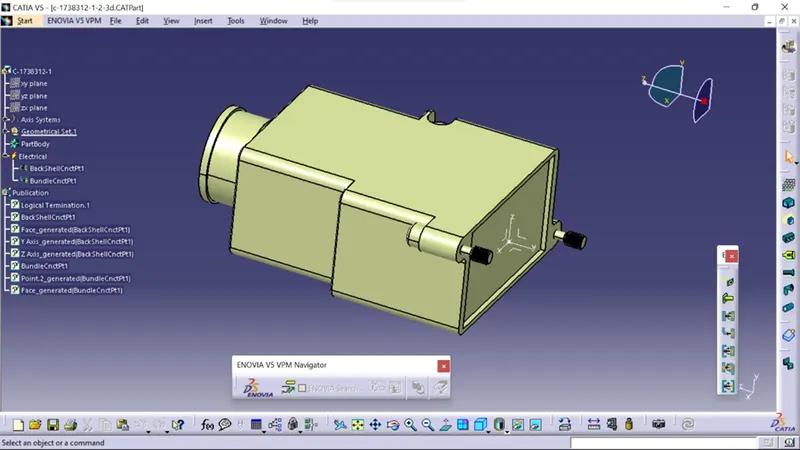

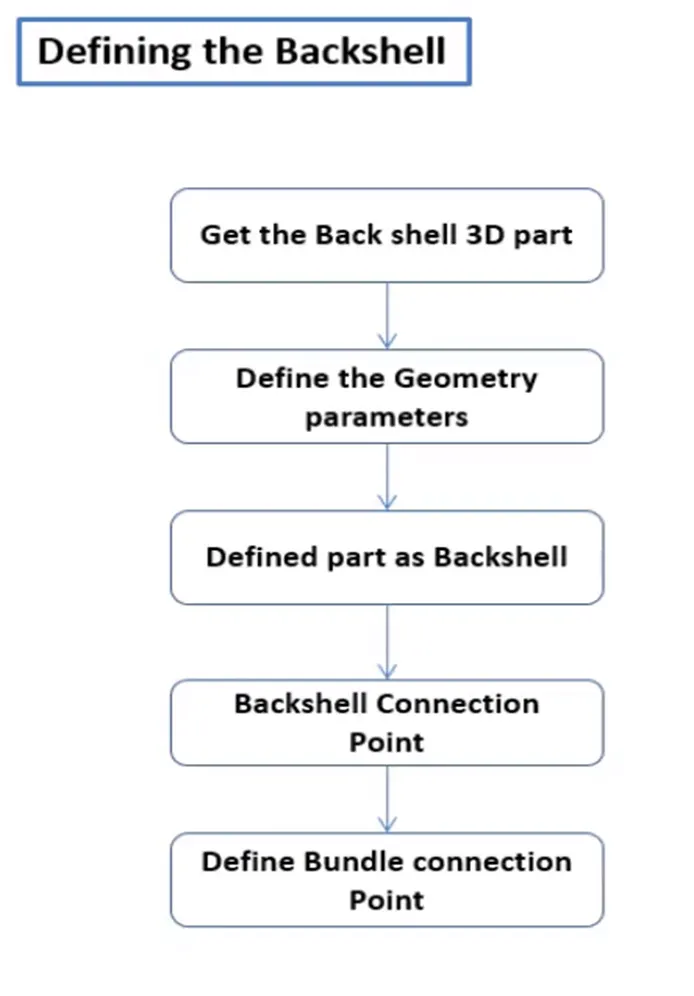

Q2. Download the following Back shell cad data & define it as Electrical back shell using Electrical Part design Workbench. Define all the necessary properties.

Steps.

• After the File is Downloaded, Open the File Using CATIA V5
• Using the Part design model, we define 2 points as the Bundle entry and Connector connection point with Axis
• After determining the points and planes open the file in Electrical Part design
• Now we need to define the part as a Backshell using Define Back shell Feature
• After defining it as the Backshell we need to define the connection points
• End, where the Back shell is connected with the connector, is defined using Define Back Shell Connection Point Feature
• End where the bundle is connected to the back shell defined using Define Bundle Connection Point Feature
• After giving the necessary properties Save the file.

• Tyco 1738312



  Q3. Create the Following Corrugated tubes & Add them to the Catalogue under the “Slit COT” family.

  Name	ID (mm)	OD (mm)	Thickness (mm)
  15mm COT	12	15	1.5
  20mm COT	17	20	1.5
  35mm COT	32	35	1.5
  10mm COT	7	10	1.5
  5mm COT	3	5	1



Steps.

• Open CATIA V5, Then open Electrical Part Design Model
• Using Define Protection Part
• Select the type as Corrugated Tube
• Give the Required Parameters (Inner dia, Thickness, Bend Radii( Bend Radii= 1.5 times the OD))
• Click on OK
• After giving the necessary properties Save the file.

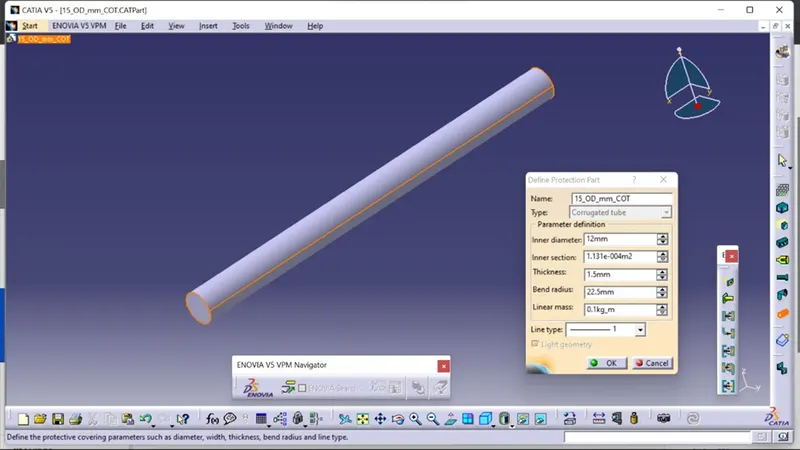

15mm COT

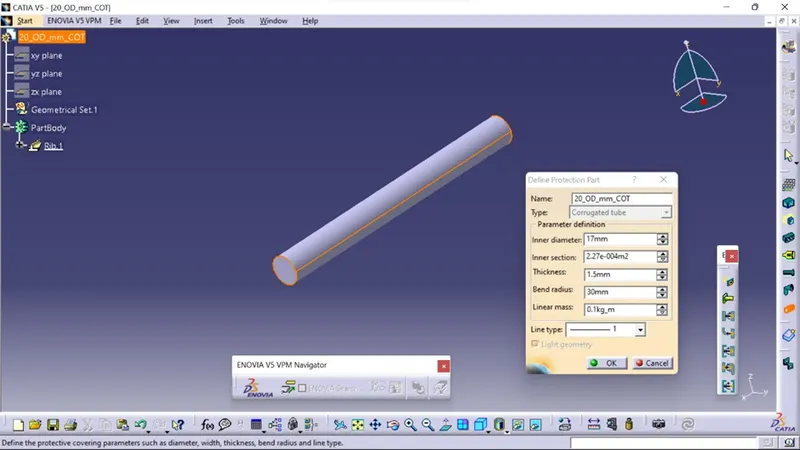

20mm COT

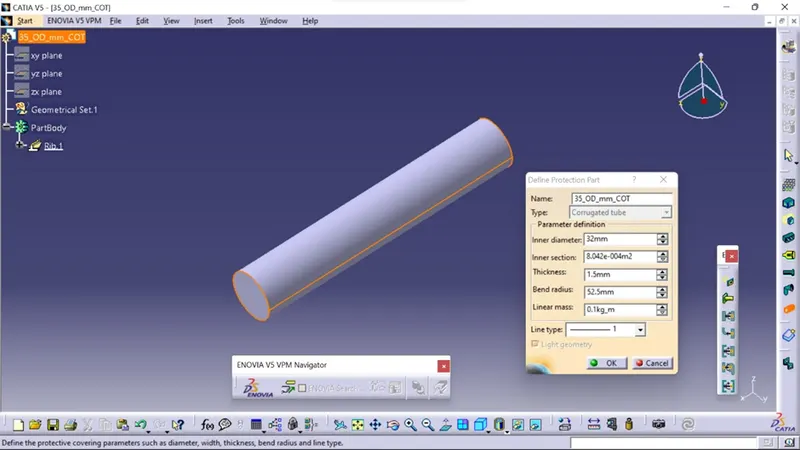

35mm COT

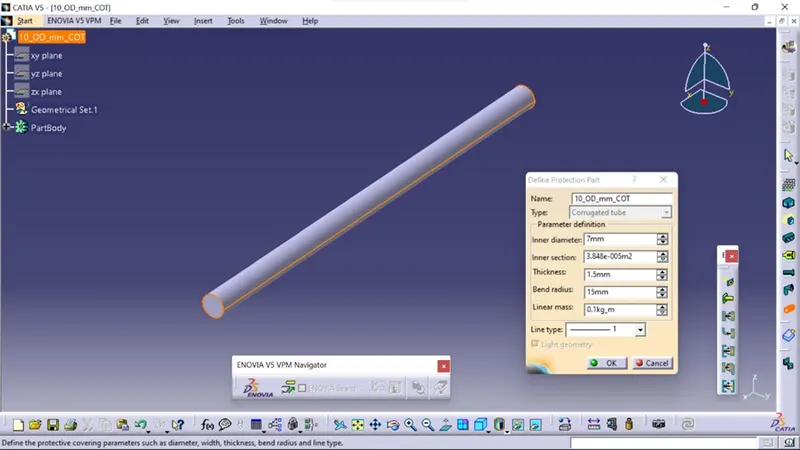

10mm COT

5mm COT

conclusion

Thus the Following Corrugated tubes are created & they all added to the Catalogue
