Wiring harness routing & packaging Rules Week 3 Challenge
#5.Wiring harness routing & packaging Rules Week 3 Challenge

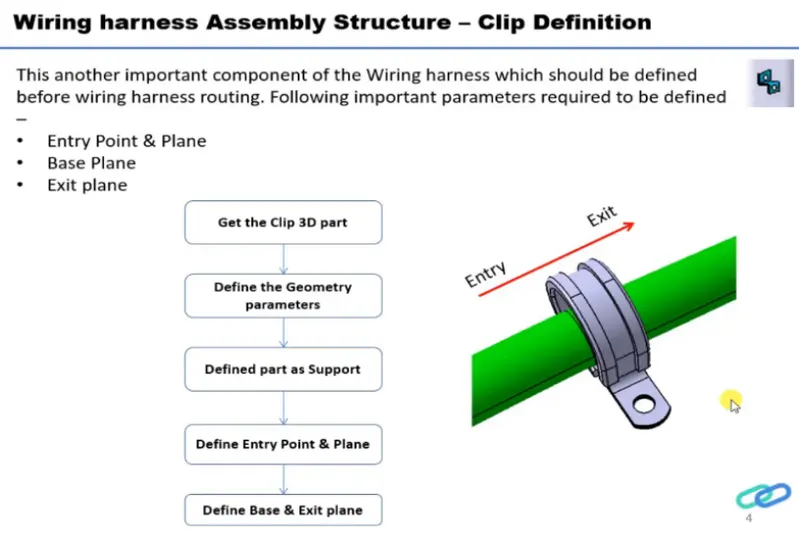

Q1. Download following cad data & define it as Electrical support using Electrical Part design Workbench. Define all the necessary properties.
P clamp:
STEPS:

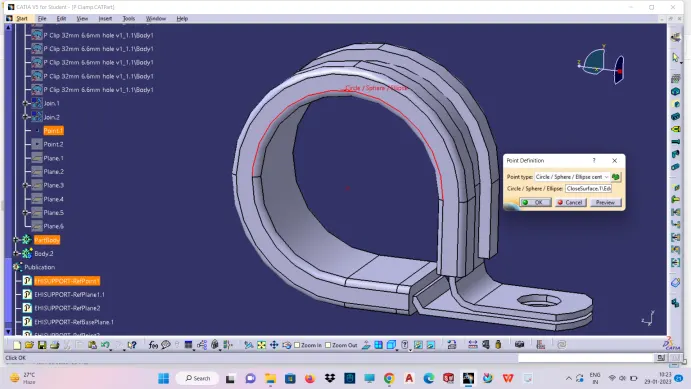

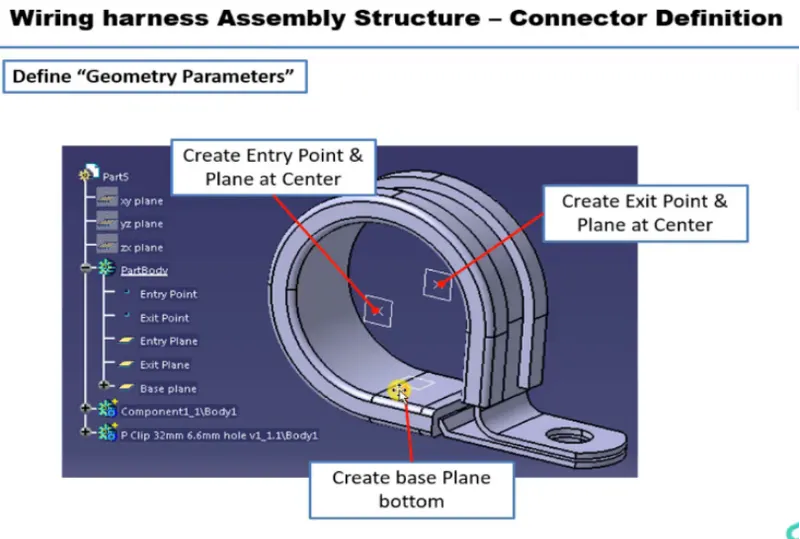

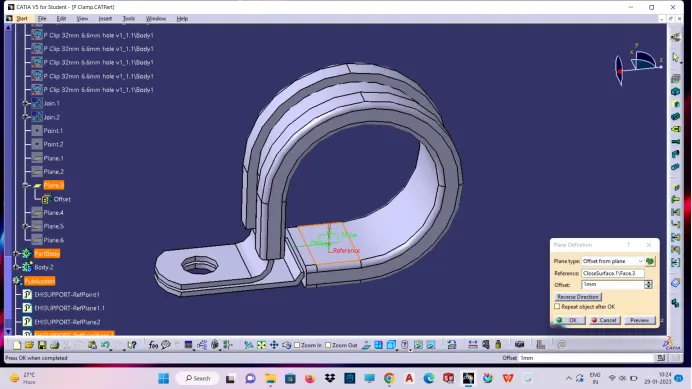

- Create two points at each end as entry and exit point.

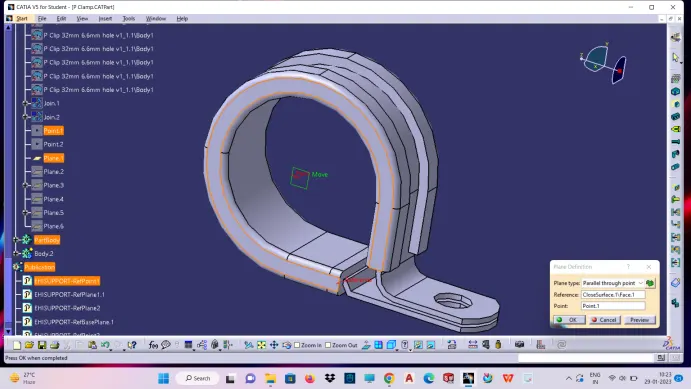

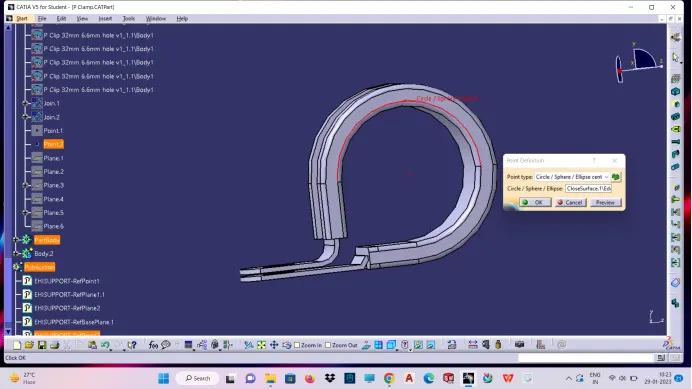

- Create two planes at each end as entry and exit plane.
- Create base plane.

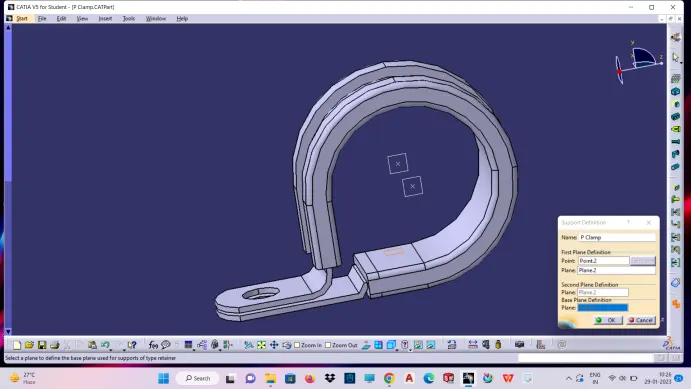

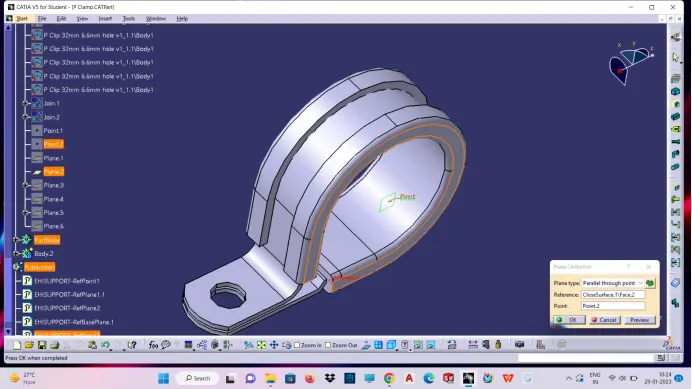

- Click on support definition - select part - select one entry point & select entry plane with respect to that point, exit and base plane.

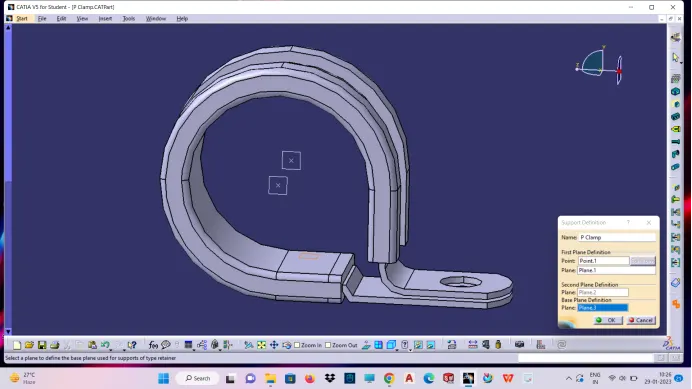

- Do vice versa(Click on support definition - select part - select another one entry point & select entry plane with respect to that point, here now exit plane selected and then select base plane.)

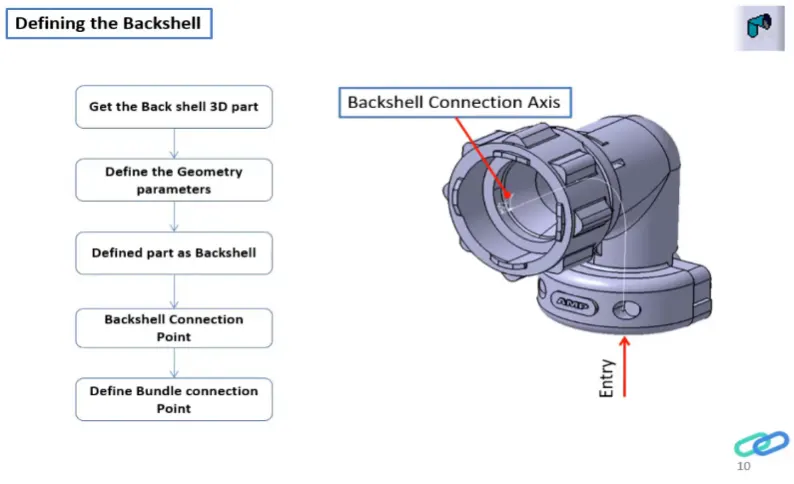

Q2. Download following Back shell cad data & define it as Electrical back shell using Electrical Part design Workbench. Define all the necessary properties.
STEPS:

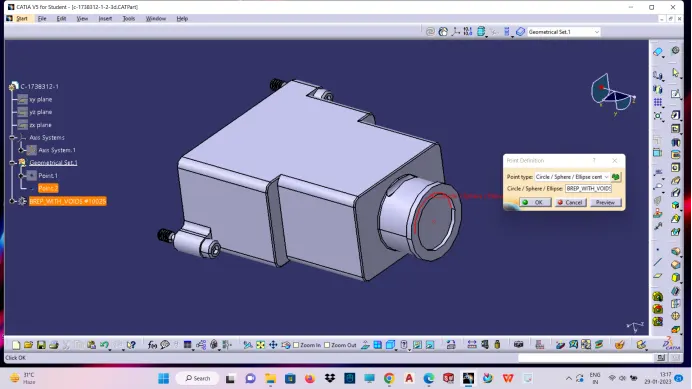

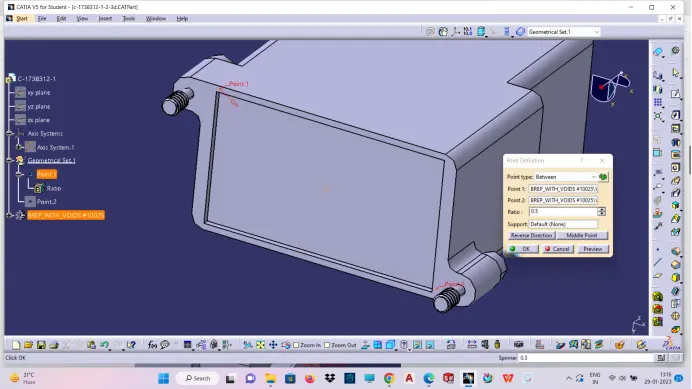

- create Back shell entry point.

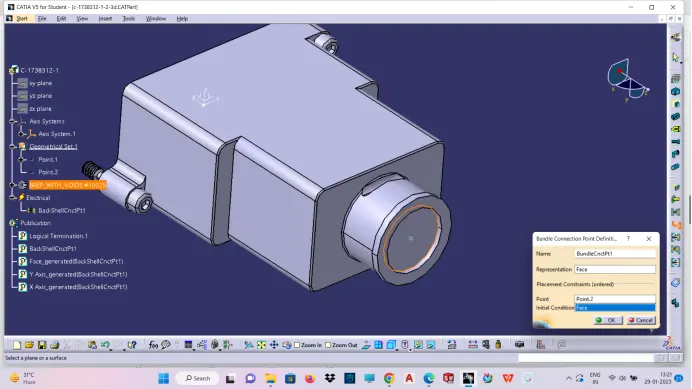

- create bundle connection point.

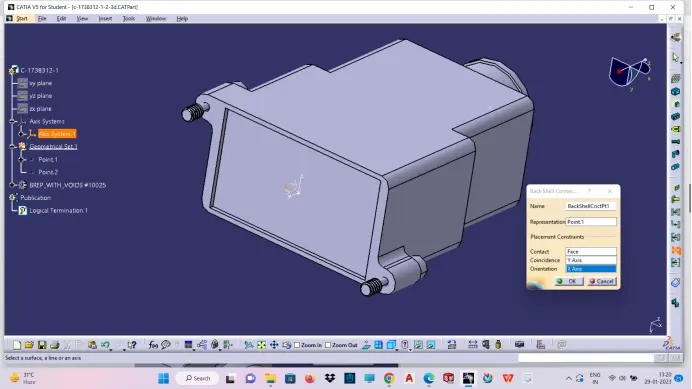

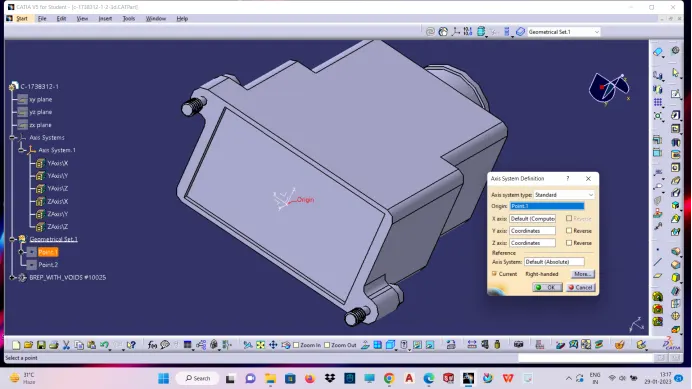

- create axis system for back shell entry.

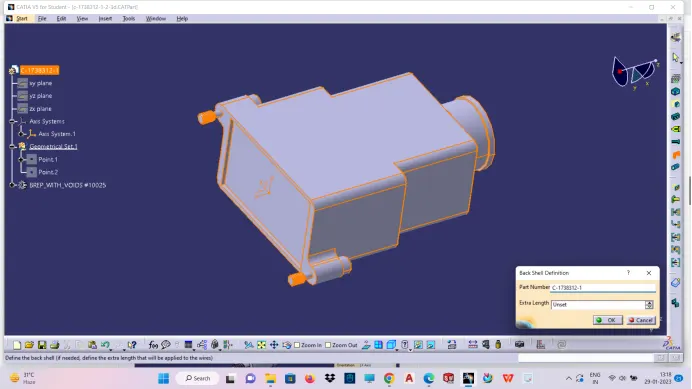

- switch to Electrical part design,Define part electronically as back shell.
- Then define Back shell connection point.
- Define bundle connection point.
Q3. Create Following Corrugated tubes & Add them in Catalogue under “Slit COT” family.
|
Name |
ID (mm) |
OD (mm) |
Thickness (mm) |
|
15mm COT |
12 |
15 |
1.5 |
|
20mm COT |
17 |
20 |
1.5 |
|
35mm COT |
32 |
35 |
1.5 |
|
10mm COT |
7 |
10 |
1.5 |
|
5mm COT |
3 |
5 |
1 |
1.Process:
- Switch to Electrical part design

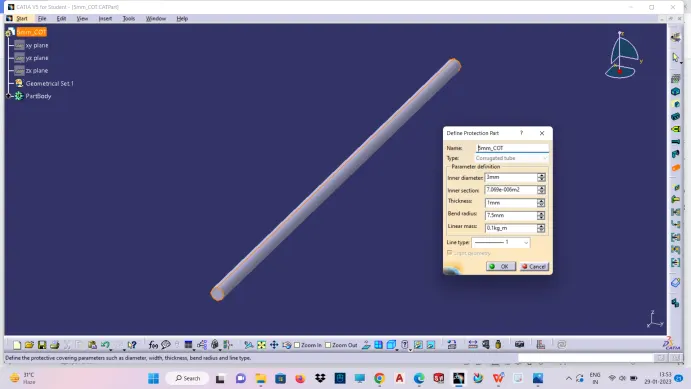

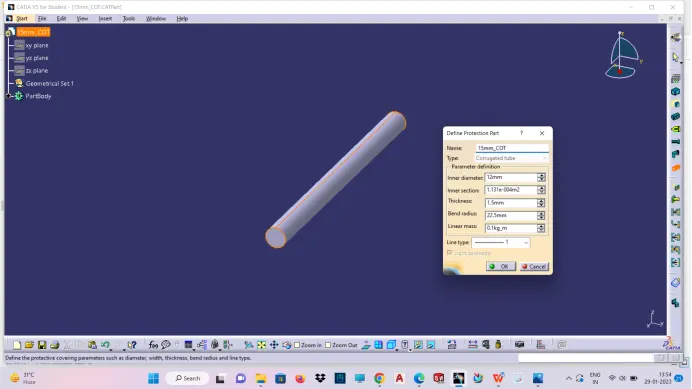

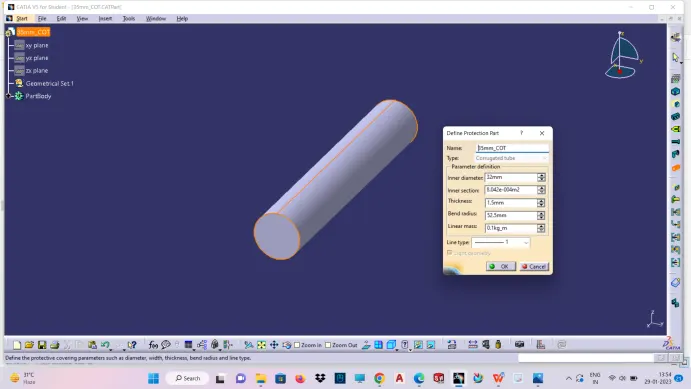

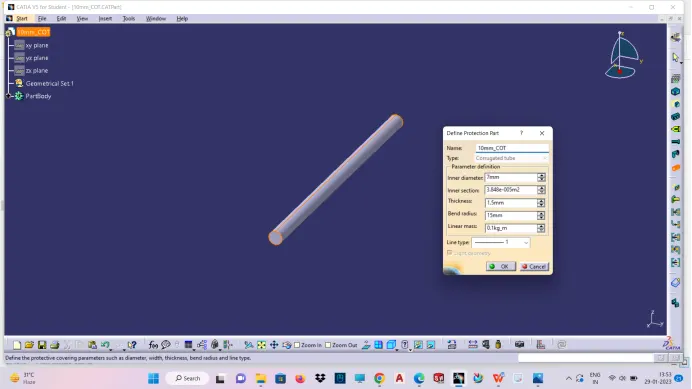

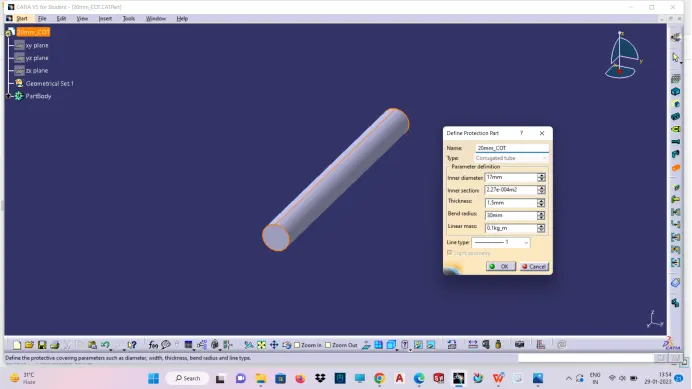

- Select Define protection Part
- Click on part (on file name in specification tree)
- Provide given parameters and bend radius as '1.5 x Outer Diameter'.
2.Catalogue Creation:
new part - catalogue document - add family - give name - type - select Conduit - save.
Open part to add catalogue - store device command - select catalogue - family - Slit_COT - ok
1.5mm COT
2.10mm COT
3.15mm COT
4.20mm COT
5.35mm COT
