Wiring harness design in CATIA V5 - 3D modeling Week 5 & 6 Challenge
RESULT: HARNESS B&A CAD PART IMAGE
HARNESS B

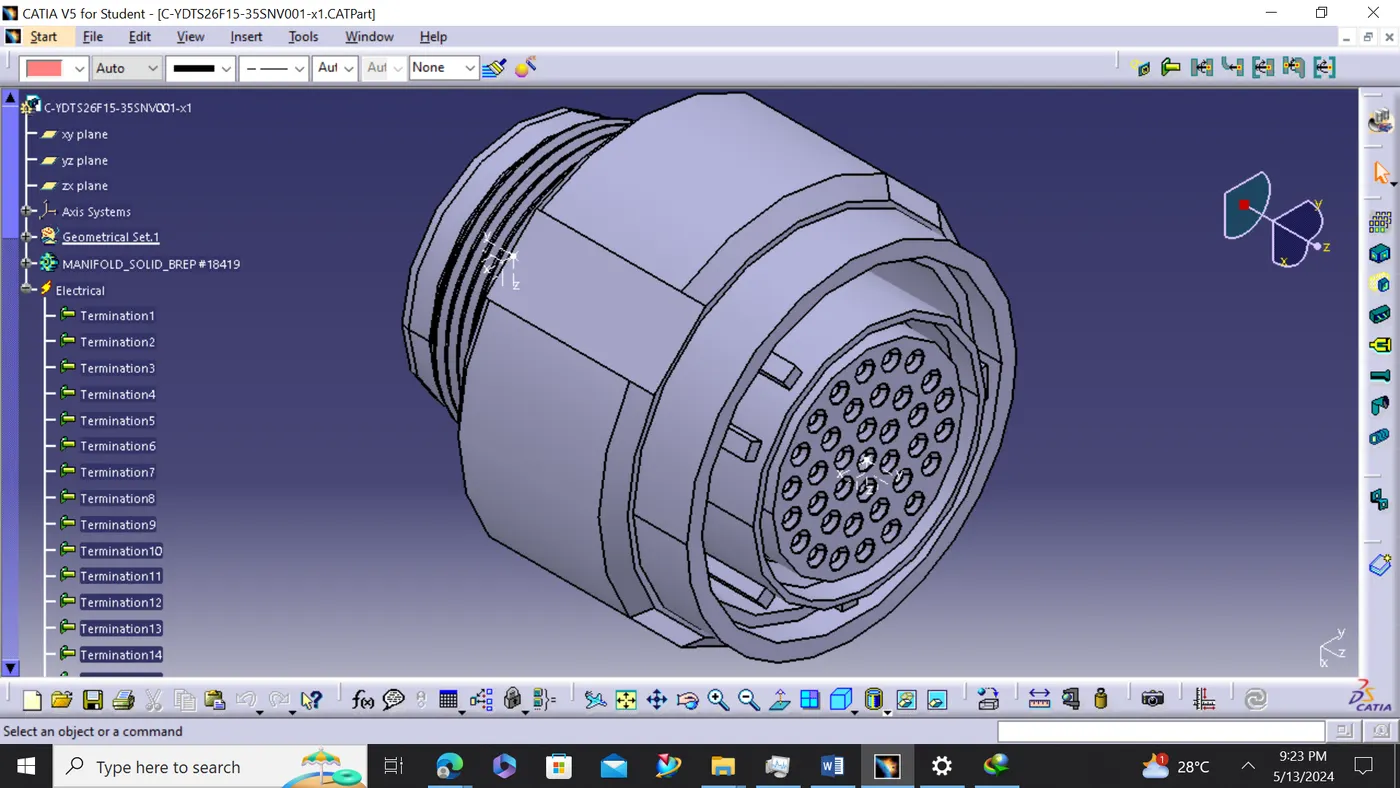

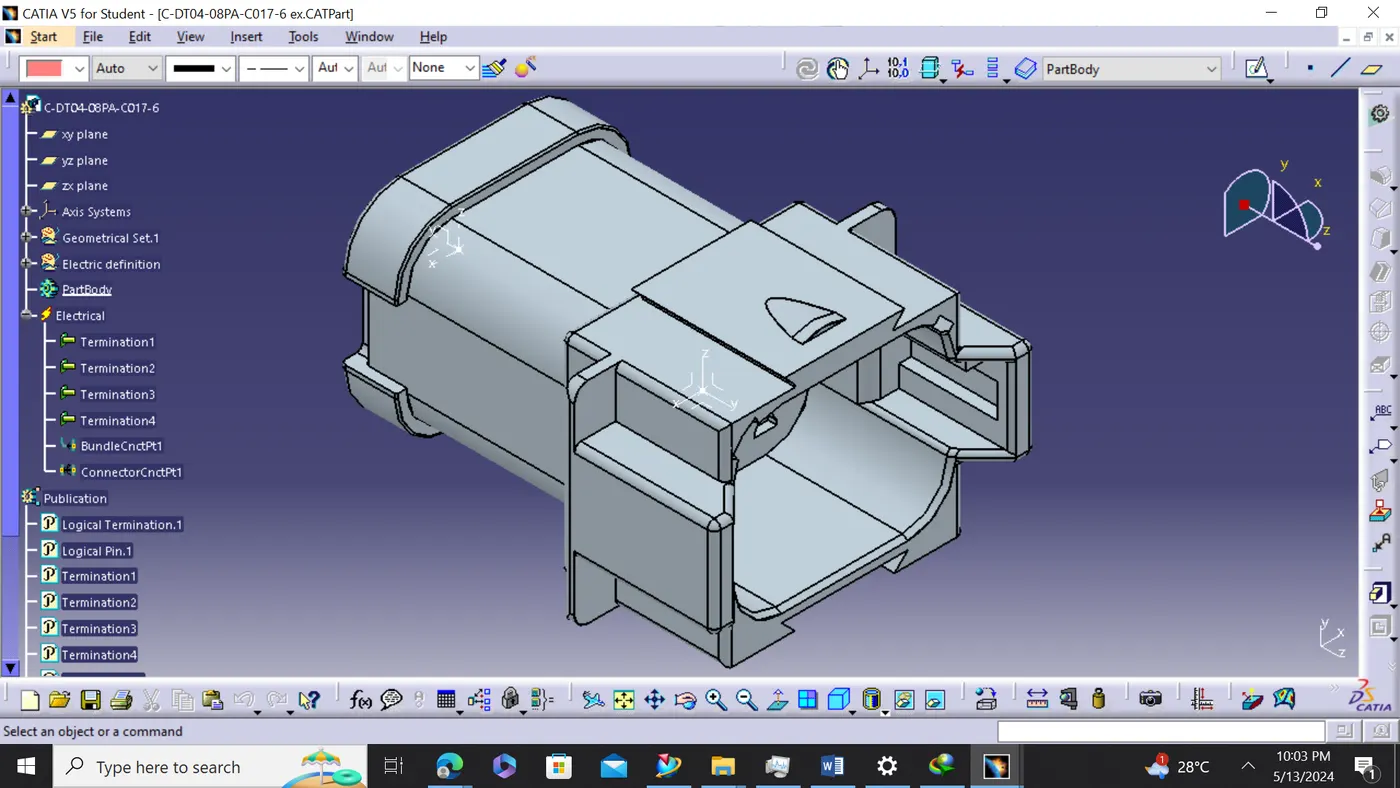

CONNECTOR 1
- Defined as connector
- Defined connector connection point
- Defined bundle connection point

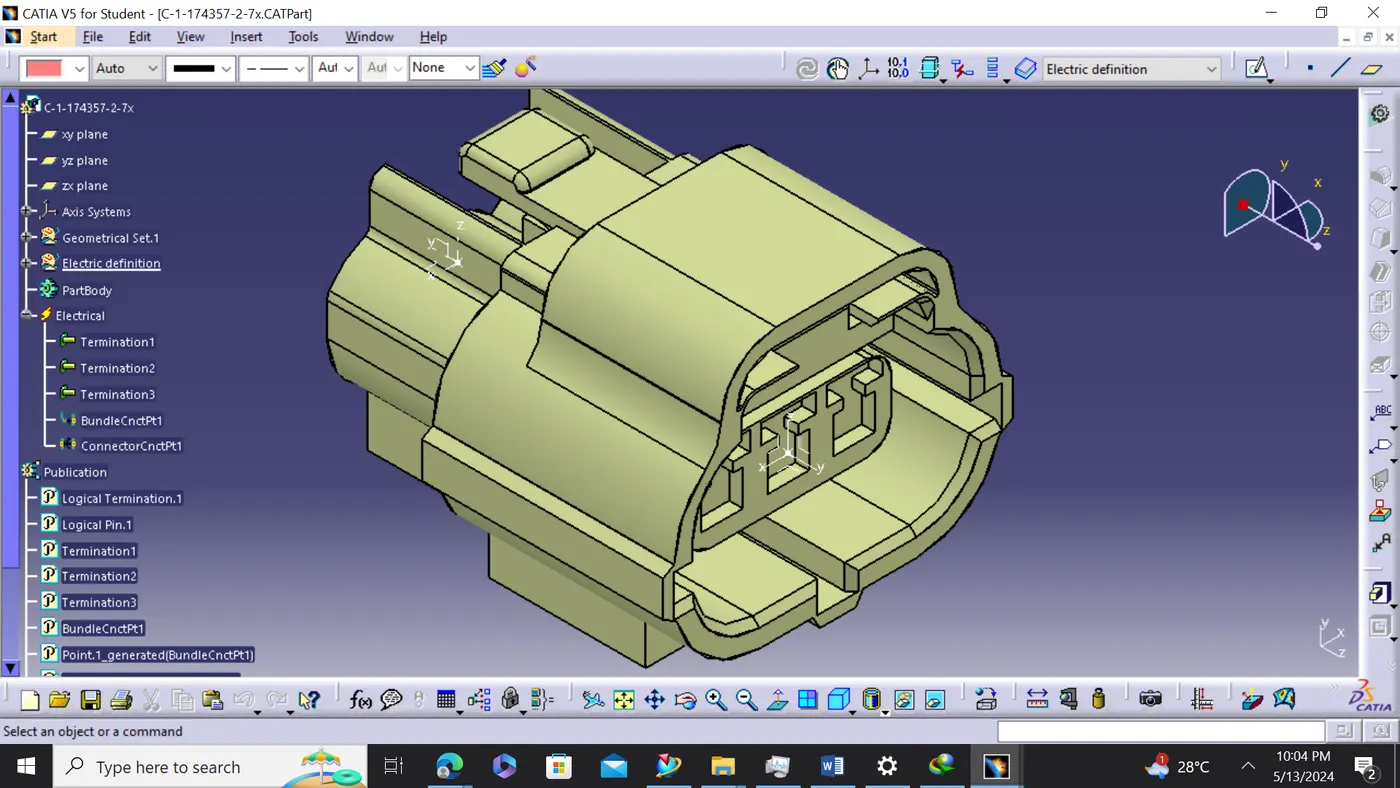

CONNECTOR 2
- Defined as connector
- Defined connector connection point
- Defined bundle connection point

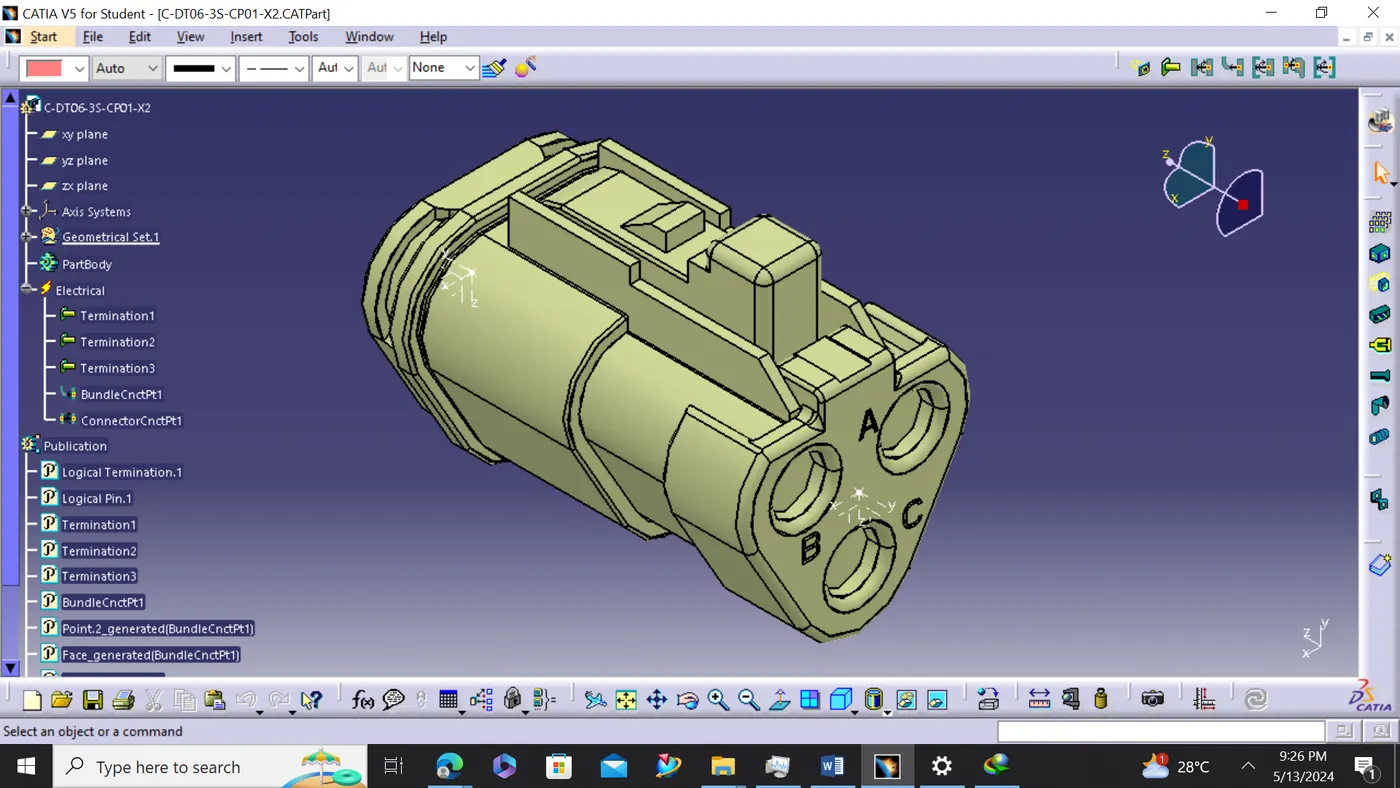

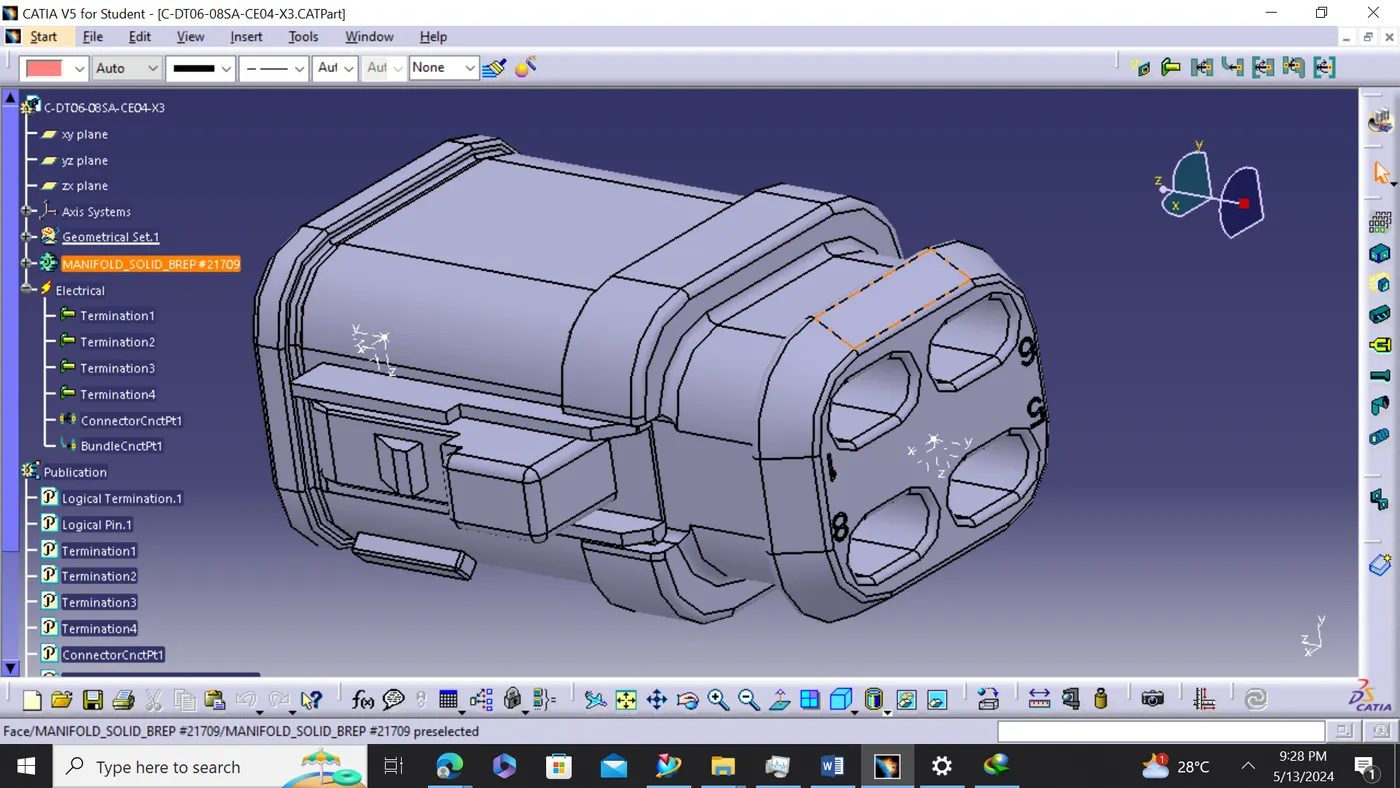

CONNECTOR 3
- Defined as connector
- Defined connector connection point
- Defined bundle connection point

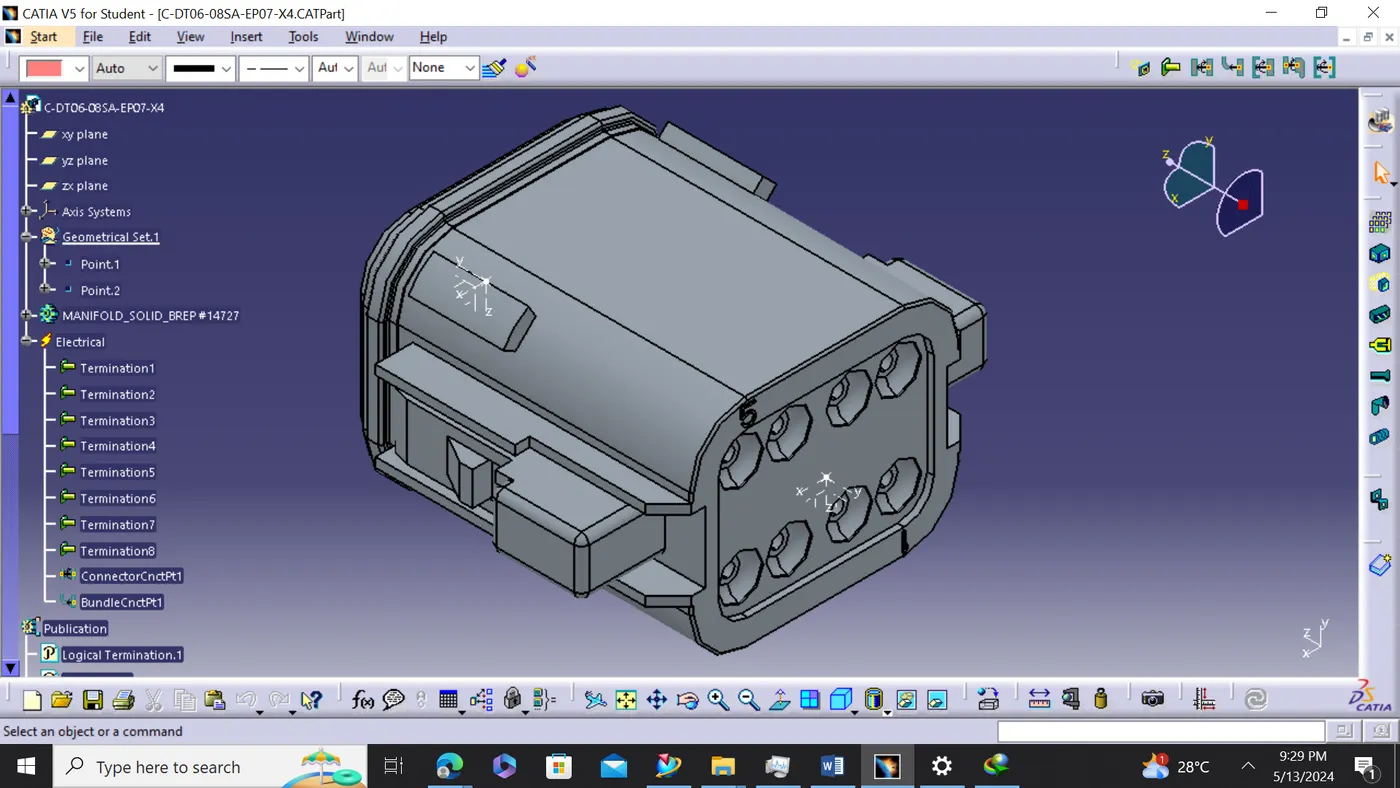

CONNECTOR 4
- Defined as connector
- Defined connector connection point
- Defined bundle connection point

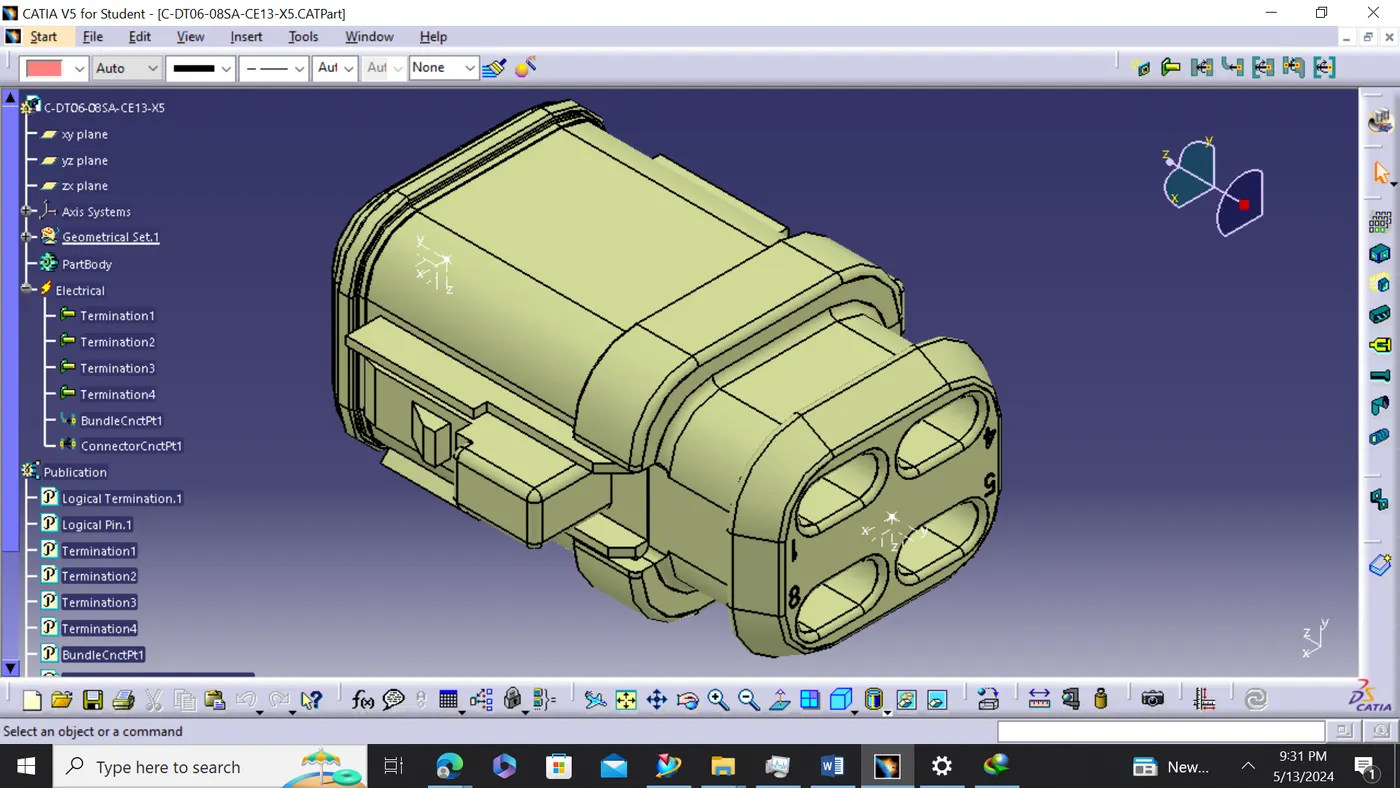

CONNECTOR 5
- Defined as connector
- Defined connector connection point
- Defined bundle connection point

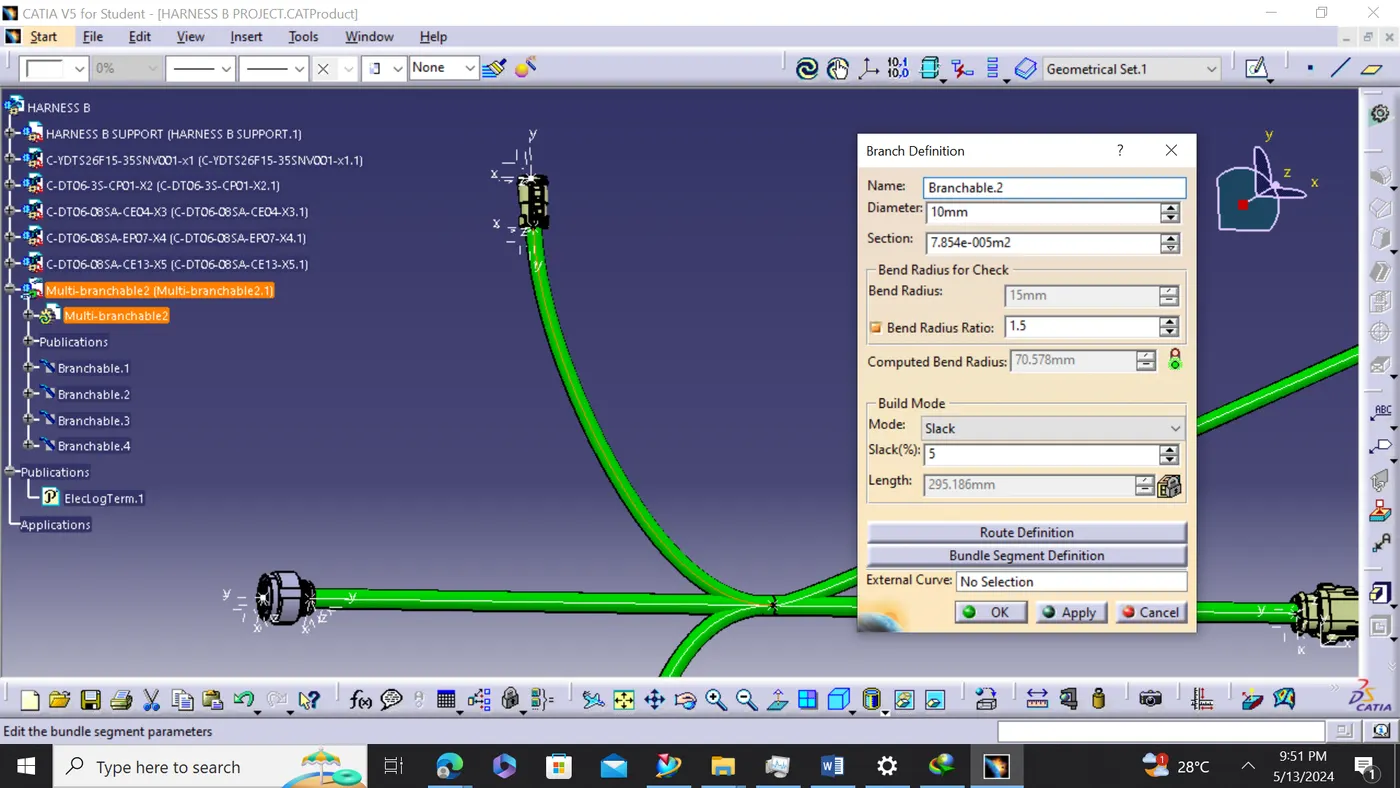

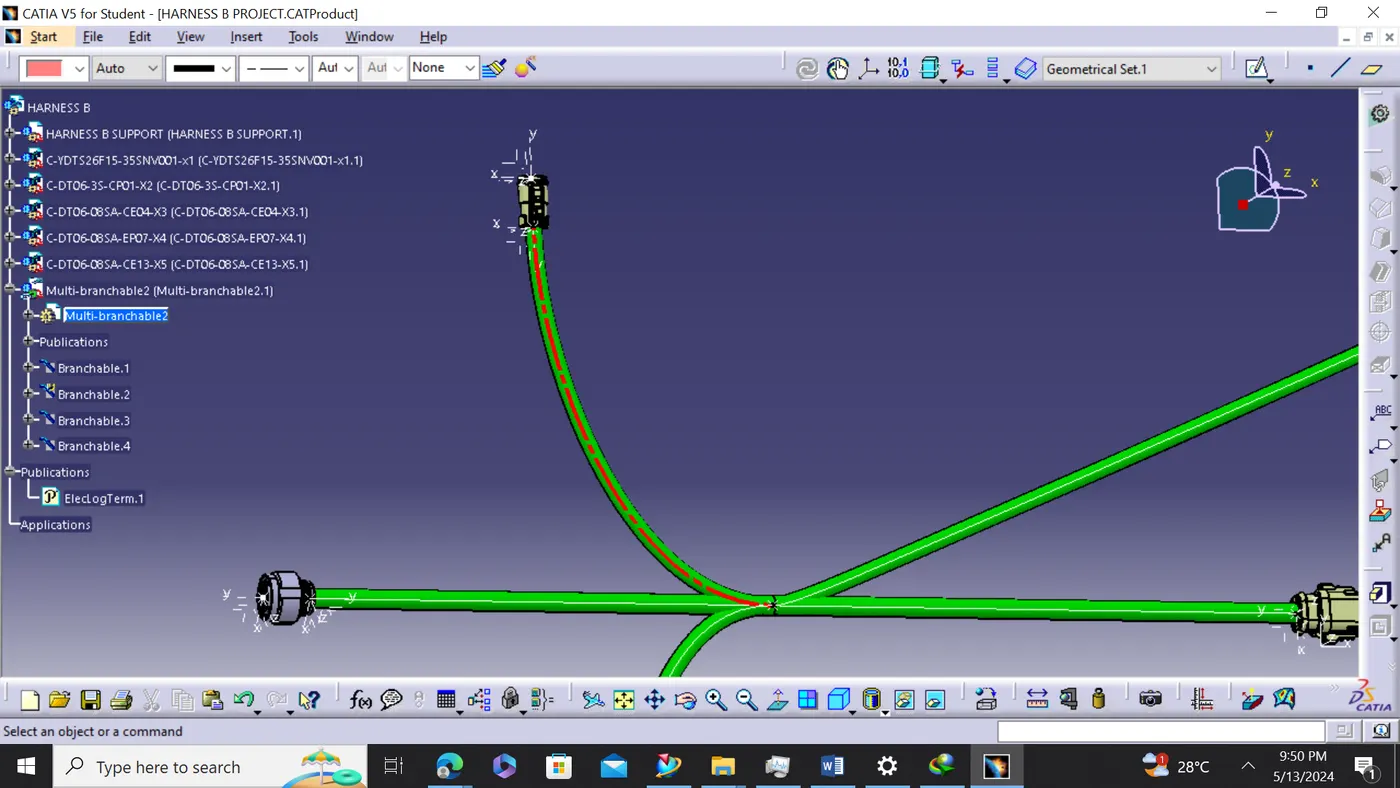

HARNESS B:

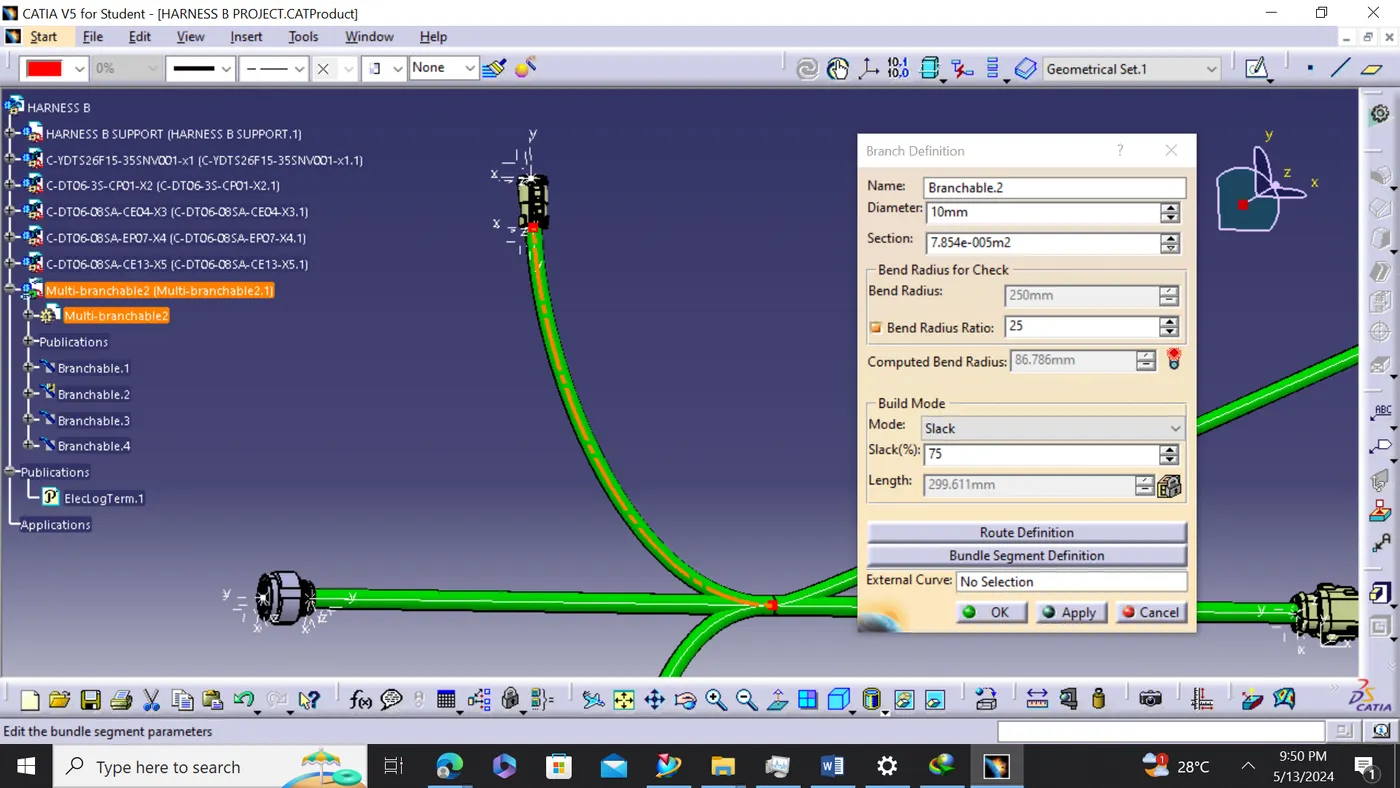

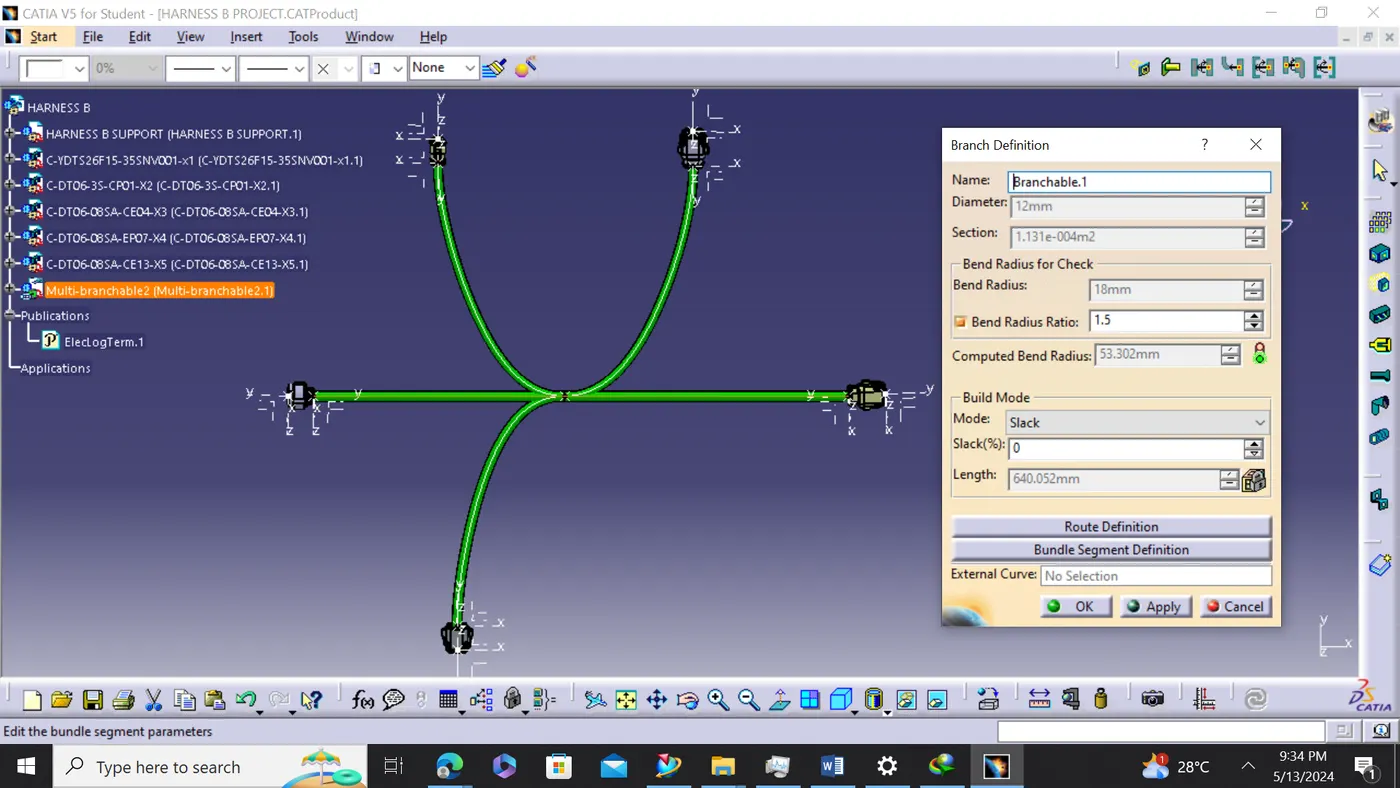

BUNDLE SEGMENT
Check the bundle Continuity: Error
Check the bundle Continuity: Error clear by editing Slack & bend radius ratio

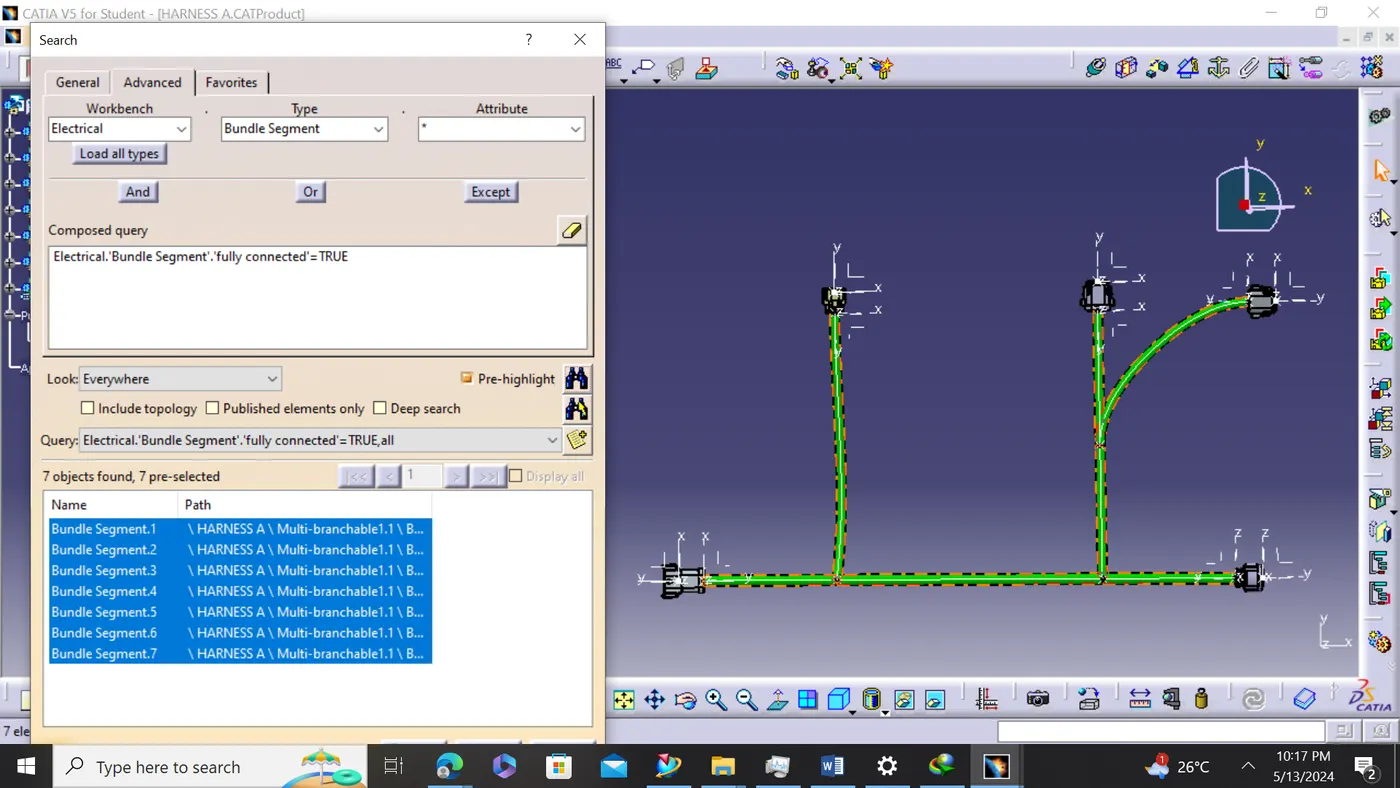

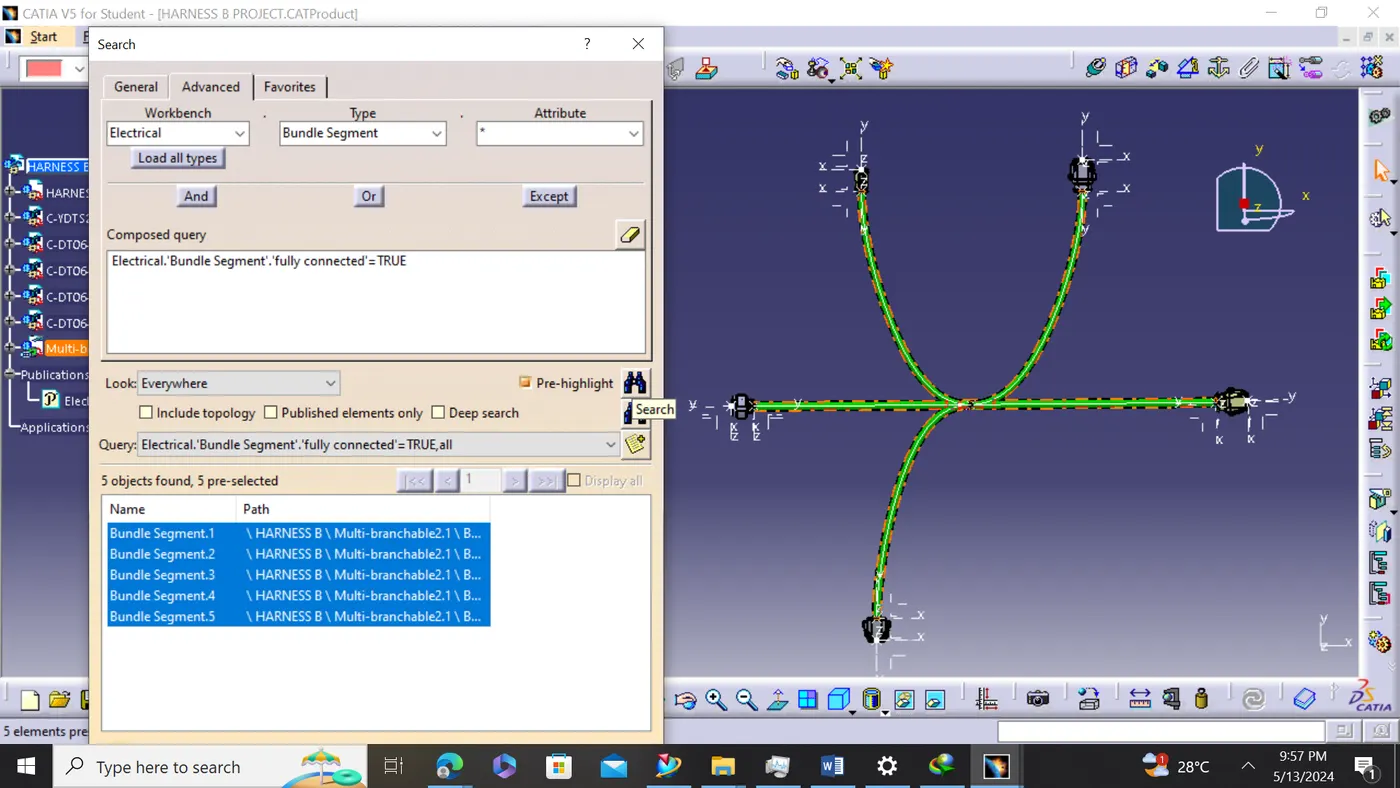

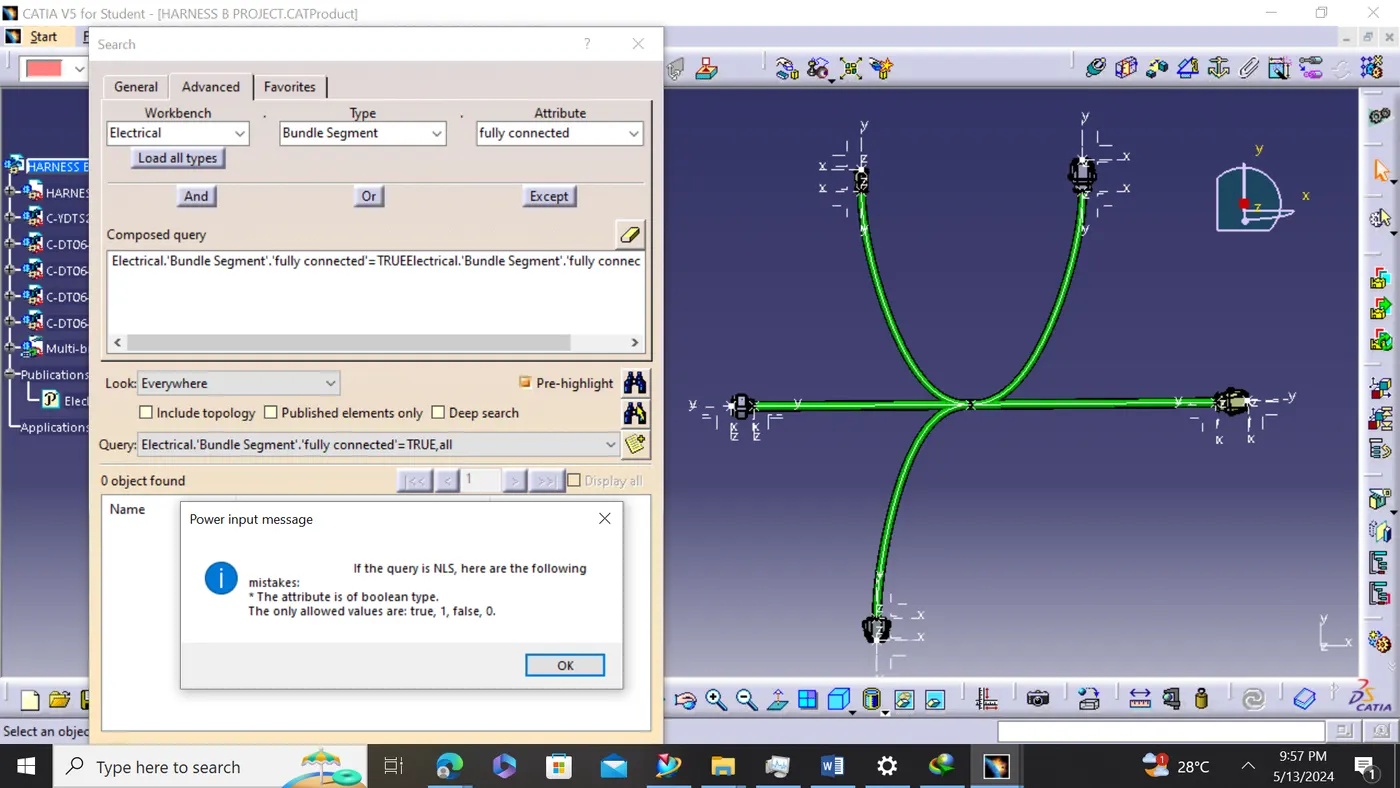

Check for the bundle warning
True:
False:
HARNESS A

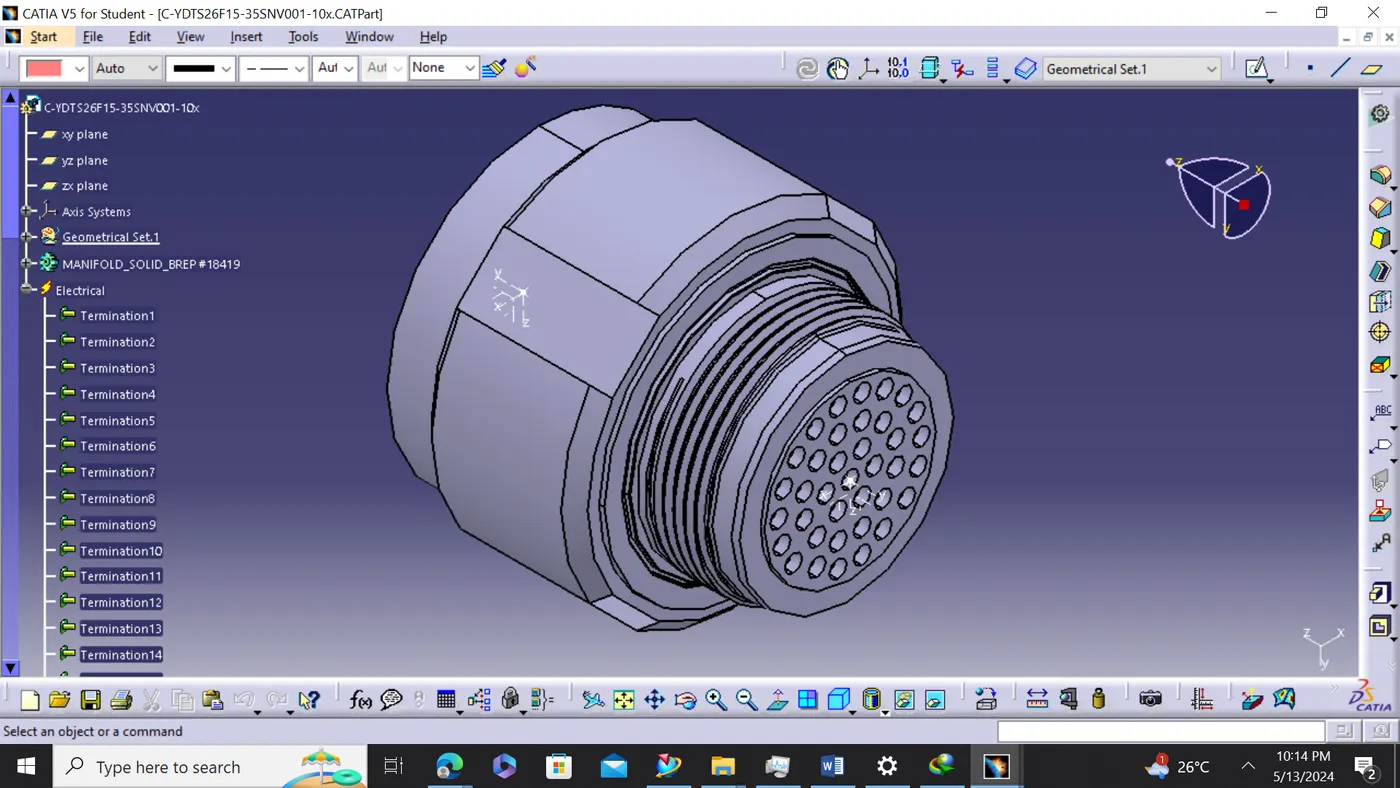

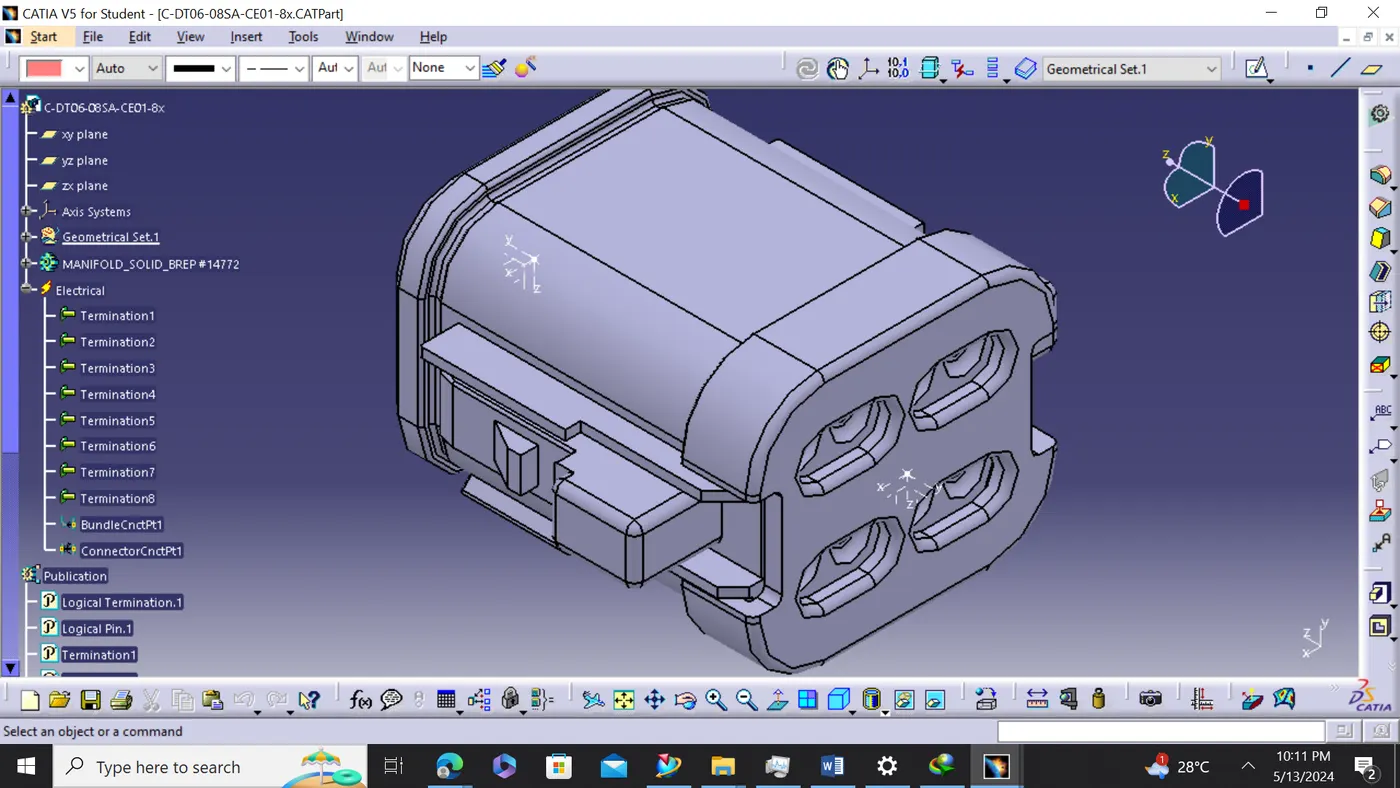

CONNECTOR 6
- Defined as connector
- Defined connector connection point
- Defined bundle connection point
CONNECTOR 7
- Defined as connector
- Defined connector connection point
- Defined bundle connection point
CONNECTOR 8
- Defined as connector
- Defined connector connection point
- Defined bundle connection point
CONNECTOR 9
- Defined as connector
- Defined connector connection point
- Defined bundle connection point
CONNECTOR 10
- Defined as connector
- Defined connector connection point
- Defined bundle connection point

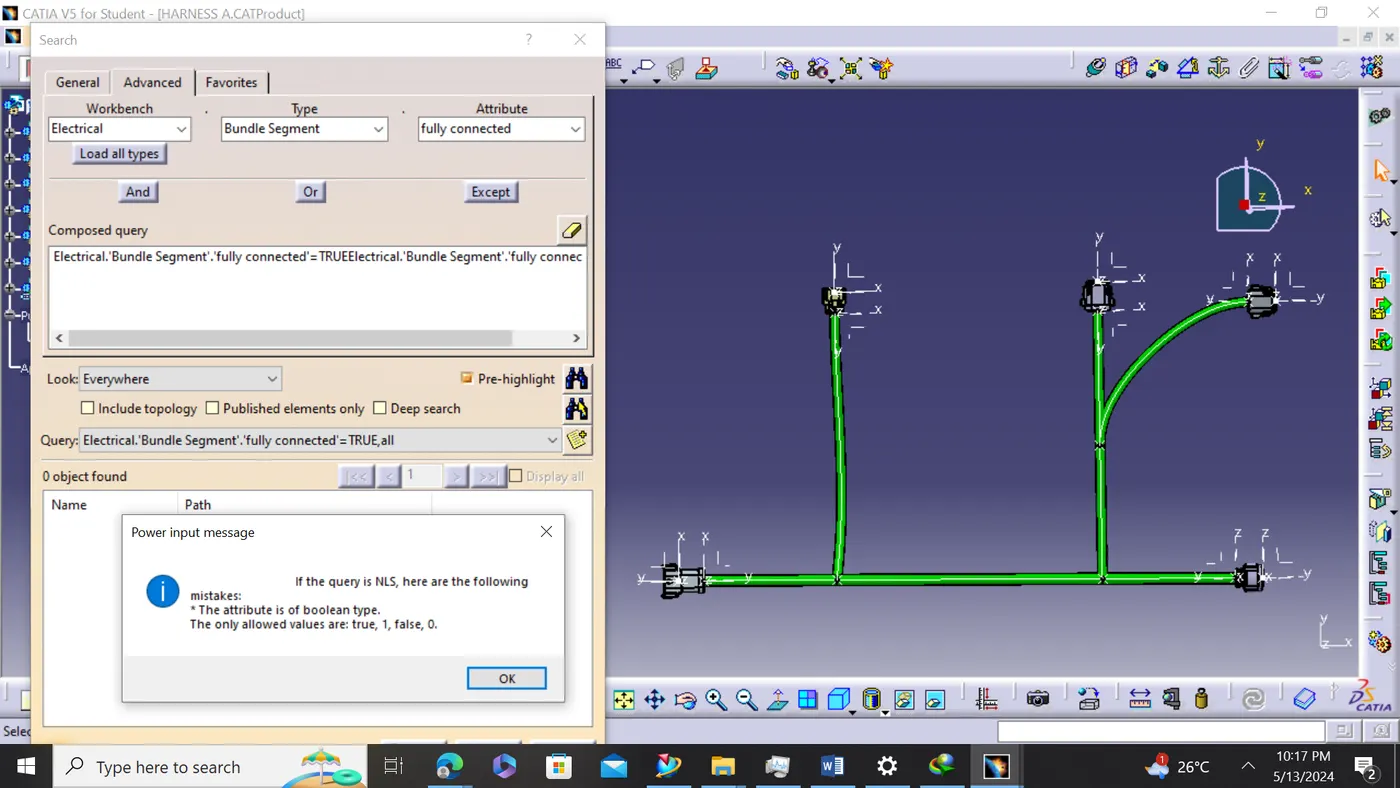

Check for the bundle warning
True:
False:

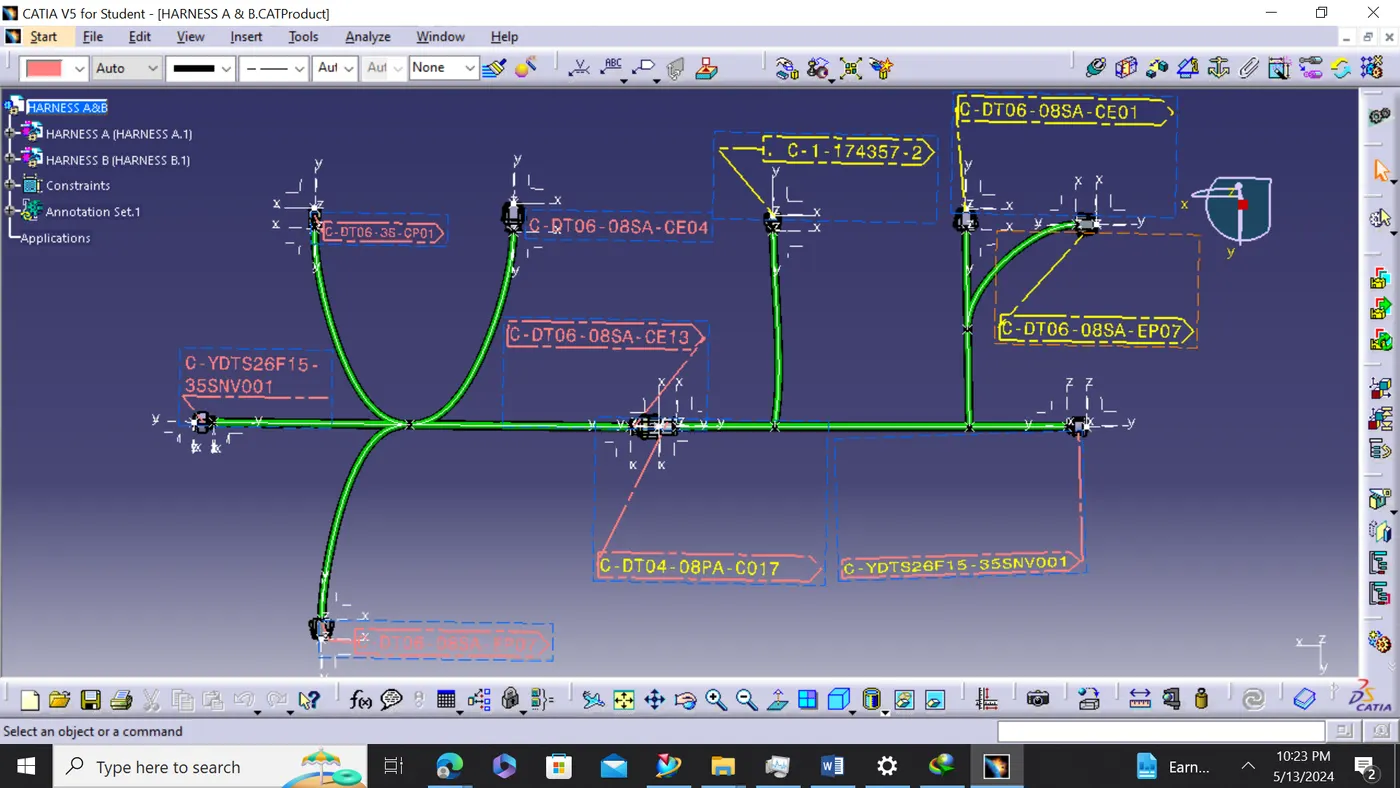

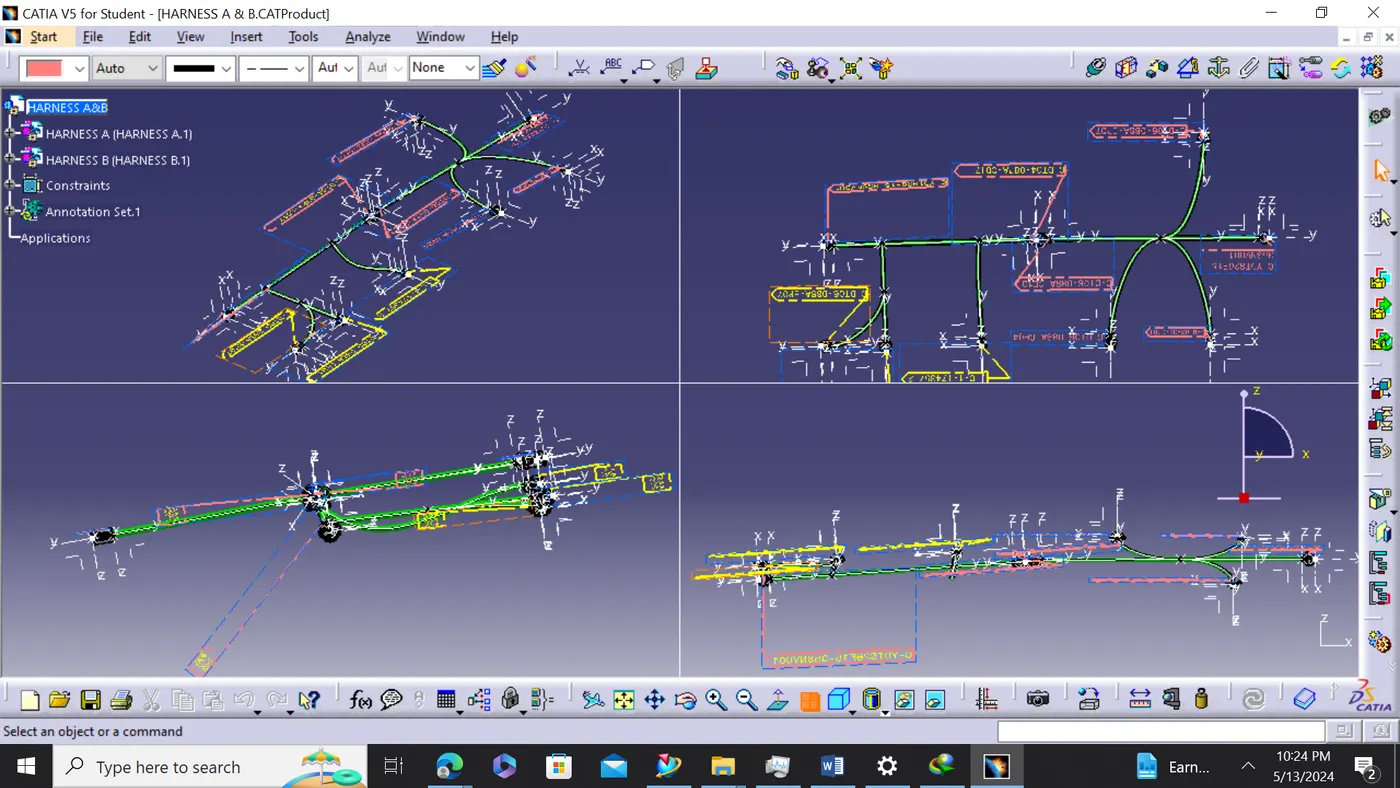

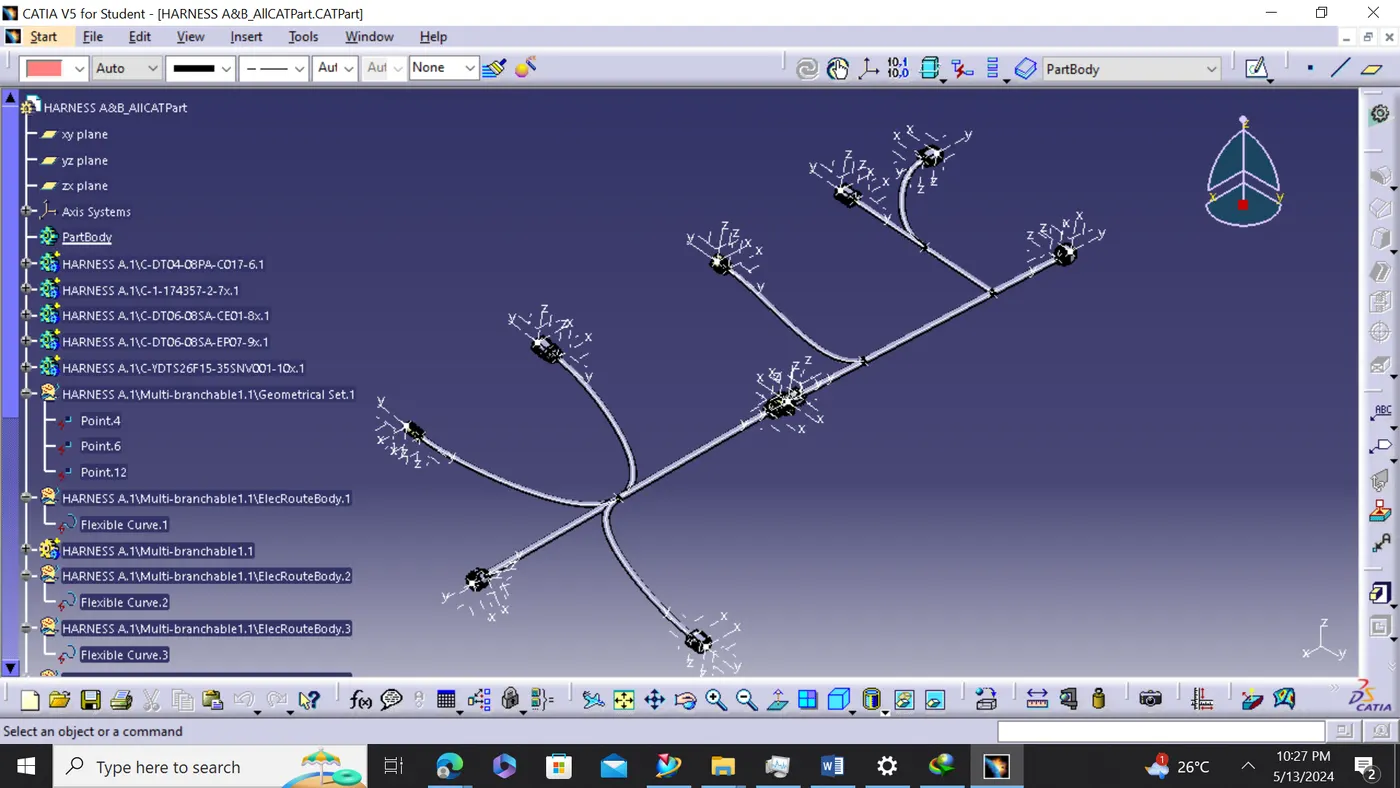

HARNESS A&B INTER CONNECTION WITH ANNOTATION:
