Wiring harness design in CATIA V5 - 3D modeling Week 2 Challlenge

Aim : The aim of the project is to convert the mechanical part to the electrical connector using the electrical part workbench by applying the electrical properties.

Procedure :

• Create/Download 3D connector
• Create required geometrical parameters

In the reference geometry required reference points like bundling entry point connector connection point and cavity connection points and also the required axis is created in the geometry parameters

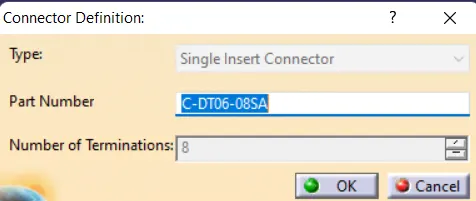

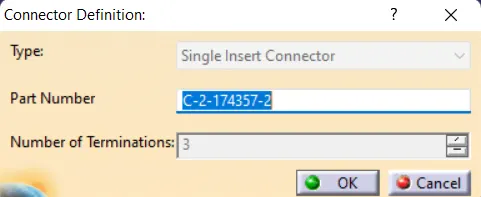

• Define part as connector

The parts are defined as connectors by using the define connector option in the CATIA and while defining the connector we give the number of terminals that are there for the connector.

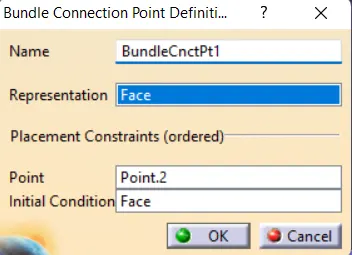

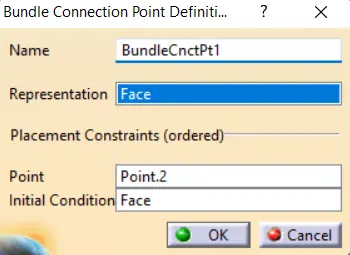

• Define bundle connection point

It is the point that goes on Wire entry side of the connector

• Define connector connection point

It is the point that goes on Mating Face of the connector

• Define cavity connection point

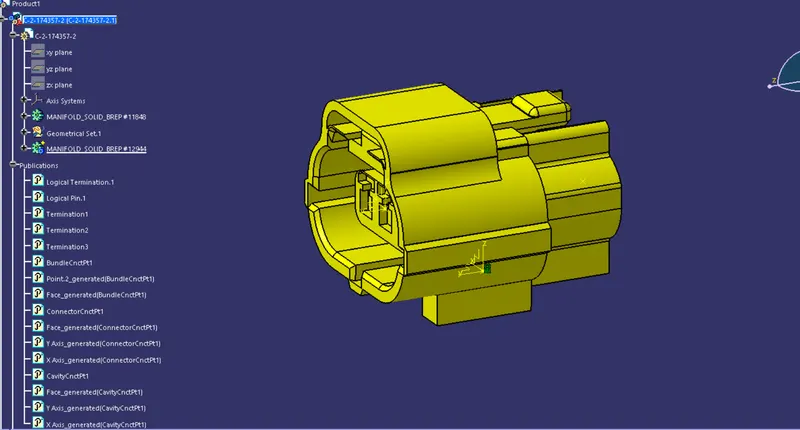

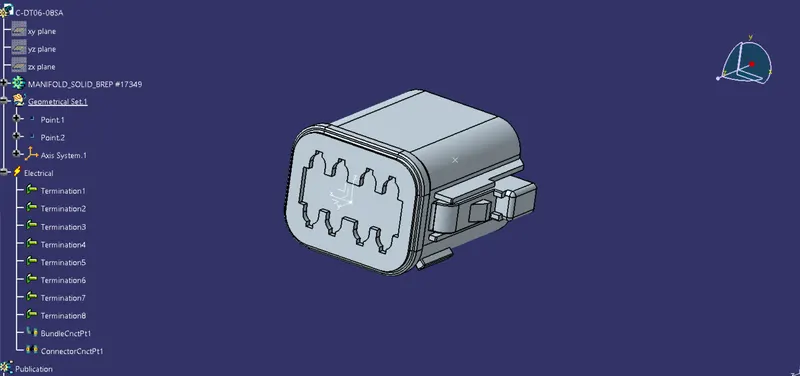

1,connector C-DT06-08SA

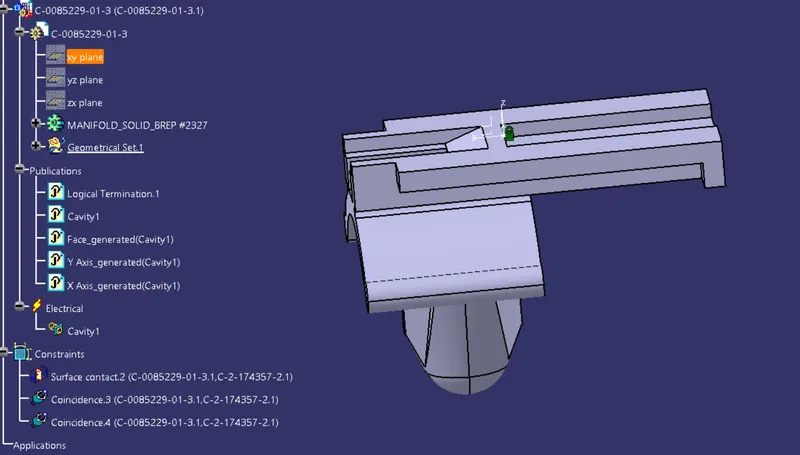

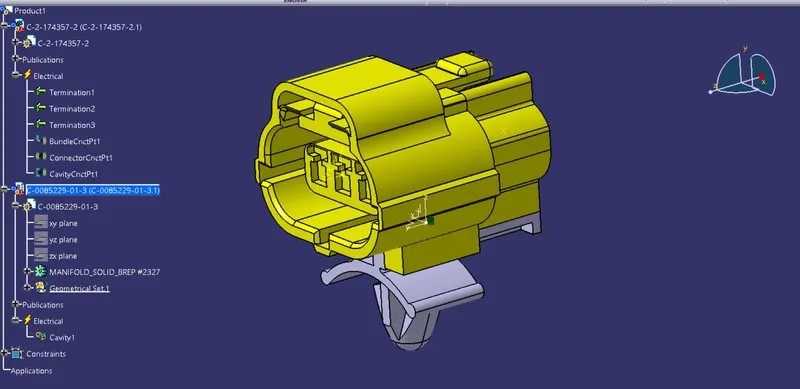

2,connection c-2-174357-2-e-3d with clip c-0085229-01-a-3d

connection c-2-174357-2-e-3d

clip c-0085229-01-a-3d
