AIM:

             Download following connectors & Connector clip cad data from given link & define it as Electrical Connector using Electrical Part design Workbench. Define all the necessary properties to Connectors & Clip.



1. Deutsch DT06 – 08SA ( https://www.te.com/usa-en/product-DT06-08SA.html)
2. Tyco 174357-2 (https://www.te.com/usa-en/product-2-174357-2.html?source=header-match)
3. Tyco 85229-1 – (https://www.te.com/usa-en/product-85229-1.html?q=85229&source=header)

1.Deutsch DT06 – 08SA

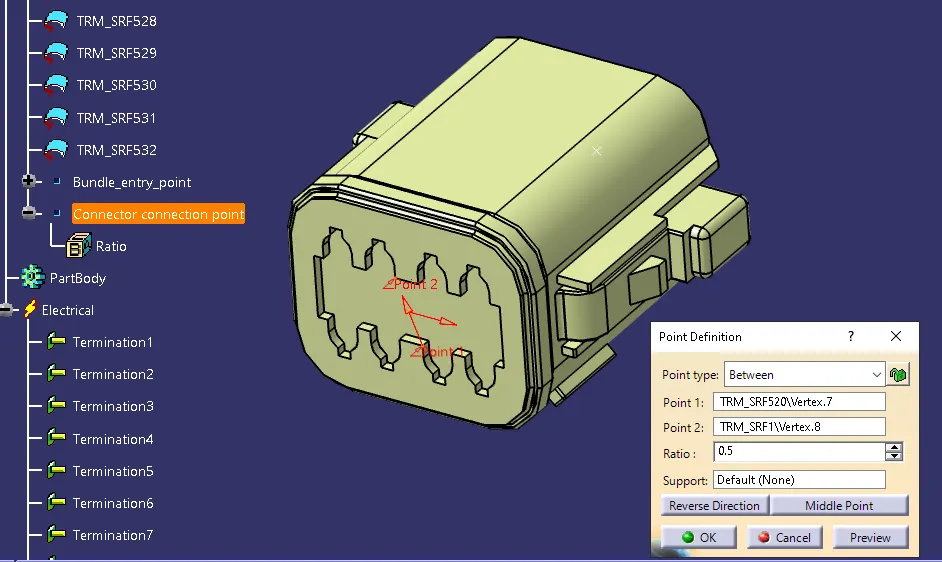

^{In Part Design Workbench using line Definition Tool point type [Between ] create center point on Mating side (Connector connection point)}

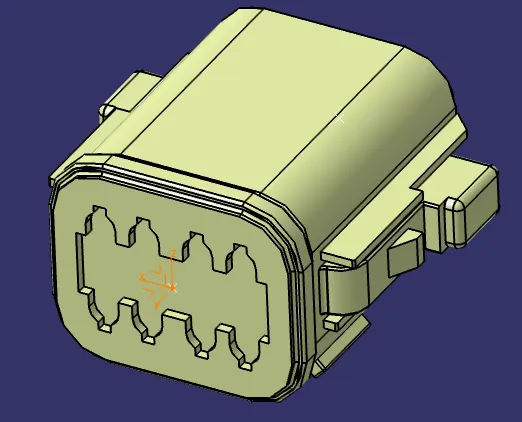

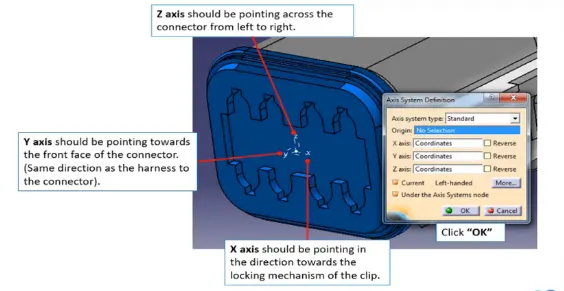

create axis system based on the given image.

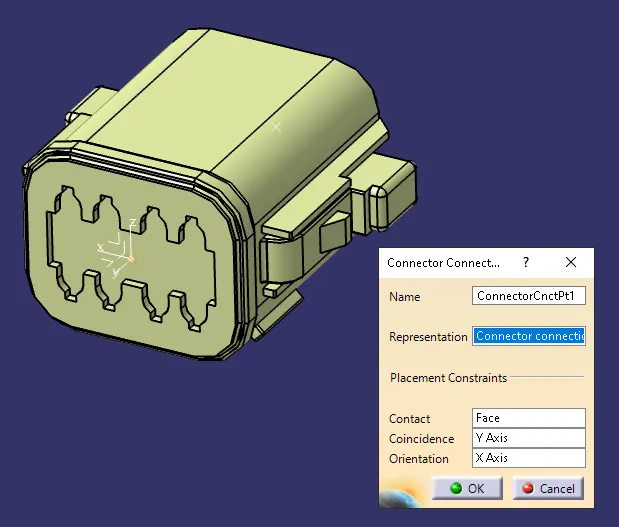

Define connector connection point

                                                        Defining connector connection point at the mating side of the connector where representation is the center point, contact is the face, coincidence is the Y axis, and, orientation is the X axis.

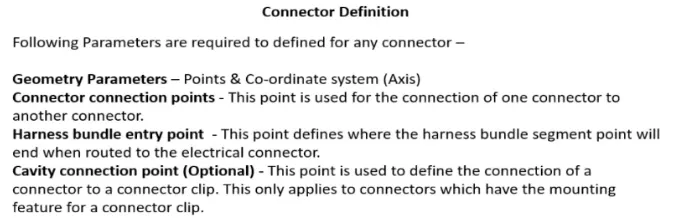

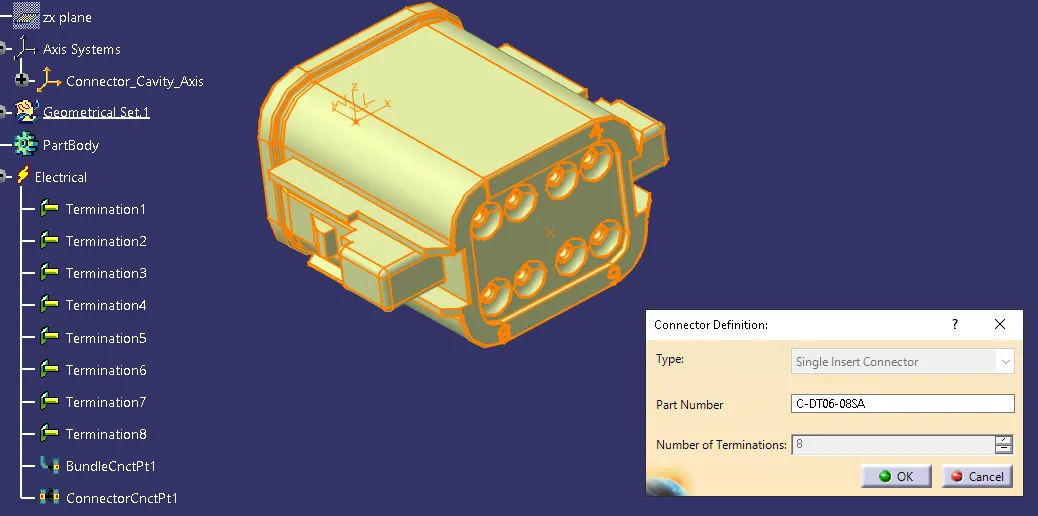

Connector Definition

And change Number of terminations[8]

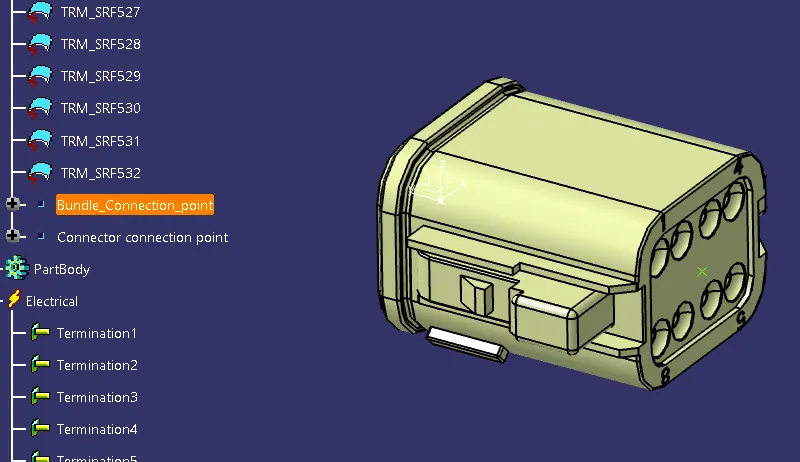

Using line Definition Tool  point type [Between ] create center point on Bundle Connection point

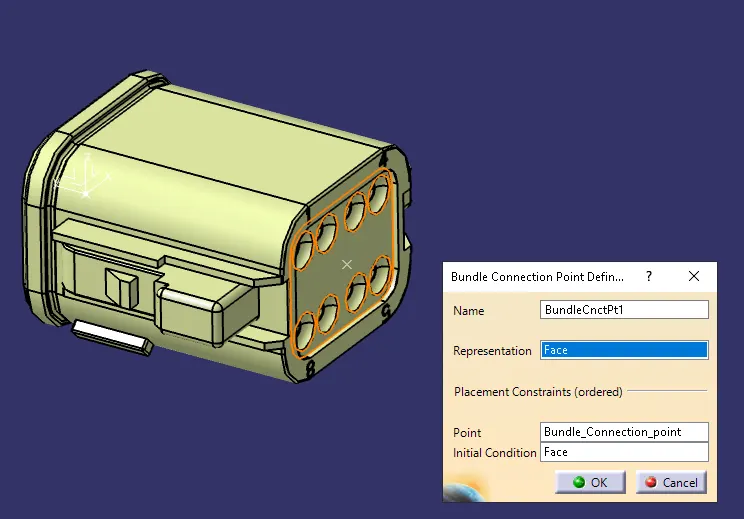

Define Bundle connection point

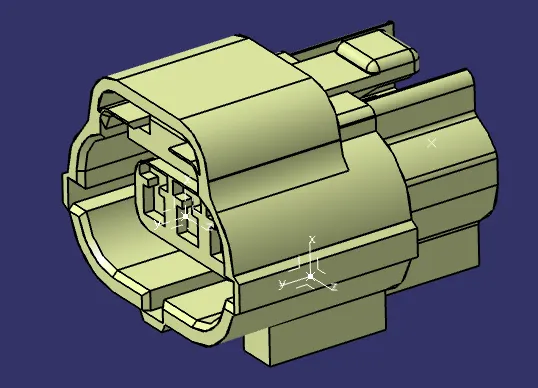

2.Tyco 174357-2

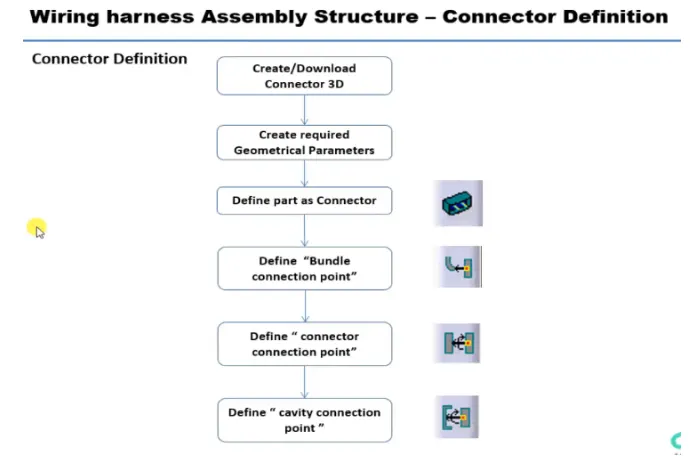

Create Required Geometrical parameters on mating side, Bundle side, cavity side &  Define part as connector, Define connector connection point, Define Bundle connection point.

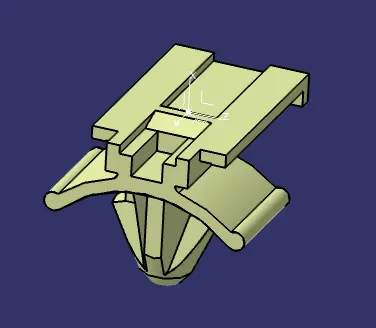

3.Tyco 85229-1

Create Required Geometrical parameters for Cavity Connection point, Cavity axis system,

Define Mounting Equipment & Define cavity

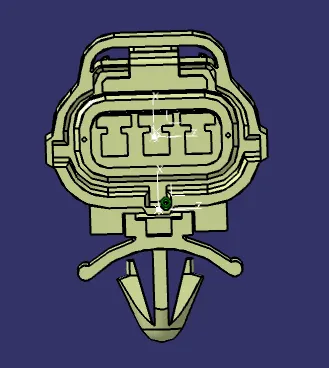

Change to Electrical Assembly Design

IN Electrical Assembly Design connector & Cavity is

 (Using Connector electrical device Tool) select Cavity & Connector
