Wiring harness design in CATIA V5 - 3D modeling Week 2 Challenge

Report writing

DT06 – 08SA DEUTSCH DT Plug Connectors

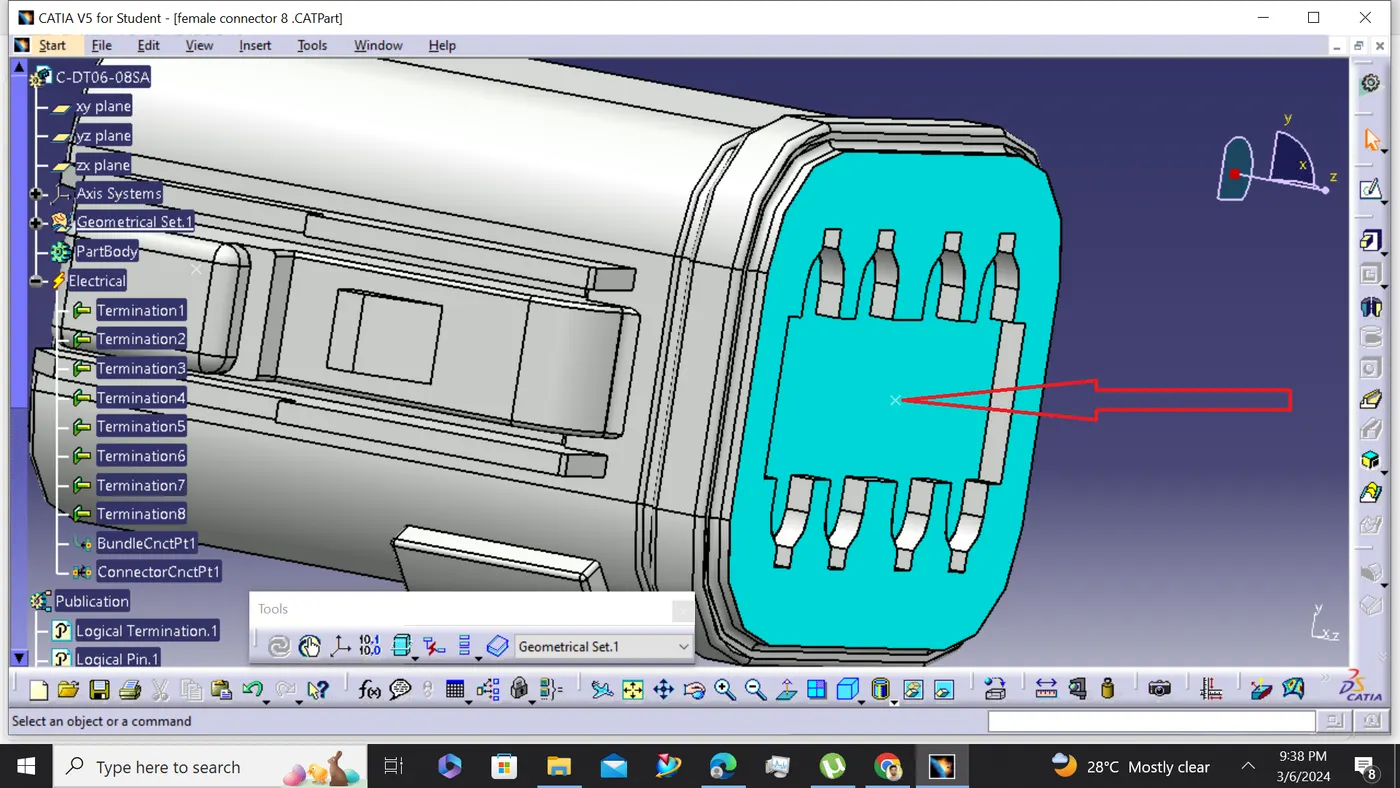

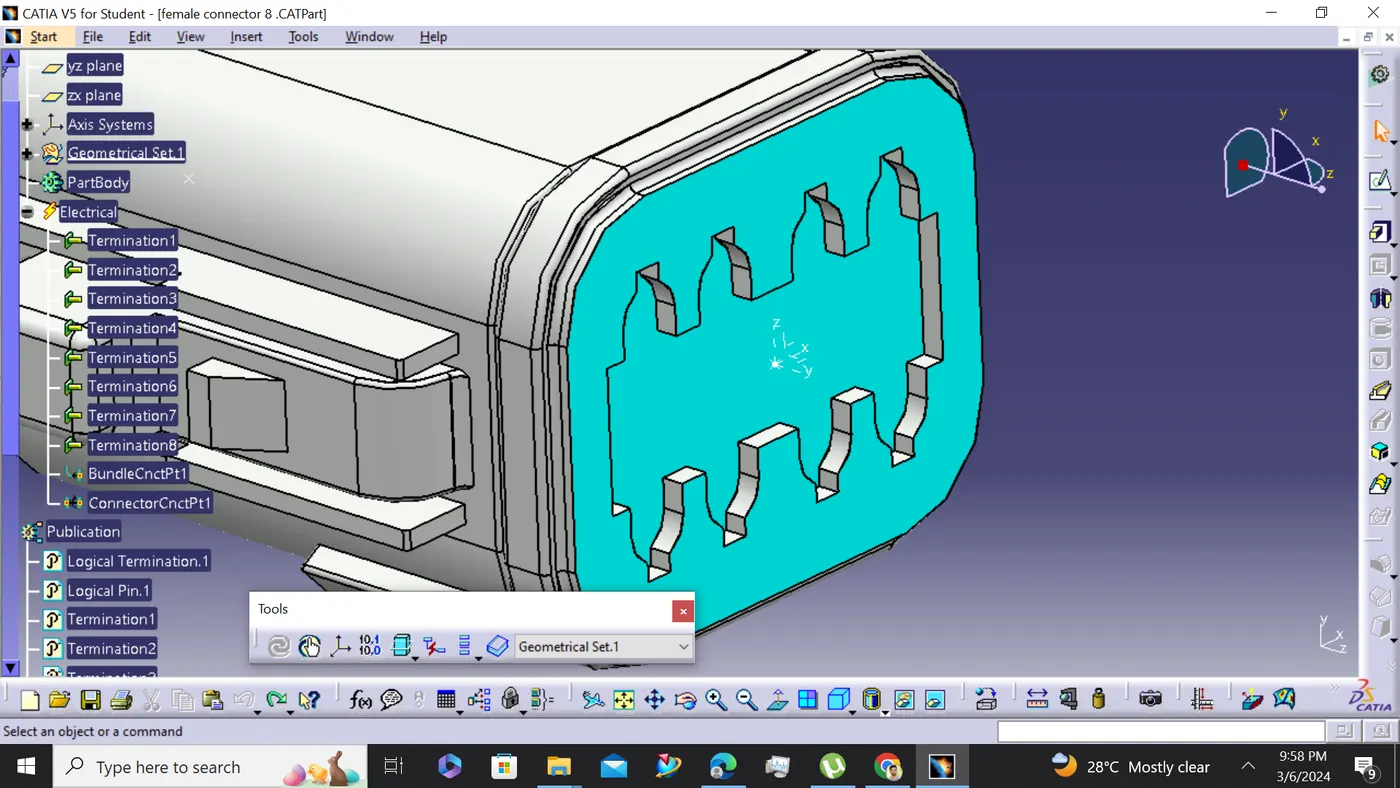

1. Creating mid point on connector connection mating face

2. creating axis in mid point

Y axis - Mating direction

X axis - Locking direction

Z axis - Up direction

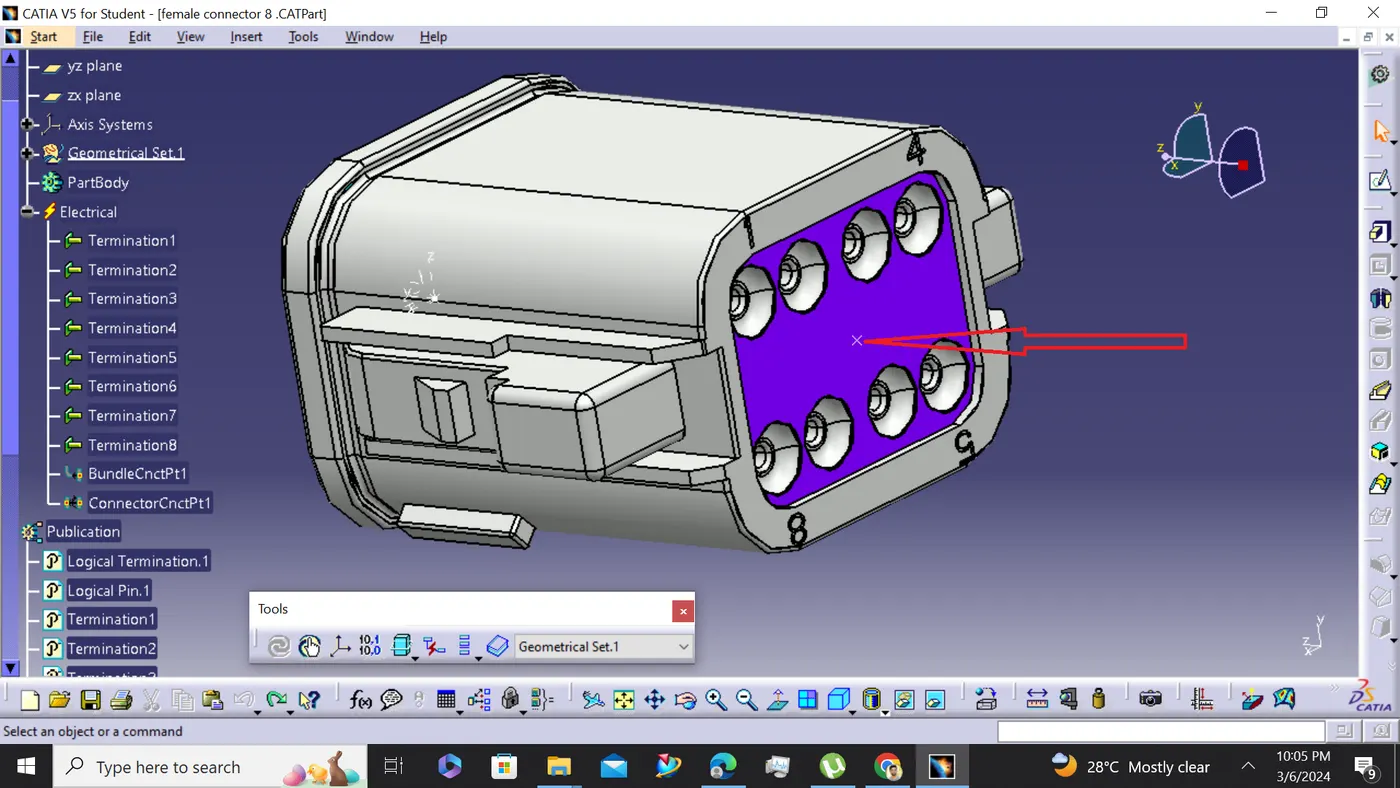

3. Creating mid point on connector connection bundle entry face

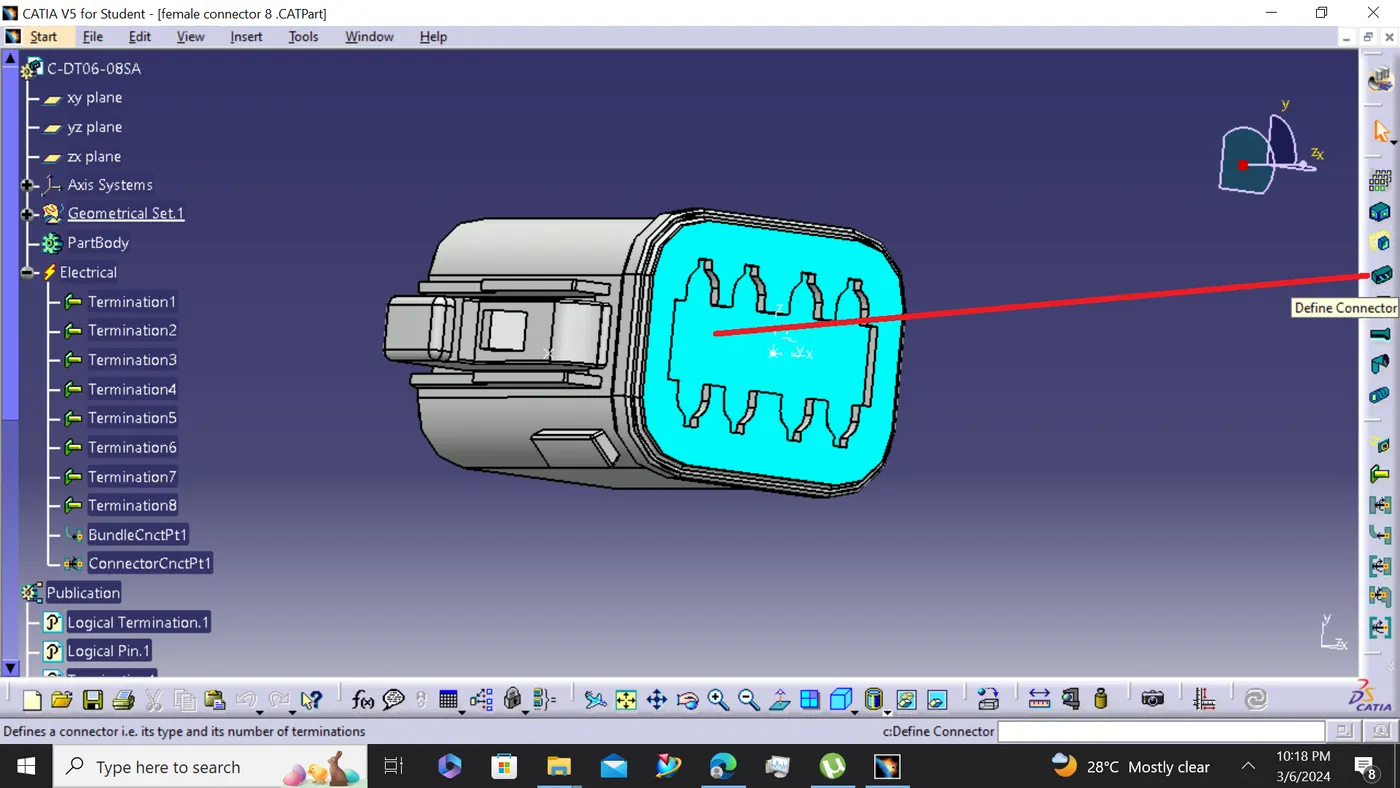

4. Define given geomentry as a connector

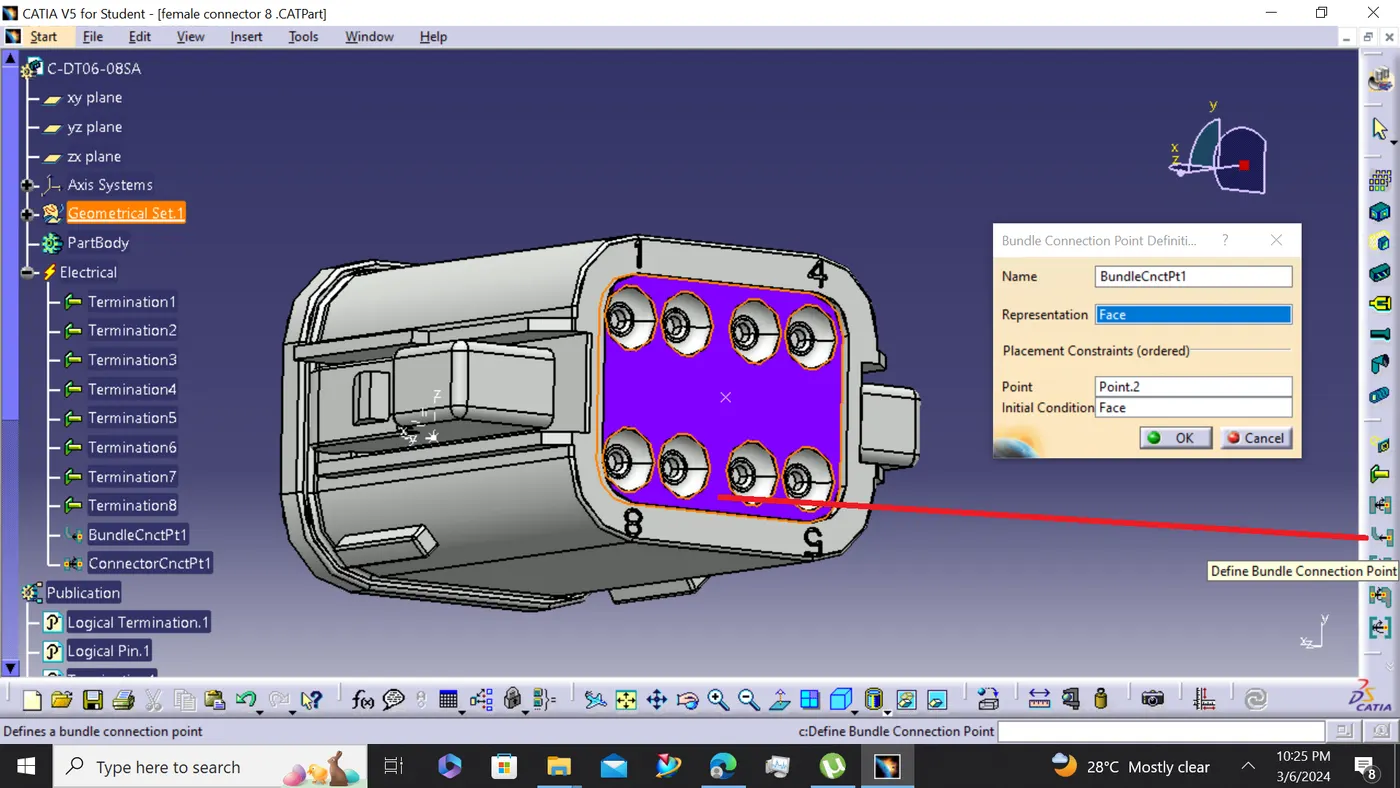

5. Define bundle connection point

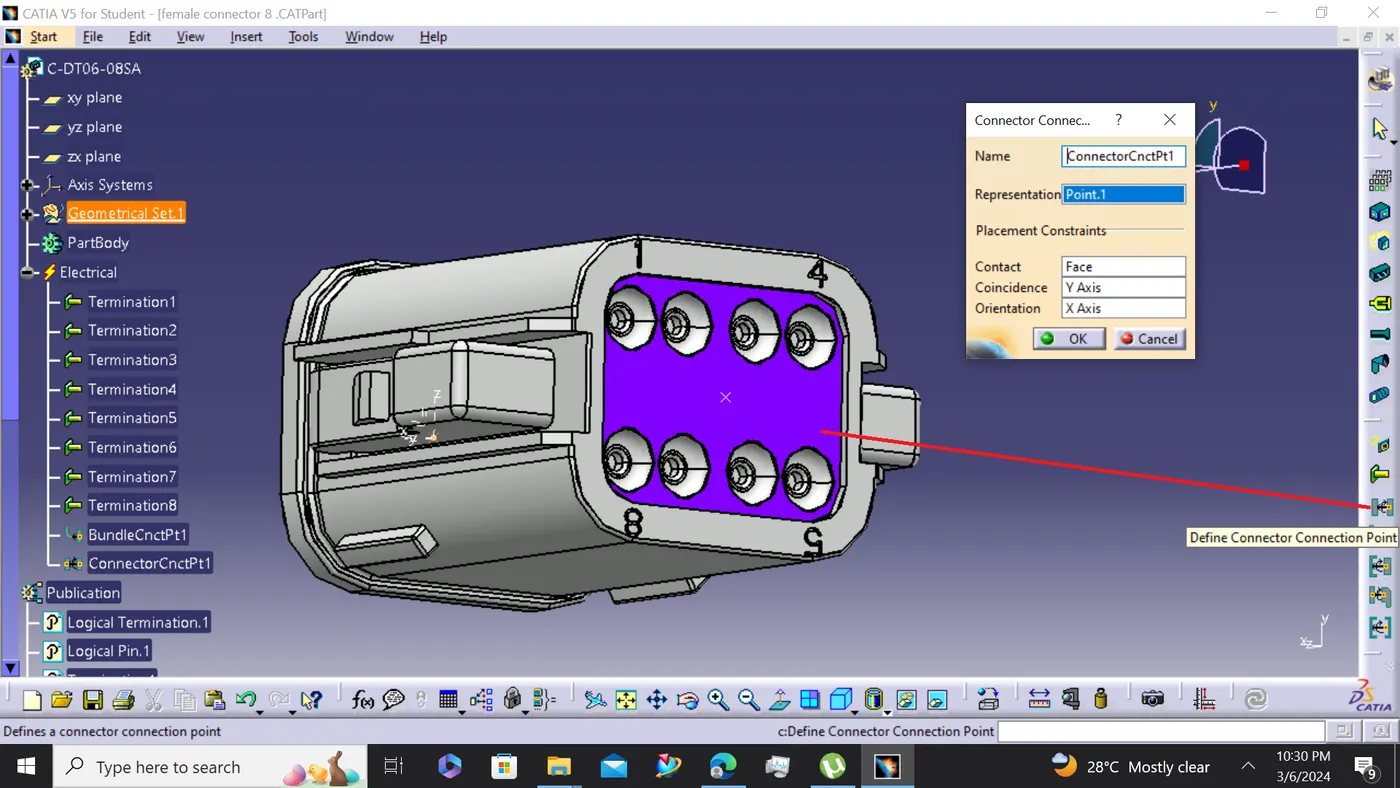

6. Define connector connection point

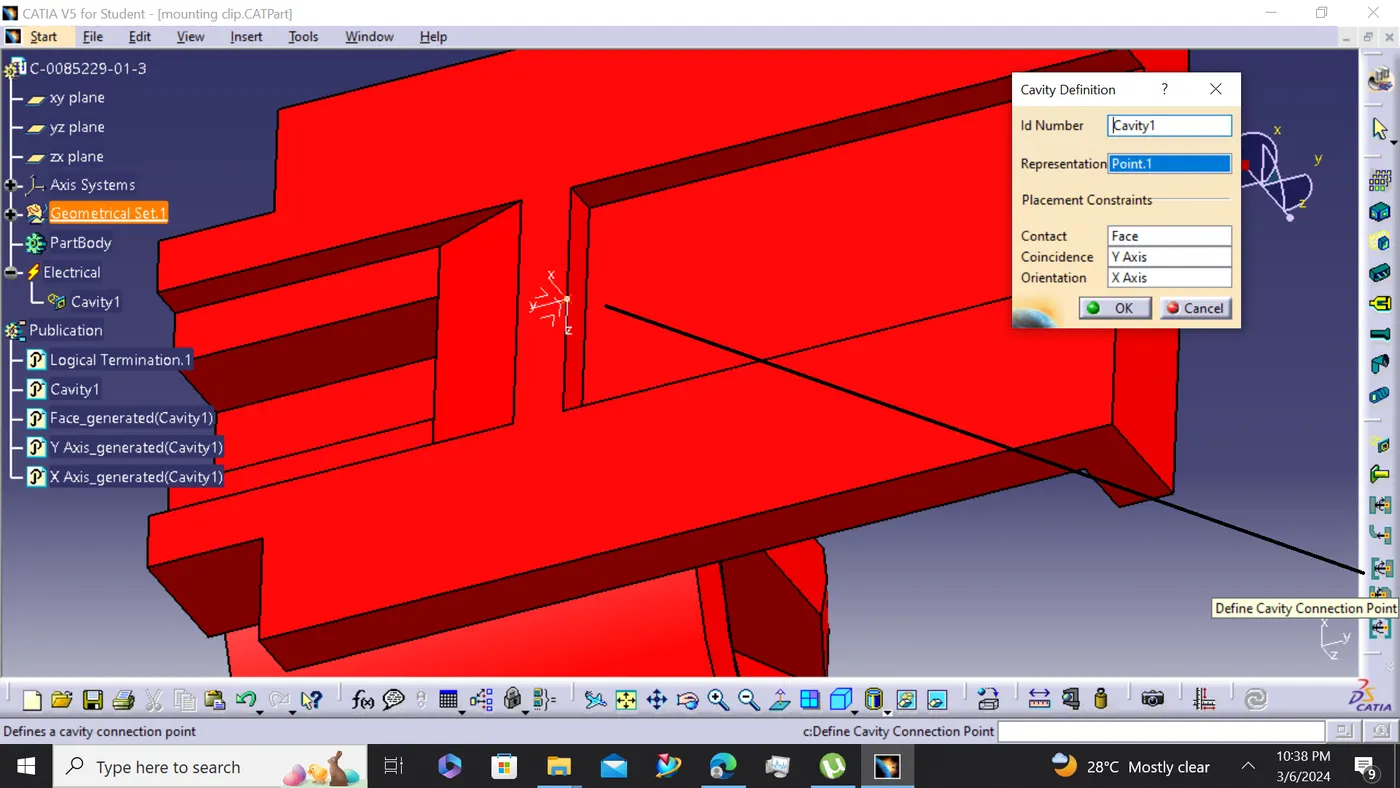

7. Define cavity connection point

Note: Cavity connection point applicable only for mounting area

85229-1 Mounting clip

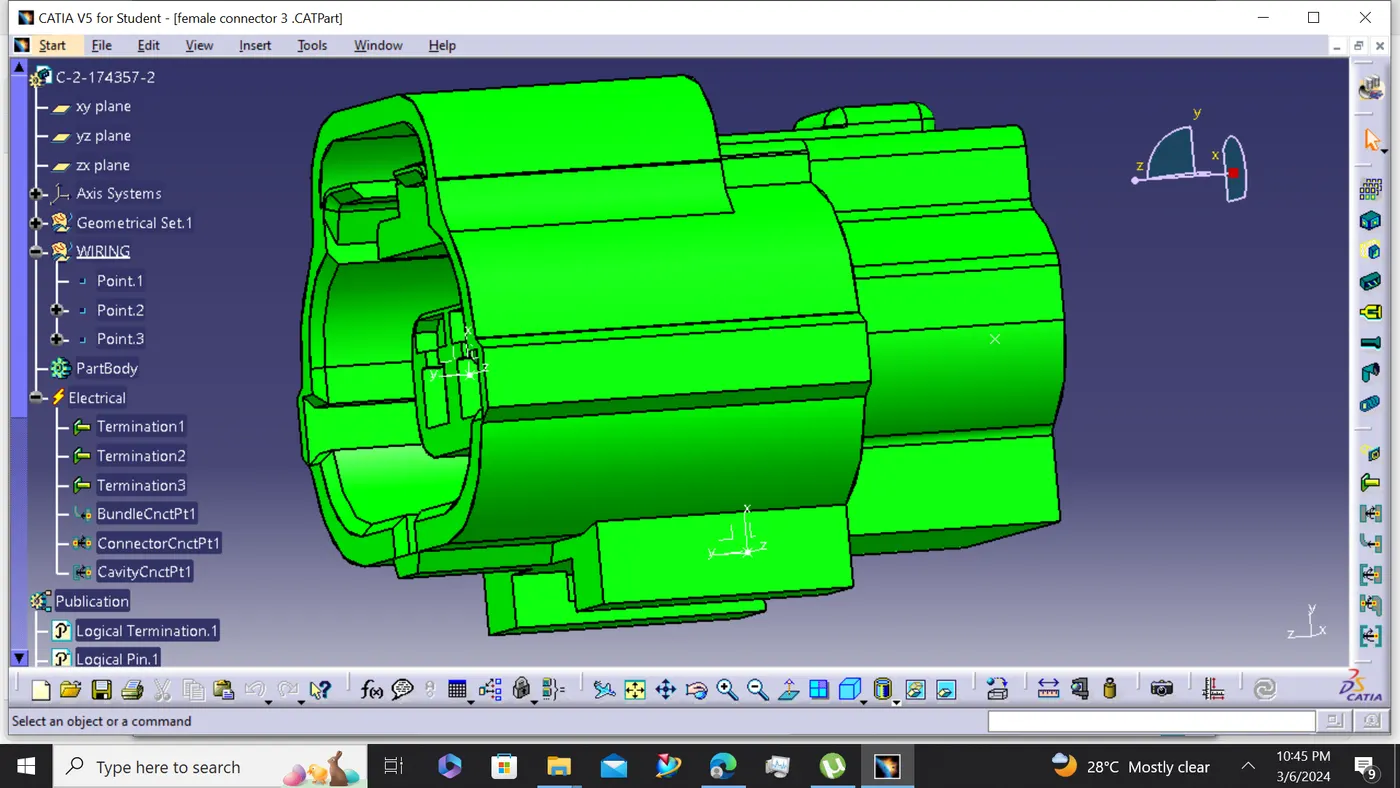

174357-2 CONNECTOR HOUSING

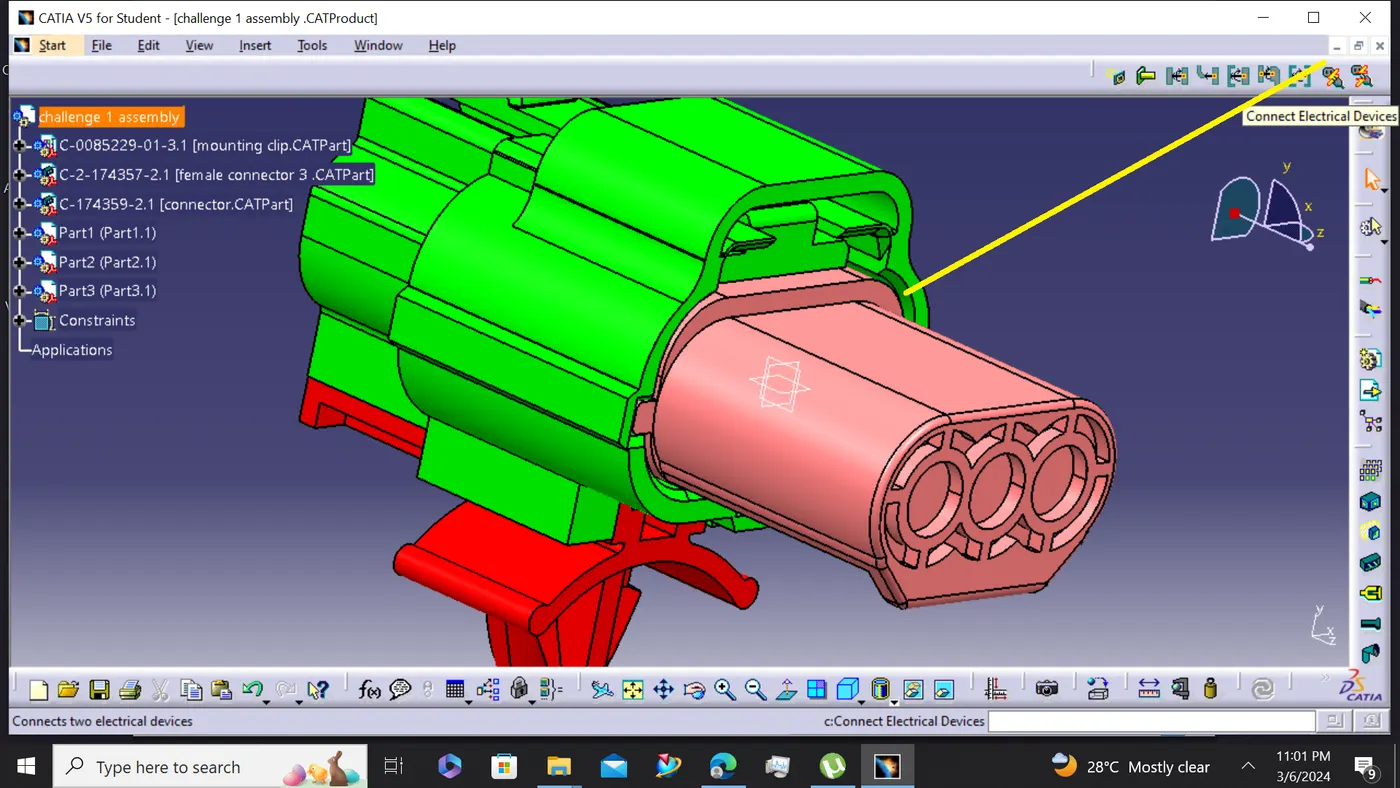

Assembly
