Wiring harness design in CATIA V5 - 3D modeling Week 2 Challenge

CONNECTOR DEFINATIONS IN CATIA V5

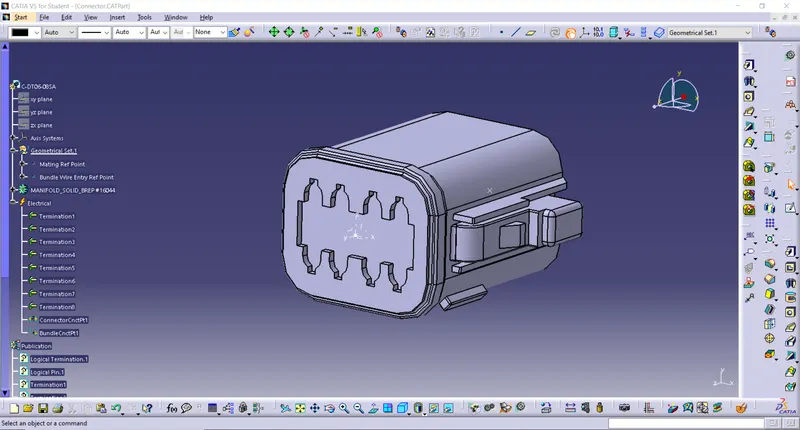

1. Deutsch DT06 – 08SA

Connector connection point:

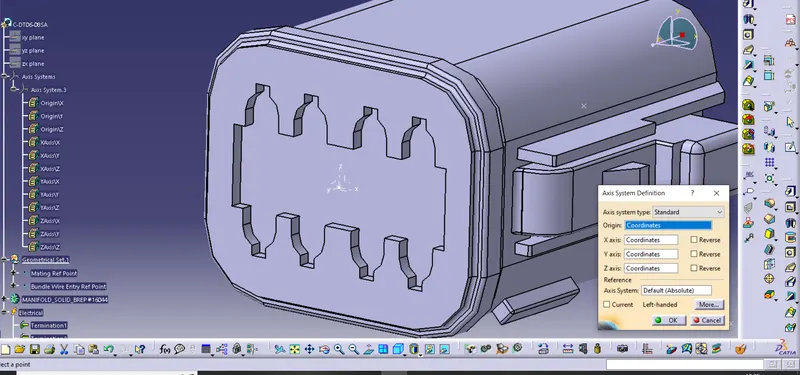

Craete Axis System with respect to the point which we have created and defining the axis direction as shown below,

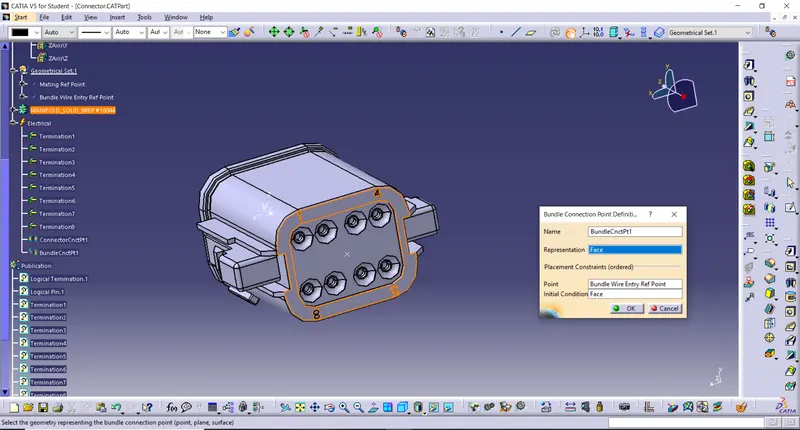

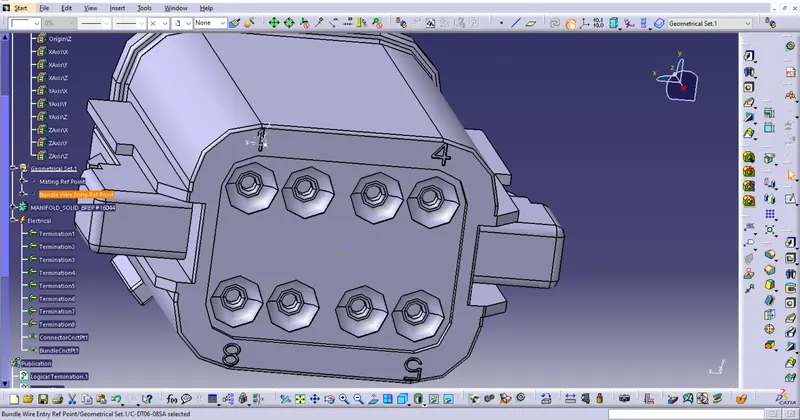

Bundle connection point:

Switch to 'Electric Part Design'

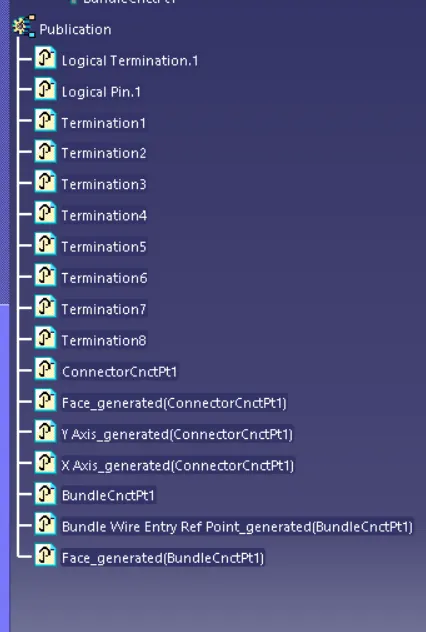

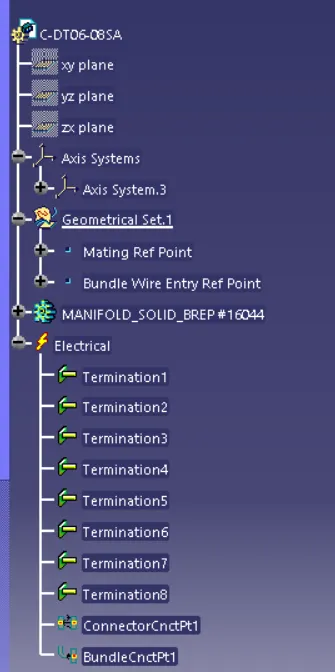

Define the part as connector in catia, give no. of termination as 8 because we have 8 entry points for wire.

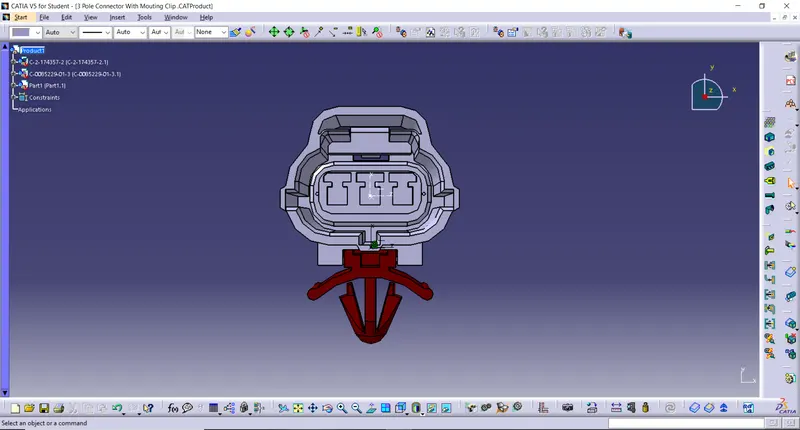

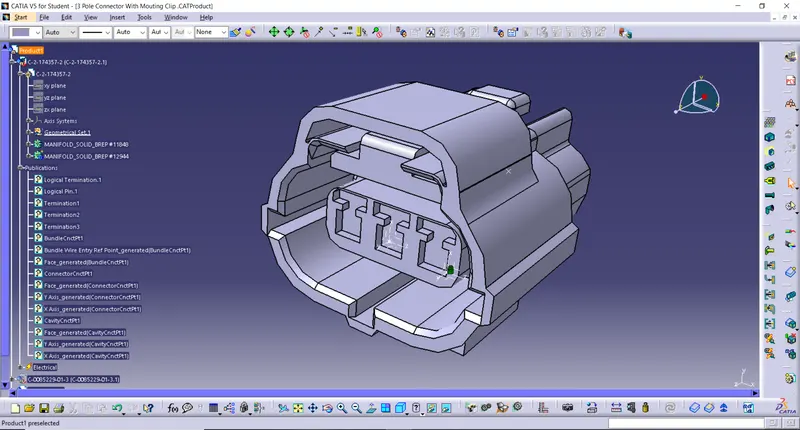

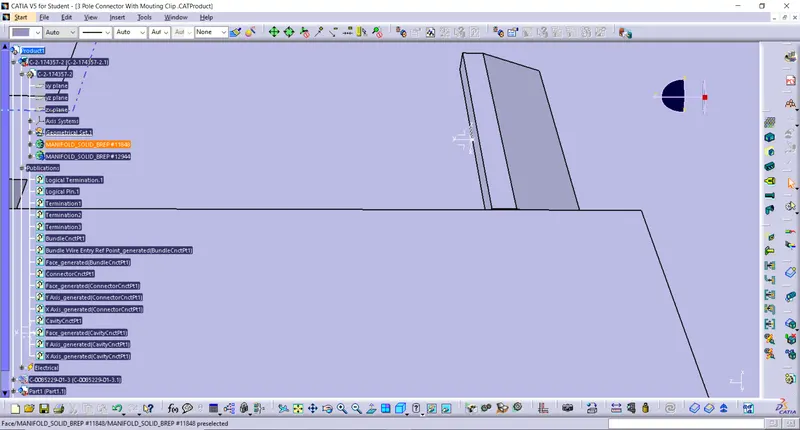

2.Tyco 174357-2 :

• Create midpoint
• create Connector connection point
• create Connector connection axis system
• create cavity connection point
• create cavity connection axis system
• Switch to Electric part design and define part as connector
• Define Connector connection point and cavity connection point

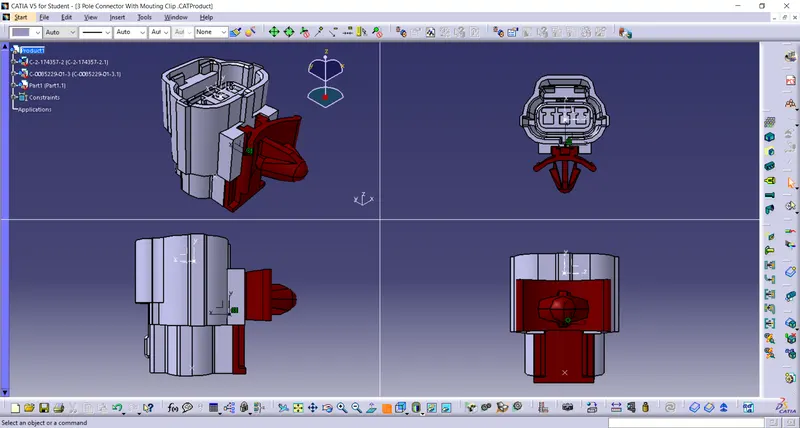

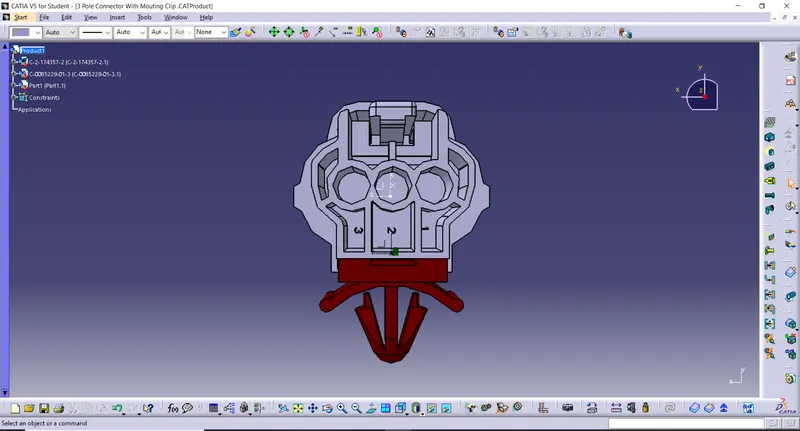

Elctric Assembly Design

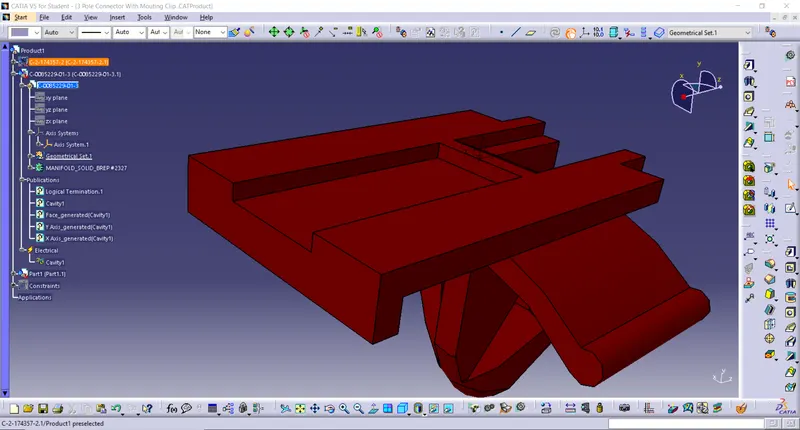

• Import Connector and cavity / mounting clip.
• Select Defing Eelectric connection
• select cavity and then connector.
