Radar Mast & Final Assembly of Yacht

Design, Assembly and Rendering of the Yacht

Objective:

To Create a Design, Assembly and Rendering of the Yacht by Using Soildworks And Soildworks Visualize

Introduction:

Its a 108ft long super Yacht designed by Jan Zuyderduyn using of Soildworks software. I love to do this yacht Model because they unique to recreate Model using of our own modification.

Design Methodology

Design are Parts

Assembly are Parts

Rendering

Design are Parts

• Propeller
• Radar
• Hull
• Garage Door
• Front,Middle and Rear Seats
• SuperStructure
• Radar Mast

Propeller

• Required Dimension As we sketched to using Sketching tools and Tangent relation Between Every arc of the Drag.
• Using Feature tool bar extrude required Dimensions and fillet the standard size of 3mm.

Sketch Tool

• Line
• Arc ( Three Point Arc)
• Fillet

Features Used in Propeller

• Revolve

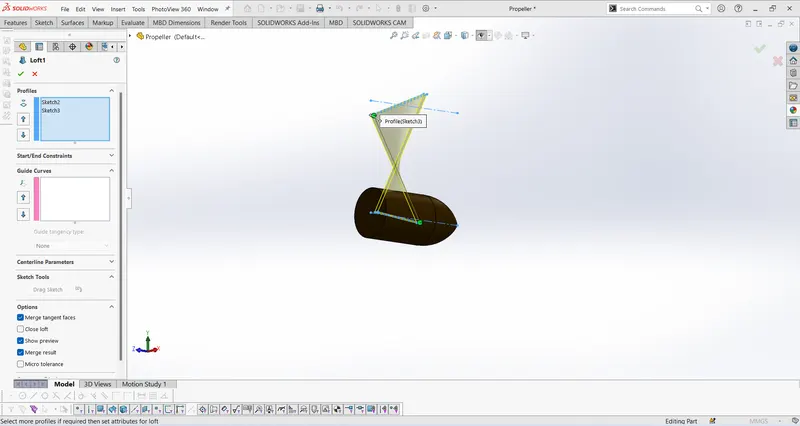

• Loft
• Extrude Cut

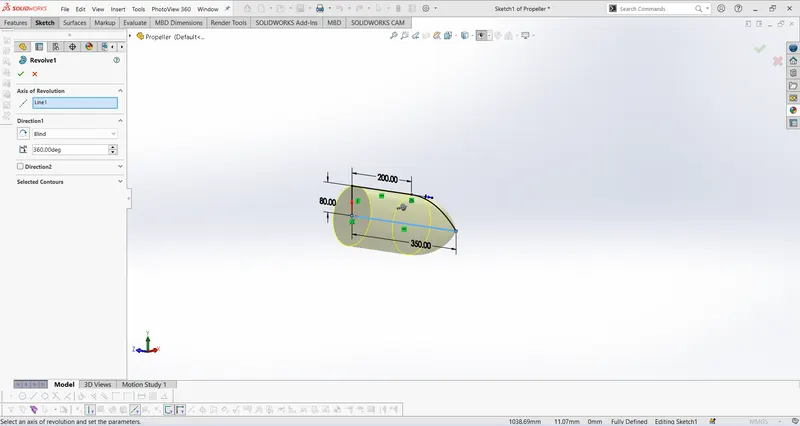

Revolve the Shaft Loft the sketched Part

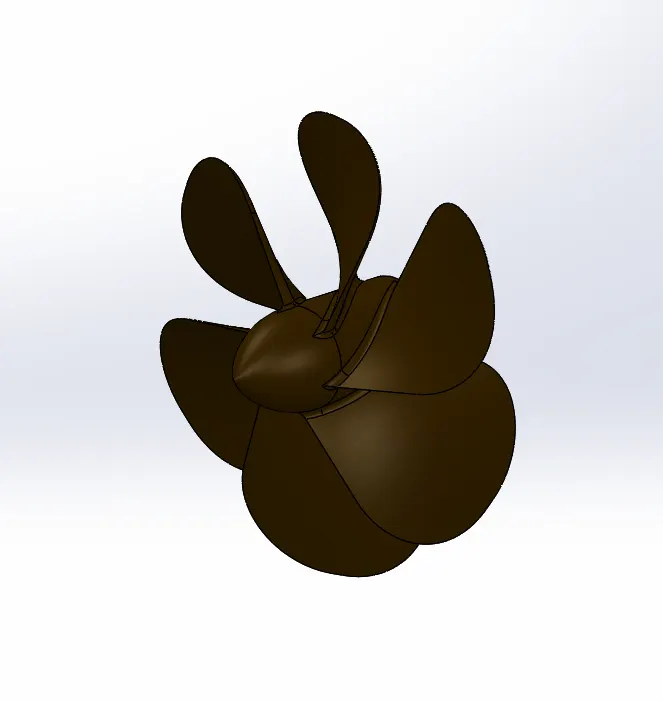

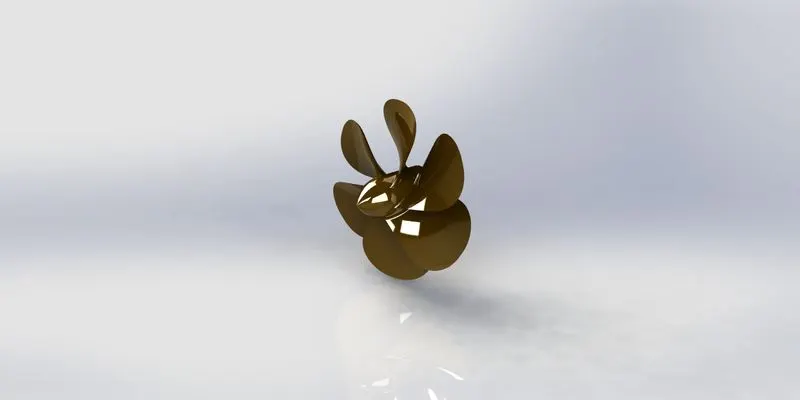

Propeller Rendering Image of Propeller

Function:

A propeller is a type of fan that transmits power by converting rotational motion into thrust. A pressure difference is produced between the forward and rear surfaces of the airfoil-shaped blade, and a fluid (such as air or water) is accelerated behind the blade.

Radar

• Required Dimension As we sketched to using Sketching tools and Tangent relation Between Every arc of the Drag.
• Using Feature tool bar extrude required Dimensions and fillet the standard size of 3mm.

Sketch Tool

• Line
• Arc ( Three Point Arc)
• Fillet

Radar Rendering Image of Radar

Function:

It rotates steadily, sweeping the airspace with a narrow beam. Radar ( radio detection and ranging) is a detection system that uses radio waves to determine the distance ( ranging ), angle, or velocity of objects.

Hull

• Required Dimension As we sketched to using Sketching tools and Tangent relation Between Every arc of the Drag.
• Using Feature tool bar extrude required Dimensions and fillet the standard size of 3mm.
• Using Projection curve do this all suface etrude parts...
• Simlar part of hand rail portion.
• Its big part of the Yacht using of aero dynamic function all are designed the hull structure.

Sketch Tool

• Line
• Arc ( Three Point Arc)
• Fillet
• Helical curve
• Split curve

Features Used in Propeller

• Revolve
• Loft
• Extrude Cut
• Mirror
• Sweep

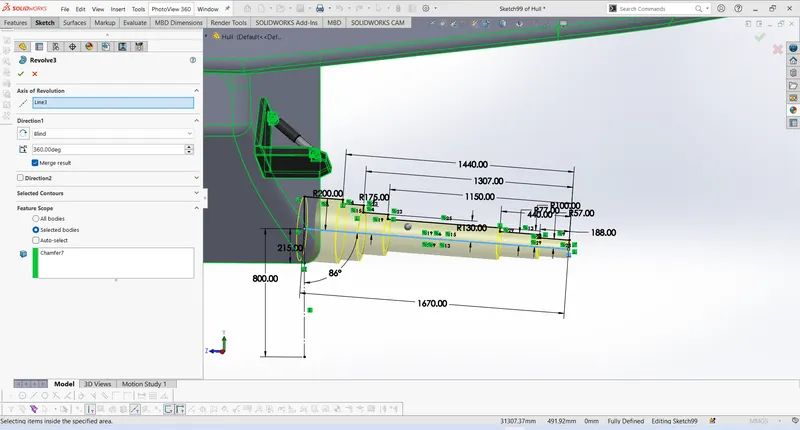

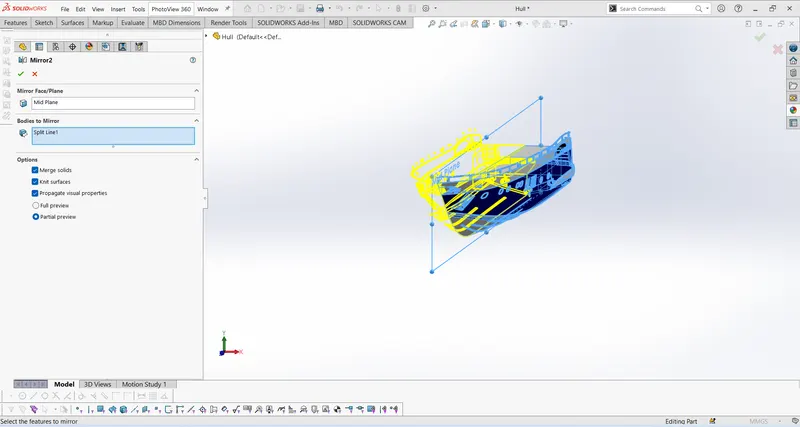

Mirror the Hull Revolve the shaft

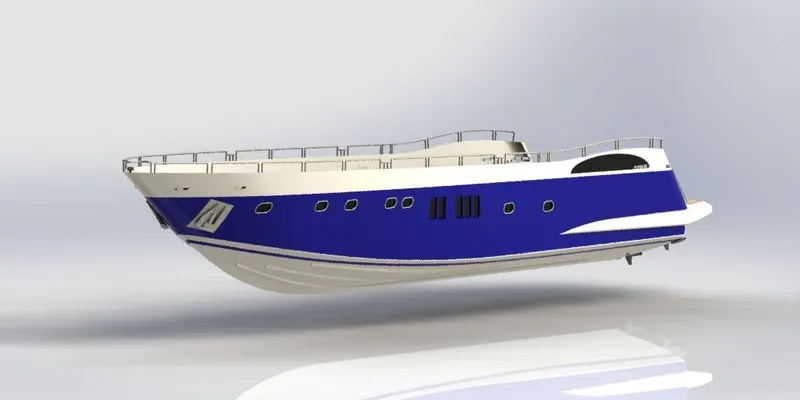

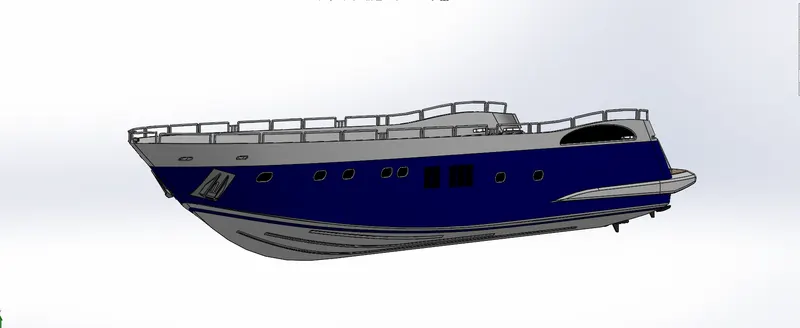

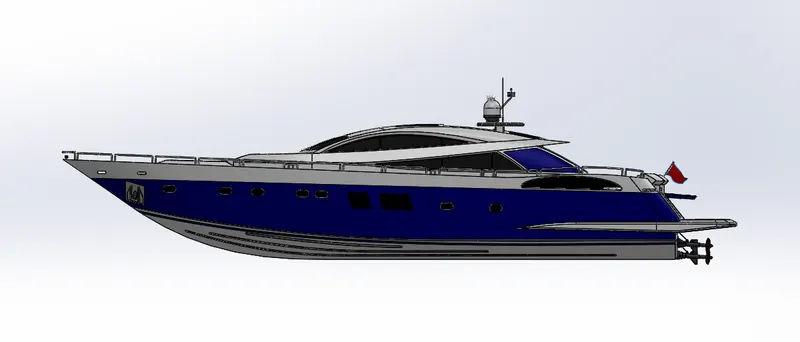

Hull Rendering Image of Hull

Garage Door

• Required Dimension As we sketched to using Sketching tools and Tangent relation Between Every arc of the Drag.
• Using Feature tool bar extrude required Dimensions and fillet the standard size of 3mm.

Sketch Tool

• Line
• Arc ( Three Point Arc)
• Fillet
• Helical curve
• Split curve

Garage Door Rendering Image of Garage Door

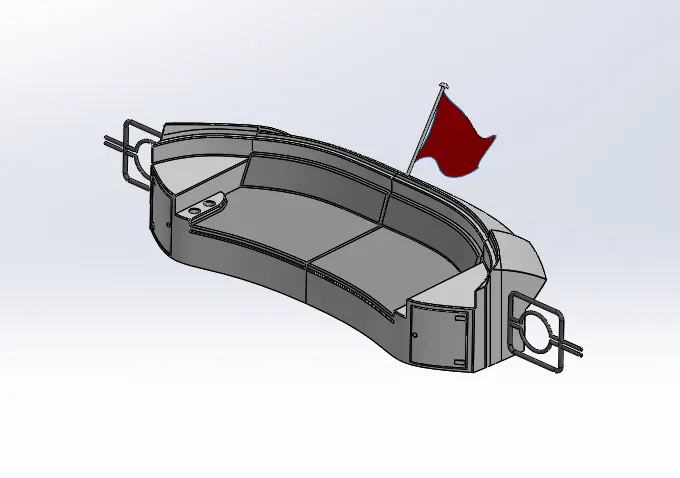

Front Seat

• Required Dimension As we sketched to using Sketching tools and Tangent relation Between Every arc of the Drag.
• Using Feature tool bar extrude required Dimensions and fillet the standard size of 3mm.

Sketch Tool

• Line
• Arc ( Three Point Arc)
• Fillet
• Helical curve
• Split curve

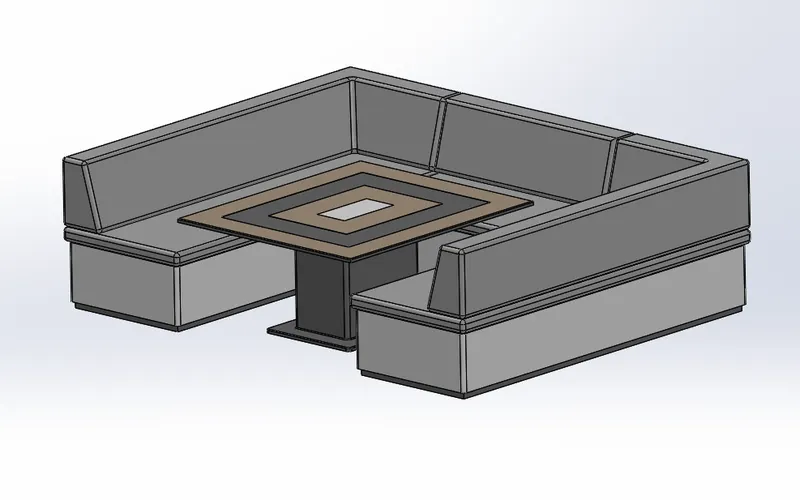

Front Seat Rendering Image of Front Seat

Middle Seat

• Required Dimension As we sketched to using Sketching tools and Tangent relation Between Every arc of the Drag.
• Using Feature tool bar extrude required Dimensions and fillet the standard size of 3mm.

Sketch Tool

• Line
• Arc ( Three Point Arc)
• Fillet
• Helical curve
• Split curve

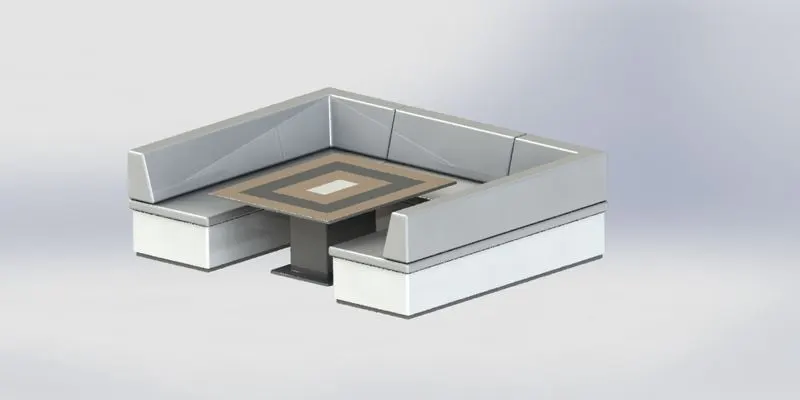

Middle Seat Rendering Image of Middle Seat

Rear Seat

• Required Dimension As we sketched to using Sketching tools and Tangent relation Between Every arc of the Drag.
• Using Feature tool bar extrude required Dimensions and fillet the standard size of 3mm.

Sketch Tool

• Line
• Arc ( Three Point Arc)
• Fillet
• Helical curve
• Split curve

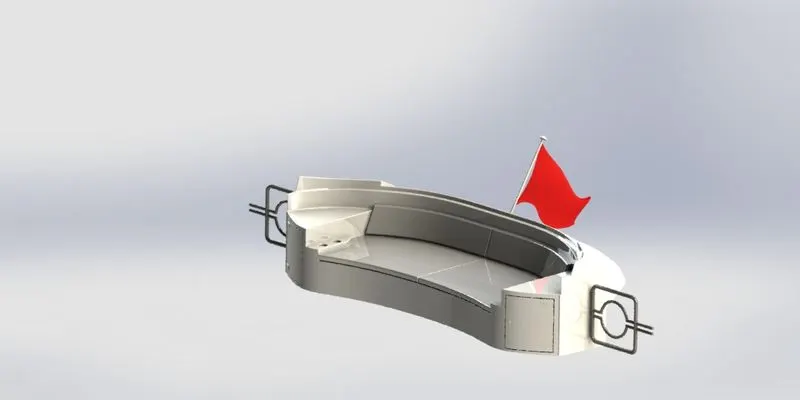

Rear Seat Rendering Image of Rear Seat

Super Structure

• Required Dimension As we sketched to using Sketching tools and Tangent relation Between Every arc of the Drag.
• Using Feature tool bar extrude required Dimensions and fillet the standard size of 3mm.
• Using Projection curve do this all suface etrude parts...
• Simlar part of hand rail portion.
• Its big part of the Yacht using of aero dynamic function all are designed the Super structure.

Sketch Tool

• Line
• Arc ( Three Point Arc)
• Fillet
• Helical curve
• Split curve

Features Used in Propeller

• Revolve
• Loft
• Extrude Cut
• Mirror
• Sweep

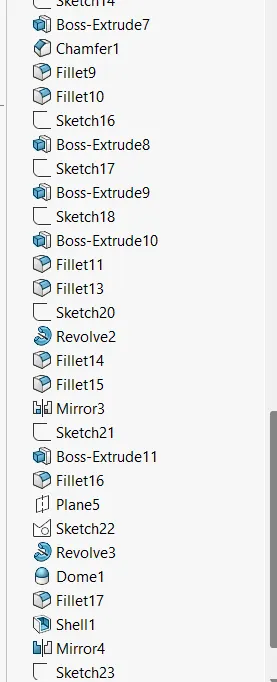

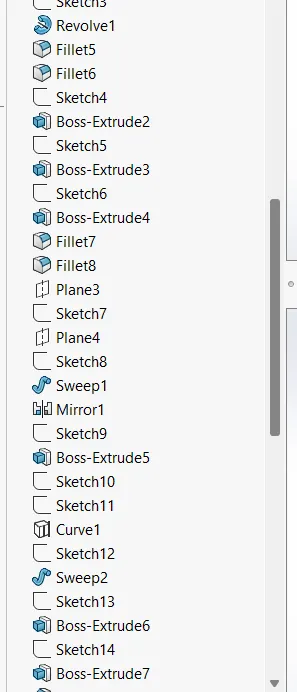

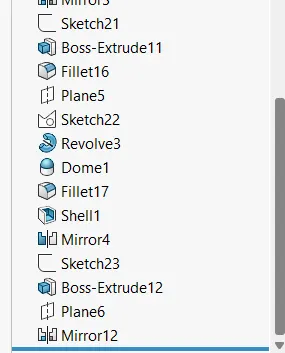

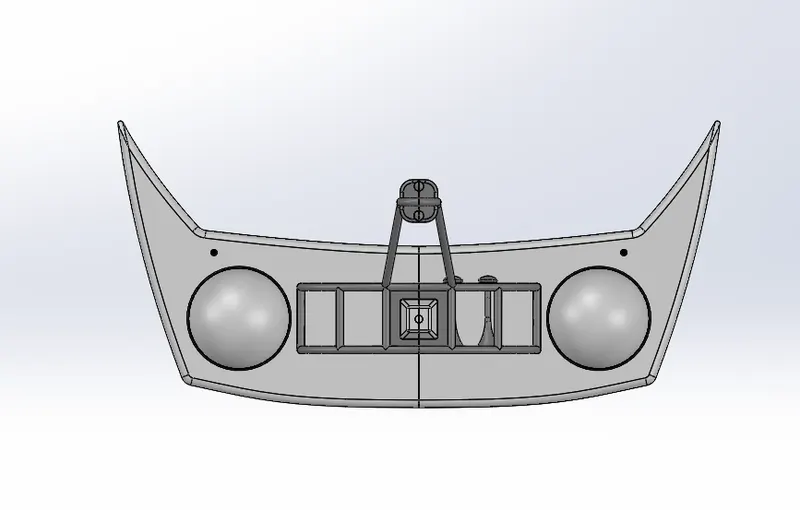

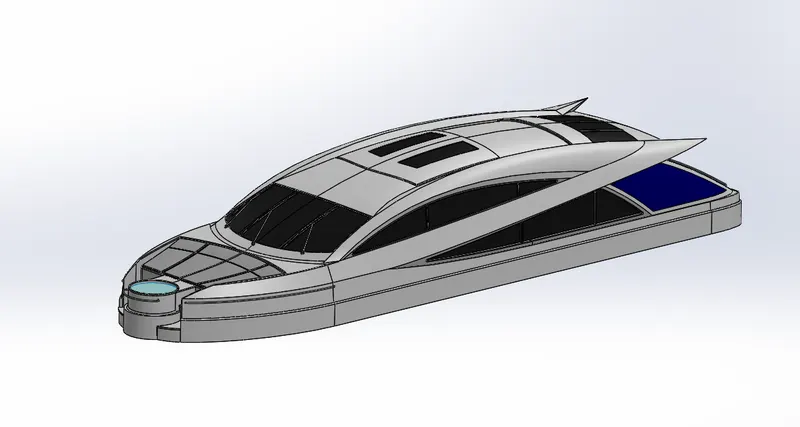

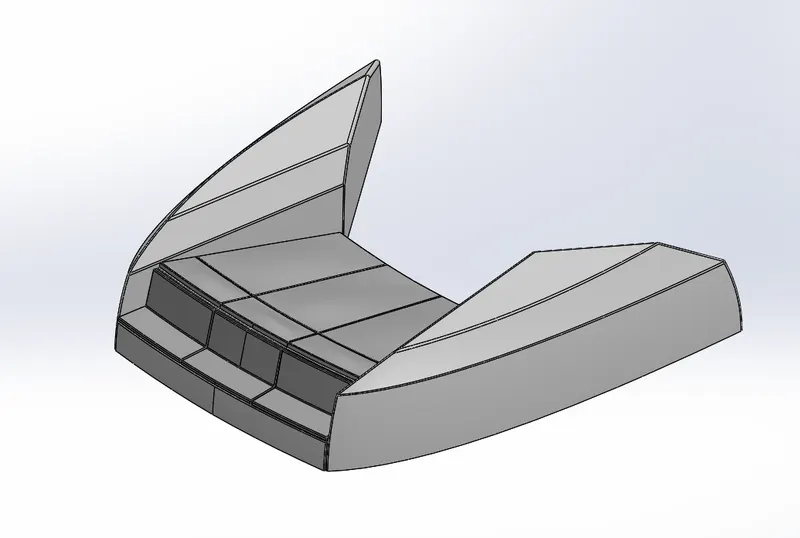

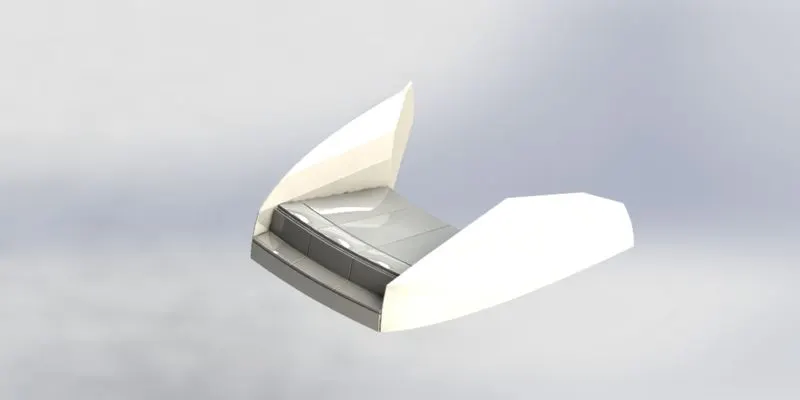

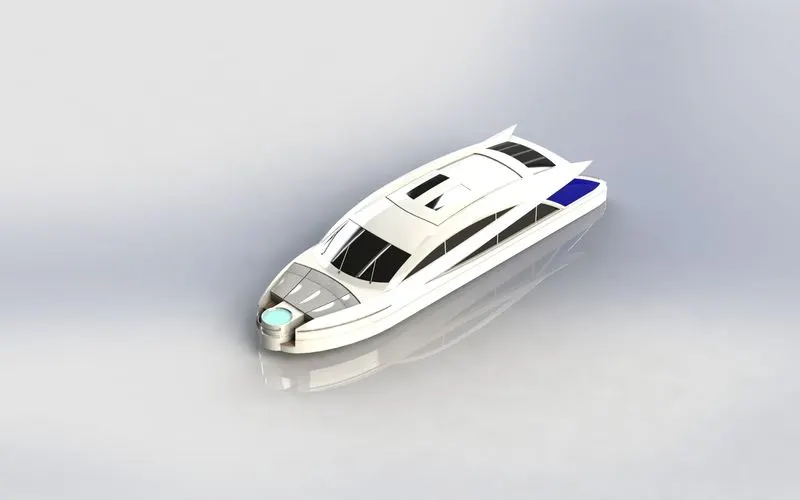

SuperStrucutre Rendering Image of SuperStrucutre

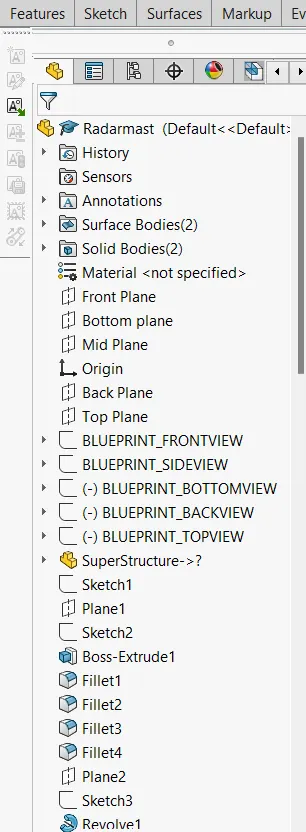

Radar Mast

• Required Dimension As we sketched to using Sketching tools and Tangent relation Between Every arc of the Drag.
• Using Feature tool bar extrude required Dimensions and fillet the standard size of 3mm.
• Using Projection curve do this all suface etrude parts...
• Simlar part of hand rail portion.
• Its big part of the Yacht using of aero dynamic function all are designed the Radar Mast structure.

Sketch Tool

• Line
• Arc ( Three Point Arc)
• Fillet
• Helical curve
• Split curve

Features Used in Propeller

• Revolve
• Loft
• Extrude Cut
• Mirror
• Sweep

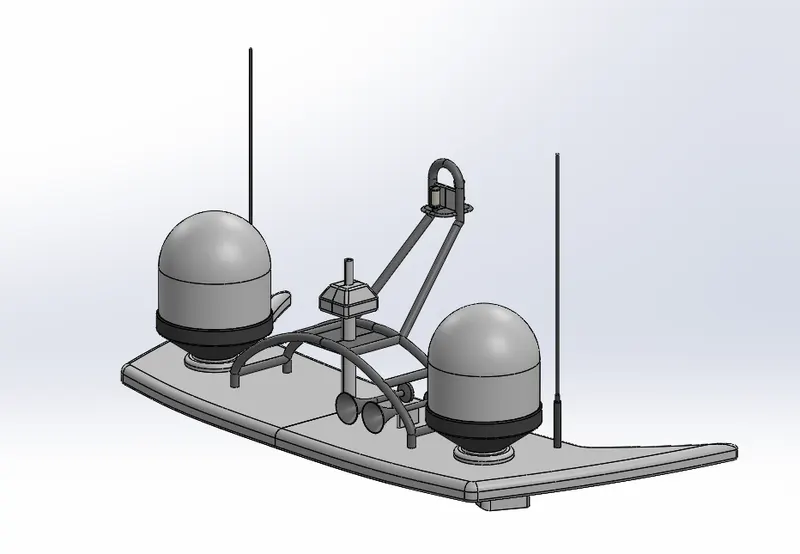

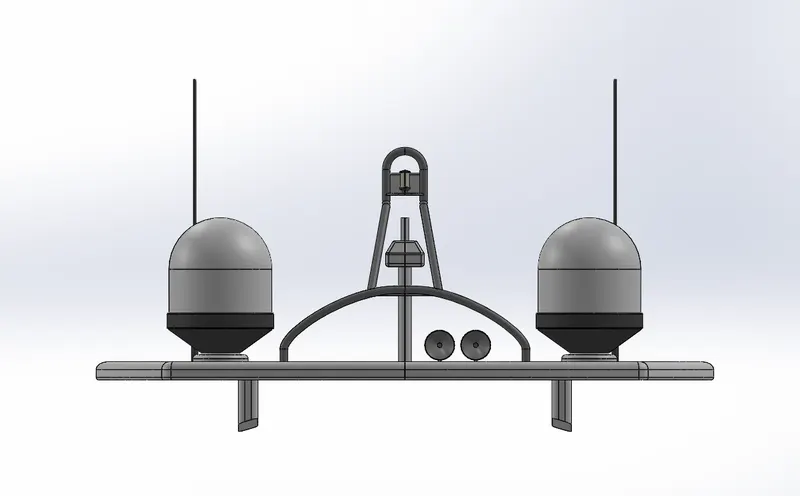

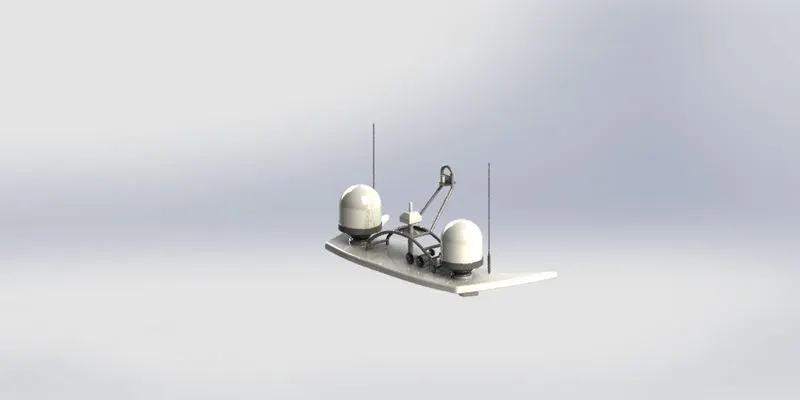

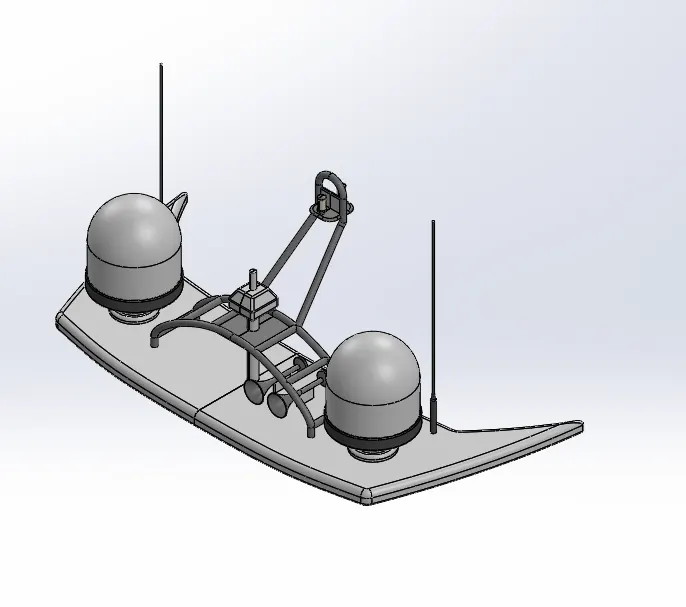

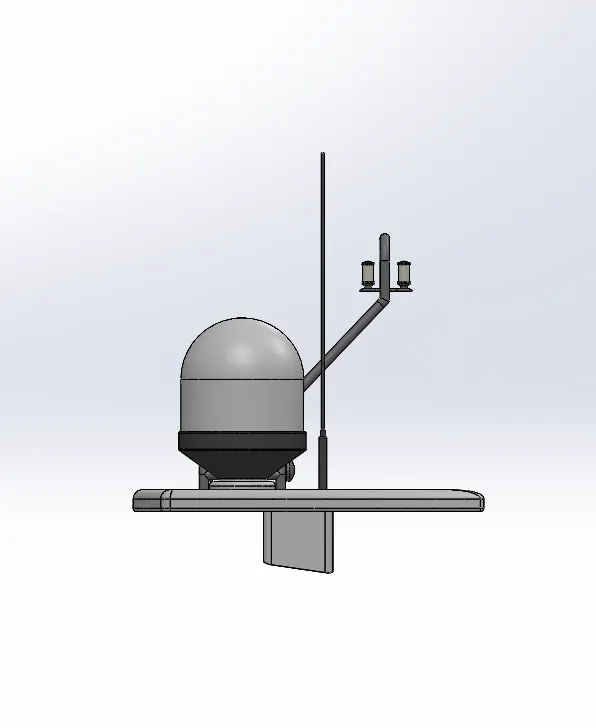

RadarMast Rendering Image of RadarMast

Explanation of Tools

Line:

A row of closely spaced dots will look like a continuous line

Circle:

A round plane figure whose boundary (the circumference) consists of points equidistant from a fixed point (the centre)

Offset:

Counteract (something) by having an equal and opposite force or effect

Arc:

A part of a curve, especially a part of the circumference of a circle.

Convert Entities:

Basically used to make a replica of sketch entity or its dimensions in the same plane or another co-ordinate.

Fillet:

The Sketch Fillet tool trims away the corner at the intersection of two sketch entities to create a tangent arc.

Loft:

The loft feature creates a shape by combining many profiles and guiding curves.

Extrude:

Create a New Part. Select the desired plane, click on the Top plane and select sketch Make a rectangle with the origin of the sketch as the origin of the rectangle.

Center Point Arc:

Centerpoint arc is a curve or part of circle which is drawn by fixing the center point, start and end point of the arc.

Sweep:

Consider a paperclip, the body can be created using an extrude then filleting the edges to achieve a circular profile.

Revolve:

The sketch for a solid revolved feature can contain multiple intersecting profiles. With the Selected Contours pointer (available when you click Selected Contours in the PropertyManager), you can select one or more intersecting or non-intersecting sketches to create the revolve.

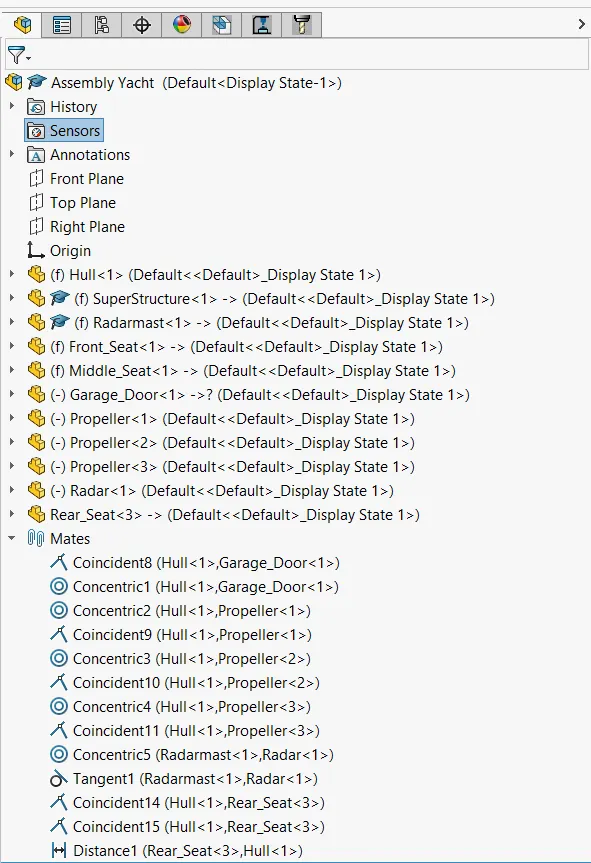

Mates:

The most common mates in SolidWorks assemblies are coincident and concentric due to how often things are made to be flush or aligned with one another.

Rendering of Chopper

• Rendering nothing but its makeup the external perpestive of view.
• Graphical Design , decals,Editing Scene and as well lighting effects. Max. of that Realistic view.

Decals used in Parts

• Hull
• Superstructure

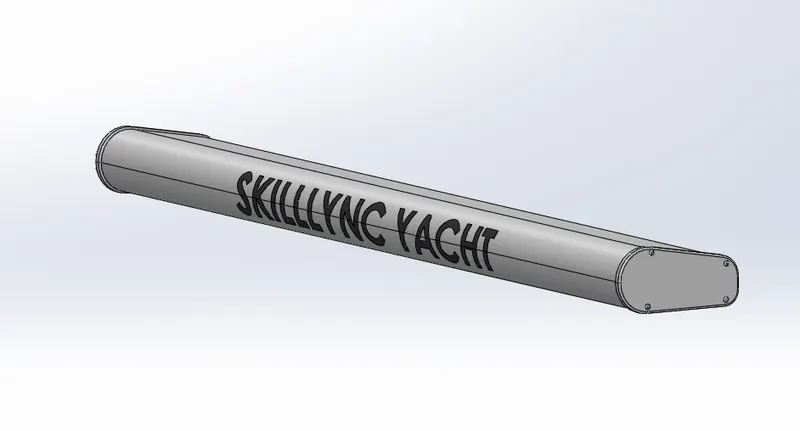

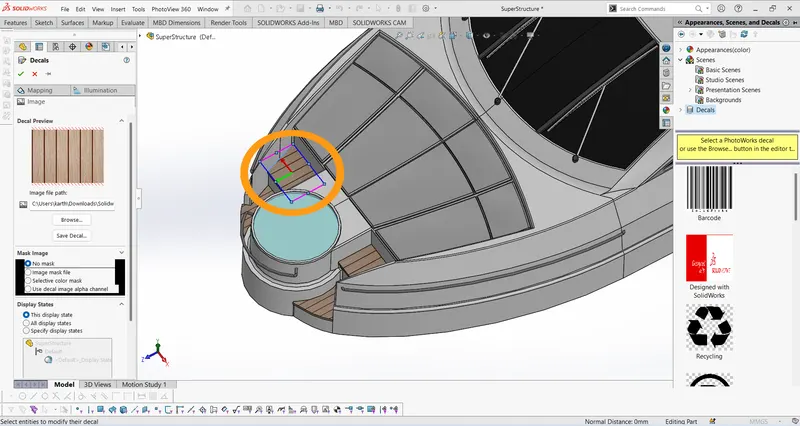

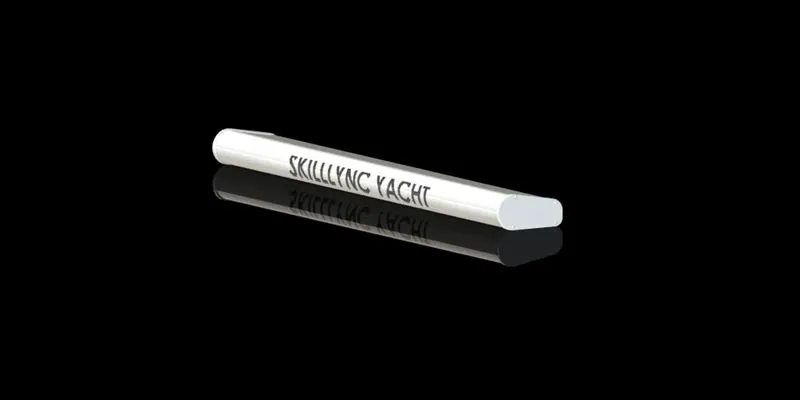

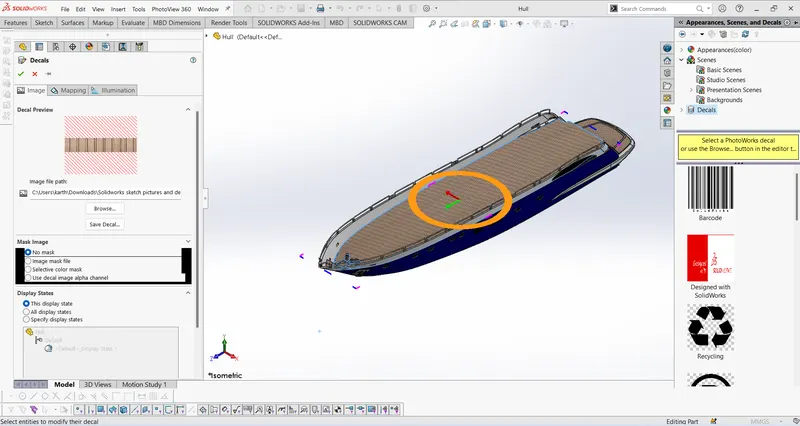

Decals used at Hull

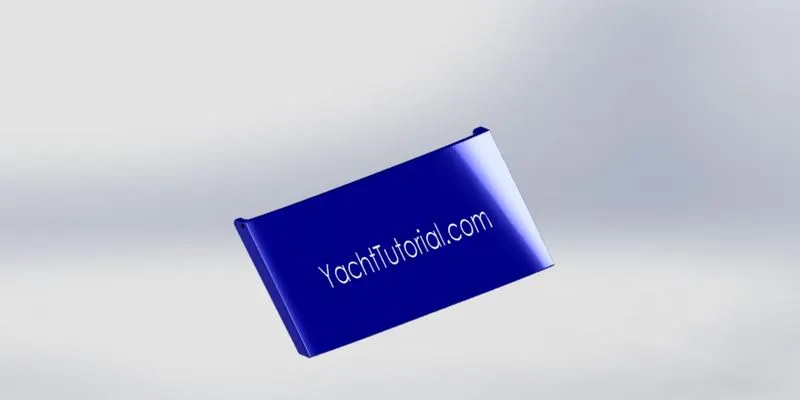

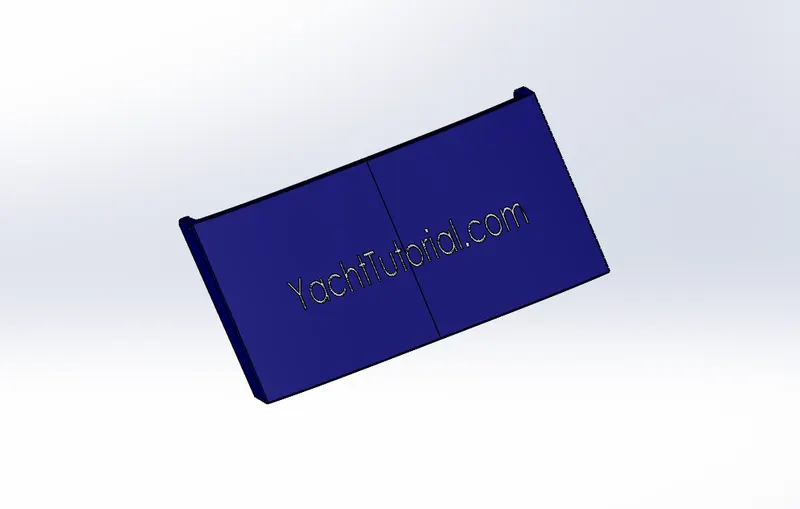

Decals used at Superstructure

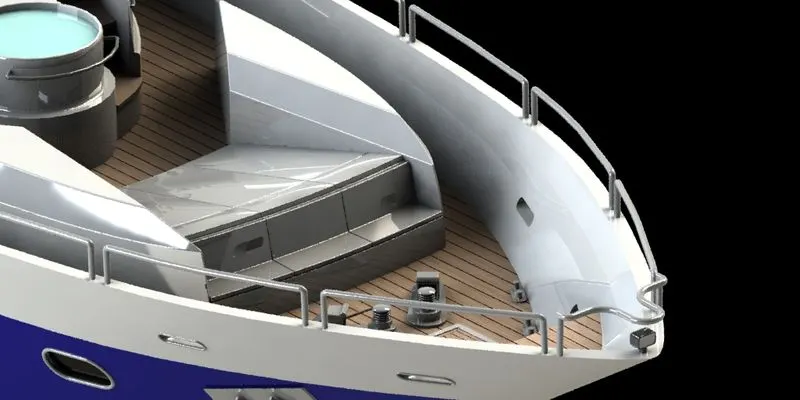

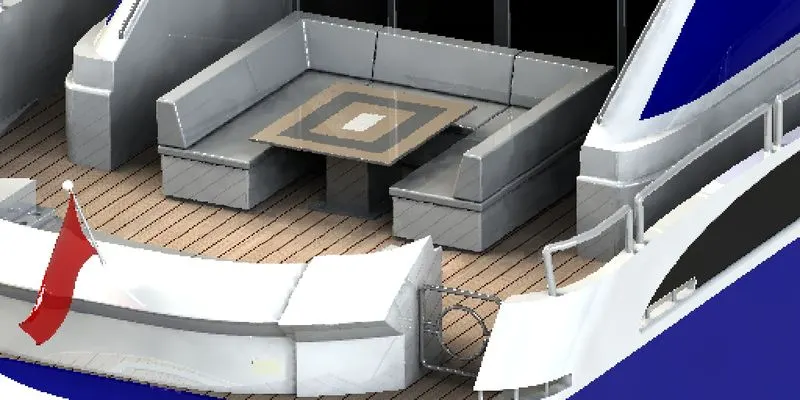

Photo Realistic View of Yacht Beach Spot

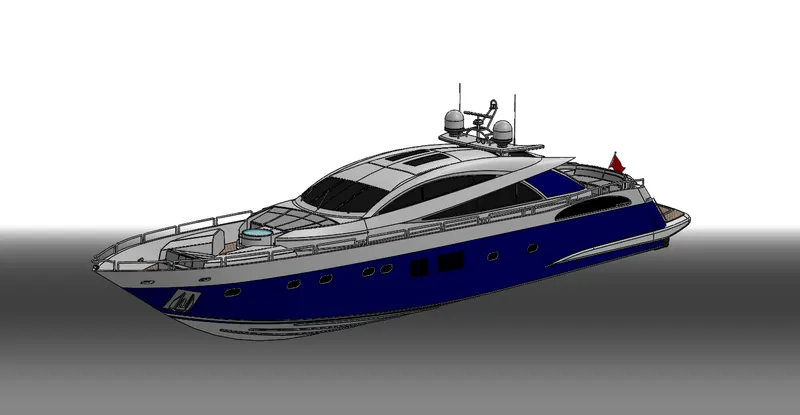

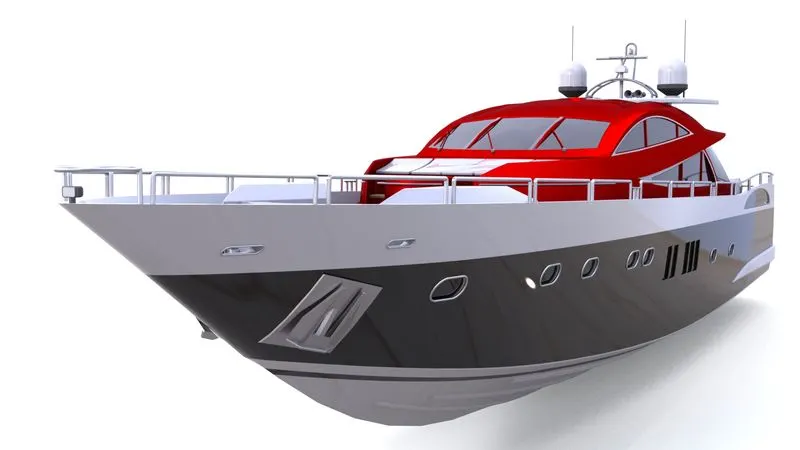

Photo Realistic View of Yacht Ocean Spot

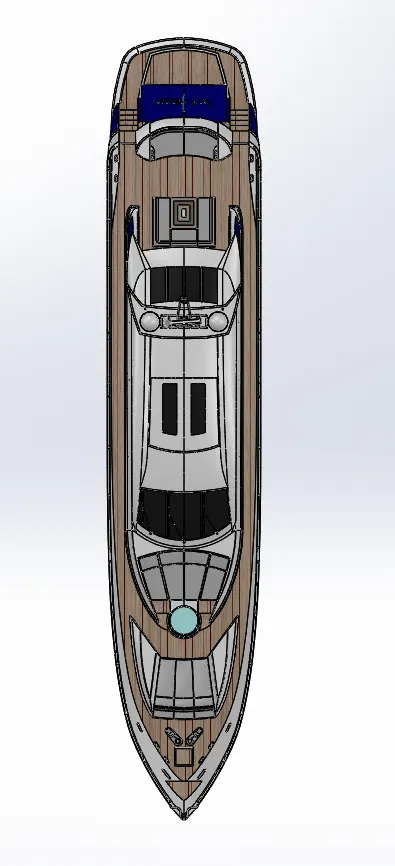

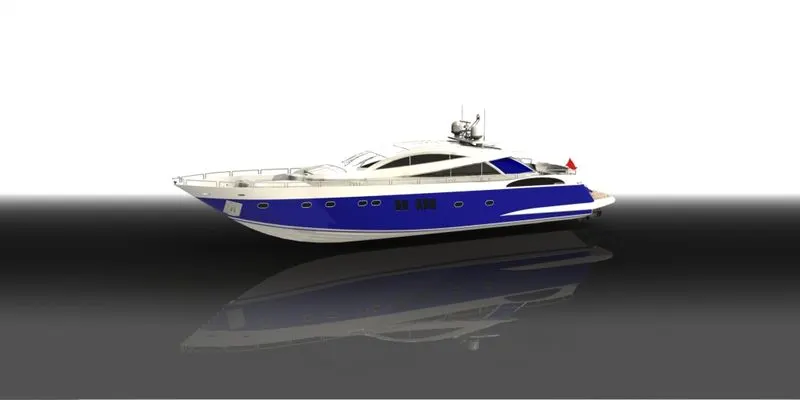

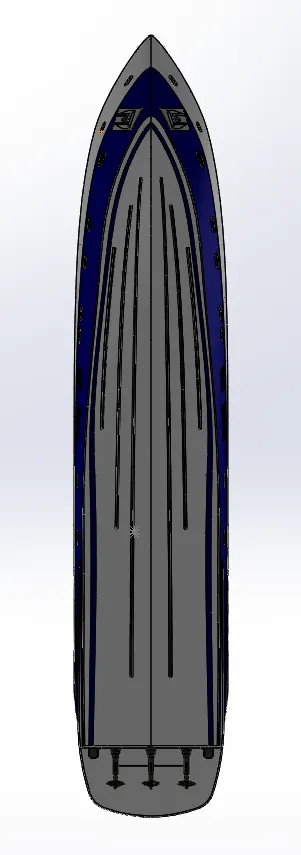

Photo Realistic Top View of Yacht Ocean Spot

Camera Setup View of Yacht

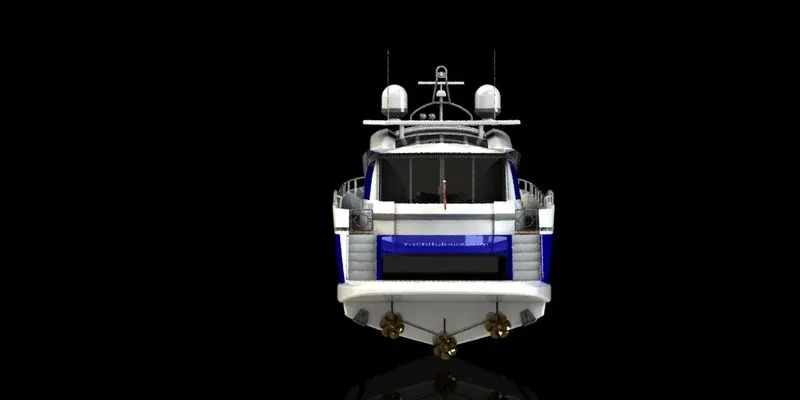

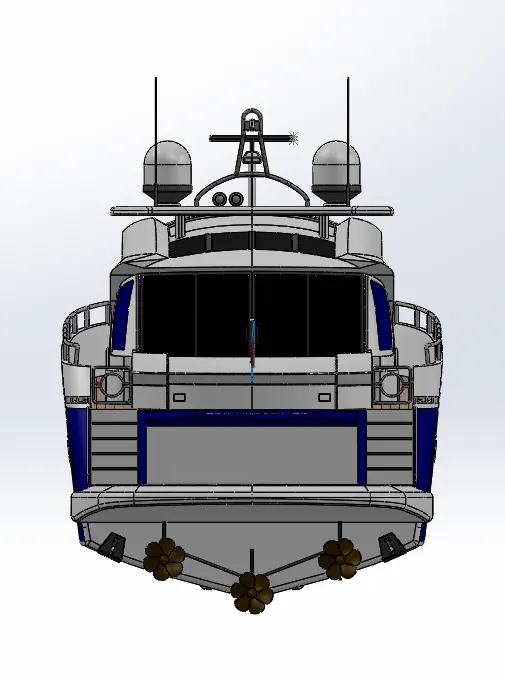

Back View of Yacht

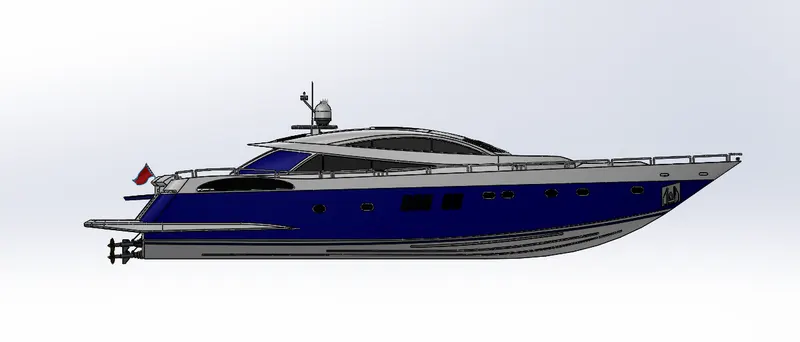

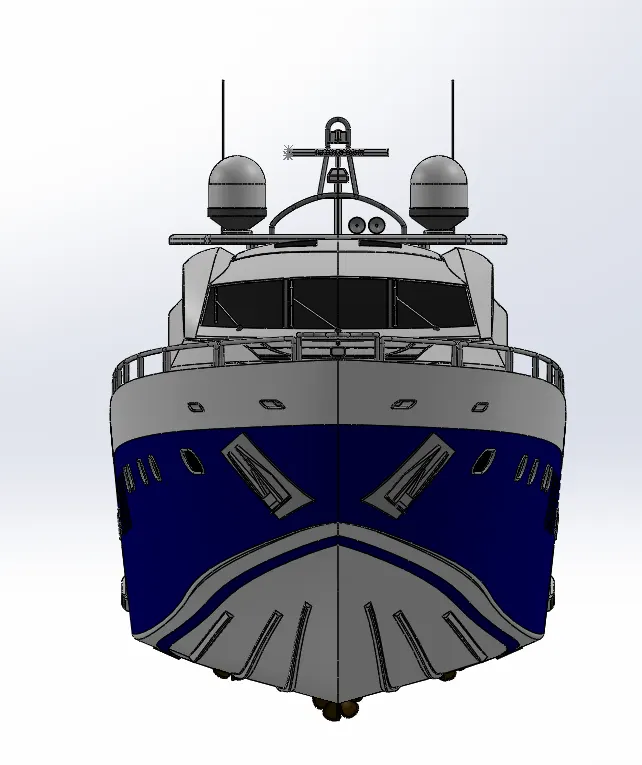

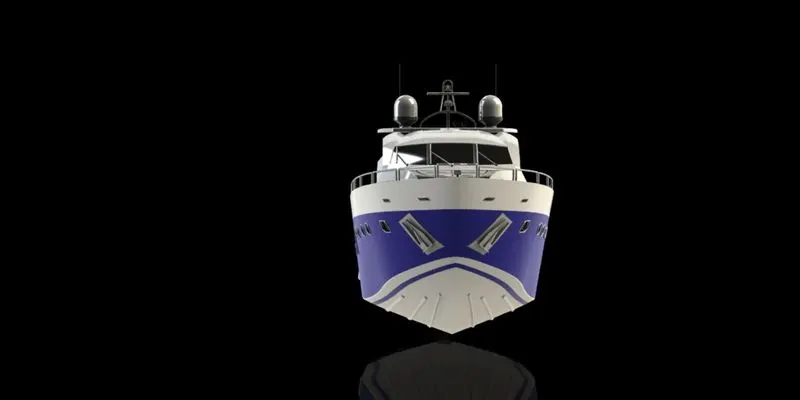

Front View of Yacht

Visualize Solidworks

• SOLIDWORKS Visualize (formerly known as Bunkspeed) provides a suite of standalone software tools that combine industry-leading rendering capabilities with visual design-oriented features and workflows, allowing easy and fast creation of visual content that communicates a design’s vision, passion, and emotion.

Conclusion:

Design, Assembly and Rendering the Super Yacht using of Soildworks and Soildworks Visualize sucessfully done my project.
