Underbody Coating

UnderBody Coating

Introduction

Underbody coating is usually a dense cladding (often based on rubber) applied uniformly to the undercarriage of the automobile. It is normally sprayed or painted on when the car is just out of the dealership and is clean. But even if you are getting the undercoating applied after a couple of years, it’s fine too.

Purpose of Underbody coating

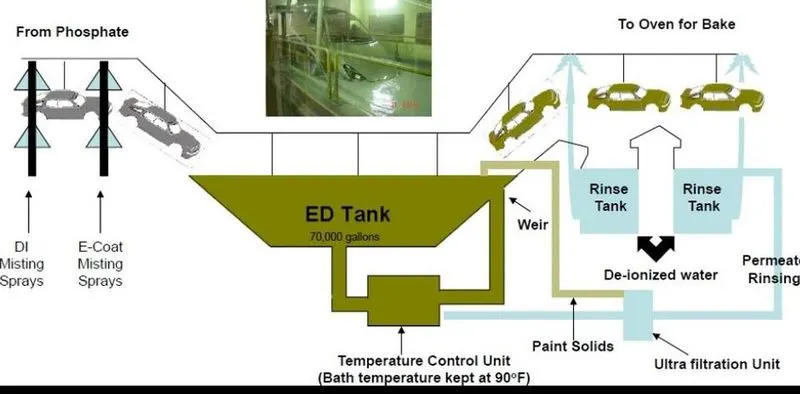

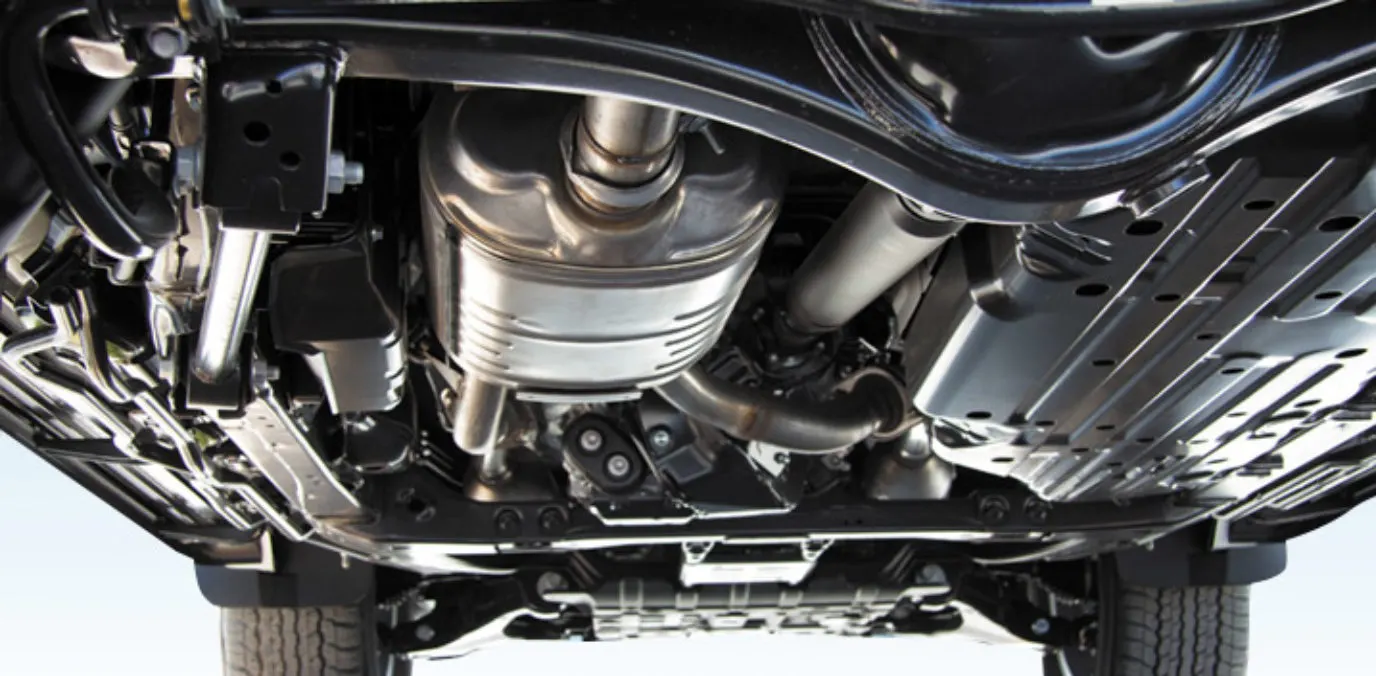

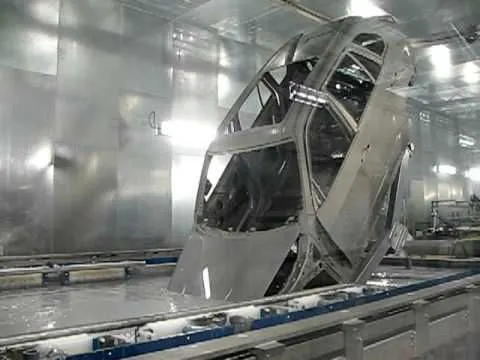

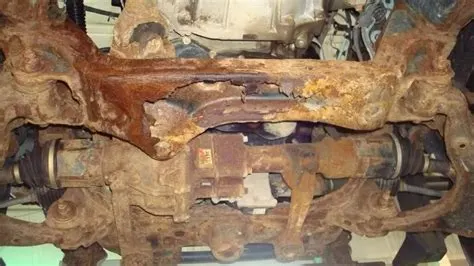

A cars underbody is most prone to corrosion. Underbody coating provides long term protection from corrosion to car’s underbody. It also protects parts like internal body panels, frame rails and other inner cavities that are not physically accessible but are prone to corrosion, It also Reduce the wear and tear vehicle. Below Pic shown inthat how taken bath of coating in big scale Manufacturing Industries.

Types of Underbody Coating

There are four types of underbody coating are Classfied its under depends upon the requirement of environmental condition and customer needs.

1. Rubberized Underbody Coating
2. Wax Based Underbody Coating
3. Ashalt Based Underbody Coating
4. Polyurethane Underbody Coating

Rubberized Underbody Coating

This is widely considered to be the best underbody coating for your car. It protects the underbody from scratches and keeps it properly. It’s also not difficult to apply this to the undercarriage. This can be done at the authorized service center or by the local repair shop at a reasonable price. Rubberized coating is ideal if you want to keep the road noise to a minimum and rust and corrosion away.Wax Based Underbody Coating.

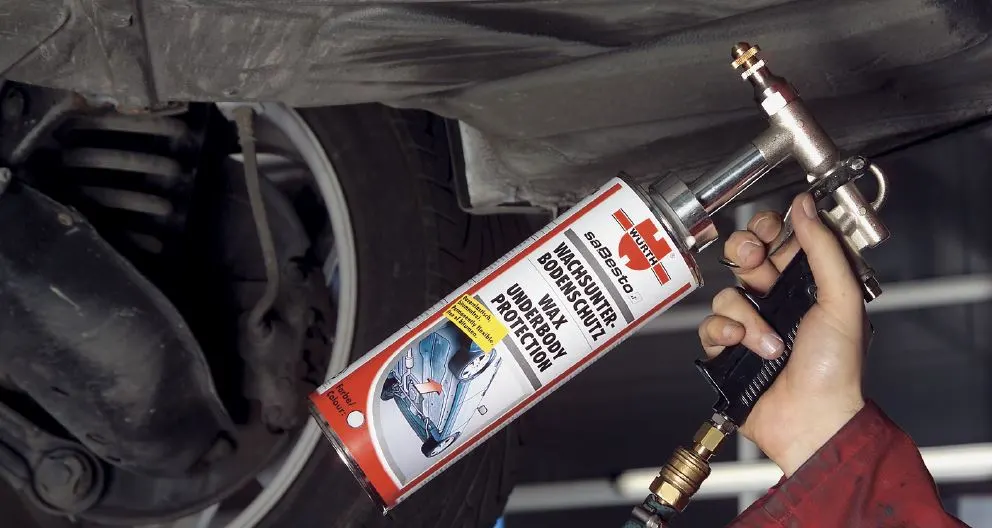

Wax Based Underbody Coating

This transitory undercoating will, on the whole, fade away after a few months. On the plus side, wax-based undercoating is resistant to dampness. It is also the most cost-effective alternative.

Ashalt Based UnderBody Coating

Suitable for lorries, trucks, and other heavy vehicles. In comparison to rubber-based coatings, this gives a higher level of protection. Asphalt-based coatings, on the other hand, incorporate a small quantity of rubber for sound insulation. The application of this coating, however, takes some time.

Polyurethane Underbody Coating

This covering seals breaks and fractures in the vehicle’s underbody. It provides strong corrosion resistance and also binds to the metal. Unlike an asphalt-based coating, the polyurethane coating may be painted over.

Advantages of underbody Coating

Fights Rust

• It has a crucial function in preventing corrosion.
• Underbody coating is particularly useful if you live near the sea, where there is excessive humidity and rust is a common occurrence.
• If you live somewhere where it snows in the winter, you should seriously consider undercoating.
• During the monsoon season, cars are at high risk of getting corrosion. If you want to extend your car’s life you should get an underbody coating.

Absorbs Noise

• Very strong undercoating, realize it or not, can attenuate noises that enter the cabin.
• The undercoating, which is frequently made of rubber, absorbs part of the rackets.
• The car’s occupants could avoid the road sounds — at least to some extent. So if you want a quite ride and pleasant experience it is always a good idea to consider getting an underbody coating

Reinforcement

• If your automobile already has an underbody covering, applying another one on top of it will not harm it.
• It will provide further protection for the underbody from water, road debris, gravel, and tiny stones.
• The factory coat would also have a lower risk of flaking away.

Disadvantages of underbody Coating

• Some of Underbody coating are expensive compare than life span of the vehicle.
• Maintenance Cost high

Conclusion

We learned the Different types of underbody coating for automobiles and their Purpose, their pros and cons used in an automotive industries.
