Wiring harness design in CATIA V5 - 3D modeling Week 2 Challenge

Wiring harness design in CATIA V5 - 3D modeling

AIM:-Download following connectors & Connector clip cad data from given link & define it as Electrical Connector using Electrical Part design Workbench. Define all the necessary properties to Connectors & Clip.

• Deutsch DT06 – 08SA ( https://www.te.com/usa-en/product-DT06-08SA.html)
• Tyco 174357-2 (https://www.te.com/usa-en/product-2-174357-2.html?source=header-match)
• Tyco 85229-1 (https://www.te.com/usa-en/product-85229-1.html?q=85229&source=header

INTRODUCTION TO WIRE HARNESS

Terminologies & Definitions

• Electrical Distribution system (EDS)

Electrical distribution system basically deals with physical & Logical Architecture, Schematic Development,Power distribution,Wiring Harness Design,Wiring harness component design of given electrical system.

• E&E Archittecture

it is high level logical connectivity diagram represents the number of systems,sub-system and logical connectivity between them. it is also extended to show the CAN network between different electronic controllers.

• Logical Schematics

Logical schematic is detailed design of E&E Architecture which is extended to show the logical connectivity between different components & controls of given system,sub-system.

• Electrical Schematics

Electrical schematic is detail design of logical schematics which describes the pin to pin connectivity, properties,fusing distribution, grounding distribution, interconnects, wire properties, cirrcuit properties,specification of components etc. this is the end result of electrical core design of system and used as an primary input for harness design.

• Wiring harness topology

wiring harness topology is strategy to divide or split the harness between different pieces to achieve the best manufacturability, Serviceability & Cost effective design.

• Wiring harness Routing

Wiring harness routing deals with desired path of wiring harness into given vehicle environment by applying set of design rules & industry best practices.

• Wiring harness Packging

Wiring harness packaging deals with fixing/mounting of wiring harness routing to ensure the safe,reliable & durability of wiring harness by applying set of design rules & industry best practices.

DEFINIG ELECTRIC PARAMETER FLOW CHART

CONNECTOR DEFINATIONS IN CATIA V5

1. Deutsch DT06 – 08SA

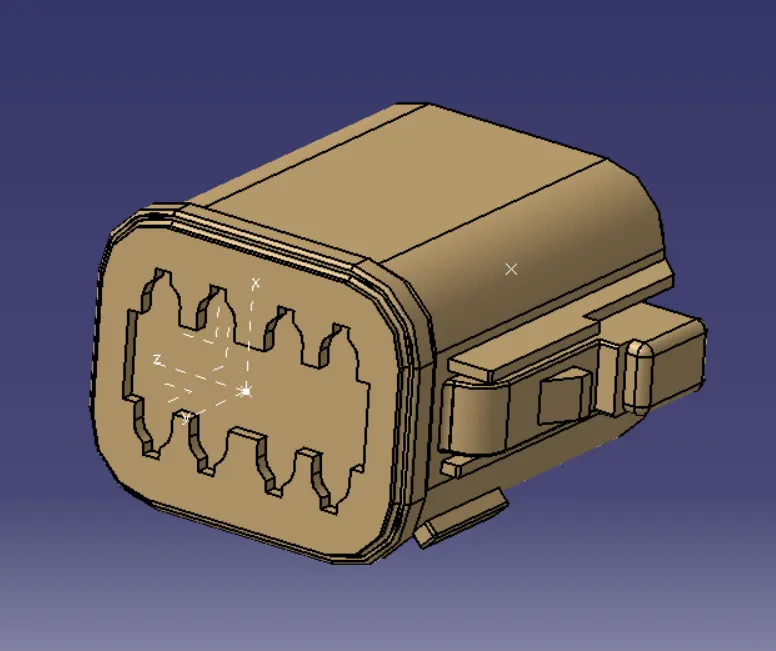

Connector connection point:

Create midpoint on the contact face which will be normal to wire bunddle insertion.

Craete Axis System with respect to the point which we have created and defining the axis direction as shown below,

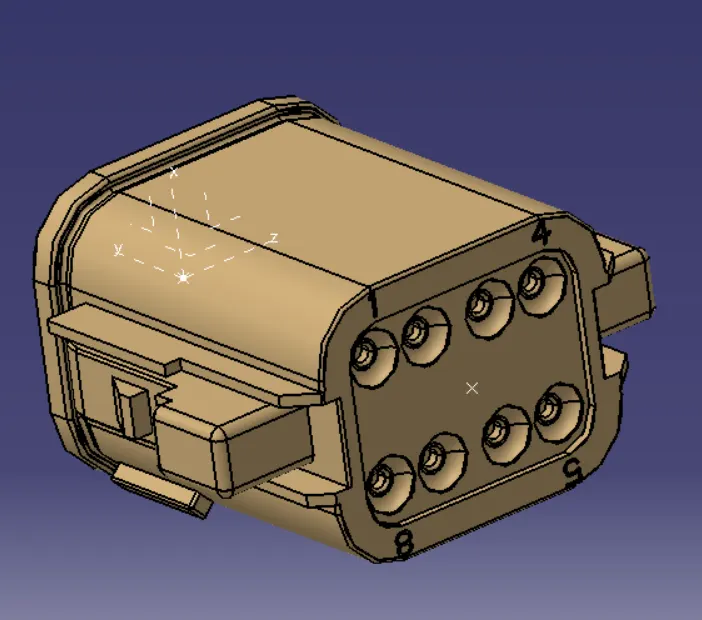

Bundle connection point:

Switch to 'Electric Part Design'

Define the part as connector in catia, give no. of termination as 8 because we have 8 entry points for wire.

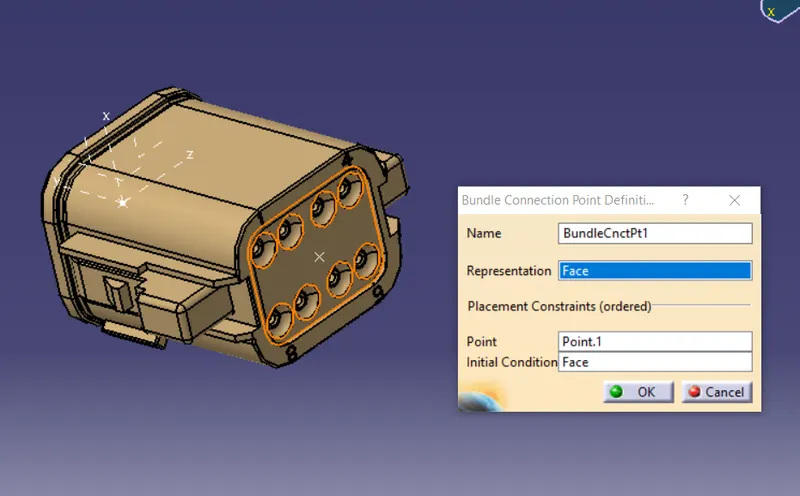

Define Bundle connection point

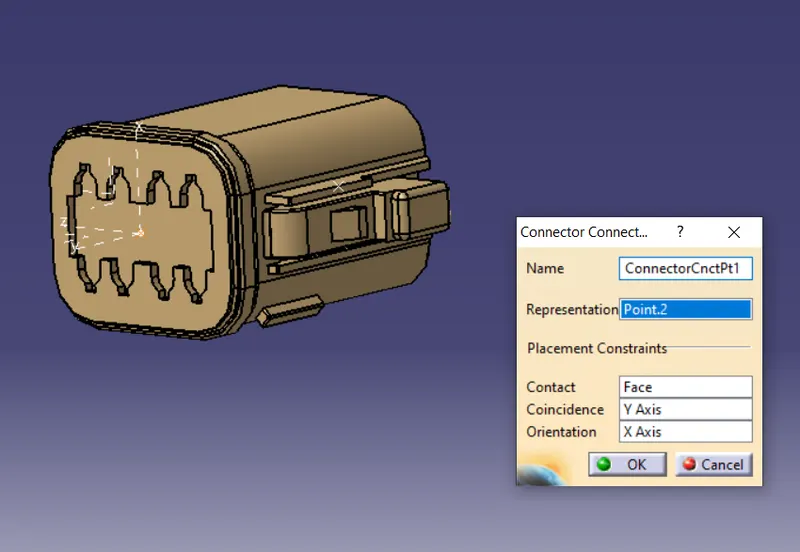

Define connector connection point

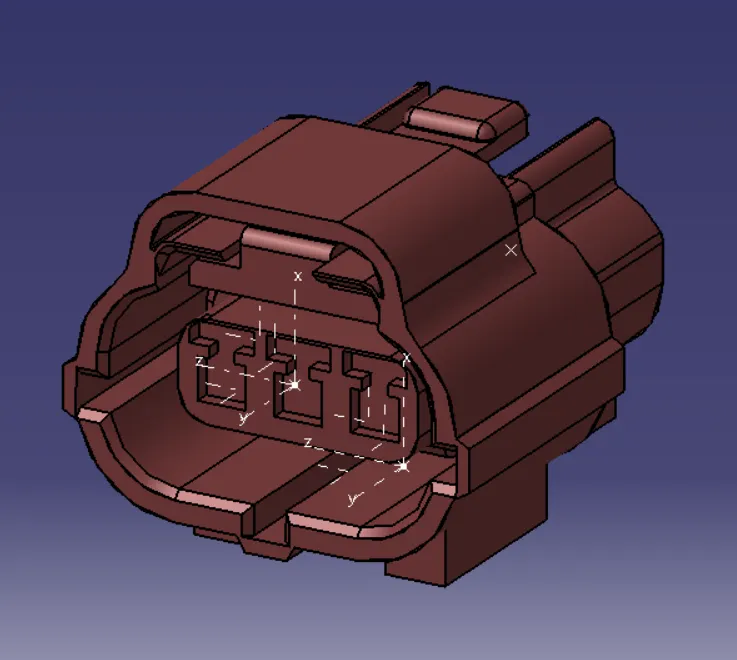

2.Tyco 174357-2 :

• Create midpoint
• create Connector connection point
• create Connector connection axis system

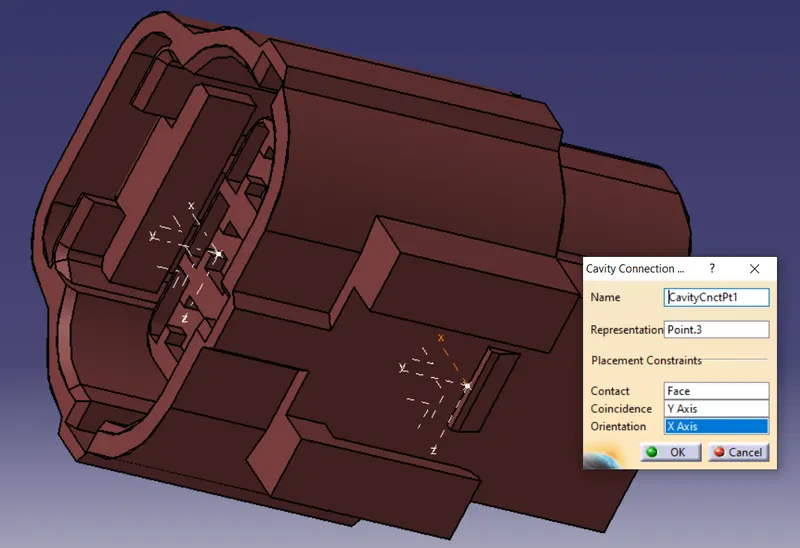

• create cavity connection point
• create cavity connection axis system
• Switch to Electric part design and define part as connector
• Define Connector connection point and cavity connection point

3. Tyco 85229-1 :

• Create midpoint
• create cavity connection point

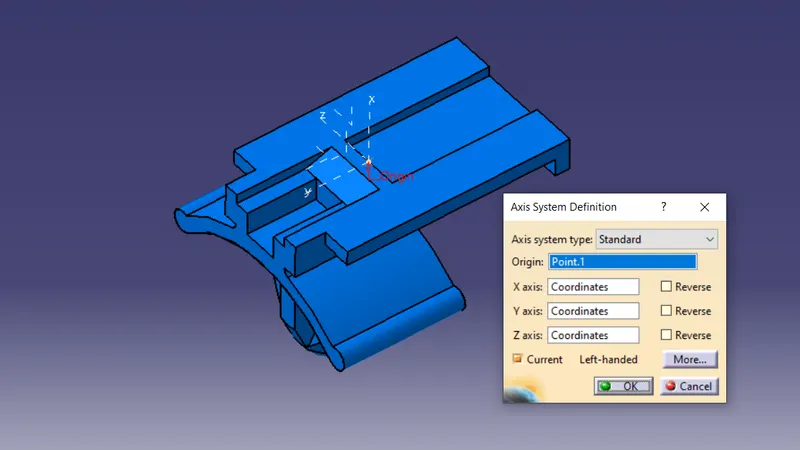

• create cavity connection axis system and orientation should be same as in connector
• Switch to Electric part design and define part as Mounting Equipment
• Define cavity connection point

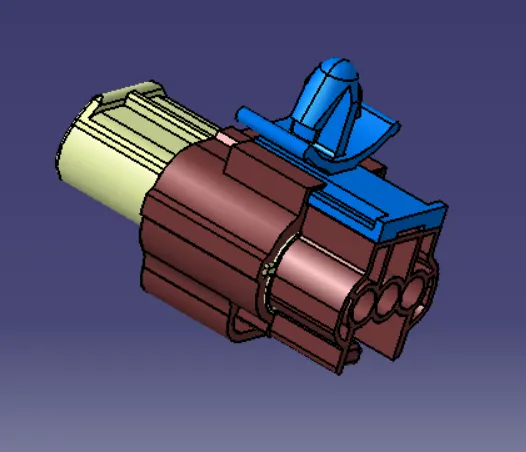

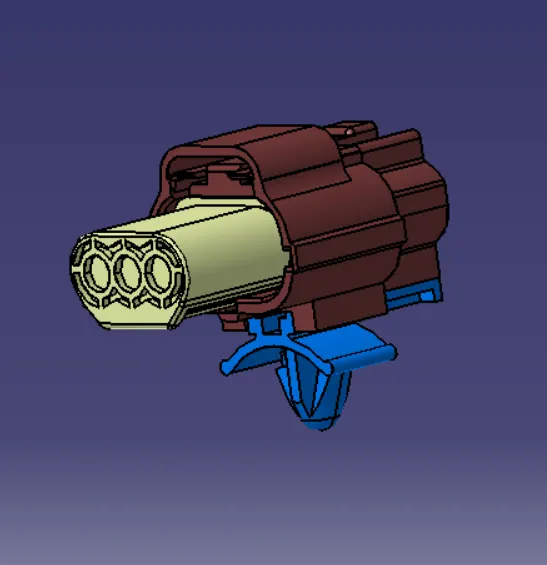

Elctric Assembly Design

• Import Connector and cavity / mounting clip.
• Select Defing Eelectric connection
• select cavity and then connector.

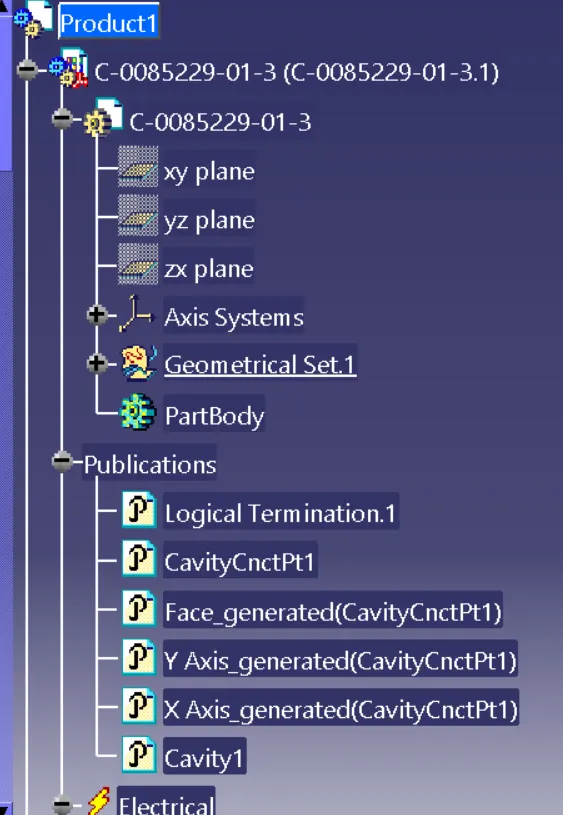

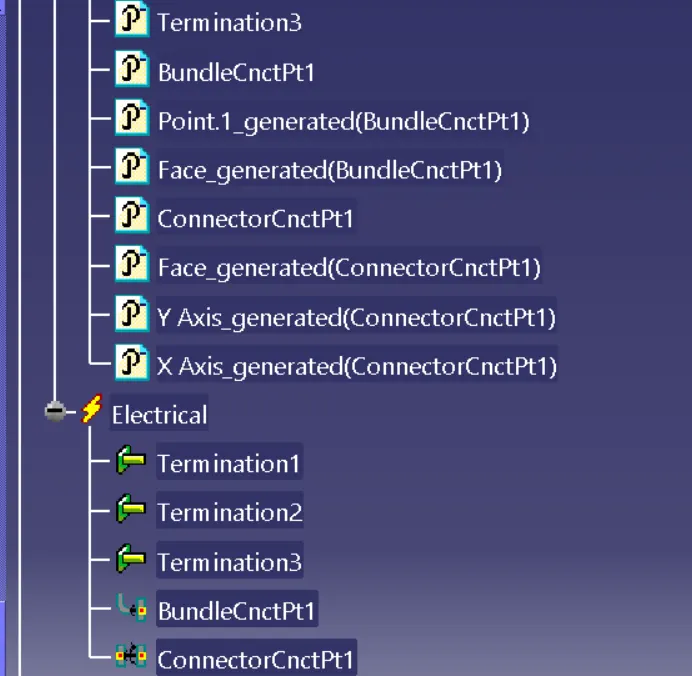

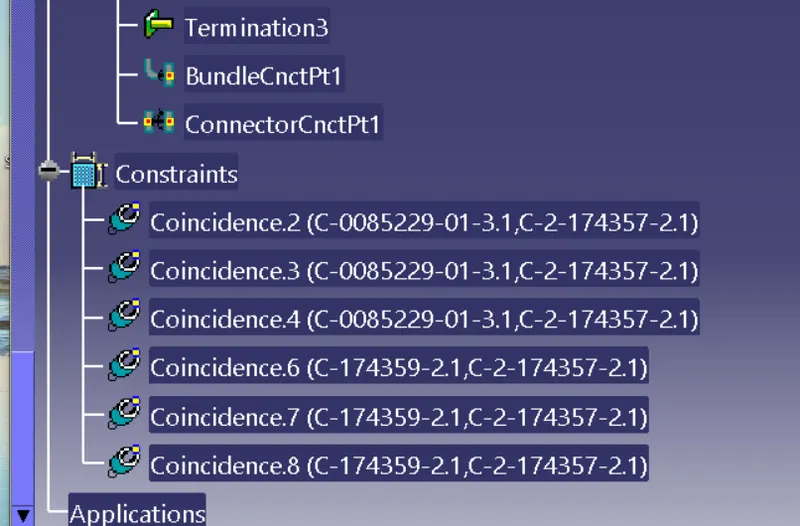

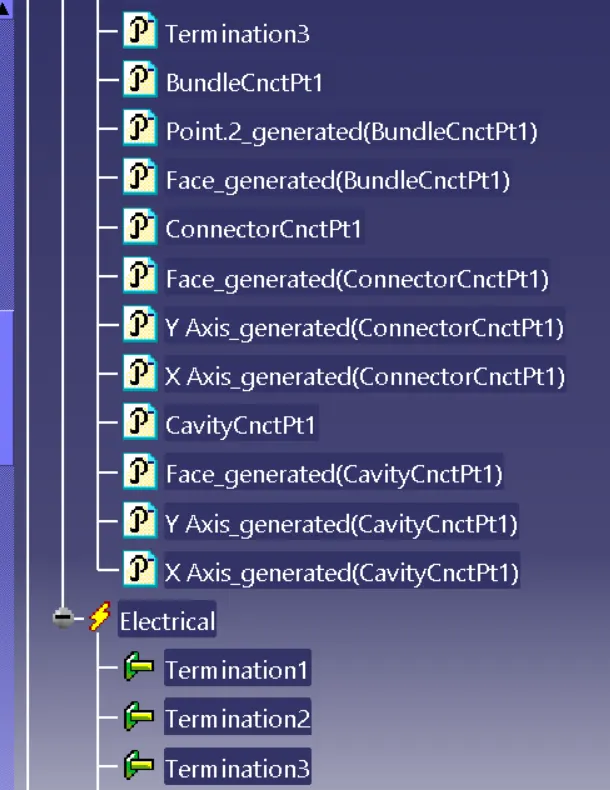

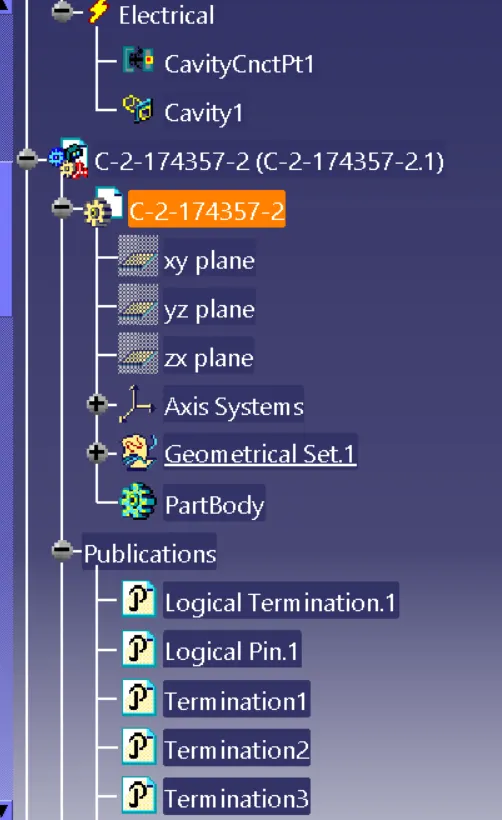

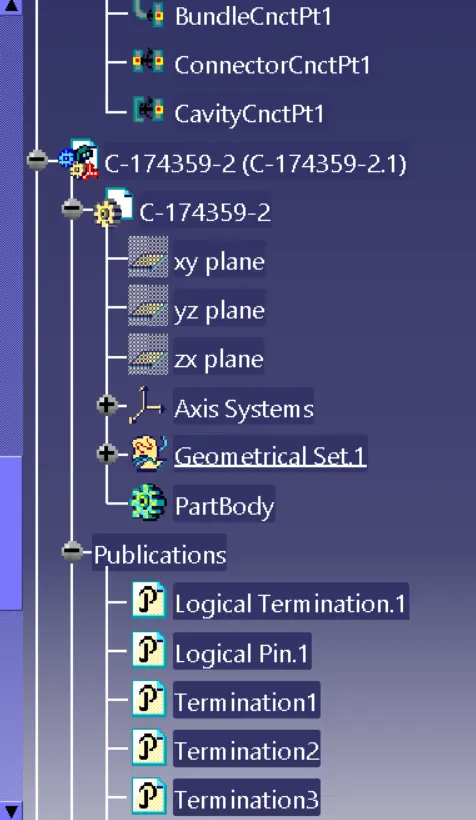

Feature tree.
