Radar Mast & Final Assembly of Yacht

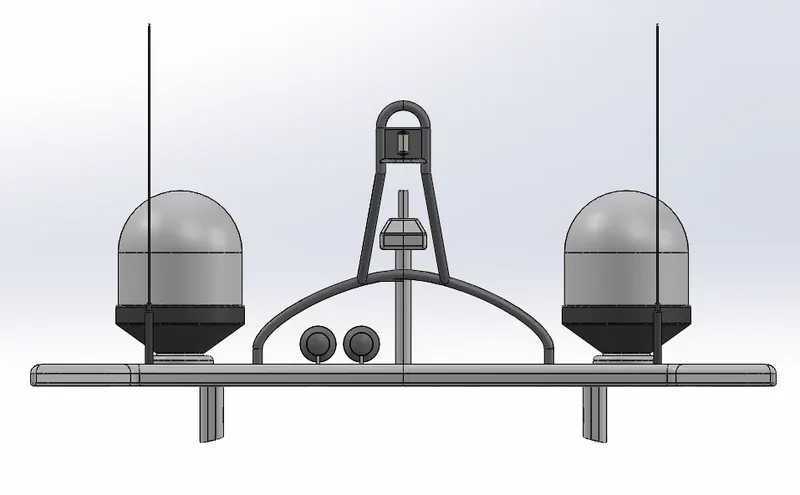

1. Radar Mast

YATCH ASSEMBLY

• Title of the Project :- YATCH MODEL

• Objective :- To design part of the Yatch.

  Assembly of the part to from whole Yatch Model and photo Realistic rendering of the assembly.

• Introduction :- in this project we are designing the Yatch Model with the help of blueprint given,with the help blue print we can get the basic dimensions of the Yatch and we can design all parts of the Yatch model.after this we do assembly of all parts now,we have our Yatch Model assembled,now we can add decals parts,next we adjust the camera and light according to the view point.the last step is doing rendering.

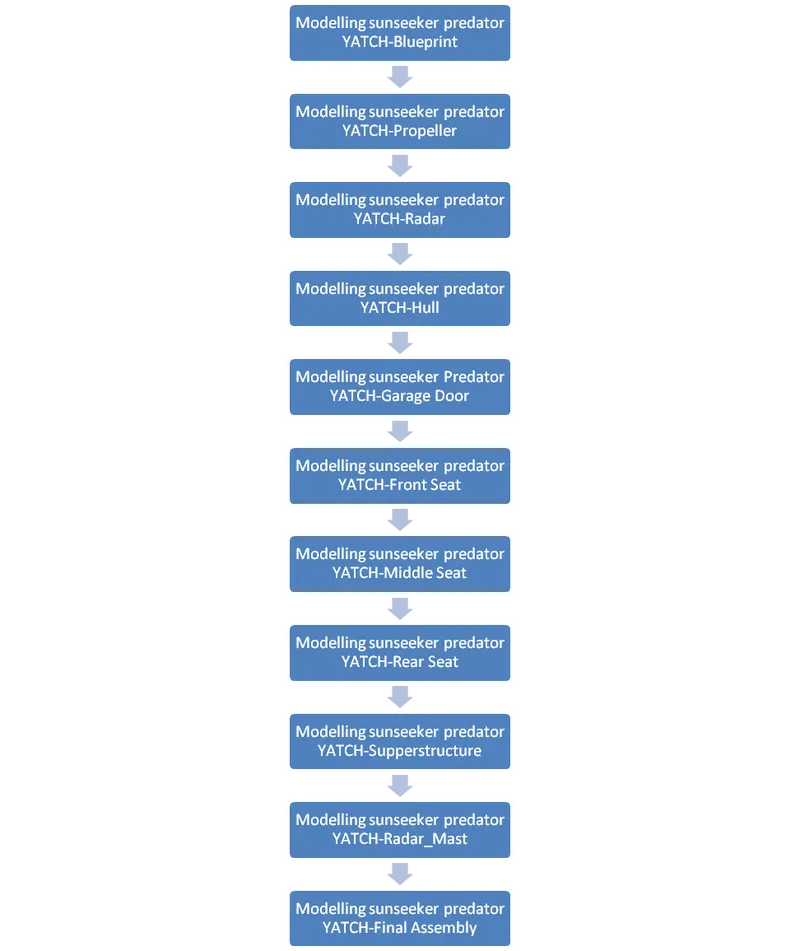

• Design Methodology/Approach

Description

1. Modelling sunseeker predator YATCH-Propeller.

Features use to create the Modelling sunseeker predator YATCH-Propeller.

• Sketch
• Plane
• Revolve
• Loft
• Fillet
• Cut Extrude
• Cirpattern

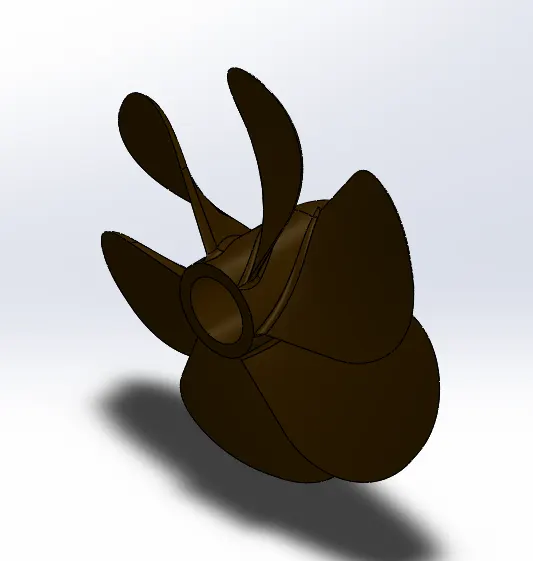

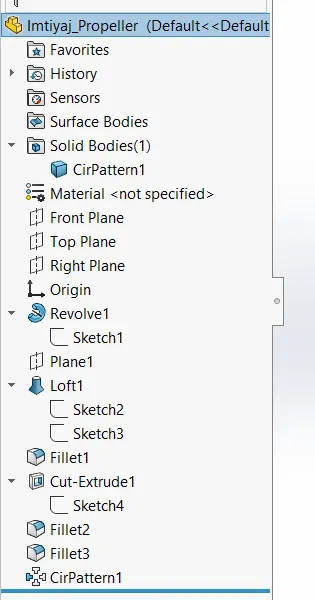

Isometric view of Propeller. Propeller feature tree.

2.Modelling sunseeker predator YATCH-Radar.

Features use to create the Modelling sunseeker predator YATCH-Radar.

• Plane
• Sketch
• Boss Extrude
• Fillet
• Cut extrude
• Sketch Pattern
• Mirror
• Split Line

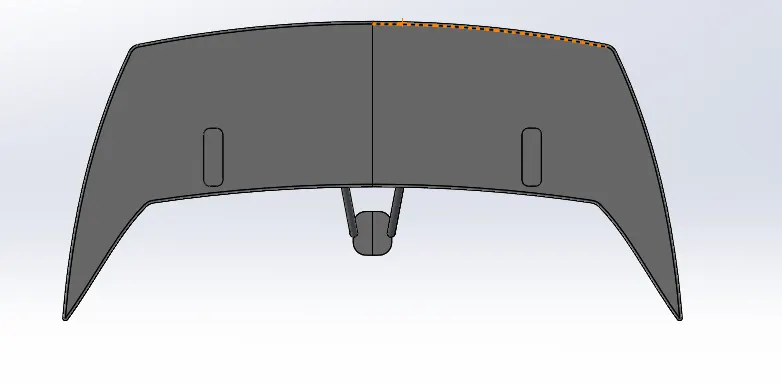

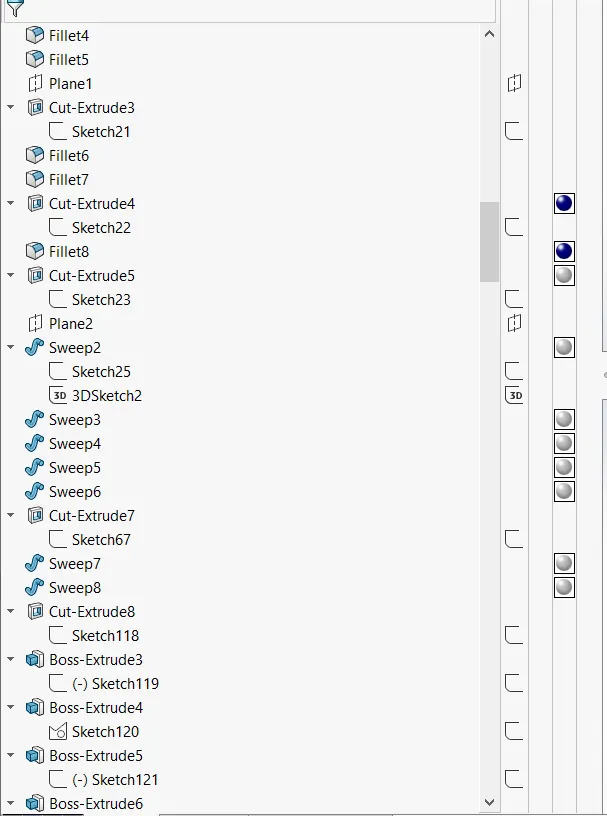

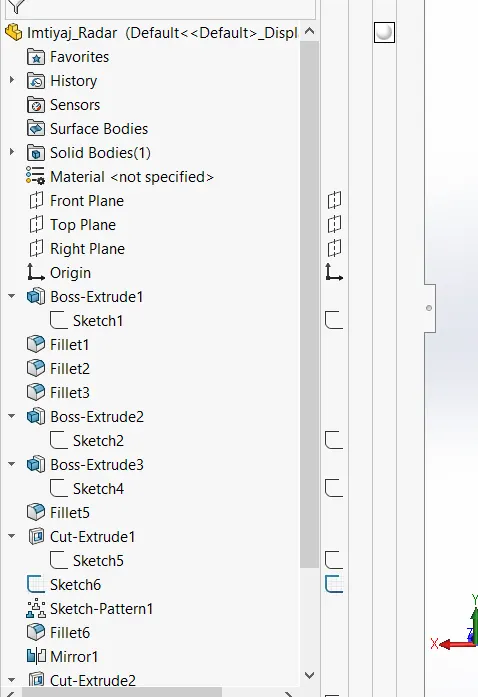

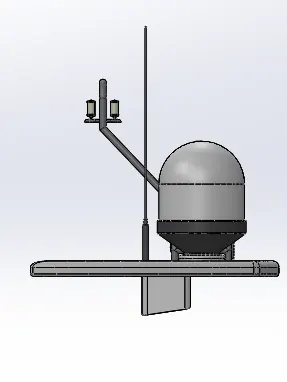

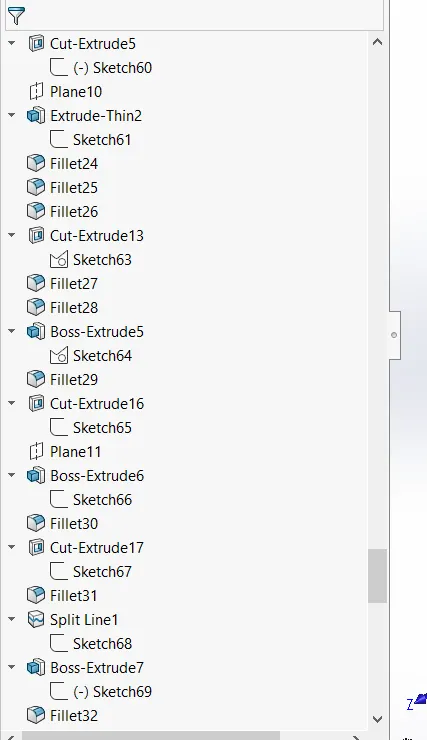

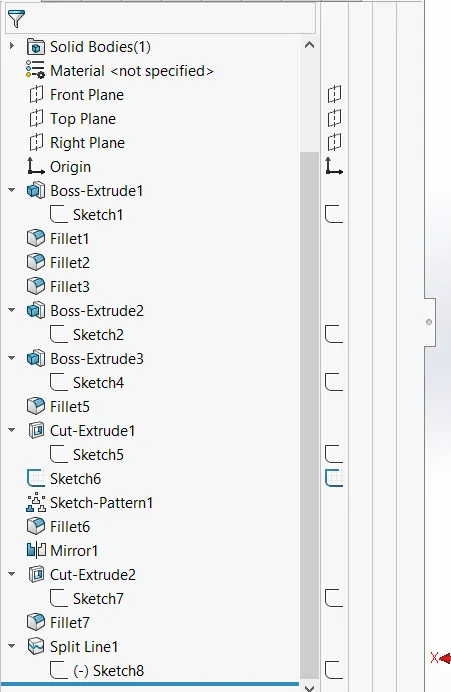

Isometric view of Radar. Feature tree of Radar.

3.Modelling sunseeker predator YATCH-Blueprint.

Features use to create the Modelling sunseeker predator YATCH-Blueprint.

• Blueprint front view
• Blueprint side view
• Blueprint bottom view
• Blueprint back view
• Blueprint top view

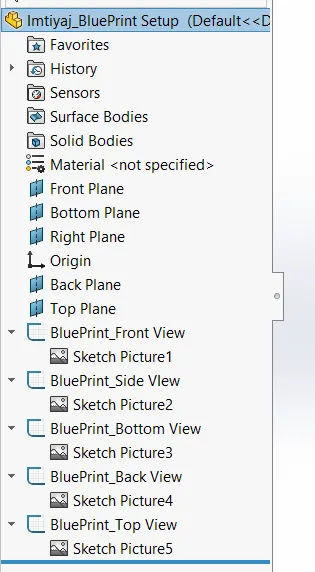

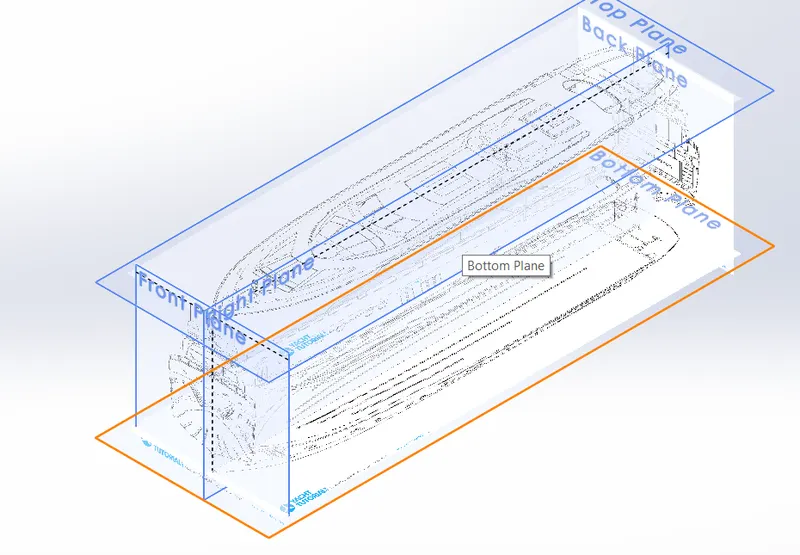

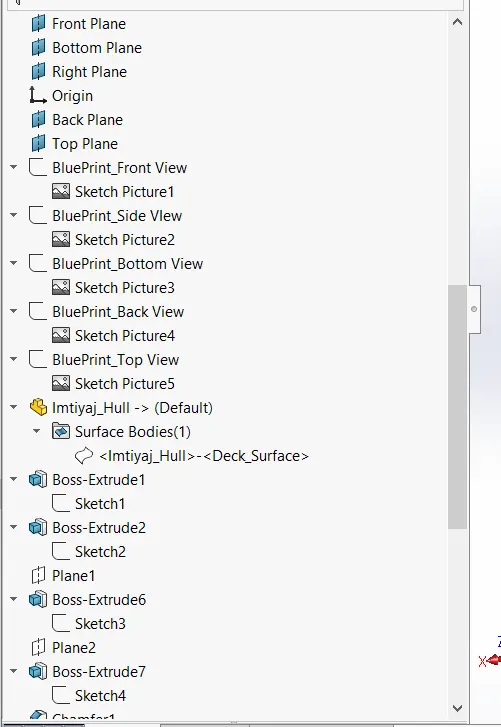

Isometric view of blueprint. Feature tree of Blueprint.

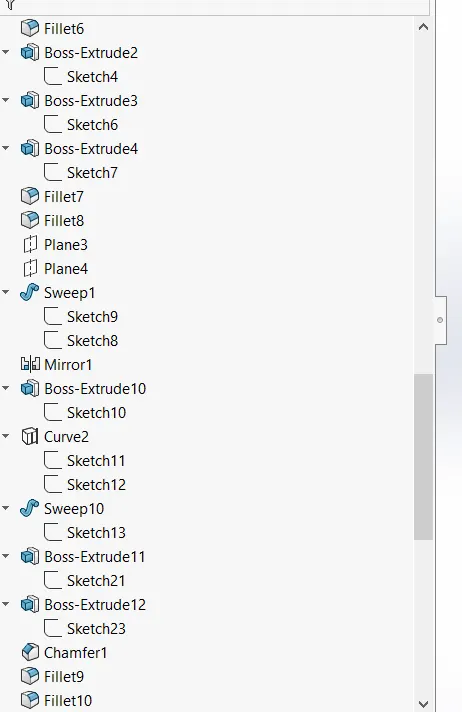

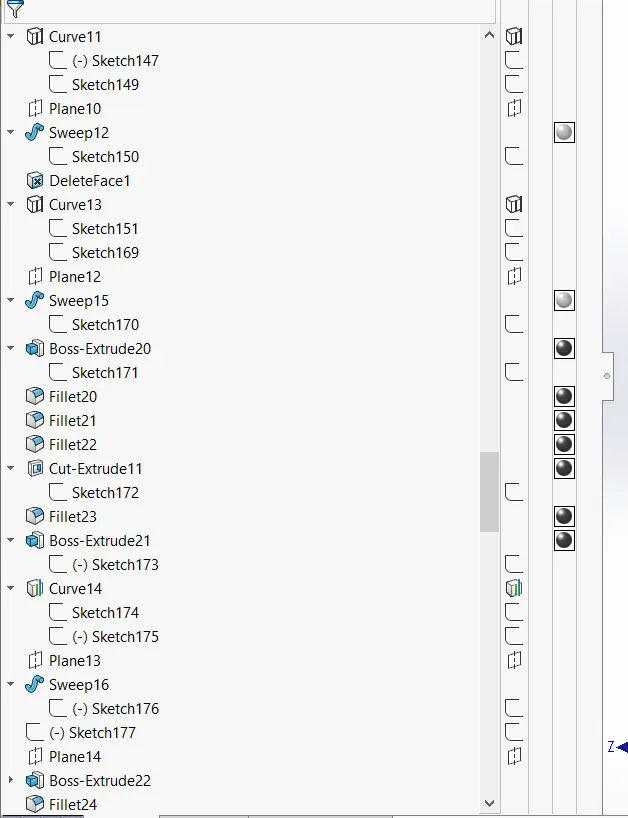

4. Modelling sunseeker predator YATCH-Hull.

Features use to create the Modelling sunseeker predator YATCH-Hull.

• Plane
• Blueprint
• Sketch
• Curve
• Surface loft
• Surface trim
• Surface extrude
• Surface kint
• Surface fill
• Shell
• Boss Extrude
• cut extrude
• fillet
• chamfer
• Sweep
• Revolve
• Dome
• Helix spring
• Linear Pattern
• Curve
• mirror
• Split line

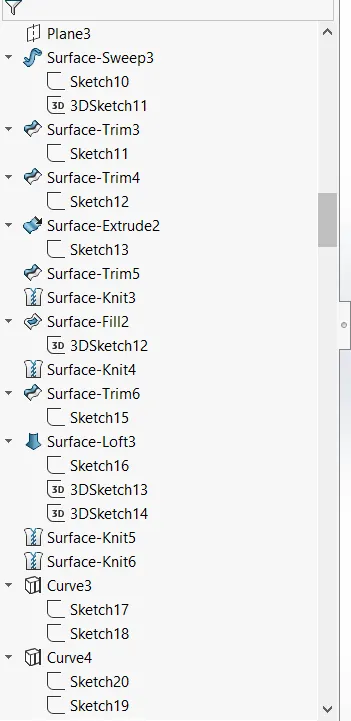

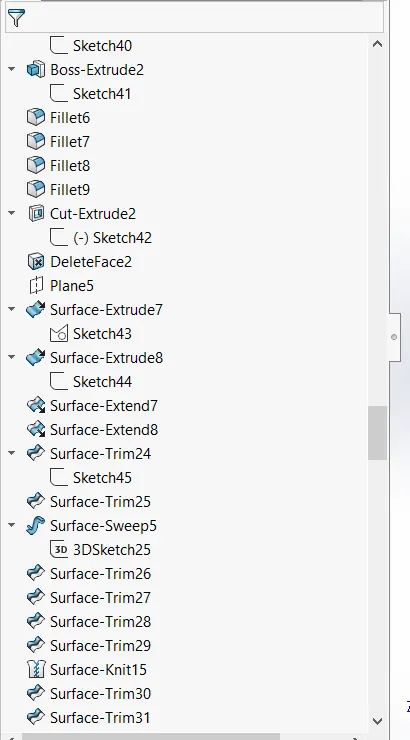

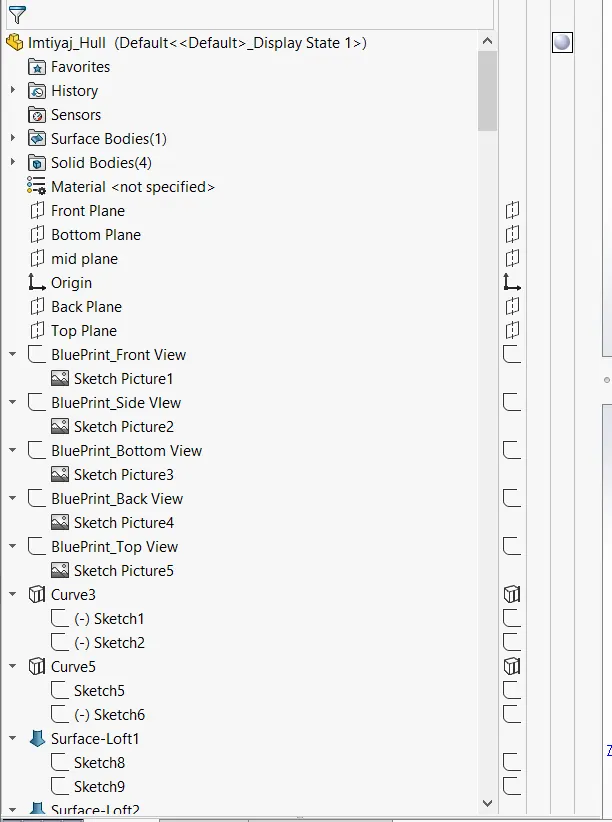

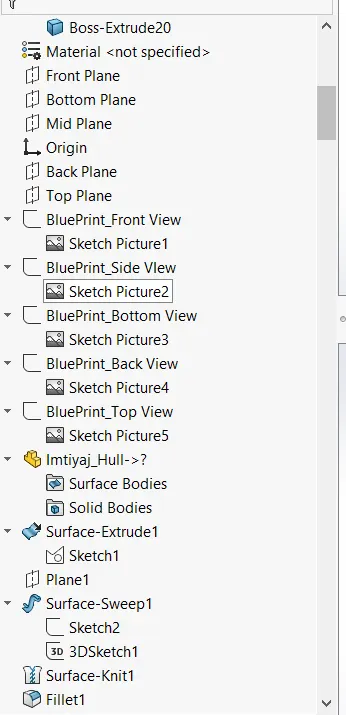

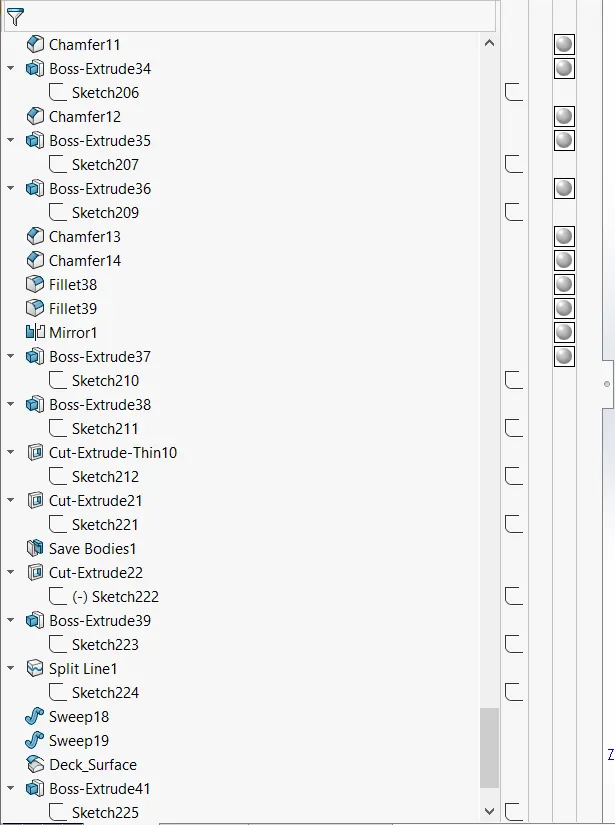

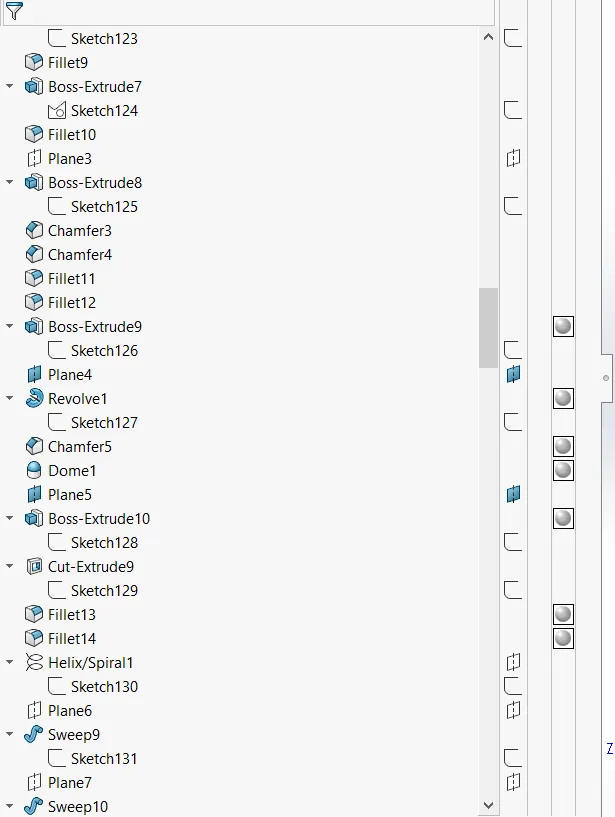

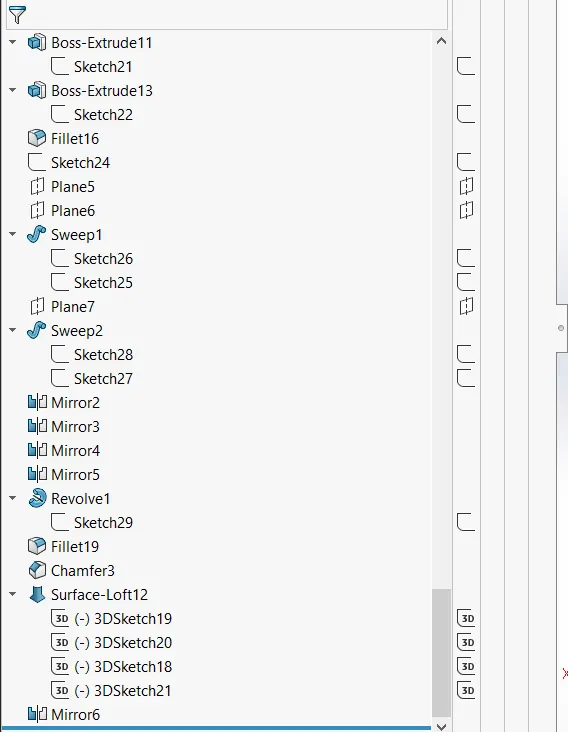

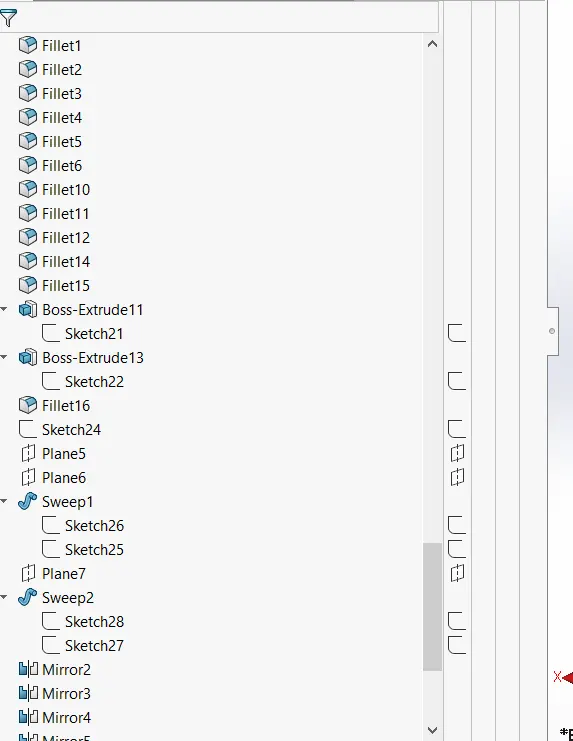

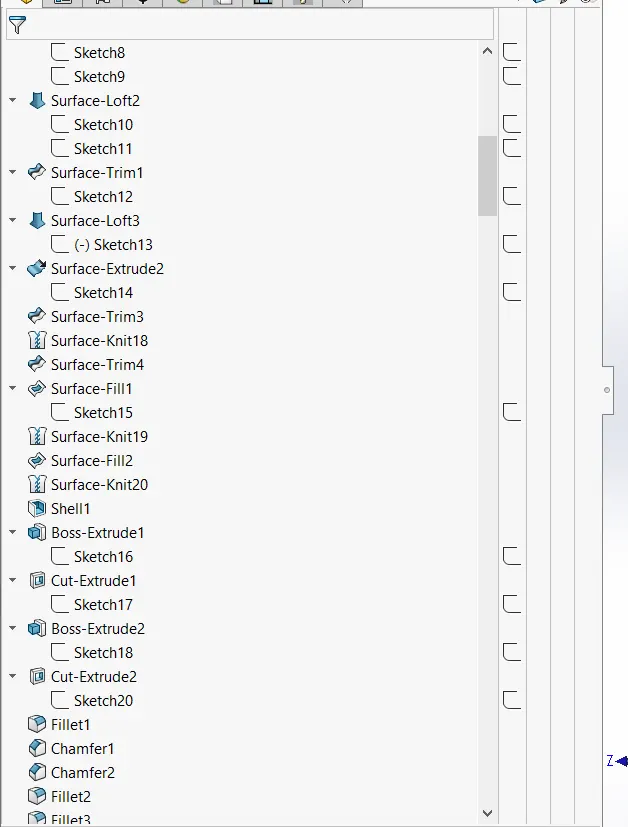

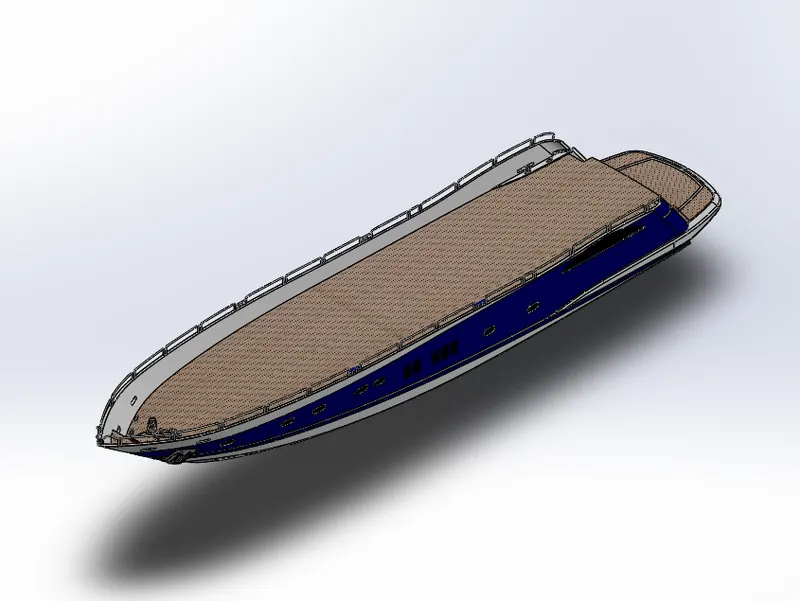

Isometric view of Hull. Feature tree of Hull.

5.Modelling sunseeker predator YATCH-Garage door.

Features use to create the Modelling sunseeker predator YATCH-Garage door.

• Plane
• Stock-hull Part
• Sketch
• Cut extrude
• Shell
• Fillet
• Mirror

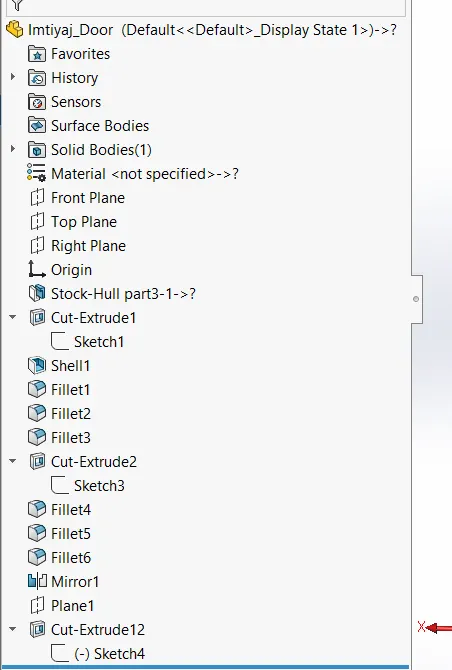

Isometric view of Garage door. Feature tree of Garage door.

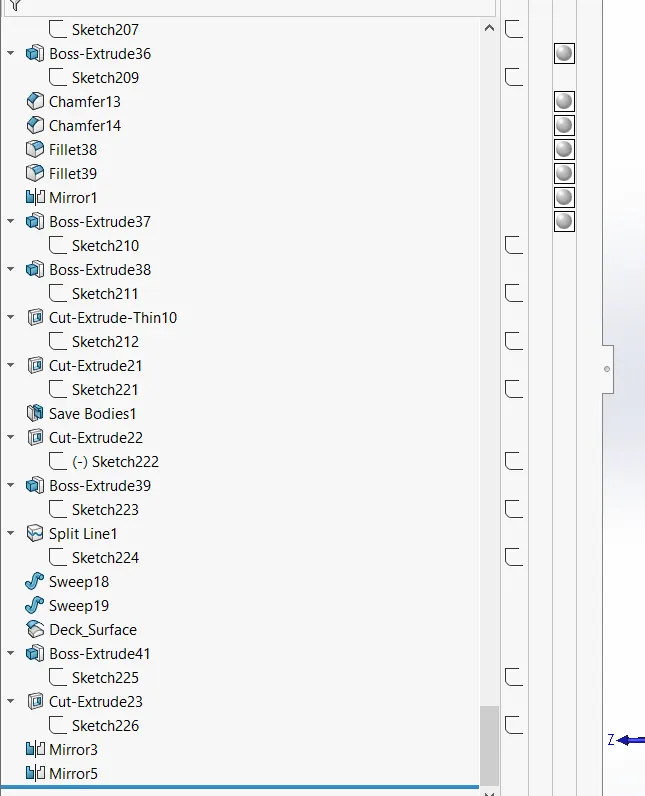

6.Modelling sunseeker predator YATCH-Front seat.

Features use to create the Modelling sunseeker predator YATCH-Front seat.

• Plane
• Blueprint
• Sketch
• Hull
• Surface-sweep
• Surface extrude
• Surface trim
• Surface fill
• Surface loft
• Surface kint
• Chamfer
• Revolve
• Cut extrude
• Cut extrude thin
• Fillet
• Mirror
• Dome

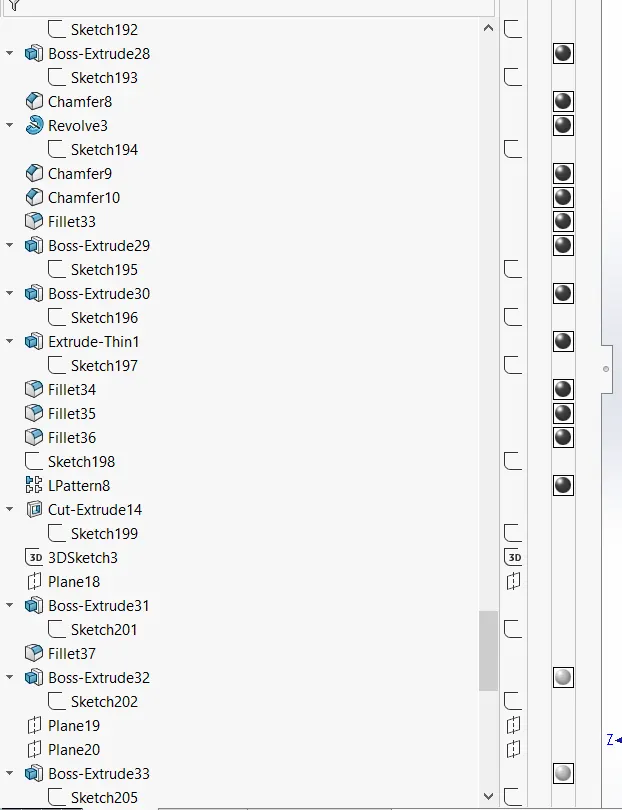

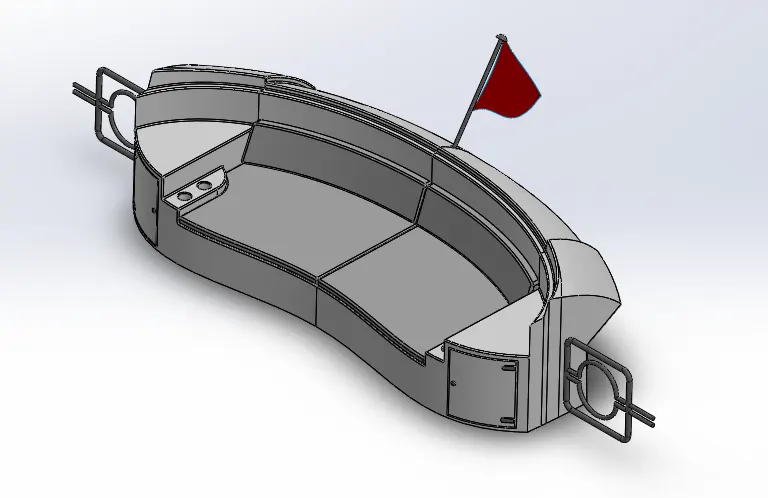

Isometric view of Front seat. Feature tree of front seat.

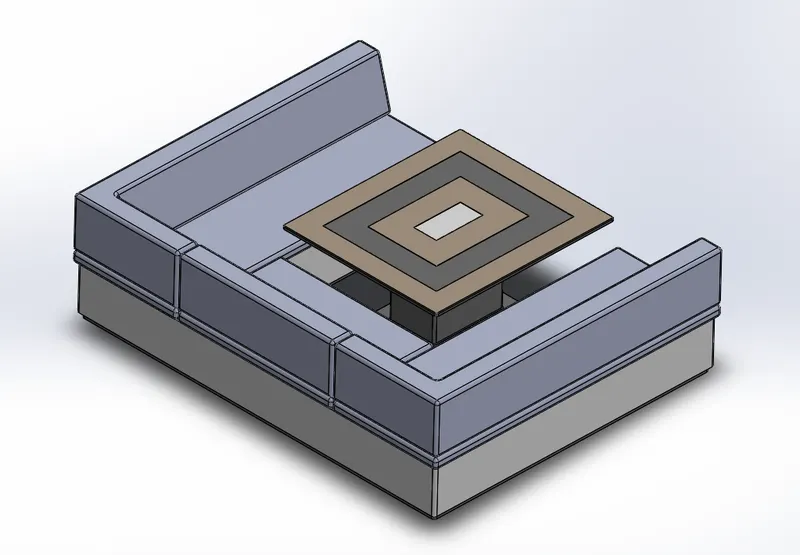

7.Modelling sunseeker predator YATCH-Middle Seat.

Features use to create the Modelling sunseeker predator YATCH-Middle seat.

• Plane
• Deck_Surface
• Solid Body
• Blueprint
• Sketch
• Boss Extrude
• Chamfer
• Fillet
• Mirror
• Cut Extrude

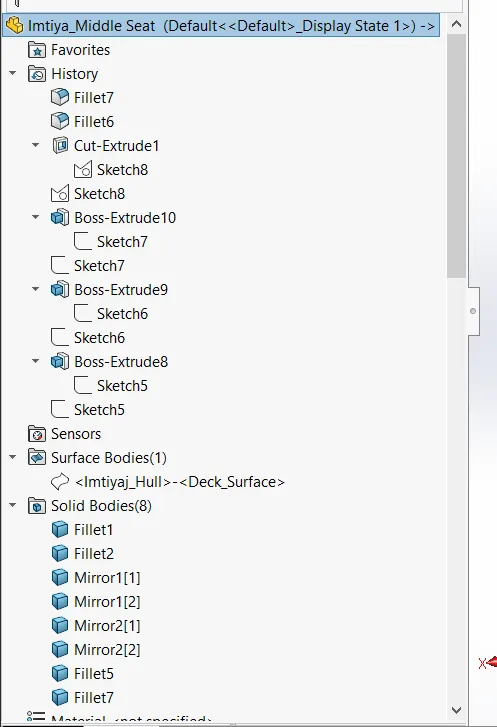

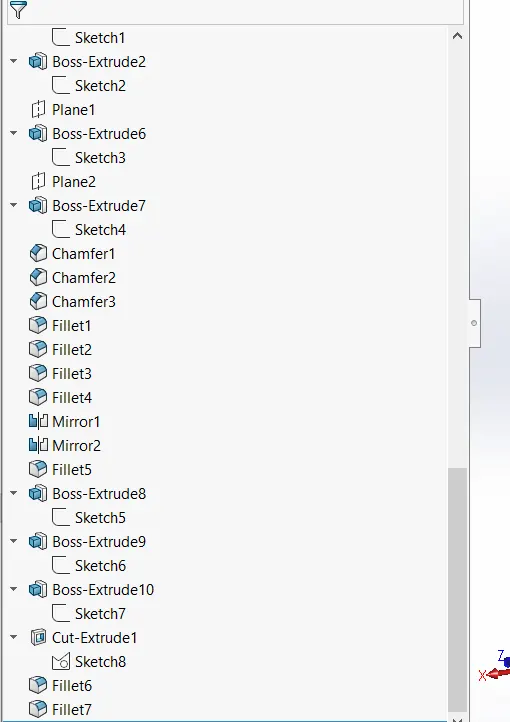

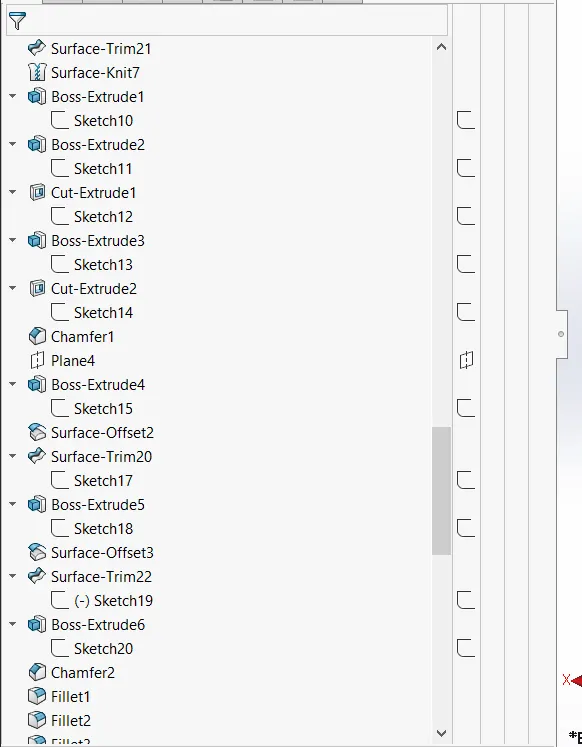

Isometric view of Middle Seat. Feature tree middle seat.

8.Modelling sunseeker predator YATCH-Rear seat.

Features use to create the Modelling sunseeker predator YATCH-Rar seat.

• Plane
• Blueprint
• Deck_Surface
• Sketch
• Surface sweep
• Surface Offset
• Surface trim
• Ruled Surface
• Surface kint
• Surface extend
• Surface extrude
• Surface loft
• Boss Extrude
• Cut Extrude
• Chamfer
• Fillet
• Mirror
• Revolve

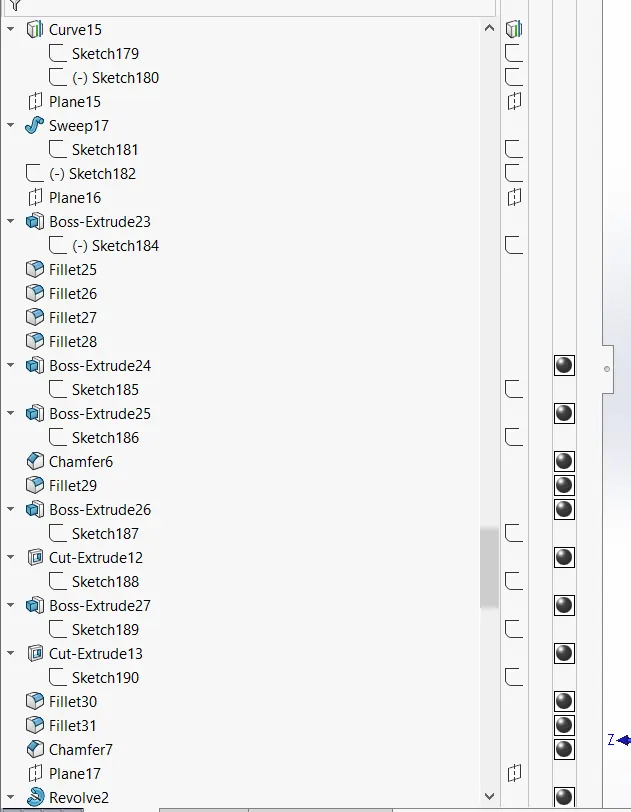

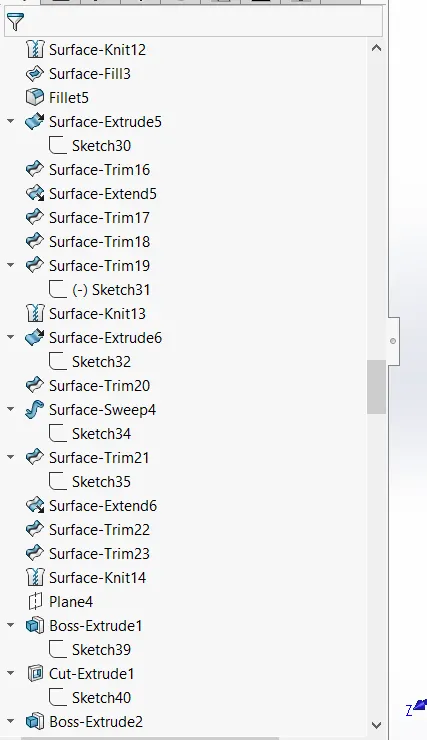

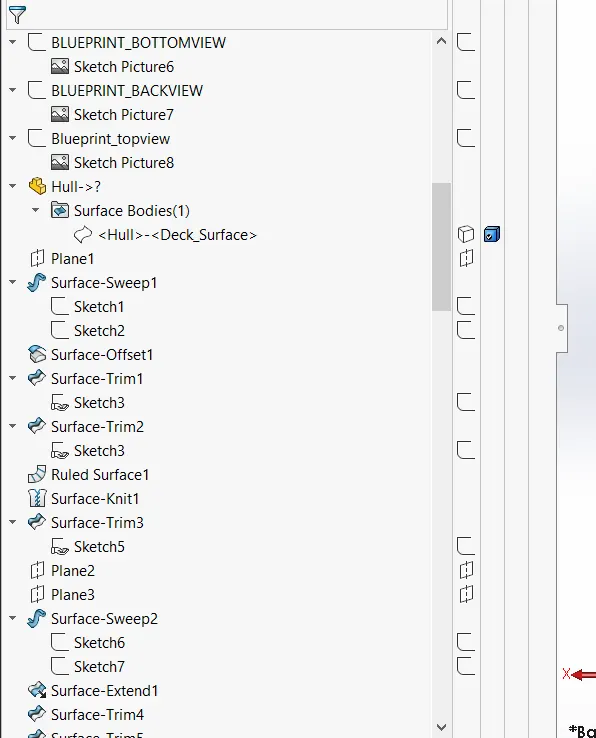

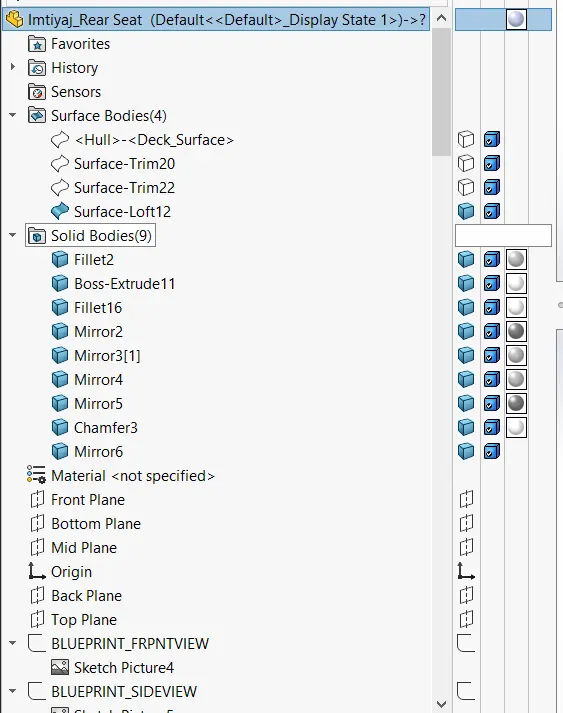

Isometric view of rear seat. Feature tree of rear seat.

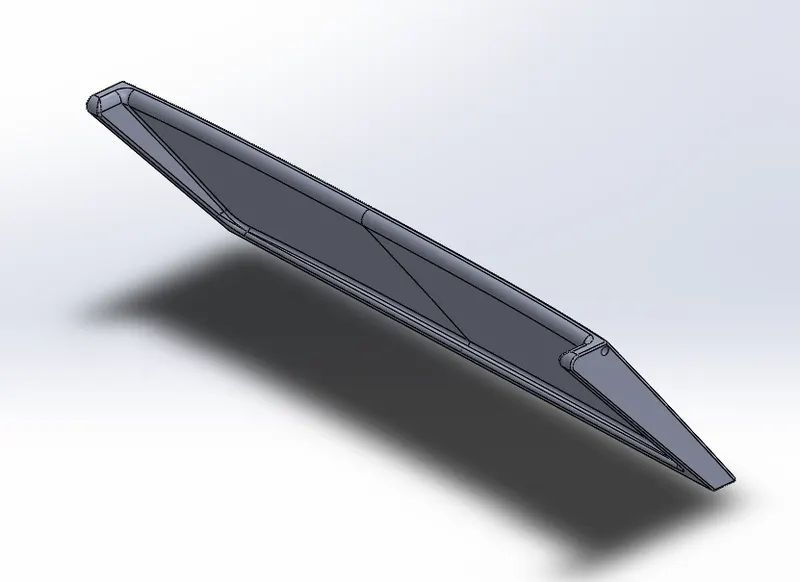

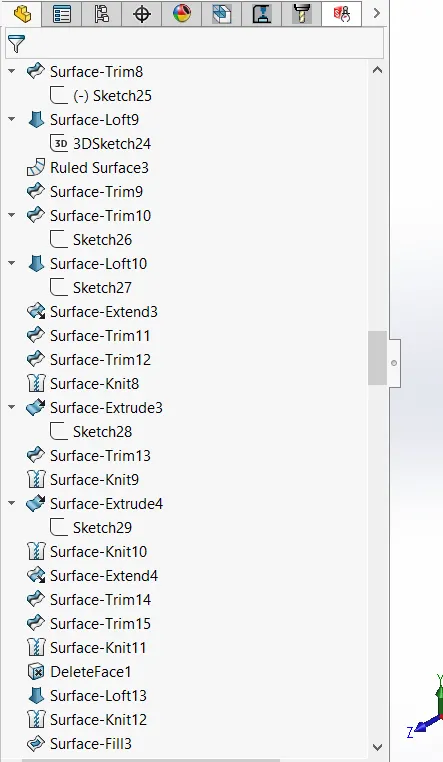

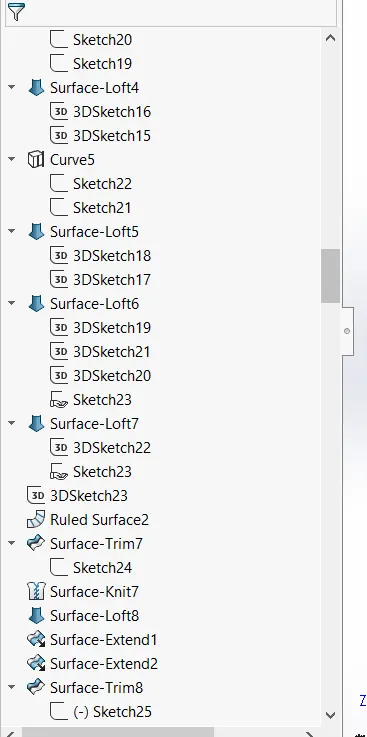

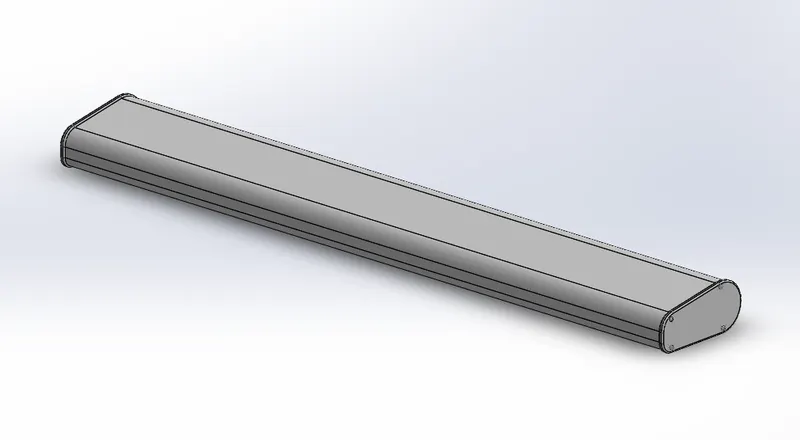

9.Modelling sunseeker predator YATCH-Supperstructer.

Features use to create the Modelling sunseeker predator YATCH-Superstructer.

• Blueprint
• Hull,surface body and solid body
• Sketch
• Surface extrude
• Surface sweep
• Surface kint
• Fillet
• Ruled Surface
• Surface trim
• Curve
• Surface loft
• Surface extend
• Surface fill
• Boss Extrude
• cut extrude
• thicken
• Dome
• Extrude thin
• Mirror
• 3D Sketch
• 3D Sketch extrude

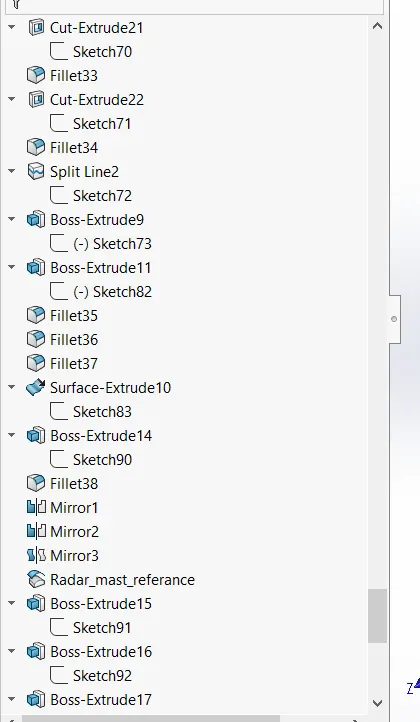

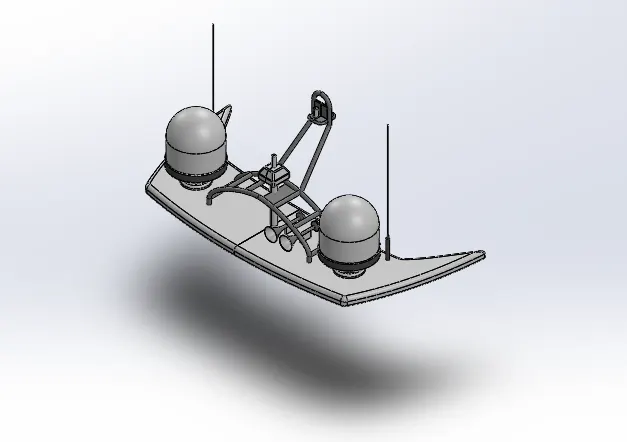

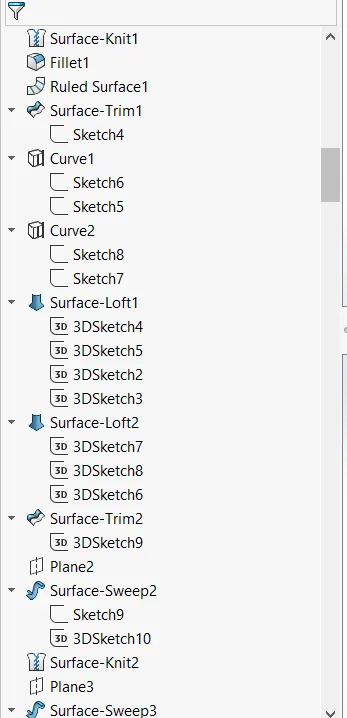

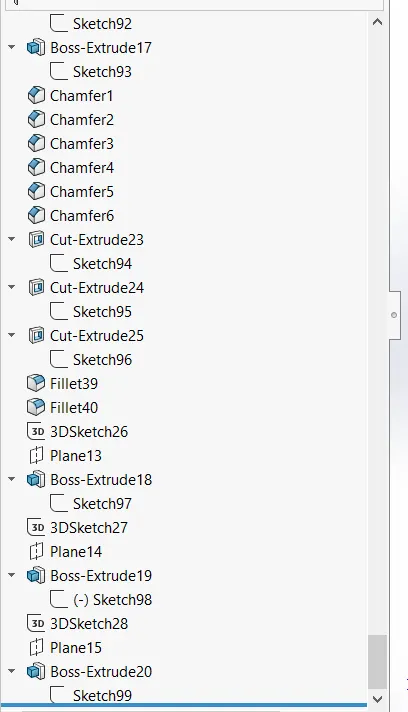

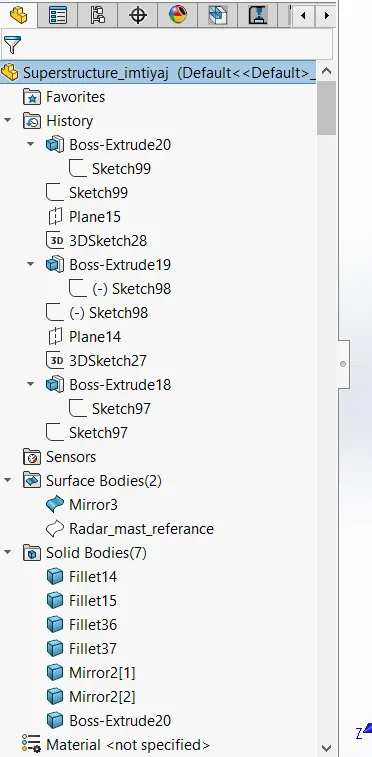

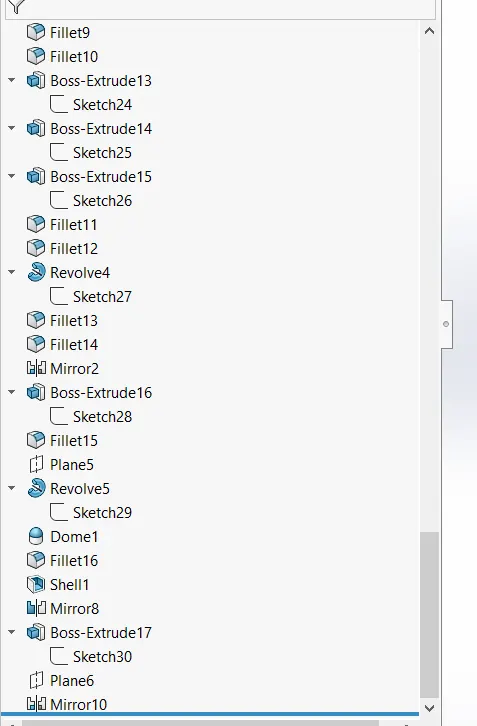

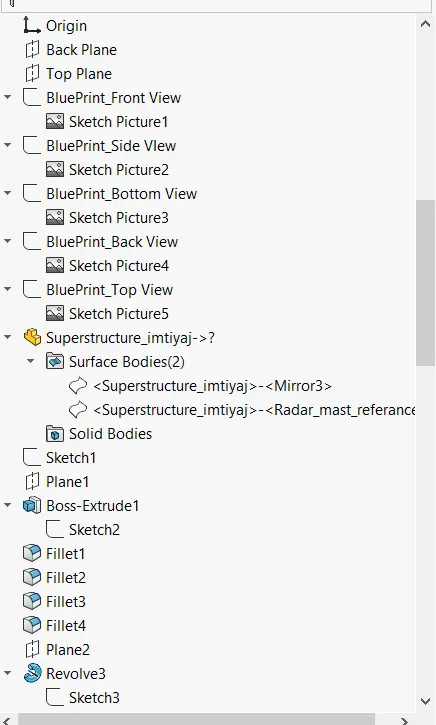

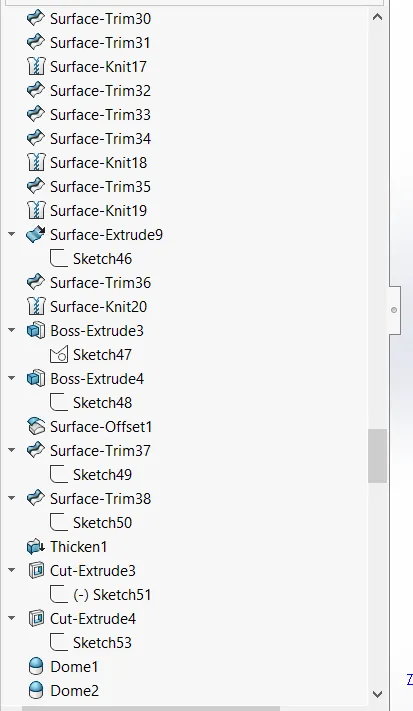

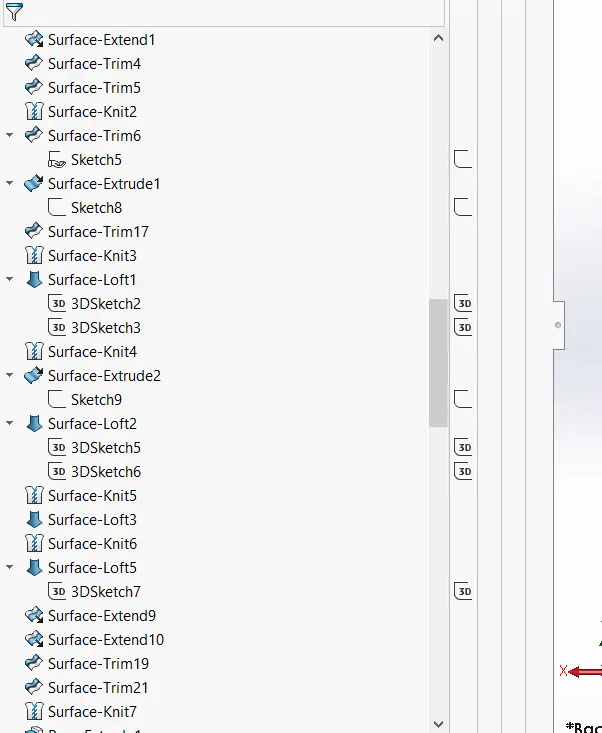

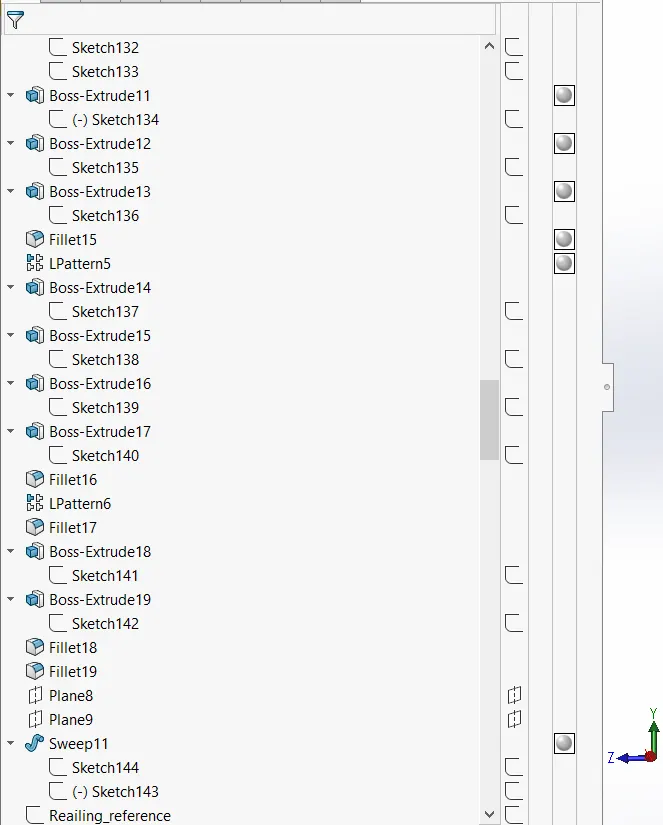

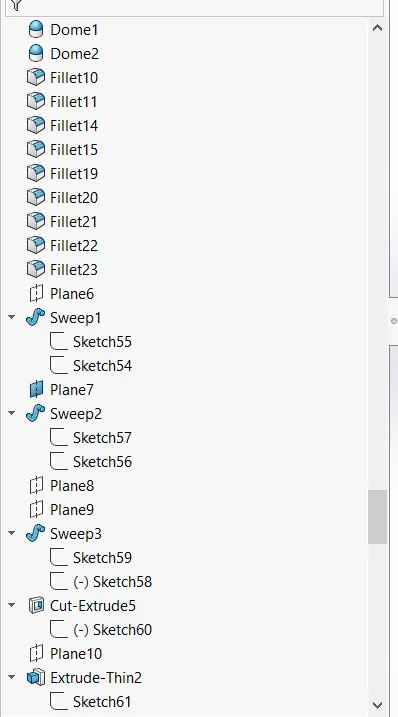

Isometric view of Superstructer. Feature tree of Superstructer.

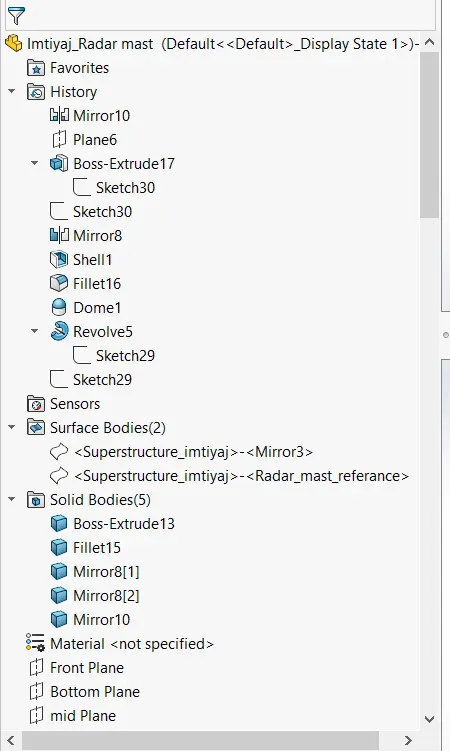

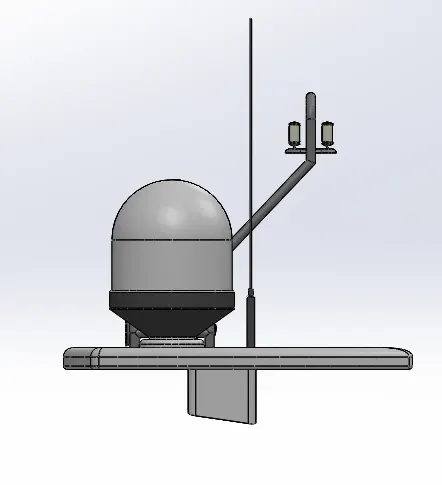

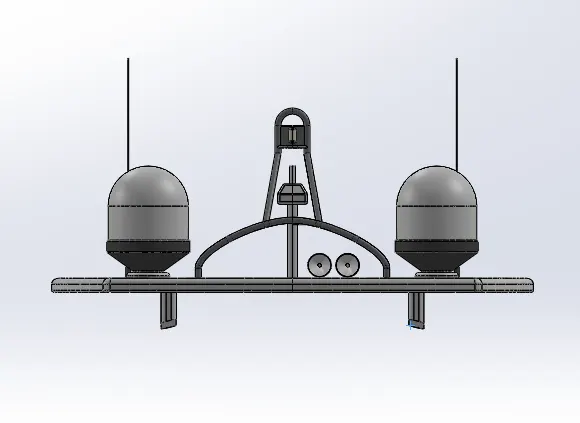

10.Modelling sunseeker predator YATCH-Radar_Mast.

Features use to create the Modelling sunseeker predator YATCH-Radar_Mast.

AS above mention.

Assembly of model with rendering

• Modelling sunseeker predator YATCH-Final Assembly.
• Features use to create the Modelling sunseeker predator YATCH-Final Assembly.
• Hull
• Supperstructer
• Radar mast
• Front seat
• Middle seat
• Rear seat
• Garage door
• Propeller
• radar
• Mates

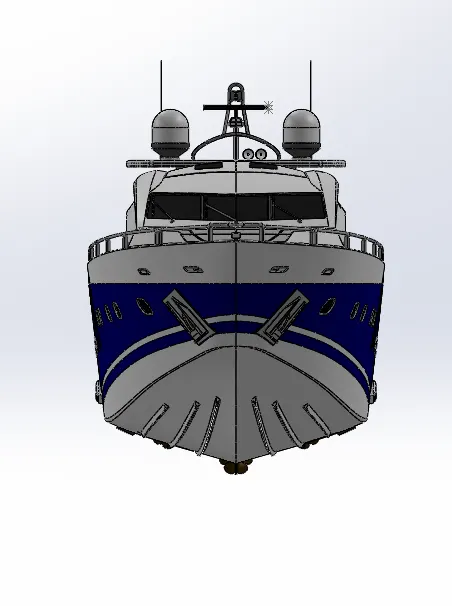

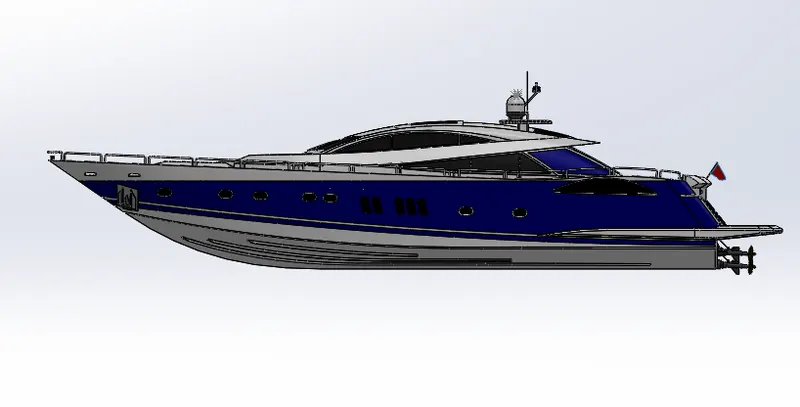

Front view of Assembly. Left side view of Assembly.

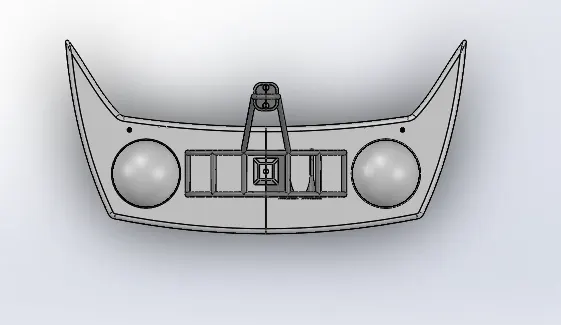

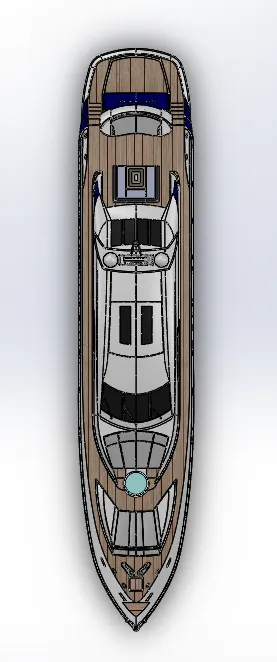

Right side view of Assembly. Top side view of Assembly.

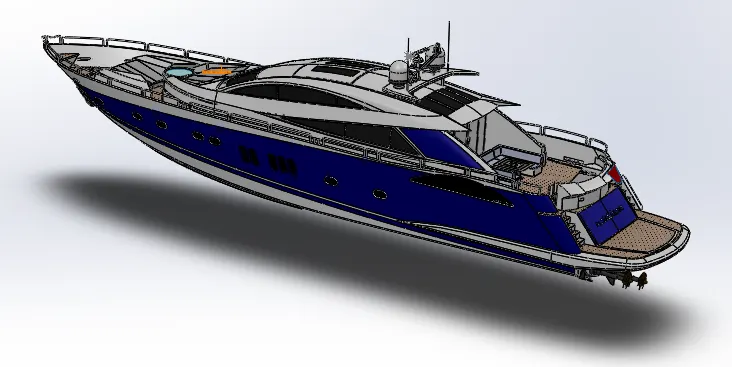

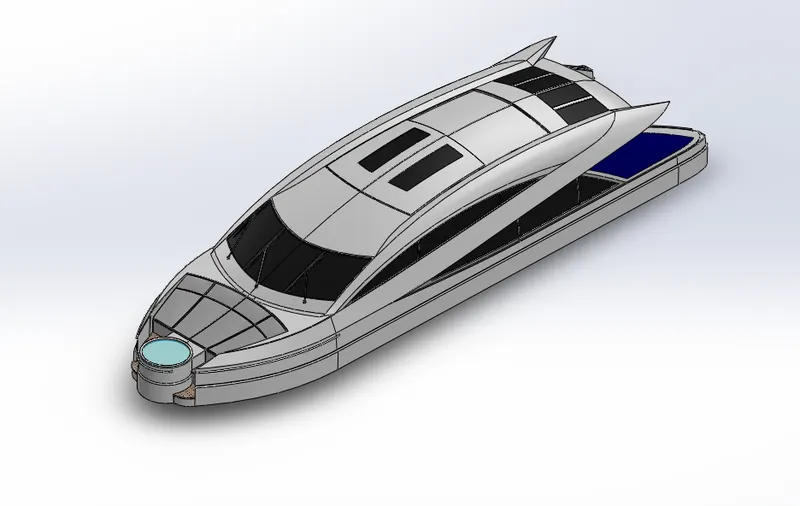

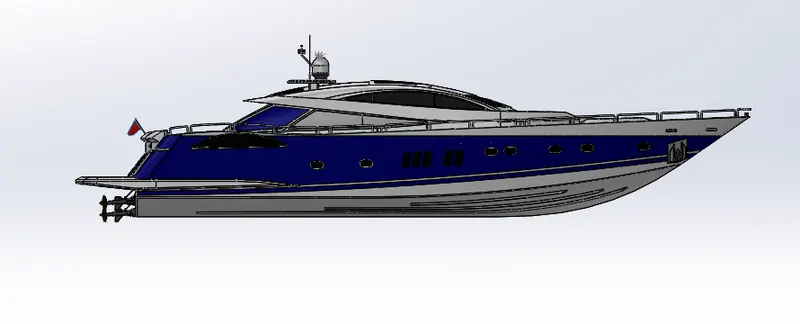

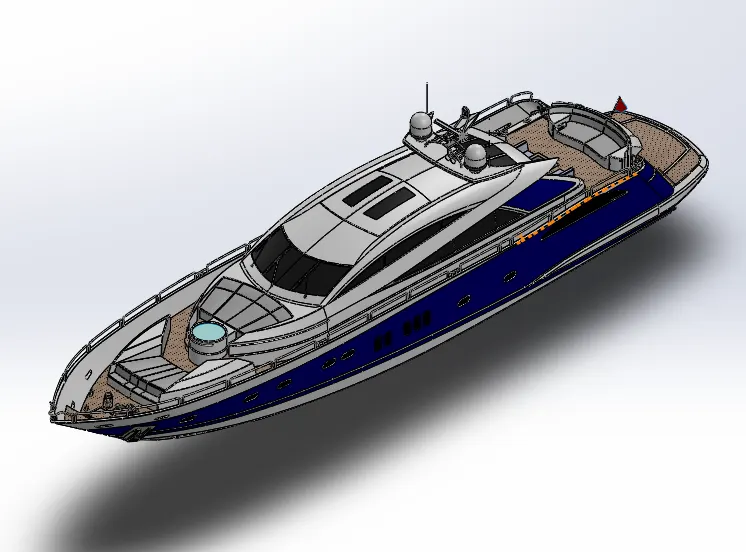

Isometric view of Assembly.

Camera setp view of Assembly.

Conclusion

We learned basic to advanced tool to do modeling of Yatch Model in solidwork. learned how to start a design from sketching to modeling as all industries do. learned how to adjust camera,backplate, and environment to get the best rendering effect by usign Solidworks visualization.
