Week 9 - Project - A pillar Design with Master Section

report writing

CONTENTS

• MASTERSSECTIONS REFERENCERS
• CREATION OF TOOLING AXIS & SIDE CORE axis
• creation of b and c surface
• CREATION OF SOLID PART
• DOG HOUSE CREATION
• DRAFT ANALYSIS
• PPT CREATION
• CONCLUSION

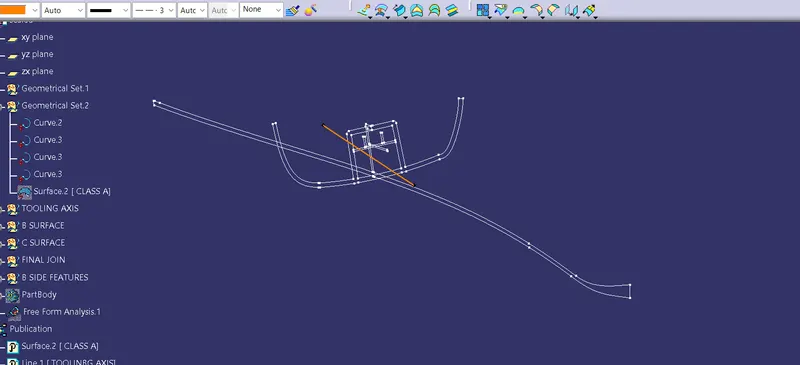

MASTER SECTION REFERENCE

REFERENCE FOR CLASS A, CLASS B & CLASS C SURFACE.

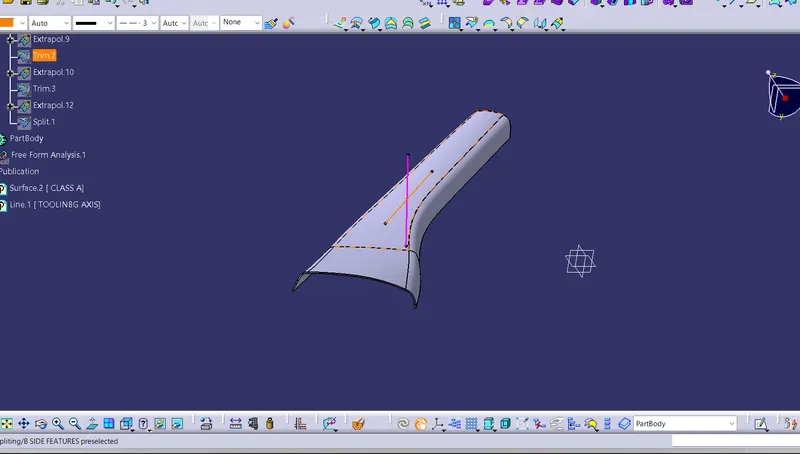

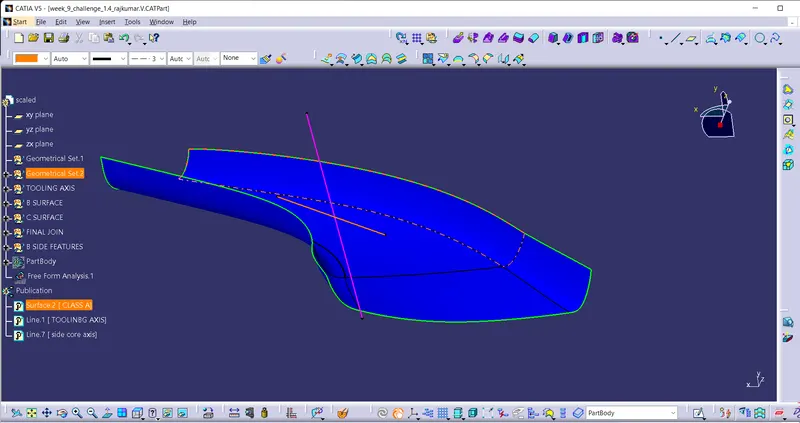

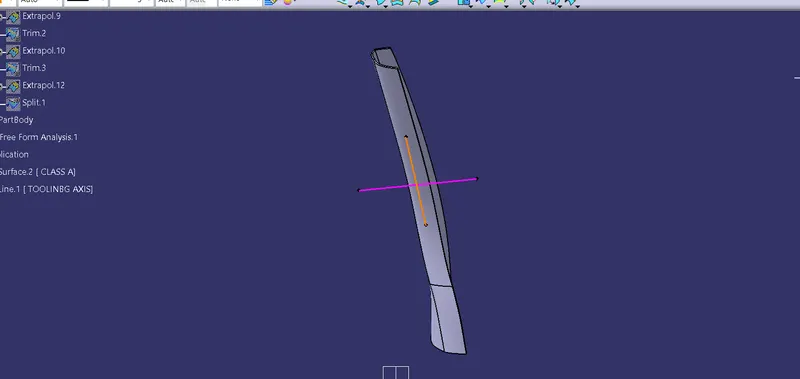

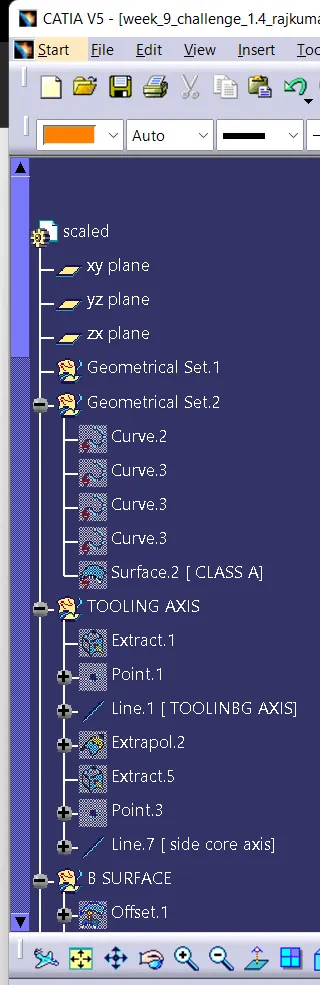

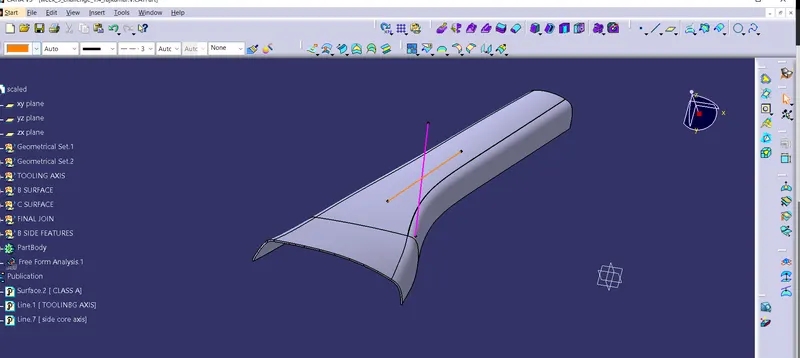

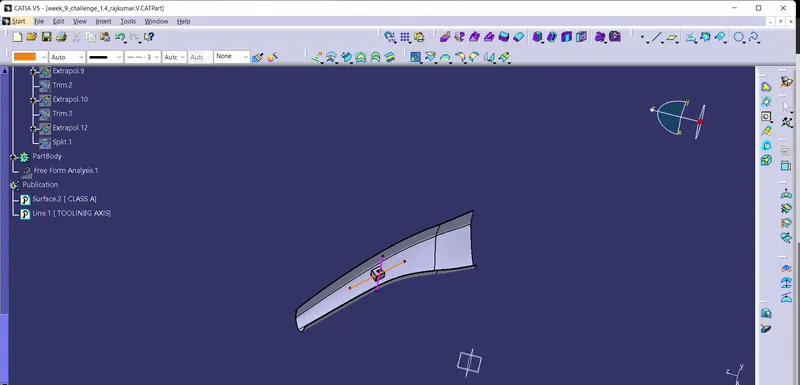

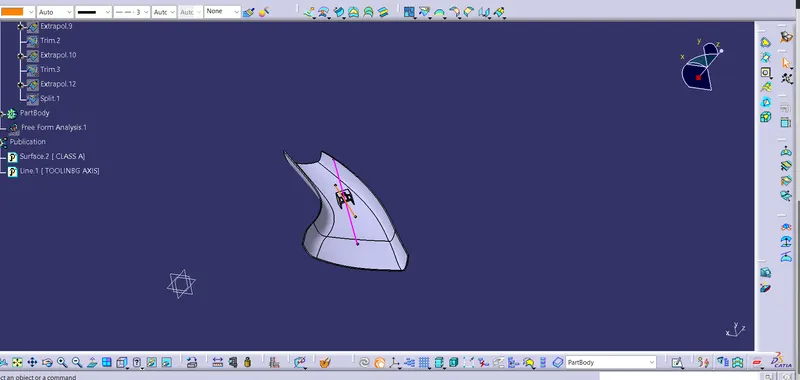

CREATION OF TOOLNG AXIS

Separated from A surface and C surfaces we too got to consider the B side connection highlights in arrange to form the tooling pivot since all the connection highlights have a huge number of surfaces parallel to the tooling direction. For making the tooling we will take reference from the ace segments of the B side highlights and make tooling pivot in like manner.

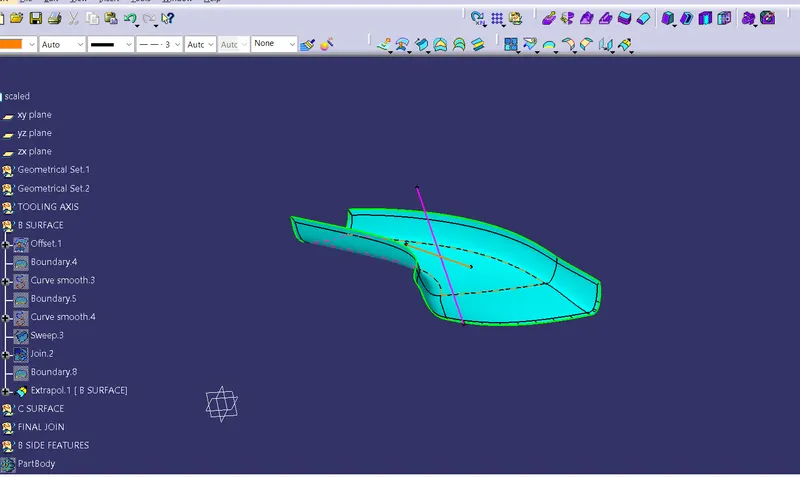

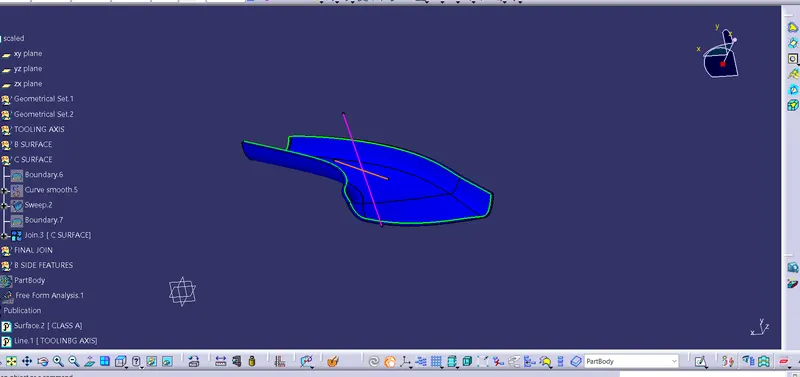

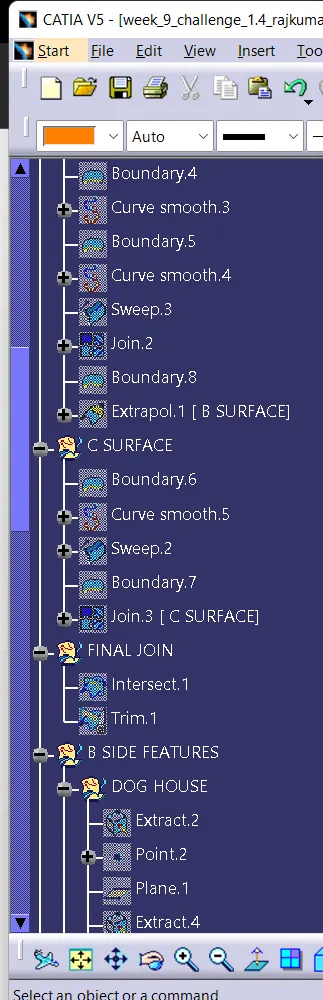

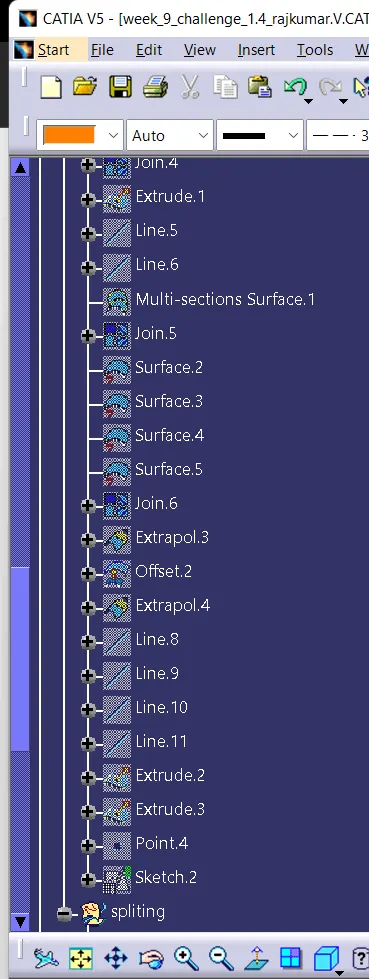

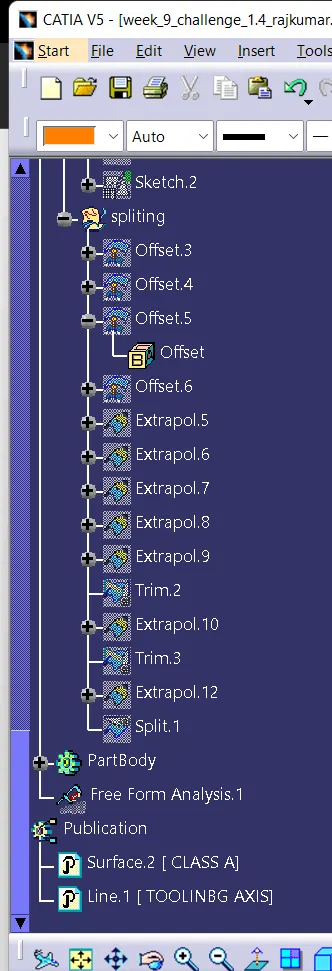

CREATION OF B & C SURFACE

We require a thickness of 2.5mm for the A Column so in arrange to form the course B surface we'll deliver an counterbalanced esteem of 2.5 mm to extemporized course A surface. After applying the counterbalanced command we'll see a few of the patches of the coming about surface are not creating so we need to reproduce those patches by utilizing multi-section surface command. On joining the reproduced patches with the offseted surface we'll get the course B surface.

Extricate the side edges, front edges and raise edges of the made strides course A surface and utilize clear command utilizing "with refrence to draft" choice and make the draft point break even with to 3 degrees. For the rest of the edges utilize multi-section surfaces command to form surfaces inline with the major surfaces made through sweep. Join all the surfaces together utilizing connect command.

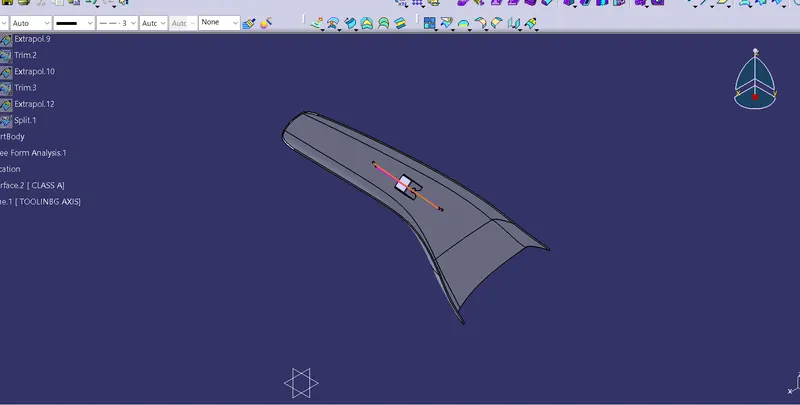

CREATION OF SOLID PART

Utilizing the Trim command connect the lesson A surface with lesson C surface. Trim the coming about Trimmed surface with course C surface. The coming about trim we'll get is the closed shell body of A pillar. Finally utilize closed surface command within the portion plan workbench which would lead the shell body into a portion body.

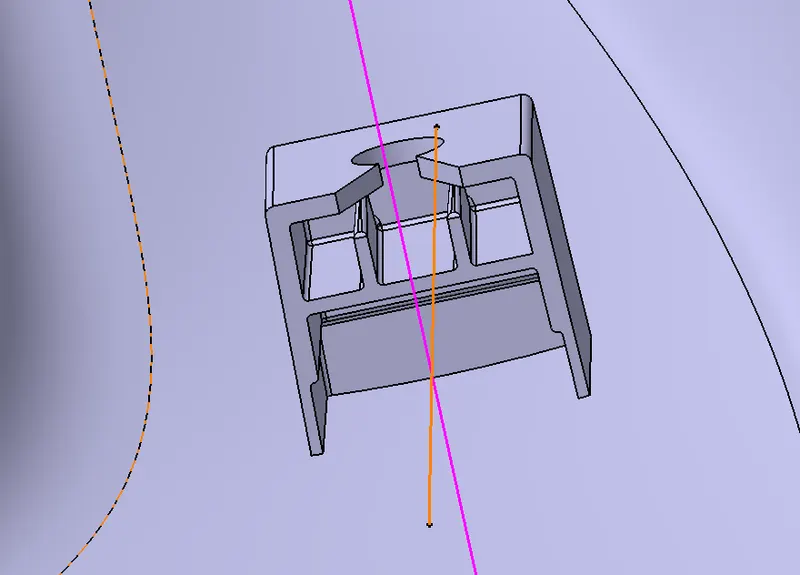

DOG HOUSE CREATION

The creation of doghouse is done totally utilizing the ace areas, to begin with we make draws by taking the refrences from the ace segment and after that we connected the expel command so that we would get the divider surfaces of the doghouse. make beyond any doubt we expel the draws along the course of side center tooling axis. similarly make the back surface of the doghouse by taking reference from the master section. After that we are able utilize the trim command to grant them a fundamental shape of the doghouse. Add fabric to the trimmed surface by utilizing the thicken command within the portion plan workbench. Make beyond any doubt we donate thickness concurring to the doghouse ace section. We can advance utilize part command to part the additional or unwanted fabric parcel and deliver legitimate shape to the doghouse agreeing to the ace segment. We moreover got to utilize the part command to decrease the thickness of the doghouse from the foot i.e 3mm to 6mm upward from the foot edge touching the B surface.

The thickness to be diminished ought to be not less than 40% of the divider thickness. Make beyond any doubt that each confront of the doghouse is drafted to a esteem of 5 degrees and these faces has to be drafted by keeping intellect their particular tooling hub along which they would be tooled.A minimum fillet esteem of 0.25mm is additionally required to all the edges. For making the second doghouse which is on the inverse side we'll first create a copy of the existing doghouse by utilizing the glue extraordinary choice and after that we are going utilize the symmetry command to position the reproduction of the doghouse to the other side of the A pillar. Finally we'll utilize the union trim boolean operation to connect both the doghouses to the A column and trimming off the undesirable fabric at the same time.

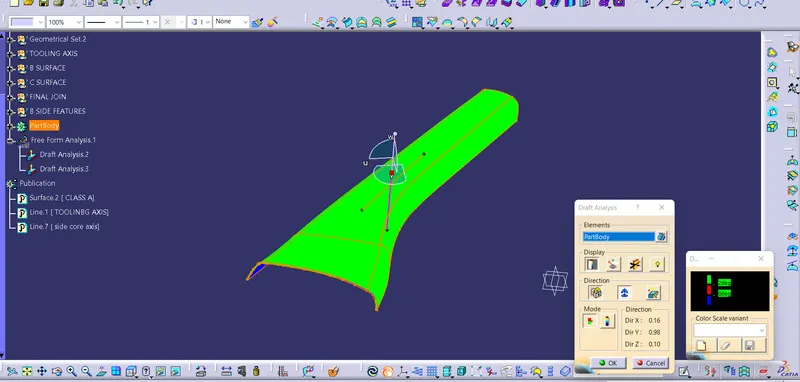

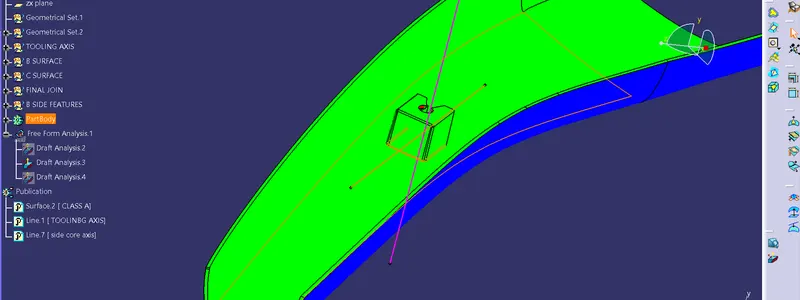

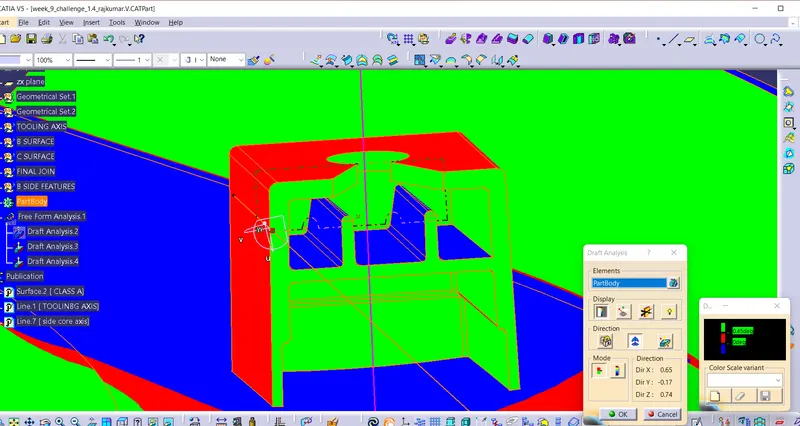

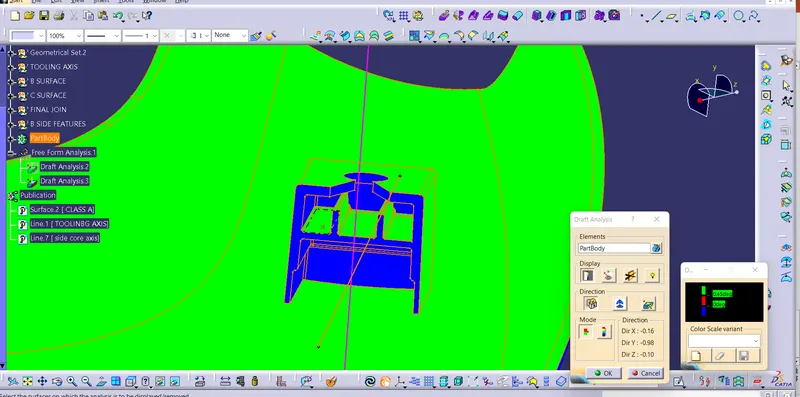

DRAFT ANALYSIS

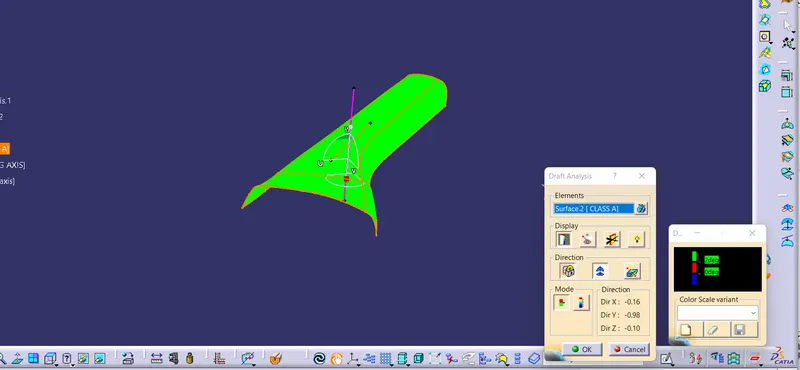

DRAFT ANALYSIS FOR CLASS A

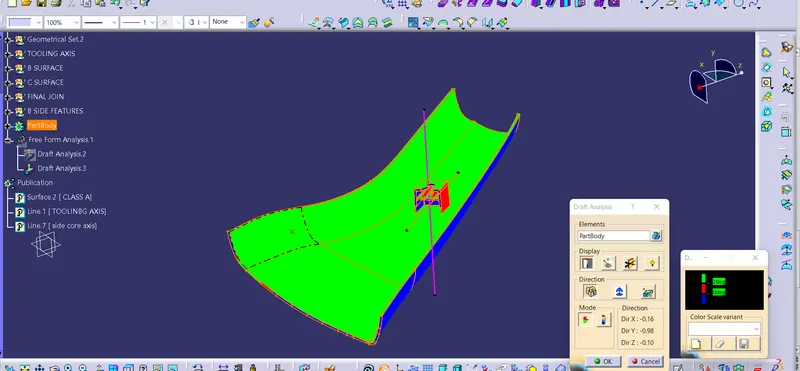

SOLID PART DRAFT ANALYSIS

PPT CREATION

ppt has been created and attached respectively.

conclusion

Thus the creation of tooling axis, side core axis,b & c surface, solid part,dog house has been created.
