Week 8 - Challenge 2 - Switch Bezel Design

REPORT WRITING

TABLE OF CONTENT

• DRAFT ANALYSIS
• TOOLING AXIS
• BISECTING METHOD

DRAFT ANALYSIS

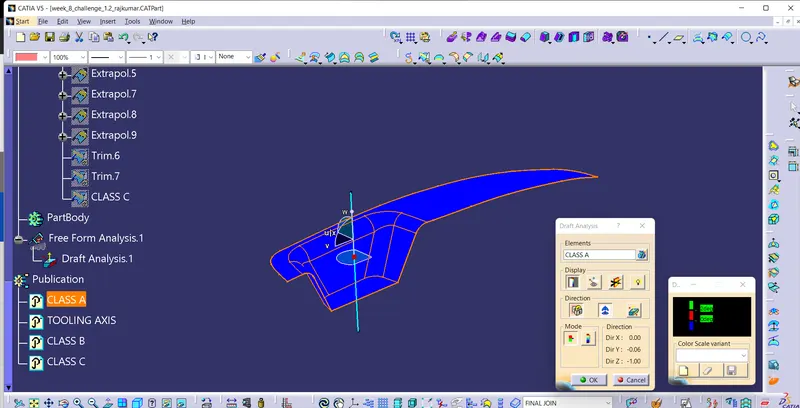

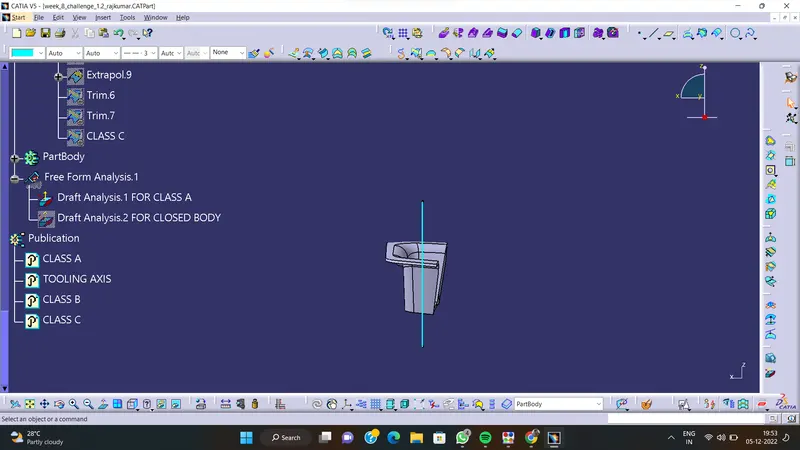

Draft point is nothing but giving a few decreased parcel to the portion for simple expulsion of the component from the form amid fabricating. Typically particularly wiped out the case of plastic component plan having a complex shape. Generally the 3-degree draft point is given but it can change depending upon the component which is to be designed In our case of Switch Bezel plan, the draft point is 3 degrees the draft examination is done amid the plan of the component to check the achievability of the product. Before giving a draft point we got to choose on the tooling hub too known as the molding pivot considering the faces which can cause issues whereas manufacturing.

TOOLING AXIS

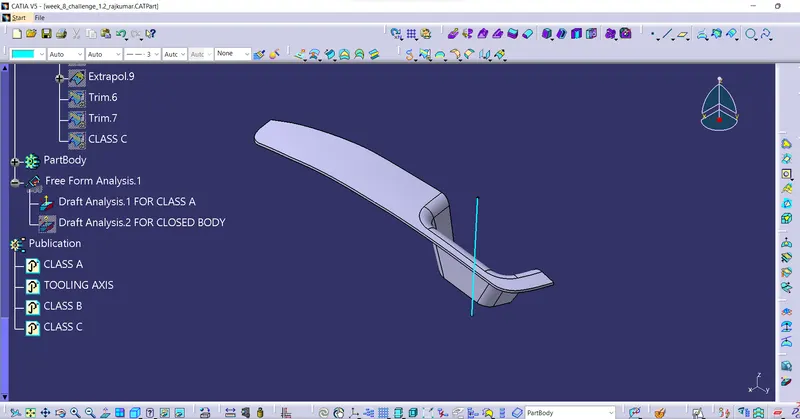

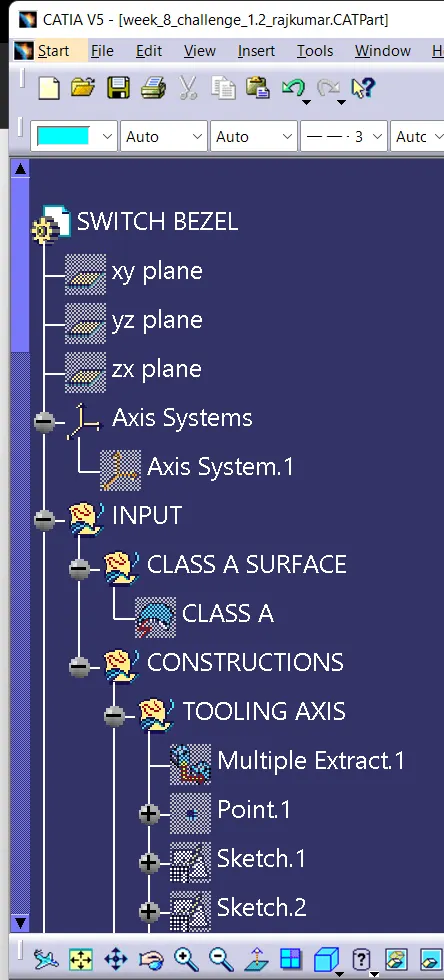

It is nothing but the heading in which the shape opens and closes the draft point required to be given by considering this tooling axis. We can make a tooling hub by utilizing the bisecting strategy.

BISECTING METHOD

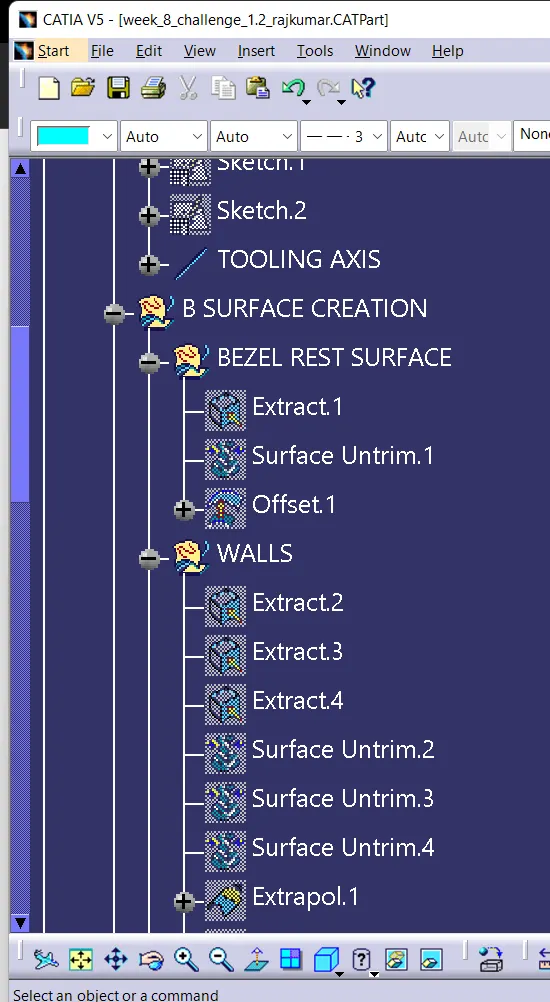

This strategy is utilized for the era of the tooling hub for that reason to begin with we have to be choose the coursE of molding and after that we make one sham tooling hub for the reference to the purpose. In this strategy, we select the surfaces which can make issues and take intersections within the x and y-direction. By using these bends we draw two lines and after that draw a bisecting line from these two lines within the x-direction and y-direction. If it is wiped out x-direction then it is called a tooling axis clearing x-direction and in case in y at that point tooling pivot clearing y-direction. After completing this we got to draw a last line bisecting this two tooling pivot within the X and Y bearings to urge our last yield.

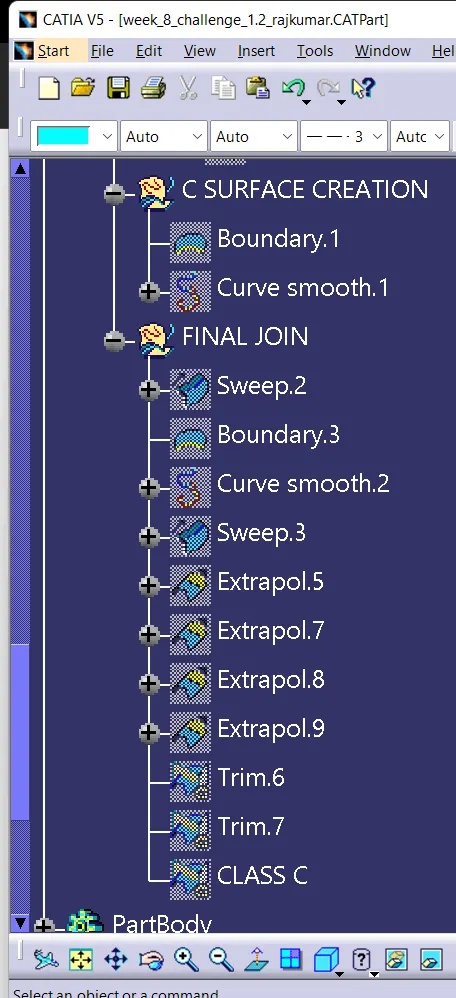

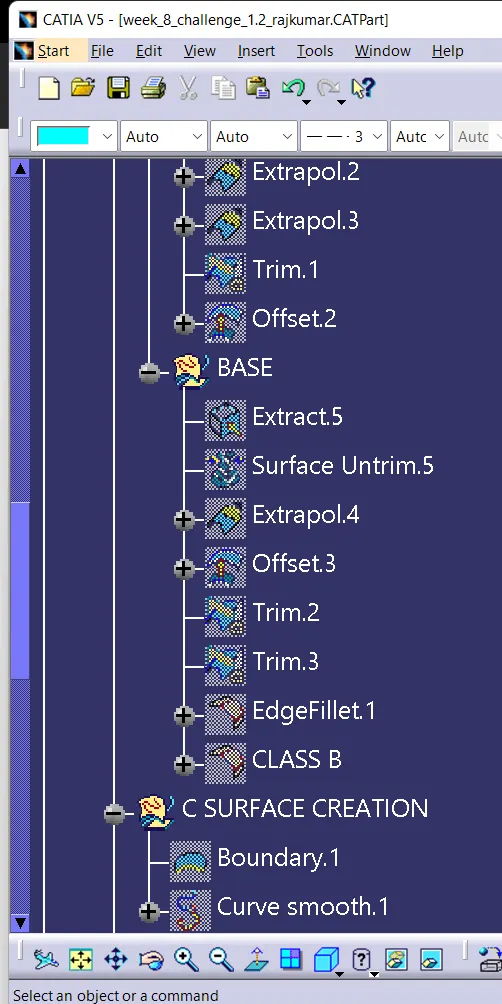

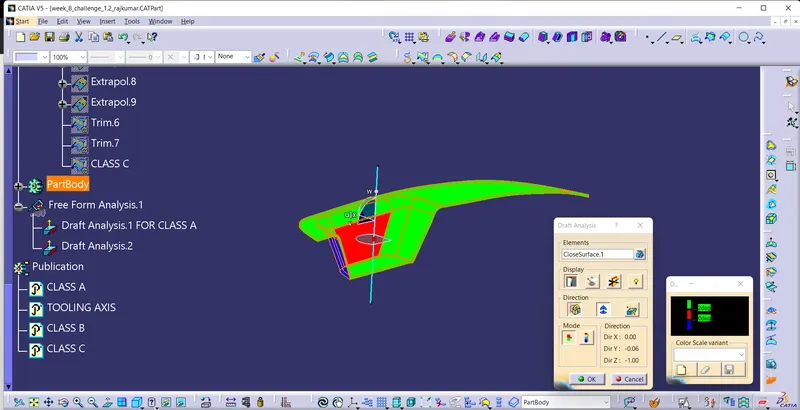

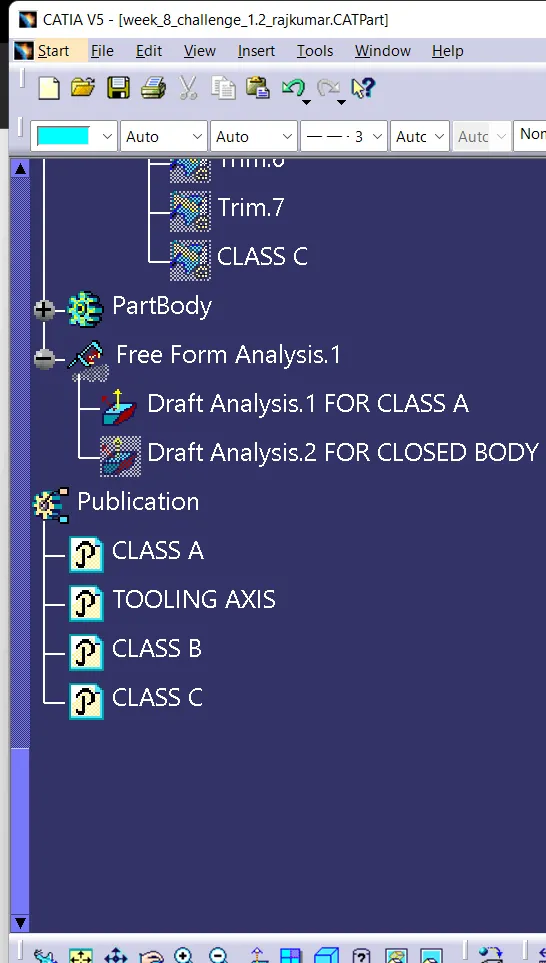

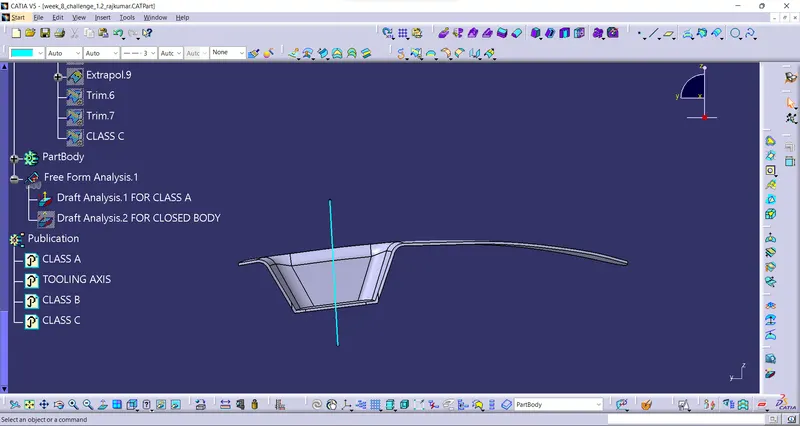

CLOSED surface draft analysis:

it can be seen that one divider of the portion comes up short within the achievability check, this happened due to the draft point which is given to the pivot at the starting. To dodge this, again the point should be expanded and overhaul has got to be done.

CONCLUSION

THUS the creation of tooling axis,b surface,c surface is done.
