Week 9 - Project 1 - Door Trim Lower with Engineering Features

                                                                                        REPORT WRITING

CONTENTS

• TOOLING AXIS
• CREATION OF B & C SURFACE
• SOLID MODEL
• DOG HOUSE CREATION
• 4 WAY AND 2 WAY LOCATORS
• HEAT STAKES
• DRAFT ANALYSIS
• CONCLUSION

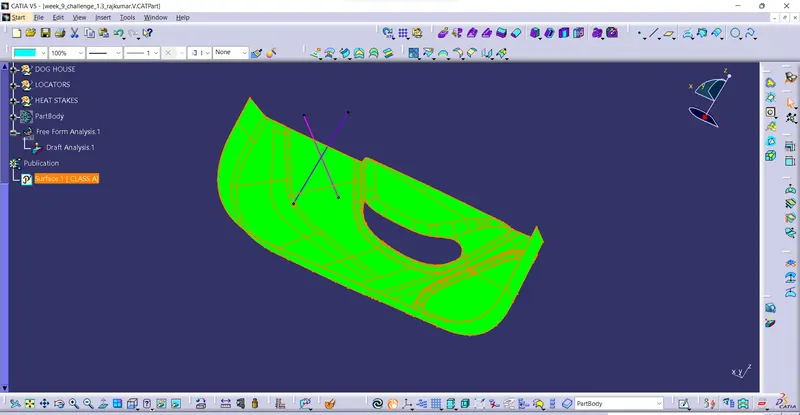

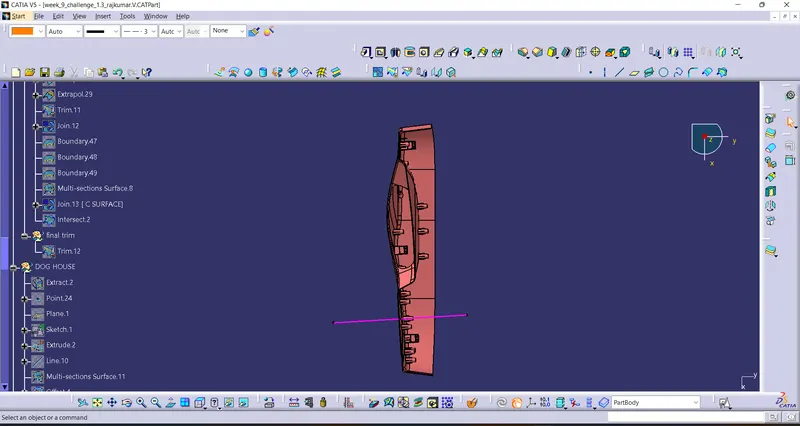

TOOLING AXIS

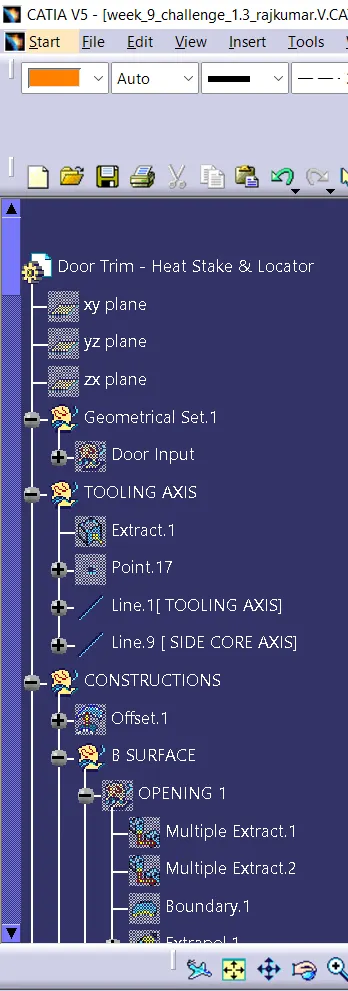

                        Tooling axis is the heading in which the center and depression opens. In case we are utilizing legitimate tooling hub, we are able maintain a strategic distance from including side centers in this way the fetched of fabricating the component can be reduced. It is characterized as the course in which the mould/core and depression open. Choice of the heading of the tooling hub depends on the ease at which components can be effectively ejected. Generally tooling pivot is decided from the normal hub of the plan, that's , tooling hub is dissected with the x, y and z pivot of the framework. On the off chance that the axis doesn’t clear the draft investigation, the following step is to search for the surface in which the drafting hub can be made in such a way that the hub is typical to the surface taken. These are the methods of choosing tooling pivot. Bisecting strategy is the slightest utilized method. BISECTING Strategy: It could be a strategy utilized to make tooling axis.Here, I had utilized pivot heading as the tooling hub. Since, Bisecting strategy is seldom utilized and not appropriate strategy of utilizing tooling hub. Utilizing bisecting strategy to have tooling pivot have numerous confinements. So, whereas making a tooling pivot, it is prescribed to hunt for the bearings within the hub framework to have draft analysis. In the event that those hub framework doesn’t clear the draft investigation seek for ordinary to surface to have a tooling axis.

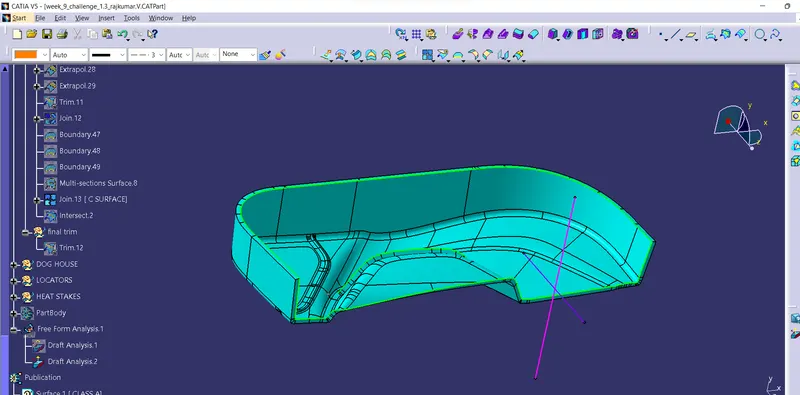

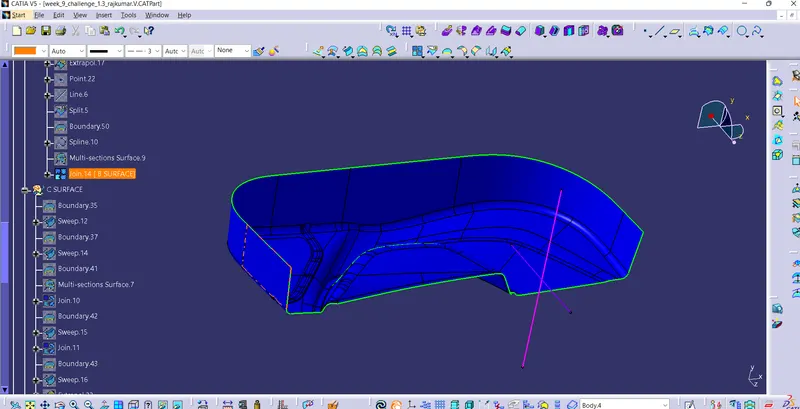

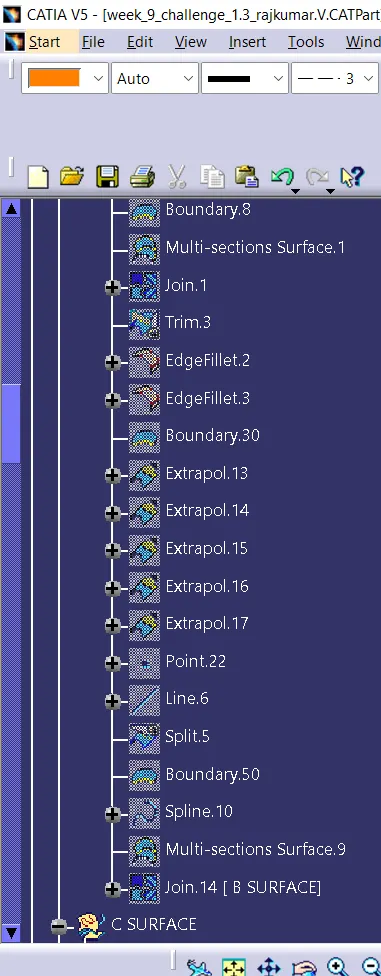

CREATION OF B & C SURFACE

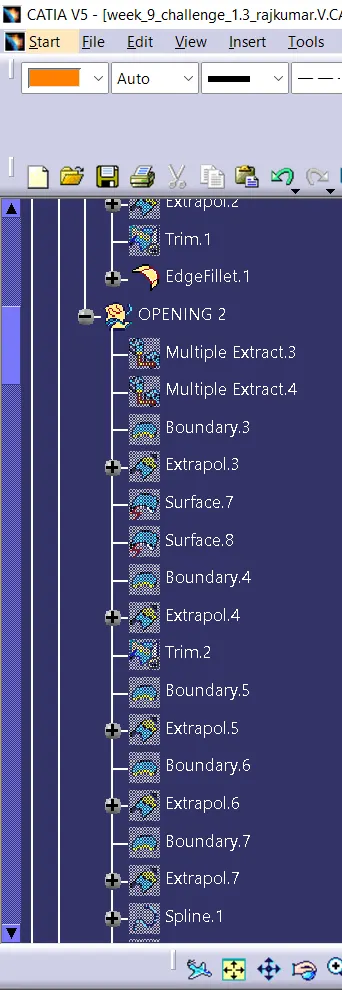

                        Presently, Course B surface has got to be made. For this, numerous extricate is utilized to extricate surface in a single operation. Surfaces gotten are the offsetted for 2.5mm. Small filleted parcels are dodged from extricate and other surfaces are extricated. Little filets are maintained a strategic distance from as when they are offsetted to 2.5mm, filets cannot be naturally shaped in CATIA. Similarly, other surfaces are extricated maintaining a strategic distance from the filets and offsetted, extrapolated and trimmed with the most surface to induce legitimate B lesson surface. Fillets are measured from the Lesson A surfaces and fitting filets are given for Lesson B surface by including or subtracting the thickness of the component to get adjust thickness everywhere.

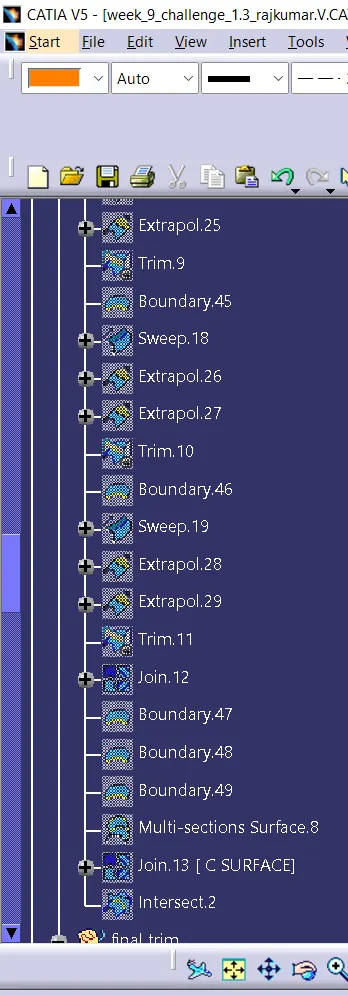

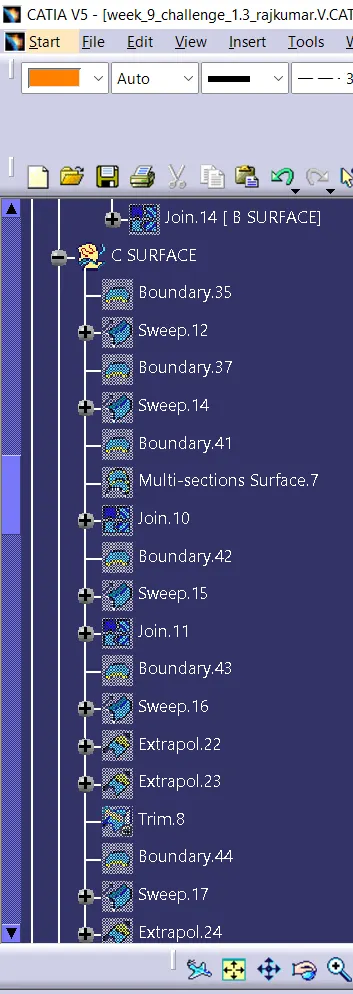

Presently lesson C surface has got to be made and it is made from the boundaries gotten from the Lesson A surface. This boundary is given as the input bend for clear command. Utilizing clear command, lesson C surface is created. Appropriate clear is the given considering the streak and considering fabricating methods. Surfaces are extrapolated on the off chance that necessary.

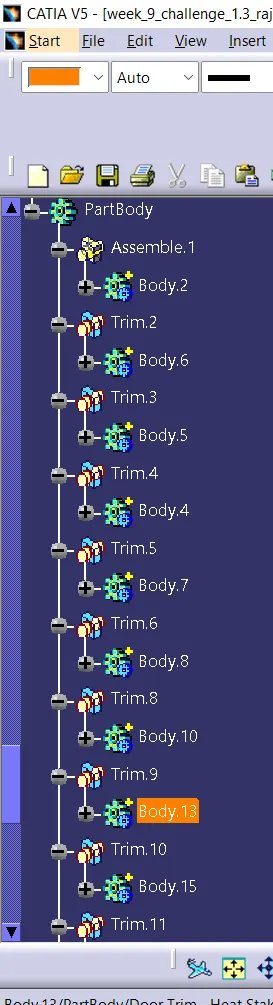

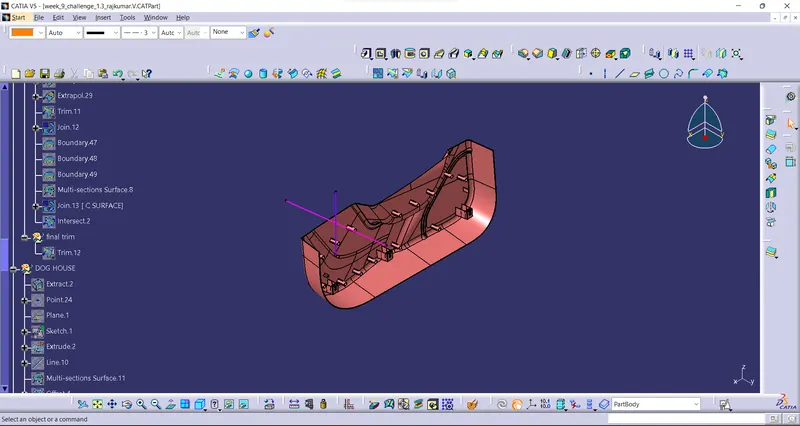

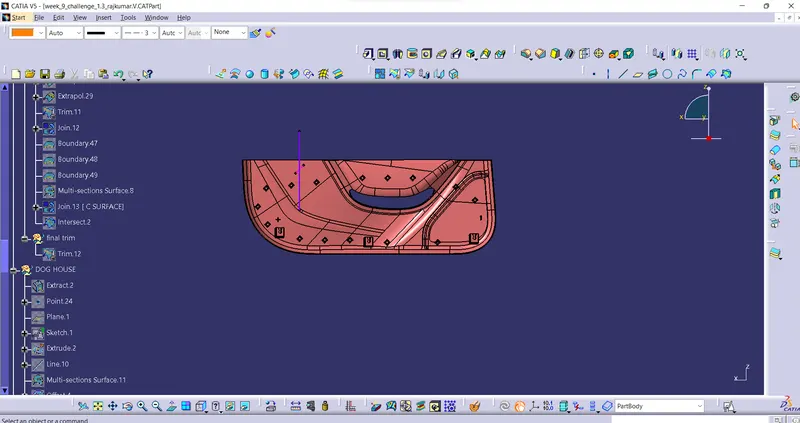

SOLID MODEL

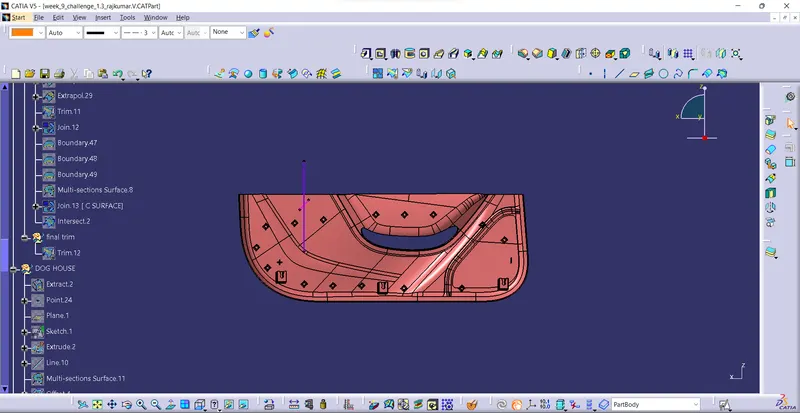

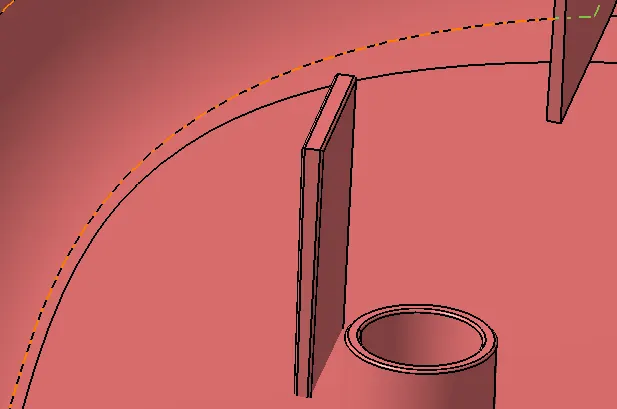

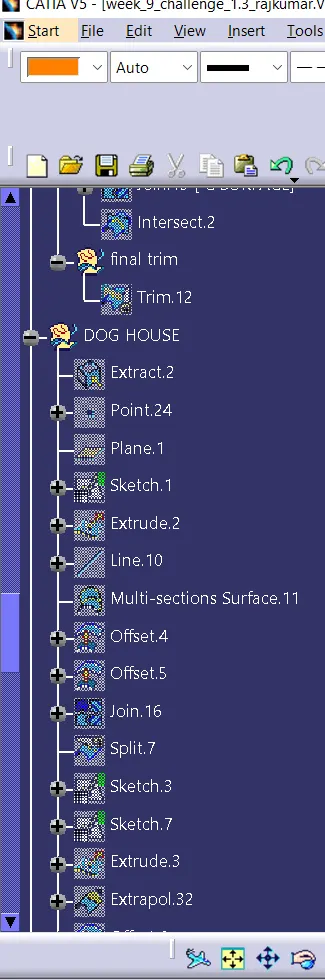

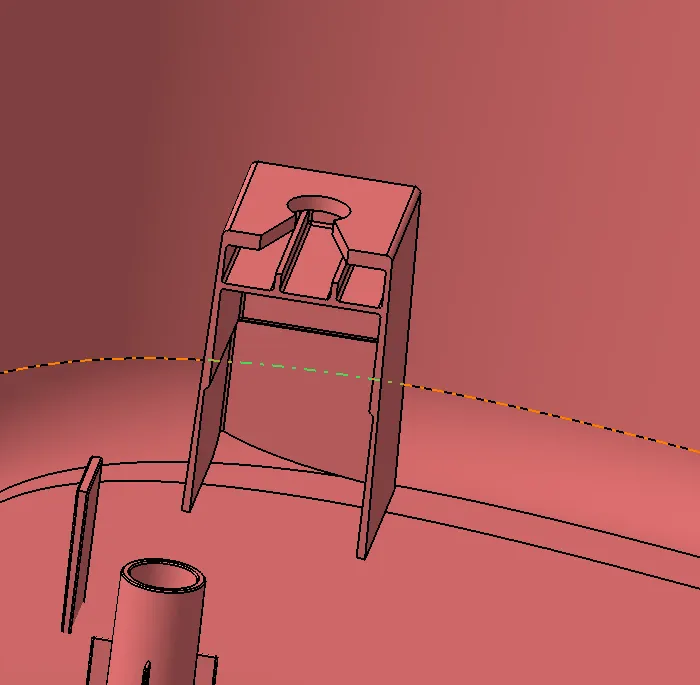

DOG HOUSE CREATION

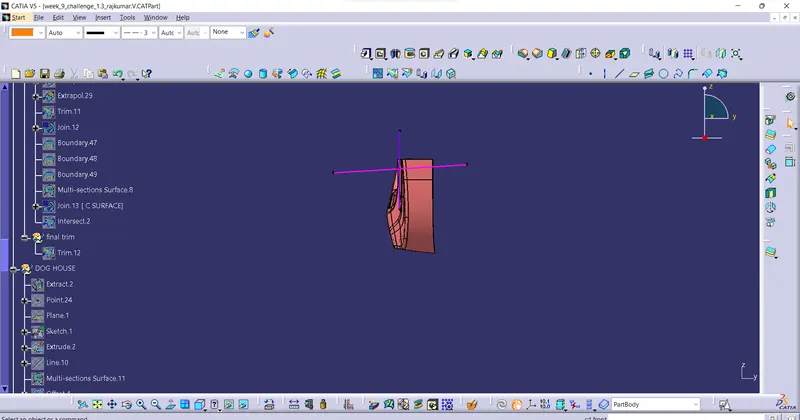

                               Doghouse are made by taking after the plan rules. For this, a outline is made and a rib is drawn. It is the cushioned by embeddings a modern body. Drafts are given for the surfaces as per plan rules. For coring, surface is offsetted and it is part from the most surface.Sketch for the rib is drawn and it is padded. The padded ribs are given the correct draft and filet.

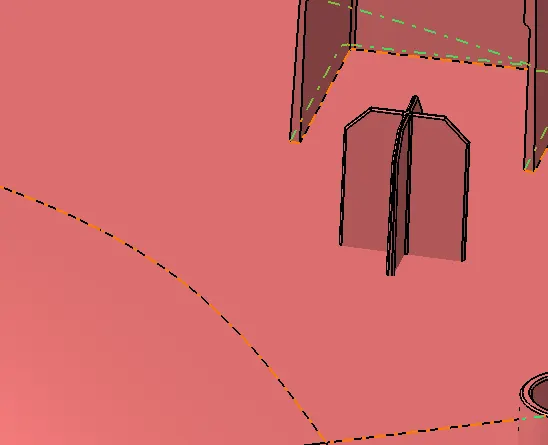

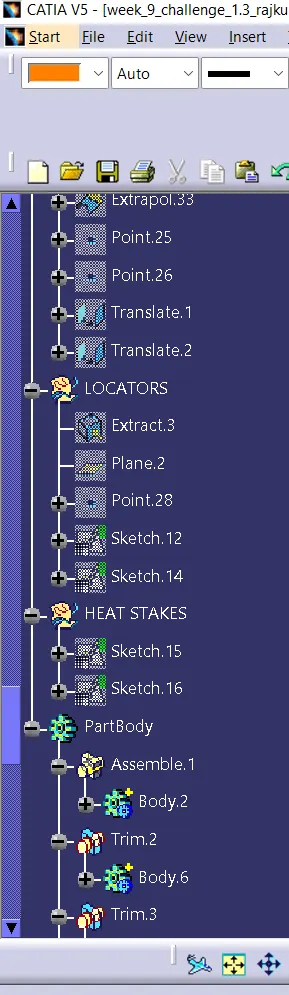

4 WAY AND 2 WAY LOCATORS

                          Sketch for the locators is made utilizing position sketch. It is at that point cushioned and drafts are provided. Proper chamfer and filets are given to the locators.

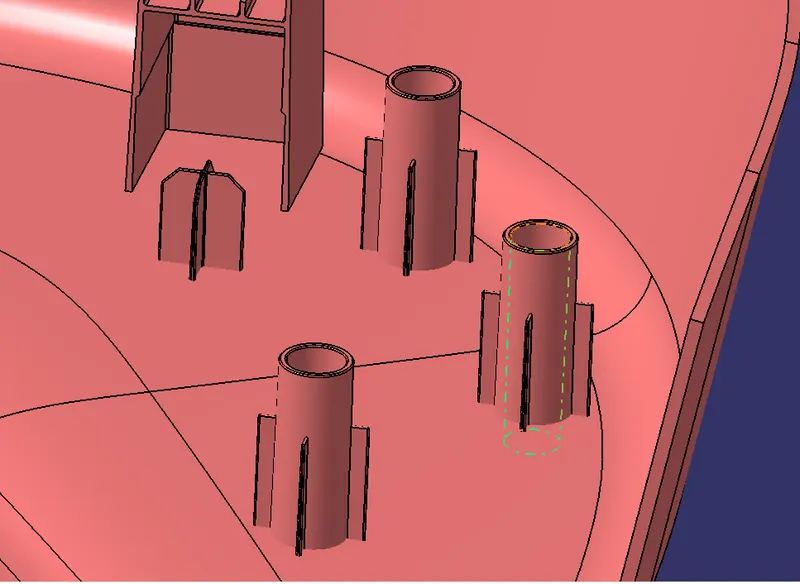

HEAT STAKES

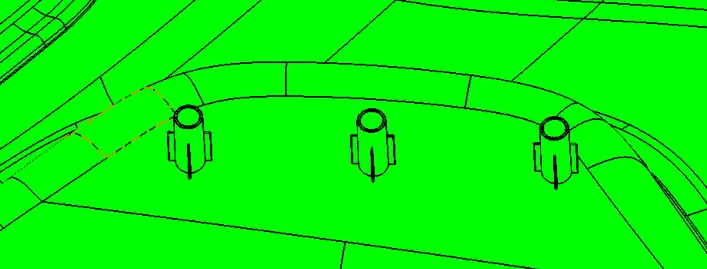

                 Sketch for warm stakes is drawn and it is padded. Proper drafts are given for the clearing of the surfaces. Fillets are too provided.

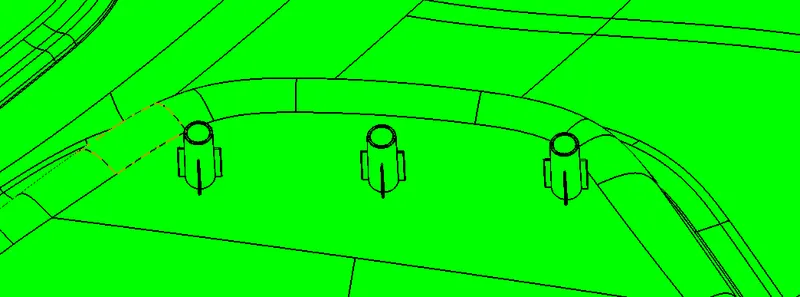

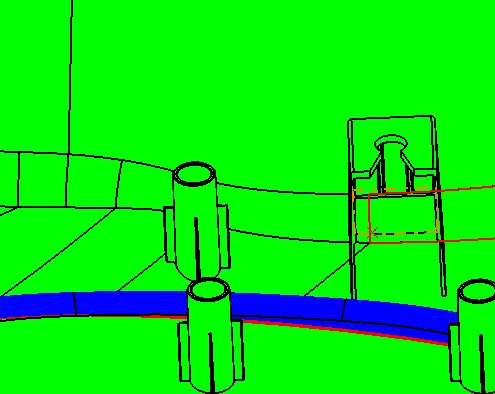

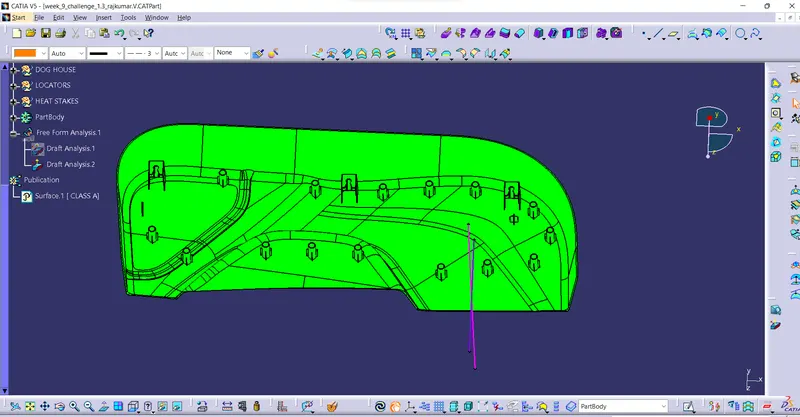

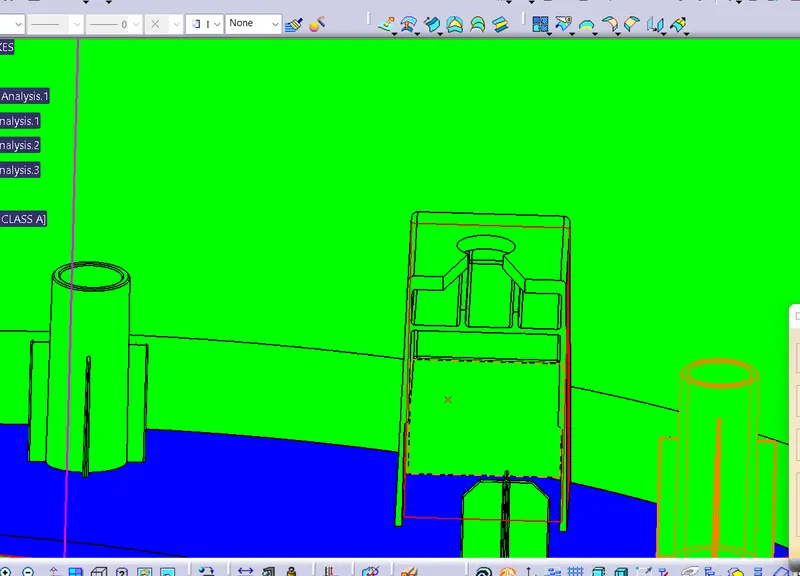

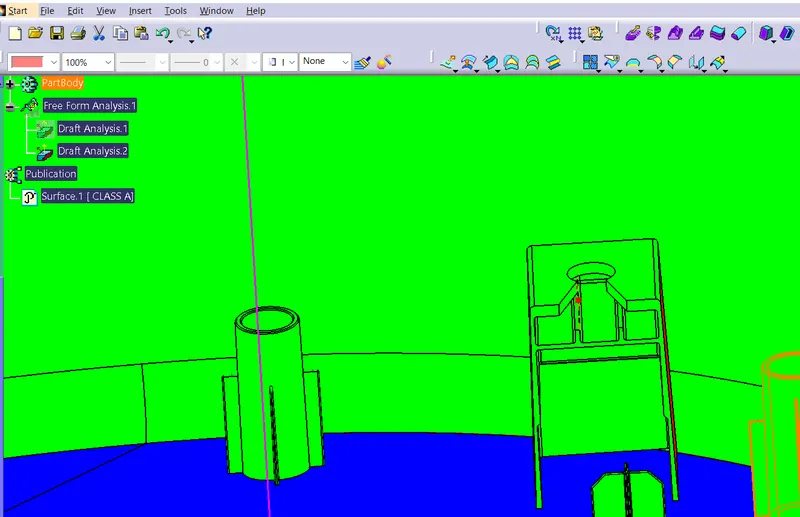

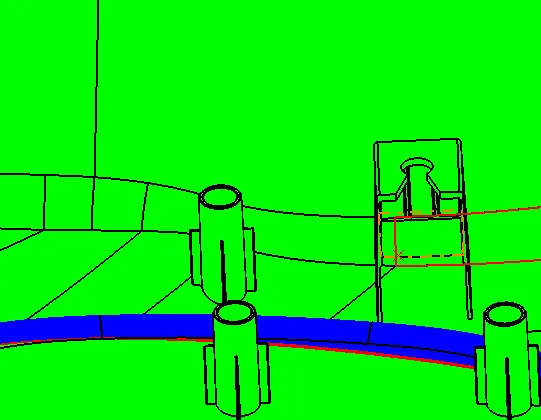

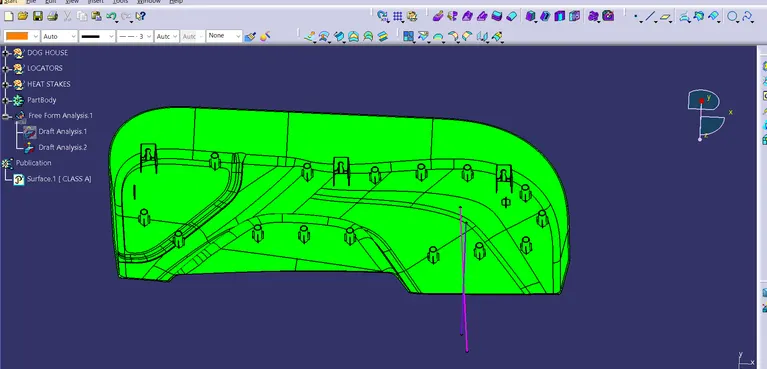

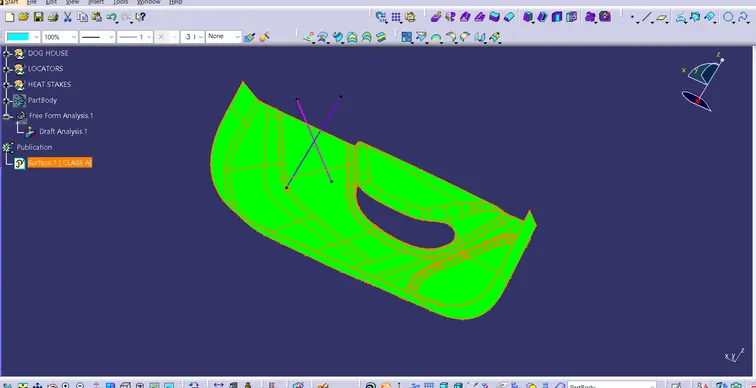

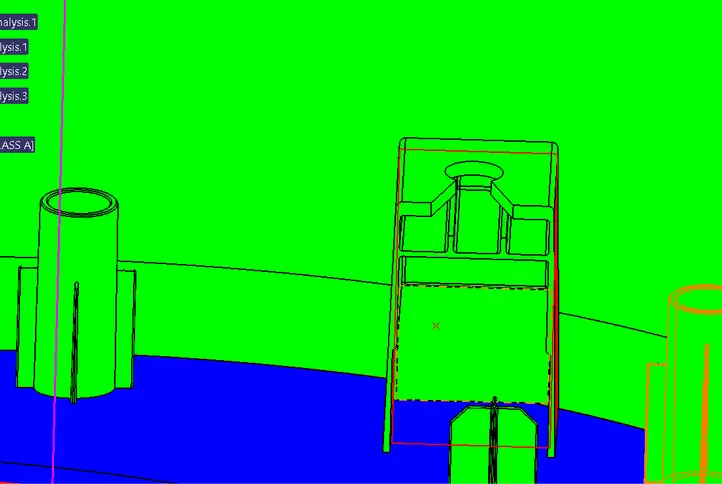

DRAFT ANALYSIS

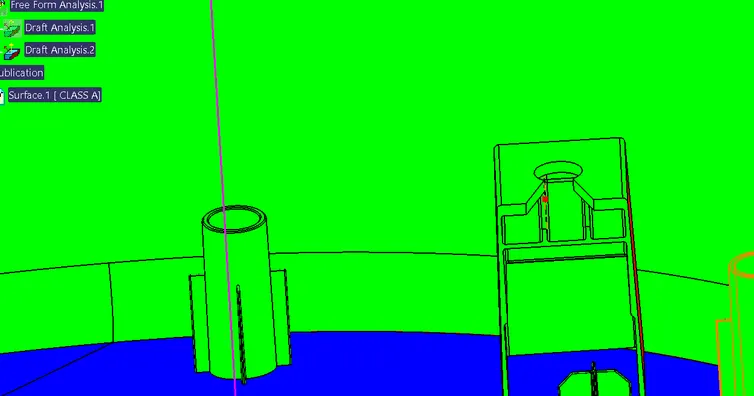

From draft examination, we will confirm draft points, look at the point changes inside a confront, as well as find separating lines, infusion and discharge surfaces in parts. It is an imperative include in Catia which makes a difference the client to dissect the draft on different surfaces. The draft investigation toolbar gives two modes for investigation of the draft, to begin with is the fast examination which essentially has three colours (green, ruddy, and blue) for analysing on the other hand other option is the total analysis mode which empowers some more subtle elements into the draft and is utilized within the complex components.

CONCLUSION

       THUS CREATION OF B & c surface ,ribs ,dog house,locators ,heat stakes and drafting for these components has been done.
