Week 8 - Challenge 4 - Bumper

BUMPER

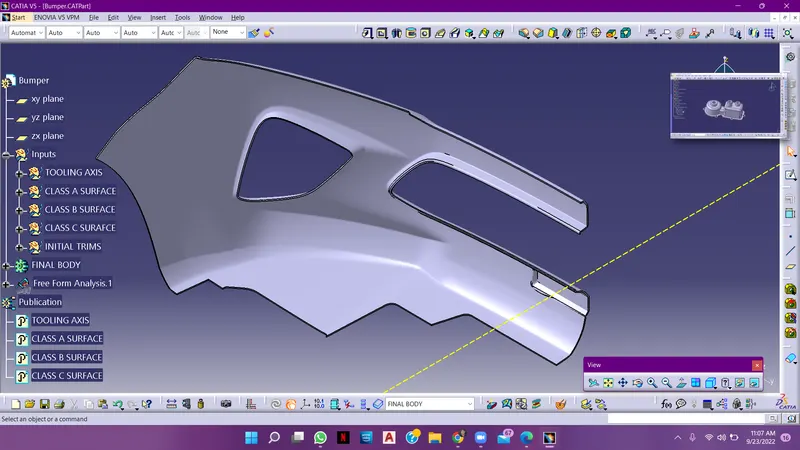

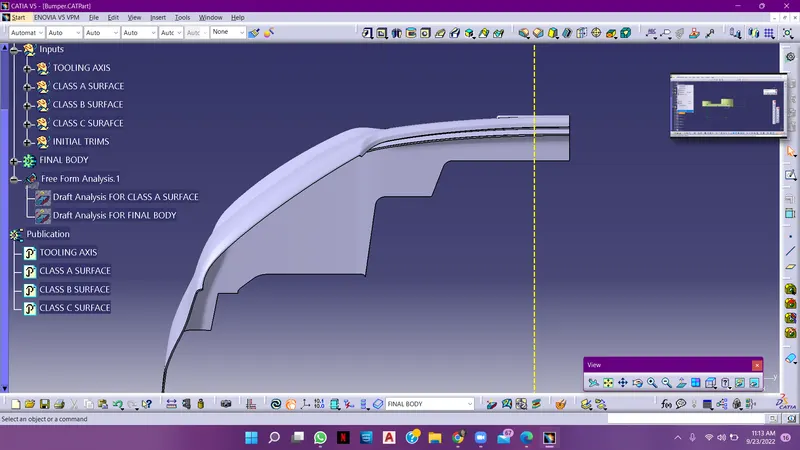

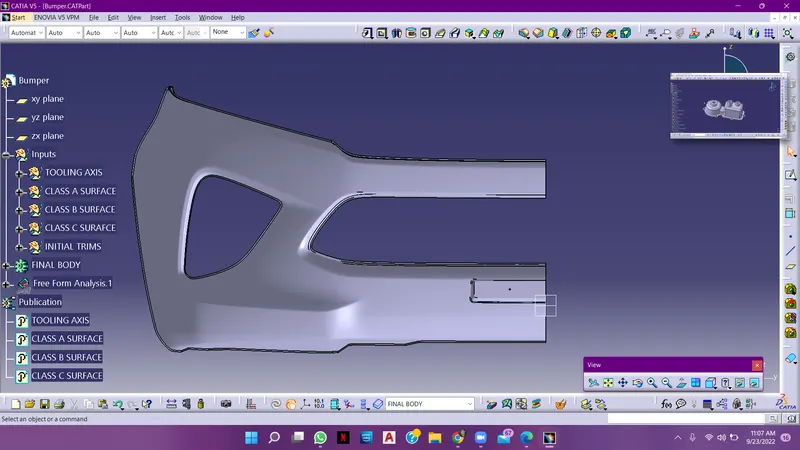

                ISO METRIC VIEW                                                                           FRONT VIEW

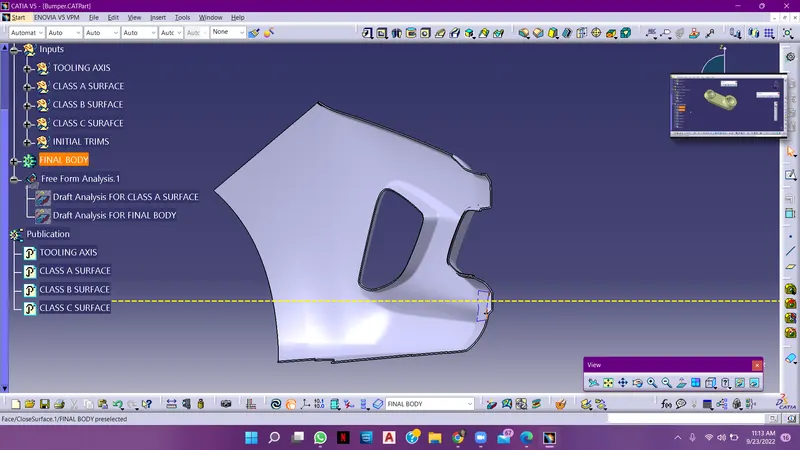

                 TOP VIEW                                                                     SIDE VIEW

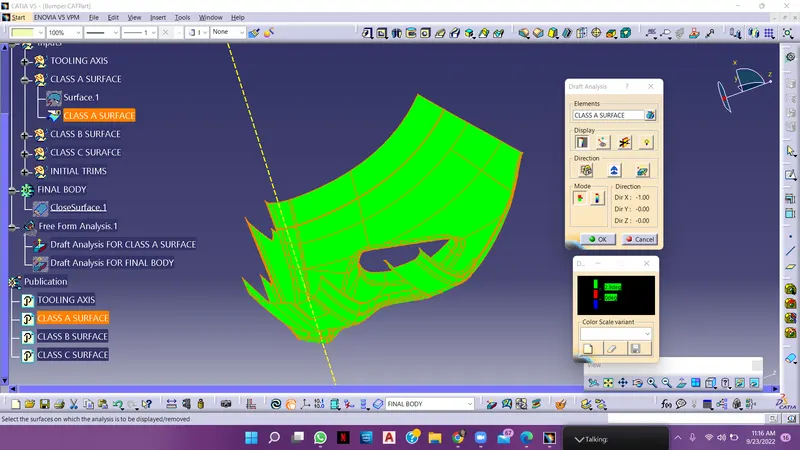

DRAFT ANALYSIS OF CLASS A SURFACE

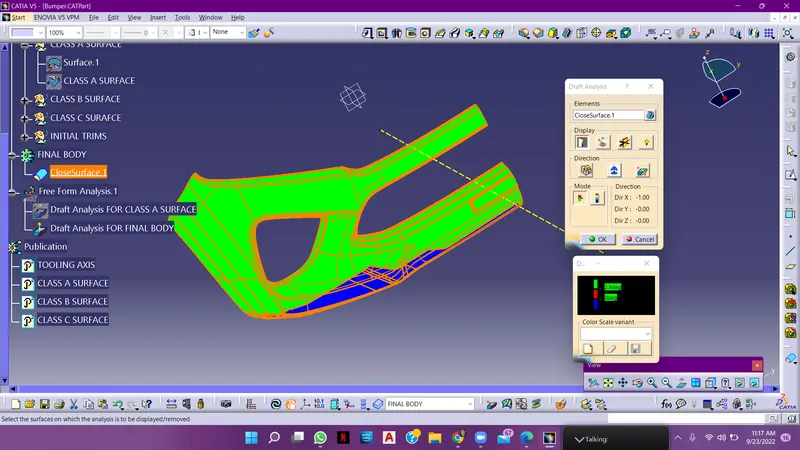

DRAFT ANALYSIS OF FINAL BODY

Draft Analysis is perfomed on ther final body and the result is shown above, so the component is able to manufacture.

Tooling axis Creation Draft Analysis on CLass A Surface of BUMPER

 The main objective is to create Draft Analysis by Providing the Tolling direction of a class a surface

-The draft analysis command enables you to identify wheather the component you drafted will be easily removed or not.

- After performing draft analysis we can able to recognize the material wih draft according to the colours allotted, according to the colours we can able to predecrt wheather the component is how much drafted.

 - Tooling direction defines you us, that in which direction that the component is being removed and the tooling direction was the main consideration for both plastic parts andd mould parts.

  Tooling axis of the bumper

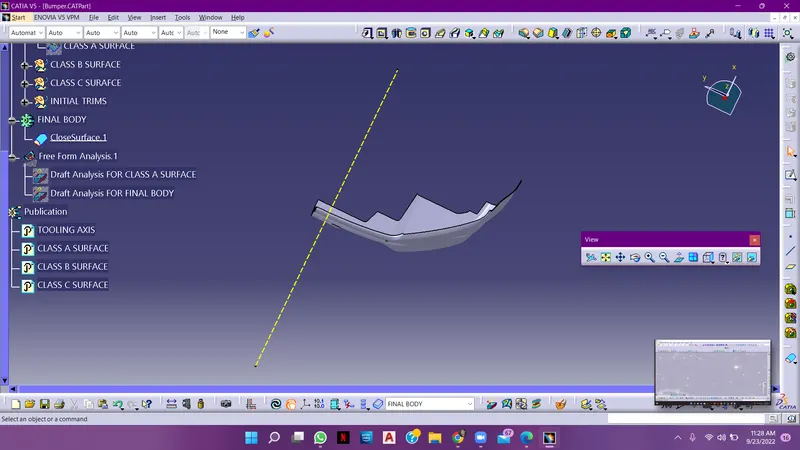

- THE TOOLING AXIS of the bumper is created by placing a point on the component (normal to the surafce) and insert the line through the point and extend it upto certain limit (required)

when the line is created, this will be your's tooling axis.

And after complete drafting it willl turns into the complete green colour ( that is we arranged thorugh choices of different colours). it indicates that the component is ready to manufacture
