Week 8 - Challenge 1 - Draft Analysis on a Fan Cover

UNDERBODY COATING:-                                          Underbody coating is applied on the underside of the car. It is a thick cladding that is usually made up of rubber and is placed uniformly to the car's underside.…

REPORT:-  OBJECTIVE:-  Do Benchmarking Analysis for the presently available cars in the market for the given case. WHAT IS:- BenchMarking:-   Benchmarking compares business processes and performance metrics to industry bests and best practices from other companies. Benchmarking in the automobile…

REPORT:- 1.  OBJECTIVE:- Development of a Door Trim panel. Creating a CAD Model considering inputs like in OEM and Tier1 companies. 2. What is meant by:- CLASS A Surface:- Class A Surface is the outer surface of an automobile that we can touch. Class A surfaces can be defined as any surface, that has styling…

REPORT :-

Picture of the sketches with Sketch solving status’s geometry tab      Picture of the Detailed tree structure.

REPORT :-  1) OBJECTIVE :- To create 2 assemblies,  create the individual part files and to create a complete assembly of those part files in the assembly workbench. After creating the assembly create a 2D drawing. 2) what is :- PART WORKBENCH :- The Part Design Workbench provides  advanced tools for modelling…

REPORT :- 1) OBJECTIVE :- To create the Door Applique Plastic component through the given Class-A surface, the tooling axis for the given Class-A Surface should be created meeting the requirements of the draft angle and at the end perform the Draft analysis on the model. 2) what is :- DRAFT :-…

REPORT :- 1) OBJECTIVE :- To create Screw-bosses and Doghouse on the coin holder and do the Draft Analysis of the final component. 2) what is :- DRAFT :- Draft is providing angles or tapers on product features such as walls, ribs, posts, and bosses that lie parallel to the direction of release from the mold. This eases…

REPORT :-  For Draft Analysis, 1st we have to create a Tooling Axis. So, see all sides of the component and observe all the planes, watch for side core and decise the direction of Tooling axis. To draw Tooling axis we will create a point on the base surface. Then insert a Axis System, we will intersect the Y-Z plane…

REPORT :-  For draft Analysis, 1st we have to create a Tooling Axis. For that extract the base surface and create a mid-point on it and insert a Axis system.Then for creation of tooling Axis in Y-direation Sketch on the y-z plane. In sketcher workbench as shown in fig, Intersect the class A with the plane. Use this…

REPORT :-  For Draft Analysis, 1st we have to create a Tooling Axis. So, see all sides of the component and observe all the planes, watch for side core and decise the direction of Tooling axis. To draw Tooling axis we will create a point on the base surface. Then insert a Axis System, we will intersect the Y-Z plane…

REPORT :-  For draft Analysis, 1st we have to create a Tooling Axis. For that extract the base surface and create a mid-point on it and insert a Axis system.Then for creation of tooling Axis in Y-direation Sketch on the y-z plane. In sketcher workbench as shown in fig, Intersect the class A with the plane. Use this…

REPORT :-   For the Draft Analysis of a Base Bracket, 1st see the direction for making the Tooling Axis. So fixing the Z-direction as the Tooling Axis, then create a Dummy Tooling Axis for reference on the middle circle as shown in figure. Insert offet of y-z plane, then intersect this plane with Base Bracket.…

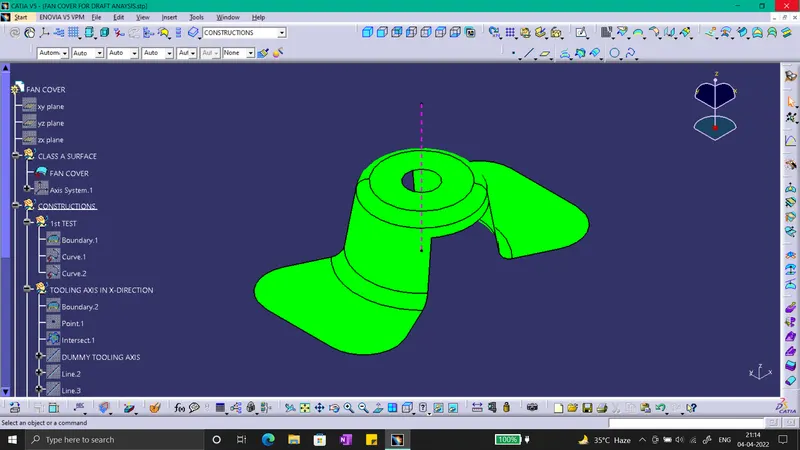

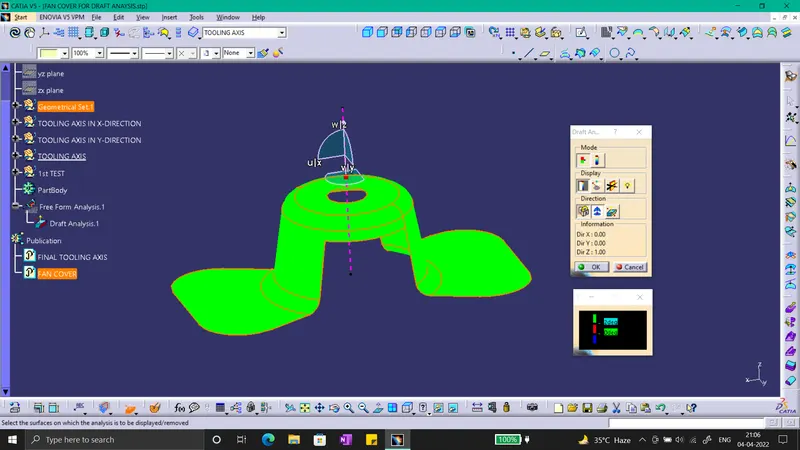

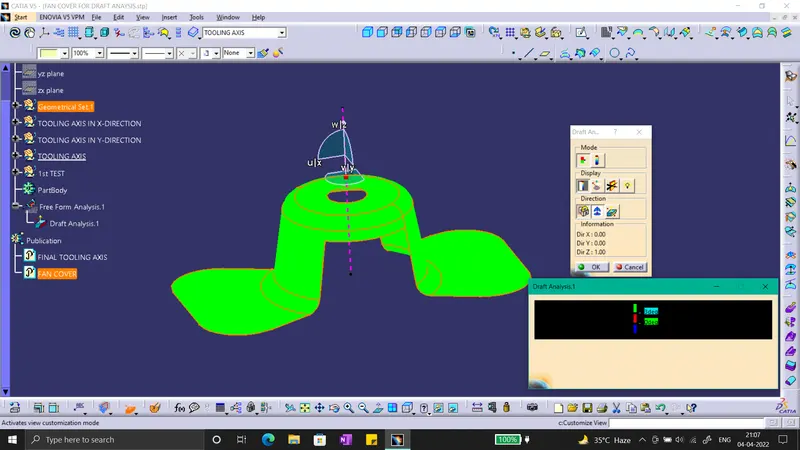

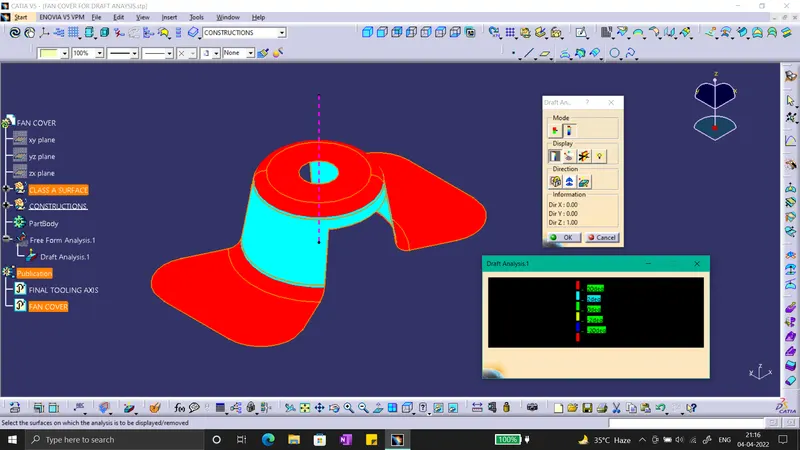

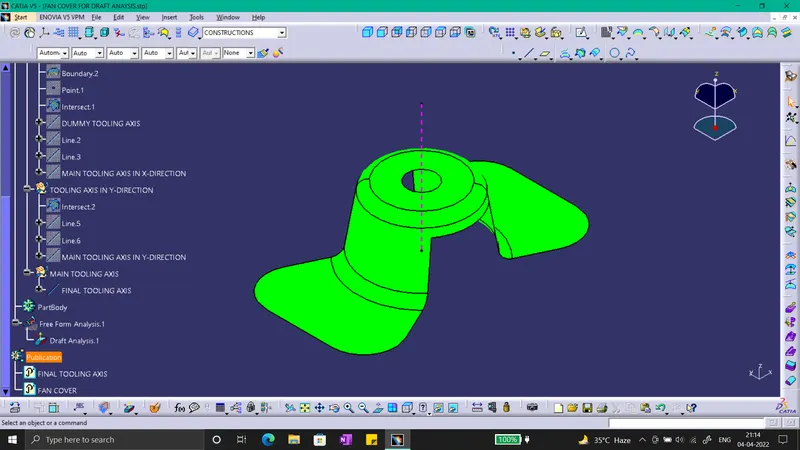

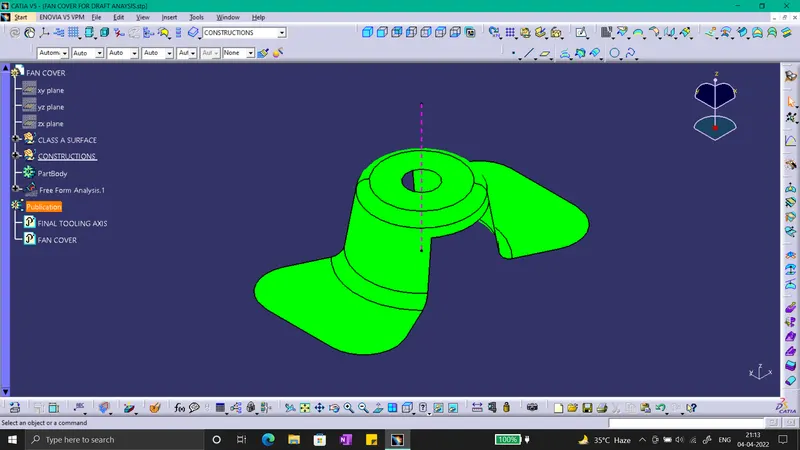

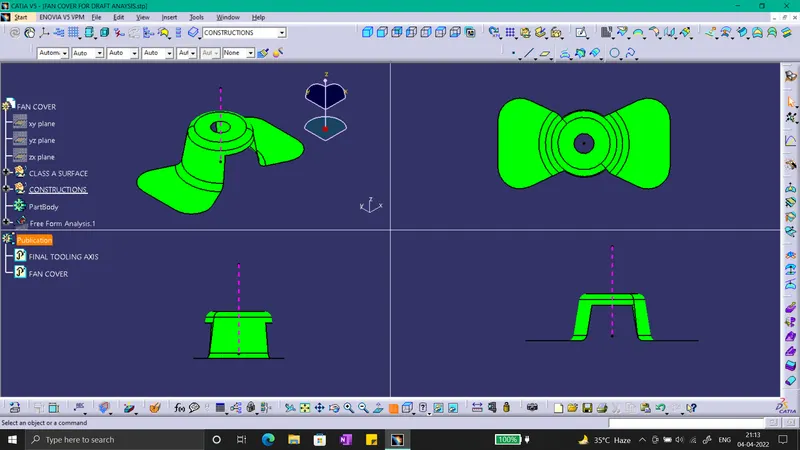

REPORT :-  For the Draft Analysis of Fan cover, 1st see if the surface is closed, by using join or boundary options. Then we should see, the perfect orientation of the fan cover for obtaining the tooling axis. By observing in all direction, we have selected the z-direction for the tooling axis. Then insert a axis…
