  3. Solving the steady and unsteady 2D heat conduction equation

Solving the steady and unsteady 2D heat conduction equation

Aim: To solve a heat conduction equation of a 2D plate surrounded by constant temperature by the Finite Difference Method. Here we will consider both the Steady-state and Transient state(Unsteady) case and compare which iterative method gives better results with fewer number iteration. Also, we will understand the effect…

    • Himanshu Chavan

      updated on 02 Jul 2021

    Aim: To solve a heat conduction equation of a 2D plate surrounded by constant temperature by the Finite Difference Method. Here we will consider both the Steady-state and Transient state(Unsteady) case and compare which iterative method gives better results with fewer number iteration. Also, we will understand the effect of CFL numbers in the case of transient cases.



    Assumptions:

    1. Absolute error criteria is 1e-4

    2. Consider an equal number of grid points or nodes along the X-axis and Y-axis

    3. No internal heat generation

    4. Boundary conditions are as follows

    • Top Boundary = 600 k
    • Bottom Boundary = 900 k
    • Left Boundary = 400 k
    • Right Boundary = 800k





    Governing Equation:∂2T∂x2+∂2T∂y2+∂2T∂z2+qk=ρcpk∂T∂t∂2T∂x2+∂2T∂y2+∂2T∂z2+qk=ρcpk∂T∂t



    Here.

     q= Rate of Heat Generation

     k= Thermal Conductivity

    ρρ= Density

    cpcp=Specific heat capacity at constant pressure

    ρcpρcp=volumetric heat capacity



    Considering 2D case and no heat generation constant pressure

    ∂2T∂x2+∂2T∂y2=1α∂T∂t∂2T∂x2+∂2T∂y2=1α∂T∂t

    ∂Tdt=α[∂2T∂x2+∂2T∂y2]∂Tdt=α[∂2T∂x2+∂2T∂y2]



    Numerical Discretization:



    1. Steady-State Case:

    In the case of steady-state, the time derivative term of temperature becomes zero. So the governing equation becomes :

    ∂2T∂x2+∂2T∂y2=0∂2T∂x2+∂2T∂y2=0

    Now Discretizing each of the terma by finite difference method we get,



    ∂2T∂x2=Tni,j+1+2Tni,j+Tni,j−1(Δx)2∂2T∂x2=Ti,j+1n+2Ti,jn+Ti,j-1n(Δx)2

    ∂2T∂y2=Tni+1,j+2Tni,j+Tni−1,j(Δy)2∂2T∂y2=Ti+1,jn+2Ti,jn+Ti-1,jn(Δy)2



    After rearranging the terms we get,

    Ti,j=Ti+1,j+Ti−1,j+Ti,j+1+Ti,j−14Ti,j=Ti+1,j+Ti-1,j+Ti,j+1+Ti,j-14

    This simultaneous set of eqaution can be solved using the followiing iterative method:

    • Jacobi:TP=ToldT+T_(oldB)+ToldL+ToldRTP=ToldT+T_(oldB)+ToldL+ToldR
    • Gauss -Seidal:TP=TT+ToldB+TL+ToldRTP=TT+ToldB+TL+ToldR
    • Successive Order Reduction:TpSOR=(1−w)Tpold+wTpGSTpSOR=(1-w)Tpold+wTpGS

    Here the subscript old refers to the value in the previous iteration and the subscripts T, B R and L refders to Top, Bottom,Right and Left respectively.



    2. Transient State Case:

    In the case of the transient case the time derivative term of temperature is considered. So the governing equation becomes:



    α(∂2T∂x2+∂2T∂y2)=∂T∂tα(∂2T∂x2+∂2T∂y2)=∂T∂t

    Here,

    α=kρcp=1.4m2sα=kρcp=1.4m2s(considered arbitarily)



    Now Discretizing each of the terms by finite difference method we get,

    ∂T∂t=Tn+1l−TnlΔt∂T∂t=Tln+1-TlnΔt

    Now we get two cases, Explicit and Implicit based on the discretization of the remaining two terms.

    Considering the previous time step will give rise to explicit terms and considering the same time step will give rise to the implicit case.



    Explicit Case:

    ∂2T∂x2=Tni,j+1+2Tni,j+Tni,j−1(Δx)2∂2T∂x2=Ti,j+1n+2Ti,jn+Ti,j-1n(Δx)2

    ∂2T∂y2=Tni+1,j+2Tni,j+Tni−1,j(Δy)2∂2T∂y2=Ti+1,jn+2Ti,jn+Ti-1,jn(Δy)2



    After calculation consider Δx=ΔyΔx=Δy   and k1=k2

    Tp=Tpold[1−4k]+k(TTold+TBold+TLold+TRold)Tp=Tpold[1-4k]+k(TTold+TBold+TLold+TRold)



    Implicit Case:

    ∂2T∂x2=Tn+1i,j+1+2Tn+1i,j+Tn+1i,j−1Δx2∂2T∂x2=Ti,j+1n+1+2Ti,jn+1+Ti,j-1n+1Δx2

    ∂2t∂y2=Tn+1i+1,j+2Tn+1i,j+Tn+1i−1,j(Δy)2∂2t∂y2=Ti+1,jn+1+2Ti,jn+1+Ti-1,jn+1(Δy)2

    Now just like the staeadt state equations this set of implicit case can be solved by the following iterative methods.

    Here TPprevTPprev= values of TpTpin the previous time step

    • jacobi
    • gauss- seidal
    • Successive Over Relaxation.

    User-Defined Functions:

    1. linear_eqn_solver_jacobi

    function linear_eqn_solver_jacobi(T,Told,Tprev,nx,ny,nt,x,y,k1,k2,tol,type)
%%Transient Implicit (Jacobi)

if type == 11
    tic;
    iteration = 1;
    for k= 1:nt   %time loop
       error=9e9;
         while(error > tol)  % Convergence loop
              for i= 2:nx-1   % Space loop
                  for j= 2:ny-1
                      term1 = (1+(2*k1)+(2*k2))^-1;
                      V = Told(i-1,j) + Told(i+1,j);
                      H = Told(i,j-1) + Told(i,j+1);
                      T(i,j) = (Tprev(i,j)*term1) + (k1*term1*H) + (k2*term1*V);
                  end
               end % end of space loop
              error = max(max(abs(Told-T)));
              Told =T;
              iteration = iteration +1;
          end % end of convergence loop
          Tprev =T;
    end % end of time loop
    time = toc;

    f1=figure(1)
    contourf(x,y,T,'--','ShowText', 'on')
    colorbar
    colormap('jet')
    text=sprintf("2D Transient Heat Conduction-Implicite-Jacobi  No. of iteration %f  Time of simulation %f Sec",iteration,time);
    title(text)
    set(gca,'YDIR','reverse')



    %Steady State (Jacobi)

elseif type== 21
    iteration =1;
    tic;
    error=9e9;
    while (error> tol)  %Convergence loop
        for i= 2:nx-1   %Space Loop
            for j=2:ny-1
                term1 = Told(i,j-1) +Told(i,j+1);
                term2 = Told(i-1,j) + Told(i+1,j);
                T(i,j) = (1/4)*(term1+term2);
            end
        end  % End of space loop
        error=max(max(abs(Told-T)));
        Told=T;
        iteration =iteration+1;
    end  % End of convergence loop
    time=toc;


    f1=figure(1)
    contourf(x,y,T,'--','ShowText','on')
    colorbar
    colormap('jet')
    text = sprintf("2D Steady State Heat Conduction - Jacobi  No. of iteration %f Time of Simulation %f Sec",iteration,time);
    title(text)
    set(gca,'YDIR','reverse')
 end
end



    2.linear_eqn_solver_Gs

    function linear_eqn_solver_Gs(T,Told,Tprev,nx,ny,nt,x,y,k1,k2,tol,type)

%Transient Implicit(Gauss seidal)

if type == 12
    iteration = 1;
    tic;
    for k=1:nt  %Time loop
        error = 9e9;
        while(error > tol) % convergence loop
            for i=2:nx-1  %Space Loop
                for j=2:ny-1
                    term1 = (1+(2*k1)+(2*k2))^-1;
                    V = T(i-1,j) + Told(i+1,j);
                    H = T(i,j-1)+ Told(i,j+1);
                    T(i,j) = (Tprev(i,j)*term1)+(k1*term1*H)+(k2*term1*V);
                end
            end %end of space loop
            error =max(max(abs(Told-T)));
            Told=T;
            iteration = iteration+1;
        end % End of convergence loop
        Tprev= T;
    end% Enf of time loop
    time= toc;

    f2 = figure(2)
    contourf(x,y,T,'--','ShowText','on')
    colorbar
    colormap('jet')
    text =sprintf("2D Transient Heat Conduction - Implicit - GS  NO. of iteration %f  Time of simulation %f Sec", iteration, time);
    title(text)
    set(gca,'YDIR','reverse')


    %%Steady State Gauss Seidal
elseif type ==22
    iteration =1;
    error= 9e9;
    tic;
    while(error > tol ) %convergence loop
        for i=2:nx-1 % Space loop
            for j=2:ny-1
                term1 = T(i,j-1) + Told(i,j+1);
                term2 = T(i-1,j) + Told(i+1,j);
                T(i,j) = (1/4)*(term1 +term2);
            end
        end %end of space loop
        error = max(max(abs(Told-T)));
        Told =T;
        iteration =iteration+1;
    end % End of convergence loop
    time = toc;

    f2= figure(2)
    contourf(x,y,T,'--','ShowText','on')
    colormap('jet')
    text = sprintf("2D ASteady State Heat Conduction - GS   No. of iterations %f Time of Simulation %f Sec", iteration,time);
    title(text)
    set(gca,'YDIR','reverse')
   end
end



    3.linear_eqn_solver_SOR

    function [iteration] = linear_eqn_solver_SOR(T,Told,Tprev,x,y,nx,ny,nt,k1,k2,tol,type)
%%% Transient Implicit (SOR)
w=1.1;
if type == 13
    iteration =1;
    tic;
    for k =1:nt %time loop
        error=9e9;
        while(error > tol) %convergence loop
            for i=2:nx-1 %space loop
                for j= 2:ny-1
                    term1 = (1+(2*k1)+(2*k2))^-1;
                    V = T(i-1,j) + Told(i+1,j); % Ttop(updated) + Tbottom
                    H = T(i,j-1) + Told(i,j+1); %Tleft(updated) + Tright
                    T_GS(i,j) = (Tprev(i,j)*term1) + (k1*term1*H) + (k2*term1*V);
                    T(i,j) = ((1-w)*Told(i,j)) + (w*T_GS(i,j));
                end
            end % end of space loop
                   error = max(max(abs(Told-T)));
                   Told=T;
                   iteration = iteration+1;
        end %end of convergence loop
        Tprev= T;
    end % end of time loop
     time = toc;

     f3 = figure(3)
    contourf(x,y,T,'--','ShowText','on')
    colorbar
    colormap('jet')
    text =sprintf("2D Transient Heat Conduction - Implicit - SOR  NO. of iteration %f  Time of simulation %f Sec", iteration, time);
    title(text)
    set(gca,'YDIR','reverse')


    %%% Steady State SOR
elseif type == 23
    iteration = 1;
    error=9e9;
    tic;
    while(error > tol) %convergence loop
        for i=2:nx-1 % Space loop
            for j=2:ny-1
                term1 = T(i,j-1) + Told(i,j+1);
                term2 = T(i-1,j) + Told(i+1,j);
                T_GS(i,j) = (1/4)*(term1 + term2);
                T(i,j) = ((1-w)*Told(i,j)) + (w*T_GS(i,j));
            end
        end %end of space loop
        error= max(max(abs(Told-T)));
        Told=T;
        iteration= iteration+1;
    end % end of convergence loop
    time=toc;

     f3 = figure(3)
    contourf(x,y,T,'--','ShowText','on')
    colorbar
    colormap('jet')
    text =sprintf("2D Steady State Heat Conduction -SOR NO. of iteration %f Time of simulation %f Sec", iteration, time);
    title(text)
    set(gca,'YDIR','reverse')
end
end



    4. linear_eqn_solver_exlpicit

    function linear_eqn_solver_explicit(T,Told,nx,ny,nt,x,y,k1,k2)
 %%Transient Explicit
 iteration= 1;
 tic;
 for k=1:nt %time loop
     for i=2:nx-1 %time loop
         for j=2:ny-1
             term1=(1+(2*k1)+(2*k2))^-1;
             H = Told(i+1,j) + Told(i-1,j);
             V = Told(i,j+1) + Told(i,j-1);
             T(i,j) = (Told(i,j)*term1) + (k1*H) + (k2*V);
         end
     end % end if space loop
     error = max(max(abs(Told-T)));
     Told =T;
     iteration=iteration+1;
 end %end of time loop
 time =toc;

 f4=figure(4)
 contourf(x,y, T,'--','ShowText','on')
 colorbar
 colormap('jet')
 text=sprintf("2D Transient Heat Conduction- Explicit- No. of iterations %f Time of Simulation %f Sec",iteration,time);
 title(text)
 set(gca,'YDIR','reverse')
end





    MAIN CODE:

    clear all
close all
clc

% Inputs
L=1;
nx=11;
x=linspace(0,L,nx);
dx=x(2)-x(1);

W=1;
ny=nx;
y=linspace(0,W,ny);
dy=y(2)-y(1);


prompt = 'type='; %transient case =1 and Steady State =2
type= input(prompt);

if type ==1
    prompt = 'CFL=';
    CFL = input(prompt); % Fails for Explicit if CFL >0.5
                         % CFL CFLx+CFLy = alpha*dt/dx^2 + alpha*dt/dy^2=2*alpha*dt/dx^2
else
    CFL =0;
end
alpha =1.4;

% Finding dt & nt
dt = CFL*dx^2/(2*alpha);
time=.03*60; % mins
nt = time/dt;

% Error Limit Inputs
error=9e9;
tol=1e-4;


%Boundary Conditions
T=300*ones(nx,ny);
T(:,1) = 400; % left
T(:,end) = 800;% right
T(1,:) = 600; %top
T(end,:) = 900;%bottom
T(1,1) = (400+600)/2;
T(end,end) = (800+900)/2;
T(end,1) = (400+900)/2;
T(1,end) = (600+800)/2;

Told=T;
Tprev=T;
k1=(alpha*dt/(dx^2));
k2=(alpha*dt/(dy^2));

% Calling the Solvers
if type ==1 % Transient case
    linear_eqn_solver_jacobi(T,Told,Tprev,nx,ny,nt,x,y,k1,k2,tol,11);
    linear_eqn_solver_Gs(T,Told,Tprev,nx,ny,nt,x,y,k1,k2,tol,12);
    linear_eqn_solver_SOR(T,Told,Tprev,x,y,nx,ny,nt,k1,k2,tol,13);
    linear_eqn_solver_explicit(T,Told,nx,ny,nt,x,y,k1,k2); % Transient Explicit
elseif type ==2 % Steady State Case
    linear_eqn_solver_jacobi(T,Told,Tprev,nx,ny,nt,x,y,k1,k2,tol,21);
    linear_eqn_solver_Gs(T,Told,Tprev,nx,ny,nt,x,y,k1,k2,tol,22);
    linear_eqn_solver_SOR(T,Told,Tprev,x,y,nx,ny,nt,k1,k2,tol,23);
end



    Algorithm:

    1. Firstly we have defined the size of the 2D rectangle onto which we want to calculate the temperature contour. Then divided the geometry into equal grid points or nodes of equal length and width. After that, we calculated the node size, dx & dy which are equal in magnitude that is dx=dy.
    2. Then we accept the type of simulation we want to run that is whether a steady-state or transient state. Pressing"1" signifies transient state for which we take in another user input for CFL number and pressing "2" means steady state.
    3. From CFL number time step dt is automatically calculated. Here the total simulation time is set to 0.03 minutes and from dt and total time, we calculate the total number of time steps,nt.
    4.  In Step 4 we define the boundary conditions which are as follow:                                               Top boundary = 600 k                                                                                                     Bottom Boundary = 900 k                                                                                                 Left Boundary = 400 k                                                                                                     Right Boundary = 800 k
    5. Then as per the type of simulation, the calculations are being done by the 4 user defined functions namely , linear_eqn_solver_jacobi(),linear_eqn_solver_Gs(),linear_eqn_solver_SOR(),linear_eqn_solver_explicit() and print the graphs along with the iteration number and simulation time.
    6. Among this functions for the first 3 linear_eqn_solver_jacobi(),linear_eqn_solver_Gs(),linear_eqn_solver_SOR() solves the Transient state and Steady state is solved by next 3 mention under the type 2.

    The main difference between these solvers is that the discretized equations are solved by different iterative methods like Jacobi, Gauss-seidel, or Successive overrelaxation methods.



    OUTPUT:

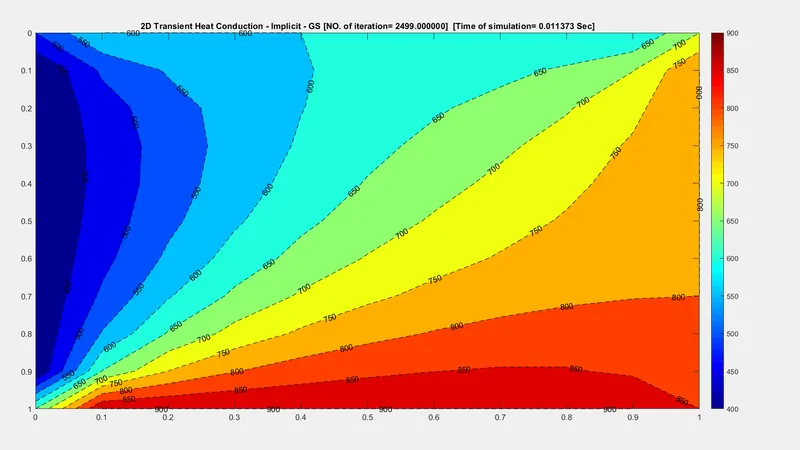

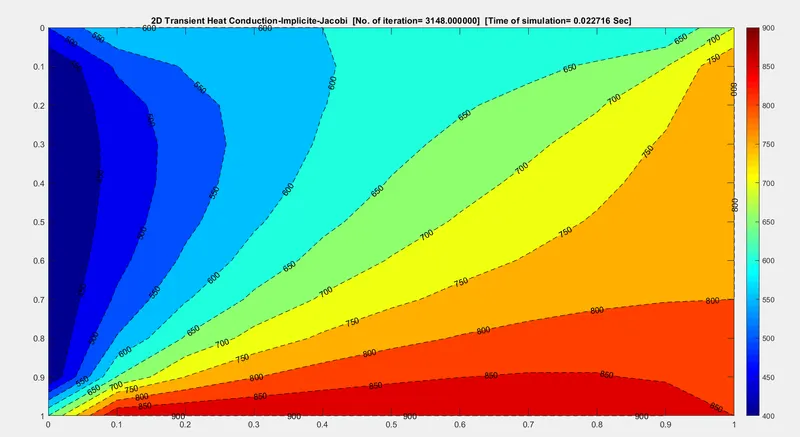

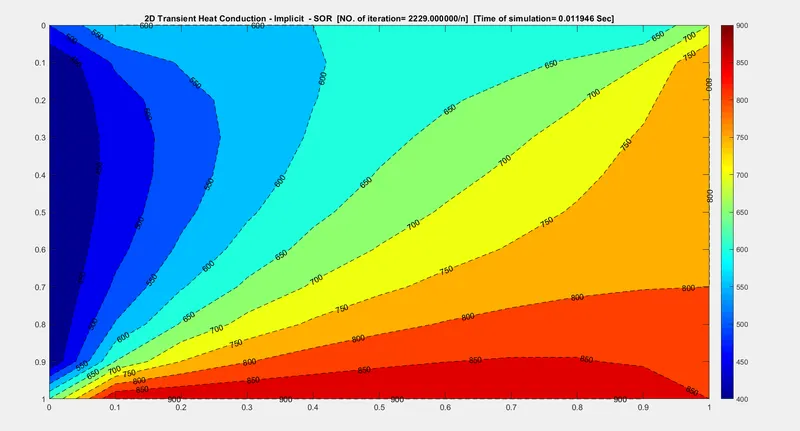

    1.Transient-State Analysis:

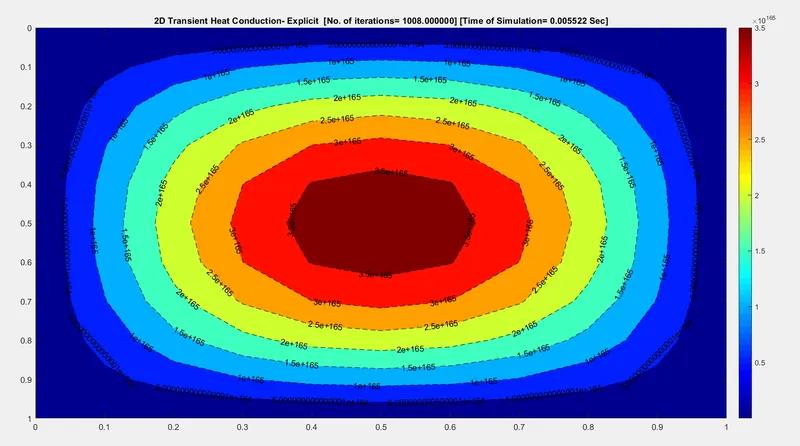

    EXPLICIT

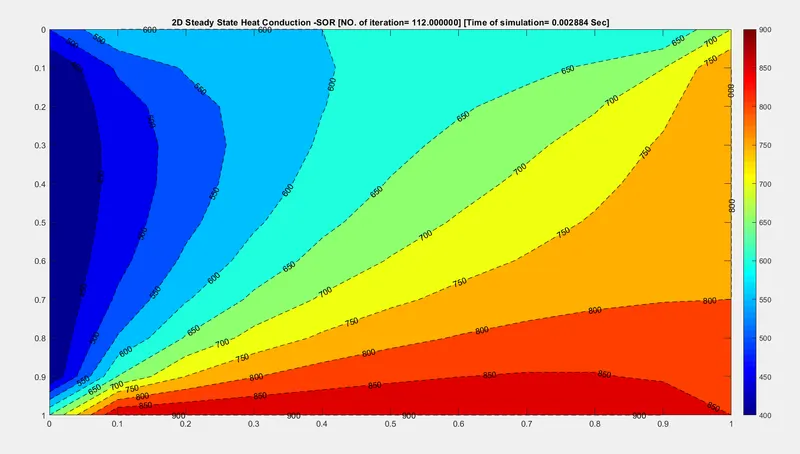

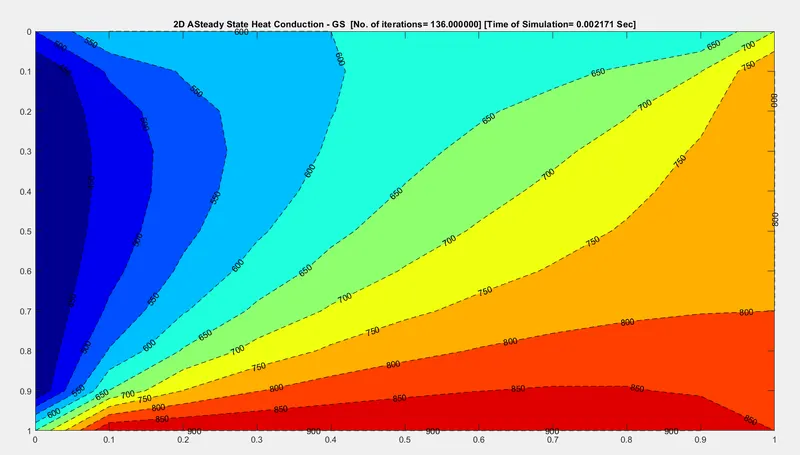

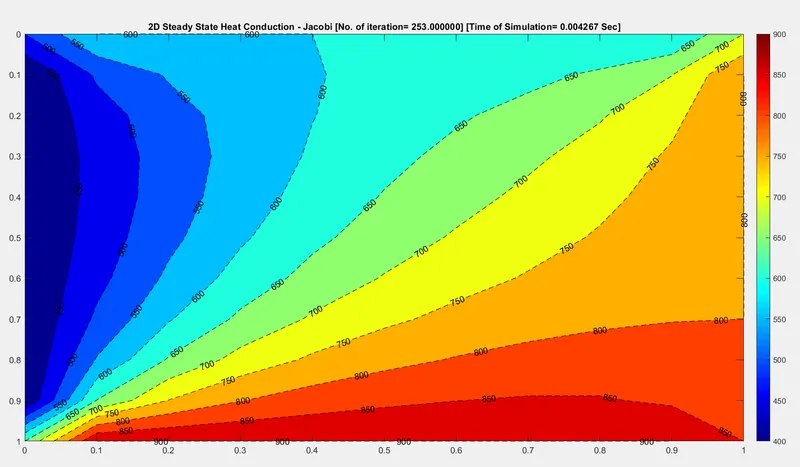

    2.STEADY-STATE.









    Discussion of Results:

    1. In the case of both implicit Transient and Steady-state SOR converges faster than others. SOR>GS>Jacobi. This can will be understood by the iteration number and simulation time.

    2. Between Implicit and Explicit methods of Transient, there is a limitation of explicit methods on the CFL number. The solutions blow up for CFL greater than 0.5

    3. Between the fastest method of the steady-state and transient that is SOR, steady-state converges faster than transient.



    Leave a comment

    Thanks for choosing to leave a comment. Please keep in mind that all the comments are moderated as per our comment policy, and your email will not be published for privacy reasons. Please leave a personal & meaningful conversation.

    Please  login to add a comment

    Other comments...

    No comments yet!
    Be the first to add a comment

    Read more Projects by Himanshu Chavan (40)

    Simulation Of A 1D Super-sonic Nozzle Using Macormack Method

    Objective:

    AIM: To simulate the isentropic flow through a Quasi 1D subsonic - supersinic nozzle by deriving both the conservation and non-conservation forms of the governing equations and solve them by implementing Macormacks's technique using MATLAB. Objective: Determine the steady-state temperature distribution for the flow field…

    calendar

    19 Oct 2021 11:02 AM IST

    • CFD
    • MATLAB
    Read more

    Project 1 : CFD Meshing for Tesla Cyber Truck

    Objective:

                                      ADVANCED CFD MESHING OF THE TESLA CYBER TRUCK l. OBJECTIVE 1. Geometry Clean-up of the model 2. Generation of surface mesh on the model. 3. Analyze and correct the quality of the mesh. 4. Setting…

    calendar

    08 Oct 2021 10:34 PM IST

    • ANSA
    • CFD
    • HTML
    Read more

    Week 4 Challenge : CFD Meshing for BMW car

    Objective:

                            ADVANCED CFD MESHING OF THE BMW M6 MODEL USING ANSA l. OBJECTIVE 1. Detailed geometry clean-up of the BMW M6 Model. 2. Generation of a surface mesh on the model. 3. Analyze and correct the quality of the mesh. 4. Setting up a wind…

    calendar

    29 Sep 2021 10:51 PM IST

    • ANSA
    • CFD
    Read more

    Week 3 Challenge : CFD meshing on Turbocharger

    Objective:

                                               SURFACE AND VOLUMETRIC MESHING OF A TURBOCHARGER MODEL IN ANSA   l. OBJECTIVES 1. Clean the given Turbocharger Model geometry. 2. Generate a surface mesh by assigning…

    calendar

    17 Sep 2021 01:55 PM IST

    • ANSA
    • CFD
    Read more

    Schedule a counselling session

    Please enter your name
    Please enter a valid email
    Please enter a valid number

    Related Courses

    coursecard

    Design loads considered on bridges

    Recently launched

    10 Hours of Content

    coursecard

    Design of Steel Superstructure in Bridges

    Recently launched

    16 Hours of Content

    coursecard

    Design for Manufacturability (DFM)

    Recently launched

    11 Hours of Content

    coursecard

    CATIA for Medical Product Design

    Recently launched

    5 Hours of Content

    coursecardcoursetype

    Accelerated Career Program in Embedded Systems (On-Campus) Courseware Partner: IT-ITes SSC nasscom

    Recently launched

    0 Hours of Content

    Schedule a counselling session

    Please enter your name
    Please enter a valid email
    Please enter a valid number

    logo

    Skill-Lync offers industry relevant advanced engineering courses for engineering students by partnering with industry experts.

    https://d27yxarlh48w6q.cloudfront.net/web/v1/images/facebook.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/insta.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/twitter.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/youtube.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/linkedin.svg

    Our Company

    News & EventsBlogCareersGrievance RedressalSkill-Lync ReviewsTermsPrivacy PolicyBecome an Affiliate
    map
    EpowerX Learning Technologies Pvt Ltd.
    4th Floor, BLOCK-B, Velachery - Tambaram Main Rd, Ram Nagar South, Madipakkam, Chennai, Tamil Nadu 600042.
    mail
    info@skill-lync.com
    mail
    ITgrievance@skill-lync.com

    Top Individual Courses

    Computational Combustion Using Python and CanteraIntroduction to Physical Modeling using SimscapeIntroduction to Structural Analysis using ANSYS WorkbenchIntroduction to Structural Analysis using ANSYS Workbench

    Top PG Programs

    Post Graduate Program in Hybrid Electric Vehicle Design and AnalysisPost Graduate Program in Computational Fluid DynamicsPost Graduate Program in CADPost Graduate Program in Electric Vehicle Design & Development

    Skill-Lync Plus

    Executive Program in Electric Vehicle Embedded SoftwareExecutive Program in Electric Vehicle DesignExecutive Program in Cybersecurity

    Trending Blogs

    Heat Transfer Principles in Energy-Efficient Refrigerators and Air Conditioners Advanced Modeling and Result Visualization in Simscape Exploring Simulink and Library Browser in Simscape Advanced Simulink Tools and Libraries in SimscapeExploring Simulink Basics in Simscape

    © 2025 Skill-Lync Inc. All Rights Reserved.

                Do You Want To Showcase Your Technical Skills?
                Sign-Up for our projects.
