MATLAB - Mid term project - Solving the steady and unsteady 2D heat conduction

Problem Statement: - For A 2D surface maintained at a certain temperature at its edges. Solve using Iteration Methods(Jacobi, Gauss-Seidel, and S.O.R. using Gauss-Seidel) for Temperature distribution due to Heat Conduction that can be observed for the following States: - 1. Transient State until Steady State is Achieved…

Aditya Aanand
updated on 09 Sep 2022

Problem Statement: -

For A 2D surface maintained at a certain temperature at its edges. Solve using Iteration Methods(Jacobi, Gauss-Seidel, and S.O.R. using Gauss-Seidel) for Temperature distribution due to Heat Conduction that can be observed for the following States: -

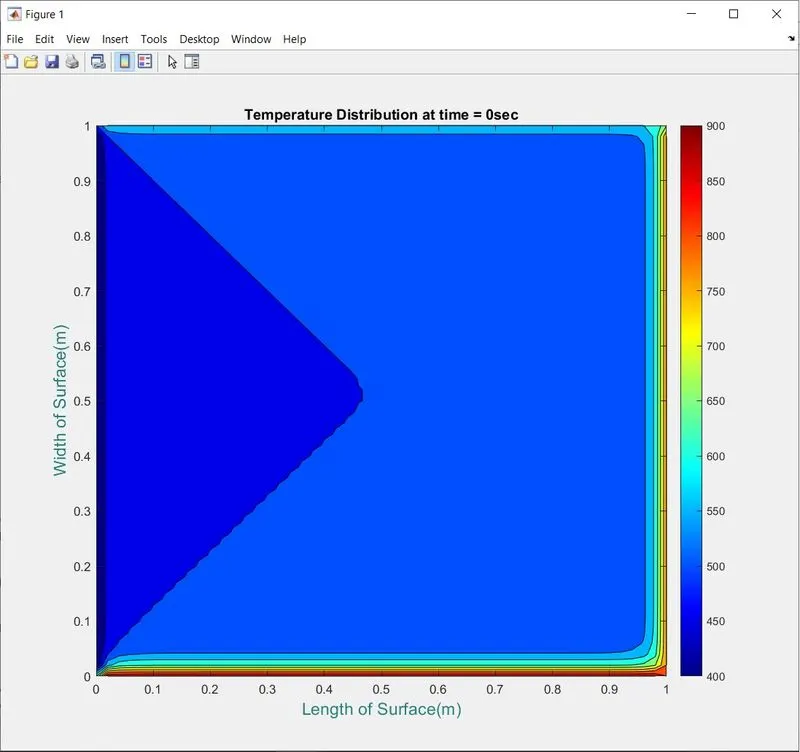

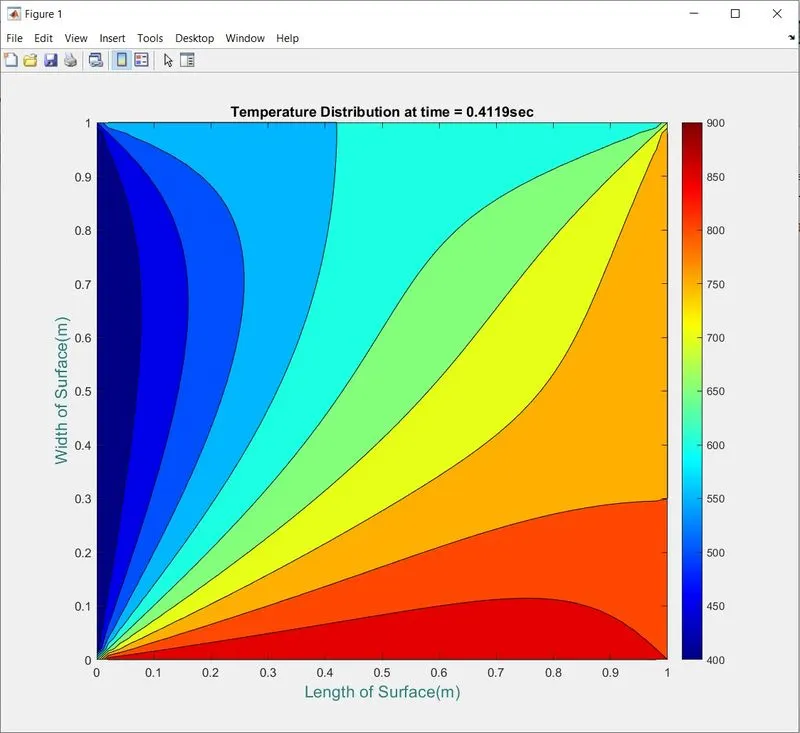

1. Transient State until Steady State is Achieved

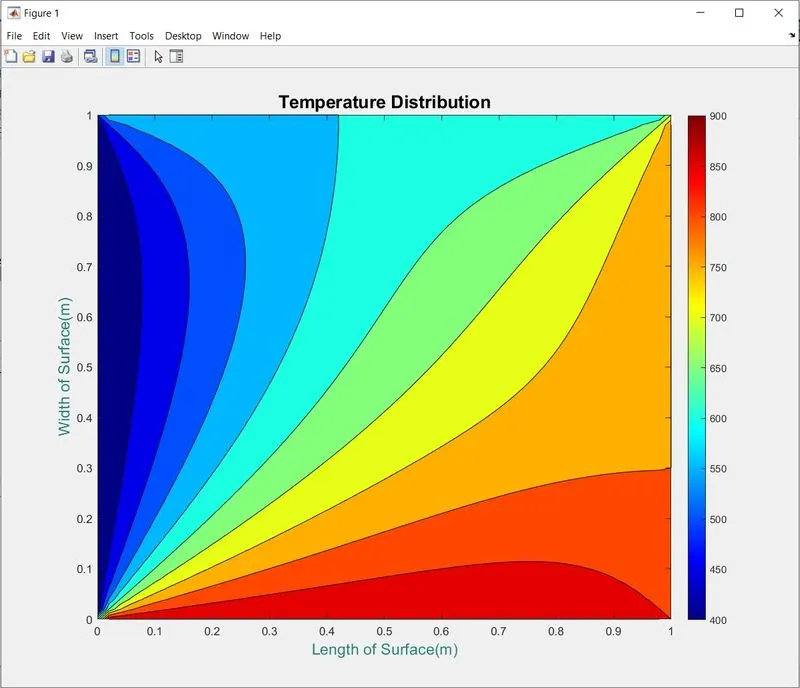

2. Steady State

The Given Temperature Maintained at the edges are as follows

$T_{Top} = 600 K, T_{Bottom} = 900 K, T_{Left} = 400 K, and T_{Right} = 800 K$ $T_("Top") = 600 K, T_("Bottom") = 900 K, T_("Left") = 400K, and T_("Right") = 800K$

Solution: -

1. AIM: -

A. To Solve 2D heat Conduction Equation for Steady and Transient State using Iterative Solver( Jacobi, Gauss-Seidel and Successive Over-Relaxation)

2. Given: -

A. $T_{top} = 600 K$ $T_("top") = 600 K$

B. $T_{Bottom} = 900 K$ $T_("Bottom") = 900 K$

C. $T_{Left} = 400 K$ $T_("Left") = 400 K$

D. $T_{Right} = 800 K$ $T_("Right") = 800K$

3. Assumed: -

A. $2D Transient Heat Conduction \to \frac{\partial T}{\partial t} - α (\frac{\partial^{2} T}{\partial x^{2}} + \frac{\partial^{2} T}{\partial y^{2}}) = 0$ $"2D Transient Heat Conduction" rarr (delT)/(delt) - alpha((del^2T)/(delx^2) + (del^2T)/(dely^2)) = 0$

B. $2D Steady Heat Conduction \to \frac{\partial^{2} T}{\partial x^{2}} + \frac{\partial^{2} T}{\partial y^{2}} = 0$ $"2D Steady Heat Conduction" rarr (del^2T)/(delx^2) + (del^2T)/(dely^2) = 0$

C. Dimensions of Surface $\Rightarrow length = 1 m and Width = 1 m$ $=> "length" = 1 m and "Width" = 1 m$

D. Number of Nodes in each Direction = 51

E. Using the Following notation for $T_{i, j}^{n}$ $T_(i,j)^n$

where $i, j \to x and y positions of Node$ $i,j rarr x and y " positions of Node"$

$n \to time Step iteration$ $n rarr "time Step iteration"$

4. Deriving Numerical Methods: -

A. 2D Steady Heat Conduction: -

For 2D Steady Heat Conduction, $\frac{\partial^{2} T}{\partial x^{2}} + \frac{\partial^{2} T}{\partial y^{2}} = 0$ $(del^2T)/(delx^2) + (del^2T)/(dely^2) = 0$

First Order Numerical Method,

$\Rightarrow (\frac{T_{i + 1, j}^{n} - 2 T_{i, j}^{n} + T_{i - 1, j}^{n}}{{d x}^{2}}) + (\frac{T_{i, j + 1}^{n} - 2 T_{i, j}^{n} + T_{i, j - 1}^{n}}{{d y}^{2}}) = 0$ $=> ((T_(i+1,j)^n - 2T_(i,j)^n + T_(i-1,j)^n)/dx^2) + ((T_(i,j+1)^n - 2T_(i,j)^n + T_(i,j-1)^n)/dy^2) = 0$

$\Rightarrow 2 T_{i, j}^{n} (\frac{1}{{d x}^{2}} + \frac{1}{{d y}^{2}}) = (\frac{T_{i + 1, j}^{n} + T_{i - 1, j}^{n}}{{d x}^{2}}) + (\frac{T_{i, j + 1}^{n} + T_{i, j - 1}^{n}}{{d y}^{2}})$ $=>2T_(i,j)^n(1/dx^2 + 1/dy^2) = ((T_(i+1,j)^n + T_(i-1,j)^n)/dx^2) + ((T_(i,j+1)^n + T_(i,j-1)^n)/dy^2)$

$\Rightarrow 2 T_{i, j}^{n} (\frac{{d x}^{2} + {d y}^{2}}{{d x}^{2} {d y}^{2}}) = (\frac{T_{i + 1, j}^{n} + T_{i - 1, j}^{n}}{{d x}^{2}}) + (\frac{T_{i, j + 1}^{n} + T_{i, j - 1}^{n}}{{d y}^{2}})$ $=>2T_(i,j)^n((dx^2 + dy^2)/(dx^2dy^2)) = ((T_(i+1,j)^n + T_(i-1,j)^n)/dx^2) + ((T_(i,j+1)^n + T_(i,j-1)^n)/dy^2)$

$\Rightarrow T_{i, j}^{n} = \frac{1}{2} [(\frac{T_{i + 1, j}^{n} + T_{i - 1, j}^{n}}{{d x}^{2} + {d y}^{2}}) {d y}^{2} + (\frac{T_{i, j + 1}^{n} + T_{i, j - 1}^{n}}{{d x}^{2} + {d y}^{2}}) {d x}^{2}]$ $=>T_(i,j)^n = 1/2[((T_(i+1,j)^n + T_(i-1,j)^n)/(dx^2 + dy^2))dy^2 + ((T_(i,j+1)^n + T_(i,j-1)^n)/(dx^2 + dy^2))dx^2]$

$Let \frac{{d y}^{2}}{{d x}^{2} + {d y}^{2}} be k_{1} and Let \frac{{d x}^{2}}{{d x}^{2} + {d y}^{2}} be k_{2}$ $"Let "(dy^2)/(dx^2 + dy^2) " be " k_1 and "Let "(dx^2)/(dx^2 + dy^2) " be " k_2$

$\Rightarrow T_{i, j}^{n} = \frac{1}{2} [(T_{i + 1, j}^{n} + T_{i - 1, j}^{n}) k_{1} + (T_{i, j + 1}^{n} + T_{i, j - 1}^{n}) k_{2}]$ $=>T_(i,j)^n = 1/2[(T_(i+1,j)^n + T_(i-1,j)^n)k_1 + (T_(i,j+1)^n + T_(i,j-1)^n)k_2]$

Now,

$For d x = \frac{1}{51 - 1} and d y = \frac{1}{51 - 1}$ $"For " dx = 1/(51-1) and dy = 1/(51-1)$

$k_{1} = \frac{{(d y = \frac{1}{50})}^{2}}{{(d x = \frac{1}{50})}^{2} + {(d y = \frac{1}{50})}^{2}} = \frac{1}{2}$ $k_1 = (dy = 1/50)^2/((dx = 1/50)^2 + (dy = 1/50)^2) = 1/2$

$k_{2} = \frac{{(d x = \frac{1}{50})}^{2}}{{(d x = \frac{1}{50})}^{2} + {(d y = \frac{1}{50})}^{2}} = \frac{1}{2}$ $k_2 = (dx = 1/50)^2/((dx = 1/50)^2 + (dy = 1/50)^2) = 1/2$

$\Rightarrow T_{i, j}^{n} = \frac{1}{2} [(T_{i + 1, j}^{n} + T_{i - 1, j}^{n}) (k_{1} = \frac{1}{2}) + (T_{i, j + 1}^{n} + T_{i, j - 1}^{n}) (k_{2} = \frac{1}{2})]$ $=>T_(i,j)^n = 1/2[(T_(i+1,j)^n + T_(i-1,j)^n)(k_1 = 1/2) + (T_(i,j+1)^n + T_(i,j-1)^n)(k_2 = 1/2)]$

Hence,

$T_{i, j}^{n} = \frac{T_{i + 1, j}^{n} + T_{i - 1, j}^{n}}{4} + \frac{T_{i, j + 1}^{n} + T_{i, j - 1}^{n}}{4}$ $T_(i,j)^n = (T_(i+1,j)^n + T_(i-1,j)^n)/4 + (T_(i,j+1)^n + T_(i,j-1)^n)/4$

2D Steady State Heat Conduction Equation

T_{i, j}^{n} = \frac{T_{i + 1, j}^{n} + T_{i - 1, j}^{n}}{4} + \frac{T_{i, j + 1}^{n} + T_{i, j - 1}^{n}}{4}

$T_(i,j)^n = (T_(i+1,j)^n + T_(i-1,j)^n)/4 + (T_(i,j+1)^n + T_(i,j-1)^n)/4$

B. 2D Transient Heat Conduction: -

For 2D Steady Heat Conduction, $\frac{\partial T}{\partial t} - α (\frac{\partial^{2} T}{\partial x^{2}} + \frac{\partial^{2} T}{\partial y^{2}}) = 0$ $(delT)/(delt)-alpha((del^2T)/(delx^2) + (del^2T)/(dely^2)) = 0$

First Order Numerical Method,

$\Rightarrow (\frac{T_{i, j}^{n + 1} - T_{i, j}^{n}}{d t}) - α [(\frac{T_{i + 1, j}^{n + 1} - 2 T_{i, j}^{n + 1} + T_{i - 1, j}^{n + 1}}{{d x}^{2}}) + (\frac{T_{i, j + 1}^{n + 1} - 2 T_{i, j}^{n + 1} + T_{i, j - 1}^{n + 1}}{{d y}^{2}})] = 0$ $=> ((T_(i,j)^(n+1) - T_(i,j)^n)/dt)-alpha[((T_(i+1,j)^(n+1) - 2T_(i,j)^(n+1) + T_(i-1,j)^(n+1))/dx^2) + ((T_(i,j+1)^(n+1) - 2T_(i,j)^(n+1) + T_(i,j-1)^(n+1))/dy^2)] = 0$

$\Rightarrow T_{i, j}^{n + 1} - T_{i, j}^{n} = (d t) α [(\frac{T_{i + 1, j}^{n + 1} - 2 T_{i, j}^{n + 1} + T_{i - 1, j}^{n + 1}}{{d x}^{2}}) + (\frac{T_{i, j + 1}^{n + 1} - 2 T_{i, j}^{n + 1} + T_{i, j - 1}^{n + 1}}{{d y}^{2}})]$ $=> T_(i,j)^(n+1) - T_(i,j)^n = (dt)alpha[((T_(i+1,j)^(n+1) - 2T_(i,j)^(n+1) + T_(i-1,j)^(n+1))/dx^2) + ((T_(i,j+1)^(n+1) - 2T_(i,j)^(n+1) + T_(i,j-1)^(n+1))/dy^2)]$

$\Rightarrow T_{i, j}^{n + 1} = T_{i, j}^{n} + (d t) α [(\frac{T_{i + 1, j}^{n + 1} - 2 T_{i, j}^{n + 1} + T_{i - 1, j}^{n + 1}}{{d x}^{2}}) + (\frac{T_{i, j + 1}^{n + 1} - 2 T_{i, j}^{n + 1} + T_{i, j - 1}^{n + 1}}{{d y}^{2}})]$ $=> T_(i,j)^(n+1) = T_(i,j)^n + (dt)alpha[((T_(i+1,j)^(n+1) - 2T_(i,j)^(n+1) + T_(i-1,j)^(n+1))/dx^2) + ((T_(i,j+1)^(n+1) - 2T_(i,j)^(n+1) + T_(i,j-1)^(n+1))/dy^2)]$

$\Rightarrow T_{i, j}^{n + 1} (1 + 2 (d t) α (\frac{1}{{d x}^{2}} + \frac{1}{{d y}^{2}})) = T_{i, j}^{n} + (d t) α [(\frac{T_{i + 1, j}^{n + 1} + T_{i - 1, j}^{n + 1}}{{d x}^{2}}) + (\frac{T_{i, j + 1}^{n + 1} + T_{i, j - 1}^{n + 1}}{{d y}^{2}})]$ $=> T_(i,j)^(n+1)(1 + 2(dt)alpha(1/dx^2+1/dy^2)) = T_(i,j)^n + (dt)alpha[((T_(i+1,j)^(n+1) + T_(i-1,j)^(n+1))/dx^2) + ((T_(i,j+1)^(n+1) + T_(i,j-1)^(n+1))/dy^2)]$

As, $C F L_{x} = \frac{α (d t)}{{d x}^{2}}$ $CFL_x = (alpha(dt))/(dx^2)$ and $C F L_{y} = \frac{α (d t)}{{d y}^{2}}$ $CFL_y = (alpha(dt))/(dy^2)$

For Stable Numerical Method $C F L < 1$ $CFL < 1$

Now,

Let $\frac{α (d t)}{{d x}^{2}} = k_{1}$ $(alpha(dt))/dx^2 = k_1$

Let $\frac{α (d t)}{{d y}^{2}} = k_{2}$ $(alpha(dt))/dy^2 = k_2$

Let $1 + 2 (d t) α (\frac{1}{{d x}^{2}} + \frac{1}{{d y}^{2}}) = k_{3}$ $1 + 2(dt)alpha(1/dx^2+1/dy^2) = k_3$

$\Rightarrow k_{3} = 1 + 2 (k_{1} + k_{2})$ $=> k_3 = 1 + 2(k_1 + k_2)$

Hence,

$\Rightarrow T_{i, j}^{n + 1} (k_{3}) = T_{i, j}^{n} + k_{1} (T_{i + 1, j}^{n + 1} + T_{i - 1, j}^{n + 1}) + k_{2} (T_{i, j + 1}^{n + 1} + T_{i, j - 1}^{n + 1})$ $=> T_(i,j)^(n+1)(k_3) = T_(i,j)^n + k_1(T_(i+1,j)^(n+1) + T_(i-1,j)^(n+1)) + k_2(T_(i,j+1)^(n+1) + T_(i,j-1)^(n+1))$

$\Rightarrow T_{i, j}^{n + 1} = \frac{1}{k_{3}} [T_{i, j}^{n} + k_{1} (T_{i + 1, j}^{n + 1} + T_{i - 1, j}^{n + 1}) + k_{2} (T_{i, j + 1}^{n + 1} + T_{i, j - 1}^{n + 1})]$ $=> T_(i,j)^(n+1) = 1/k_3[T_(i,j)^n + k_1(T_(i+1,j)^(n+1) + T_(i-1,j)^(n+1)) + k_2(T_(i,j+1)^(n+1) + T_(i,j-1)^(n+1))]$

2D Unsteady State Heat Conduction Equation

T_{i, j}^{n + 1} = \frac{1}{k_{3}} [T_{i, j}^{n} + k_{1} (T_{i + 1, j}^{n + 1} + T_{i - 1, j}^{n + 1}) + k_{2} (T_{i, j + 1}^{n + 1} + T_{i, j - 1}^{n + 1})]

$T_(i,j)^(n+1) = 1/k_3[T_(i,j)^n + k_1(T_(i+1,j)^(n+1) + T_(i-1,j)^(n+1)) + k_2(T_(i,j+1)^(n+1) + T_(i,j-1)^(n+1))]$

5. Explanation Code: -

A. 2D Steady-State Heat Conduction: -

i. Section 1(Defining Variables)

a. Defining Geometry of Surface

$\to$ $rarr$ Defined Length and Width

$\to$ $rarr$ Defined nodes along x and y

$\to$ $rarr$ Defined dx and dy based on nodes and Dimension

$\to$ $rarr$ Created X and Y Vectors with the geometric distance of each node

b. Defining Boundary Condition and Initial Surface Temperature

$\to$ $rarr$ Defined each node of Surface to be at 500 K

$\to$ $rarr$ Defined Top, Bottom, Left, and Right Nodes at a Certain Temperature and the Corners as the average of adjacent nodes.

c. Variables for Iteration

$\to$ $rarr$ Defined Set the tolerance for the Temperature change to be $10^{- 5}$ $10^(-5)$

$\to$ $rarr$ Defined initial error = 1

$\to$ $rarr$ Defined iteration counter and set value = 0

d. Method Selection

$\to$ $rarr$ Defined a Variable "Method" whose value is used to select the method for iteration

1 - Jacobi Method, 2 - Gauss-Siedel, and 3 - S.O.R. with Gauss-Siedel( $ω = 1.95$ $omega = 1.95$ )

ii. Section 2(Computation)

a. Using Jacobi

$\to$ $rarr$ Checked if Method Selected is Jacobi using the "Method" Variable

$\to$ $rarr$ displayed that the iteration in use is Jacobi

$\to$ $rarr$ Created a While loop with condition that the loop terminates after (error for Temperature < Tolerance of Temperature)

$\to$ $rarr$ Applied Jacobi Iteration on each Node for Value of Temperature based on the derived formula.

$\to$ $rarr$ Updated Value of error of Temperature that is maximum error Node calculated from $T_{new} - T_{old}$ $T_("new") - T_("old")$

b. Using Gauss-Siedel

$\to$ $rarr$ Checked if Method Selected is Gauss-Siedel using the "Method" Variable

$\to$ $rarr$ displayed that the iteration in use is Gauss-Siedel

$\to$ $rarr$ Created a While loop with condition that the loop terminates after (error for Temperature < Tolerance of Temperature)

$\to$ $rarr$ Applied Gauss-Siedel Iteration on each Node for Value of Temperature based on the derived formula.

$\to$ $rarr$ Updated Value of error of Temperature that is maximum error Node calculated from $T_{new} - T_{old}$ $T_("new") - T_("old")$

c. Using S.O.R. using Gauss-Siedel

$\to$ $rarr$ Checked if Method Selected is S.O.R. using Gauss-Siedel using the "Method" Variable

$\to$ $rarr$ displayed that the iteration in use is S.O.R. using Gauss-Siedel

$\to$ $rarr$ Created a While loop with condition that the loop terminates after (error for Temperature < Tolerance of Temperature)

$\to$ $rarr$ Applied S.O.R. using Gauss-Siedel Iteration on each Node for Value of Temperature based on the derived formula.

$\to$ $rarr$ Updated Value of error of Temperature that is maximum error Node calculated from $T_{new} - T_{old}$ $T_("new") - T_("old")$

iii. Section 3(OUTPUT and Plotting)

$\to$ $rarr$ displaying the Total number of iterations

$\to$ $rarr$ Displaying the latest updated error

$\to$ $rarr$ Plotted the Graph of Temperature Distribution

B. 2D UnSteady-State Heat Conduction: -

i. Section 1(Defining Variables)

a. Defining Geometry of Surface

$\to$ $rarr$ Defined Length and Width

$\to$ $rarr$ Defined nodes along x and y

$\to$ $rarr$ Defined dx and dy based on nodes and Dimension

$\to$ $rarr$ Created X and Y Vectors with the geometric distance of each node

b. Defining Boundary Condition and Initial Surface Temperature

$\to$ $rarr$ Defined each node of Surface to be at 500 K

$\to$ $rarr$ Defined Top, Bottom, Left, and Right Nodes at a Certain Temperature and the Corners as the average of adjacent nodes.

c. Variables for Iteration

$\to$ $rarr$ Defined Set the tolerance for the Temperature change to be $10^{- 4}$ $10^(-4)$

$\to$ $rarr$ Defined initial error = 1

$\to$ $rarr$ Defined iteration counter and set value = 0

d. Time Step Variable

$\to$ $rarr$ Defined value of CFL = 0.9

$\to$ $rarr$ Defined $α = 1.2$ $alpha = 1.2$

$\to$ $rarr$ Calculated dt

$\to$ $rarr$ Defined k1, k2 and k3

$\to$ $rarr$ Defined total time Step and a Vector to define each time step

e. Method Selection

$\to$ $rarr$ Defined a Variable "Method" whose value is used to select the method for iteration

1 - Jacobi Method, 2 - Gauss-Siedel, and 3 - S.O.R. with Gauss-Siedel( $ω = 1.44$ $omega = 1.44$ )

ii. Section 2(Computation)

a. Time Marching Loop

$\to$ $rarr$ Defined a for loop from 1 to total time steps

$\to$ $rarr$ Recorded current value of T in $T_{t}$ $T_t$ Matrix

$\to$ $rarr$ Created a While Loop based on error value and Tolerance Value

$\to$ $rarr$ Selected Each node and based on the value of "Method" Selected each iteration and applied formula based on derivation.

$\to$ $rarr$ Within each time Step Plotted the Change in temperature

$\to$ $rarr$ Placed a Break Command which is based on Tolerance of Temperature and breaks the loop when Stability is Reached.

iii. Section 3(OUTPUT)

$\to$ $rarr$ Displayed The Type of Iteration under use

$\to$ $rarr$ Displayed the Total number of Iterations and Total Time taken to reach Stability.

6. Code: -

A. 2D Steady-State Heat Conduction: -

% 2D Steady State Heat Conduction using Iterative Methods
  clear all
  close all
  clc

%% Defining Variables
 % Geometry of Surface
   L = 1;
   W = 1;
   Node_x = 51;
   Node_y = 51;
   dx = L/(Node_x-1);
   dy = W/(Node_y-1);
   X = [0:dx:L];
   Y = [0:dy:W];

 % Boundary Conditions and Initial Surface Temperature
   T = 500*ones(Node_x,Node_y);
   T_top = 600;
   T_bottom = 900;
   T_left = 400;
   T_right = 800;

   T(2:(Node_x -1),Node_y) = T_top;
   T(2:(Node_x - 1),1) = T_bottom;
   T(1,2:(Node_y - 1)) = T_left;
   T(Node_x,2:(Node_y -1)) = T_right;

   T(1,1) = 0.5*(T(1,2)+T(2,1));
   T(Node_x,Node_y) = 0.5*(T(Node_x,(Node_y-1))+T((Node_x-1),Node_y));
   T(Node_x,1) = 0.5*(T(Node_x,2)+T((Node_x-1),1));
   T(1,Node_y) = 0.5*(T(1,(Node_y-1))+T(2,Node_y));

 % Variables for Iterations
   Tol_T = 1e-5;
   err_T = 1;
   iter = 0;

 % Method Selection
 % 1 - Jacobi,
 % 2 - Gauss-Siedel
 % 3 - S.O.R. with Gauss-Siedel
   Method = 2;

%% Computation
 % Using Jacobi
   if Method == 1
       disp('Iteration Method in Use is Jacobi')
       while (err_T > Tol_T)
           iter = iter+1;
           T_old = T;
           for i = 2:(Node_x - 1)
               for j = 2:(Node_y - 1)
                   T(i,j) = 0.25*(T_old(i+1,j) + T_old(i-1,j) + T_old(i,j+1) + T_old(i,j-1));
               end
           end
           err_T = max(abs(T - T_old),[],'all');
       end
   end

  % Using Gauss-Siedel
    if Method == 2
        disp('Iteration Method in Use is Gauss-Siedel')
        while (err_T > Tol_T)
            iter = iter+1;
            T_old = T;
            for i = 2:(Node_x - 1)
                for j = 2:(Node_y - 1)
                    T(i,j) = 0.25*(T(i+1,j) + T(i-1,j) + T(i,j+1) + T(i,j-1));
                end
            end
            err_T = max(abs(T - T_old),[],'all');
        end
    end

  % Using S.O.R. and Gauss-Siedel
    if Method == 3
        disp('Iteration Method in Use is S.O.R.')
        omega_val = 1.95;
        disp(['Value of Omega = ',num2str(omega_val)])
        while (err_T > Tol_T)
            iter = iter+1;
            T_old = T;
            for i = 2:(Node_x - 1)
                for j = 2:(Node_y - 1)
                    T(i,j) = T(i,j)*(1-omega_val) + (omega_val)*0.25*(T(i+1,j) + T(i-1,j) + T(i,j+1) + T(i,j-1));
                end
            end
            err_T = max(abs(T - T_old),[],'all');
        end
    end

%% OUTPUT and Plotting
   disp(['Total Iteration = ',num2str(iter)])
   disp(['Error = ',num2str(err_T)])
   colormap(jet);
   contourf(X,Y,T');
   colorbar
   title('Temperature Distribution','FontSize',16)
   xlabel('Length of Surface(m)','Color',[0.15 0.5 0.5],'FontSize',14)
   ylabel('Width of Surface(m)','Color',[0.15 0.5 0.5],'FontSize',14)

B. 2D UnSteady-State Heat Conduction: -

% 2D Un-Steady State Heat Conduction using Iterative Methods
  clear all
  close all
  clc

%% Defining Variables
 % Geometry of Surface
   L = 1;
   W = 1;
   Node_x = 51;
   Node_y = 51;
   dx = L/(Node_x-1);
   dy = W/(Node_y-1);
   X = [0:dx:L];
   Y = [0:dy:W];

 % Boundary Conditions and Initial Guess
   T = 500*ones(Node_x,Node_y);
   T_top = 600;
   T_bottom = 900;
   T_left = 400;
   T_right = 800;

   T(2:(Node_x -1),Node_y) = T_top;
   T(2:(Node_x - 1),1) = T_bottom;
   T(1,2:(Node_y - 1)) = T_left;
   T(Node_x,2:(Node_y -1)) = T_right;

   T(1,1) = 0.5*(T(1,2)+T(2,1));
   T(Node_x,Node_y) = 0.5*(T(Node_x,(Node_y-1))+T((Node_x-1),Node_y));
   T(Node_x,1) = 0.5*(T(Node_x,2)+T((Node_x-1),1));
   T(1,Node_y) = 0.5*(T(1,(Node_y-1))+T(2,Node_y));

 % Variables for Iterations
   Tol_T = 1e-4;
   err_T = 1;
   iter = 0;

 % Time Step Variables
   CFL = 0.9;
   alp = 1.2;
   dt = CFL*(dx^2)/alp;
   k1 = CFL;
   k2 = CFL;
   k3 = 1 + 2*k1 + 2*k2;
   t_steps = 1500;
   total_t = [0:dt:(t_steps*dt)];

 % Method Selection
 % 1 - Jacobi,
 % 2 - Gauss-Siedel
 % 3 - S.O.R. with Gauss-Siedel
   Method = 3;
   omega_val = 1.44;

%% Computation
 % Time Marching Loop
   for t_count = 1:t_steps
       T_t = T;

     % Iteration using Gauss-Siedel
       err_T = 1;
       while (err_T > Tol_T)
            iter = iter+1;
            T_old = T;
            for i = 2:(Node_x - 1)
                for j = 2:(Node_y - 1)
                    if Method == 1
                        T(i,j) = (T_t(i,j) +  k1*(T_old(i+1,j) + T_old(i-1,j) + T_old(i,j+1) + T_old(i,j-1)))/k3;
                    end
                    if Method == 2
                        T(i,j) = (T_t(i,j) +  k1*(T(i+1,j) + T(i-1,j) + T(i,j+1) + T(i,j-1)))/k3;
                    end
                    if Method == 3
                        T(i,j) = T(i,j)*(1 - omega_val) + (omega_val)*(T_t(i,j) +  k1*(T(i+1,j) + T(i-1,j) + T(i,j+1) + T(i,j-1)))/k3;
                    end
                end
            end
            err_T = max(abs(T - T_old),[],'all');
       end

     % Plotting after each Iteration
       colormap(jet);
       contourf(X,Y,T');
       colorbar
       title(['Temperature Distribution at time = ',num2str(total_t(t_count)),'sec'],'FontSize',12)
       xlabel('Length of Surface(m)','Color',[0.15 0.5 0.5],'FontSize',14)
       ylabel('Width of Surface(m)','Color',[0.15 0.5 0.5],'FontSize',14)
       pause(0.05)
       err_T_t = max(abs(T - T_t),[],'all');

     % Breaking Time Marching if Change become less than Tolerance
       if err_T_t < Tol_T
           break
       end
   end

%% OUTPUTS
   if Method == 1
       disp('The Iteration method in use was Jacobi')
   end
   if Method == 2
       disp('The Iteration method in use was Gauss-Siedel')
   end
   if Method == 3
       disp('The Iteration method in use was S.O.R. with Gauss-Siedel')
       disp(['Value of Omega for S.O.R. = ',num2str(omega_val)])
   end
   disp(['Total Iteration = ',num2str(iter)])
   disp(['Total Time for reaching Stability = ',num2str(total_t(t_count)),'sec'])

7. OUTPUTS and Plots Generated: -

A. 2D Steady-State Heat Conduction: -

i. Plot Generated: -

Temp Distribution in 2D Steady Heat Conduction
