Week-3 Challenge: ADVISOR Tool

Power converters play a crucial role in electric vehicles (EVs) by managing and transforming electrical power to meet the specific requirements of various components and systems. Here are several applications of power converters in an electric vehicle: DC-DC Converter for Horn: Application: Horn Converter Type: DC-DC Converter…

Objective: To develop a detailed MATLAB model of an electric rickshaw with rear wheels driven by a PM brushed motor. To Incorporate motor controller and motor efficiency points and to create an Excel sheet with input and assumed data. To analyze energy consumption and temperature rise for 100 km constant-speed driving…

Objective: The main goal is to develop a vehicle speed control system using a PI controller and generate brake and accelerator commands without using a ready-made driver block for speed control. The model should accurately simulate the vehicle dynamics, considering factors such as mass, rolling resistance, aerodynamic…

Study#1.a): To calculate the heat generation in the battery pack, we need to first calculate the power dissipated by the battery pack. The power dissipated by the battery pack can be calculated using the following formula: Power Dissipation as heat= I^2 * R * t where, I is the battery current and R is the internal resistance…

Study#1:a) To design the battery pack configuration, we first need to calculate the number of cells required to achieve a voltage of 120V and a capacity of 150kWh. Voltage per cell = 3.6V, Total voltage required = 120V, Number of cells in series = Total voltage required / Voltage per cell Number of cells in series = 120V…

Study#1: Braking: Braking is the one of the important requirement to retard the speed of the vehicle. Usually mechanical brakes are used to retard the vehicle speed by appling friction on the wheels. It absorbs either kinetic energy or potential energy or both while remaining in action and this absorbed energy appears…

Introduction: The major components of an electric vehicle system are the motor, controller, power supply, charger and drive train. Controller is the heart of an electric vehicle, and it is the key for the realisation of a high-performance electric vehicle with an optimal balance of maximum speed, acceleration performance,…

Part A: Study#1: Total weight of various types of aircrafts is listed below and it ranges from 1.1 Ton to 640 Tons of weight. Aircraft Empty Weight Max Fuel Weight Max Cargo Weight Max Gross Takeoff Weight Antanov AN-225 628,000 lbs 661,400 lbs 417,000 lbs 1,411,000 lbs   285,000 kg 300,000 kg 190,000 kg 640,000…

Question#1(a): The below example shows the simulation of an H-bridge used to generate a chopped voltage and to control the speed of a DC motor. Description: The Bipolar Junction Transistor (BJT) when used for power switching applications, operates as an IGBT. When it is conducting (BJT operating in the saturated region),…

Question#1: Types of power converter circuits are employed in electric and hybrid electric vehicle are as follows: Power converters is a very essential part for both Electric and Hybrid Electric Vehicle as the voltage level of the components like battery, fuel Cell and ultra capacitors should be matched with the voltage…

Question#1: Mapped models can be modeled with predefined values in the form of lookup tables and it runs faster than the dynamic model as it uses the values instead of components.  Dynamic Model represents the actual components instead of predefined values in the form of lookup tables. Mapped Model of Motor/Generator:…

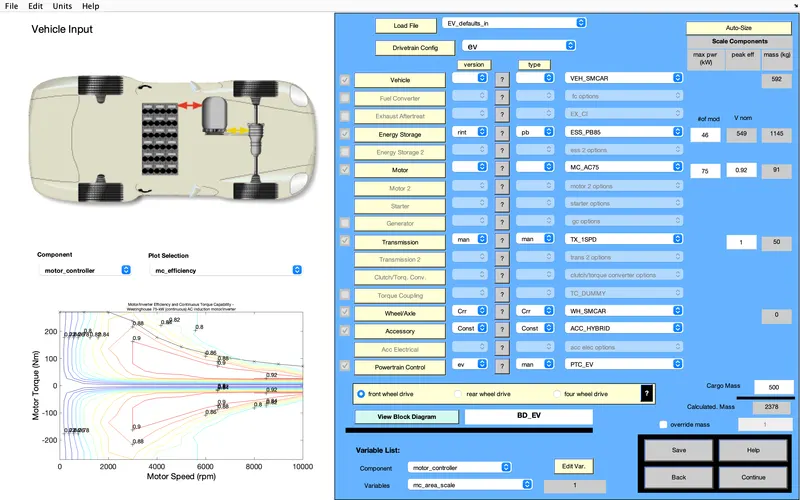

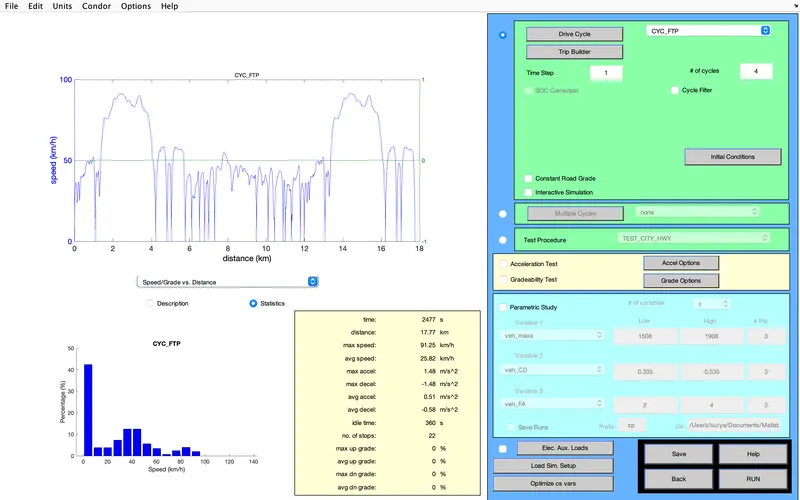

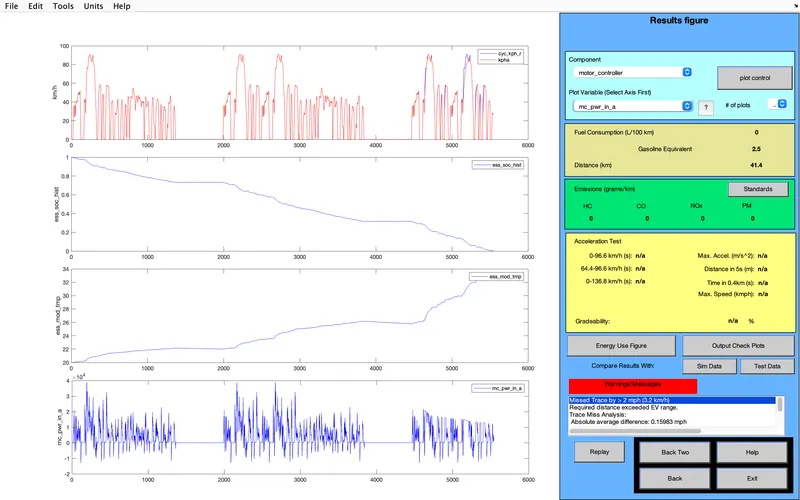

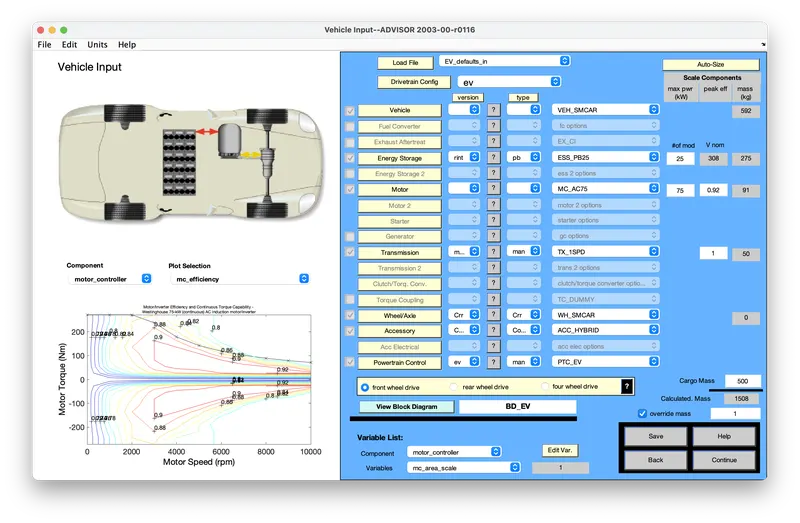

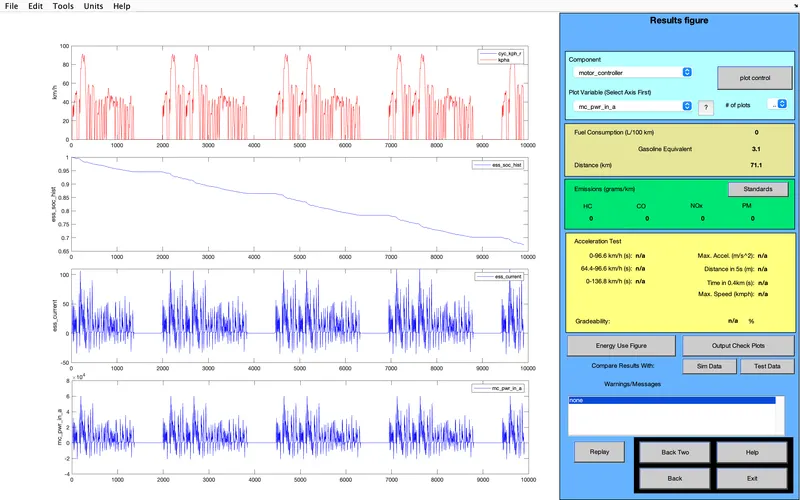

Question#1: Result screenshot is pasted below Conclusion: Simulated EV_defaults_in file with cargo mass 500kg with all other default conditions and the vehicle can only run upto 41.4 km with FTP drive cycle and the SOC becomes zero at this point.  Question#2: Results screenshots are pasted below Conclusion: Simulated…

%Design parameters to a model DC motor J=0.01; % Moment fo inertia of the rotor in kg-m^2 B=0.1; % Motor Viscos friction constant in N-m-s Km=0.01; % Back EMF constant in V/rad/s Kt=0.01; % Motor torque constant in N-m/amp Ra=1.0; % Resistance of the armature circuit in ohms La=0.5; % Inductance of the armature circuit…

Program#1: data=xlsread('/Users/surya/Downloads/VI.xlsx'); %Fetching data from excel spreadsheet and storing it under a variable v=data(:,1); %assigning the value of voltage from the first column of matrix data to v i=data(:,2); %assigning the value of voltage from the first column of matrix data to v range=-17.3:0.1:0.9;…
