Week 2 Challenge

1. 1. How will you assign Circular section to column?

1. Open STAAD Pro and create a new model or open an existing one.
2. Click on the "Geometry" tab and select the column you want to assign a circular section to.
3. Right-click on the selected column and click on "Properties" from the context menu.
4. In the "Column Properties" dialog box, click on the "Section" tab.
5. In the "Section" tab, click on the "Edit" button next to the "Section Name" field.
6. In the "Section Editor" dialog box, select "Circular" from the "Type" drop-down menu.
7. Enter the required dimensions of the circular section, such as the diameter or radius, in the appropriate fields.
8. Click on the "OK" button to save the circular section and close the "Section Editor" dialog box.
9. Click on the "Apply" button to apply the circular section to the selected column in the "Column Properties" dialog box.
10. Click on the "OK" button to close the "Column Properties" dialog box.

Once you have assigned the circular section to the column, you can analyze and design the structure using STAAD Pro.

    2. How will you assign Unit system to a .std model file?

 To assign a unit system to a .std model file in STAAD Pro, you can follow these steps:

1. Open the STAAD Pro software and create a new file or open an existing file containing the model.
2. Click on the "File" menu and select "Units" to open the "Units" dialog box.
3. Select the appropriate unit system from the drop-down menu. STAAD Pro supports several unit systems, including SI, British, US Customary, and Metric.
4. In the "Global" section, select the unit system for the entire model. You can also select different unit systems for individual units, such as length, mass, and force.
5. Click "OK" to apply the selected unit system to the model.
6. Save the file.

Note: It is important to select the correct unit system before entering any data into the model. If you change the unit system after entering data, it may result in incorrect calculations and analysis. Therefore, it is recommended to define the unit system at the beginning of the modeling process.

    3. What are the parameters to be specified while using “Bay Frame” option?

The "Bay Frame" option in STAAD Pro is used to create a frame with multiple bays. When using this option, the following parameters need to be specified:

1. Number of bays: The number of bays in the frame needs to be specified. This can be done in the "Bay Frame Layout" dialog box.
2. Bay width: The width of each bay needs to be specified. This can be done in the "Bay Frame Layout" dialog box.
3. Beam section: The section properties of the beams need to be specified. This can be done in the "Beam" dialog box.
4. Beam spacing: The spacing between the beams needs to be specified. This can be done in the "Bay Frame Layout" dialog box.
5. Column section: The section properties of the columns need to be specified. This can be done in the "Column" dialog box.
6. Column spacing: The spacing between the columns needs to be specified. This can be done in the "Bay Frame Layout" dialog box.
7. Support conditions: The support conditions for the frame need to be specified. This can be done in the "Supports" dialog box.
8. Loads: The loads acting on the frame need to be specified. This can be done in the "Load" dialog box.

After specifying these parameters, the frame can be analyzed and designed using the various analysis and design options available in STAAD Pro.

    4. Name few codal standards incorporated in STAAD Pro software.

STAAD Pro software incorporates several codal standards for analysis and design of structures. Some of the codal standards included in STAAD Pro are:

1. ACI 318: American Concrete Institute (ACI) Building Code Requirements for Structural Concrete
2. AISC 360: American Institute of Steel Construction (AISC) Specification for Structural Steel Buildings
3. ASCE 7: American Society of Civil Engineers (ASCE) Minimum Design Loads for Buildings and Other Structures
4. BS 5950: British Standard (BS) Code of Practice for Design of Steel Structures
5. Eurocode 2: Design of concrete structures - Part 1: General rules and rules for buildings
6. Eurocode 3: Design of steel structures - Part 1-1: General rules and rules for buildings
7. IS 800: Indian Standard (IS) General Construction in Steel - Code of Practice
8. IS 875: Indian Standard (IS) Part 1: Dead Loads - Code of Practice for Design Loads for Buildings and Structures
9. NBC 2016: National Building Code of India 2016
10. UBC 97: Uniform Building Code (UBC) 1997

These codal standards provide guidelines for designing and analyzing various types of structures, such as concrete, steel, masonry, and wood structures.

    5. How will you specify the design compressive strength for a RCC section?

To specify the design compressive strength for a RCC section in STAAD Pro, you can follow these steps:

1. Open the STAAD Pro software and create a new file or open an existing file containing the RCC section.
2. Select the RCC section for which you want to specify the design compressive strength.
3. Click on the "Assign" button in the properties dialog box.
4. In the "Concrete Design" tab, select the appropriate design code from the drop-down menu. For example, if you are designing the RCC section as per the Indian Standard, you can select IS 456.
5. In the "Concrete Material" section, enter the value of the design compressive strength of concrete in the "fc' (MPa)" field. This value should be in the units specified in the STAAD Pro model.
6. Click "OK" to assign the design compressive strength to the RCC section.
7. Save the file.

Note: The design compressive strength of concrete is an important input parameter for the design of an RCC section. It represents the maximum compressive stress that the concrete can withstand without failing. The value of the design compressive strength depends on the grade of concrete specified for the RCC section and the design code used for the analysis and design.

_____________________________________________________________________________________________________________________________________________________

2. 1. State the “Input” steps involved in RCC design.

The "Input" steps involved in RCC design in STAAD Pro software can be summarized as follows:

1. Define the units: The first step is to define the unit system in which the input data will be entered. This can be done using the "Units" option under the "File" menu.
2. Create the geometry: The next step is to create the geometry of the structure using the various structural elements available in STAAD Pro, such as beams, columns, slabs, walls, etc. The geometry can be created using either the graphical interface or the text editor.
3. Define the properties: Once the geometry is created, the next step is to define the properties of the structural elements. This includes defining the cross-section properties, material properties, support conditions, and loads acting on the structure.
4. Assign the design codes: The next step is to assign the appropriate design codes for the analysis and design of the RCC structure. This includes selecting the appropriate design code for concrete and steel, depending on the type of structure and its location.
5. Analyze the structure: After the input data is entered and the appropriate design codes are assigned, the structure can be analyzed using various analysis options available in STAAD Pro. This includes performing linear or nonlinear static analysis, dynamic analysis, and finite element analysis.
6. Design the structure: Once the analysis is complete, the next step is to design the RCC structure as per the design codes assigned. This includes checking the structural elements for strength, serviceability, and stability, and designing the reinforcement as per the specified code.
7. Generate the output: Finally, the output reports can be generated to review the analysis and design results. This includes generating various graphical and tabular reports, such as bending moment diagrams, shear force diagrams, reinforcement details, and design summary reports

    2. Explain the difference between Fixed and Enforced support condition in STAADPro.

In STAADPro, Fixed support condition and Enforced support condition are two different types of support conditions that can be assigned to a structural element. The main differences between these two support conditions are as follows:

1. Fixed Support: A fixed support is a support condition that completely restricts all the six degrees of freedom (translations and rotations) of a structural element at a particular node. This means that the element cannot move or rotate in any direction at that node. Fixed support condition is represented as "Fixed" or "F" in STAADPro.
2. Enforced Support: An enforced support is a support condition that allows some or all of the degrees of freedom of a structural element to be restrained at a particular node. This means that the element can move or rotate in some directions, but not in others. Enforced support condition is represented as "Enforced" or "E" in STAADPro.

The main difference between Fixed and Enforced support condition is the degree of freedom of the structural element. In Fixed support condition, all six degrees of freedom are completely restrained, whereas in Enforced support condition, only some or all of the degrees of freedom are restrained based on the requirement.

Another difference is in the way the support condition affects the structural analysis. In the case of a Fixed support condition, the reactions at that node are fully defined, and the element cannot move or rotate. This makes the analysis simpler, as the forces and moments at that node are known. However, in the case of an Enforced support condition, the reactions at that node are not fully defined, and the element can move or rotate in some directions. This makes the analysis more complex, as the forces and moments at that node need to be calculated based on the enforced displacements or rotations.

In summary, Fixed support condition fully restrains all six degrees of freedom of a structural element, while Enforced support condition allows some or all of the degrees of freedom to be restrained based on the requirement.

____________________________________________________________________________________________________________________________________________________

3. 1. Explain the steps involved in analysis of a model using STAAD Pro sequentially.

The following are the steps involved in the analysis of a model using STAAD Pro sequentially:

1. Define the units: The first step is to define the unit system in which the input data will be entered. This can be done using the "Units" option under the "File" menu.

2. Create the geometry: The next step is to create the geometry of the structure using the various structural elements available in STAAD Pro, such as beams, columns, slabs, walls, etc. The geometry can be created using either the graphical interface or the text editor.

3. Define the properties: Once the geometry is created, the next step is to define the properties of the structural elements. This includes defining the cross-section properties, material properties, support conditions, and loads acting on the structure.

4. Assign the design codes: The next step is to assign the appropriate design codes for the analysis and design of the structure. This includes selecting the appropriate design code for concrete and steel, depending on the type of structure and its location.

5. Create load cases: Once the structure is modeled and properties are defined, the next step is to create load cases. Load cases are the various combinations of loads that the structure is designed to resist. Load cases can be created using the "Load" option under the "Load" menu.

6. Apply loads: After creating the load cases, the loads need to be applied to the structure. Loads can be applied using the "Load" option under the "Load" menu or by using the graphical interface.

7. Define analysis type: Once the loads are applied, the next step is to define the analysis type. STAAD Pro offers various types of analysis, such as linear static, nonlinear static, and dynamic analysis. The appropriate analysis type needs to be selected based on the requirement.

8. Run analysis: After defining the analysis type, the next step is to run the analysis. This can be done using the "Analyze" option under the "Analysis" menu. STAAD Pro will then perform the analysis and calculate the various results, such as reactions, shear forces, bending moments, displacements, etc.

9. Review analysis results: After the analysis is complete, the results need to be reviewed to ensure that the structure is safe and meets the design requirements. The results can be reviewed using the various graphical and tabular reports available in STAAD Pro, such as bending moment diagrams, shear force diagrams, displacement diagrams, etc.

In summary, the steps involved in the analysis of a model using STAAD Pro include defining the units, creating the geometry, defining the properties, assigning the design codes, creating load cases, applying loads, defining analysis type, running the analysis, and reviewing the analysis results.

    2. Explain the two ways in which a structural framework/model can be created in STAAD Pro software.

STAAD Pro software provides two ways to create a structural framework/model:

1. Graphical Interface: This is the most commonly used method of creating a structural framework/model in STAAD Pro. In this method, the user can create the framework/model by using the graphical interface provided by STAAD Pro. The graphical interface provides various tools to create structural elements such as beams, columns, slabs, walls, etc. These elements can be created by specifying the dimensions, coordinates, and orientation of the element. The graphical interface also provides tools to assign properties, loads, and support conditions to the structural elements. This method of creating a structural framework/model is intuitive and easy to use, especially for beginners.
2. Text Editor: The second method of creating a structural framework/model in STAAD Pro is by using the text editor. In this method, the user can create the framework/model by typing the input data into a text file using a specific syntax defined by STAAD Pro. This method is useful for creating complex structures that cannot be easily created using the graphical interface. It also allows for the input of large amounts of data quickly and efficiently. However, this method requires a good understanding of the STAAD Pro syntax and can be more difficult to use for beginners.

In summary, the two ways to create a structural framework/model in STAAD Pro are using the graphical interface and the text editor. The graphical interface is intuitive and easy to use, while the text editor allows for the input of large amounts of data quickly and efficiently, especially for complex structures.

    3. Elaborate the different support conditions in STAAD Pro.

In STAAD Pro, there are several types of support conditions that can be assigned to structural elements. These support conditions define the way in which the structural element is supported by the ground or other structural elements. The following are the different support conditions available in STAAD Pro:

1. Fixed: A fixed support condition, also known as a fully restrained support condition, prevents the structural element from moving in any direction or rotating about any axis. This type of support condition is used when the element is completely fixed to a rigid foundation or other structural element.
2. Pinned: A pinned support condition allows the structural element to rotate about a particular axis but does not allow any translational movement in that axis. This type of support condition is commonly used for beams or trusses that are supported by columns.
3. Roller: A roller support condition allows the structural element to move in one direction along a particular axis but prevents any movement perpendicular to that axis. This type of support condition is commonly used for beams or trusses that are supported by columns or walls.
4. Hinged: A hinged support condition allows the structural element to rotate about a particular axis and also allows translational movement in that axis. This type of support condition is commonly used for arches or other types of curved elements.
5. Enforced: An enforced support condition is used to specify a displacement or rotation for a particular node or point on the structural element. This type of support condition is commonly used for complex structures where specific displacements or rotations need to be enforced.
6. Spring: A spring support condition allows for a linear or nonlinear spring to be added to a particular node or point on the structural element. This type of support condition is commonly used for seismic analysis or for modeling soil-structure interaction.

In summary, STAAD Pro offers several types of support conditions that can be assigned to structural elements, including fixed, pinned, roller, hinged, enforced, and spring. The selection of the appropriate support condition depends on the type of structure being modeled and the behavior of the structural elements.

    4. How will you extract the stress distribution for a staircase slab?

To extract the stress distribution for a staircase slab in STAAD Pro, follow these steps:

1. Open the STAAD Pro software and load the model file that contains the staircase slab.
2. Go to the Results menu and select Post Processing.
3. In the Post Processing window, select the Load Case and Combination for which you want to view the stress distribution.
4. Select the option to View Contour and then choose the type of contour you want to view. For a staircase slab, you may want to view the contour for Von Mises stress.
5. Next, select the elements for which you want to view the stress distribution. In this case, select the elements that represent the staircase slab.
6. Click on the OK button to generate the contour plot for the selected elements.
7. The contour plot will display the stress distribution for the selected load case and combination. You can view the contour plot for different load cases and combinations by selecting them from the Post Processing window.

In summary, to extract the stress distribution for a staircase slab in STAAD Pro, you need to select the appropriate load case and combination, choose the type of contour to view, select the elements that represent the staircase slab, and generate the contour plot.

    5. Explain the different ways to view SFD & BMD in STAAD Pro.

In STAAD Pro, there are different ways to view the shear force diagram (SFD) and bending moment diagram (BMD) for a structure. The following are the different ways to view SFD and BMD in STAAD Pro:

1. Diagrams in the Analysis and Design Reports: Once the analysis and design of the structure is complete, STAAD Pro generates analysis and design reports that contain diagrams of the SFD and BMD. These diagrams can be viewed by opening the corresponding reports.
2. Graphical Display in the Post Processing Window: The Post Processing window in STAAD Pro provides a graphical display of the SFD and BMD. This can be accessed by selecting the Load Case and Combination for which the SFD and BMD need to be viewed and then selecting the appropriate option from the Graphical Display menu.
3. Table of Values in the Post Processing Window: In addition to the graphical display, STAAD Pro also provides a table of values that can be used to view the SFD and BMD. This table can be accessed by selecting the Load Case and Combination and then selecting the option to view Table of Forces from the Graphical Display menu.
4. Diagrams in the Geometry and Model Views: STAAD Pro also allows for the visualization of the SFD and BMD on the model itself. This can be done by selecting the Geometry or Model Views and then selecting the appropriate option to display the SFD and BMD.
5. Interactive Display in the Post Processing Window: Finally, STAAD Pro provides an interactive display of the SFD and BMD in the Post Processing window. This allows users to zoom in, pan, and rotate the diagram for better visualization.

In summary, STAAD Pro provides multiple ways to view the SFD and BMD, including diagrams in analysis and design reports, graphical and tabular displays in the Post Processing window, visualization on the model itself, and an interactive display in the Post Processing window.

_____________________________________________________________________________________________________________________________________________________

Practical
1. Analyze the following structural elements and validate the results
A. Simply Supported Beam
           a. A Simply supported beam with two point loads symmetrically placed
           b. Span L = 20m
           c. Load P = 50kN each
           d. Both P located at 5m from each support

B.Fixed Beam

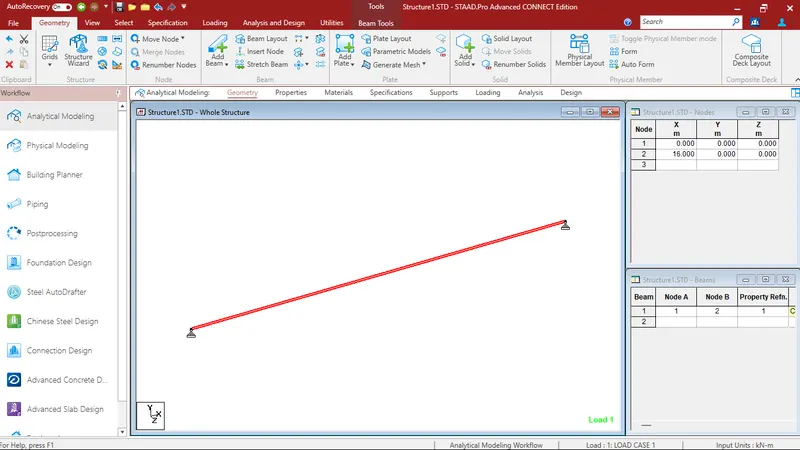

           a. Span L = 16m

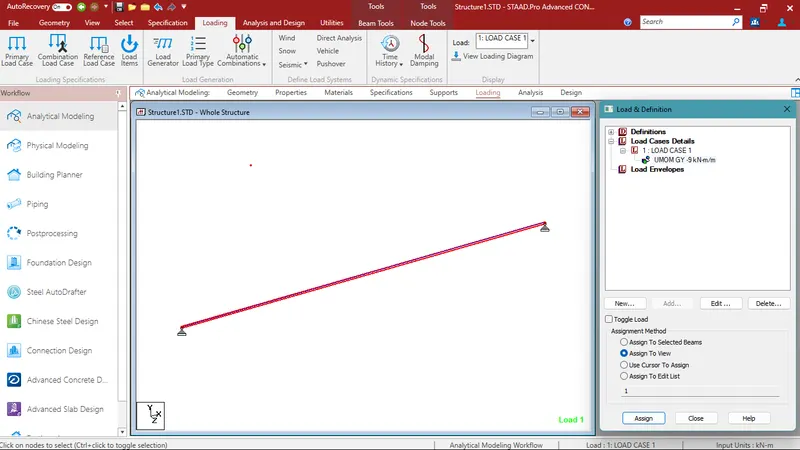

           b. Uniformly Distributed Load w=9kN/m

STAAD PRO FILE IS ATTACHED BELOW
