Week -2

AIM:- To Create a Simulink Model for the Vehicle Direction Detection, by using the given input signals and the logic given in the requirement Document.   Mini Project - Vehicle Direction Determination General Overview: Identifying the direction of the vehicle is one of the important & diverse features in…

Aim:  To Create a Simulink Model for Adaptive Cruise Control and Generating code for it. General Overview: Adaptive Cruise Control Feature for passenger cars allows the host vehicle to adapt to the speed in line with the flow of traffic. Driving in heavy traffic or keeping a safe distance to the preceding vehicle…

For a 10 cell series lithium ion battery model, simulate the thermal effects and compare life cycle performance at various temperatures, charge & discharge rates using MATLAB.   ANSWER:   consider the model example showing 20 cell series connected out of which 10th cell is faulty. we can get this model from…

Preparing a battery pack using cell: ANR26650M1-B CAPACITY:18KWh.   cell details and specifications ANR26650M1-B is a Nano phosphate High power Li-ion cell. The dimensions of the cell are from the name we can find. that is 26 represents the diameter and 65 represents the height and 0 represents the cylindrical structure.…

Aim: Simulate the 3 test cases from harness dashboard and write a detailed report on the results. The closed-loop harness dashboard of the Battery management system is shown below.   The above system model consists Test sequence variant through which we can implement the test cases. and BMS closed loop block and the…

#ANSWER 1:   Lithium Cobalt Oxide (LCO):  Cobalt oxide is used as a Cathode terminal. and Graphite carbon is at the anode terminal. these batteries have short life span. and these are having low thermal stability.       Lithium Manganese Oxide(LMO):   *Here Manganese Oxide is acting as the…

  Create a MATLAB model of an electric car that uses a battery and a DC motor. Choose suitable blocks from the Powertrain block set. Prepare a report about your model including the following: Objectives:         1. System-level configurations        2. Model parameters…

#ANSWER 1:  Air craft gross weight is abbreviated as AUW ( all up weight ) which means the total aircraft weight under flying and on ground also. The maximum weight capacity of an aircraft is mentioned as the structural weight limits. These are based on aircraft maximum structural capability. 1.Maximum design…

#ANSWER 1: Consider a vehicle with Kerb weight =800kg and payload = 200kg we constructed a driving cycle using Microsoft Excel and  we found the energy for each second. let V1 be the initial velocity and V2 be the final velocity in m/s. and m be the total weight of the vehicle that includes kerb weight and payload.…

#ANSWER 1A:        SPEED CONTROL OF DC MOTOR USING BJT H BRIDGE:           A DC motor spins either backward or forward, depending on how you connect the plus and the minus. If you close switch 1 and 4, you have plus connected to the left side of the motor and minus to the other…

  #ANSWER 1:     In the past decades, power device technology has made a tremendous progress. These power devices have grown in power rating and performance by an evolutionary process. Among existing power devices, including the thyristor, gate turn-off thyristor (GTO), power bipolar-junction transistor…

#ANSWER 1:   MAPPED MODEL OF ENGINE:                In Mapped Models the data used for the operation and simulation are to be entered in a form of Lookup Table which would be then configured with the operational parts and the analysis would be formed. If the detailed specifications/Lookup…

#ANSWER1 :    In the ADVISOR tool EV_defaults_in file is loaded with cargo mass 500 kg has been setup. and now select continue,       change the drive cycle to cyc_ftp with 3 cycles. and click on run, here the vehicle stops after completing  41.4 kms so it has failed to reach the 45 kms.  …

 AIM:    To carry out system level simulation of all terrai vehicle.   To study the BAJA ATV model with lookup table and with out lookup table.   model:   BAJA ATV The input parameters brake and throttle inputs:  * the brake is not applied * throttle input is 0.5 through out the 80 seconds.…

1.   DESCRIPTION:       control logic for washing machine using stateflow        1.   If the power supply is available, the system gets activated.       2.   If the Water supply is not available, stop the process & indicate no water LED. …

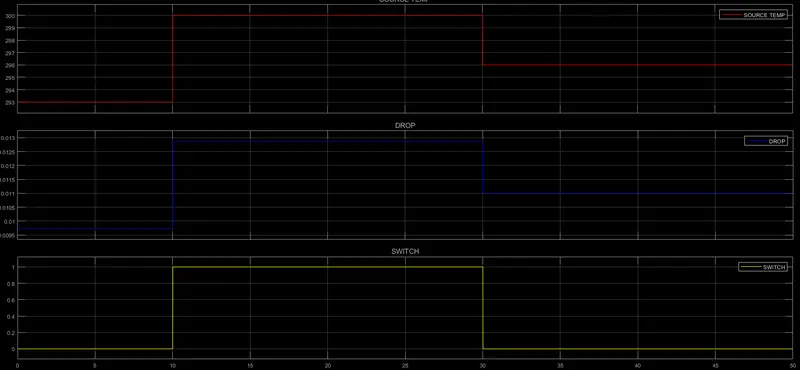

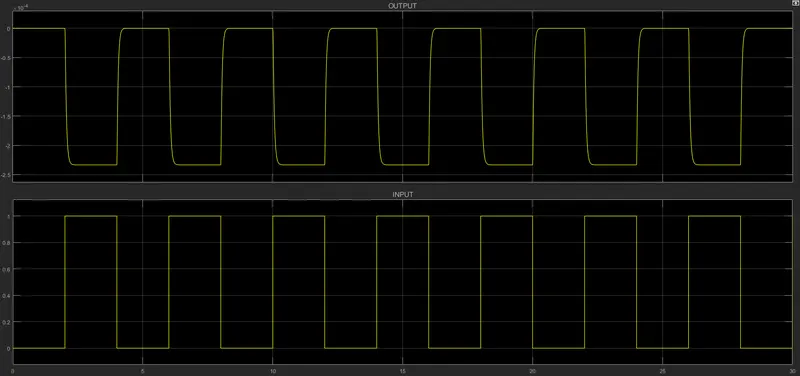

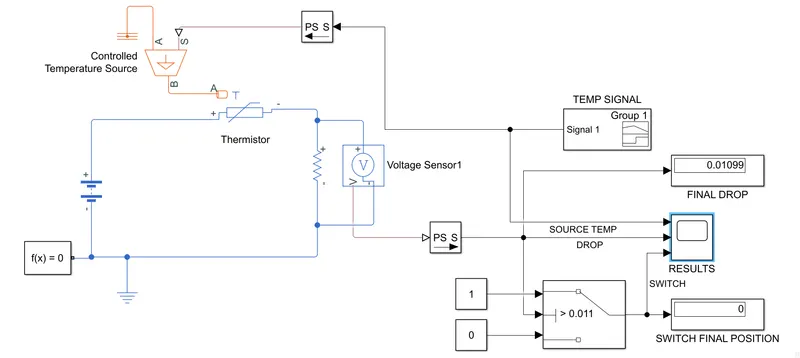

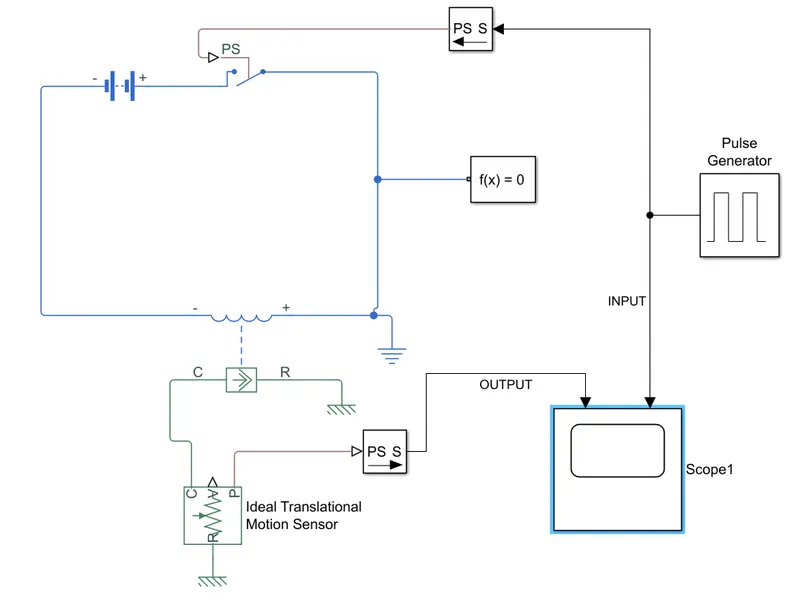

1.DOOR BELL  and the result is       2.THERMISTOR HEAT SENSOR:   The result is
