1.

DESCRIPTION:

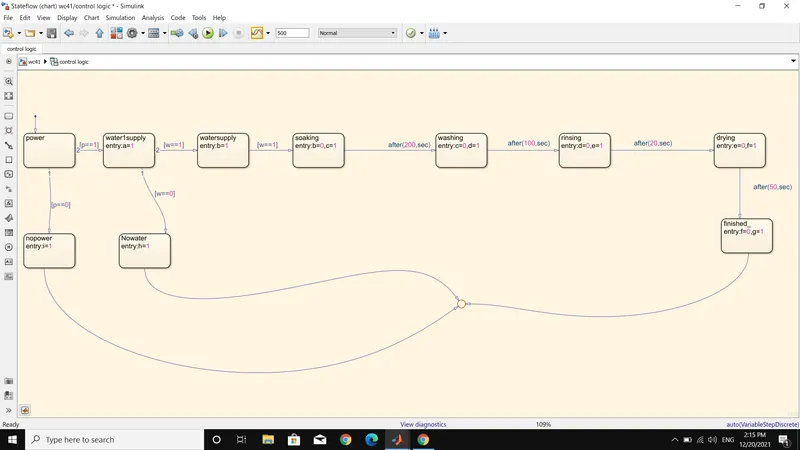

control logic for washing machine using stateflow

1. If the power supply is available, the system gets activated.

2. If the Water supply is not available, stop the process & indicate no water LED.

3. Soaking time is 200s and then Washing time is 100s.

4. Then rinsing happens for next 20s & dryer runs for 50s.

5. After all the processes have completed turn on the finished LED..

RESULT:

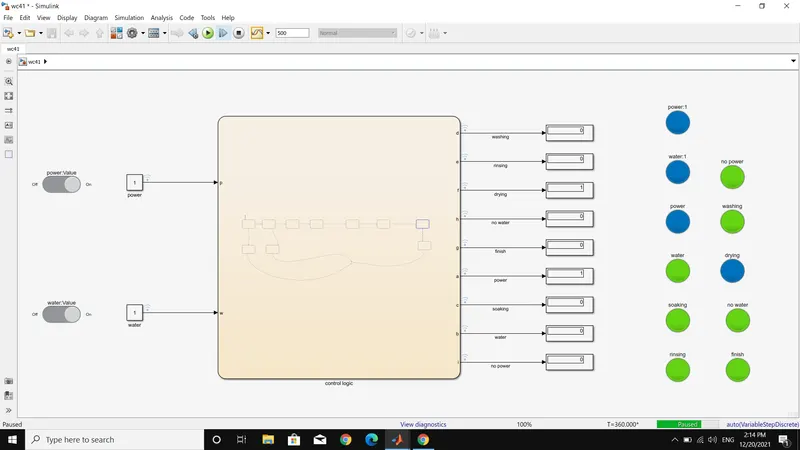

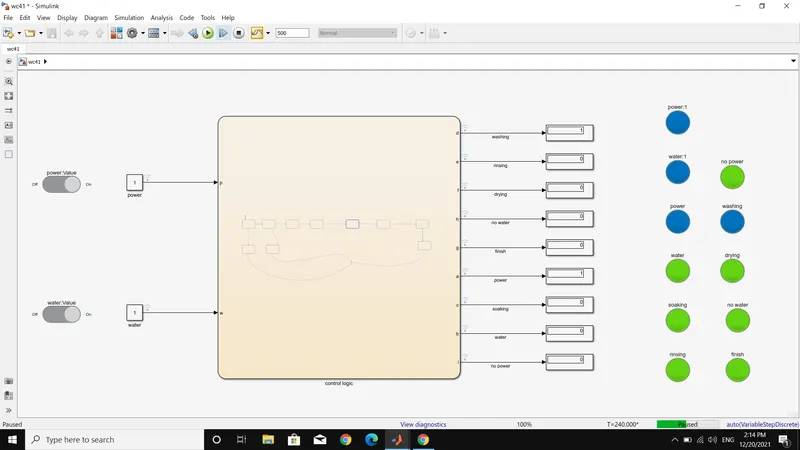

*Control Logic

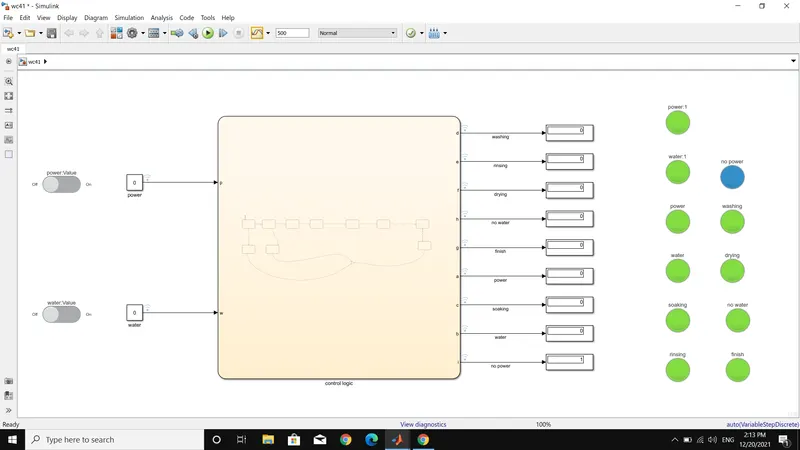

* if power and water supply is off, then "no power" bulb glows blue.

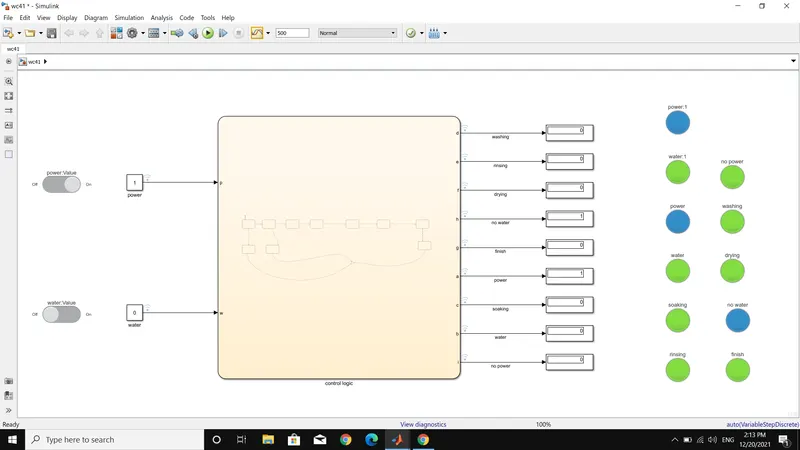

* if the power is on and no water supply

* if power and water both are available

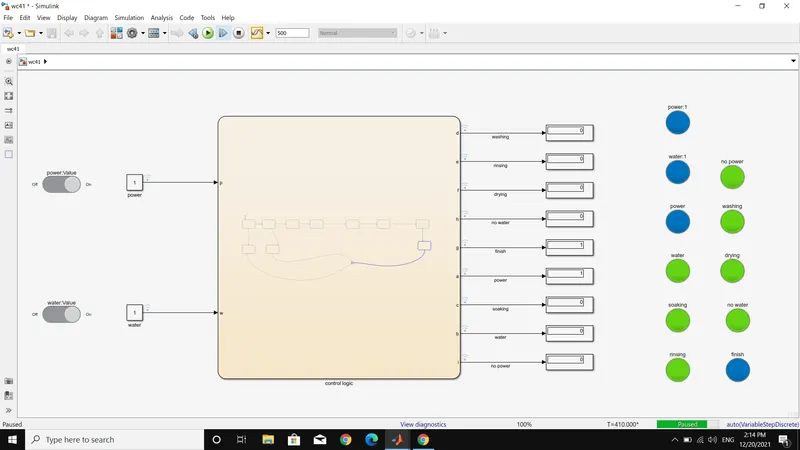

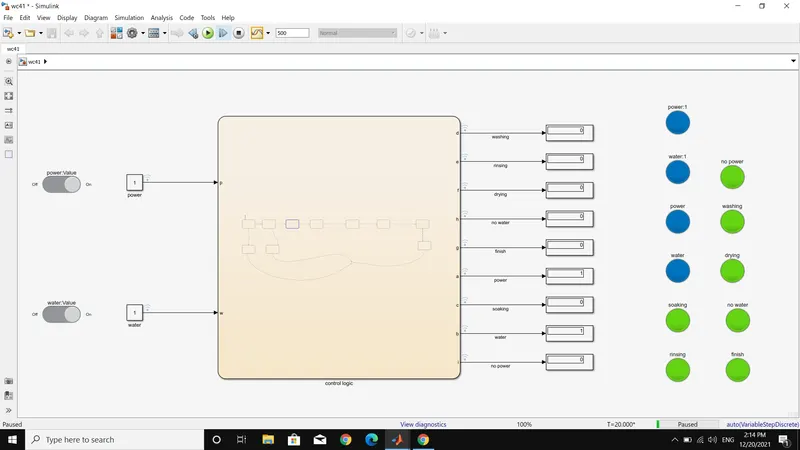

step wise results

2.

DESCRIPTION:

Simulink chart for the “Gear shift” logic as per below conditions:

Speed Range(kmph) Gear

0 to 15 1

16 to 25 2

26 to 40 3

41 to 60 4

Above 61 5

RESULT:

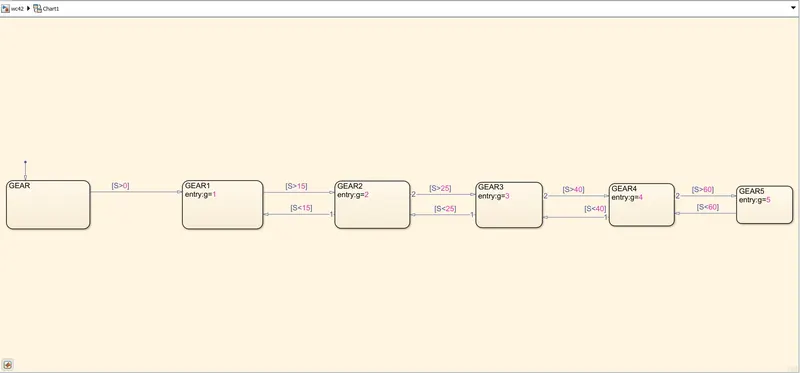

* CONTROL LOGIC

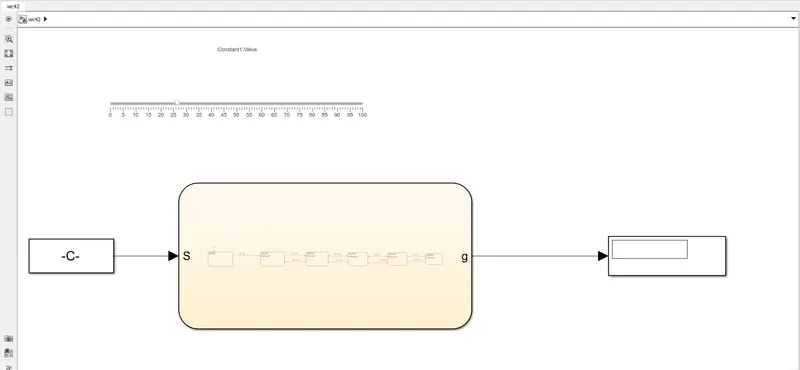

MODEL:

RESULT:

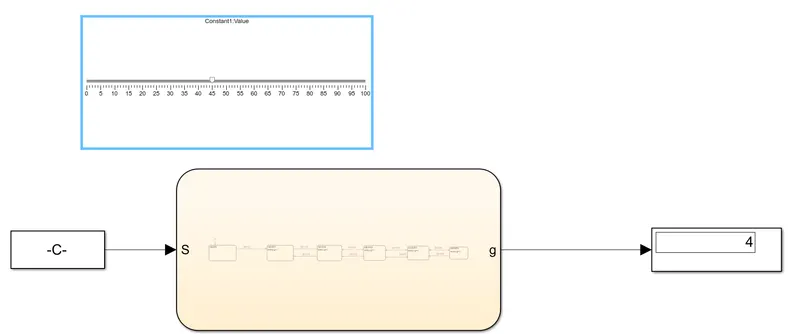

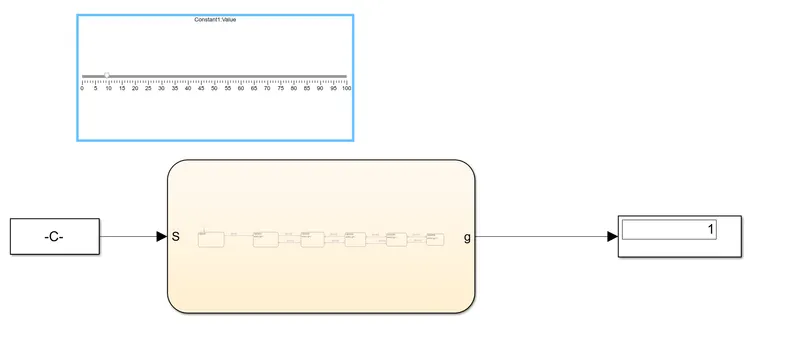

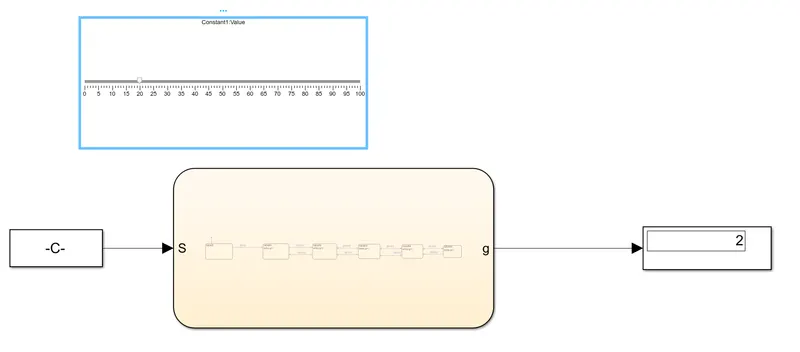

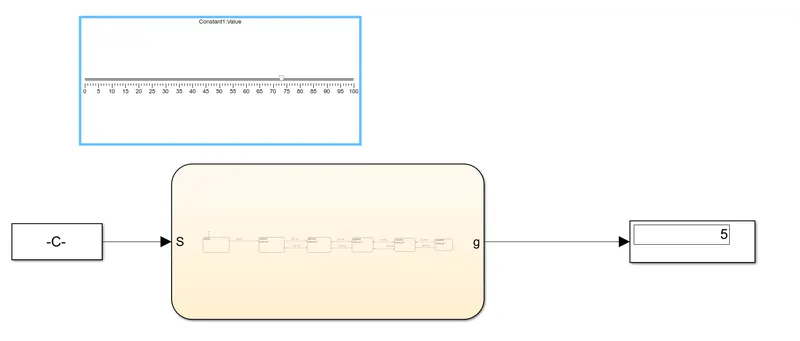

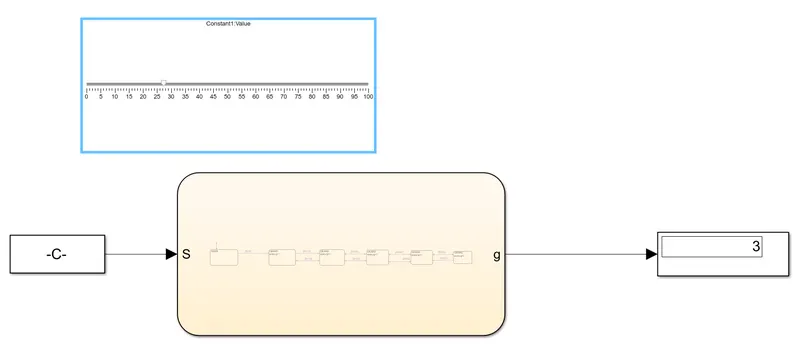

changing the speed using sliding controller

and running the model we get the gear number in the display.

1.

2.

3.

4.

5.
