Week 11 - Project - A pillar Design with Master Section

A pillar Design with Master Section

AIM:To design A -PILLAR , from the given input mastersection and CLASS A surface.

Objective: The main objective of this challenge is to understand the given master section to create a solid body and B-side features for a given class A surface, by considering all the design parameters.

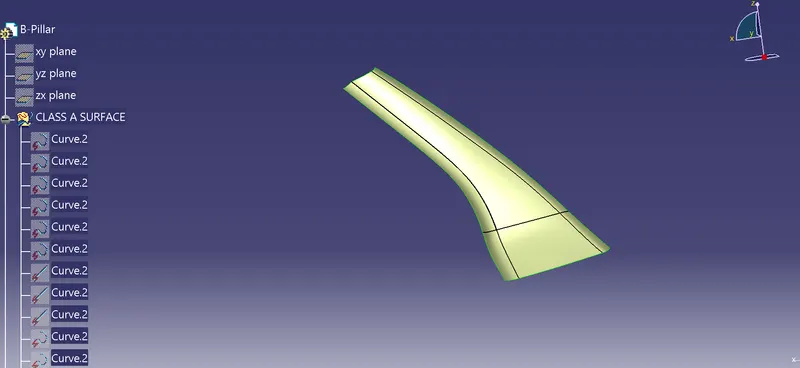

CLASS A SURFACE:

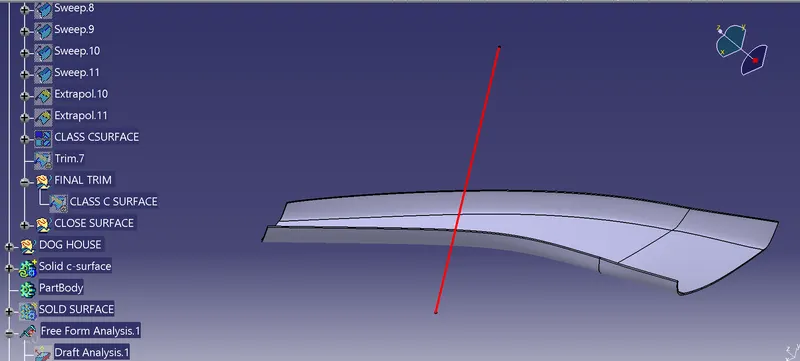

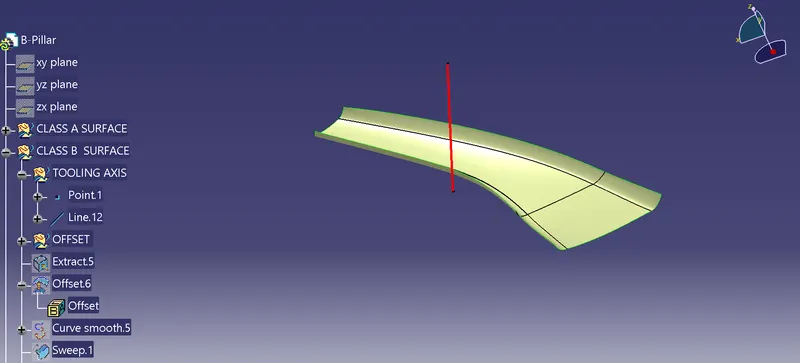

TOOLING AXIS:

• Now we create tooling axis for the Class A. First a create axis system for where we want, then we create intersect based on the axis system.
• Extract the bottom surface and insert point on a surface then create lind based on a point.

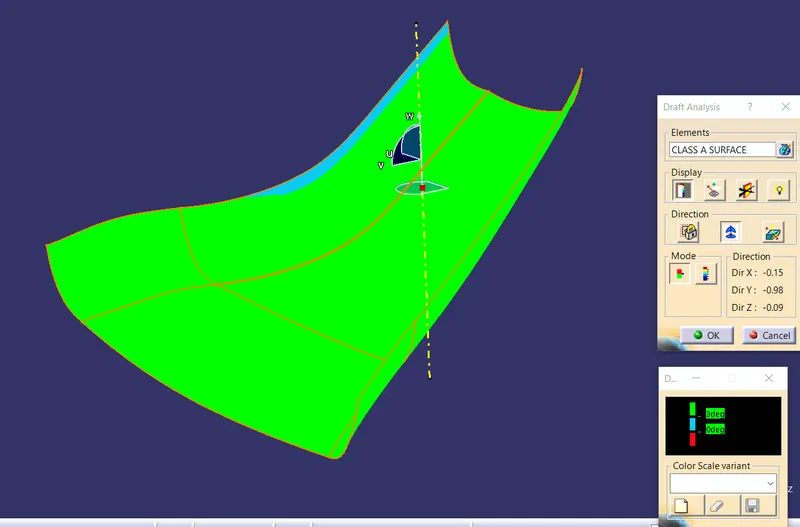

Draft analysis for class A surface:

The craft analysis check is performed on the class A surface before we create the solid part from that class A surface, to check whether the given class A surface is drafted properly or not. The draft angle for a plastic component is 0.5deg to 3deg).

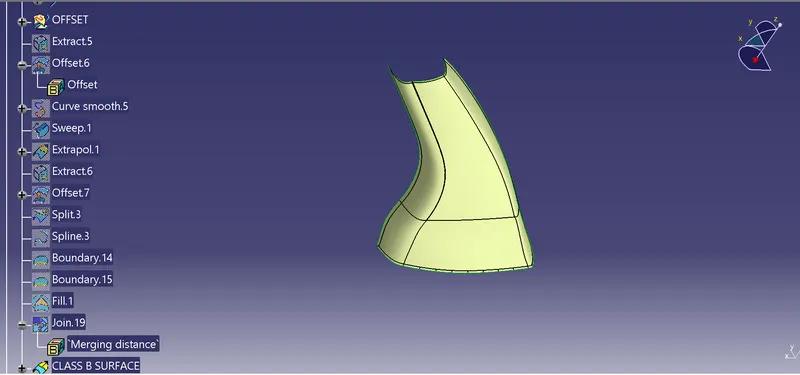

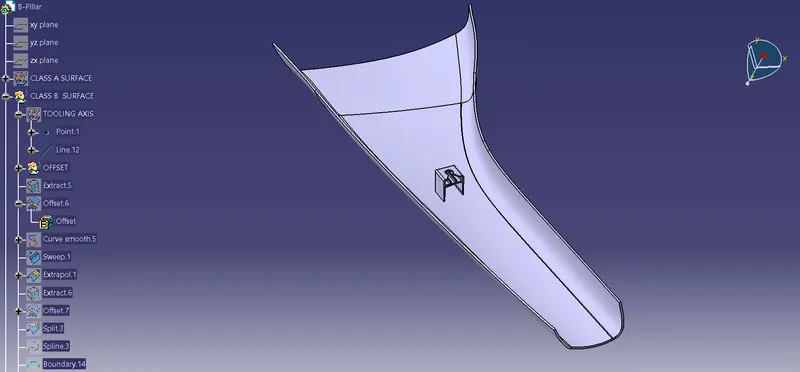

CLASS B SURFACE:

To create the class B surface initially, I measured the thickness of the master section (2.5mm). I offset the class A surface 2.5mm to the inside direction. The styling fillets on the class A surface are not offset properly, it created the patch on the offset surface. I used the sweep command to close the patch on the offset surface.

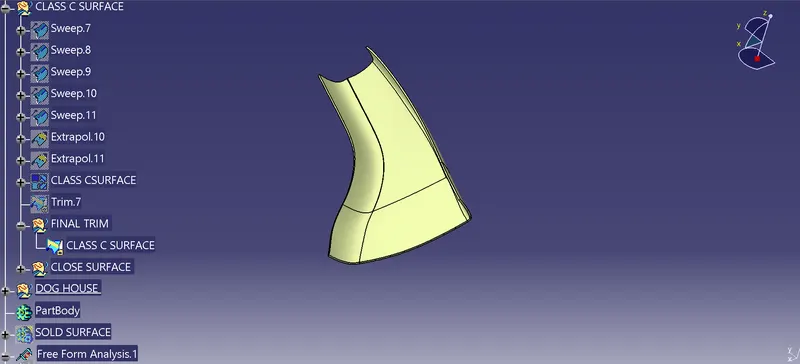

Class C surface:

• Class C is nothing but its connecting part of Class A & B.

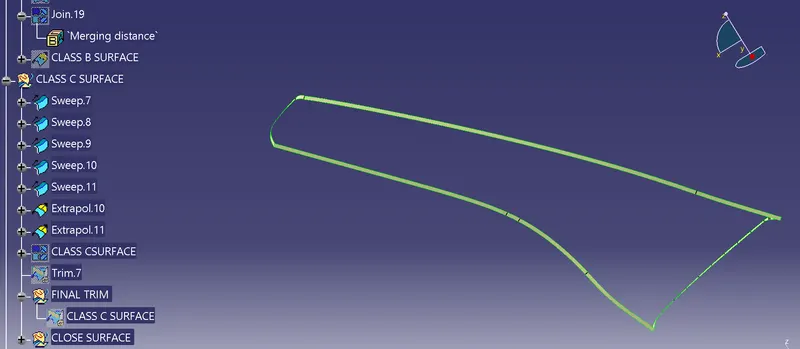

• Unhide the class A and take boundary of its and now boundary select the all corner of a class A and use sweep commends the we get a class c of boundary in Class A.
• Then trim it finally get class C.

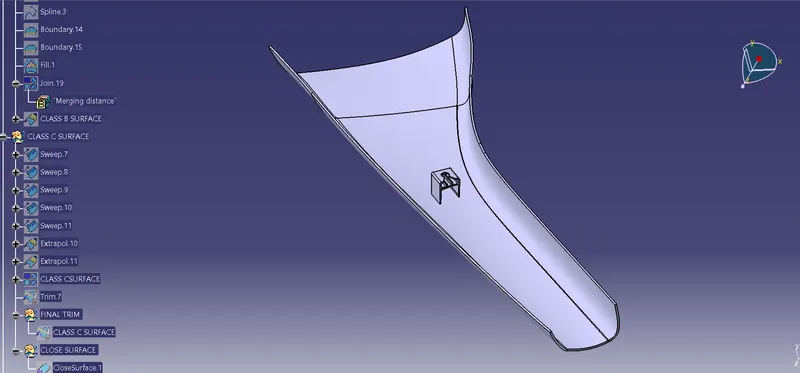

Solid part body:

To create the solid part body, I used closed surface command in the part-workbench. I gave the closed surface as an input in the closed surface command.

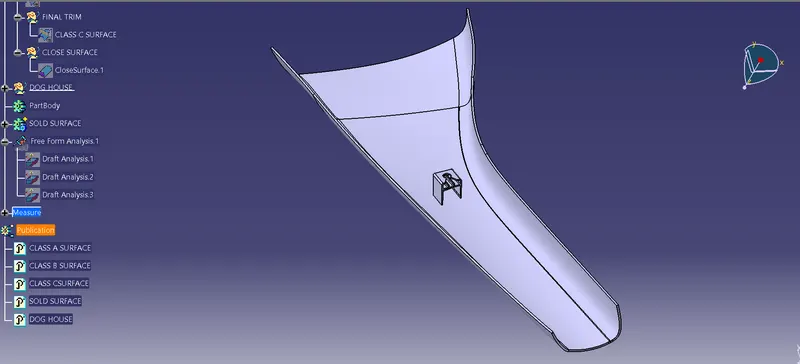

Dog House creation:

• Create sketch for a dog house, and pad it.
• Then pad this sketch, now shell the pad with 2.5 mm.
• Now create a ribs is inside a dog house, create a sketch for a ribs,use master section.
• Then pad this sketch . Next use add with dog house, get a ribs for the body.

DRAFT ANALYSIS:

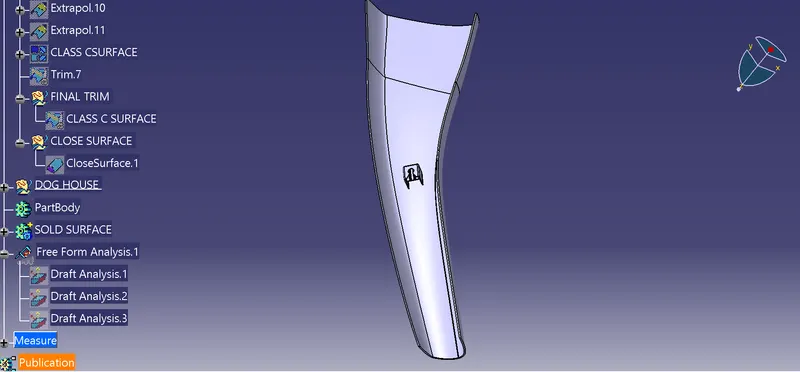

TREE STRUCTURE:

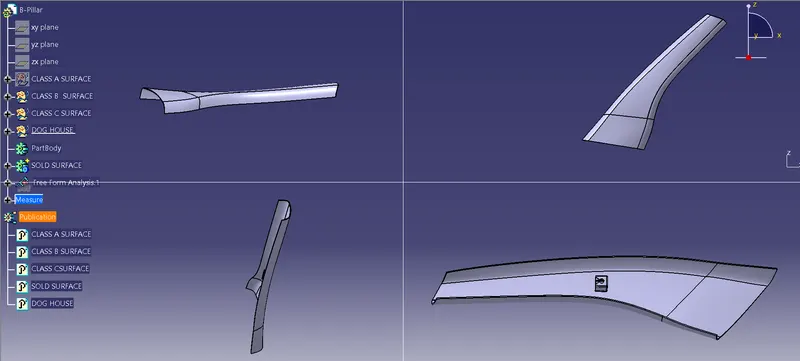

MULTIPLE VIEWS:
