Usage of Navigation tool , Timeliner and Clash Detection test using Naviswork

1) Use the Architecture/ Structure Project file developed by you in Week 6 to 8. Export the Revit architecture and structure model to Navisworks Cache file following the export settings discussed in class.

ANS-

AIM- TO EXPORT NWC FILE FROM REVIT ARCHITECTURE.

PROSEDURE-

• first open last project of revit.

• now in file option of revit we have a option of EXPORT.
• Click on it . now in export option click on EXPORT TO NWC.
• After exporting nwc open it into the naviswork manage.

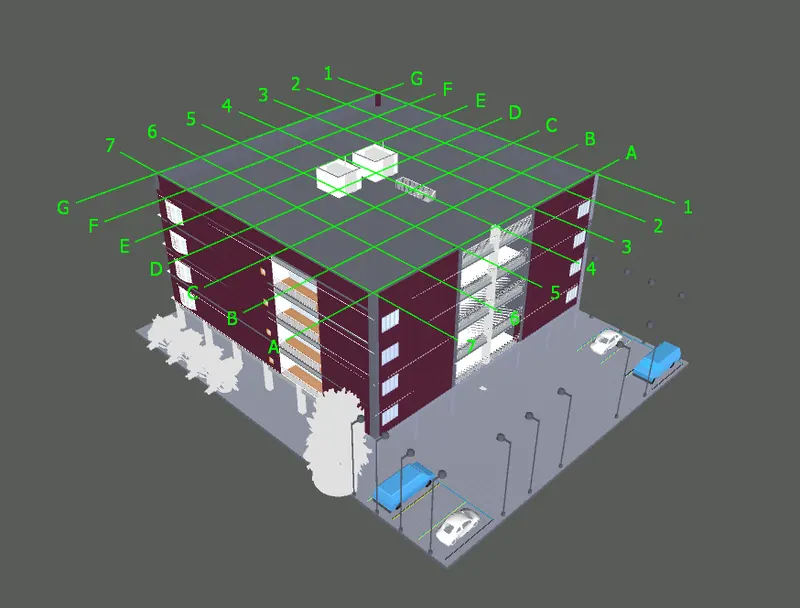

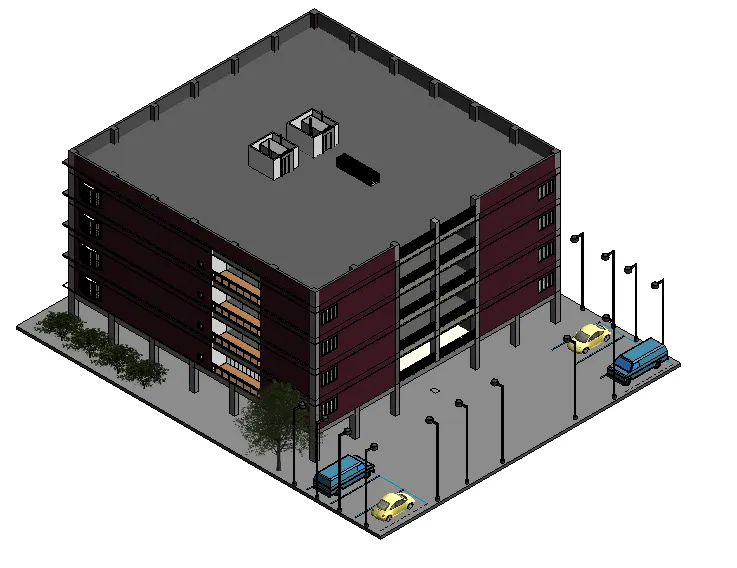

• in the navis work file will look like this.

2) Use Navigate Tool to walk around the model and walk through the rooms created and record your moving as animation in your Navisworks file

ANS-

AIM-USING NAVIGATE TOOL WALK AROUND MODEL AND ROOMS.

PROSEDURE-

• after 1st que open naviswork and import revit project.
• in naviswork we have an option of walk under the viewpoint tab.

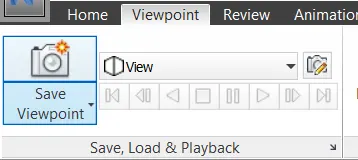

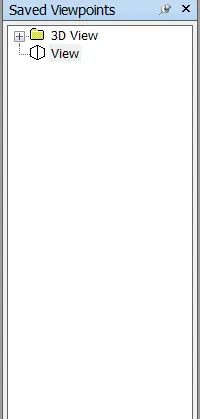

• for save the view click on SAVE VIEWPOINT option.

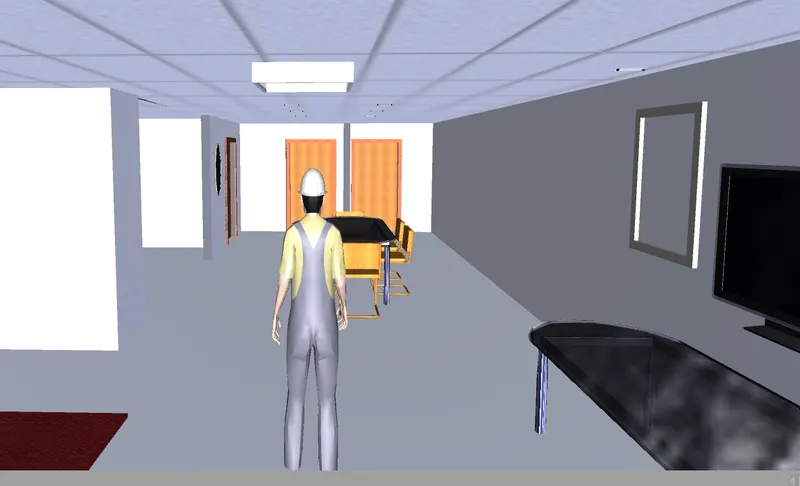

• now using mouse scrol botton we can move around the building or rooms.

3) Use Navigate tool to use Realism feature to walk through the model and record your moving as animation in Navisworks file.

ANS-

AIM- USE A REALISM FEATURE TO WALK THROUGH THE MODEL.

PROSEDURE-

• open a project file in navis work.

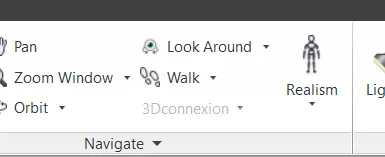

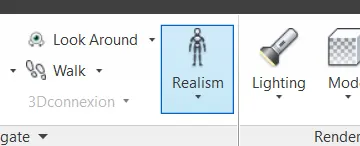

• under the viewpoint tab select realism feature.

• now same as a second question we can move arount the model using walk option and also record it.

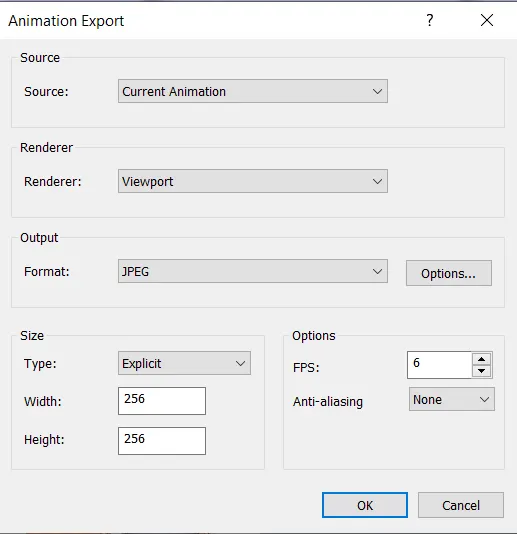

• now for the export the video go to animation tab and export it.

4) Embed both architecture and structure *.nwc file to your Navisworks file. Create a clash detection test between the two models
a. Run the Clash Detection Test
b. Study the clashes between the two models
c. List which of the clashes could be approved
d. List which of the clashes could be neglected ( will be taken care later)
e. List which of the clashes can be resolved
f. Save the results after color coding the clashes to the Navisworks file
g. In case of resolution annotate the clash and save the view to defined views in Navisworks.

ANS-

AIM- TO CREATE A CLASH DETECTION TEST..

PROSEDURE-

• first open naviswork manage.
• now under the home option select option APPEND.

• using this option we can import both arctitecture and structure file.

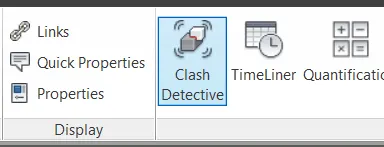

• after importing go for clash detection option.

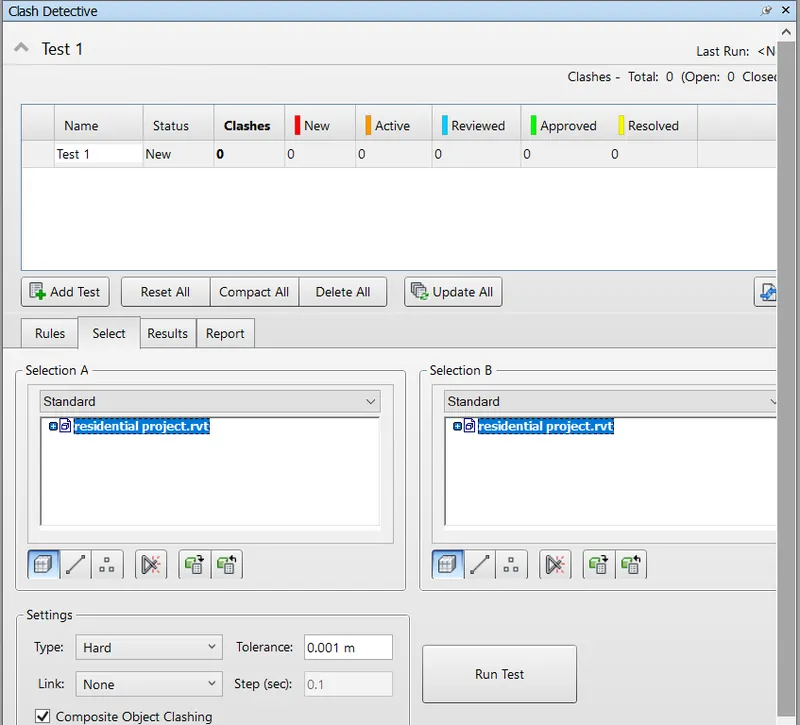

• now create new test and select both file as shown below and run the test.

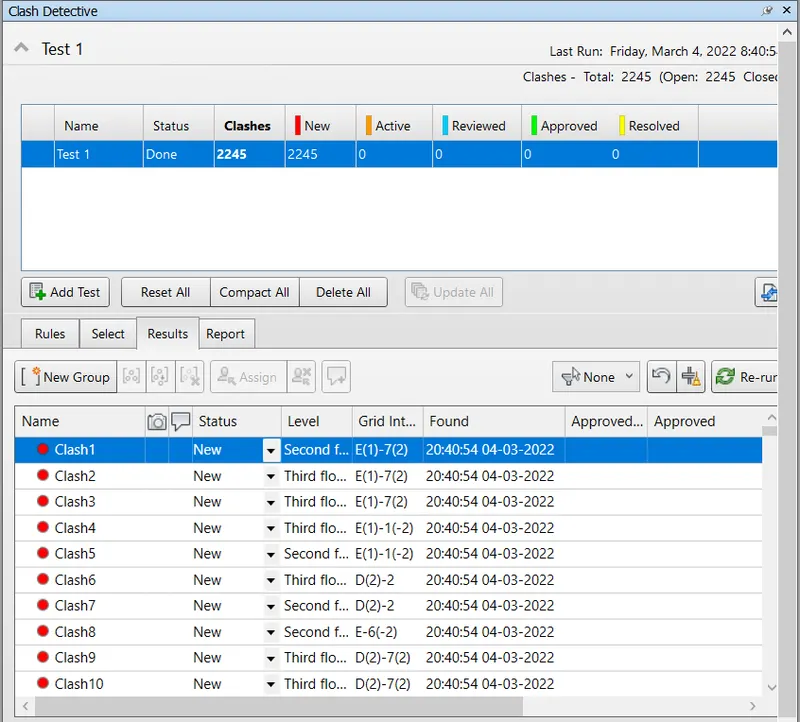

• after the test result will look like this.
• it will show all clash in our project.

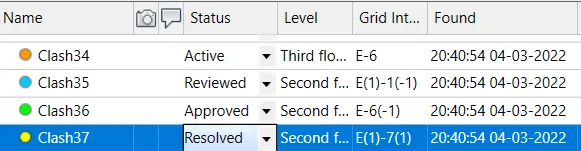

• now in status option we can change it to active,viewed,resolved,approved etc.

5) Using the Timeliner feature in Navisworks prepare a schedule for the project developed in week 6 to 8 by adding reasonable assumptions for task start date and end date and simulate the task completion as a visual simulation. Record it and save the timeline simulation to Navisworks file.

ANS

AIM- TO CREATE TIMELINER IN NAVISWORKS.

PROSEDURE-

• first open project in navisworks.

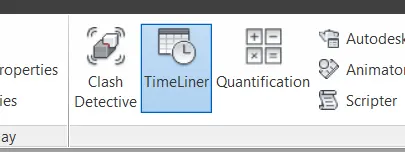

• now select timeliner option.

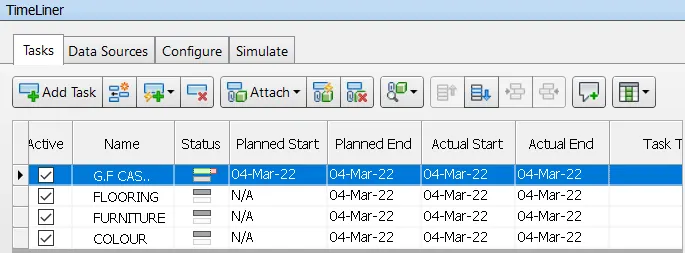

• now selct on new task and create new timeliner as per requirment.
• give name , status , planned start , end date etc.
• in simulate option we can see animated video.
