Drafting of various geometries using Chamfer, Fillet tool in AutoCad

QUE- DRAW THE GIVEN FIGURES.

FIGURE-1

AIM-TO DRAW FIRST FIGURE GIVEN IN ATTACHMENT.

COMMAND USED IN FIGURE -1

• LINE
• CIRCLE
• DIMSTYLE
• UNITS

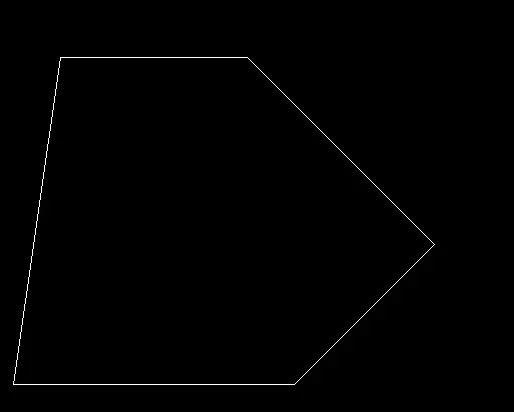

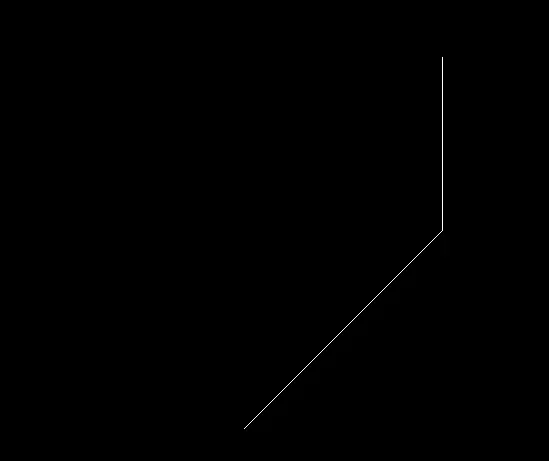

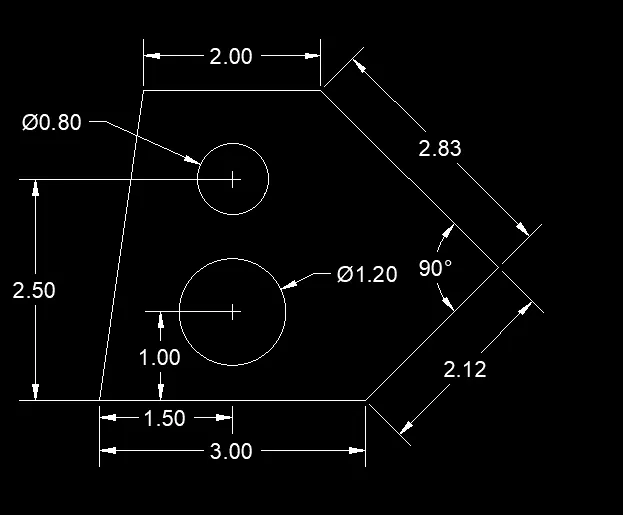

PROCEDURE FOR DRAWING -1

• Open Autocad And Set the Decimal Precision to 0.00.

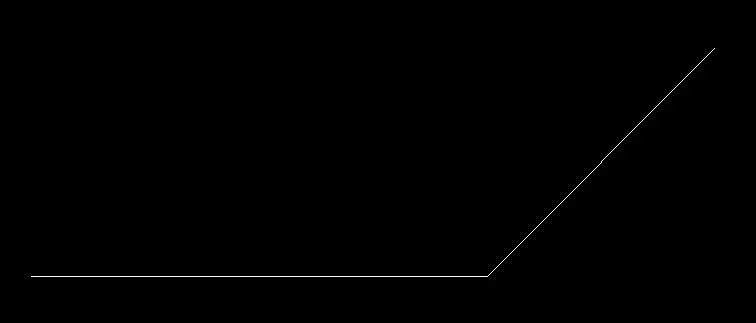

• take Line Command And Draw The line of 1.5 and another line of 1.5 in x direction.
• take next line at @2.12<45 from the end of last line.

• next take the last point and draw the line at @2.83<135.
• then same as above draw next point @2<180.
• close the geometry by joining the last and first point.

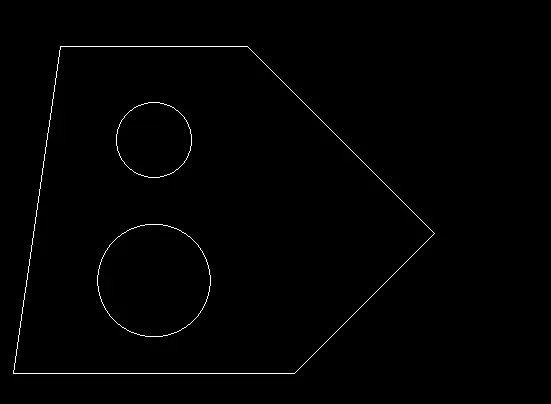

• now take the circle command .
• take diameter of 0.80 and put the circle at the point of 1.50,2.50 .
• same as above take new diameter of 1.20 and put that circle 1.50,1 .

RESULT:- GIVEN DRAWING IS SUCCESFULLY DRAWN.

FIGURE-2

AIM-TO DRAW FIGURE-2 GIVEN IN ATTACHMENT.

COMMAND USED IN FIGURE-2

• LINE
• DIMSTYLE
• UNITS

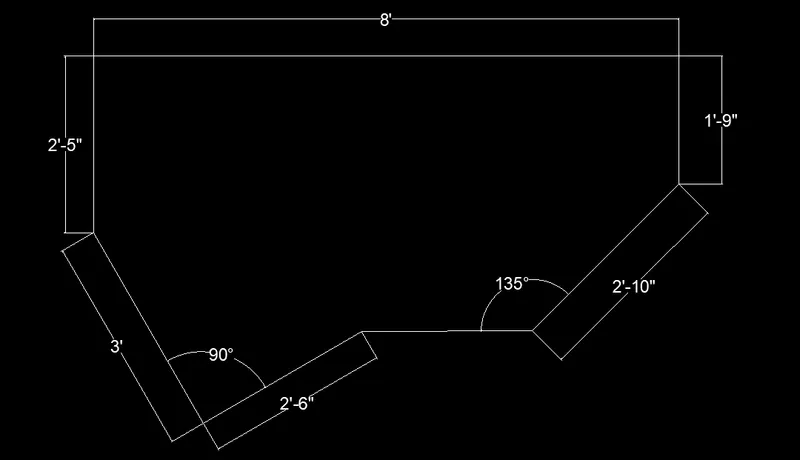

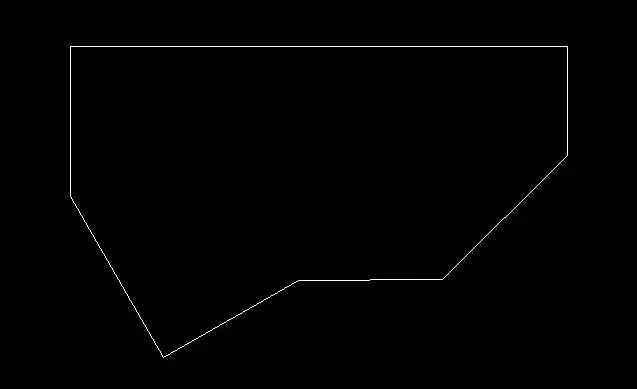

PROCEDURE FOR FIGURE-2

• Open autocad use command UNIT and set units to arctitectural from decimal give precision of 0'0"
• take LINE command draw line of @2'10"<45
• draw next line @ 1'9"<90

• continue with line command and draw net line @8'<180
• from last point draw line @2'5"<270
• continue with same method measure all next dimension and complete geometry.

• show all dimension using dimention tool.

RESULT :- GIVEN DRAWING IS SUCCESFULLY DRAWN.

FIGURE-3

AIM-TO DRAW FIGURE-3 GIVEN IN ATTACHMENT.

COMMAND USED IN FIGURE-3

• LINE
• CIRCLE
• DIMSTYLE
• UNITS

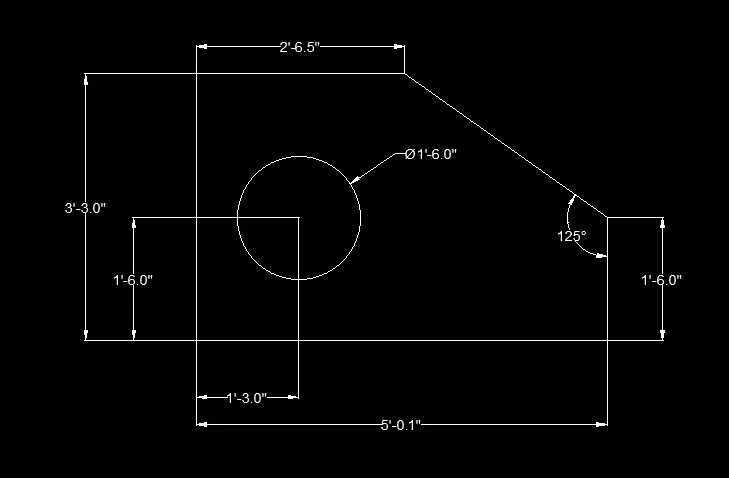

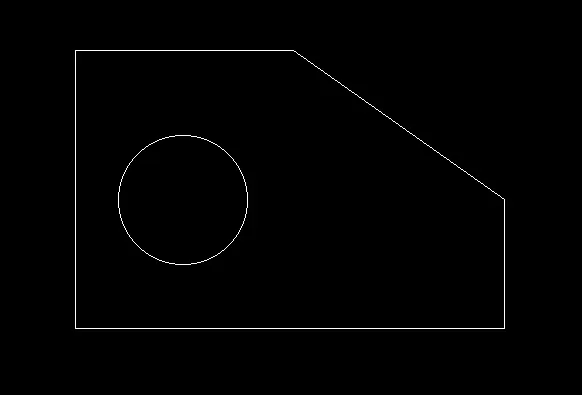

PROCEDURE FOR FIGURE-3

• Open autocad set units to engineering from decimal and give precision of 0'0.0"
• take LINE command draw vertical line of 1'3.0"
• from last point draw line of @5' 0.1" in horizontal direction
• next line @1' 6" in vertical direcction

• continue with same method measure all next dimension and complete geometry.
• now take CIRCLE command .
• now take the diameter of circle 1' 6" and put the circle at point of (1' 3" , 1'6").

RESULT :- GIVEN DRAWING IS SUCCESFULLY DRAWN.

FIGURE-4

AIM-TO DRAW FIGURE-4 GIVEN IN ATTACHMENT.

COMMAND USED IN FIGURE-4

• LINE
• DIMSTYLE
• UNITS

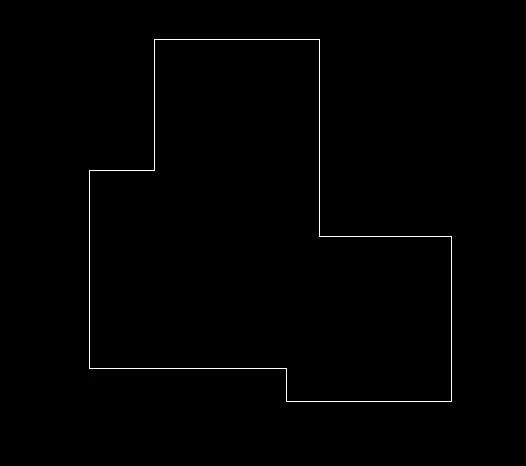

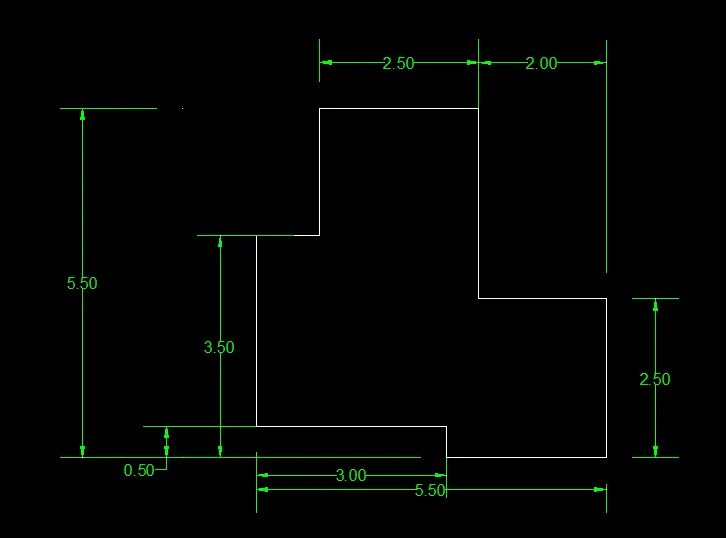

PROCEDURE FOR FIGURE-4

• take LINE command draw vertical line of 3 units in horizontal diraction.
• draw next line of 0.5 in downword of last point.
• draw next line in same diraction of 2.5 unit.
• now draw next line of 2.5 units in vertical direction from last point.
• continue with same method measure all next dimension and complete geometry.

RESULT :- GIVEN DRAWING IS SUCCESFULLY DRAWN.

FIGURE-5

AIM-TO DRAW FIGURE-5 GIVEN IN ATTACHMENT.

COMMAND USED IN FIGURE-5

• LINE
• RECTANGULAR
• CIRCLE
• DIMSTYLE
• UNITS

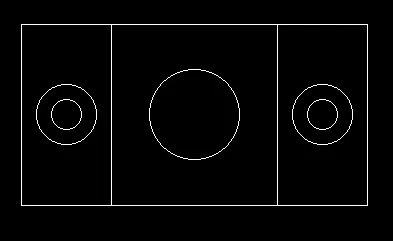

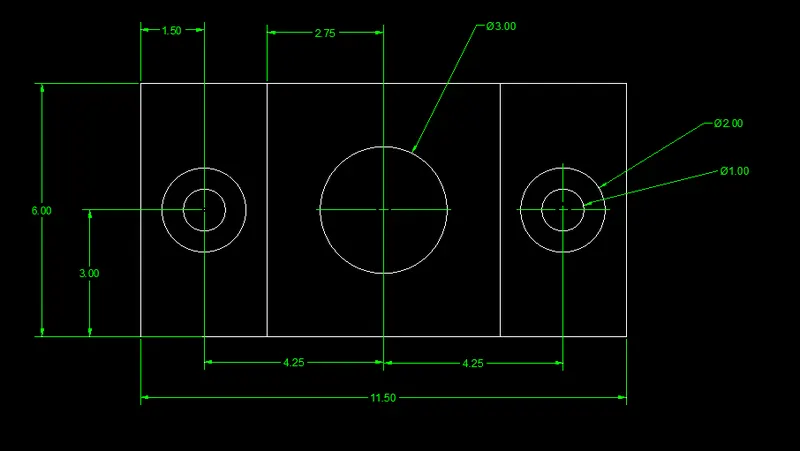

PROCEDURE FOR FIGURE-5

• open autocad take ractangular command and draw rectangular of in dimension of 11.5x6.0

• now take line command and draw two lines at 3 lents units from both ends.

• take CIRCLE command draw two circle diameter of 1 and 2 then put that circle in center of both rectangular

• show all dimension using dimention tool.

RESULT :- GIVEN DRAWING IS SUCCESFULLY DRAWN.

FIGURE-6

AIM-TO DRAW FIGURE-6 GIVEN IN ATTACHMENT.

COMMAND USED IN FIGURE-6

• LINE
• DIMSTYLE
• UNITS

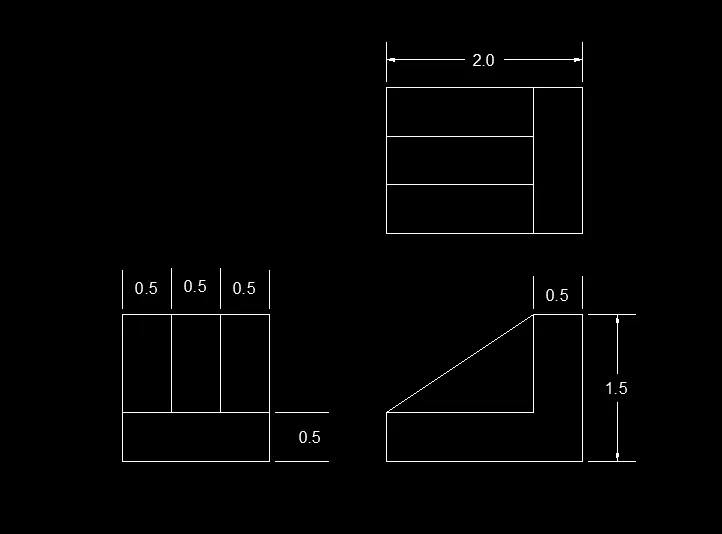

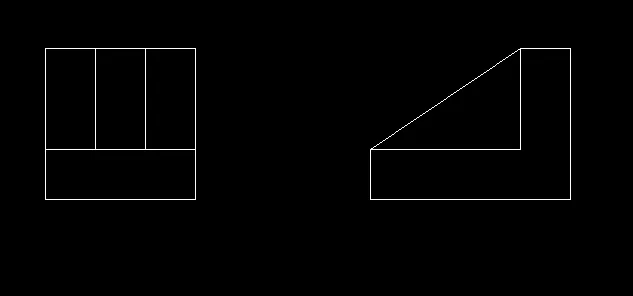

PROCEDURE FOR FIGURE-6

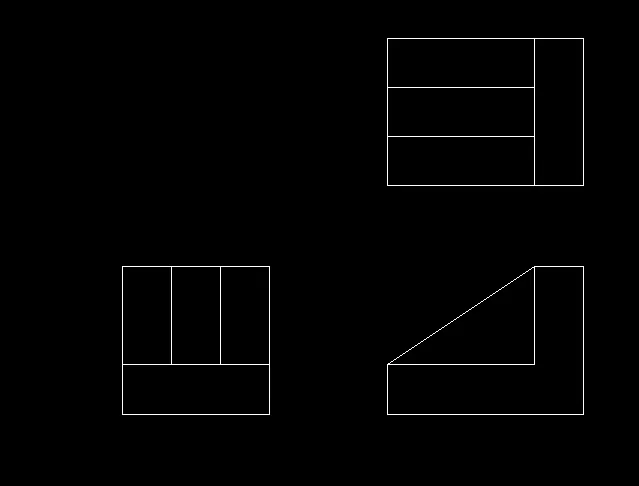

• open autocad take line command draw line of 1.5 in horizontal diraction then drae next line of 0.5 units in vertical direction of last point
• draw simmular three box of 0.5x1 in vertical diraction.

• from last figuer take both bottom line in horizontal direction nd draw 2 units line.
• give height of 1.5 from bottom.and complete second figure.

• from last figure take measurment of vertical lines and draw line of 1 units.
• continue with same method measure all next dimension and complete third figure.

• show all dimension using dimention tool.

RESULT :- GIVEN DRAWING IS SUCCESFULLY DRAWN.

FIGURE-7

AIM-TO DRAW FIGURE-7 GIVEN IN ATTACHMENT.

COMMAND USED IN FIGURE-7

• LINE
• CIRCLE
• FILLET
• TRIM
• DIMSTYLE
• UNITS
• OFFSET
• RECTANGULAR

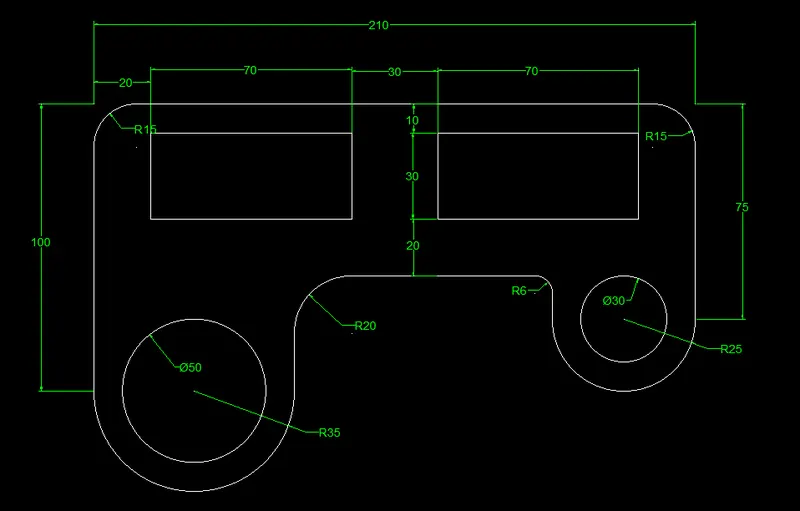

PROCEDURE FOR FIGURE-7

• take line command and draw the line of 100 units in vertical direction continue with last point draw next line of 210 units in right side direction .
• from last point draw line of 75 units in downword directon.

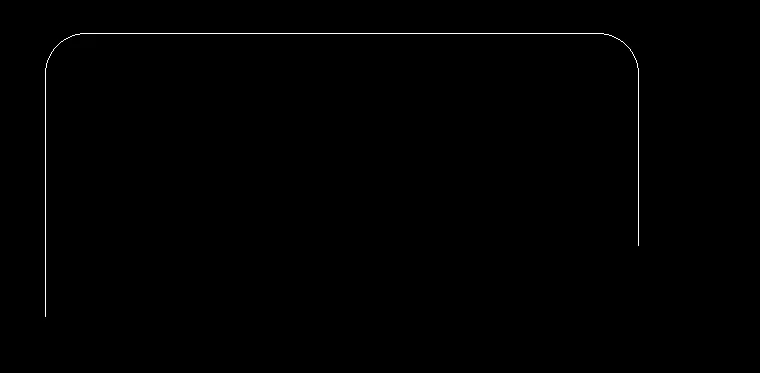

• now take the FILLET command and give fillet of 15Radius at the both end.

• now take CIRCLE command and draw 50diameter and 35 radius circle on the left side bottom.
• same as above draw 30 diameter and 25 radius circle on right side bottom.
• now take offset command nd offset the line of 210 units in downword direction.

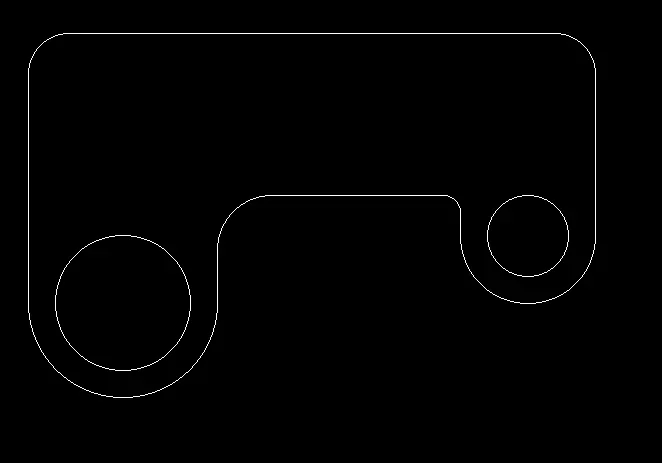

• give fillet at both side wich is touch the circle nd dimension of fillet is 20 radius and 6 radius.

• take RECTANGULAR command and give dimension of 70x30 and put as given in drawing
• show all dimension using dimention tool.

RESULT :- GIVEN DRAWING IS SUCCESFULLY DRAWN.

FIGURE-8

AIM-TO DRAW FIGURE-8 GIVEN IN ATTACHMENT.

COMMAND USED IN FIGURE-8

• LINE
• CIRCLE
• FILLET
• TRIM
• DIMSTYLE
• UNITS

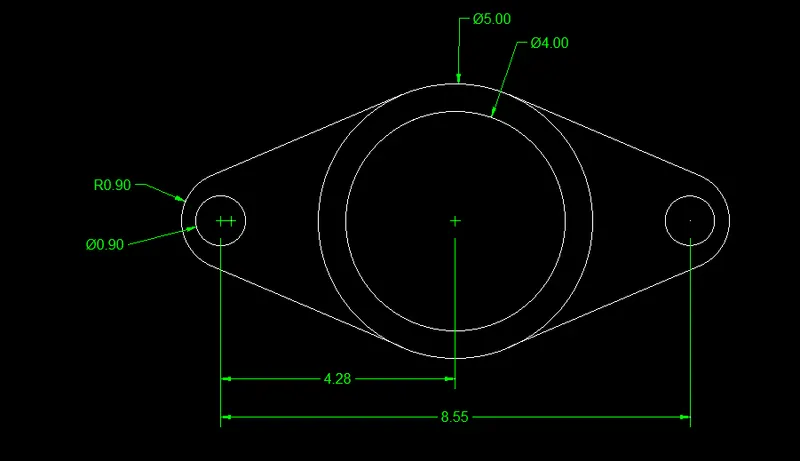

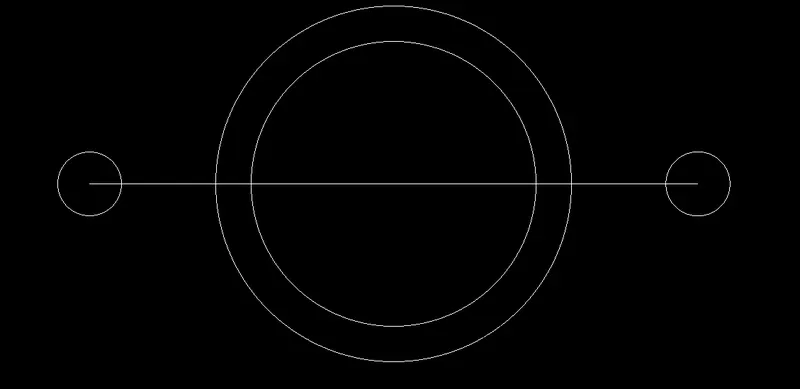

PROCEDURE FOR FIGURE-8

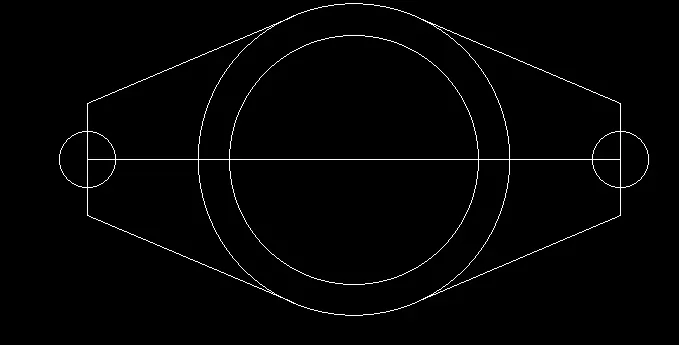

• using LINE command draw line of 8.55 units in horizontal direction.
• now take CIRCLE command nd draw circle at midpoint of line with two diffrent diameter 5 and 4.
• now draw circle of 0.90 diameter at the both end of line.

• now take line command and draw line of 1.8 units at both end andconnect thta line to the tangant of bigger circle.

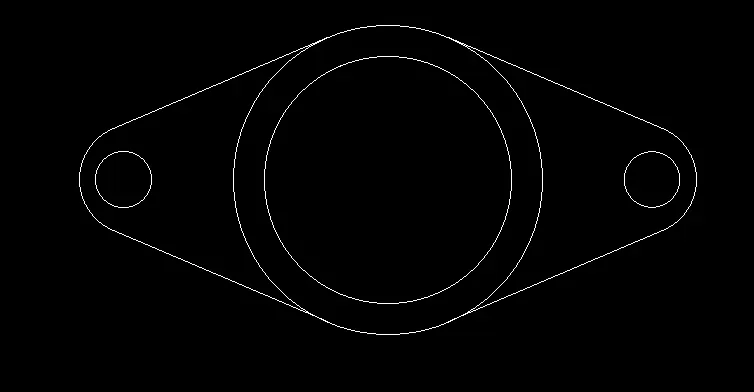

• now use FILLET command and give fillet of 0.90 radius at the both line.
• using TRIM command remove unneccesory part in figure.

• show all dimension using dimention tool.

RESULT :- GIVEN DRAWING IS SUCCESFULLY DRAWN.

FIGURE-9

AIM-TO DRAW FIGURE-9 GIVEN IN ATTACHMENT.

COMMAND USED IN FIGURE-9

• LINE
• CIRCLE
• CURVE
• TRIM
• DIMSTYLE
• UNITS

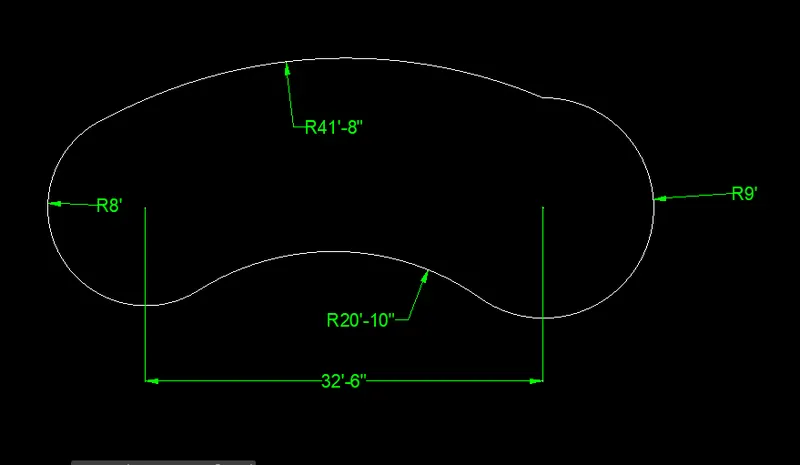

PROCEDURE FOR FIGURE-9

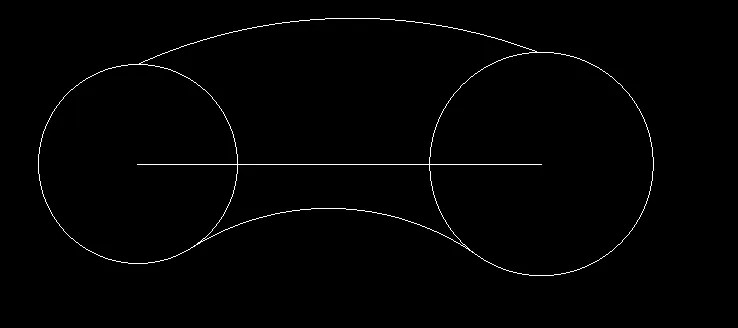

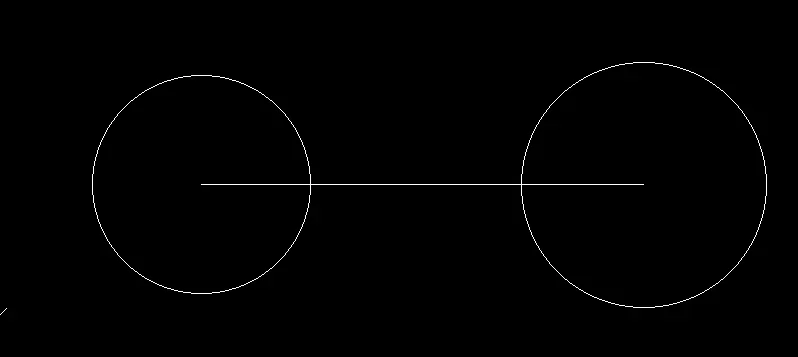

• Take LINE command and draw the line of 32'6" horizontaly.
• now using CIRCLE command draw two circle 8radius at left side and 9 radius right side.

• now use CURVE command and give upper side curve of 41'8"radius with conecting two tangent of circle.
• same as above lower curve of20'10" with connecting tangant of circle.

• use TRIM command and remove unneccesory part .
• show all dimension using dimention tool.

RESULT :- GIVEN DRAWING IS SUCCESFULLY DRAWN.

FIGURE-10

AIM-TO DRAW FIGURE-10 GIVEN IN ATTACHMENT.

COMMAND USED IN FIGURE-10

• RACTANGULAR
• ROTATE
• OFFSET
• TRIM
• DIMSTYLE
• UNITS

PROCEDURE FOR FIGURE-10

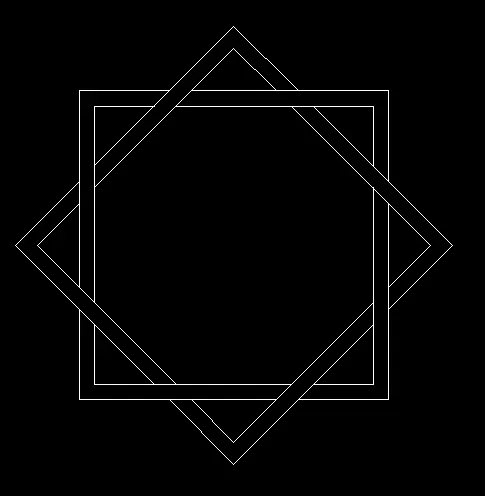

• draw ractangular of 10x10 using RACTANGULAR command.

• now take OFFSET command and give offset of 0.5.

• now use ROTATE command and using copy option give rotation of 45 degree.
• use TRIM command and remove unneccesory part .

RESULT :- GIVEN DRAWING IS SUCCESFULLY DRAWN.

FIGURE-11

AIM-TO DRAW FIGURE-11 GIVEN IN ATTACHMENT.

COMMAND USED IN FIGURE-11

• LINE
• RECTANGULAR
• MOVE
• ROTATE
• TRIM
• DIMSTYLE
• UNITS

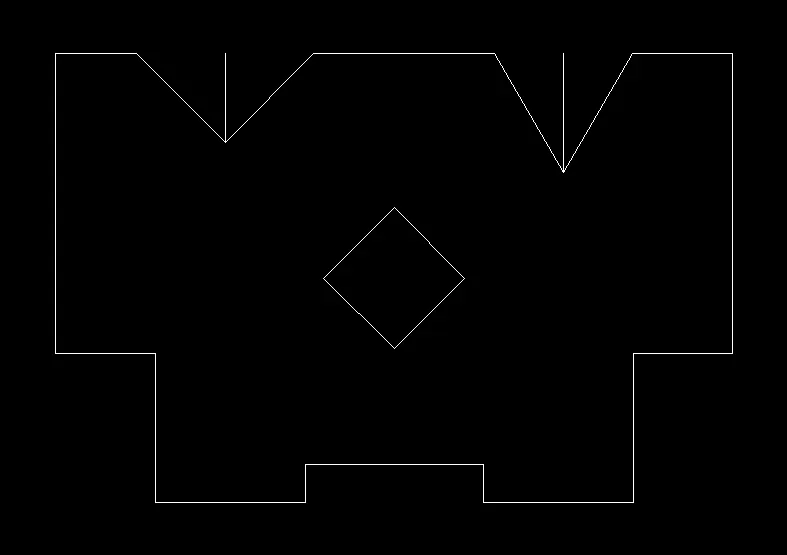

PROCEDURE FOR FIGURE-11

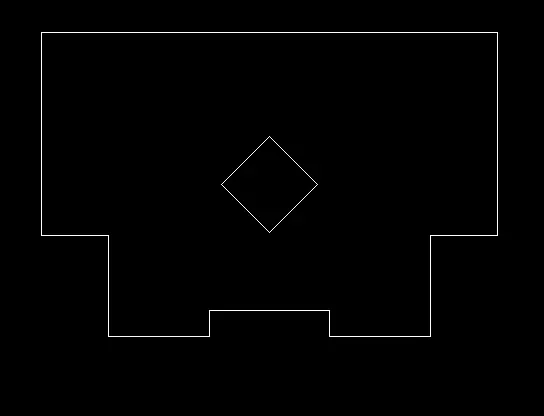

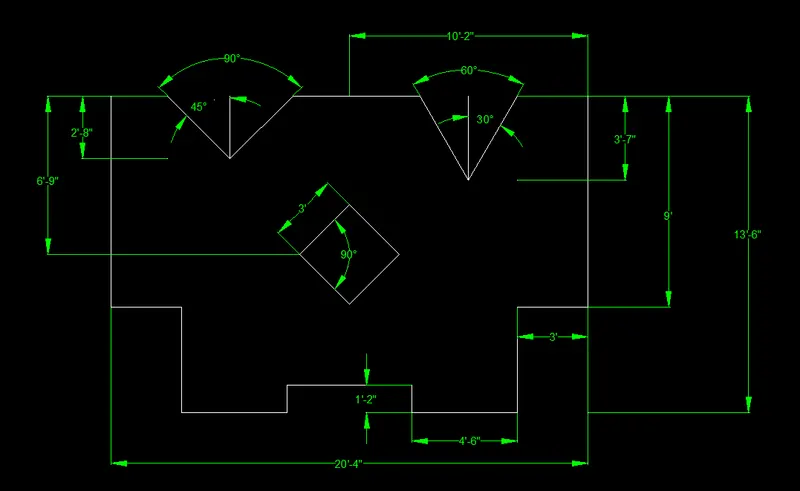

• using LINE command draw line of 4'6" horizontaly.
• continue with last point draw line of 1'2" downwords.
• next draw line of 4'6" to horizontal in right side.
• next draw line of 4'6" to upside from last point.
• continue with same method measure all next dimension and complete geometry.
• now we take RECTANGULAR command and draw rectangular of 3x3 separately.
• now we give ROTATE to that circle of 45 degree.
• now using MOVE command move that rectangular to the center of last geometry.

• Now we put angle of 45 and 50 degree at the left side distance of 5'1"
• same as above angle of 30 degree at the right side of distance 5'1"

• use TRIM command and remove unneccesory part .
• show all dimension using dimention tool.

RESULT :- GIVEN DRAWING IS SUCCESFULLY DRAWN.
