Creation of geometries by Coordinate system methods using AutoCad

ANS

This all drawings are done by coordinates system.

UNITS- Decimal

in the coordinate system we have to take a distance form origin of the drawing

COMMANDS USED IN ALL DRAWING

- LINE

- CIRCLE

- UN FOR UNITS

PROSEDURE FOR DRAWING

-First take a one point for origin like (0,0),(1,1) etc.

-after that masure the distance of second point.

-continue with this method and complete the geometry.

ALL DRAWINGS ARE SHOWEN BELLOW.

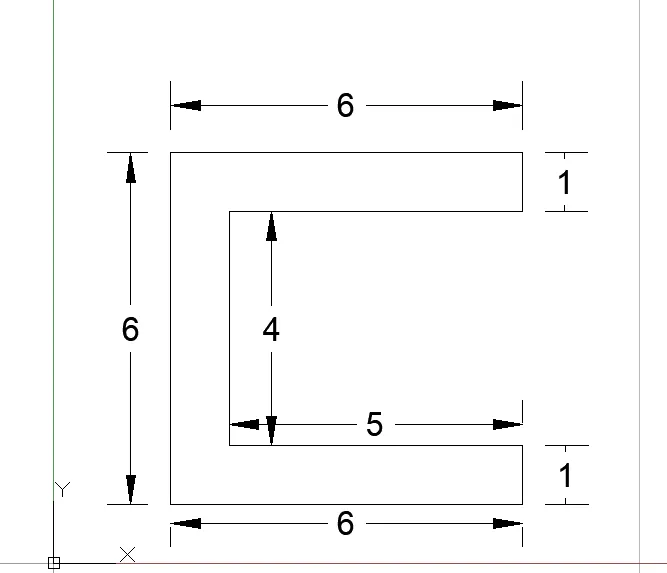

P1-

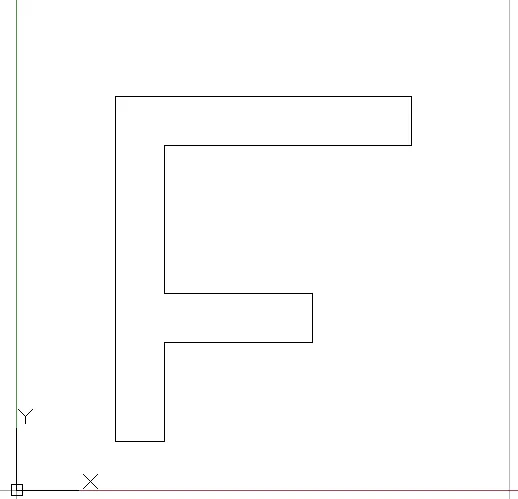

P2-

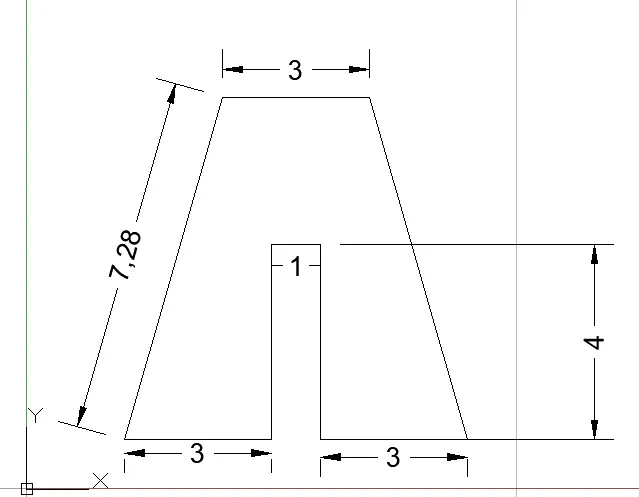

P3-

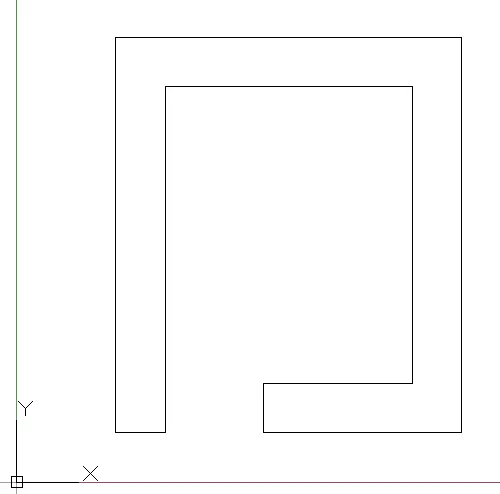

P4-

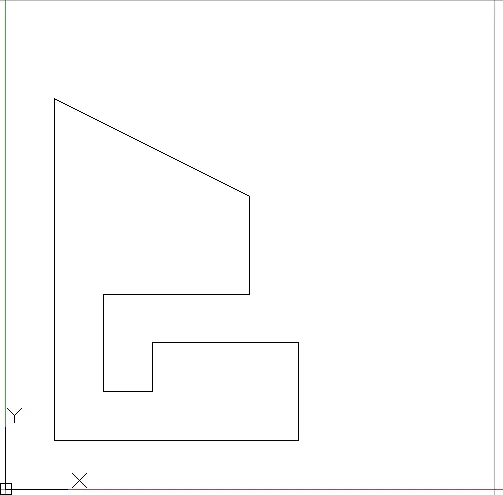

P5-

P6-

P7-

P8-

P9-

P10-

PROFILE-1

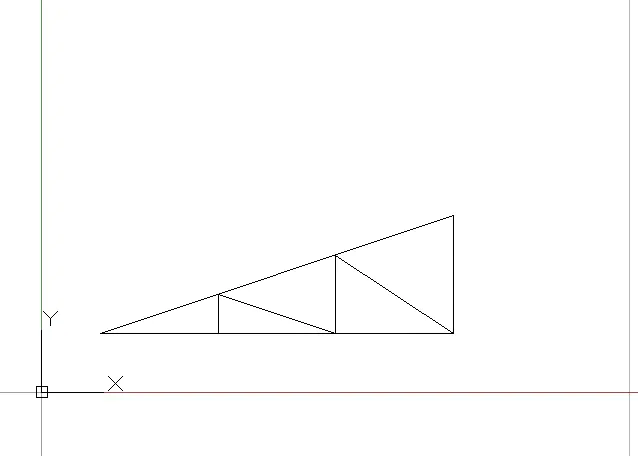

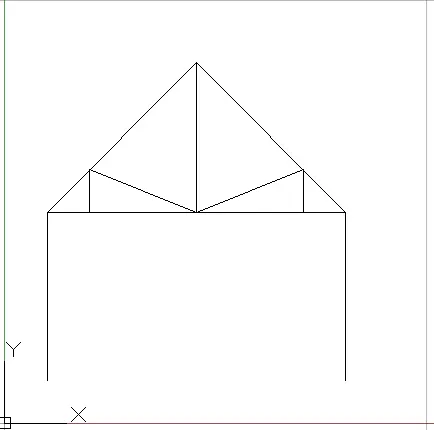

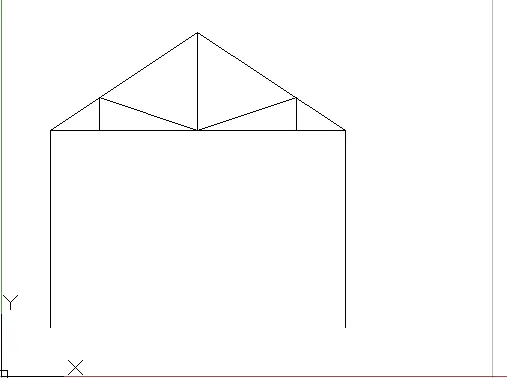

TRUSS-1

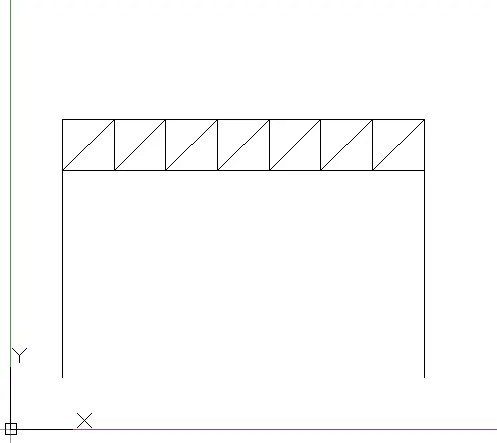

TRUSS-2

TRUSS-3

TRUSS-4
